EPON OLT PX20 SFP Fiber Transceiver Module X1490nm/RX1310nm 1.25G PX20 20KM DDM
- Category: >>>
- Supplier: Shenzhen Serat Technology Co. Ltd.
Share on (1600618499544):
Product Overview
Description
【 Specification 】

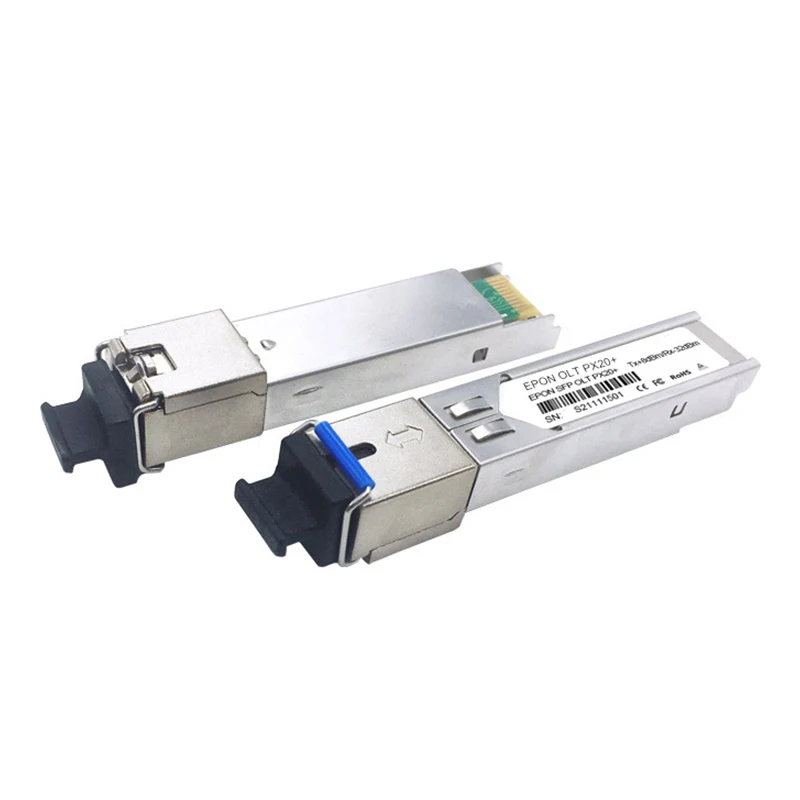

GEPON PX20++ SFP OLT Transceiver
Introduction:
The EPON PX20+++ SFP transceiver is the high performance module for single fiber by using 1490nm continuous-mode transmitter and 1310nm burst-mode receiver.
Main Feature:
1. Single Fiber Transceiver with single mode SC receptacle
2. 1490nm continuous-mode transmitter with DFB laser
3. 1310nm burst-mode receiver with APD-TIA
4. Single 3.3V power supply
5. Reset burst-mode receiver design
6. Burst mode signal detect output which is LVTTL compatible.
7. Burst mode received signal strength indication (RSSI) output
8. 20Km Reach 30dB link budget

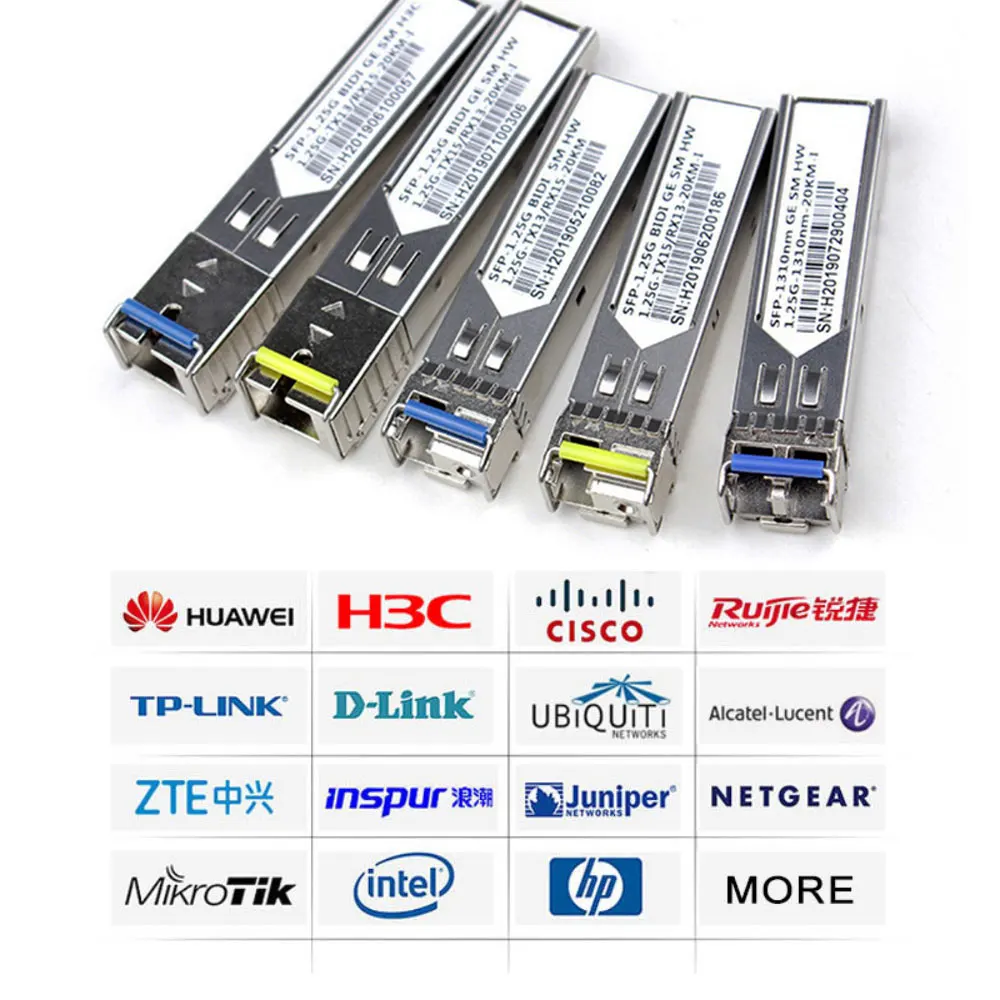

9. Complies with huawei,zte,fiberhome,bdcom OLTs
10. Operating case temperature: Standard : 0 to +70°C
2. 1490nm continuous-mode transmitter with DFB laser
3. 1310nm burst-mode receiver with APD-TIA
4. Single 3.3V power supply
5. Reset burst-mode receiver design
6. Burst mode signal detect output which is LVTTL compatible.
7. Burst mode received signal strength indication (RSSI) output
8. 20Km Reach 30dB link budget
9. Complies with huawei,zte,fiberhome,bdcom OLTs
10. Operating case temperature: Standard : 0 to +70°C
Form Factor | EPON OLT PX20+ |
Compatibility | HUAWEI,ZTE,FIBERHOMR,V-SOL,C-DATA, |
Transmitter | 1310NM,1490NM |
Data Rate (max) | 1.25 |
Low End Case Temperature (°C) | -40°C |
High End Case Temperature (°C) | 85°C |
Diagnostics: | DDM/DOM |
CWDM | 1310nm burst-mode receiver with APD-TIA |
Individually Tested | YES |
Fiber Type | Multi Mode |
power supply | 3.3V |
Certification: | TUV/CE/FCC/RoHS/INMETRO |
