HONTEC XHM350A J Laminating machine with imported materials ilicone rubber rollers
- Category: >>>
- Supplier: Dongguan Huiyue Technology Co. Ltd.
Share on (1600618512552):
Product Overview
Description
Product Overview

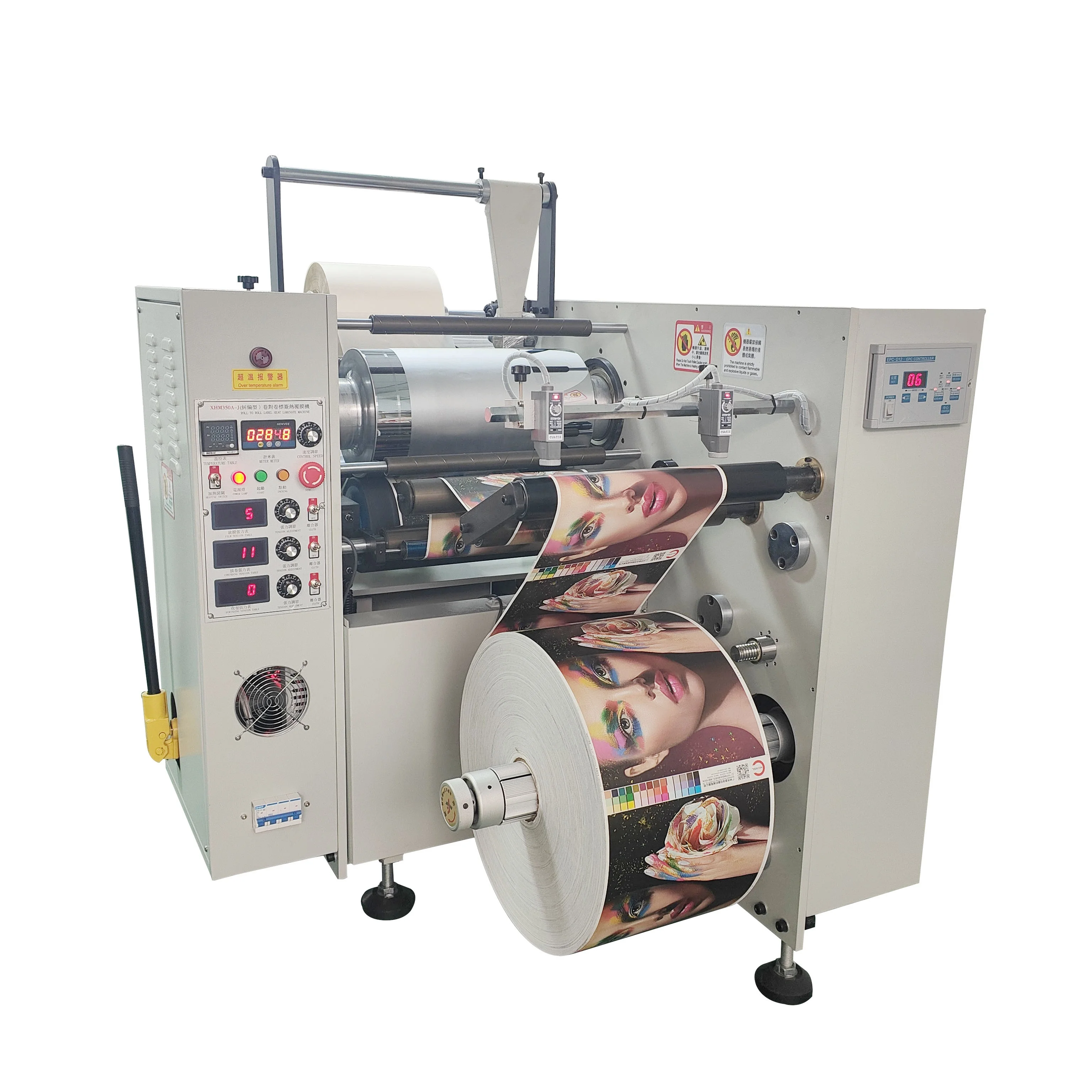

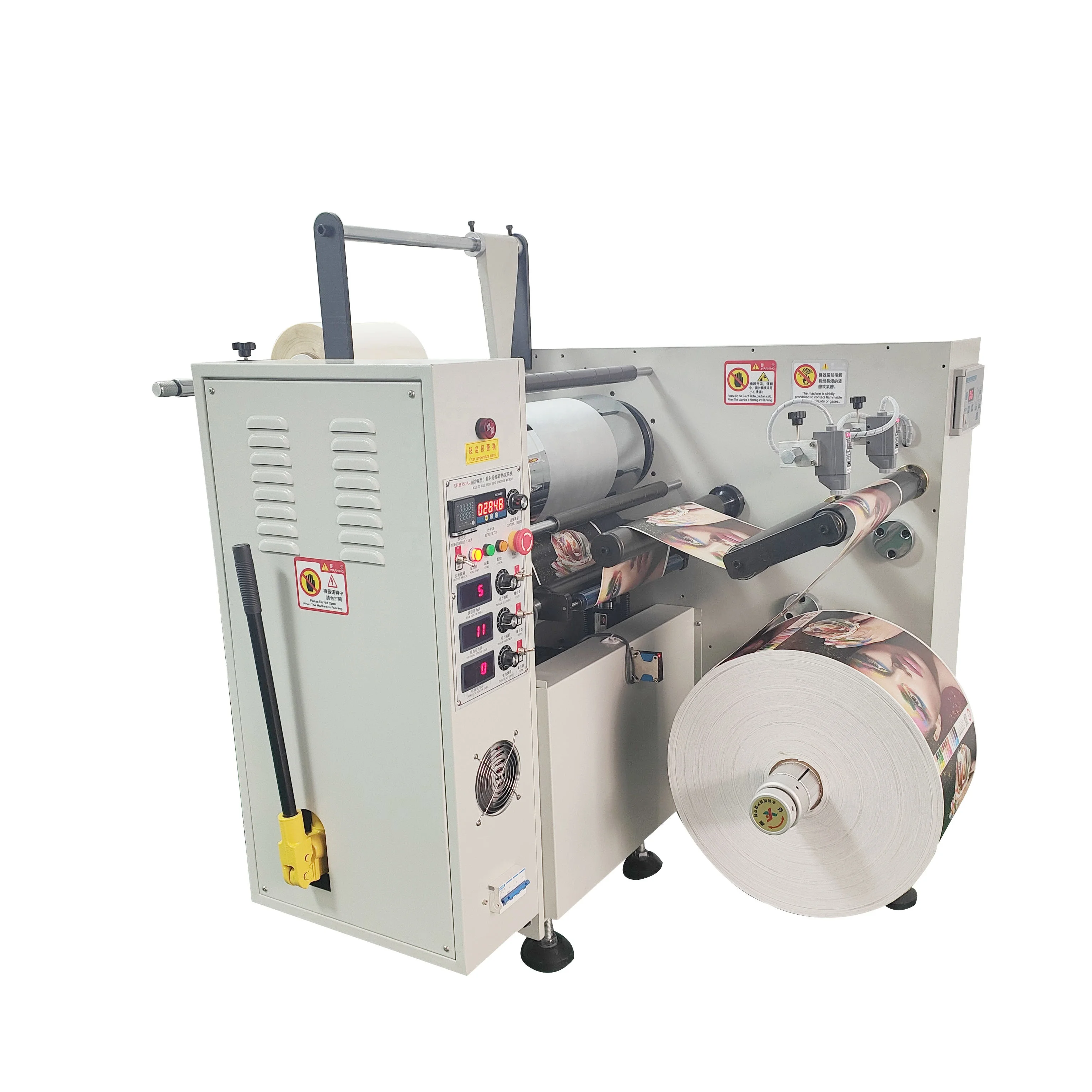

XHM350A-J Roll to Roll Label Heat Laminate Machine
XHM350A-J Roll to Roll Label Heat Laminate Machine with Tag anti-curling device for for the compounding of various synthetic paper, pearlescent film, silver-eliminating dragon, bright silver, PET, PP, cardboard, copper board and other roll materials.
FEATURES AT A GLANCE
characteristic
1. silicone rubber rollers imported materials, with sticky ink under high temperature, high pressure, non-stick characteristics of the paper;
2. magnetic clutch brake tension control, tension can be adjusted according to the need of the corresponding size;
3. photoelectric automatic tracking correction system, non-contact touch long life, high reliability, corrective effect is more ideal;
4. Manual Oil pressure booster system to provide greater composite coating roller, the pressure is sufficient to meet the needs of a variety of laminating film;
5.Tag anti-curling device(this has country been patented,patent number:2015208631878).
2. magnetic clutch brake tension control, tension can be adjusted according to the need of the corresponding size;
3. photoelectric automatic tracking correction system, non-contact touch long life, high reliability, corrective effect is more ideal;
4. Manual Oil pressure booster system to provide greater composite coating roller, the pressure is sufficient to meet the needs of a variety of laminating film;
5.Tag anti-curling device(this has country been patented,patent number:2015208631878).
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Name: | XHM350A-J Roll to Roll Label Heat Laminate Machine (Correcting) | |
Model: | XHM350A-J | |
Max. Rewind diameter： | 620mm | |
Roll laminating width： | 100mm（min）～350mm（max） | |
Core Diameter： | 76mm | |
Hot Roller length： | 390mm | |
Laminating Speed： | 6～65m/min | |
Laminating Temperature: | 80-130℃ | |
Heating Way： | Heating oil | |
Heat conducting oil Model： | 320# | |
Voltage and Power： | 380V、6KW | |
Overall Dimension： | 1380×1100×1250mm | |
Weight： | 0.7t | |
Standard configuration: cutting membrane knife group or dusting roller device. | ||
PRODUCT CONFIGURATION
Precision accessories
Deviation correction sensor

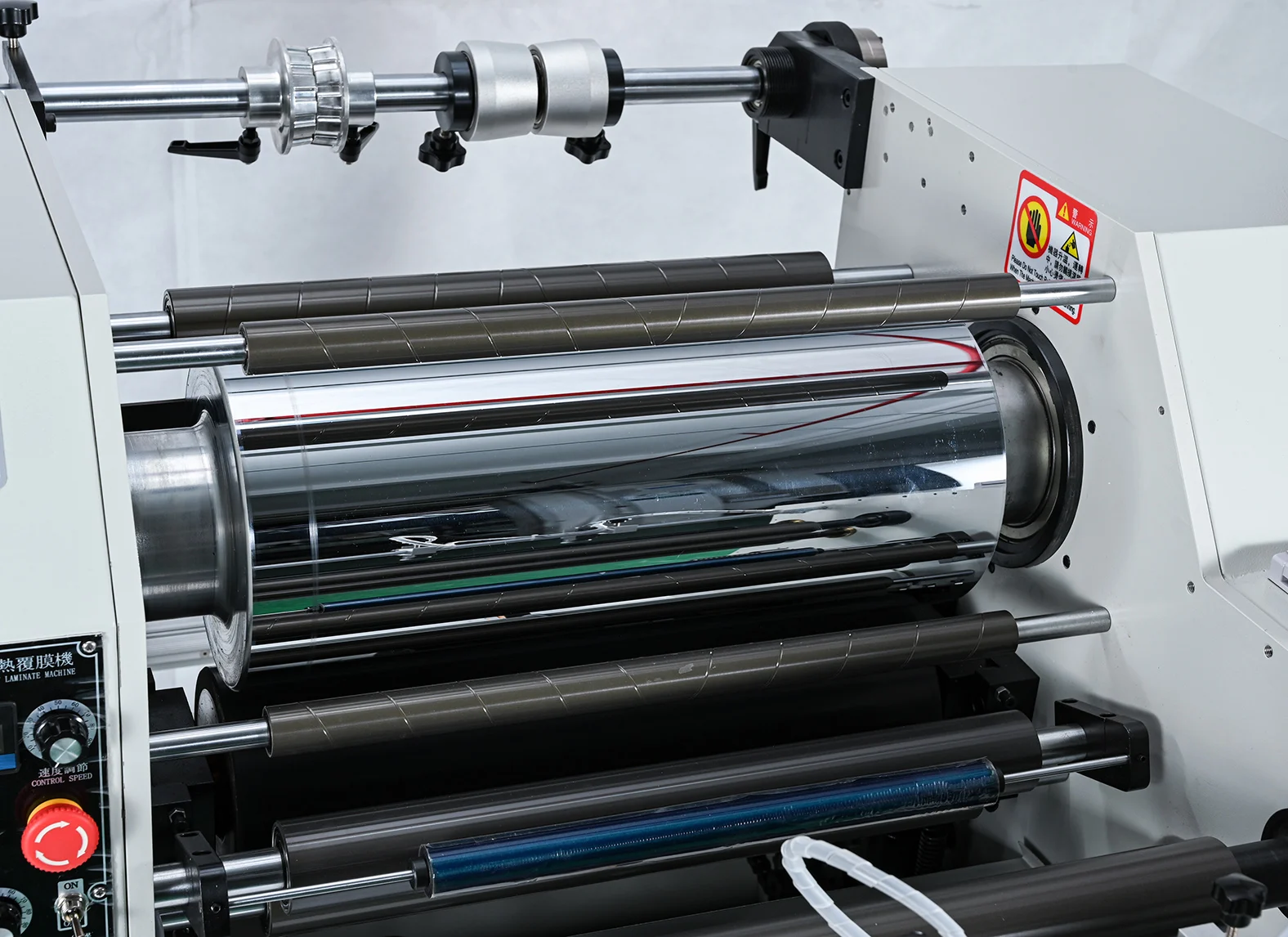

High precision heating roller
Overtemperature safety warning
Perfect appearance design，Beautiful and practical
Hydraulic pump imported from Taiwan
SIMILAR PRODUCTS
LOGISTICS MODE WE SUPPORT
We will wrap the machine with a film first, then put it into a wooden box for fixation, seal the box, and then load it
COMPANY INTRODUCTION
HONTEC was founded in 2003,and its technical team is composed of many senior professional engineers and overseas engineers,We are decicated to the development, production and sales of narrow-web printing equipment.
HONTEC has been following the trend of international label development,constantly innovating and developing,and has developed a number of Label finishing machines suitable for the market.
We can provide customers with;high speed flat bed die cutting,slitting,printing,cold foil,hot stamping,laser die cutting,flat die cutting,semi-rotary die cutting,slitting,glue killing and cutting sheets and other complete set of label finishing production lines,Especially suitable for intermittent PS/letterpress printing and label digital finishing.
Our goal;to make label production easier and more reliable
HONTEC has been following the trend of international label development,constantly innovating and developing,and has developed a number of Label finishing machines suitable for the market.
We can provide customers with;high speed flat bed die cutting,slitting,printing,cold foil,hot stamping,laser die cutting,flat die cutting,semi-rotary die cutting,slitting,glue killing and cutting sheets and other complete set of label finishing production lines,Especially suitable for intermittent PS/letterpress printing and label digital finishing.
Our goal;to make label production easier and more reliable
Outside the factory
Covering an area of 10000 square meters
Factory workshop
58 employees in the production workshopoffice
Office staff: 23
FAQ
Q: are you a factory or a trading company?
A: We are a factory and manufacturer as well as a trading company.
Q: where is your factory? How can I visit there?
A: our factory is located in Dongguan City, Guangdong Province. Our detailed address is No. 21 Dakan Road, Huangjiang Town, Gongguan City, Guangdong Province, China.
It is only 40 minutes' drive from Shenzhen Airport.
Q: what are your main products?
A: Our main products are high-speed precision die cutting machines, cutting machines, slitting machines, compound machines and printing machines.
A: Our main products are high-speed precision die cutting machines, cutting machines, slitting machines, compound machines and printing machines.
Q: which industries can use your machine?
A: All industries that need cutting (including full cutting and kiss cutting), slitting, laminating and die cutting raw materials can use our machines. Mainly used for materials before and after cutting and / or printing.
A: All industries that need cutting (including full cutting and kiss cutting), slitting, laminating and die cutting raw materials can use our machines. Mainly used for materials before and after cutting and / or printing.
Q: how to control the quality of the factory?
A: quality comes first. We strictly control the quality of products, from incoming materials to finished products. Our factory has obtained CE certification.
A: quality comes first. We strictly control the quality of products, from incoming materials to finished products. Our factory has obtained CE certification.
Q: if there are no available machines in your list, can we customize non-standard machines for you?
A: Yes, we have our own professional design engineers, who can customize products according to your requirements. At present, 30% of our customers need to customize their machines.
A: Yes, we have our own professional design engineers, who can customize products according to your requirements. At present, 30% of our customers need to customize their machines.
Q: how about this package?
A: before placing the plywood wooden box, the fuselage will be covered with high-quality PE film. The forklift is easy to upload and download. Safe transportation.
A: before placing the plywood wooden box, the fuselage will be covered with high-quality PE film. The forklift is easy to upload and download. Safe transportation.
Q: what are the trade terms?
A: EXW, FOB, CFR, CIF or DDU can be carried out according to the customer's requirements.
A: EXW, FOB, CFR, CIF or DDU can be carried out according to the customer's requirements.
Q: what terms of payment do you accept?
A: We can accept T / T payment. We need 30% of the total amount as a deposit, and 70% of the balance should be paid before delivery. We can also accept L / C, PayPal, private account, cash, etc.
A: We can accept T / T payment. We need 30% of the total amount as a deposit, and 70% of the balance should be paid before delivery. We can also accept L / C, PayPal, private account, cash, etc.
Q: how about the warranty?
A: All our machines have a one-year warranty. If necessary, we can send engineers to your factory to install and test. The buyer needs to pay round-trip air tickets, food, hotel and transportation expenses, and pay our engineers $100 / day / person as salary.
During the warranty period, if the spare parts are damaged, we will replace them for free. After the warranty period, we provide the whole life service of the machine, and the buyer shall pay for the replacement of spare parts and materials for maintenance.
Q: can you support video materials?
A: OK
A: All our machines have a one-year warranty. If necessary, we can send engineers to your factory to install and test. The buyer needs to pay round-trip air tickets, food, hotel and transportation expenses, and pay our engineers $100 / day / person as salary.
During the warranty period, if the spare parts are damaged, we will replace them for free. After the warranty period, we provide the whole life service of the machine, and the buyer shall pay for the replacement of spare parts and materials for maintenance.
Q: can you support video materials?
A: OK
