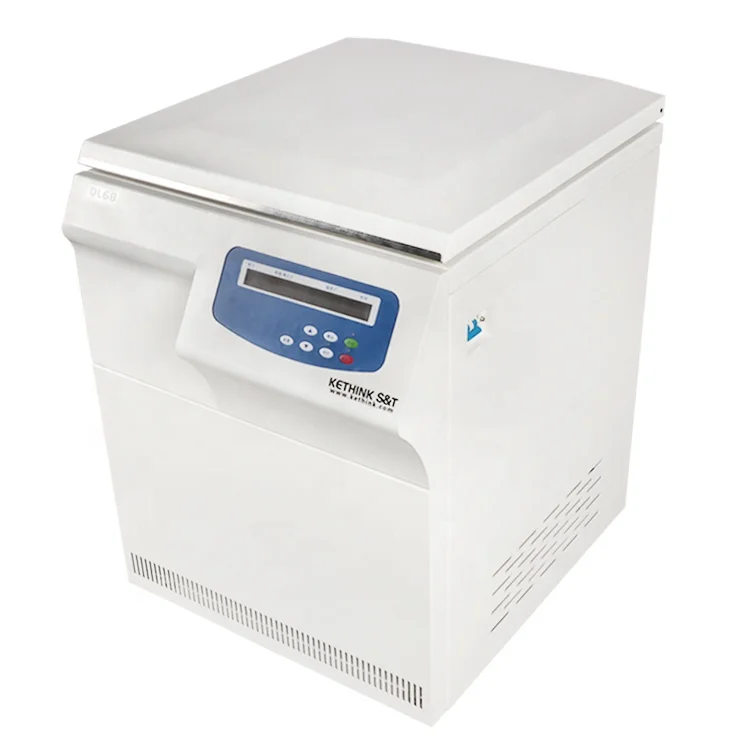

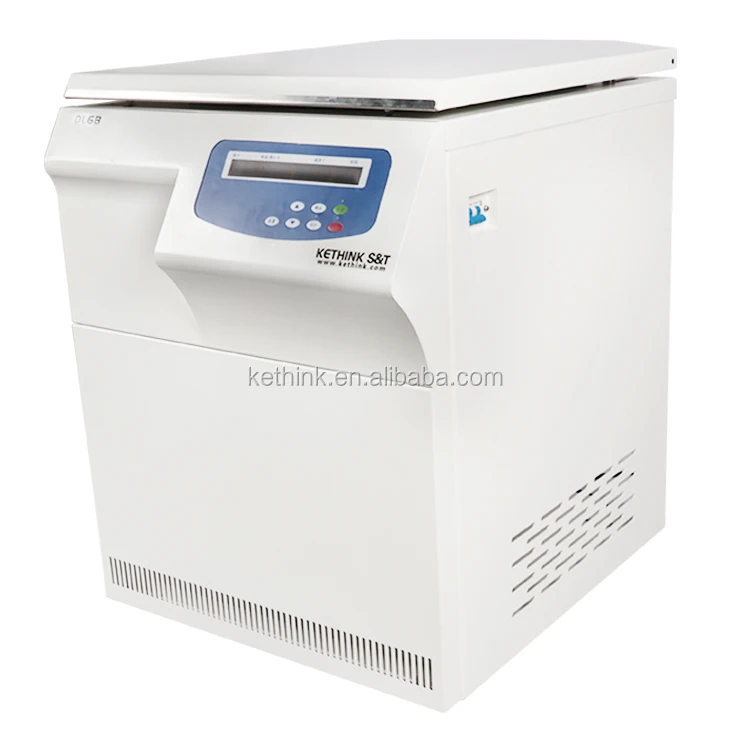

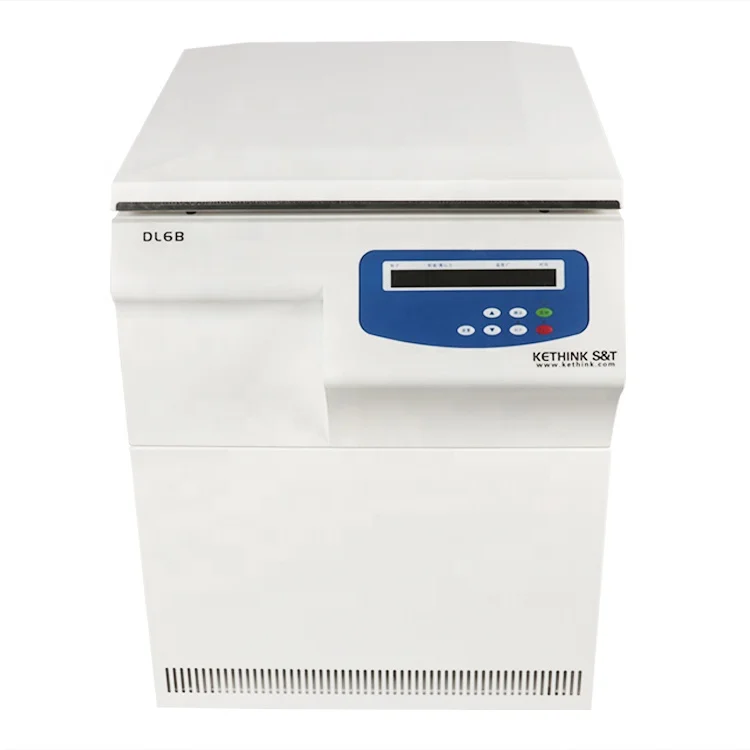

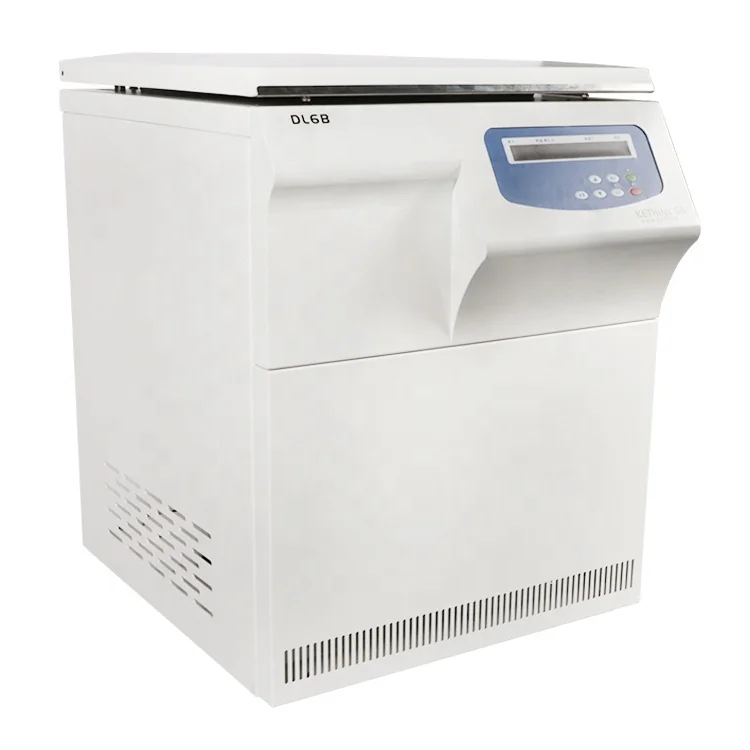

blood bank refrigerated centrige KT DL6B 6000rpm 4L blood bags refrigerated centrifuge machine used in blood bank
- Category: >>>
- Supplier: Changsha Kethink S&T Co. Ltd.
Share on (1600618521129):
Product Overview
Description
Product Description

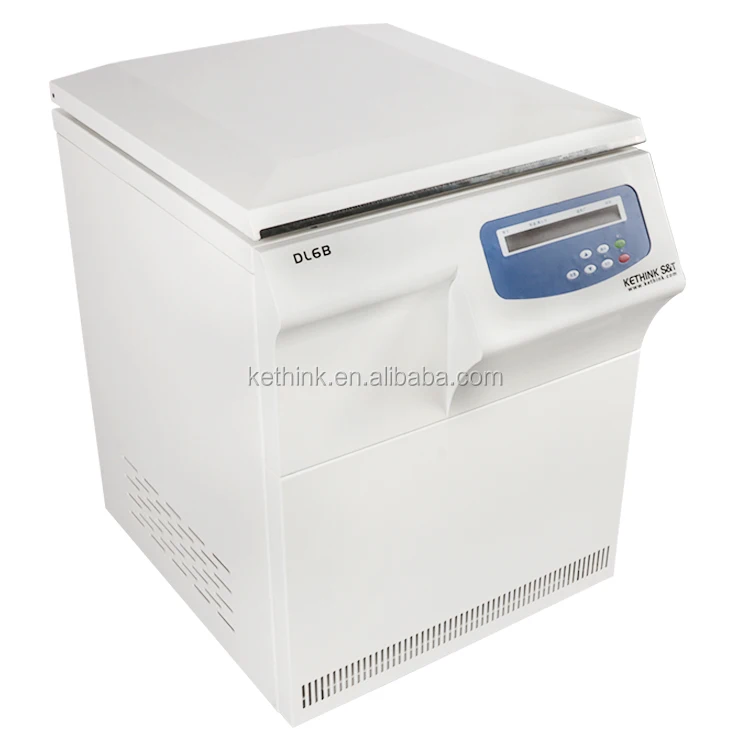

blood-bank-refrigerated-centrige KT-DL6B 6000rpm 4L blood bags refrigerated centrifuge machine used in blood bank
Features
1.Adopt carbon-free brush high-torque frequency-conversion motor, which is maintenance-free, free of dust pollution, and has a fast lifting speed.
2. The flexible shaft drive system is used to directly drive the rotor, which is stable in operation, low in vibration and low in noise.
3.Imported fluorine-free compressor unit, dual-cycle refrigeration, strong cold and heat exchange capacity, no environmental pollution, accurate temperature control.
4. Adopt microcomputer processor to control the rotation speed, temperature and time accurately, LCD touch display, 10 kinds of program storage, 10 kinds of lifting speed selection.
5.Door cover independent motor servo, reduce the labor intensity of the operator, over-speed, over-temperature automatic protection, unbalanced protection.The body is made of high-quality steel structure, built-in stainless steel explosion-proof protection inner sleeve, three-layer protection, safe and reliable, easy to use .
6. The rotor body adopts the national aviation standard aluminum material LC4, which is processed and formed by forging and A-level deep flaw detection treatment, and passes the static balance test and the dynamic balance test. To ensure the safety and reliability of the rotor body.
7.Three levels of vibration reduction, a single bag can be separated into 4 bags of 400ml, can be equipped with 1000ml centrifuge bottles, the centrifugal effect is the best.
2. The flexible shaft drive system is used to directly drive the rotor, which is stable in operation, low in vibration and low in noise.
3.Imported fluorine-free compressor unit, dual-cycle refrigeration, strong cold and heat exchange capacity, no environmental pollution, accurate temperature control.
4. Adopt microcomputer processor to control the rotation speed, temperature and time accurately, LCD touch display, 10 kinds of program storage, 10 kinds of lifting speed selection.
5.Door cover independent motor servo, reduce the labor intensity of the operator, over-speed, over-temperature automatic protection, unbalanced protection.The body is made of high-quality steel structure, built-in stainless steel explosion-proof protection inner sleeve, three-layer protection, safe and reliable, easy to use .
6. The rotor body adopts the national aviation standard aluminum material LC4, which is processed and formed by forging and A-level deep flaw detection treatment, and passes the static balance test and the dynamic balance test. To ensure the safety and reliability of the rotor body.
7.Three levels of vibration reduction, a single bag can be separated into 4 bags of 400ml, can be equipped with 1000ml centrifuge bottles, the centrifugal effect is the best.
Application
blood stations, biochemistry, biological products, blood separation, protein precipitation, cell separation and other production and scientific research units.

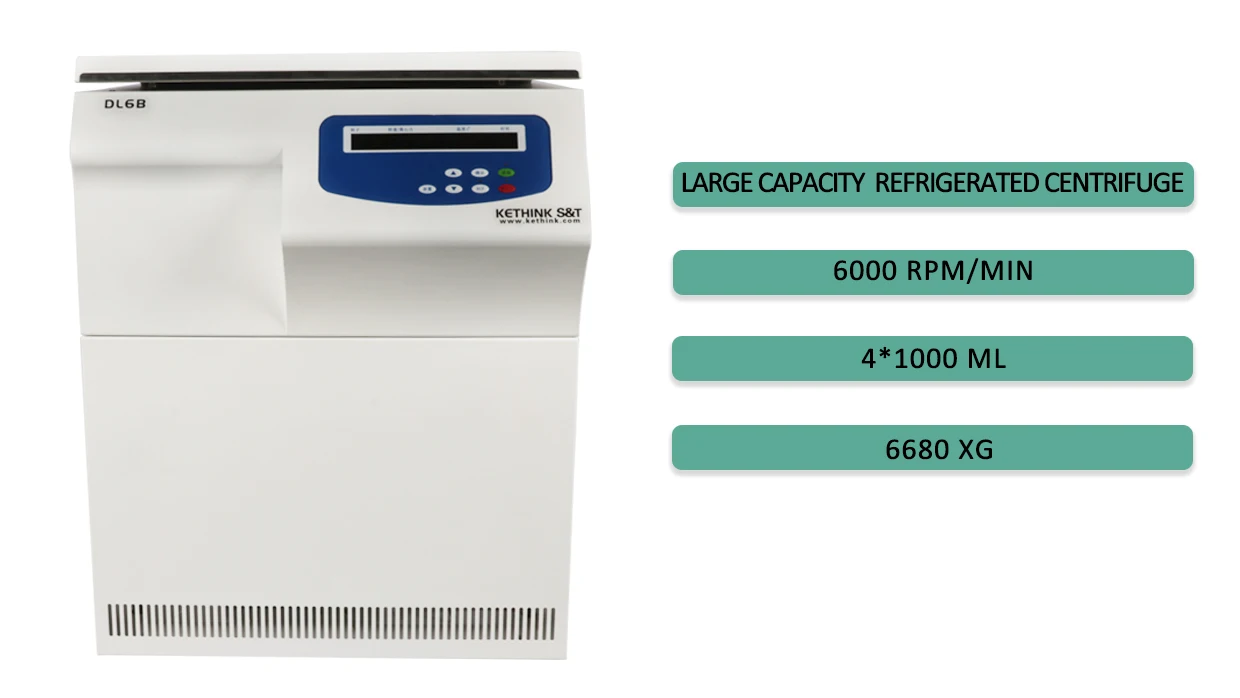

Technical Data
Model | DL6B |
Max Speed | 6000 rpm |
Max RCF | 6680 xg |
Max Capacity | 4*1000ml |
Rotating Speed Accuracy | ±20rpm |
Temperature Range | -20°C ~ +40°C |
Temperature Accuracy | ±1°C |
Display | LCD touch screen |
Timer Range | 1 ~ 24h59min |
motor | AC frequency conversion |
Power Supply | 220V 50Hz 30A |
Compressed Units | imported environmentally friendly refrigerant |
Power | 1.2KW |
Noise | ≤62dB（A） |
Device Dimensions | 710 * 650 * 850 mm(L*W*H) |
Net Weight | 180Kg |

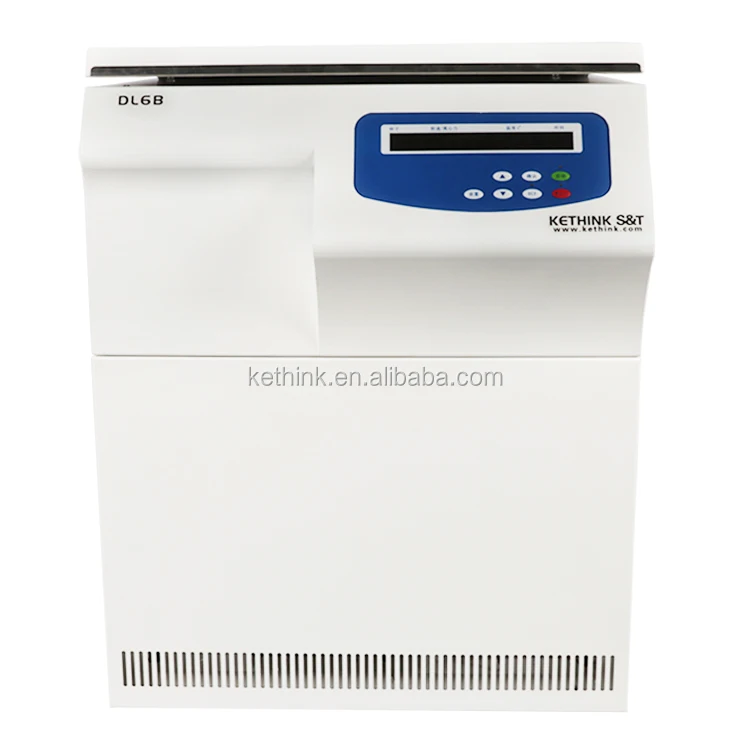

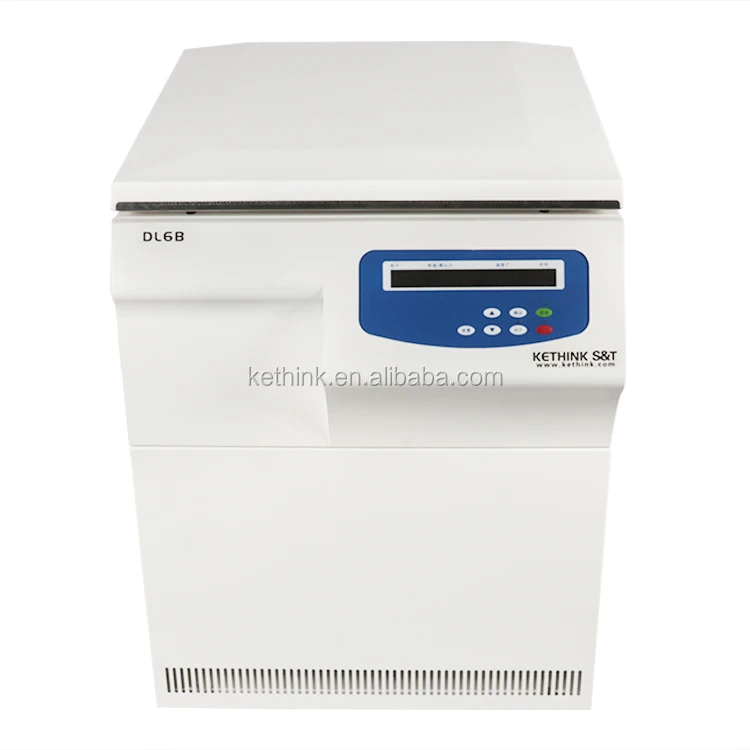

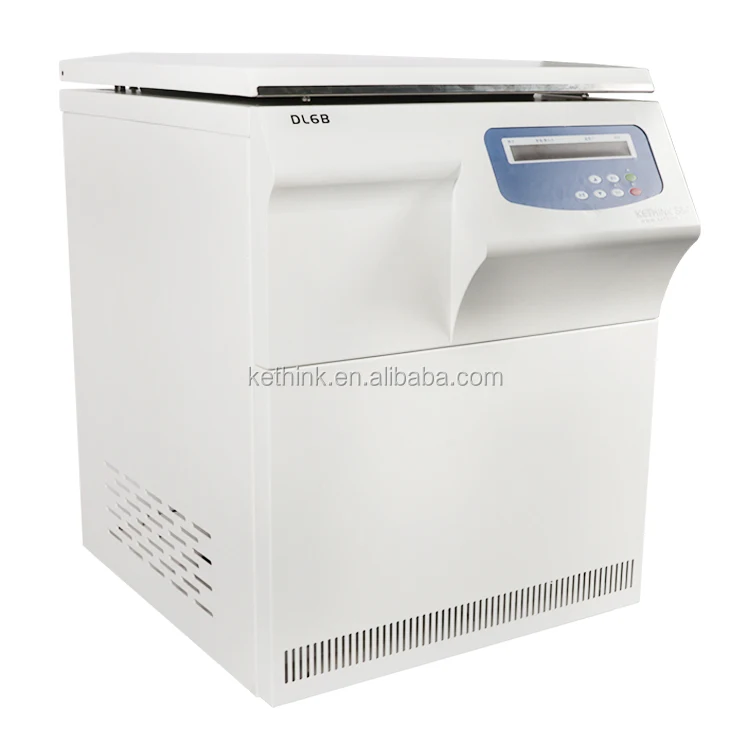

Detailed Images
Main Components
Matched Rotors
NO | Item | Capacity(ml) | Max Speed(rpm) | Max RCF(xg) |
1 | Angle rotor | 6 x 100ml （round） | 6000rpm | 5450xg |
2 | 6 x 300ml （round） | 6000rpm | 5450xg | |
3 | 6 x 500ml （round） | 6000rpm | 6680xg | |
4 | horizontal rotor( wind cap optional) | 4x 1000ml ( square/round optional) | 4000rpm | 4060xg |
Adaptor | 4 x 500ml | 4000rpm | 4060xg | |
4 x 250ml | ||||
4x 6 x 100ml | ||||
4x12x50ml （sharp/ round bottom ） | ||||
4x6x50ml （sharp/ round bottom ） | ||||
4x14x10/15ml | ||||
4x27x5/7ml （Blood collection tube） | ||||
5 | horizontal ELISA PLATE rotor | 4x2x 96 hole | 4000rpm | 2490xg |
6 | horizontal ELISA PLATE rotor | 4x4x96 hole | 4000rpm | 2850xg |
Plugs Available
Packing List
Packing&Shipping
Packing:
1) Waterproof membrane;
2) Shockproof packaging;
3) Standard export wooden box
Shipping:
1) By sea;
2) By air;
3) DHL, Fedex, TNT, UPS, EMS & CDEK
4) By land.
2) Shockproof packaging;
3) Standard export wooden box
Shipping:
1) By sea;
2) By air;
3) DHL, Fedex, TNT, UPS, EMS & CDEK
4) By land.
After Sales Service
1.Warranty
1 year for free,techinical support for life.
2.Training
On-line free training or welcome to visit our factory for free training.
3.Within Warranty
Accessories offered for free if the product has quality problem. If damaged by wrong operation, accessories charged, free technical support.
4.Out of Warranty
Only damaged parts charged, technical support is for free.
1 year for free,techinical support for life.
2.Training
On-line free training or welcome to visit our factory for free training.
3.Within Warranty
Accessories offered for free if the product has quality problem. If damaged by wrong operation, accessories charged, free technical support.
4.Out of Warranty
Only damaged parts charged, technical support is for free.
5.OEM & ODM SERVICE
customized shell,control system interface,language, logo,packing.
customized shell,control system interface,language, logo,packing.
