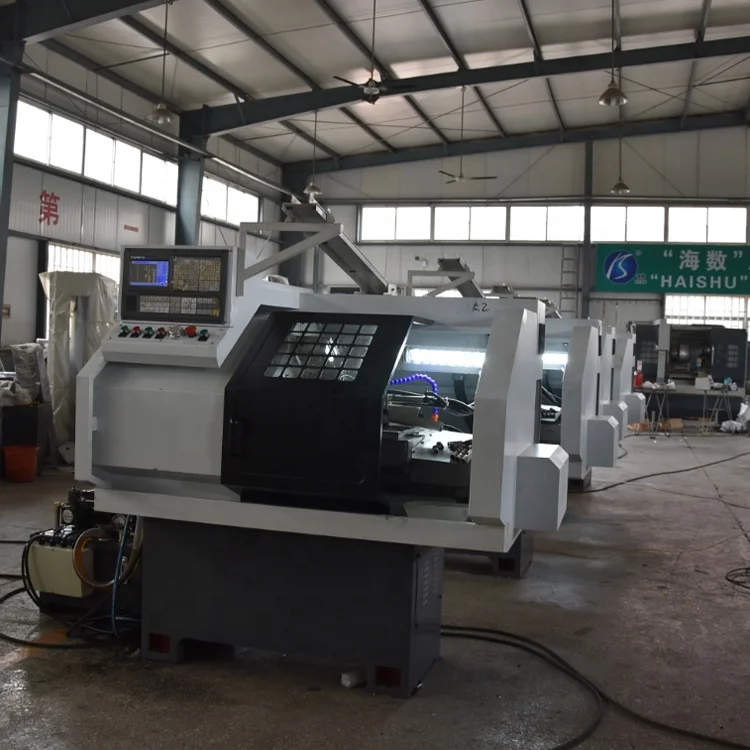

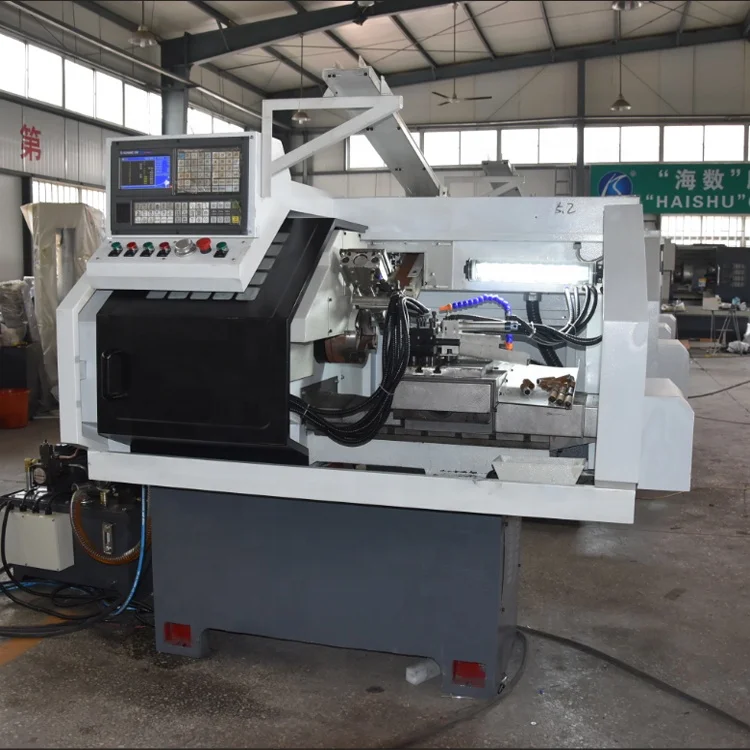

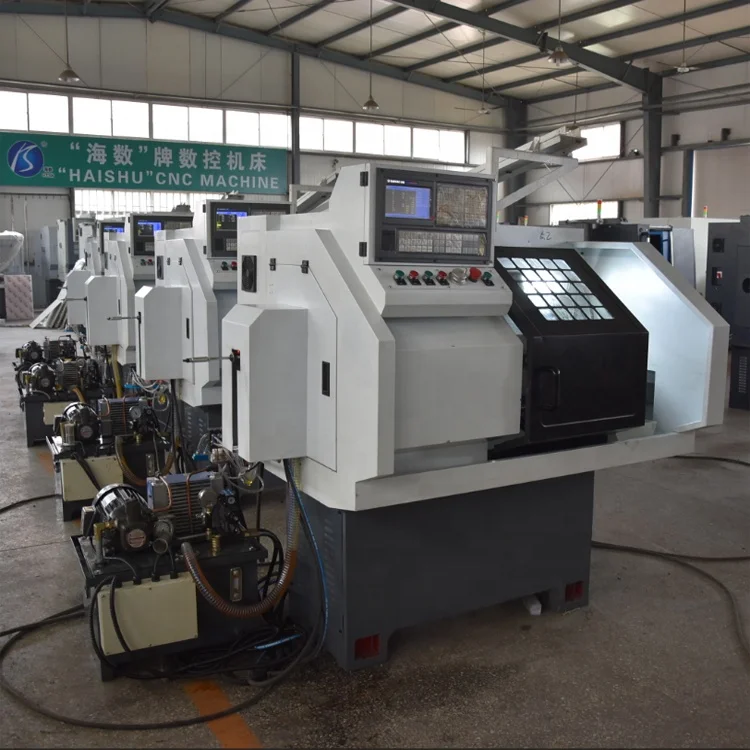

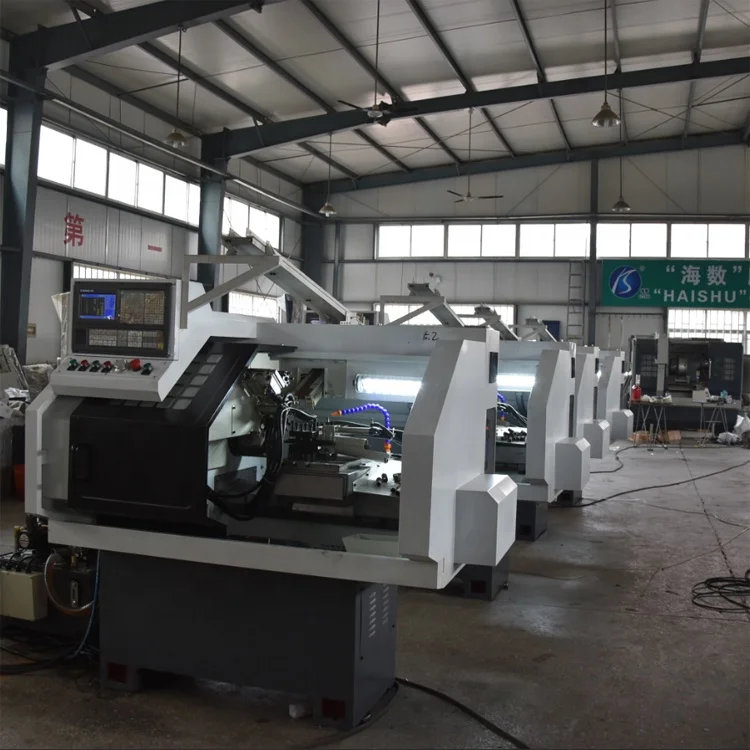

High Precision Swiss Type CNC Lathe CK0660A For Metal China Machining

Items

CK0632A

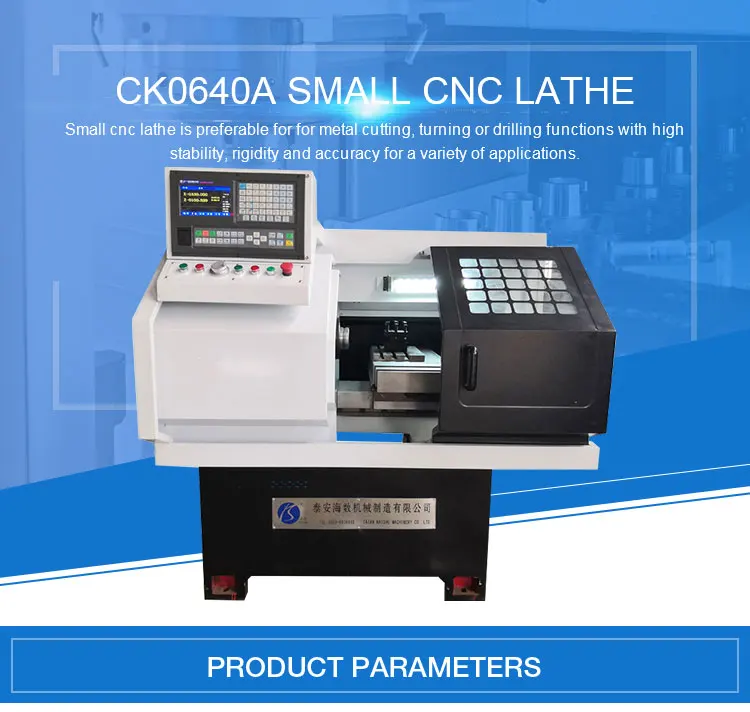

CK0640A

CK0660A

Spindle bore

40mm

48mm

70mm

Max.swing over bed

280mm

280mm

300mm

Max.swing over carriage

140mm

φ140mm

150mm

Z-axis max length of work piece

200mm

200mm

220mm

Spindle head form

A2-5

A2-5

A2-5

Drawn tube bore

30mm

40mm

160mm

Hydraulic chuck

160mm

160mm

160mm

X/Z Repeat positioning accuracy

0.012/0.013

0.012/0.013

0.012/0.013

X-axis max motion traveling

260mm

260mm

320mm

Z-axis max motion traveling

250mm

250mm

250mm

X-axis fast moving speed

8m/min

8m/min

8m/min

Z- axis fast moving speed

10m/min

10m/min

10m/min

Range of spindle speed

0-3000 r/min

0-3000 r/min

0-2600 r/min

Stations of tool carrier

4 or gang-type tool carrier

4 or gang-type tool carrier

4 or gang-type tool carrier

Power of the main drive motor

3kw

3kw

4kw

Overall dimensions(L×W×H)

1700*1200*1580mm

1860*1300*1580mm

1900*1300*1600mm

Net weight

800kg

1000kg

1200kg
