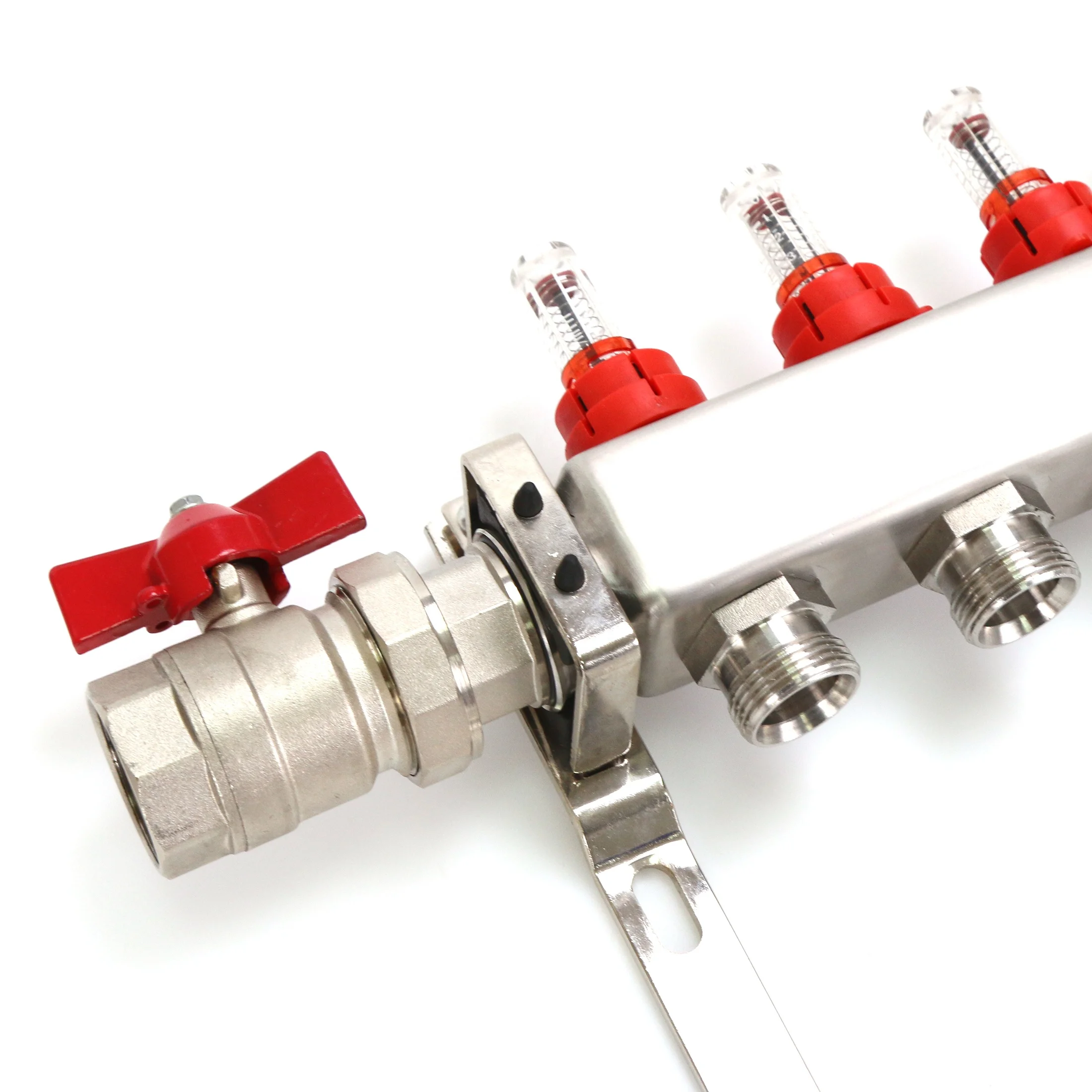

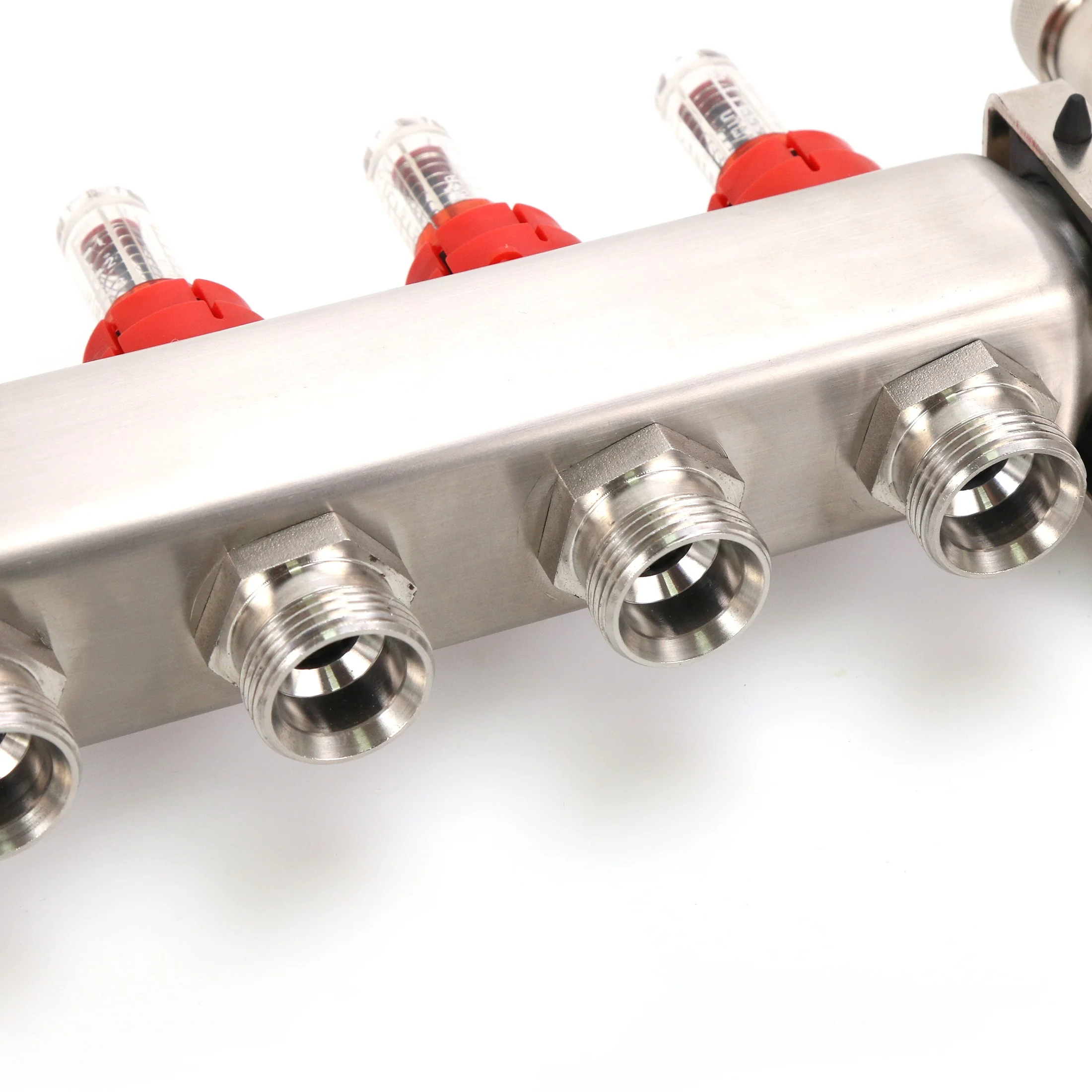

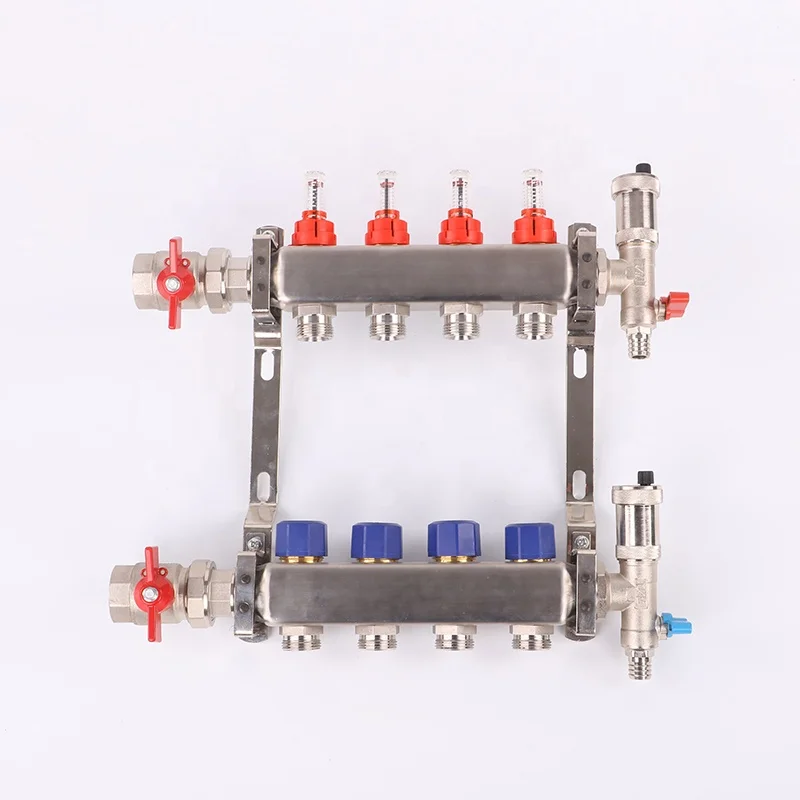

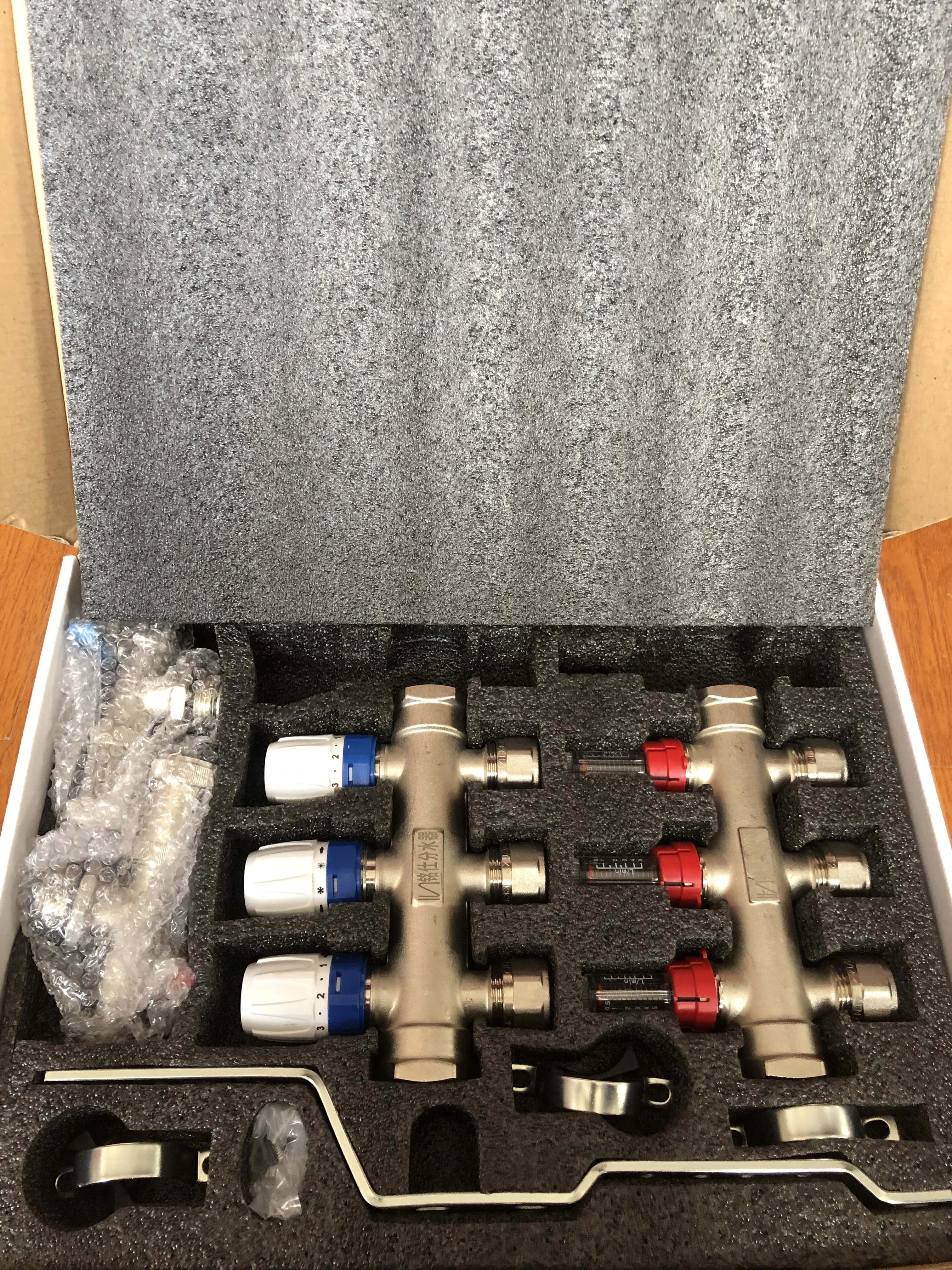

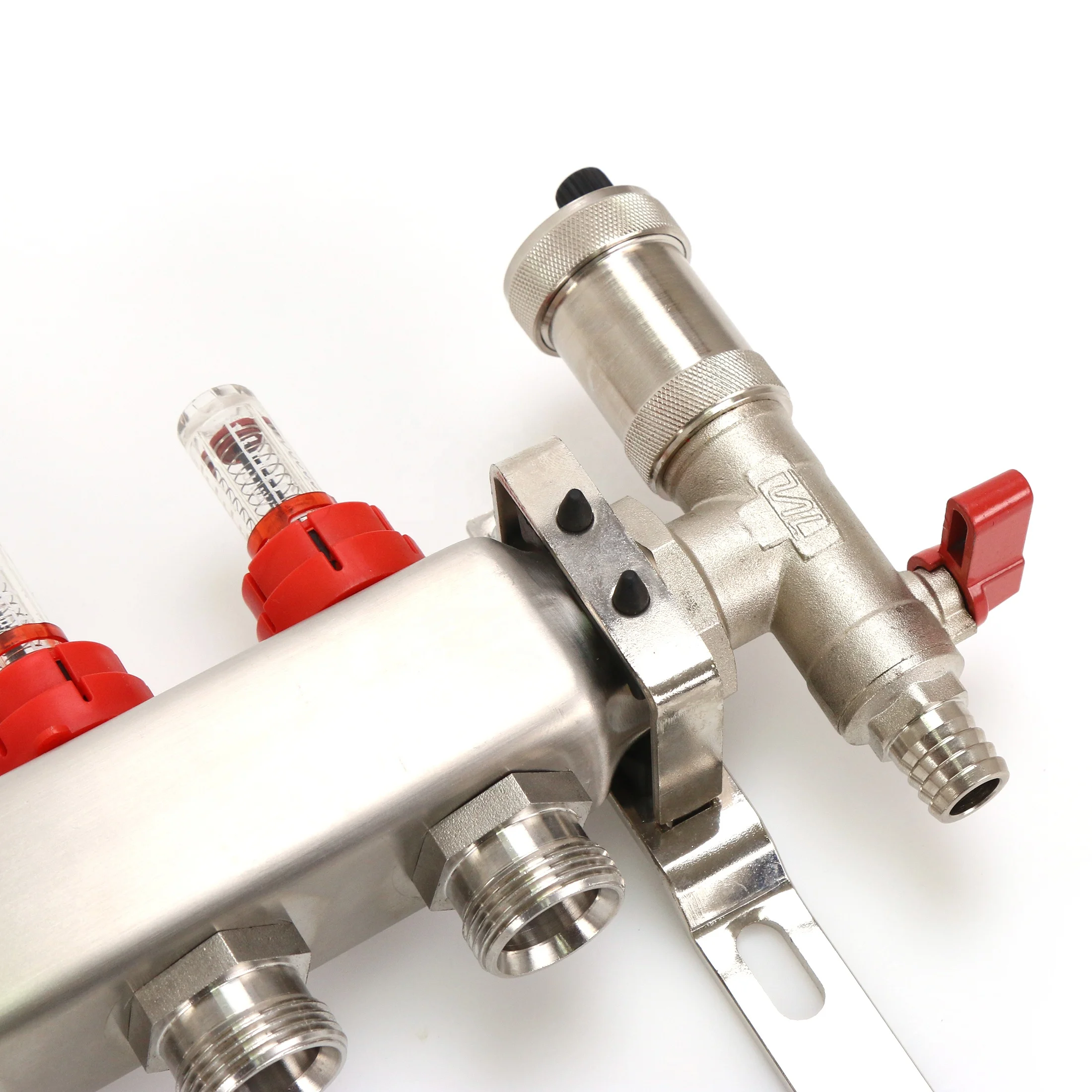

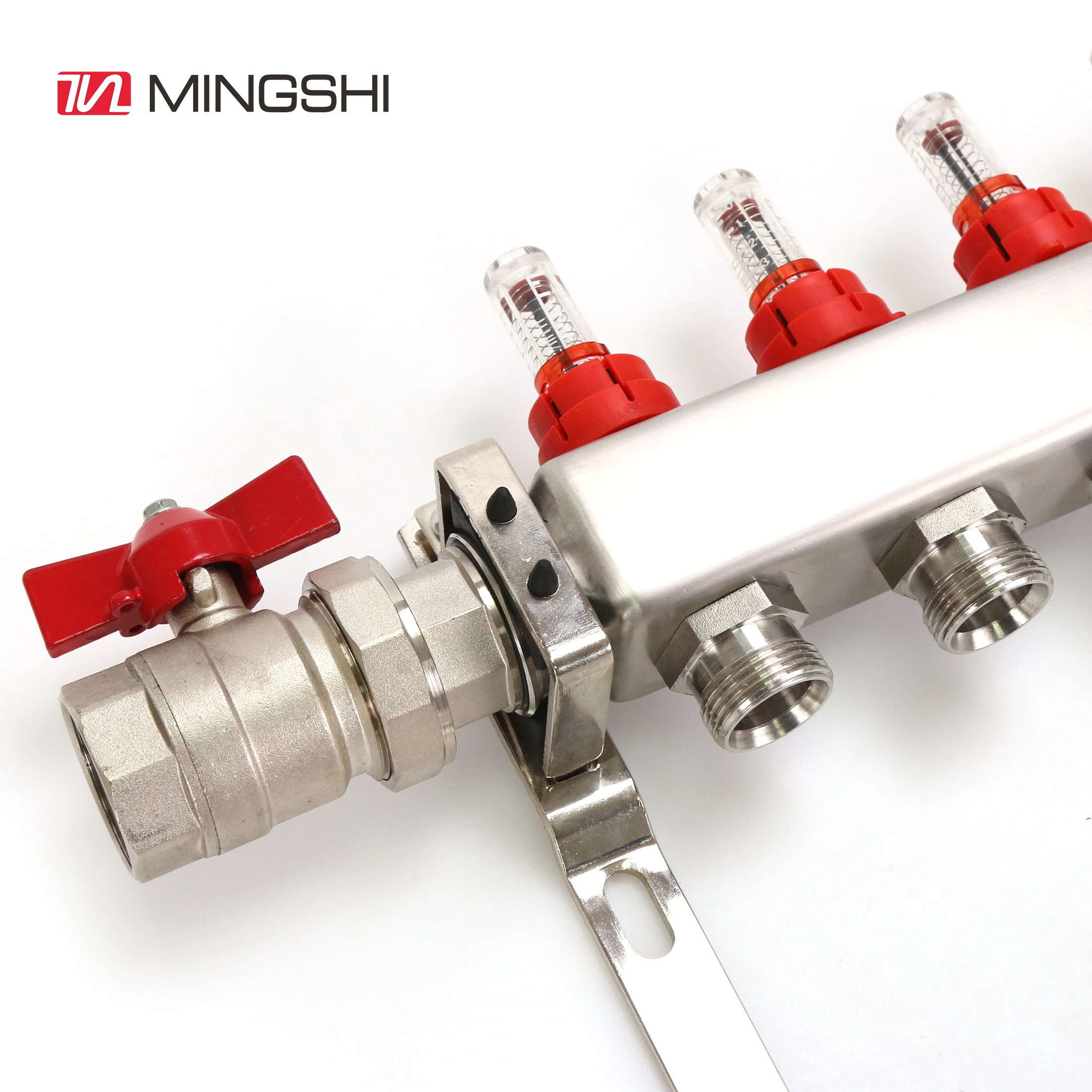

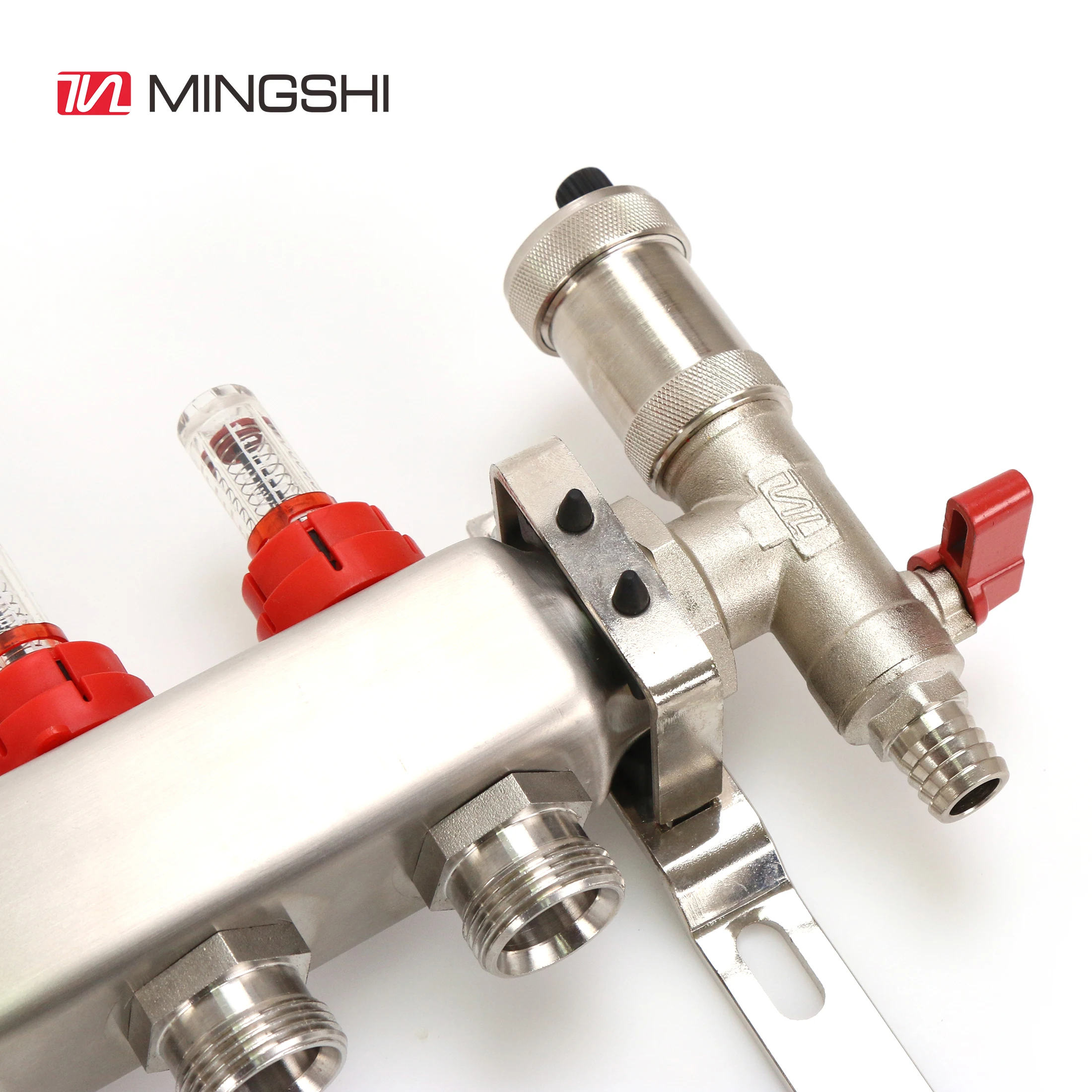

Manual stainless steel Manifold Underfloor Heating System manifolds plumbing pert system manifolds
- Category: >>>
- Supplier: Zhejiang Mingshi Xingxin Hvac Technology Co. Ltd.
Share on (1600618583237):
Product Overview
Description
Product details
Essential details | ||||||||
Place of Origin: | Zhejiang,China | Material: | Brass/Stainless steel 304 | |||||
Specification: | 3/4,1,11/4 | Package: | Customized | |||||
Thickness: | 1.0-1.5 | Standard: | ISO | |||||
Processing Service: | Forging | Product name: | Manifold | |||||
Application: | Floor heating system | Type: | Plumbing hardware | |||||
Raw Material: | Hpb58-2/CW617N/SS 304 | Surface: | Brass，Nickel or Chrome plated,Stainless steel | |||||
Logo: | Support custom logo | Features: | Corrosion Resistant,fire resistant,high pressure | |||||
MOQ: | 50pcs per size | Shape: | Round/Square | |||||
Advantage: | easy to install | |||||||
Supply Ability | ||||||||
Supply Ability: | 200 Tons per month | 3000000 Meters per month | ||||||
Packing&Delivery | ||||||||
Packing Details: | Carton | With craft paper, then plastic film outside/Plastic bag | ||||||
Port: | Ningbo or Shanghai | Ningbo or Shanghai | ||||||
Working Performance: | ||||
1 | Max. Working Pressure | 10bar(145 psi) | ||
2 | Cont. Working Temperature | 32°F (0°C) ~ 158°F (70°C) | ||
3 | Max. Instantaneous Working Temperature (Max. 10 min/day) | 212°F (100°C) | ||
4 | Max Differential Pressure | 1 bar (14.5 psi) | ||
Working Media | ||||
1 | Water | |||
2 | 50% water and 50% ethylene glycol | |||
3 | 50% water and 50% propylene glycol | |||
Material | ||||
1 | Manifolds Body | 304 Stainless Steel or brass | ||
2 | Port Connection | Nickel coated brass | ||
3 | Sealing Ring | EPDM | ||
Flow rate | ||||
1 | Indication Scale | 0.5 ~ 5 L/min, Tolerance ±10% | ||
