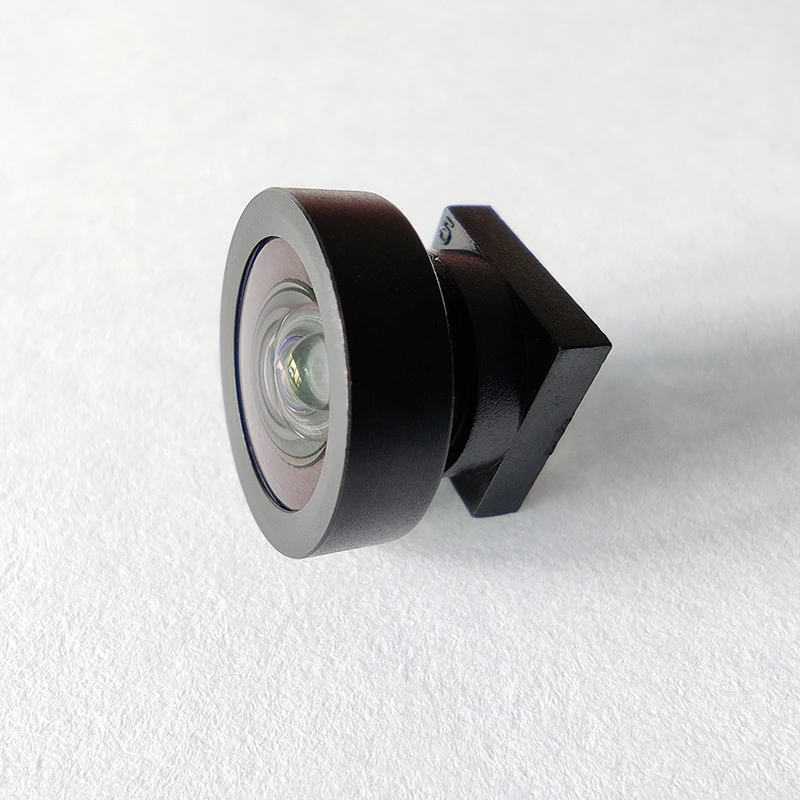

M7 lens TTL 9.4mm 80 degree FOV low distortion lens for baby monitor camera
M7 lens TTL 9.4mm 80 degree FOV low distortion lens for baby monitor camera
M7 lens TTL 9.4mm 80 degree FOV low distortion lens for baby monitor camera
M7 lens TTL 9.4mm 80 degree FOV low distortion lens for baby monitor camera

M7 lens TTL 9.4mm 80 degree FOV low distortion lens for baby monitor camera

Share on (1600618617063):


Price:

Quantity:


Product Overview

Description



Product Description


Lens Features
*Model
JSD2226
*Sensor
1/4" OV5645
*EFL
2.2mm
*Aperture
F2.6
*FOV
DFOV=91   HFOV=8220   VFOV=52
*Structure
2G2P
*TTL
9.6mm
*Diameter
8mm
*Thread
M7*0.35
*Distortion
<-0.5%

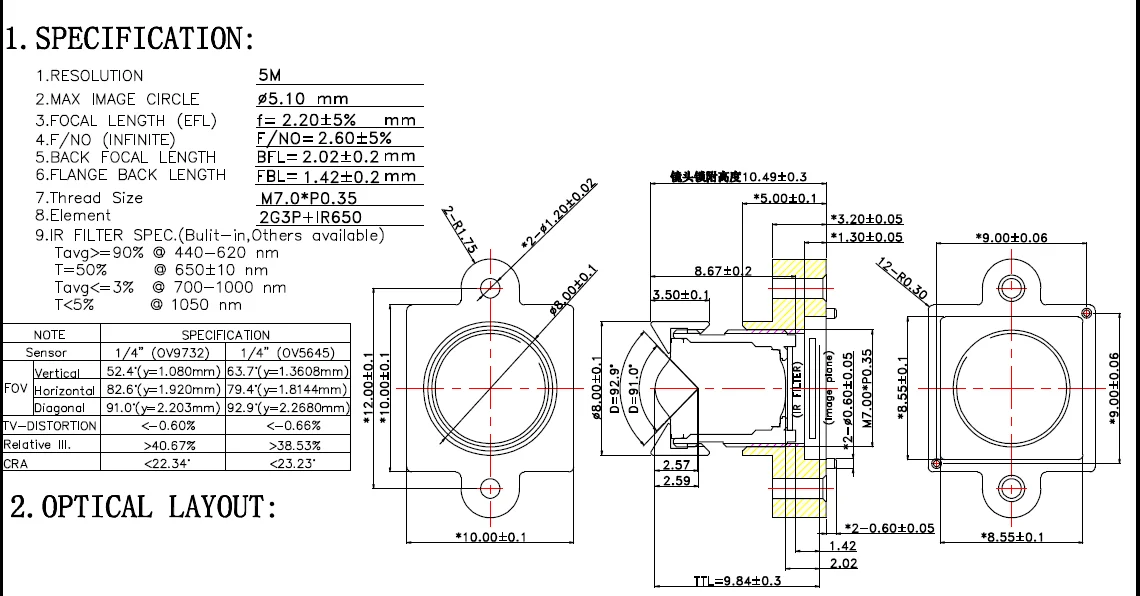

Detailed Images

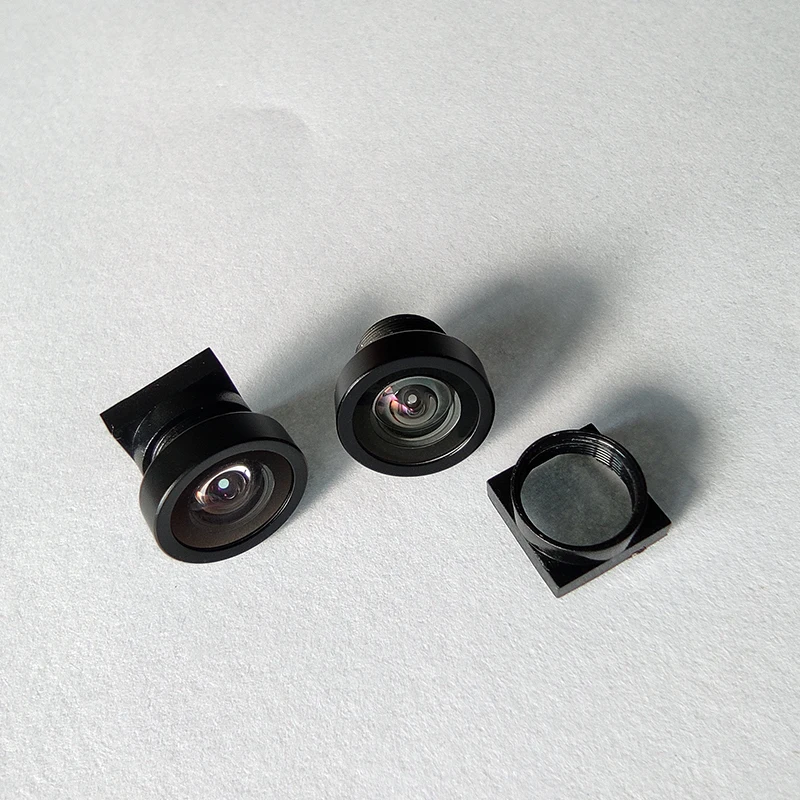

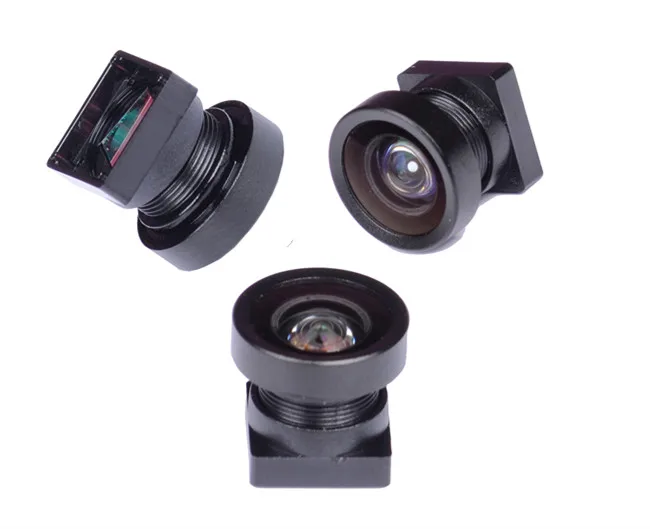

    •              Diameter 8mm                   TTL only 9.4mm



with 8x8mm M7 holder

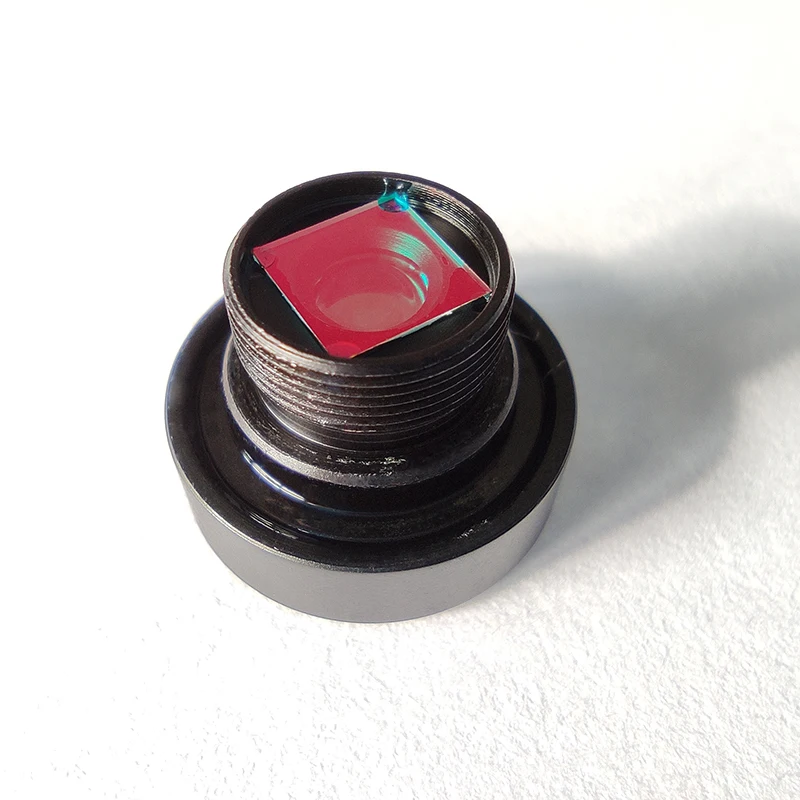

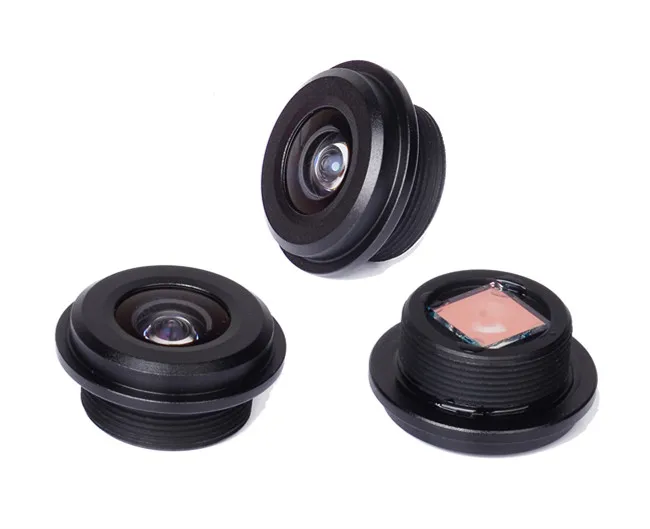

  • have M7/M8 and M12 thread size 850nm and 940nm BPF IR filter available



Contact




You may also like


Model: JSD15500
Sensor: 1/4" OV5640
EFL: 1.7mm
F/NO: F2.4
FOV: 166 degree
TTL: 10mm
Model: JSD2528
Sensor: 1/2.5"
EFL: 2.8mm
F/NO: F2.8
FOV: 155 degree
TTL: 22.5m
Model: JSD3920
Sensor: 1/2.7"
EFL: 3.6mm
F/NO: F2.0
FOV: 90 degree
TTL: 16mm


Model: JSD1529
Sensor: 1/3"
EFL: 1.9mm
F/NO: F2.0
FOV: 166 degree
TTL: 11mm
Model: JSD5019 Sensor: 1/2.8"
EFL: 5mm
F/NO: F2.8
FOV: 65 degree
TTL: 14mm
Model: JSD2631
Sensor: 1/2.3" IMX477
EFL: 2.7mm
F/NO: F2.8
FOV: 113 degree
TTL: 22.5mm

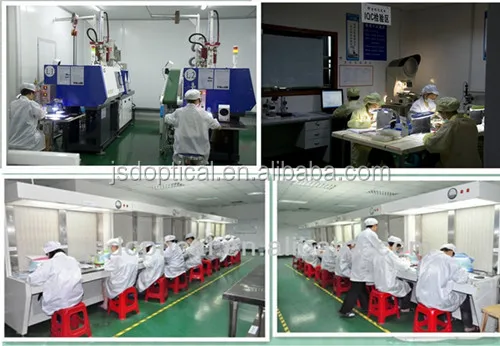

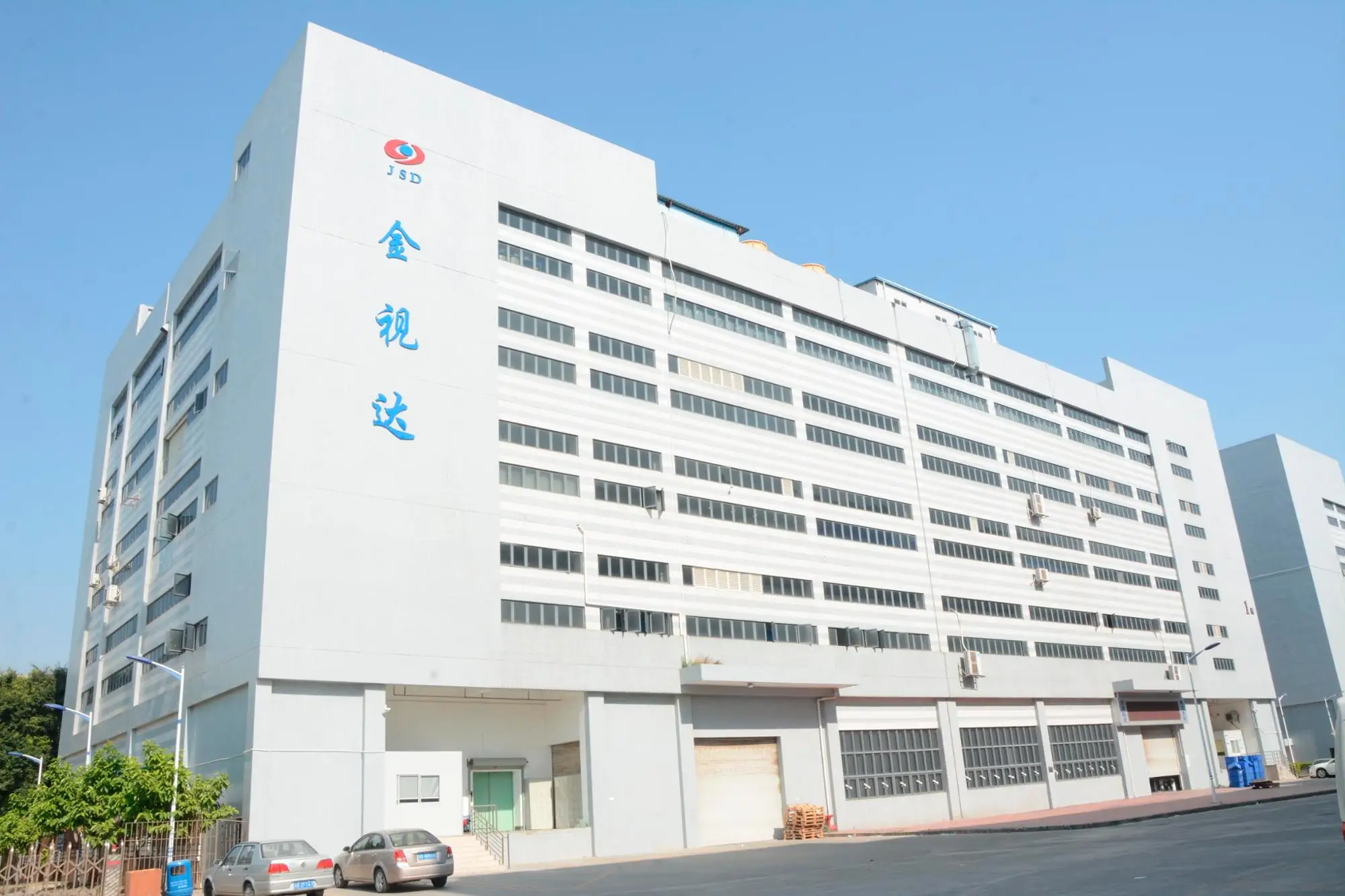

Company Introduction
