4~20mA Measure pressure difference Liquid Level piezoresistive Differential Air Pressure Sensor
- Category: Pressure Transmitters >>>
- Supplier: Shanghai,Pumping,Tech,International,Co.,Ltd.
Share on:
Product Overview
Description
Product Overviews

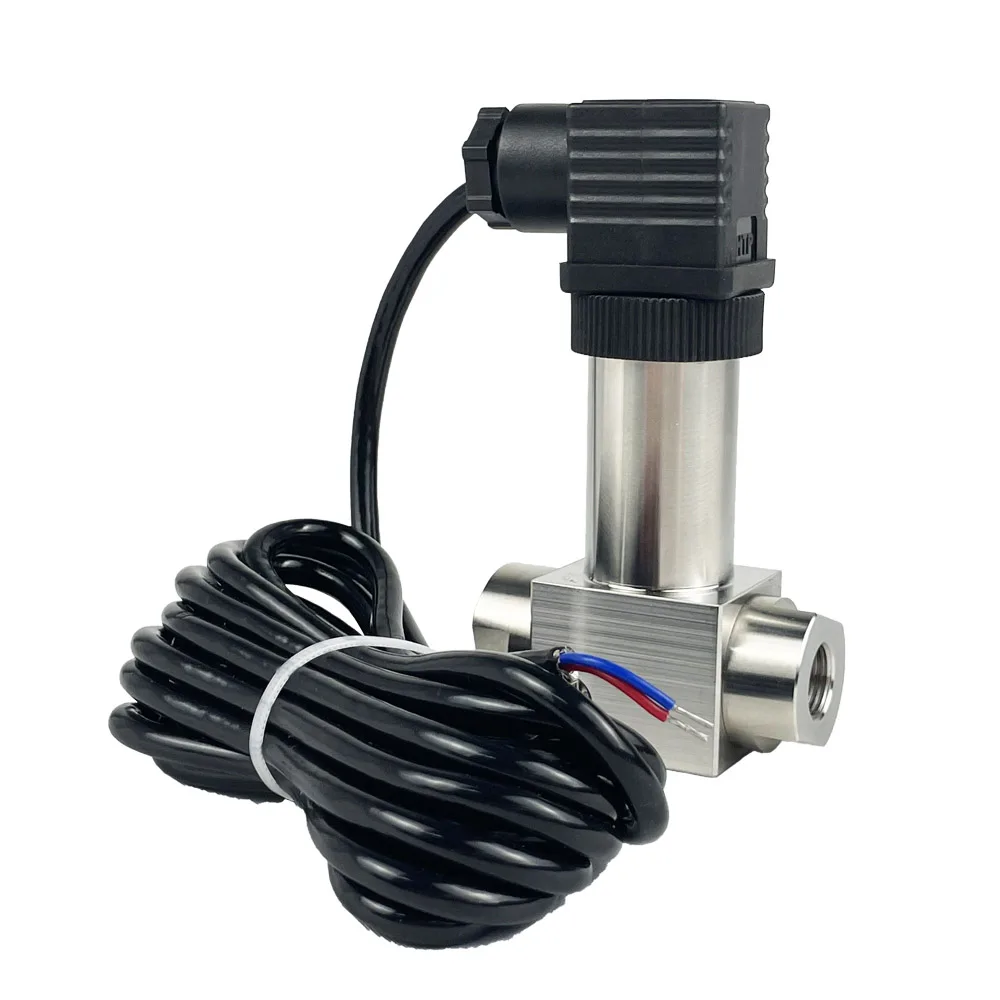

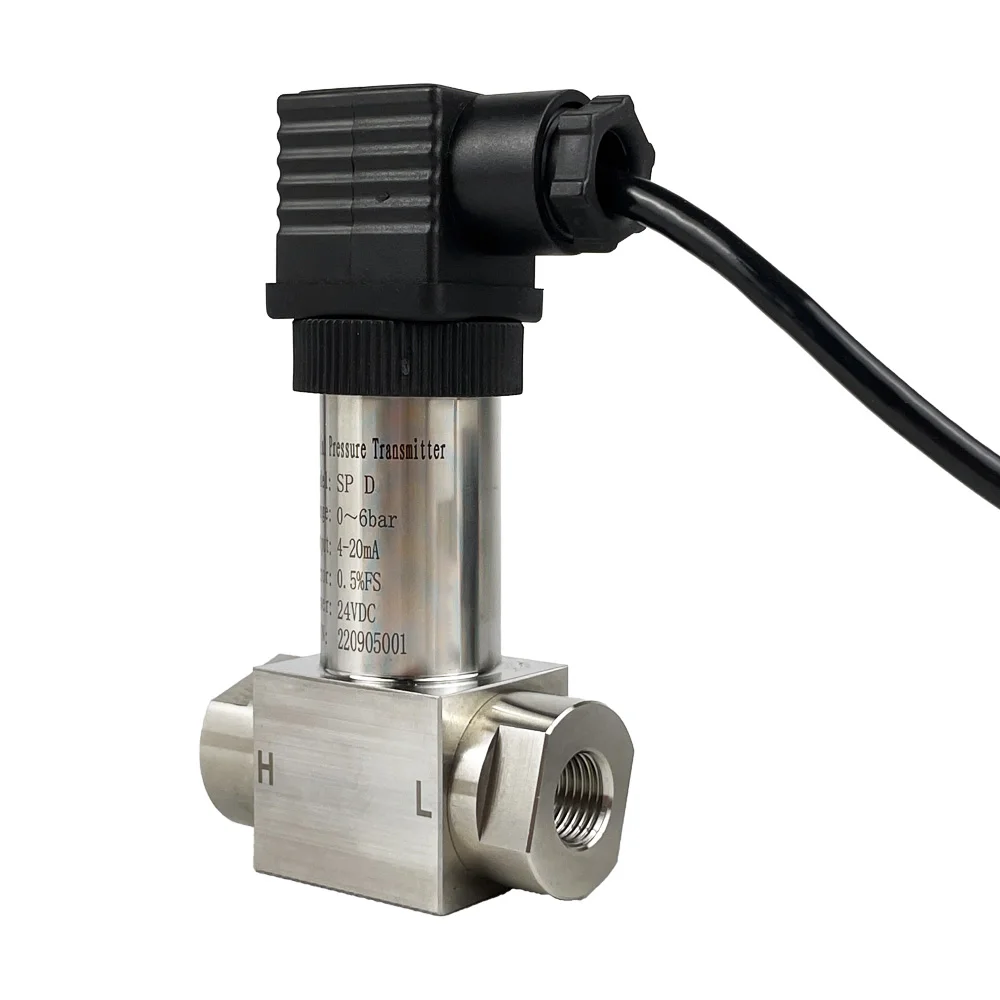

Differential pressure sensor
Model: SPD
Brand: aikon
Product introduction
It is used to measure the pressure difference of overpressure, vacuum and near non trawl gas and liquid medium. Solid rather than sensitive pressure measurement ceramic cells are used in the pressure transducer data. The measuring force is formed on a ceramic membrane, which deforms. The resistance is proportional to the deformation. Integrated into the electronics converter housing to convert resistance changes to 0-10 or 4-20 ma. The installation is via two connections to the internal thread G1 / 4. The converter is suitable for all types of industrial or sanitary equipment, such as measuring the pressure difference between the feed line and the feedback line in the heating device or controlling the filter, fan and compressor.
Pressure range | 0-60MPa |
Pressure reference | Differential pressure |
Overload Pressure | ≤10MPa 200% ; >10MPa 150% |
Supply & output | 4~20mA(16~36VDC) 1~5V, 0~5V(12~36VDC) |
Response Time | <10ms |
Accuracy grade | 0.5%FS ,1%FS |
Long-term Stability | Typical:±0.1%FS/year |
Temperature effect on zero | Typical:±0.02%FS/℃,Max±0.05%FS/℃ |
Sensitivity Temperature drift | Typical:±0.02%FS/℃,Max±0.05%FS/℃ |
Operating Temperature | -20~60℃ |
Electric Protection | Reverse connect protection, Anti frequency interference |
Insulation resistance | 200MΩ/250VDC |
Electronic connector | DIN43650 Hirschmann, Directly cable,M12 4 Pin |
Protection Grade | IP65(DIN) |
Measurement Medium | Gas, water, oil |
Pressure Connection | G1/4, G1/2, M20*1.5, ZG1/4,R1/4(selectable) |
Shell | Stainless Steel 304 |
