Shenzhen Fast Oem Custom Professional Printed Circuit Board Smt Gerber Pcb Pcba Board Assembly Service Manufacturer
- Category: >>>
- Supplier: Shenzhen Jiechuang Electronic Technology Co. Ltd.
Share on (1600618707188):
Product Overview
Description
About us

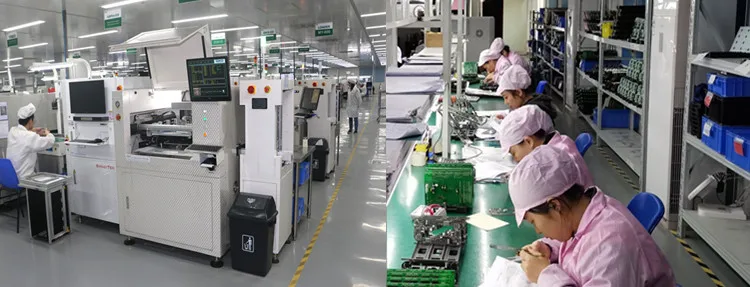

We have 25 Yamaha placement machines, 3 high-performance 8-temperature reflow soldering machines, automatic printing machines, semi-automatic immersion tin machines, wave soldering, X-RAY inspection and other equipment; a total of 205 engineers, workers and sales personnel, PCBA The daily output of proofing is 60 models. The company has independently developed the online ordering CRM management system and CRM management system. Mainland Chinese customers can independently complete the entire process of order purchase, progress tracking and express delivery
Item（PCB） | Process Capability |
Number of layers | 1-30 |
Plate Material type | FR4、HighTG FR-4，Aluminum plate、Rogers 4350B、Rogers4003C、Copper substrate 2.0、Rigid-flex board、FPC Plate |
Rigid board | Backplane, HDI, multilayer buried blind vias, thick copper board, thick copper power supply, semiconductor test board |
Maximum finished inner/outer copper thickness | Outer layer 8OZ (greater than 8OZ needs to be reviewed), inner layer 6OZ (greater than 6OZ needs to be reviewed) |
Finished board thickness | 0.1-5.0mm(Less than 0.2mm, greater than 6.5mm need to be reviewed,) |
Minimum aperture | Mechanical hole: 0.15mm Laser hole: 0.1mm |
Surface treatment | Electroplated copper nickel gold, immersion gold, hard gold plating (with/without nickel), gold-plated fingers, lead tin spray, lead-free tin spray, OSP, electroless nickel palladium gold, soft gold plating (with/without nickel), immersion silver , Immersion Tin, ENIG+OSP, ENIG+G/F, Full Board Gold Plated+G/F, Immersion Silver+G/F, Immersion Tin+G/F |
The smallest BGA pad diameter | Lead spray tin process 10mil, lead-free tin spray process 12mil, other processes 7mil |
Minimum line width and line spacing | 3mil |
Solder mask ink color | Green, yellow, black, blue, red, white, purple, matte green, matt oil black, high refractive white oil |
Character ink color | White, yellow, black |
Item（SMT） | Process Capability |
Largest card board | L50×W50mm～L510×W460mm |
Maximum thickness | 3mm |
Minimum thickness | 0.2mm |
Smallest chip part | 150mm*150mm，01005 Encapsulation or above |
Maximum part size | Maximum part placement accuracy (100FP） |
Minimum lead part spacing | 0.3mm |
Minimum distance between spherical parts (bga) | 0.3mm |
Maximum part placement accuracy（100FP） | The placement accuracy of the whole process is up to ±50 microns, and the repeatability of the whole process is up to ±30 microns |
Mounting ability | 3-4 million points/day, 50-150 models |
DIP Plug-in processing | 100,000 points |
Character ink color | White, yellow, black |
Product Description
Files and Requirment for PCB,PCBA quotation:
* A BOM (Bill of Materials) with reference designators: component description, manufacturer’s name and part number.
* PCB Gerber files.
* A PCB fabrication drawing and PCBA assembly drawing.
* Test procedures.
* Any mechanical restrictions such as assembly height requirements
* PCB board manufacture and PCBA service:
* PCB Gerber files.
* A PCB fabrication drawing and PCBA assembly drawing.
* Test procedures.
* Any mechanical restrictions such as assembly height requirements
* PCB board manufacture and PCBA service:
* PCB board made, circuit board parts purchased by us
* Electronic testing circuit board or PCBA
* Fast delivery, anti-static package
* RoHS Directive-compliant, lead-free
* One stop service from PCB design, PCB layout, PCB manufacture, components purchasing, PCB assembly, test, packing and PCB delivery
* Eleectronic manufacturing service
* Detailed terms for PCB assembly:
* Electronic testing circuit board or PCBA
* Fast delivery, anti-static package
* RoHS Directive-compliant, lead-free
* One stop service from PCB design, PCB layout, PCB manufacture, components purchasing, PCB assembly, test, packing and PCB delivery
* Eleectronic manufacturing service
* Detailed terms for PCB assembly:
* Technical requirement:
* Professional surface-mounting and through-hole soldering technology
* Various sizes like 1206, 0805, 0603 components SMT technology
* ICT (In Circuit Test), FCT (Functional Circuit Test) technology
* PCB assembly with UL, CE, FCC, RoHS approval
* Nitrogen gas reflow soldering technology for SMT
* High standard SMT and solder assembly line
* High density interconnected board placement technology capacity
* Quote requirement:
* Various sizes like 1206, 0805, 0603 components SMT technology
* ICT (In Circuit Test), FCT (Functional Circuit Test) technology
* PCB assembly with UL, CE, FCC, RoHS approval
* Nitrogen gas reflow soldering technology for SMT
* High standard SMT and solder assembly line
* High density interconnected board placement technology capacity
* Quote requirement:
* Gerber file and Bom list
* Clear pics of pcba or pcba sample for us
* Test method for PCBA
* PCB specification:
* Clear pics of pcba or pcba sample for us
* Test method for PCBA
* PCB specification:
* Layer: 1 to 12 layers
* Material: FR-4, CEM-1, CEM-3, Hight TG, FR4 halogen free, FR-1, FR-2,Aluminum etc.
* Max. finished thickness: 0.2 to 4.0mm (0.02 ~ 0.25″)
* Max. finished board side: 500 x 500mm (20 x 20”)
* Min. drilled hole size: 0.25mm (10mil)
* Min. line width: 0.10mm (4mil)
* Min. line spacing: 0.10mm (4mil)
* Surface finish/treatment: HALS/HALS lead free, chemical tin, chemical gold, immersion gold, plating gold
* Copper thickness: 0.5 to 3.0 oz
* Solder mask color: green/black/white/red/blue
* Inner packing: plastic bag
* Outer packing: standard carton packing
* Hole tolerance: PTH: ±0.076, NTPH: ±0.05
* Certificate: UL, ISO 9001, ISO 14001, RoHS,UL
* Profiling punching: routing, V-cut, beveling
* Providing OEM service to all sorts of printed circuit board assembly
* Material: FR-4, CEM-1, CEM-3, Hight TG, FR4 halogen free, FR-1, FR-2,Aluminum etc.
* Max. finished thickness: 0.2 to 4.0mm (0.02 ~ 0.25″)
* Max. finished board side: 500 x 500mm (20 x 20”)
* Min. drilled hole size: 0.25mm (10mil)
* Min. line width: 0.10mm (4mil)
* Min. line spacing: 0.10mm (4mil)
* Surface finish/treatment: HALS/HALS lead free, chemical tin, chemical gold, immersion gold, plating gold
* Copper thickness: 0.5 to 3.0 oz
* Solder mask color: green/black/white/red/blue
* Inner packing: plastic bag
* Outer packing: standard carton packing
* Hole tolerance: PTH: ±0.076, NTPH: ±0.05
* Certificate: UL, ISO 9001, ISO 14001, RoHS,UL
* Profiling punching: routing, V-cut, beveling
* Providing OEM service to all sorts of printed circuit board assembly
What we need
In order to quote you, we need
We have been cultivating in mainland China for 6 years. Now it is actively expanding overseas markets.
PCB&PCB'A
Printed Circuit Board &
Printed Circuit Board+Assembly )
SMT
Surface Mounted Technology
Product Usage
Customers' products are used not only in mobile phones, but also in large-scale communication equipment, medical equipment, automobiles, and even aerospace.
Related Products
Company Introduction
Our Services & Strength
Just like PCB business, our PCBA services also specialize in prototyping and small-volume production, making JCPCBA JC the one-stop destination of boards fabrication and assembly. This arrangement makes your R&D work easy and time-saving. Our professional engineers and technicians will work closely with you through our customer service people to ensure the best quality and quickest possible lead time. Fulfilling thousands of orders daily from around the world, we have established us as the leading supplier of PCB and PCBA services for our consistent quality and excellent services
FAQ
Q1. What is needed for PCBPCBA quotation?
A: PCB: quantity, Gerber file and technical requirements (material, surface treatment, copper thickness, board thickness, color...)
PCBA: PCB information, BOM, (test file...)
Q2. What file formats are accepted for PCBA production?
A: Gerber file: CAM350
PCB files: Protel 99SE, PADS Altium Designer
Bill of Materials: Excel.csv
Q3. Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.
Q4. MOQ?
A: Our company does not have a minimum order quantity. We are able to flexibly handle small batches and mass production.
Q5. Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
A: PCB: quantity, Gerber file and technical requirements (material, surface treatment, copper thickness, board thickness, color...)
PCBA: PCB information, BOM, (test file...)
Q2. What file formats are accepted for PCBA production?
A: Gerber file: CAM350
PCB files: Protel 99SE, PADS Altium Designer
Bill of Materials: Excel.csv
Q3. Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.
Q4. MOQ?
A: Our company does not have a minimum order quantity. We are able to flexibly handle small batches and mass production.
Q5. Shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
