3 Ethernet TCP/IP port to 2 channel wiegand input 2 relay output Ethernet switch IO control board

Product Overview

Description

1. General Introduction

This module was developed to interface simply TCP/IP access control system, is a high performance and good price IOT network module. The device integrated 3 channel TCP/IP communication ports 2 channel Wiegand input 2channel relay output with 2 channel of input/output interface all in one. Its 3 ports 10M/100M RJ45 Ethernet interface for TCP/IP network switch, plug and play; 2 channel input/output interface support dry connector Input, 2 channel of relay output, 2 channel of Wiegand interface can connect 2 Wiegand RFID Card reader interface. It can be a TCP/IP to 2CH Wiegand converter, and also can be a simply TCP/IP network single door access module and network switch. It is really a good IOT Wiegand control device for access control. The device can use for many applications such as remote power supply control, access control, automatic gate control, etc.



2. Product Features:

Using high quality electronic integrated module, Provide good electrical properties.

Support 3 channel RJ45 Ethernet port communication

Support 2 channel Wiegand input and output

Support 2 channel dry contact electric input/output

Provide 2 channel of Relay output

Working power: DC12V (9-24V for option).

Restore factory default

Upgrade firmware via TTL network

Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client

Across the gateway, switches, routers

Can work in LAN, also can work in the Internet (external network)

Support various LED to indicate work status

Guarantee reliable data transmission and long working life..

Support customization



3. Technical Parameter

Model: WST-3E2WG22

Size: 122mm x 98mm x 26mm

Weight: about 100g (PCB board only)

Power supply: DC9V to DC24V/1A, suggest DC12V

Static working current: <150mA (DC12V)

Dynamic current: when all relay closed less than 320mA (under DC12V power)

Wiegand interface: support 2CH Wiegand input and output (WG26/34/66 bit)

Input: support 2CH dry contact electric input/output

Output: 2 channel of relay output (AC220V load available)

Communication interface: 3CH 10M/100M RJ45 Ethernet port

Baud rate: 9600BPS (default, can set by software)

Address ID: none (defaults ID none, can set by command, range: 1 to 255)

Indicator: LED indicator for power, TCP/IP communication and Wiegand communication

Reset button: press it about 3s for return to factory settings (after 4CH input LED bright red reset ok)

Ethernet module: USR-K2, other modules for optional

Network protocol: support Ethernet, ARP, IP, UDP, TCP, etc.

Ethernet user name: admin, Password: admin, Default IP: 192.168.0.7

Network mode: TCP client\\server (max for 4 Clients), UDP Client\\Server, HTTDP Client

TTL interface: DC5V, TX, RX, GND, design for testing and upgrade firmware.

Operating Temperature: -40-85 C (-40-185 F)

Storage Temperature: -40~85 °C(-40~185 °F)

Relative humidity: 5%-95% (no condensation)

Software watchdog timers: about 1s restart.

Average fault-free time: 100000 hours

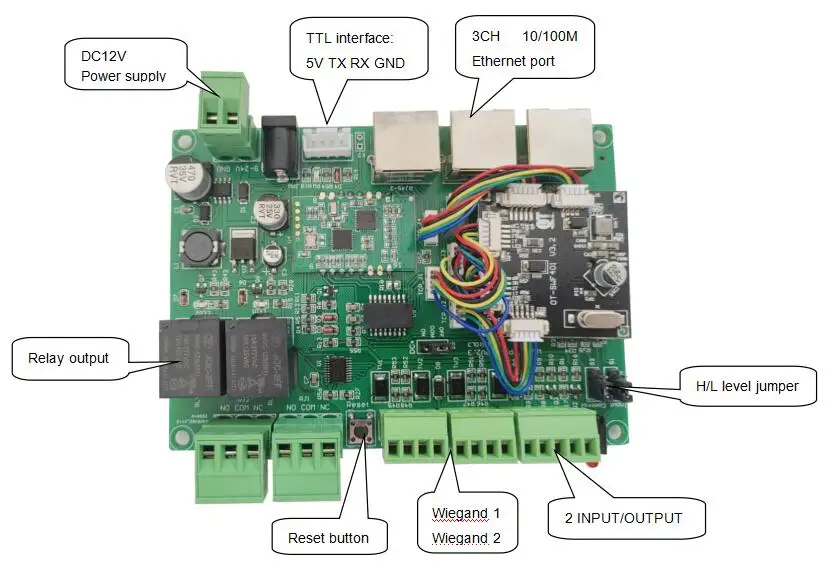

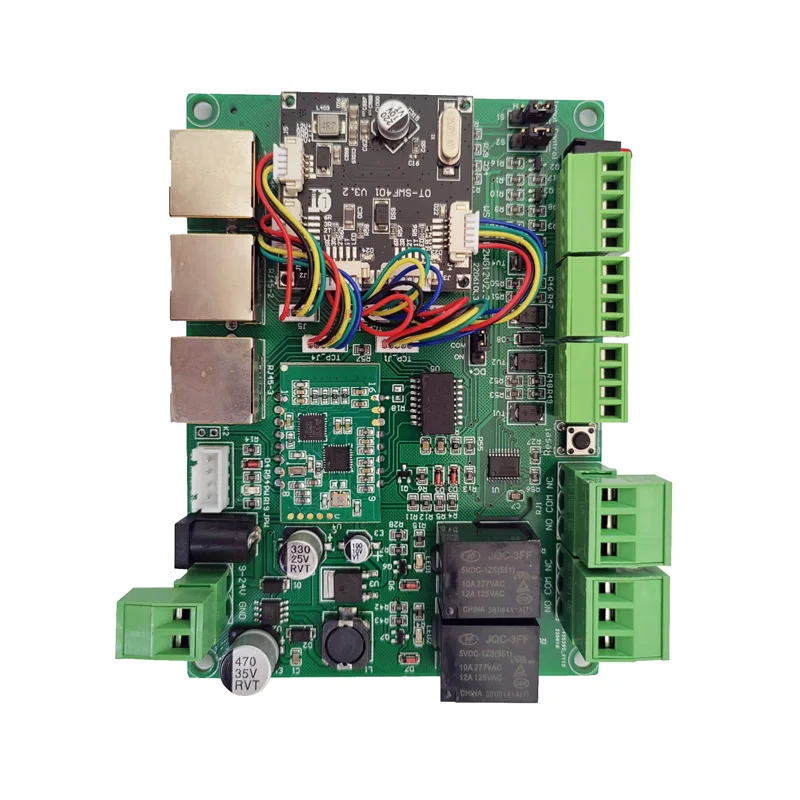

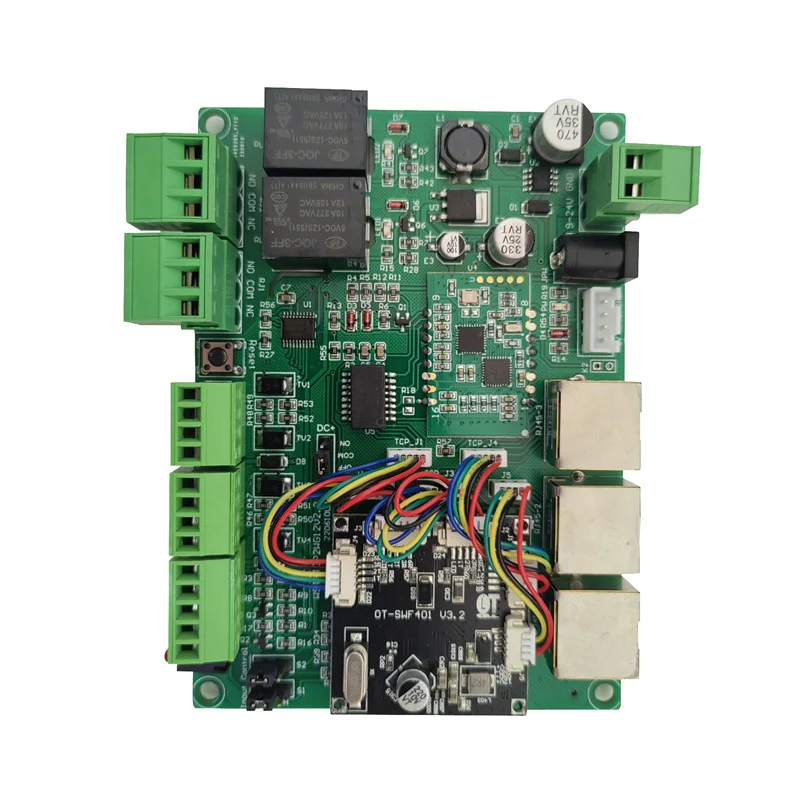

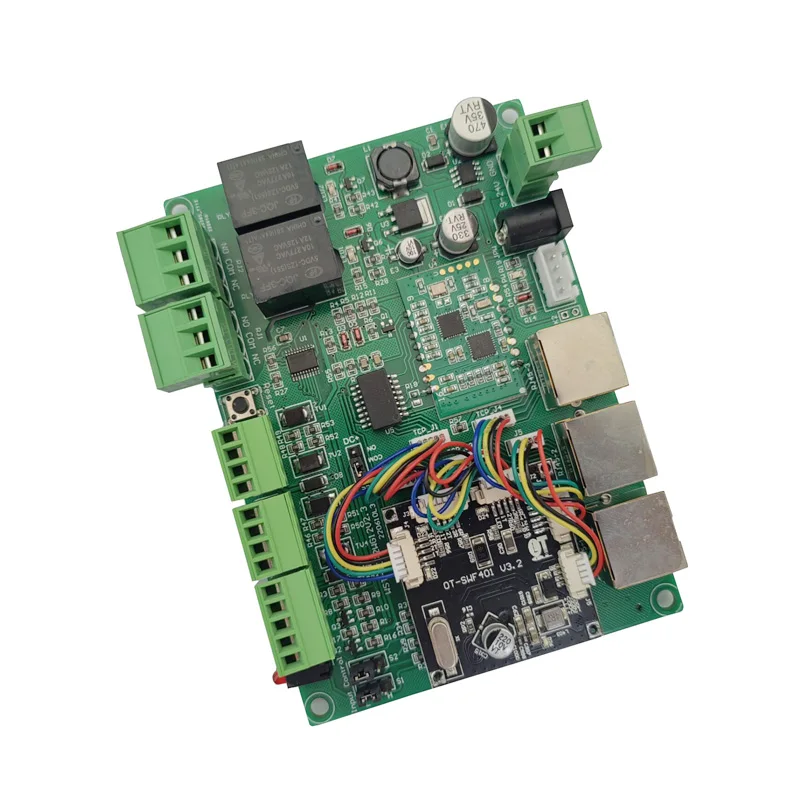

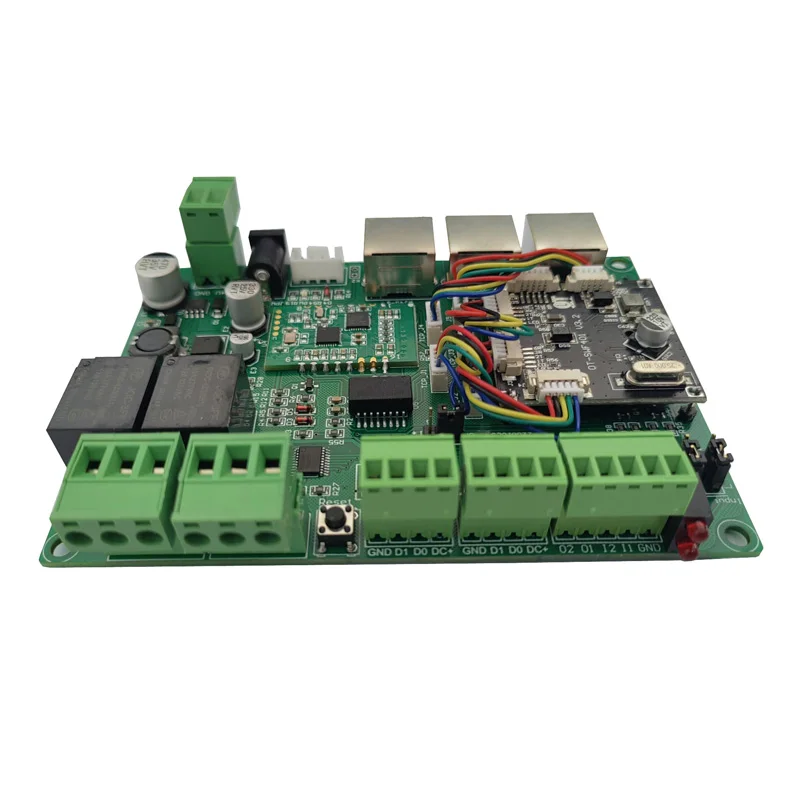

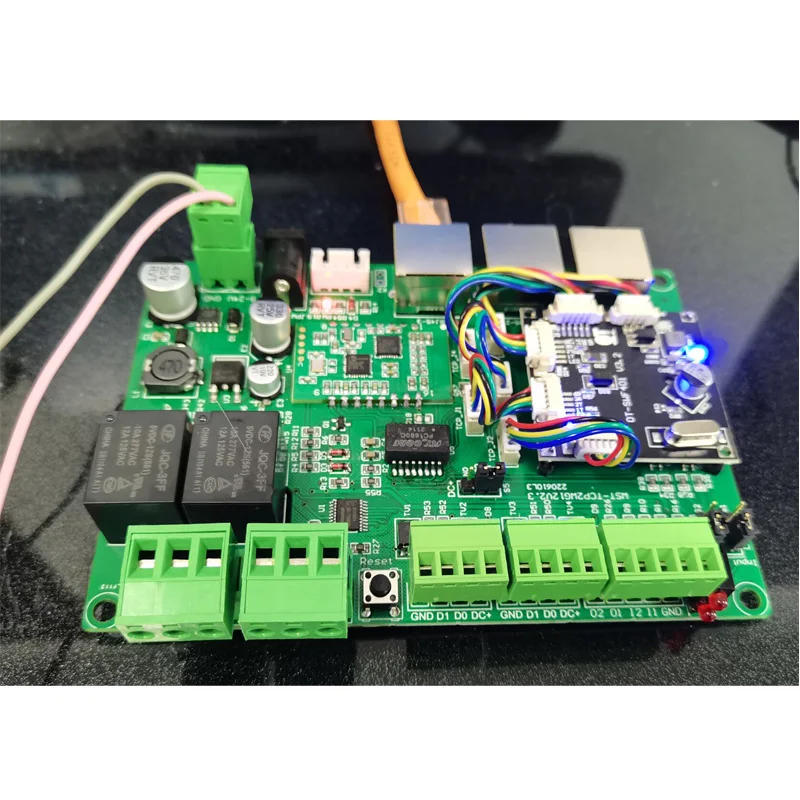

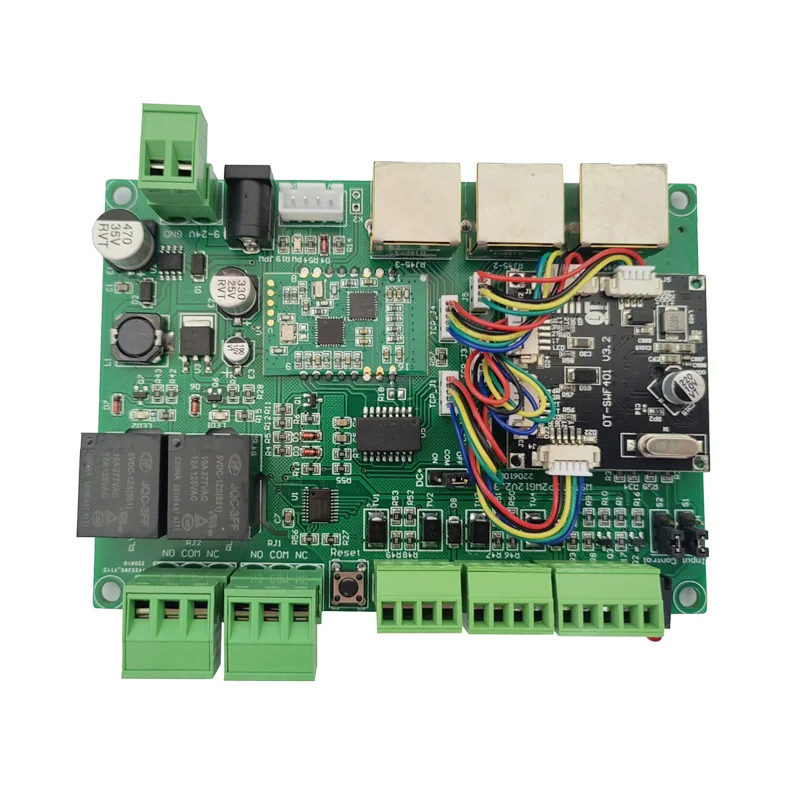

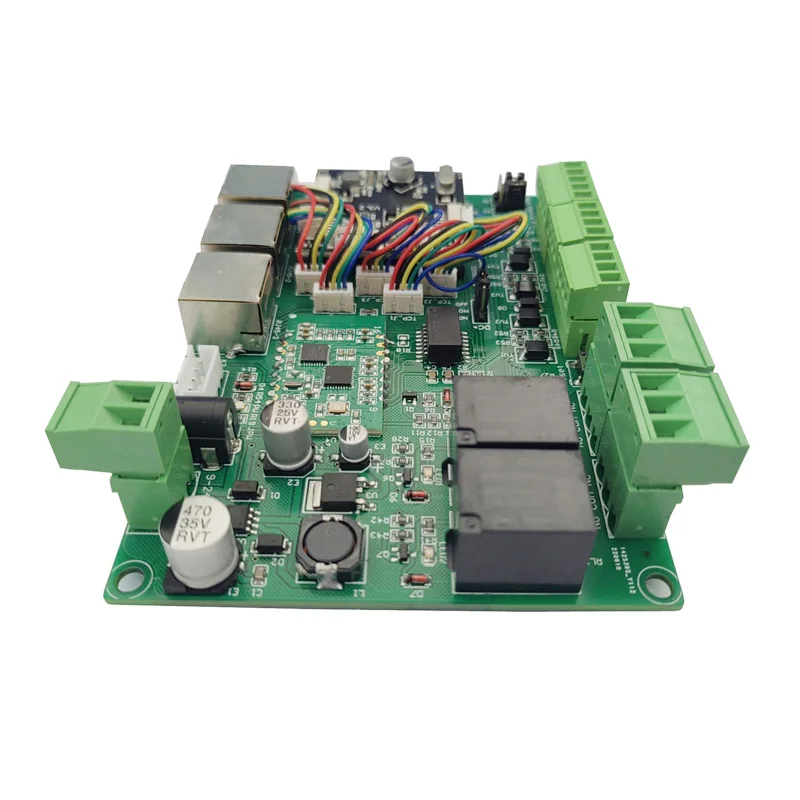

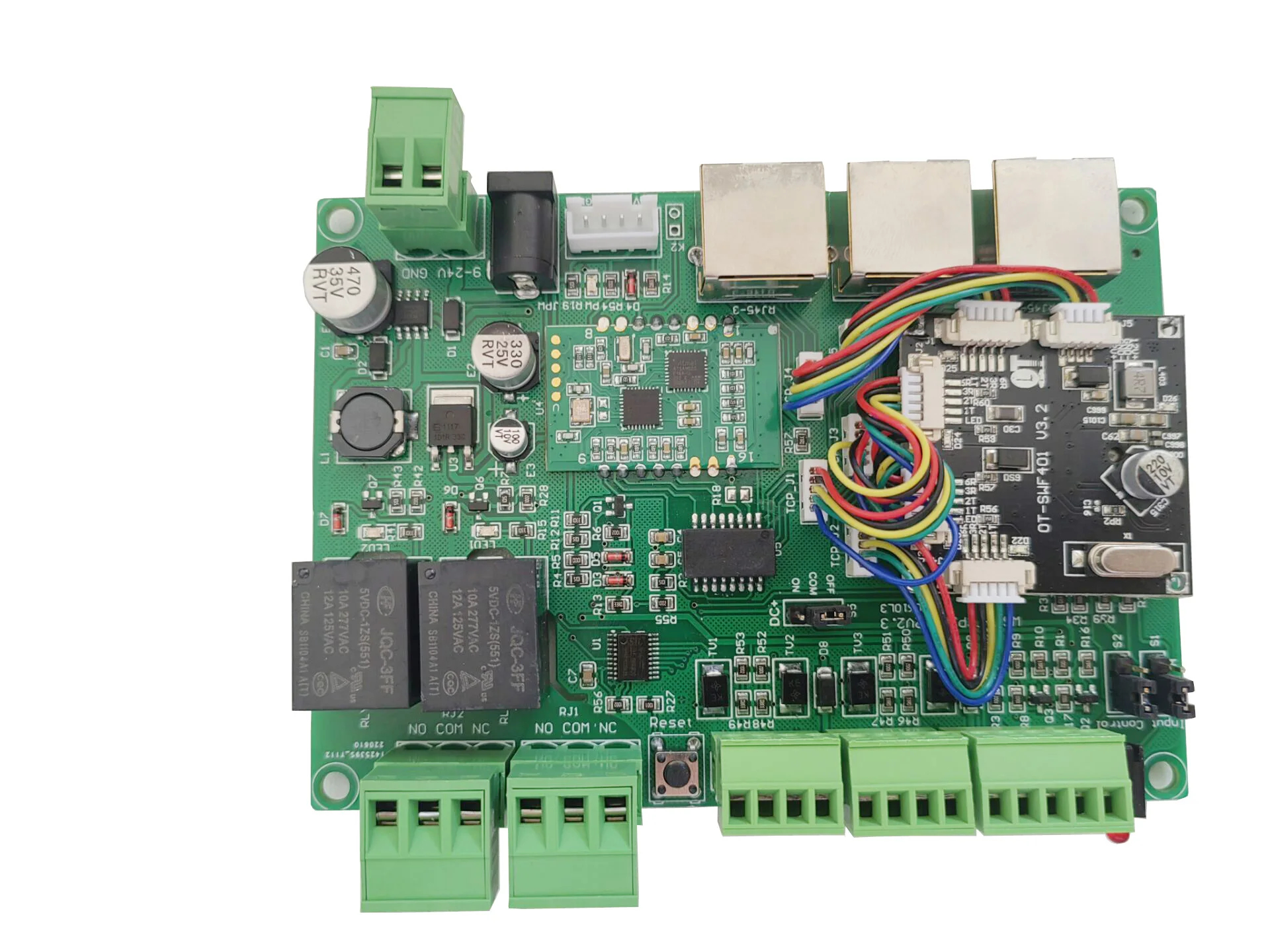

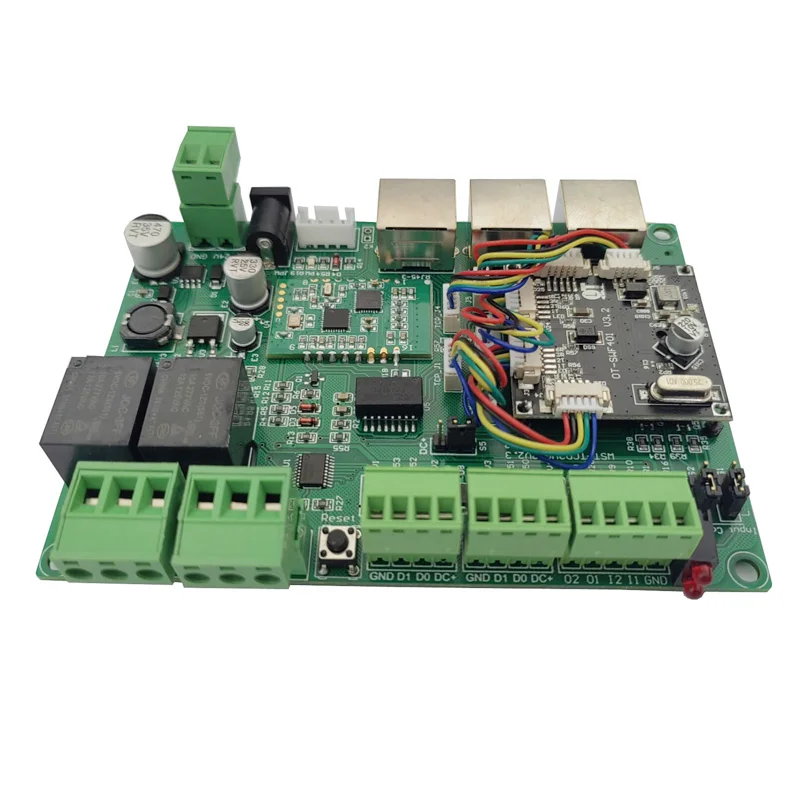

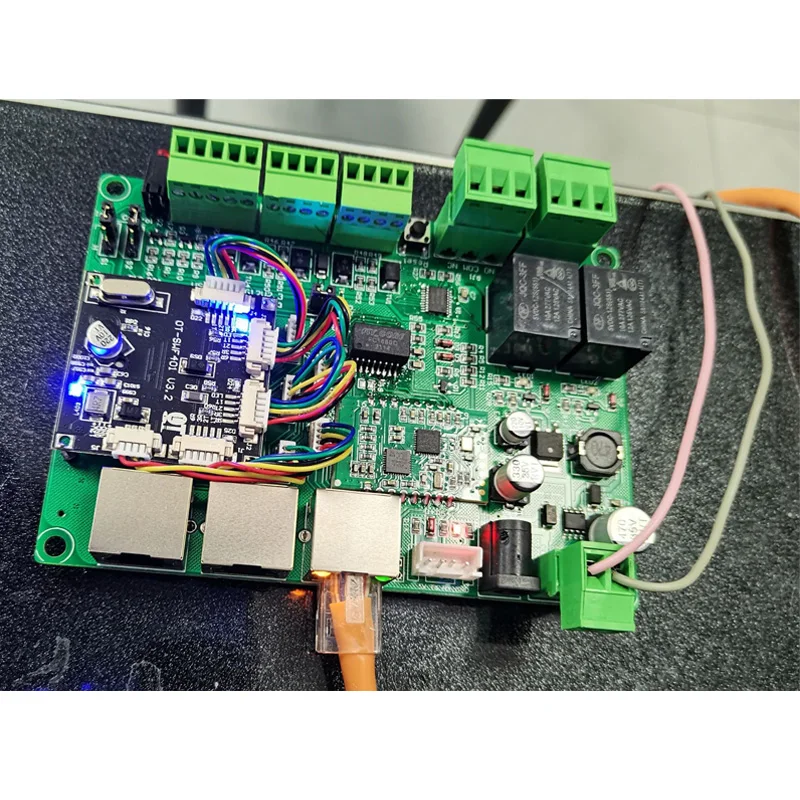

4. Appearance and connection:

We provide two types of power supply interface, one of plug-in power jack, and another power supply terminal along with 2 channel input interface with1 button push interface; we also provide two types of communication interface, one of RJ45 Ethernet interface for TCP/IP communication, and another white color 4 PIN interface for UART TTL communication. 1 channel of relay output, 2 channels of Wiegand interface, and 2 channels of input interface with 1 button push connection please refer to the above picture.



And here is the connection definition:

2CH relay output: NC COM NO

WG1: DC+ D0 D1 GND

WG2: DC+ D0 D1 GND

Power jumper: ON (provide power to Wiegand), OFF (no power to Wiegand/WG1/2 need extra power supply)

TTL: 5V TX RX GND

H/L level jumper: H: high level input active (PW+IN), L: low level input active (GND+IN)

Input interface: 02 01 12 11 GND



10M/100M RJ45 Ethernet interface:

PIN	Name	Description
1	TX+	Transceiver data+
2	TX-	Transceiver data-
3	RX+	Receive data+
4	NC	Not connected
5	NC	Not connected
6	RX-	Receive data-
7	n/c	Not connected
8	n/c	Not connected



Application field of WST-3E2WG22

Security access control, parking management, time attendance

Industrial automation, motor control, light power control system

Security and protection monitoring for area

Smart home, power control, environmental monitoring, intelligent agriculture

Automatic payment, POS system, rice selling system
