Product Overview
Description
We are a factory small but dedicated in roller compactor for granulating & briquetting powders
Salt spheroid after compaction
Changzhou granulator
Type Item | SG-240A | SG-360A | SG-500A | SG-600A | SG-650A |
Roller dia. (mm) | Φ240 | Φ360 | Φ504 | Φ600 | 650 |
Roller width (mm) | 80/120/160 | 180 | 300 | 310 | 330 |
Roller speed (r/min) | 5-35 | 3-26 | 14-20 | 12-18 | 10-16 |
Power of screw feeder (kw) | 4 | 7.5 | 11 | 11 | 15 |
Pre-pressure of accumulator (Mpa) | 5 | 6 | 8-10 | 8-10 | 10-14 |
Max. linear pressure (kN/cm) | 65 | 65 | 70(75) | 70(75) | 70(75) |
Thickness of product before crushing (mm) | 2-6 | 6-8 | 10-12 | 12-14 | 14-16 |
Compacting productivity (t/h) | 0.8-2 | 2.5-3 | 6-8 | 8-10 | 10-12 |
Granules output (kg/h) | 200-600 | 1000-1200 | 2500-3000 | 3000-3600 | 3500-4500 |
Granularity (mm) | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 |
Power of compactor (kw) | 11 | 30 | 75 | 90 | 110 |
Installed capacity (kw) | 35 | 50 | 109 | 125 | 165 |
Dimension (l*w*h) (mm) | 1850*1500*1650 | 2350*2000*2400 | 3650*2250*2500 | 3660*2450*2700 | 4000*2600*3300 |
Total weight (t) | 7-8 | 10 | 20-21 | 25-26 | 32-33 |
Delivery time(d) | 15 | 25 | 30 | 60 | 60 |
The above parameters are for SOP exclusively.
Dry granulator applications

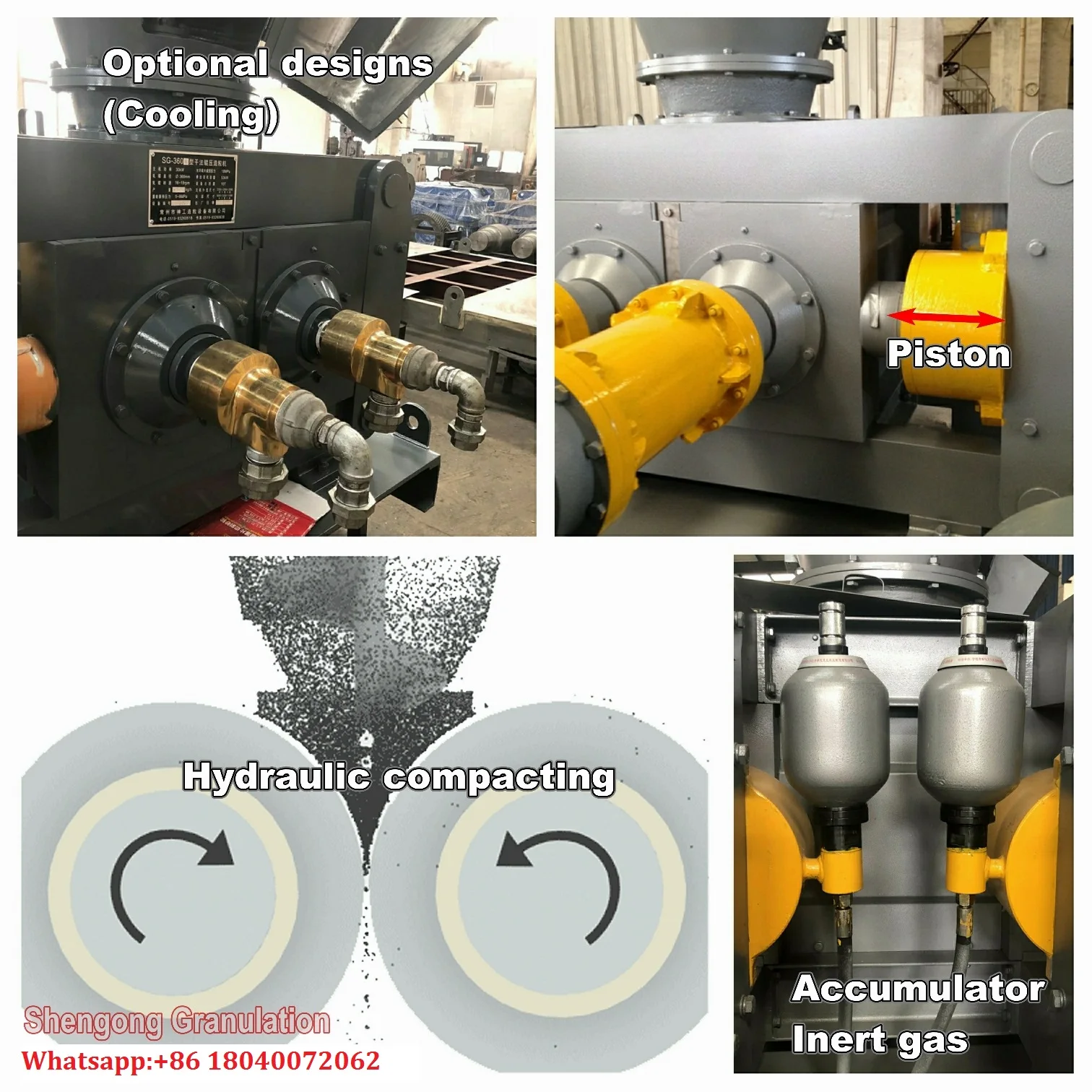

Dry granulator principle
Differences of Dry granulator type A and type B. (type A produces small angular (irregular) granules)

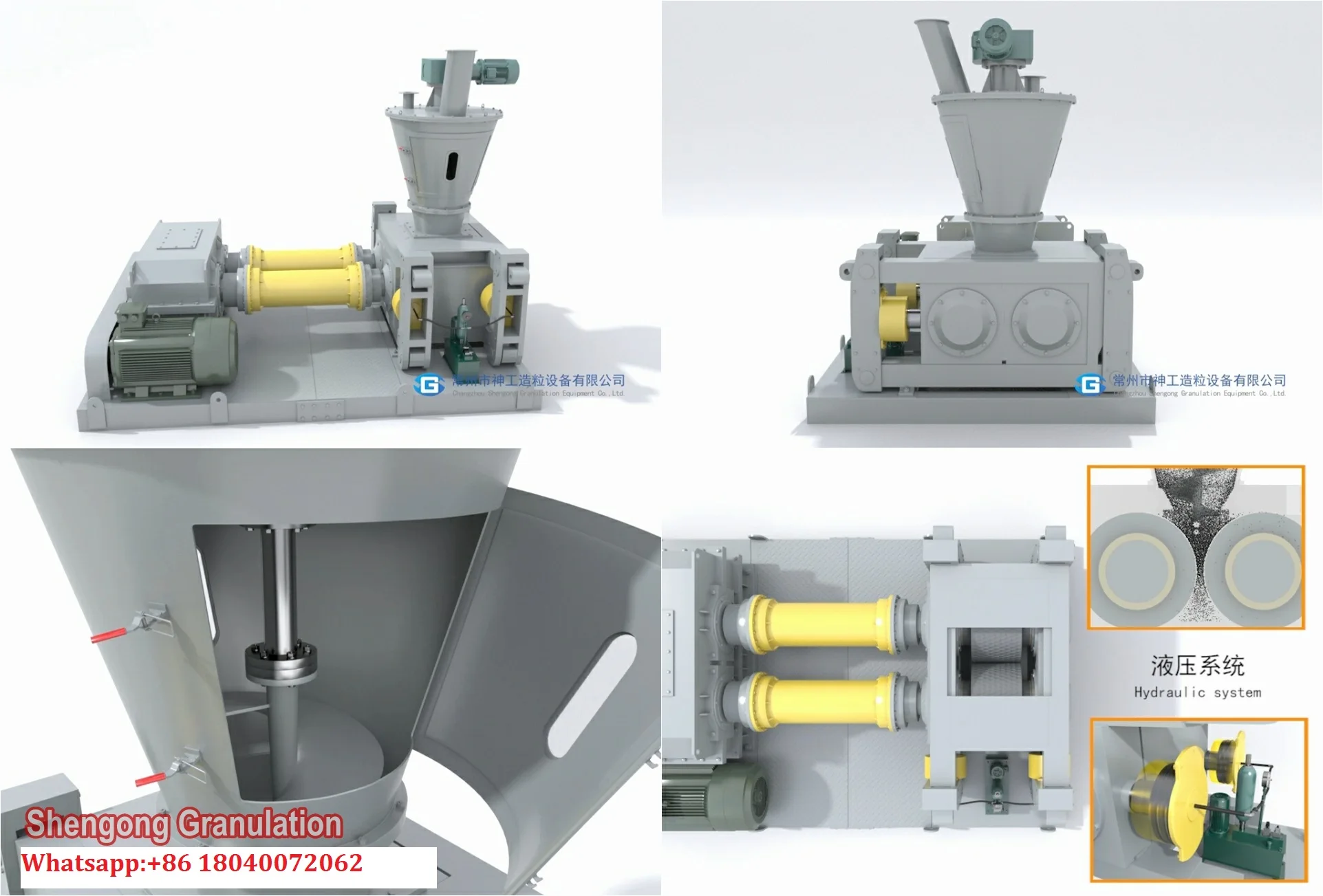

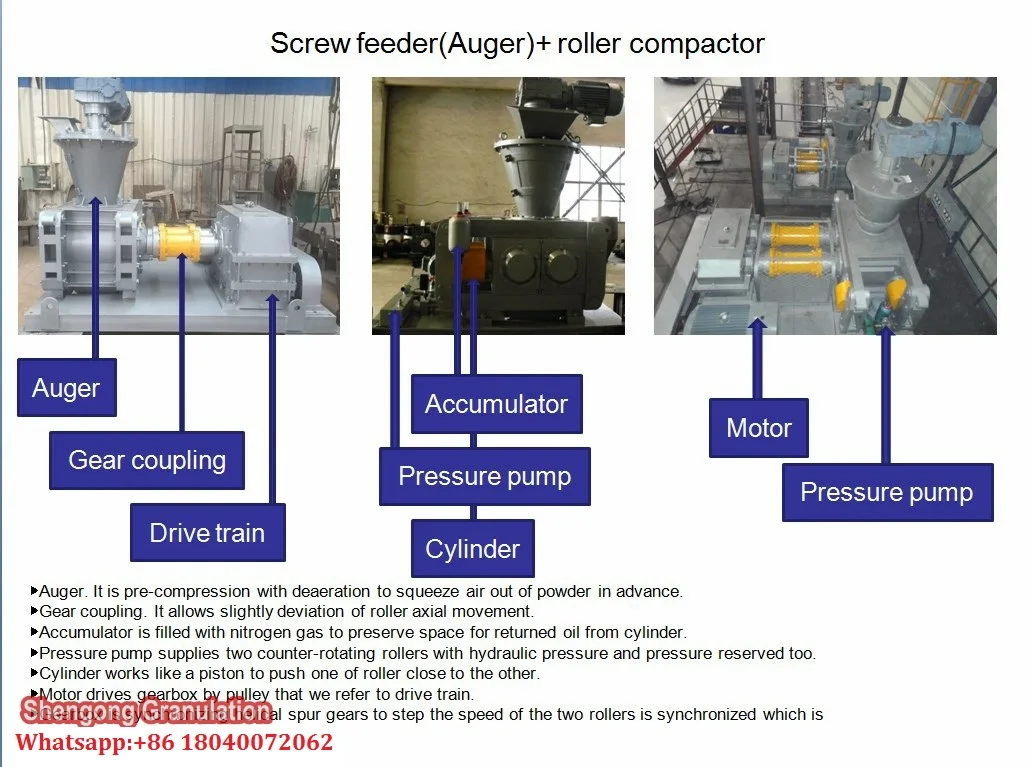

Dry granulator consists of screw feeder (upper taper) and double roller compactor

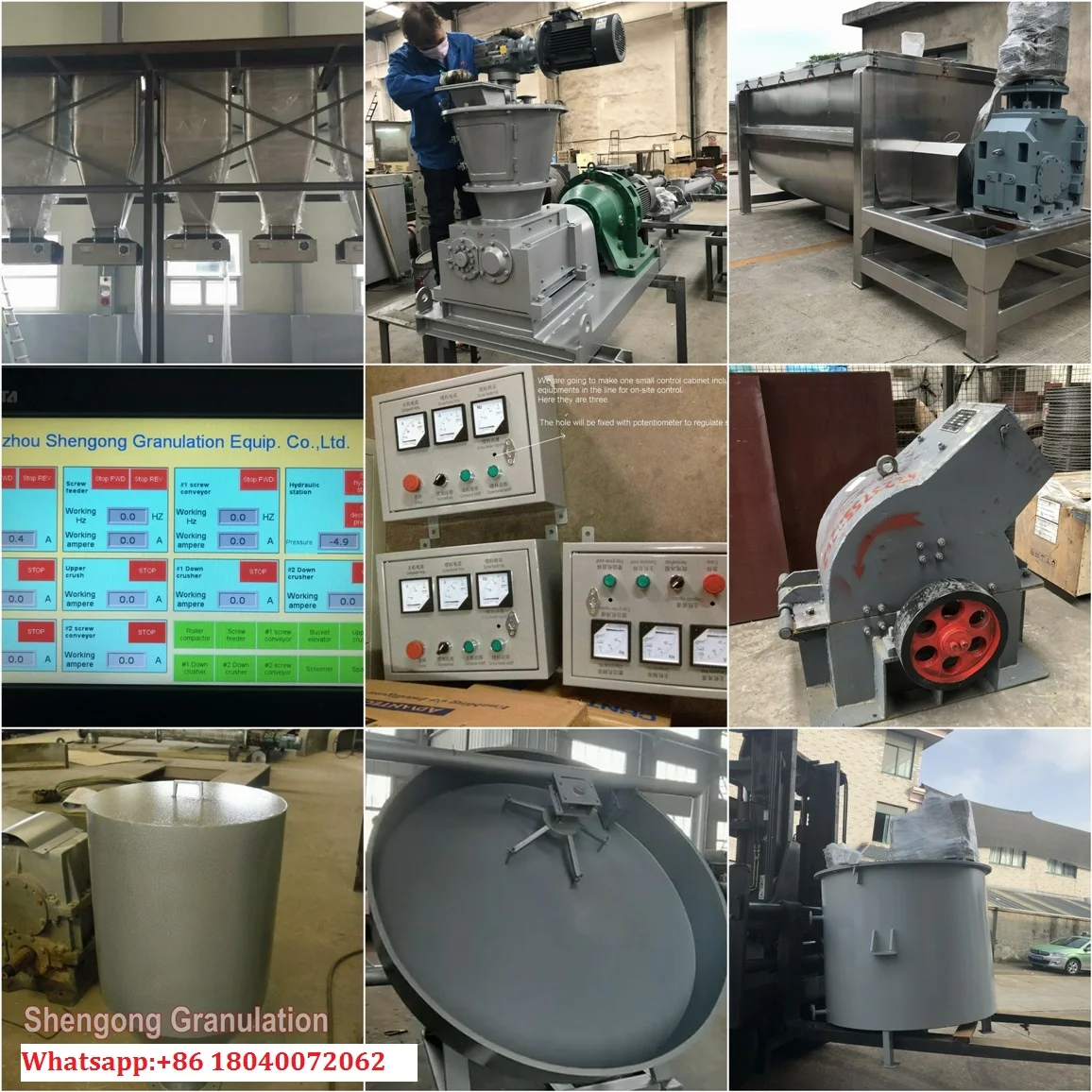

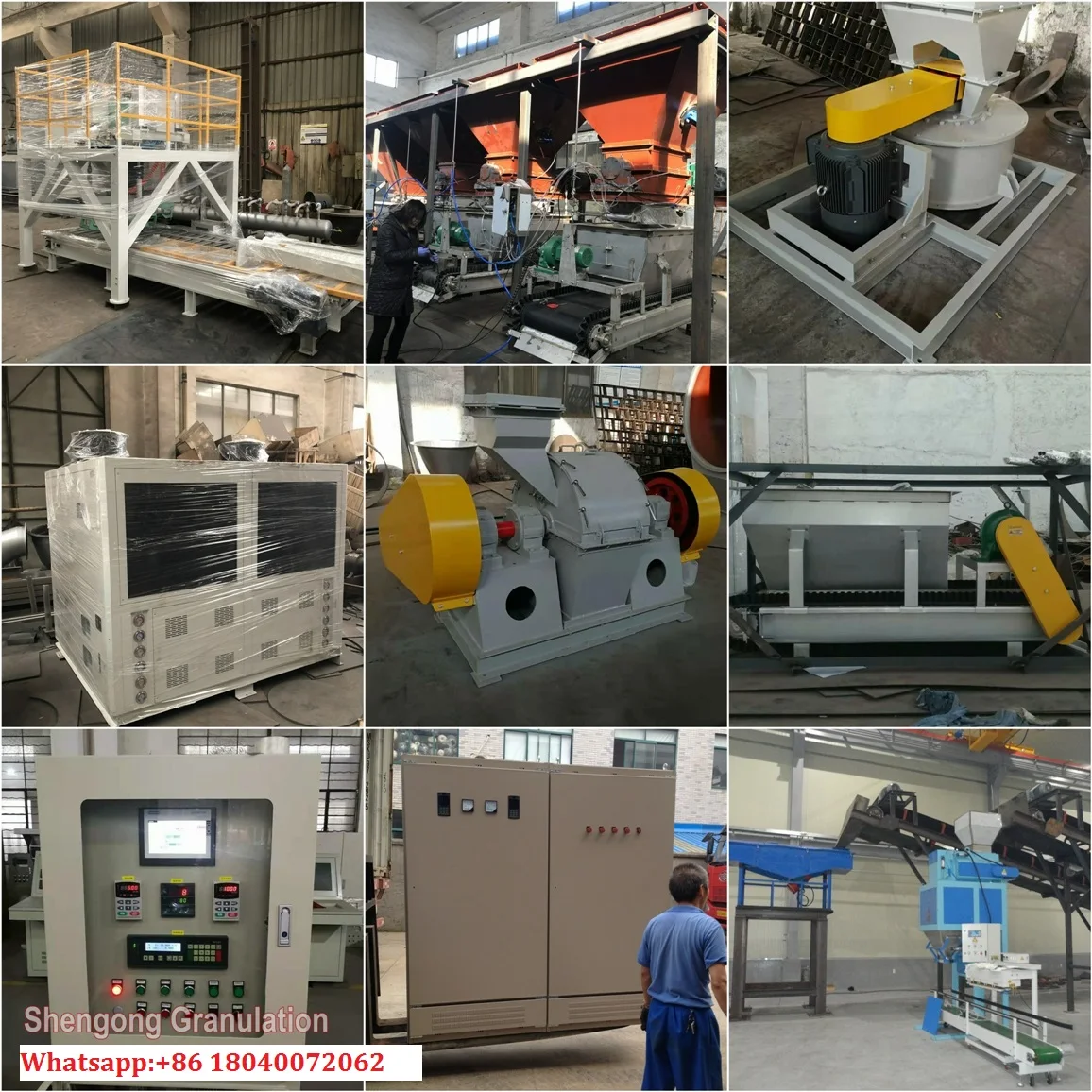

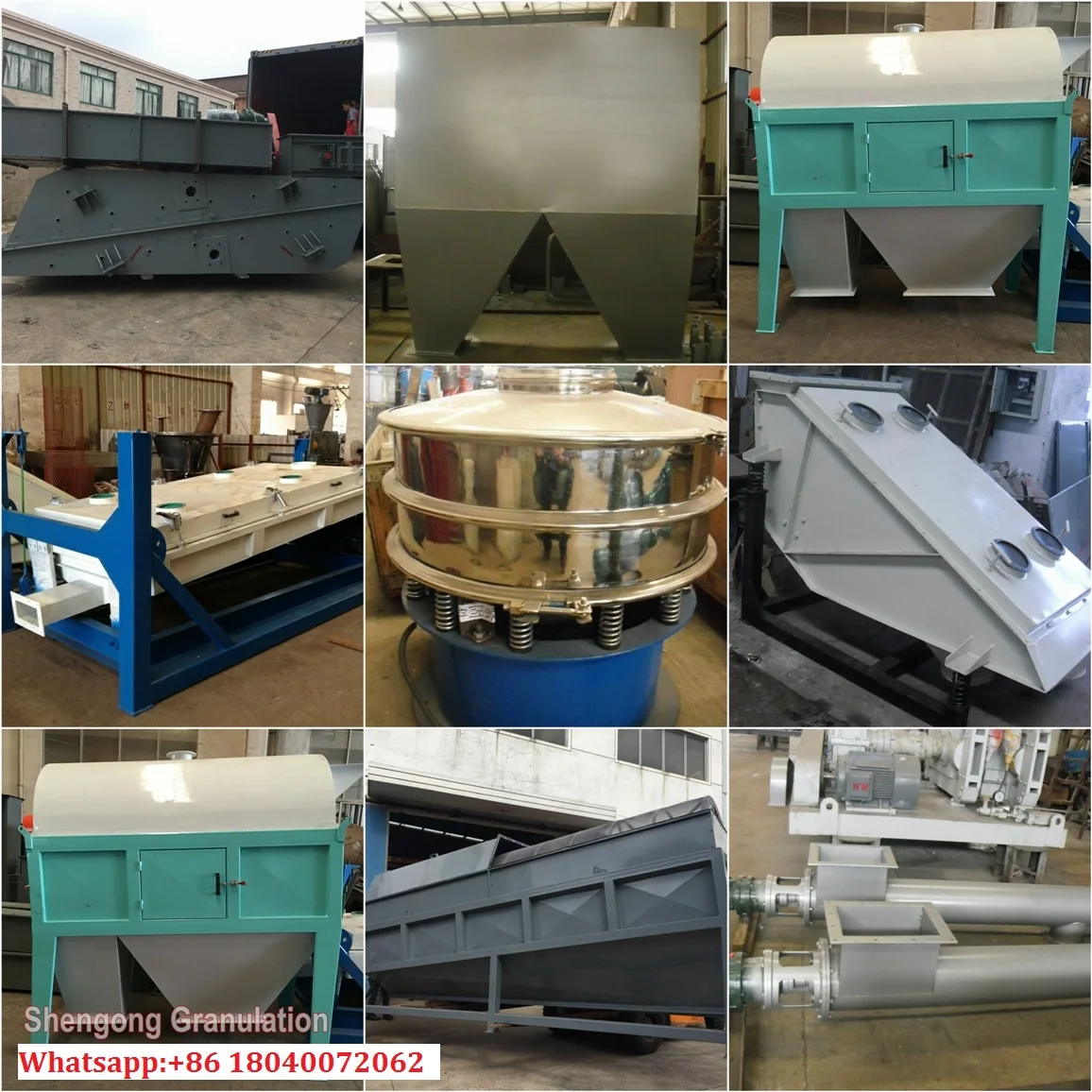

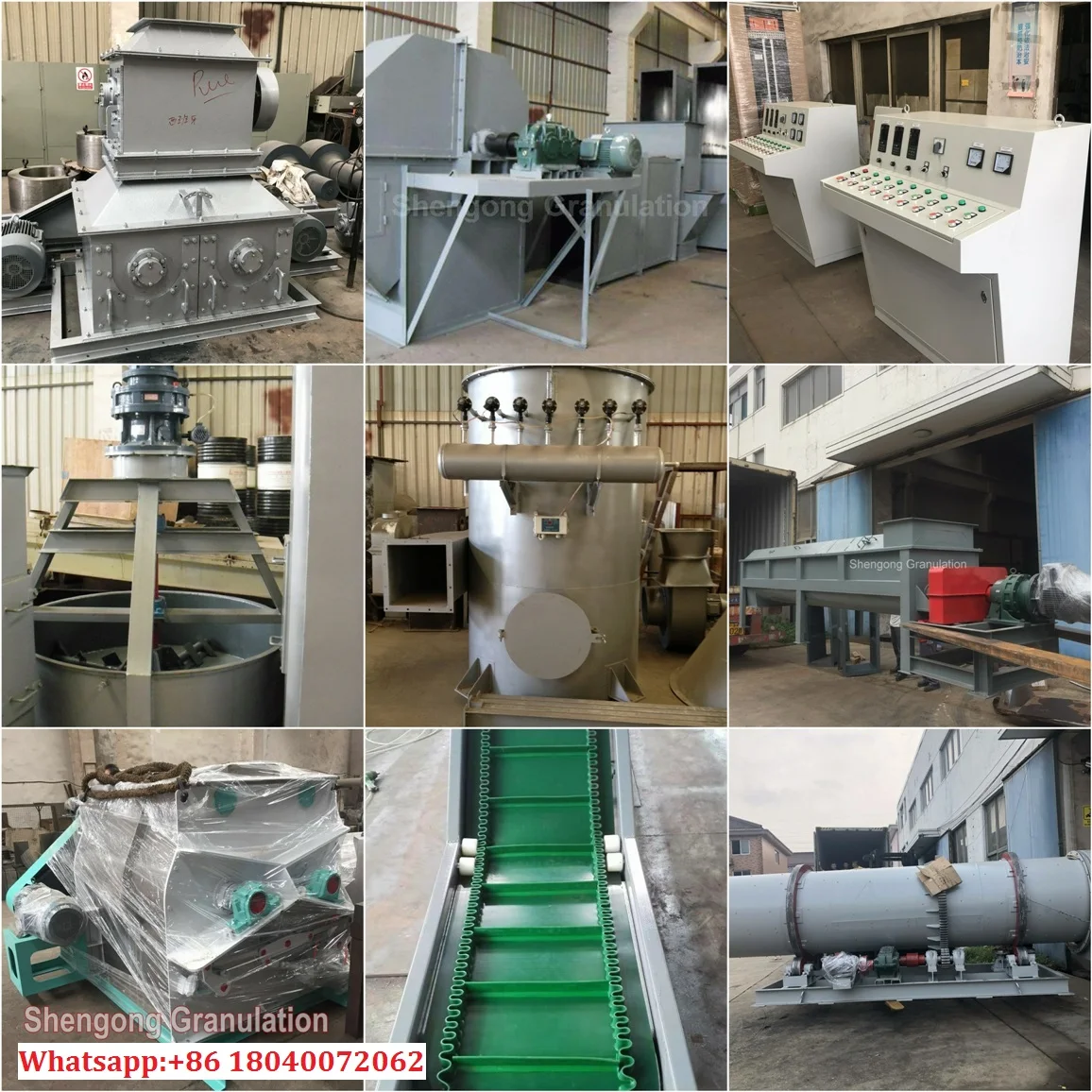

Dry granulator peripheral equipments
Granule variable shapes
Granules and rollers
Intalled projects
Dry granulator and its peripheral equipments are being loaded in one 40ft. container
