Product Overview
Description

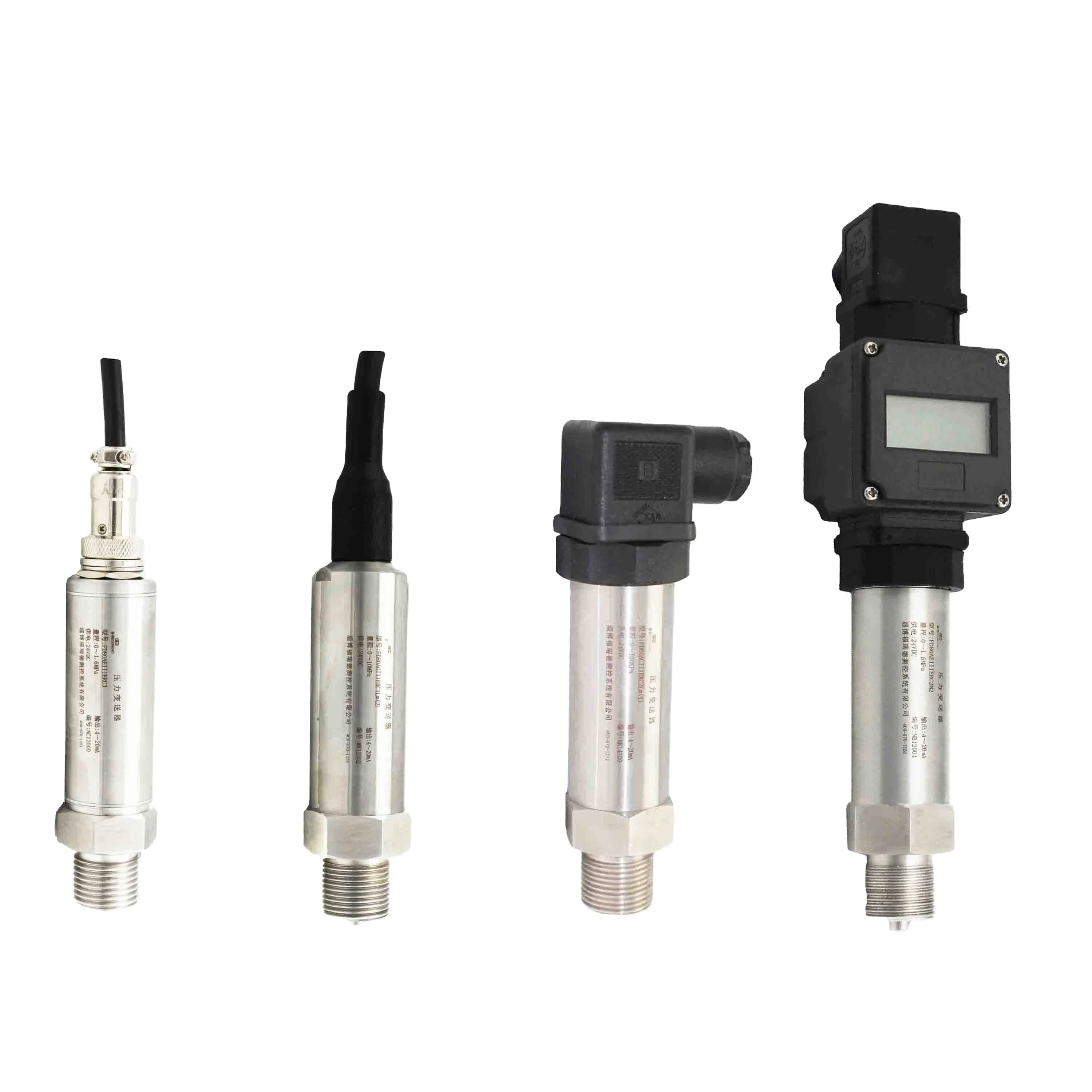

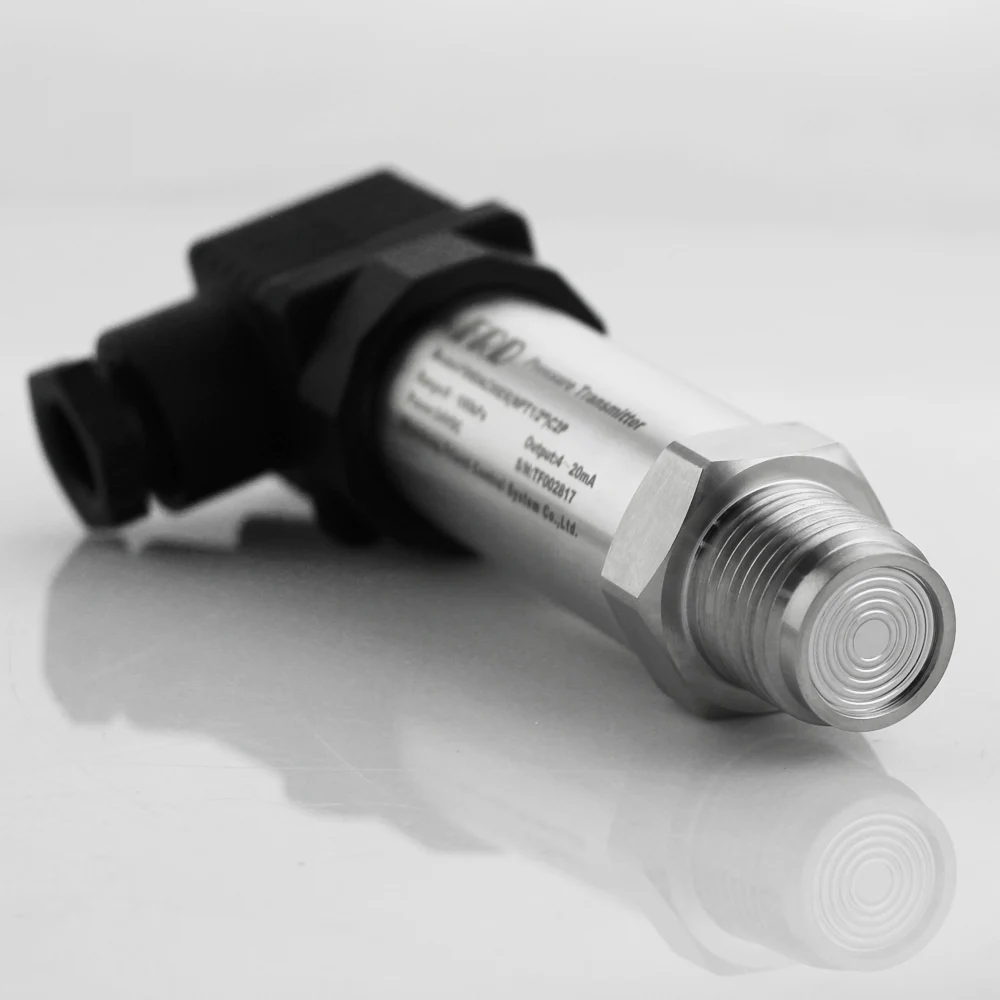

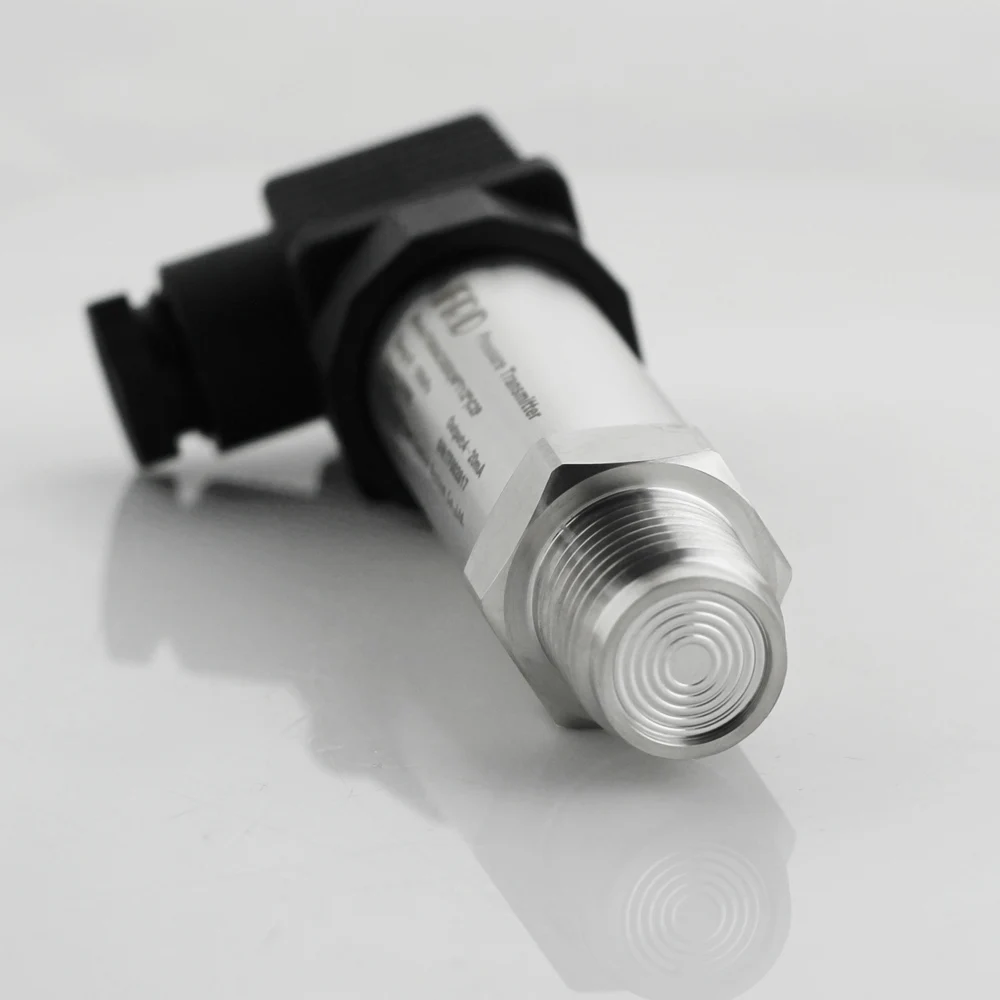

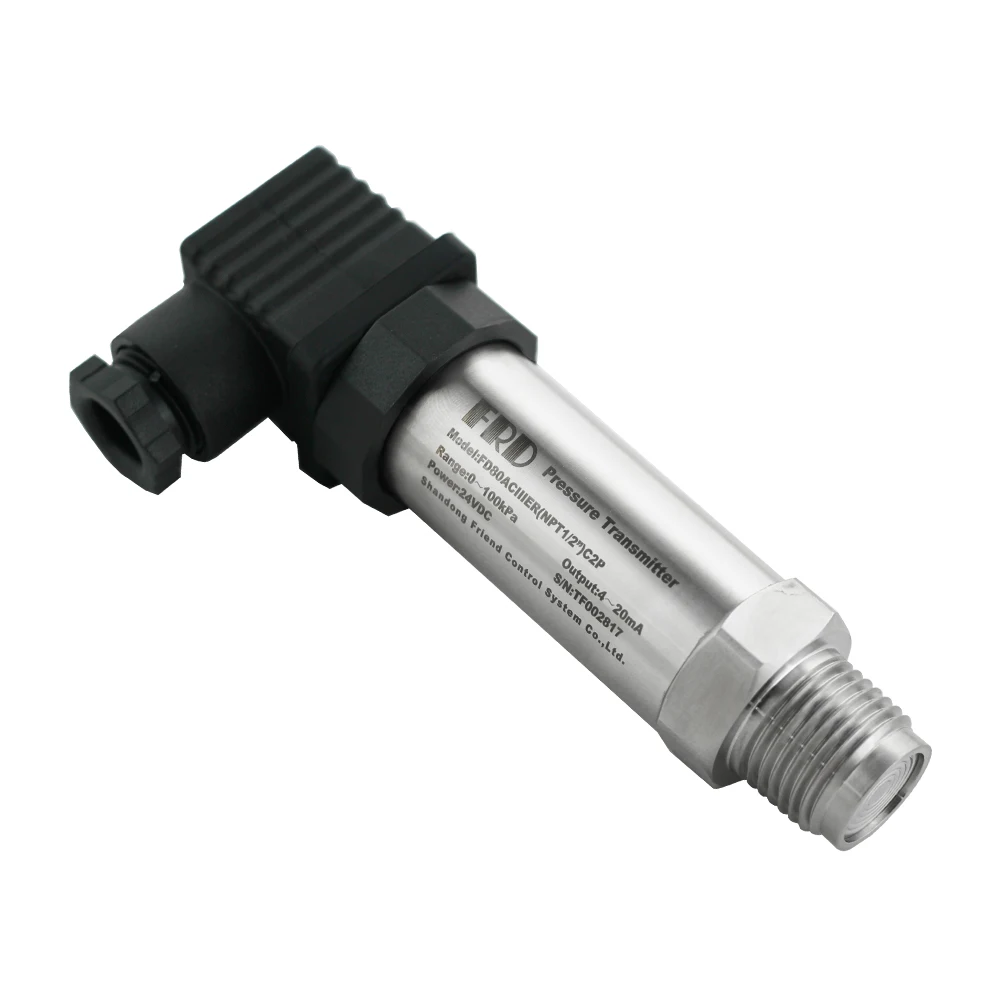

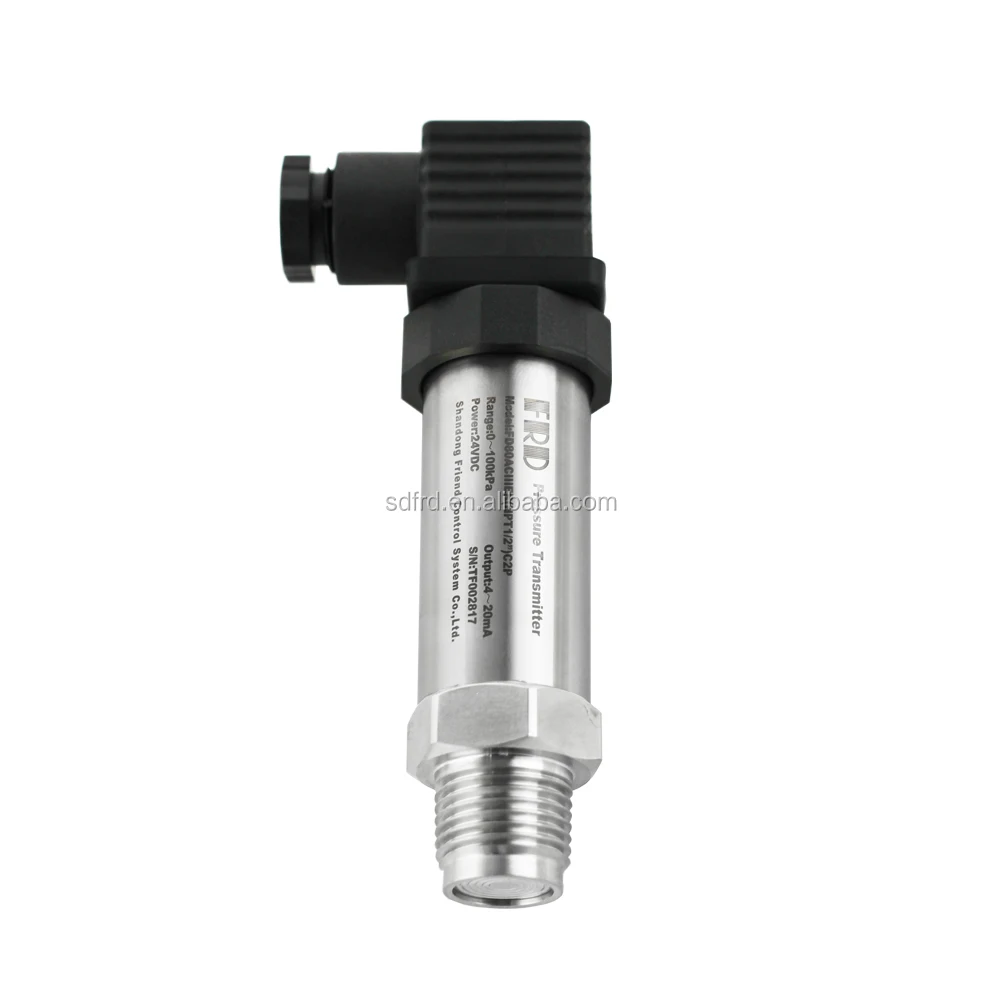

FD80A Series Intelligent Pressure Transmitter is a high-precision, highly stable pressure measurement product. Used digital technology which is the latest application results in the field of sensor manufacturing. Combined with international advanced dielectric pressure transmitter design manufacturing technology, precision digital temperature compensation and nonlinear correction, integrated structural design and standardized output signals . The product is small volume, high precision, light weight, wide range measurement, suitable for various industries in precision measurement of fluid pressure.

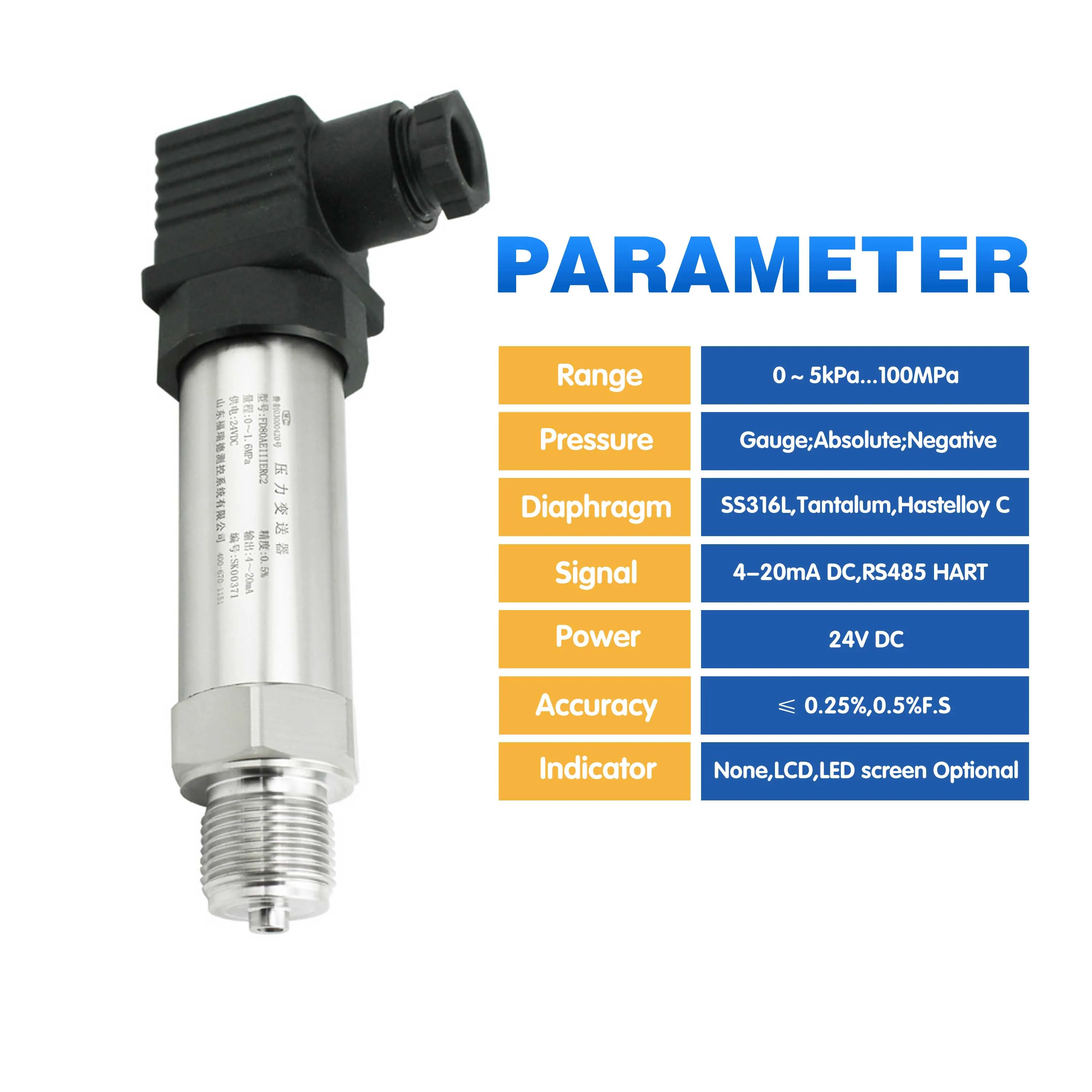

Model | FD80A Pressure Transmitter |
Pressure Range | 0-0.04Bar...0.2Bar...0.7Bar....1000Bar(optional) |
Pressure Type | Gauge;Absolute;Negative pressure |
Pressure Sensor | Diffused Silicon Pressure Sensor |
Output Signal | 4mA～20mADC 1V-5VDC RS485 |
Protocol | MODBUS RTU, HART |
Power supply | 16V～28VDC (Recommend 24VDC ) |
Accuracy | ≤ 0.25%,0.5%F.S |
Working Temperature | -20℃ ~70℃ |
Overload pressure | 150% F.S (（≥600kpa 120%F.S.） |
Burst Pressure | 200% F.S （≥600kpa 150%F.S.） |
Stability | 0.2% F.S./year |
Electrical Connection | Hirschmann,Aviation connectors, gland cable, IP68 diect cable |
Process Connection | Thread M20*1.5,G1/2’’; G1/4’’, 1/4’‘NPT,1/2’‘NPT or Customization |
Indicator | No Display(LCD,LED screen Optional) |
Protection Level | IP65,IP67,IP68 |
Explosion Proof | Exd II C T6 Gb Ex ia II C T4 Gb Ex Td A21 IP66 T80℃ |
