WDND 5000 4 Channel smart power quality meter three phase power quality analyzer with 6000a unit
- Category: >>>
- Supplier: Wuhan Wugao Electric Measurement Co. Ltd.
Share on (1600618883166):
Product Overview
Description
Product Overview

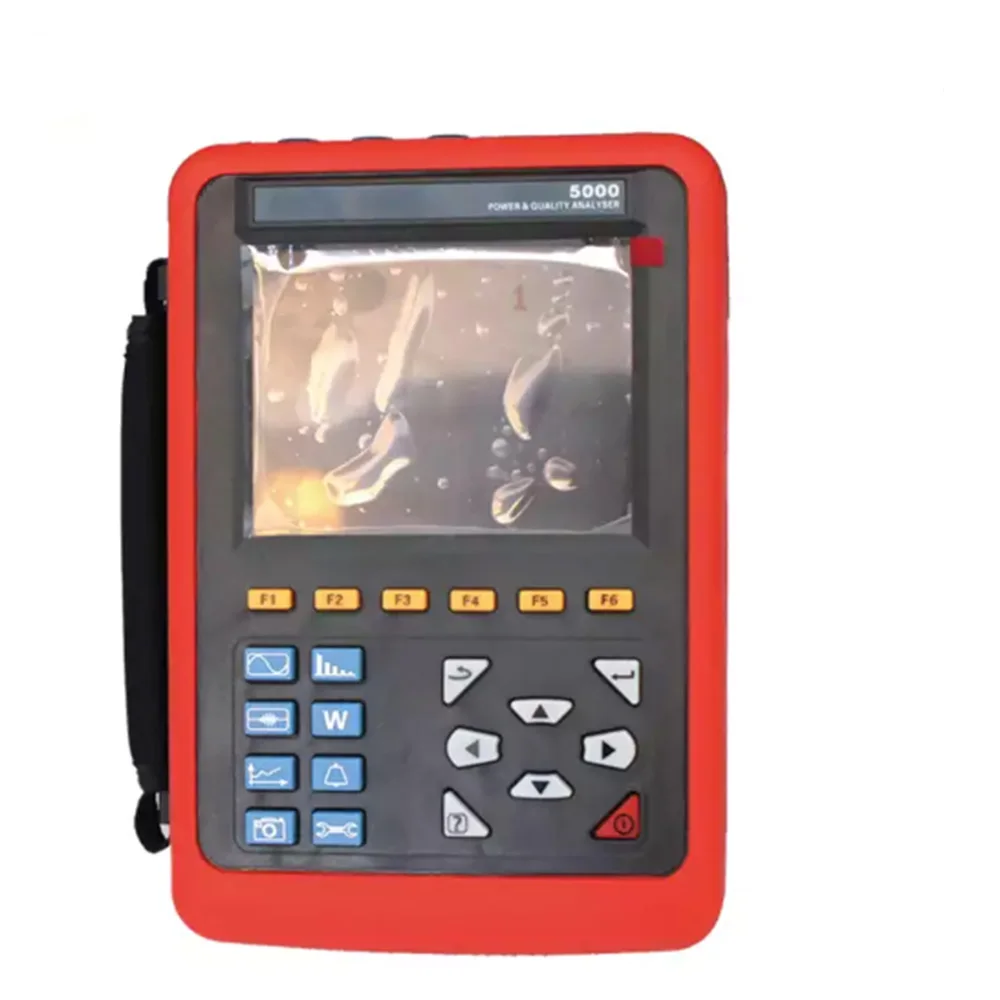

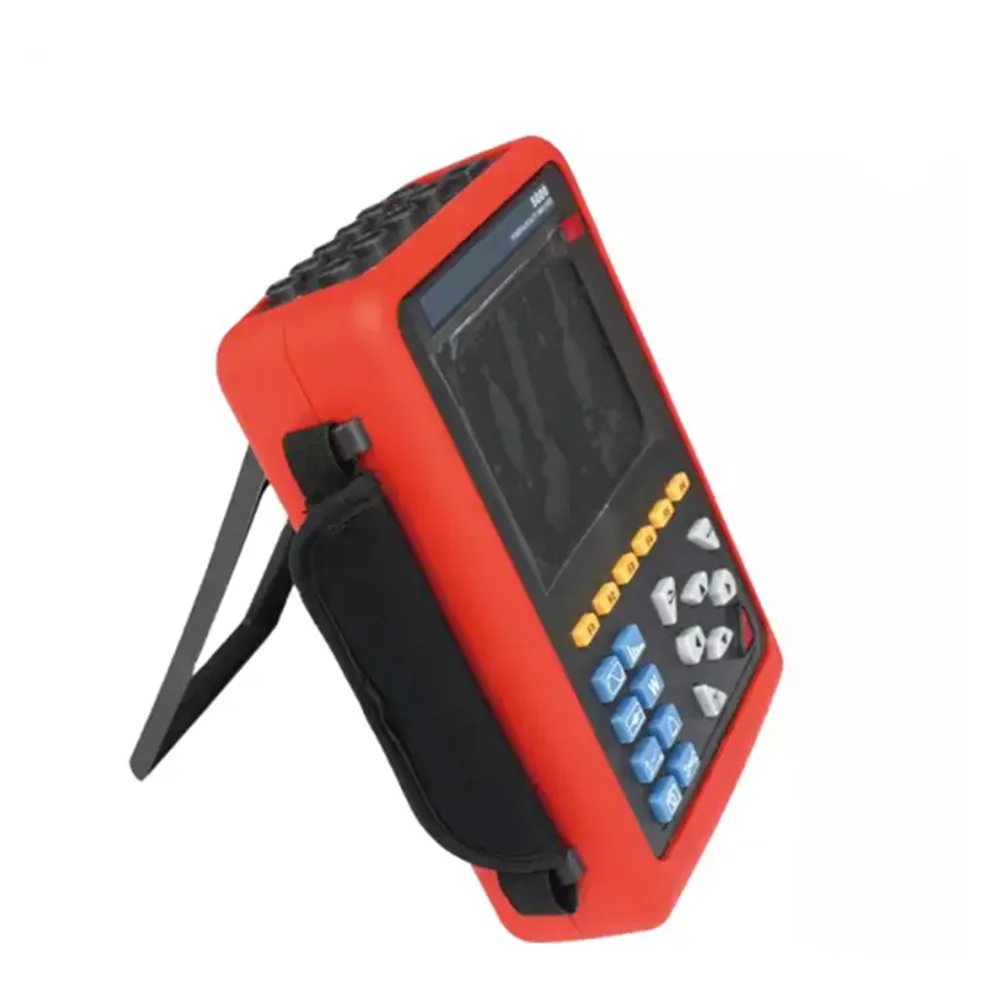

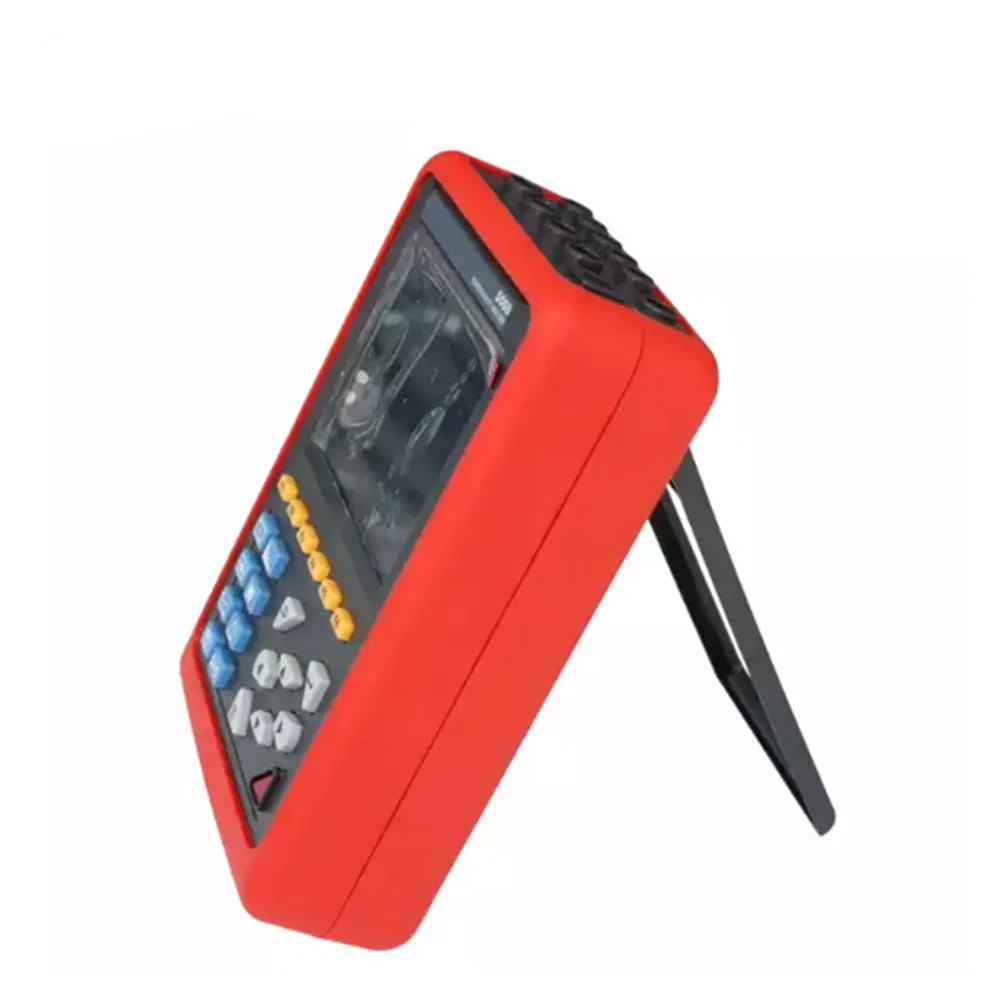

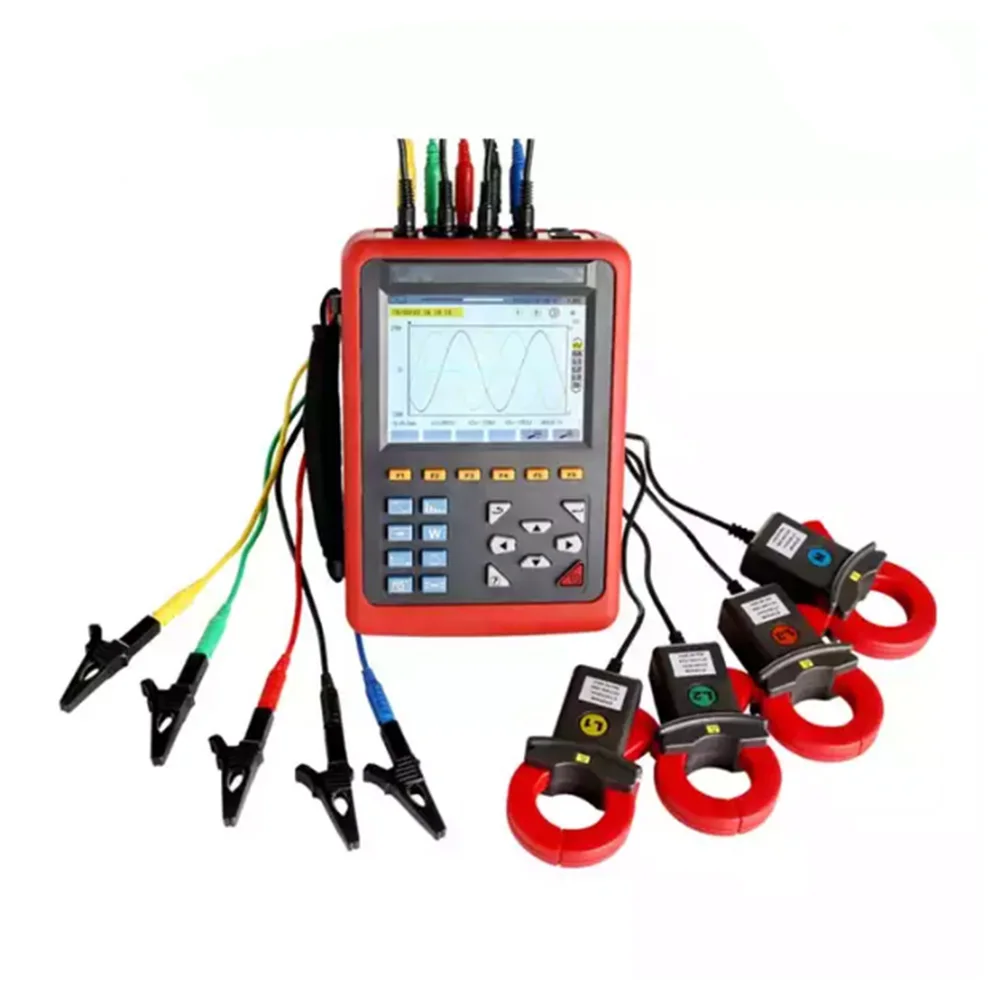

WDND-5000 energy quality analyzer electrical measuring tools digital Analizador De Red Electrica 3 phase power quality analyzer
1. Conduct a comprehensive analysis and diagnosis of all voltage, current, power, electrical energy, harmonics, phase and other
electrical parameters. 2. A variety of current sensors are available to choose from, to deal with various places. 3.4-channel
current, 4-channel voltage measurement, while capturing and recording power parameters and waveforms, providing you with all the
power quality information you need for your work.
electrical parameters. 2. A variety of current sensors are available to choose from, to deal with various places. 3.4-channel
current, 4-channel voltage measurement, while capturing and recording power parameters and waveforms, providing you with all the
power quality information you need for your work.
Products Description
1. Test function: real-time waveform display (4-channel voltage/4-channel current); true RMS voltage and current; voltage DC
component; current and voltage peak value; current and voltage maximum/minimum value within a period of time; phasor diagram
display ; Measurement of harmonics of each phase, up to the 50th harmonic; bar graph showing the harmonic ratio of current and
voltage of each phase; calculation of total harmonic distortion (THD); active/reactive/apparent power values of each phase and
total value; active/reactive/apparent energy value and total value of each phase; transformer K factor calculation; COSφ
displacement power factor (DPF) and power factor (PF) calculation; flicker calculation; three-phase unbalance calculation (
voltage and current) 2. Capture and monitoring function: It can capture and detect the instantaneous changes of the voltage and
current parameters of the grid, including voltage and current fluctuations, voltage and current swells, dips, short-term
interruptions, transient overvoltages, inrush currents, and instantaneous current and voltage distortions. The instrument can
store up to 150 sets of transient waveforms at the same time. 3. Start-up current monitoring: It can monitor the surge current of
the line and monitor the start-up current when the electrical equipment is started, which is helpful for the correct design of the
installed capacity. It can display the rising/falling curve of the effective value of the starting process, the envelope curve of
the starting current, and the 4-way current and 4-way voltage waveforms. After triggering, it can record about 100s, and store all
current and voltage instantaneous values and waveform curves of each cycle within 100s. 4. Recording storage function: all test
parameters of basic test functions (Urms, Uthd, Ucf, Uunb, Hz, Vrms, Vthd, Vcf, Vunb, PST, Arms, Athd, Acf, Aunb, KF, W, VAR, VA,
PF, COSφ, TANφ), the 50th harmonic of voltage, the 50th harmonic of current, a total of 123 parameters are recorded, and a trend
curve graph is generated, which can record data for a long time as needed. (Select 20 parameters at the same time and record once
every 1 minute, about 300 days can be recorded) 5. Alarm function: You can set the limit value for the selected parameter
according to your needs, monitor whether it exceeds the limit, and generate an alarm log when the limit is exceeded, such as
voltage overvoltage, current overcurrent, unbalance exceeding the limit, a certain harmonic Ratio over limit, frequency over
limit, active power over limit, total harmonic distortion over limit, etc. Up to 40 groups of alarm monitoring parameters can be
set, and each group can be set with different monitoring parameters (including 50 harmonics, a total of 123 different parameters)
and limits, the minimum time for exceeding the limit can be set. Up to 12800 groups of alarm log records can be stored. 6.
Screenshot function: On any test page, you can take a screenshot to store the current screen, and automatically save the recording
time and the test mode you are in. Such as saving current and voltage waves, harmonic histograms, phasor diagrams, etc. Up to 60
groups of screenshots can be saved at the same time 7. Communication function: communicate with the computer through USB, the
monitoring software can display the waveform of the power quality analysis test in real time, and can read the detected and
captured transient waveform, trend chart record, alarm list, test screenshots, etc. 8. Setting function: the user can set the time
and date, set the contrast and brightness of the display screen, set the corresponding color of each phase line in the instrument;
can set the wiring method and grid type of the instrument; can select different current clamps And different voltage test ratios;
Chinese menu or English menu can be selected. 9. Chinese/English help menu: You can press the "Help" button at any time to obtain
relevant help information at each stage of operation.
component; current and voltage peak value; current and voltage maximum/minimum value within a period of time; phasor diagram
display ; Measurement of harmonics of each phase, up to the 50th harmonic; bar graph showing the harmonic ratio of current and
voltage of each phase; calculation of total harmonic distortion (THD); active/reactive/apparent power values of each phase and
total value; active/reactive/apparent energy value and total value of each phase; transformer K factor calculation; COSφ
displacement power factor (DPF) and power factor (PF) calculation; flicker calculation; three-phase unbalance calculation (
voltage and current) 2. Capture and monitoring function: It can capture and detect the instantaneous changes of the voltage and
current parameters of the grid, including voltage and current fluctuations, voltage and current swells, dips, short-term
interruptions, transient overvoltages, inrush currents, and instantaneous current and voltage distortions. The instrument can
store up to 150 sets of transient waveforms at the same time. 3. Start-up current monitoring: It can monitor the surge current of
the line and monitor the start-up current when the electrical equipment is started, which is helpful for the correct design of the
installed capacity. It can display the rising/falling curve of the effective value of the starting process, the envelope curve of
the starting current, and the 4-way current and 4-way voltage waveforms. After triggering, it can record about 100s, and store all
current and voltage instantaneous values and waveform curves of each cycle within 100s. 4. Recording storage function: all test
parameters of basic test functions (Urms, Uthd, Ucf, Uunb, Hz, Vrms, Vthd, Vcf, Vunb, PST, Arms, Athd, Acf, Aunb, KF, W, VAR, VA,
PF, COSφ, TANφ), the 50th harmonic of voltage, the 50th harmonic of current, a total of 123 parameters are recorded, and a trend
curve graph is generated, which can record data for a long time as needed. (Select 20 parameters at the same time and record once
every 1 minute, about 300 days can be recorded) 5. Alarm function: You can set the limit value for the selected parameter
according to your needs, monitor whether it exceeds the limit, and generate an alarm log when the limit is exceeded, such as
voltage overvoltage, current overcurrent, unbalance exceeding the limit, a certain harmonic Ratio over limit, frequency over
limit, active power over limit, total harmonic distortion over limit, etc. Up to 40 groups of alarm monitoring parameters can be
set, and each group can be set with different monitoring parameters (including 50 harmonics, a total of 123 different parameters)
and limits, the minimum time for exceeding the limit can be set. Up to 12800 groups of alarm log records can be stored. 6.
Screenshot function: On any test page, you can take a screenshot to store the current screen, and automatically save the recording
time and the test mode you are in. Such as saving current and voltage waves, harmonic histograms, phasor diagrams, etc. Up to 60
groups of screenshots can be saved at the same time 7. Communication function: communicate with the computer through USB, the
monitoring software can display the waveform of the power quality analysis test in real time, and can read the detected and
captured transient waveform, trend chart record, alarm list, test screenshots, etc. 8. Setting function: the user can set the time
and date, set the contrast and brightness of the display screen, set the corresponding color of each phase line in the instrument;
can set the wiring method and grid type of the instrument; can select different current clamps And different voltage test ratios;
Chinese menu or English menu can be selected. 9. Chinese/English help menu: You can press the "Help" button at any time to obtain
relevant help information at each stage of operation.
Product Paramenters
Host model | WDDN5000 power quality detector | ||||
Power supply | Rechargeable lithium battery pack 9.6V, 4500mAH, external charger; working current is about 490mA, the battery works continuously for 8 hours | ||||
Battery level indicator: | 5 bars of battery symbol to display the battery level, when the battery level is too low, it will automatically shut down after 1 minute | ||||
Display mode | LCD color screen, 640dots×480dots, 5.6 inches, display area 116mm×88mm | ||||

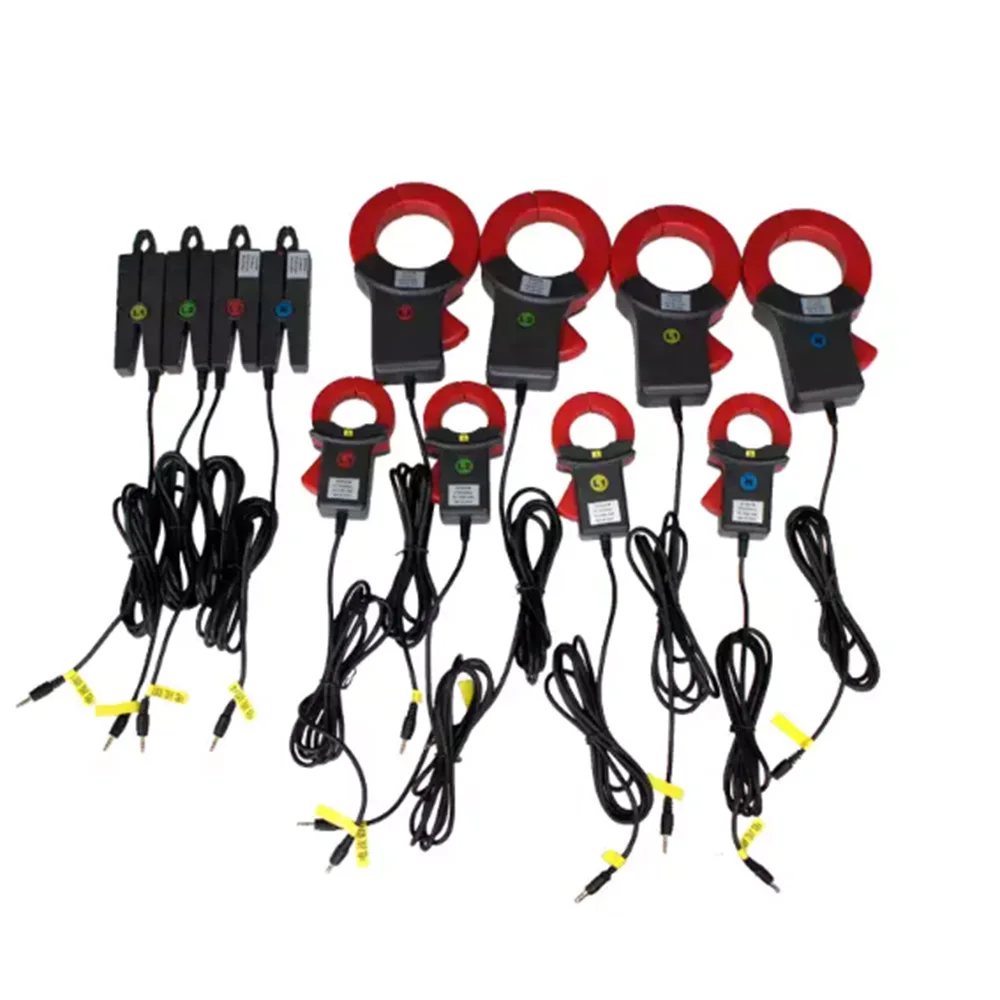

Current test | Current sensor: 008B; 040B; 068B; 300F (optional) | ||||
Voltage test | Line voltage: 1.0V～2000V; Phase voltage: 1.0V～1000V | ||||
Electric energy parameters | W，VA，var，PF，DPF，cosφ，tanφ；Wh，Varh，Vah | ||||
Number of channels | 4 channels of voltage, 4 channels of current | Three-phase unbalance degree | yes | ||
Frequency | 40Hz～70Hz | Start current mode | Yes, 100 seconds | ||
Harmonic | Yes, 0~50th | peak | Yes | ||
Total Harmonic Distortion | Yes, 0~50th order, each phase | Phasor diagram display | Automatic | ||
Expert mode | yes | Screenshot capacity | 60 | ||
Number of transient recording groups | 150groups | Menu language | Chinese, English | ||
Voltage flicker | yes | Communication interface | USB | ||
Record | 300days（record 20 parameters at the same time, record 1 point every 1 minute) | ||||
Minimum/maximum record value | Yes, the maximum and minimum values within a period of time can be measured | ||||
Alarm | 40 different types of parameter options, 12800 groups of alarm logs | ||||
Automatic shutdown | In the alarm/trend graph record/transient capture mode (waiting or in progress), the instrument does not automatically shut down | ||||
In other test modes, if there is no key operation within 15 minutes, it will automatically shut down after 1 minute. | |||||
Backlight function | Yes, suitable for dark places and night use | ||||
Instrument size | Length, width and thickness: 240mm × 170mm × 68 mm | ||||
The mass of the instrument | about 10.5Kg (including packaging) | ||||
Input impedance | Test voltage input impedance: 1MΩ | ||||
Compliant with safety regulations | IEC 61010 1000V Cat III / 600V CAT IV，IEC61010-031，IEC61326，Pollution Degree 2 | ||||

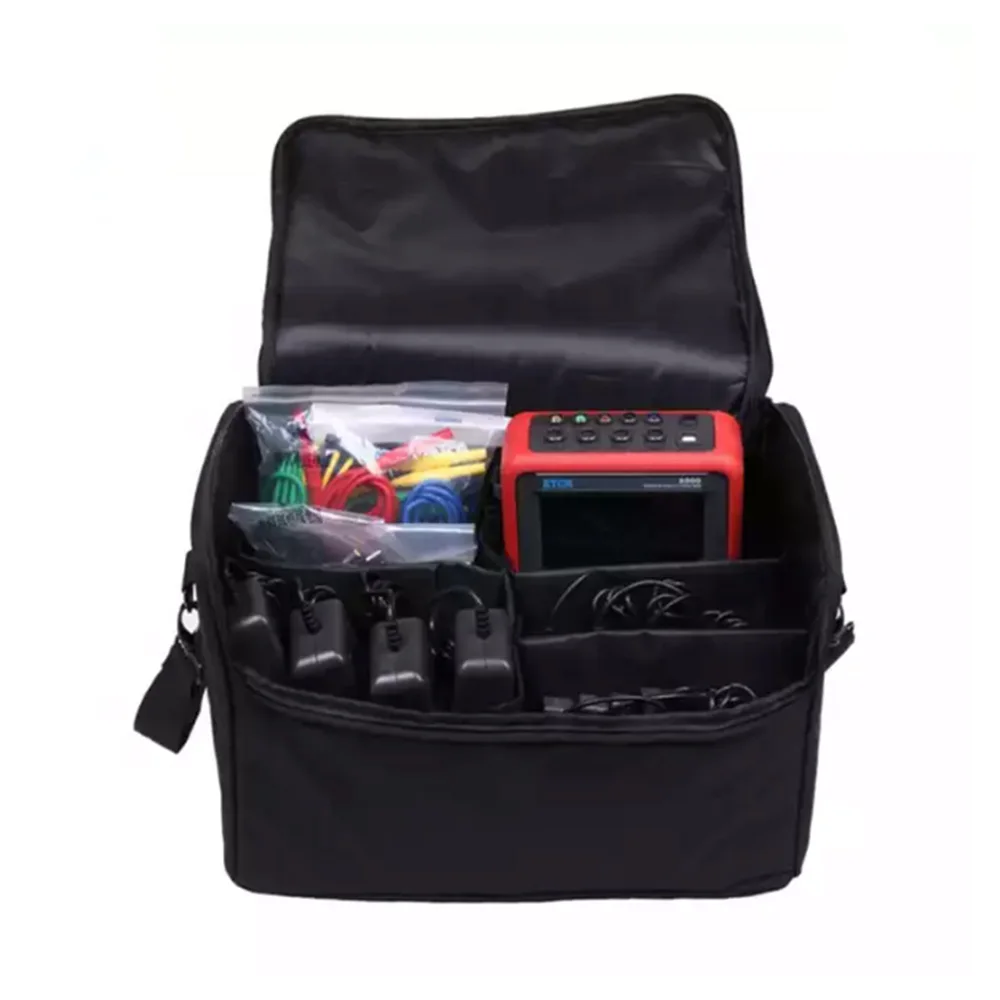

Supplied accessories Host | 1; Instrument bag: 1; Test leads: 5 (1 each of yellow, green, red, blue, and black); Alligator clips: 5; Test leads: 5; Charger: 1; Software CD: 1; Lithium battery pack: 1; 2G memory card: 1. Current sensor: (optional) | ||||
