MT-H2M44 4K@60Hz A/V Solution 4x4 HDMI Matrix Switch
- Category: >>>
- Supplier: Guangdong,Mt-Viki,Electronics,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Introduction
This 4 in 4 out HDMI matrix switcher allows up to 4 HDMI sourde devices to be switches to 4 HDMI monitors, HDTVs, or projectors. It is easy to pair any output with any input at the same time and each HDMI output has independent coaxial S/ PDIF port. The switcher supports video signals at resolutions up to 4K@60Hz 4:4:4, data rates up to 18Gpbs, deep color up to 30/ 36-bit, 3D, and HD audio formats, it offers flexible control options, such as front panel buttons, RS232 serial port, web based GUI, and IR remote, Also, other features include hot plug-and play, EDID and HDCP management. The unit contains in-built equalization and amplification to ensure optimum signal transmission without loss in video/ audio quality. All the powerful features make it ideal for integration into various environments.
Product Features
Four HDMI inputs by four HDMI outputs with four S/PDIF audio outputs de-embedded from HDMI
Support HDMI 2.0 and HDCP 2.2, compliant with lower standards
Capable of transmitting 4K*2K@60Hz 4:4:4
Support HDMI HDR
Support manual HDCP management and auto-detecting
LCD screen shows real-time I/O connection status, switching status, HDCP status, and output resolution
Controllable via front panel buttons, RS232, IR and RCP/IP
Built-in web-based GUI for TCP/IP control
Powerful EDID management
Support firmware upgrade through Micro USB port
Easy installation with rack-mounting design
Support HDMI 2.0 and HDCP 2.2, compliant with lower standards
Capable of transmitting 4K*2K@60Hz 4:4:4
Support HDMI HDR
Support manual HDCP management and auto-detecting
LCD screen shows real-time I/O connection status, switching status, HDCP status, and output resolution
Controllable via front panel buttons, RS232, IR and RCP/IP
Built-in web-based GUI for TCP/IP control
Powerful EDID management
Support firmware upgrade through Micro USB port
Easy installation with rack-mounting design

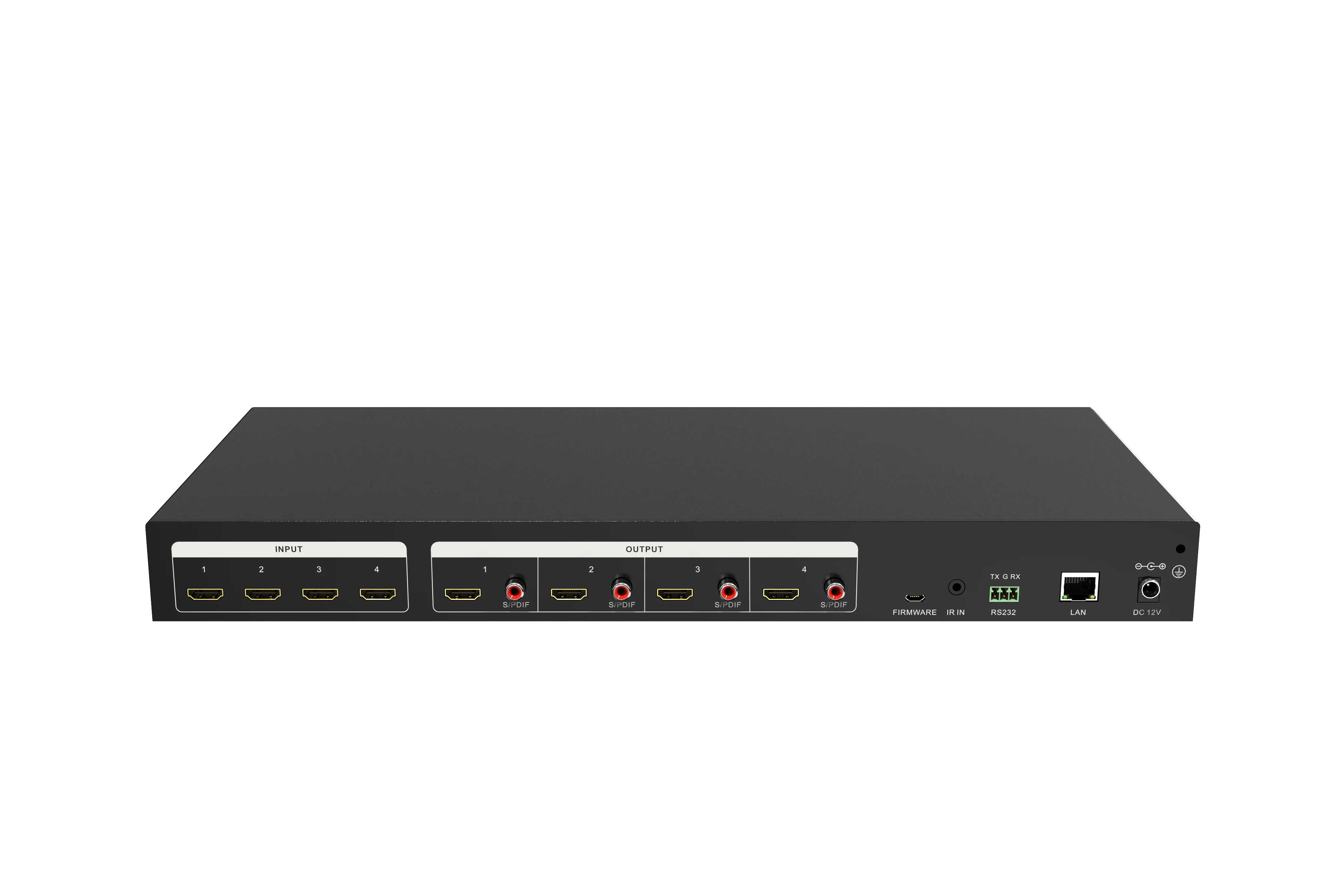

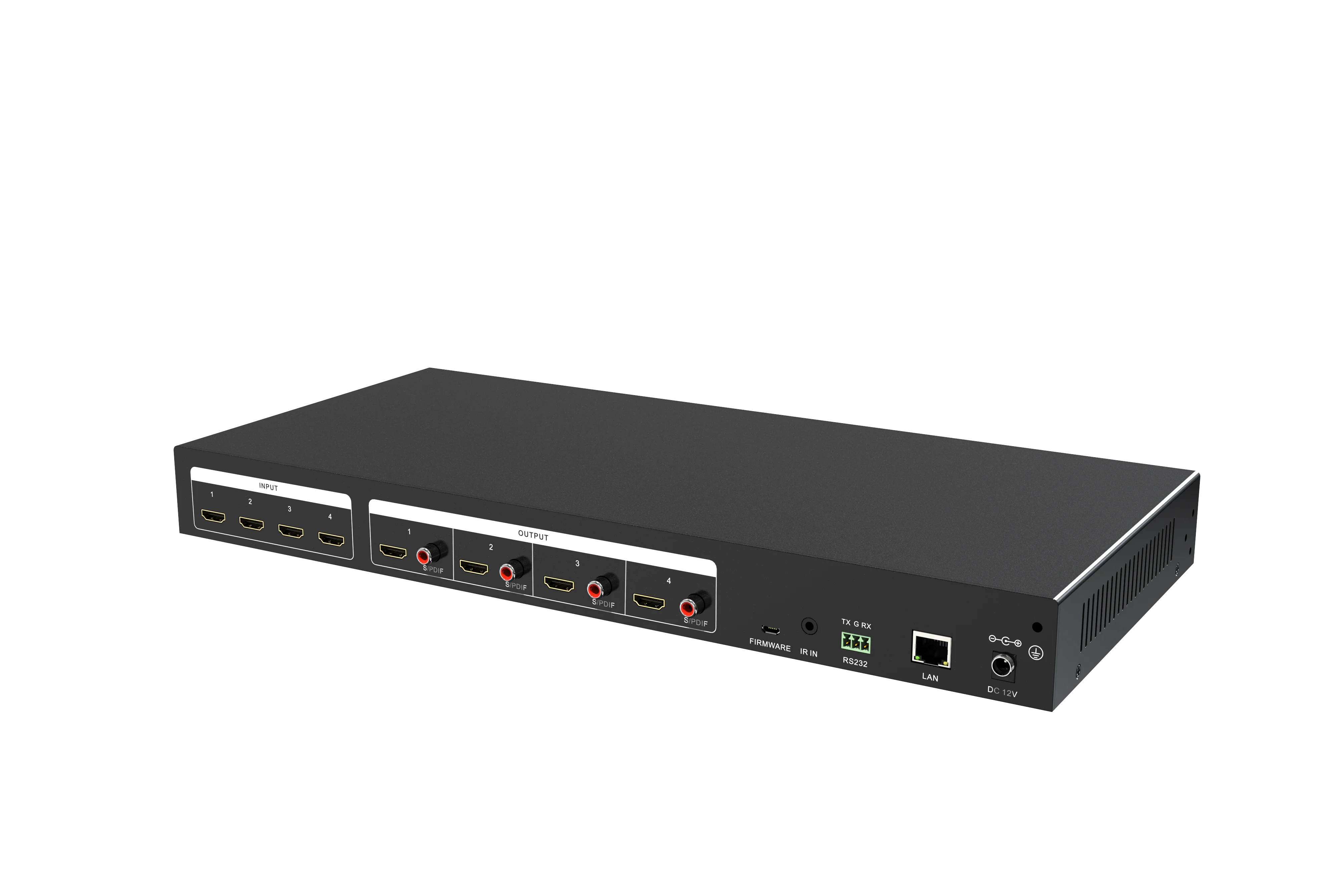

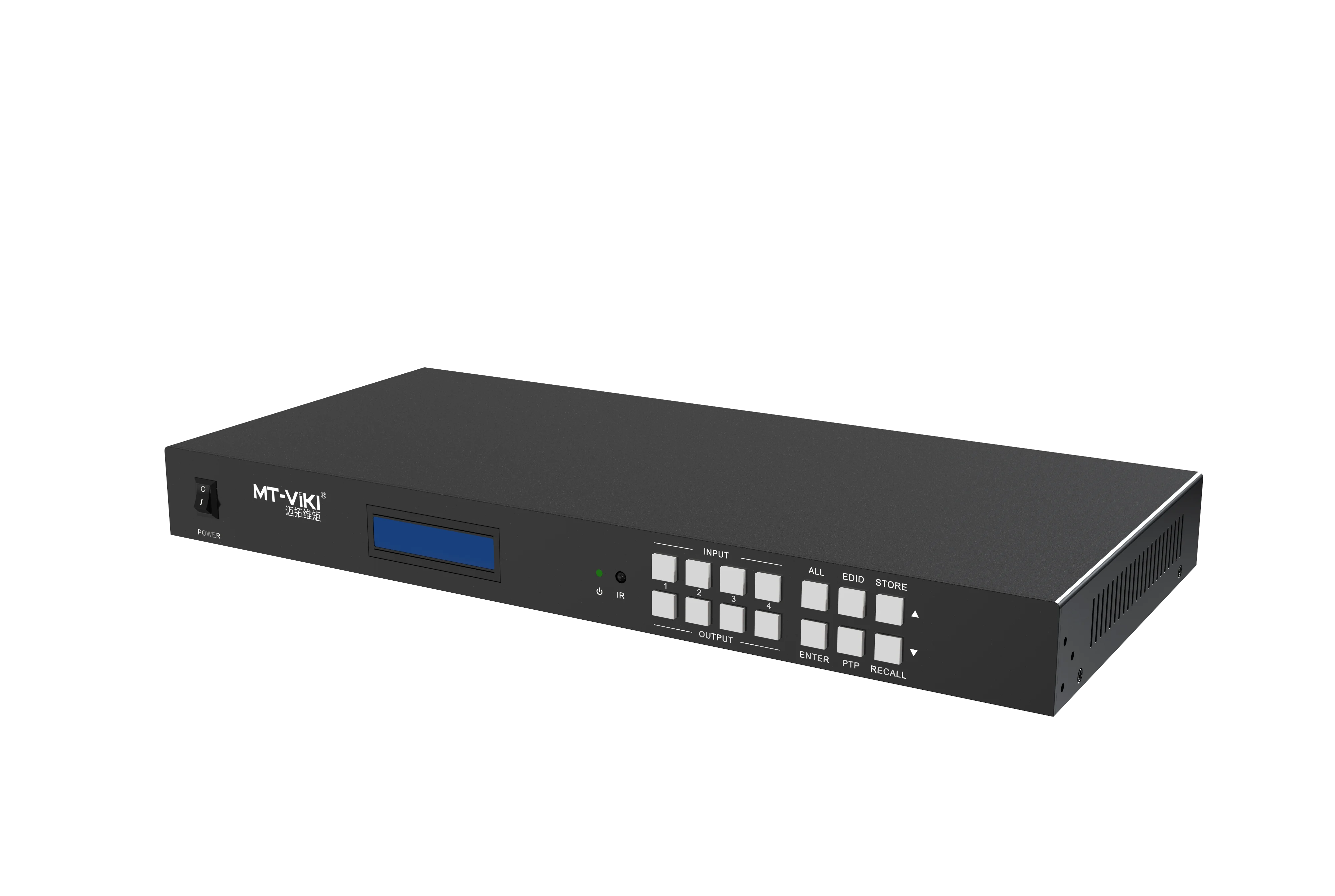

Product Pictures
Specification
Video Input | |||||||
Interfaces | 4 x HDMI Type A Female | ||||||
Video Output | |||||||
Interfaces | 4 x HDMI Type A Female | ||||||
Video | |||||||
Max. Data Rate | N/A | ||||||
Compliance | N/A | ||||||
Max. Resolution | Up to 4K*2K@60Hz (4:4:4) | ||||||
Impedance | 100 Ω | ||||||
Max. Distance | |||||||
Control | |||||||
USB | |||||||
RS-232 | 1 IR IN, 1 TCP/ IP(Female RJ-45), 1 RS232 (9-pin female D) | ||||||
Connectors | 1 x DC Jack | ||||||
Power | DC12V 2.5A | ||||||
Power Consumption | MAX 12W | ||||||
Environmental | |||||||
Operating Temperature | 0-50°C | ||||||
Storage Temperature | -20~60°C | ||||||
Relative Humidity | 10% ~ 90% RH, Non-condensing | ||||||
Physical Properties | |||||||
Housing | Metal | ||||||
Weight(g) | 2000 | ||||||
Dimensions (L x W x H,mm) | 437*241*44 | ||||||
Packing&Delivery
Lead Time
Quantity(pcs) | 1-10 | 7 days (Depend on if have goods in stock) | ||||
Quantity(pcs) | >10 | To be negotiated | ||||
Company Profile

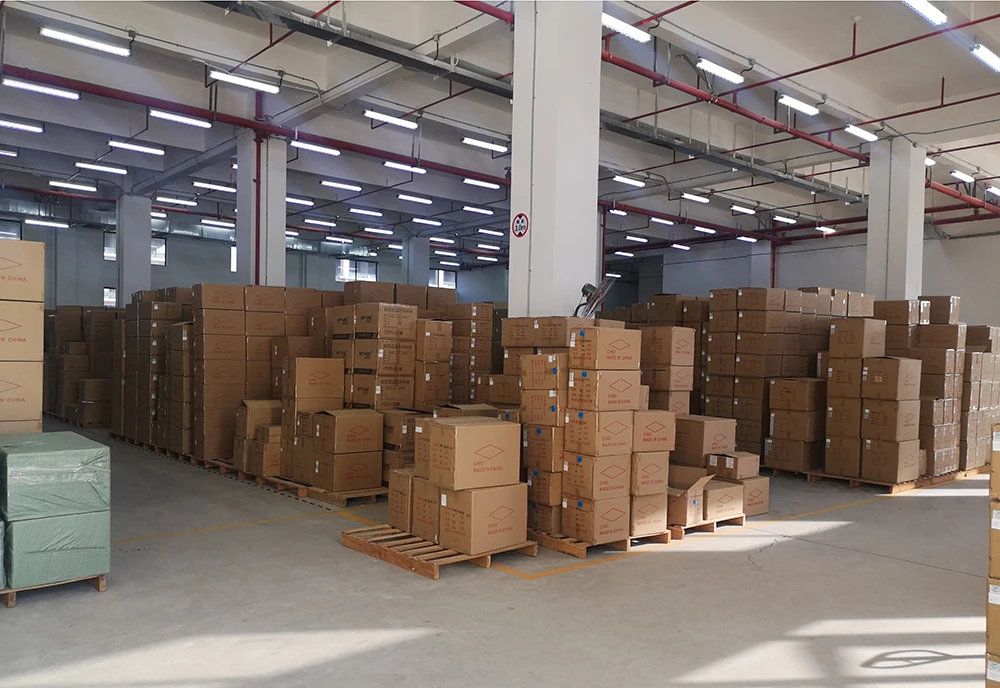

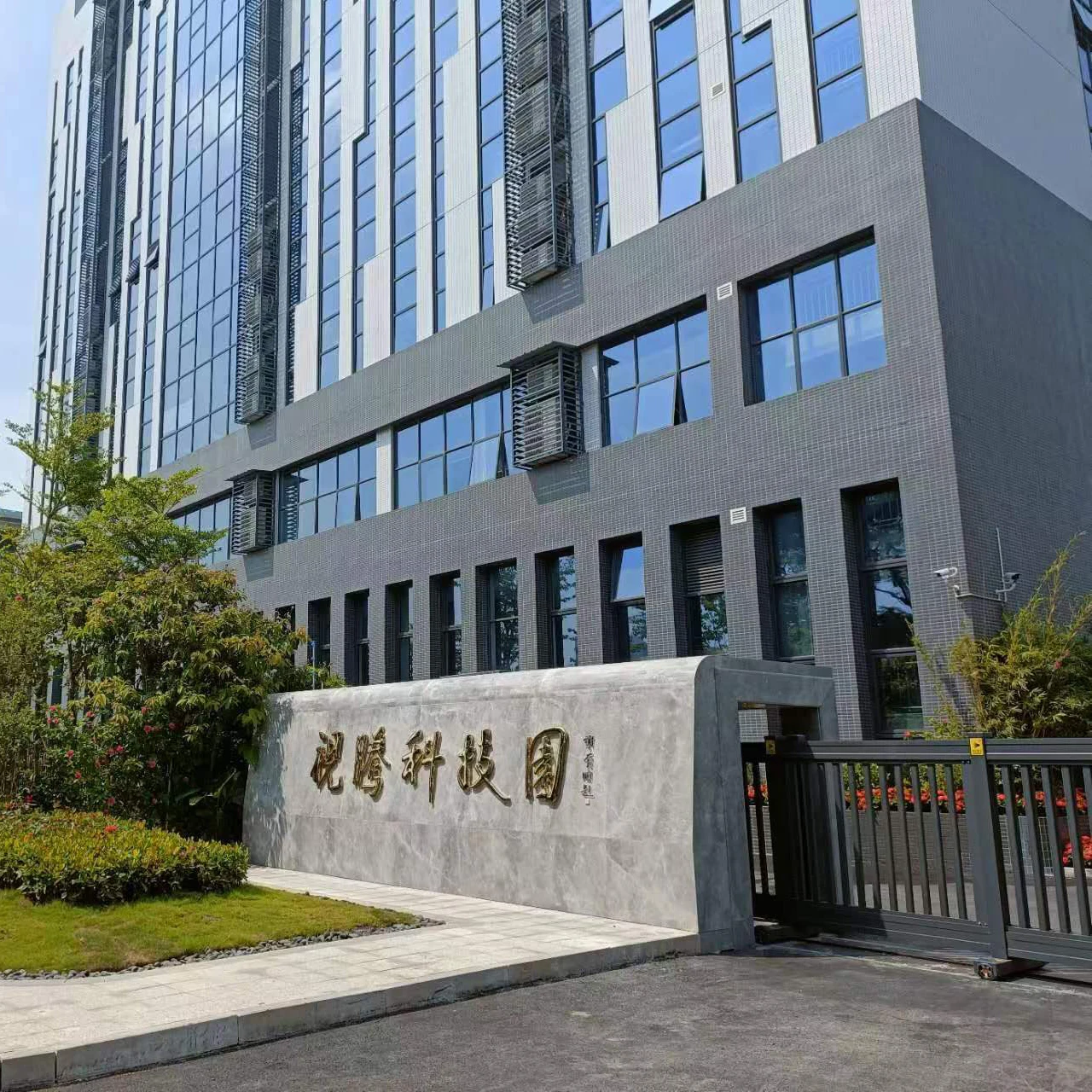

Guangdong MT-VIKI Electronics Technology Co., Ltd is established in 2003, owing to a modern technology park with an area of 43,000 square meters, and the annual output is over 4 million units, with strong development capabilities.
