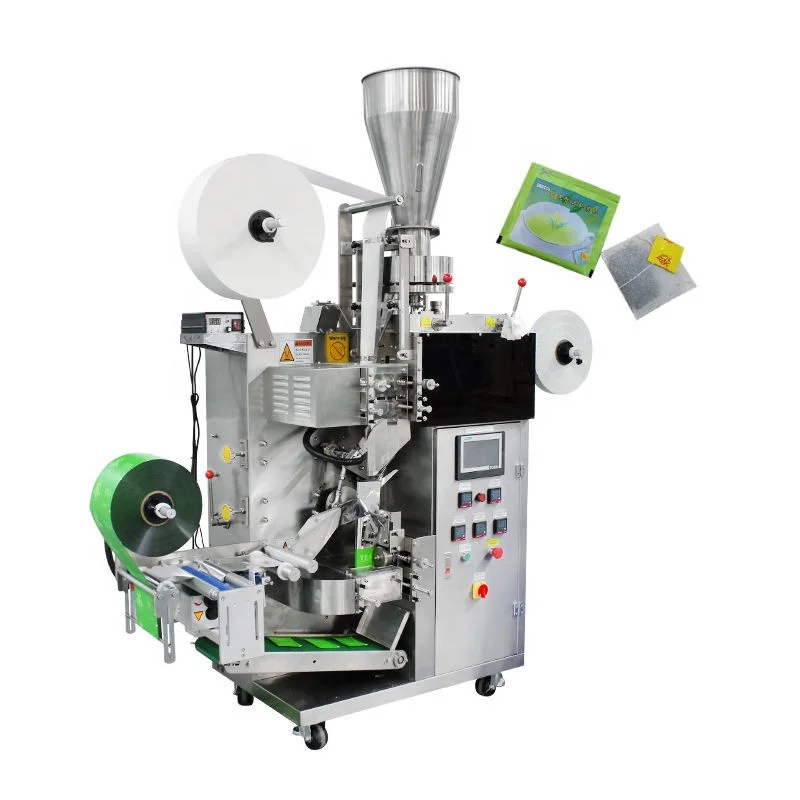

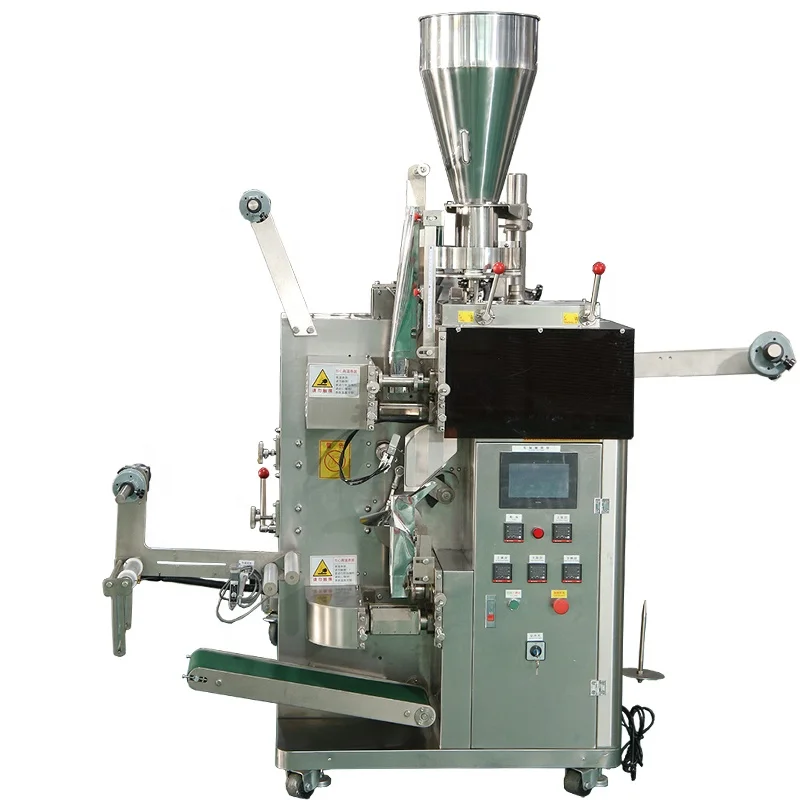

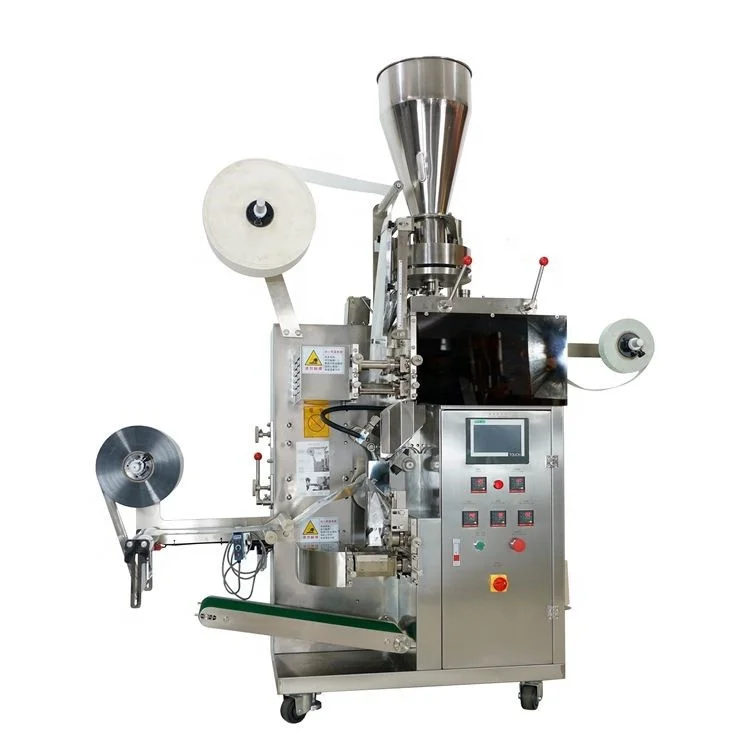

Automatic Low Price Small Tea Bag Filter Paper Tea Powder Sachet Pouch Packing Machine
Automatic Low Price Small Tea Bag Filter Paper Tea Powder Sachet Pouch Packing Machine
Automatic Low Price Small Tea Bag Filter Paper Tea Powder Sachet Pouch Packing Machine
Automatic Low Price Small Tea Bag Filter Paper Tea Powder Sachet Pouch Packing Machine
Automatic Low Price Small Tea Bag Filter Paper Tea Powder Sachet Pouch Packing Machine
Automatic Low Price Small Tea Bag Filter Paper Tea Powder Sachet Pouch Packing Machine
Automatic Low Price Small Tea Bag Filter Paper Tea Powder Sachet Pouch Packing Machine

Automatic Low Price Small Tea Bag Filter Paper Tea Powder Sachet Pouch Packing Machine

Share on (1600618905307):


Price:$5,150.00

Quantity:


Product Overview

Description



Product Description

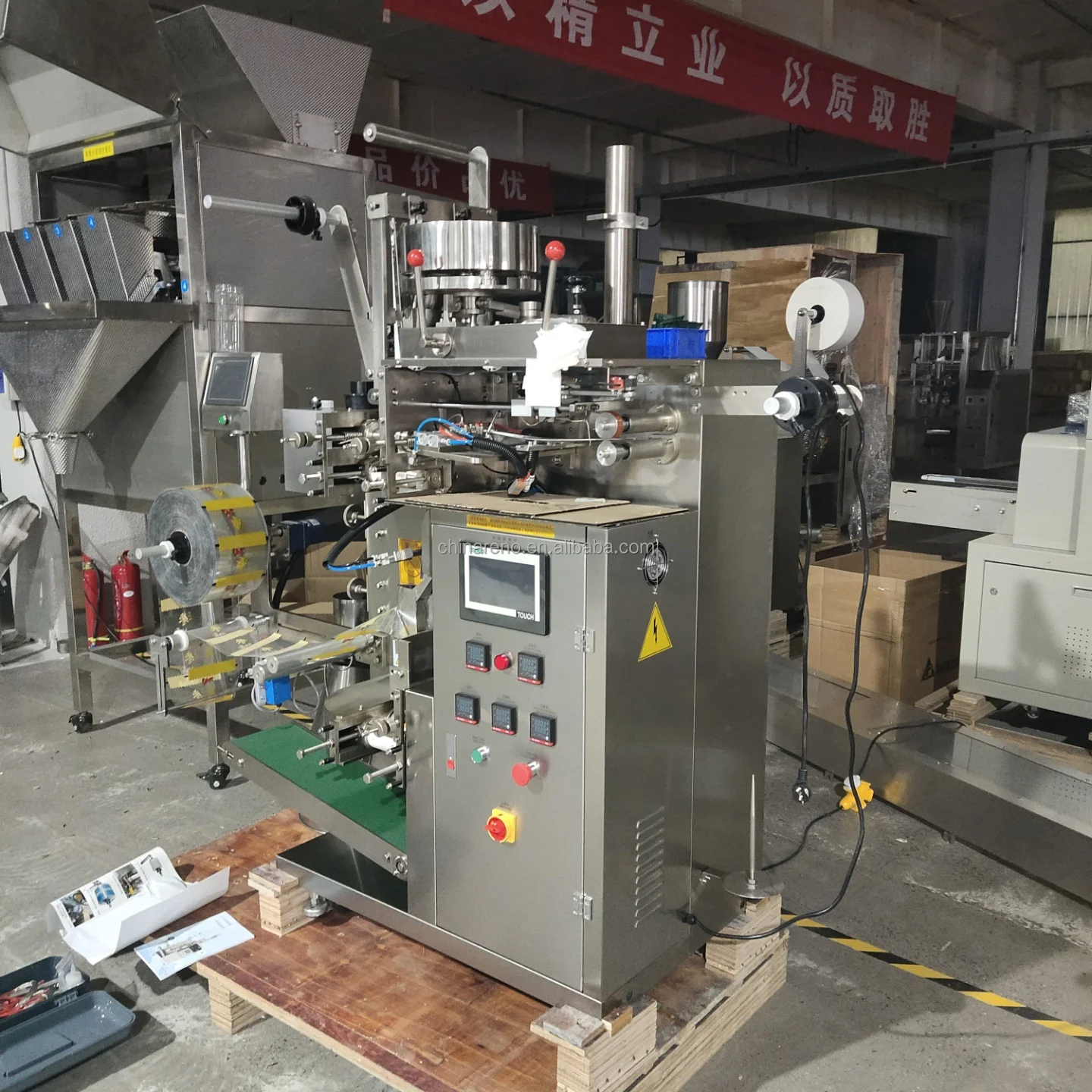

Description of the machine
Multi-functional tea packaging machine suitable for all kinds of teabag packaging.Such as bulk tea, herbal tea, health tea, flower tea, tea powder, coffee powder and other internal and external bags are disposable packaging.
One machine for multiple purposes. Various packaging types are available upon request. Including tea sachet, single chamber tea bag with tag, double chamber tea bag with outer envelope.


Features of the machine
1、The machine is suitable for green tea, black tea, scented tea, coffee, Chinese tea, health tea, herbal tea, granule.
2、Outer sealing paper is controlled by the stepper motor,stable bag length and accurate positioning.
3、The machine can automatically finish the load, measuring, bag making,sealing, cutting, counting, finished product conveyor, and other functions.
4、Adopt the importedultrasonic sealing, use the electronic scale metering to cutting-stock, perfect sealing,cutting-stock accuracy.
5、Packing material: filter paper,thread,composite membrane.




Model
TH-169
The sealing form
Three edge-sealing
Measuring range
1-5g/pcs
The bag size
L:50-75mm; W:50-75mm
Outside the bag size
L:85-120mm; W:75-95mm
The label size
L*W: 25*25mm
Production capacity
30-50 bags/min
The input power
220/50HZ
The total power
3.7kw
The weight
650kg
Installation dimensions
1050*700*1300mm

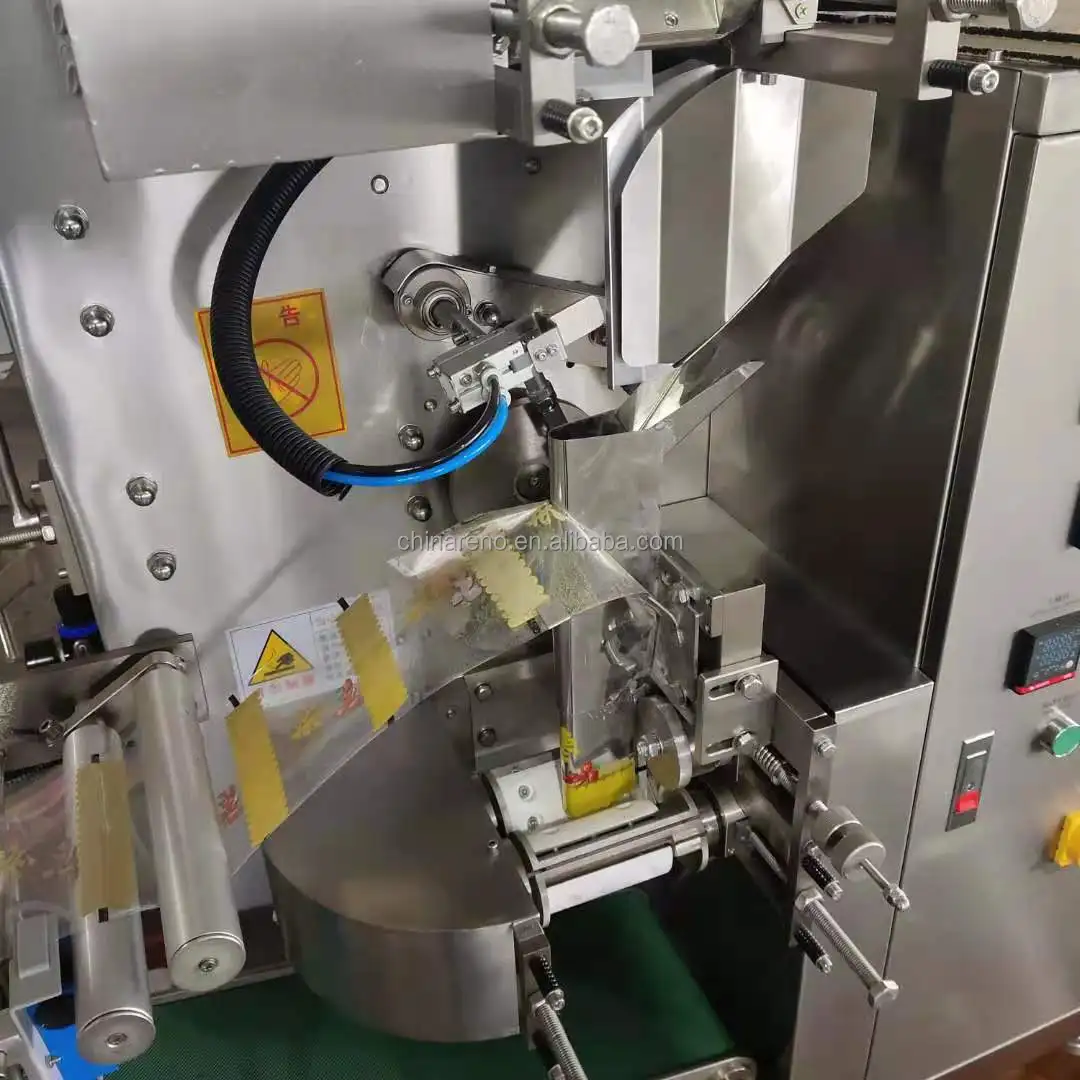

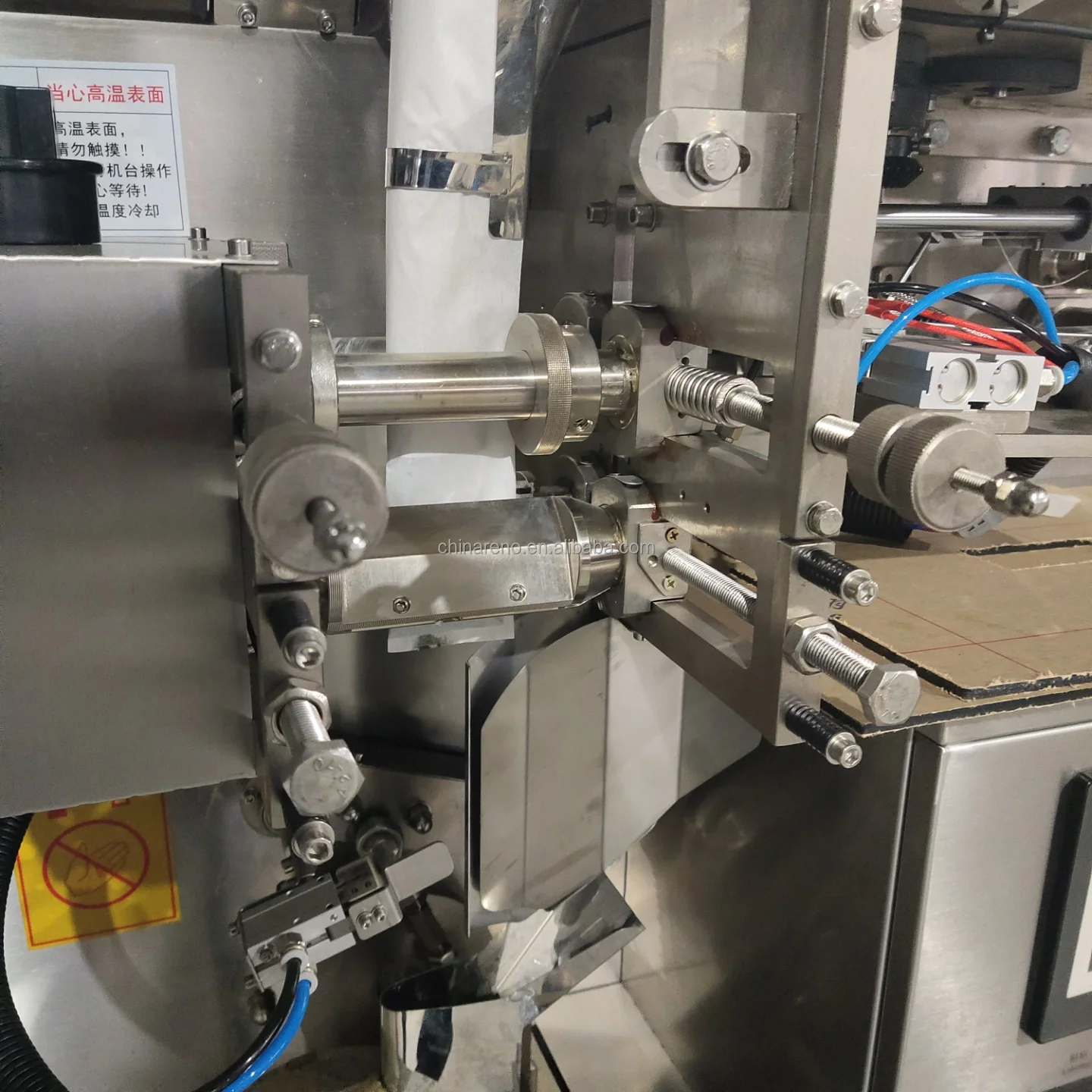

Sealing device

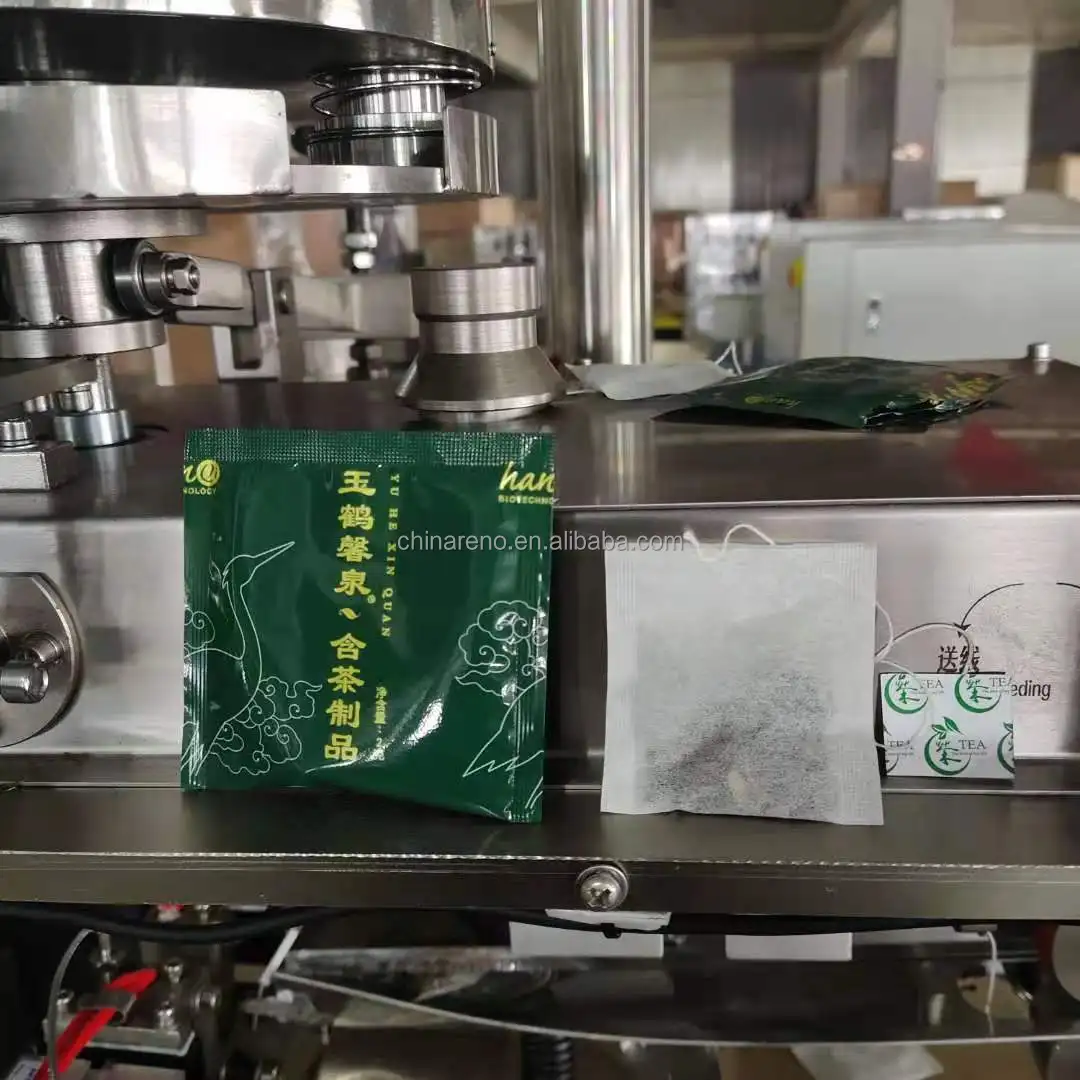

This machine is an automatic multi-functional tea bag packaging equipment with a new heat sealing type. The inner and outer bag
forming is finished at the same time, avoid direct contact with the packing material and improve working efficiency. Inner bag is made of filter paper, and outer bag is made of Composite paper.

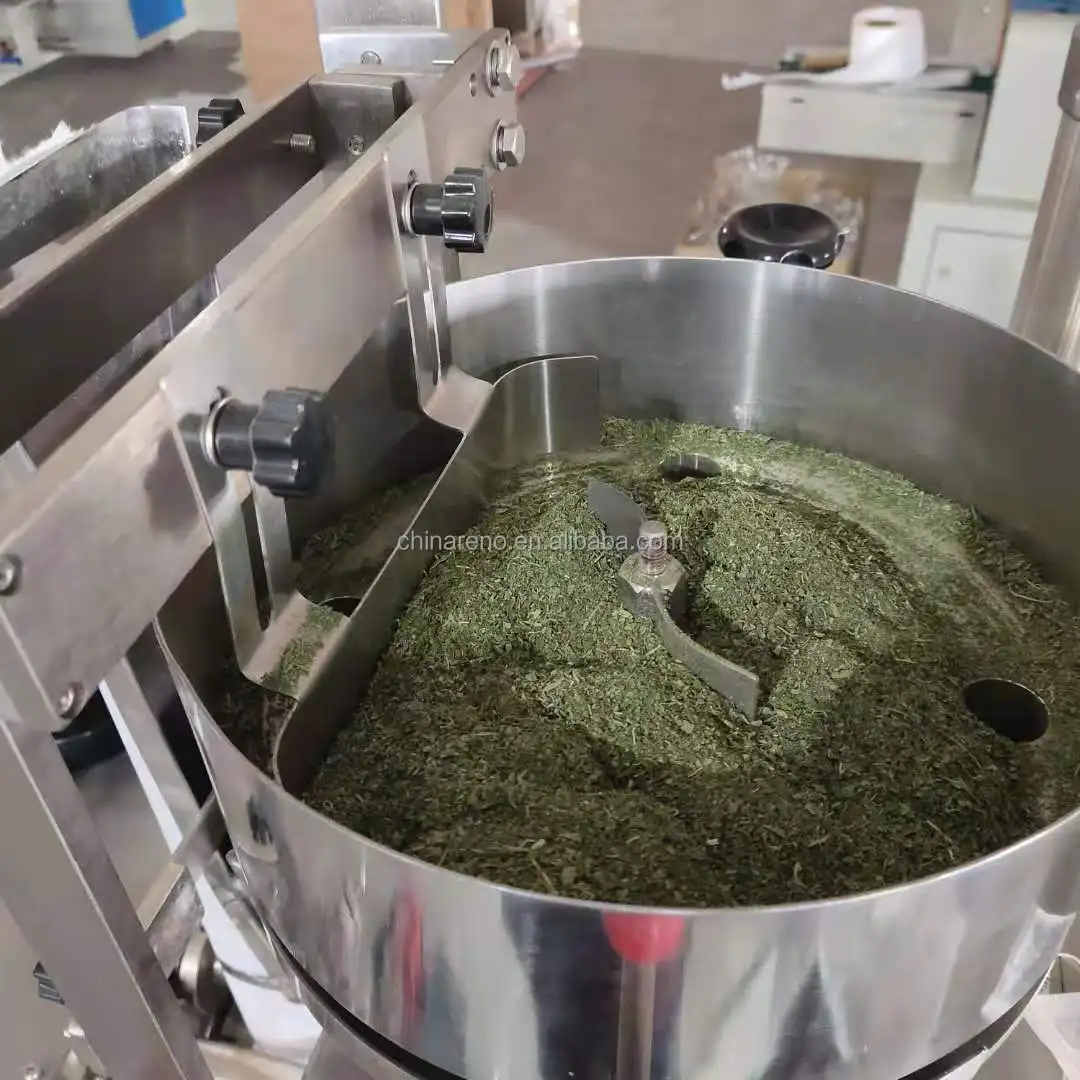

Weighing device
Weighing by measuring cup, the accuracy can reach 99%, save labor, and can weigh 1-20G.


Touch control screen
The temperature of sealing for filter tea bags and outer envelope bags and tags are controlled separately by PID, which is suitable for tightly sealing for different package material and different thickness material. The sealing type can be customized to heat sealing for filter paper or ultrosonic sealing for non-wovens fabric.


Application




A tea bag is a round, porous, sealed bag containing dried plant material, which is immersed in boiling water to make a hot drink.Tea bags are commonly made of filter paper or food-grade plastic, or occasionally of silk. Tea bag is commonly used to describe paper or foil packaging for loose leaves.

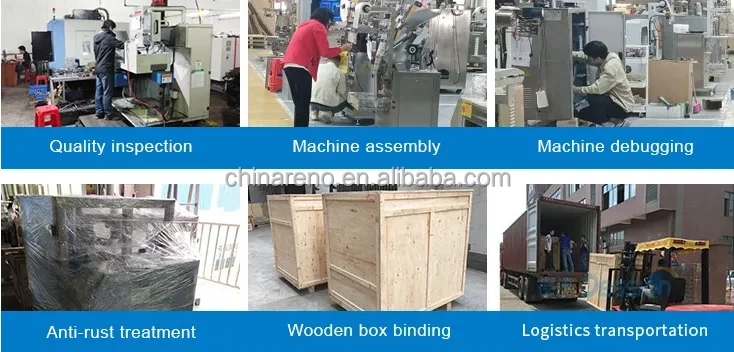

Factory photo






Specification


item
value
Type
Multi-Function Packaging Machine
Applicable Industries
Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food & Beverage Shops
Weight (KG)
650
Showroom Location
None
Condition
New
Function
Filling, wrapping, weighing and packaging
Application
Food, Commodity, Medical, Chemical, Machinery & Hardware
Packaging Type
Stand-up Pouch, Bags, Film, Pouch
Packaging Material
Plastic, Paper
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220V
Place of Origin
China
Dimension(L*W*H)
1050*700*1300
Warranty
1 Year
Key Selling Points
Multifunctional
Marketing Type
Hot Product 2022
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Motor, PLC
Production Capacity
30-50 bags/min
Product name
Automatic Vertical Packing Machine
Main Function
Weighing Forming Filling Sealing
Bag type
three-side seal
Usage
Food Snack
Packaging Materials
Plastic paper, filter bag, aluminum paper


Packing & Delivery




Company Profile


Zhengzhou City Reno Machinery Equipment Co., Ltd. was established in 1983. We are a large-scale construction machinery manufacturing enterprise and exporter in China. We are specialized in the R&D, production, marketing and sales of all kinds of construction machinery. Moreover our products have won the title of "China National Stable Quality Product" and the gold medal of Henan Province High-Quality Products. We adhere to the policy of "Best Quality and Services" and we are looking forward to establishing long-term business relationships with customers from all over the world.

Our main products include concrete batching plant, stabilized soil mixing plant,foam concrete block machine, concrete brick machine, concrete pump, concrete block cutting machine, concrete mixer, concrete mixing truck, screw conveyor, belt conveyor, concrete batching machine, cement silo, steel bar bending machine, steel bar cutting machine, steel bar straightening and cutting machine, ground polishing machine and other construction machine.

We guarantee to provide clients with reliable quality, top-grade services, timely delivery and long-term warranty. We welcome new and old clients to visit our factory and do business face to face with us.
