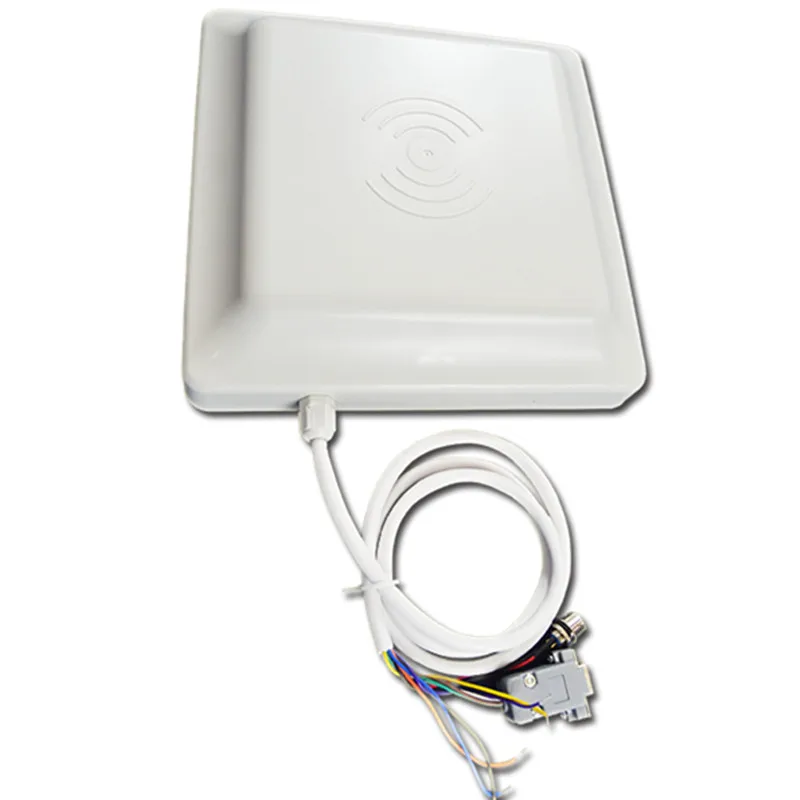

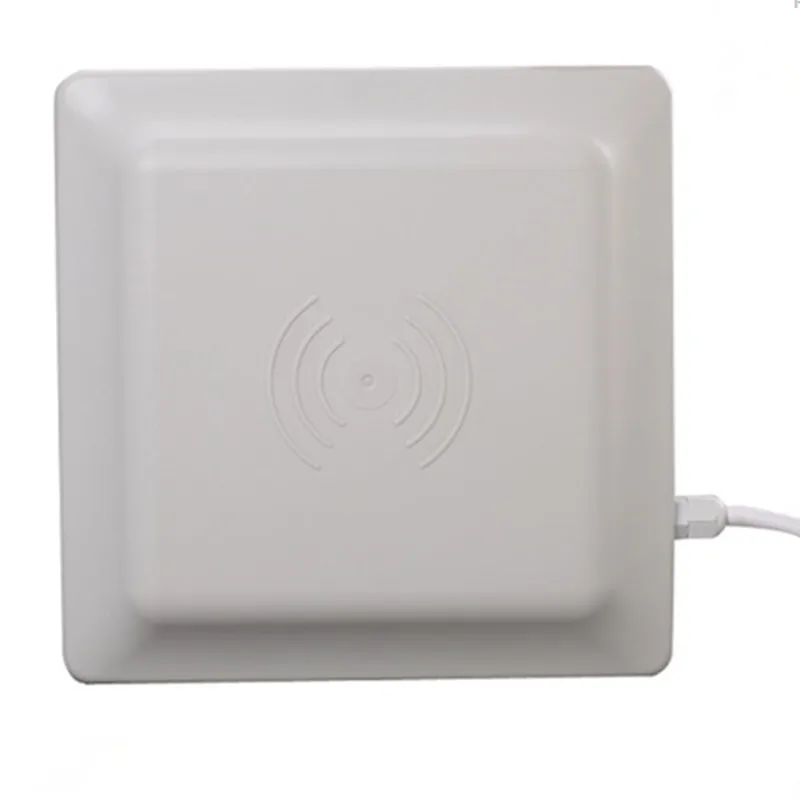

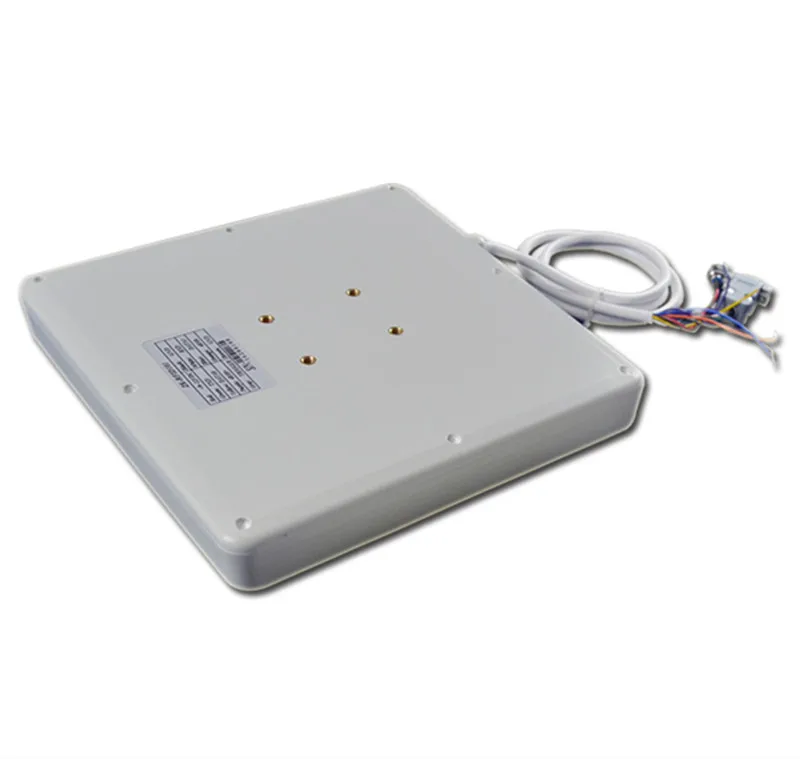

EPC Mask Integrated UHF RFID Reader mid range with 8dbi Antenna ISO 18000 6C protocol for ETC/car parking system
- Category: >>>
- Supplier: Shenzhen ZKHY Technology Co. Ltd.
Share on (1600618913265):
Product Overview
Description
Product Description

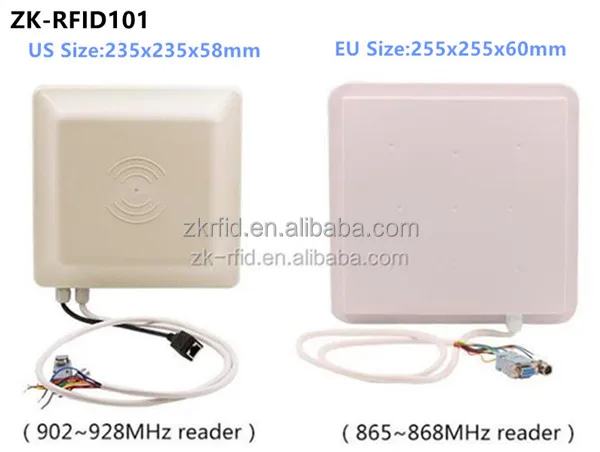

ZK_RFID101 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietory efficient DSP algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
Features:
l Self-intellectual property;
l Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
l 902~928MHz frequency band(frequency customization optional);
l FHSS or Fix Frequency transmission;
l RF output power up to 30dbm(adjustable);
l 8dbi antenna optional with effect distance up to 5m*;
l Support auto-running, interactive and trigger-activating work mode;
l Low power dissipation with single +9 DC power supply;
l Support RS232, RS485, Wiegand interface;
* Effective distance depends on antenna, tag and environment.
CHARACTERISTICS
l Absolute Maximum Rating
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 16 | V |
Operating Temp. | TOPR | -10~+55 | ℃ |
Storage Temp. | TSTR | -20~+75 | ℃ |
l Electrical and Mechanical Specification
Under TA=25℃,VCC=+9V unless specified
ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
Power Supply | VCC | 8 | 9 | 12 | V |
Current Dissipation | IC |
| 350 | 650 | mA |
Frequency | FREQ | 902 |
| 928 | MHz |
Interface
Item | Comment |
Red | +9V |
Black | GND |
L-Blue | Wiegand DATA0 |
Blue | Wiegand DATA1 |
Purple | RS485 R+ |
Orange | RS485 R- |
Brown | GND |
White | RS232 RXD |
pink | RS232 TXD |
Gray | Trigger input(TTL level) |
* Optional model named as ZK_RFID101/2TCP with TCP/IP interface is also available.

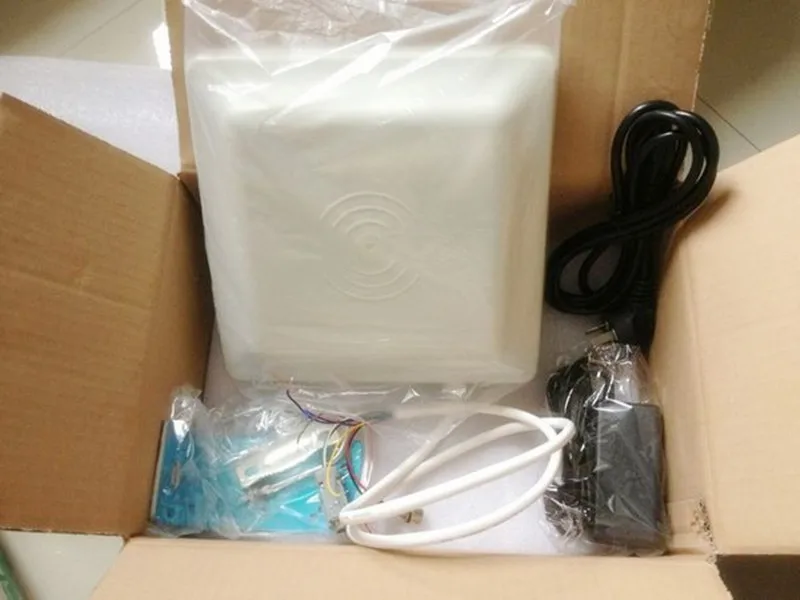

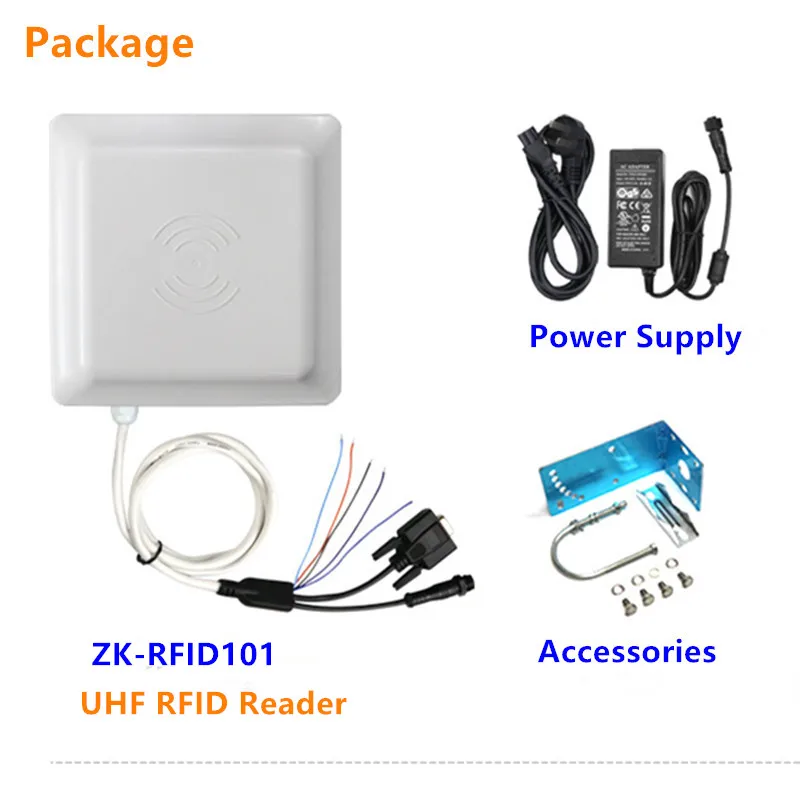

Packaging & Shipping

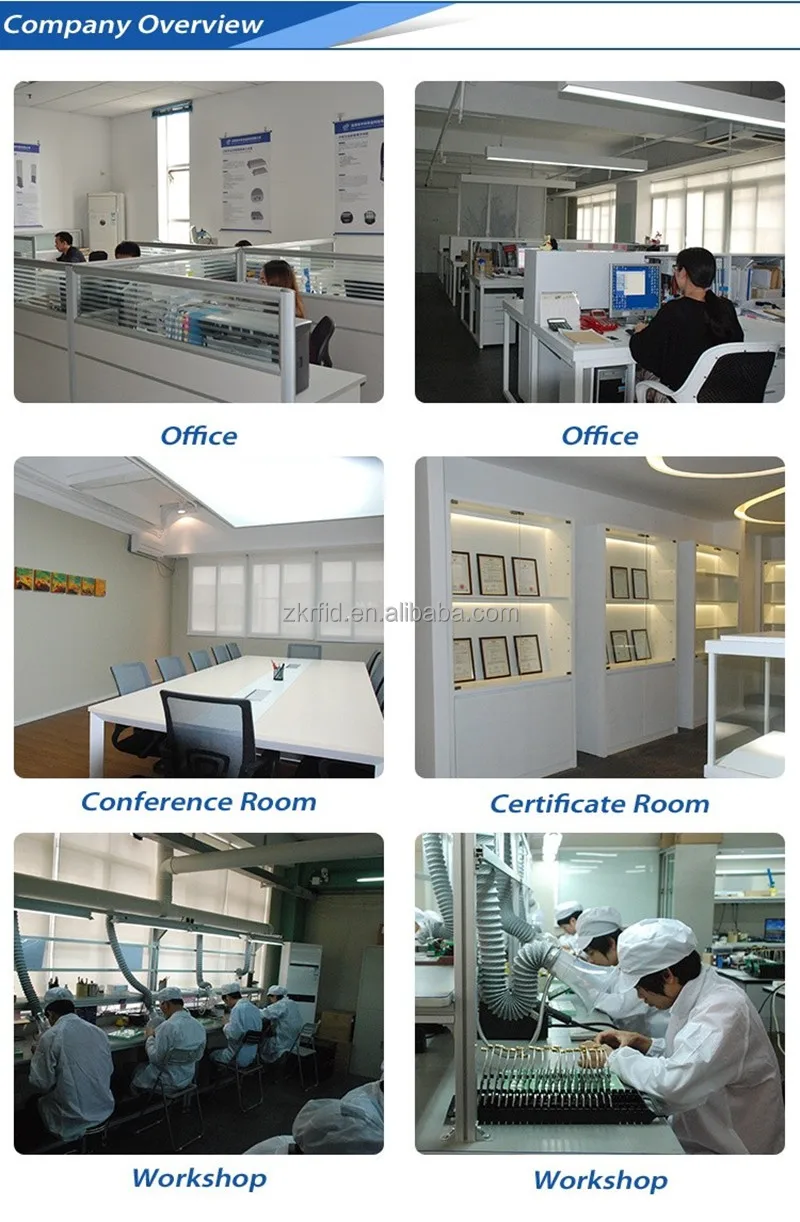

Company Information
Shenzhen ZKHY RFID Technology Co.,Ltd is committed to RFID (Radio Frequency Identification Devices)
products development and exploitation production and distribution. With 150 workers and more than 20 sales.
After 11 years of development, our company not only has the domestic leading RFID core technology, but also
has independent intellectual property rights of RFID. At the same time, our company can provide complete
solution and timely after-sale service for project. Based on special idea in design and function, the main
technical indexes of ZKHY RFID products has achieved or exceeded world level.
