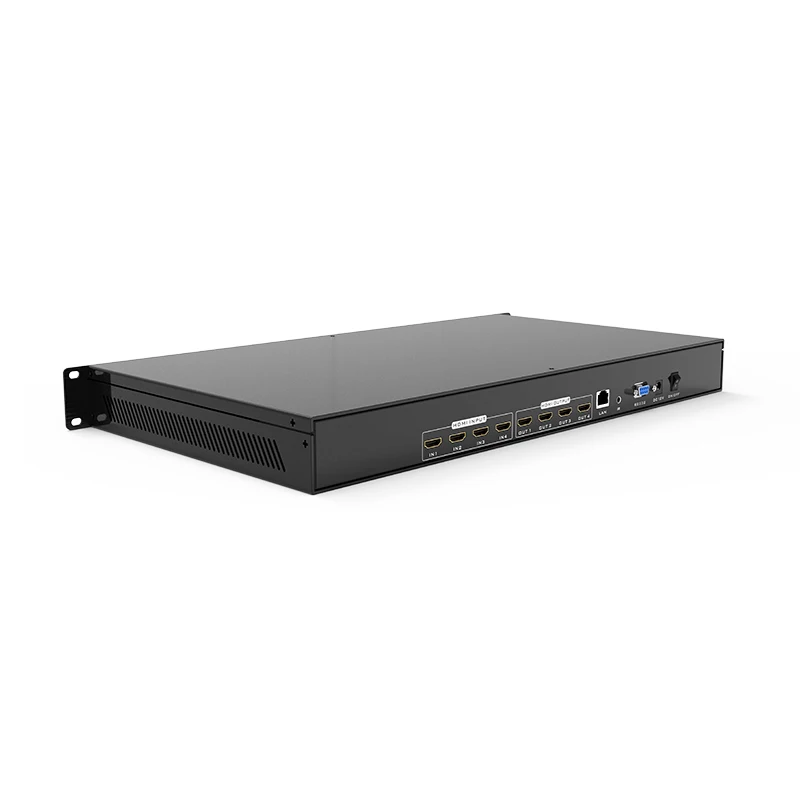

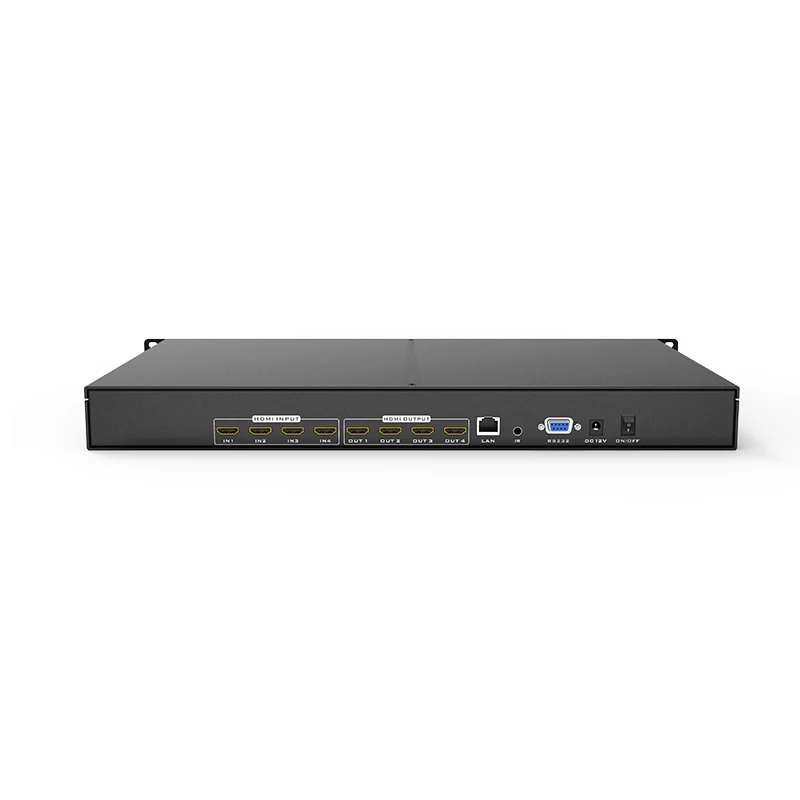

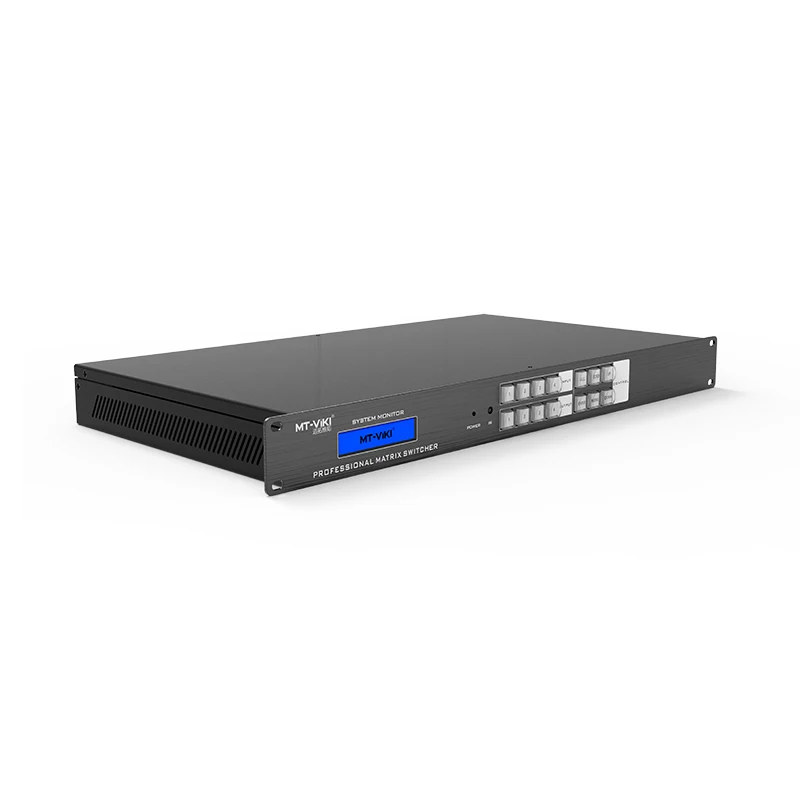

H DMI Matrix 4Kx2K 3D 4 in 4 out 4x4 H DMI Matrix Switch splitter with IR and RS232 serial switching

Product Overview

Description



Features:



1. The whole hardware architecture has no CPU and operating system, and the operation response is faster;
2. Modular design of all boards, support hot plug, stable and relible system;
3. Using the original 12.75G high-bandwidth imported switching chip from the United States, so that all signals can be switched synchronously;
4. The signal of each port supports HDCP decoding, Blu-ray, 3D;
5. Support signal timing reconfiguration, 36-bit true color technology,
6. Support fast channel switching, one -to-one correspondence, and quick save and recall of scene modes;
7. Support maximum resolution: 4K x 2K @ 30Hz 1080P 3D @ 60Hz;

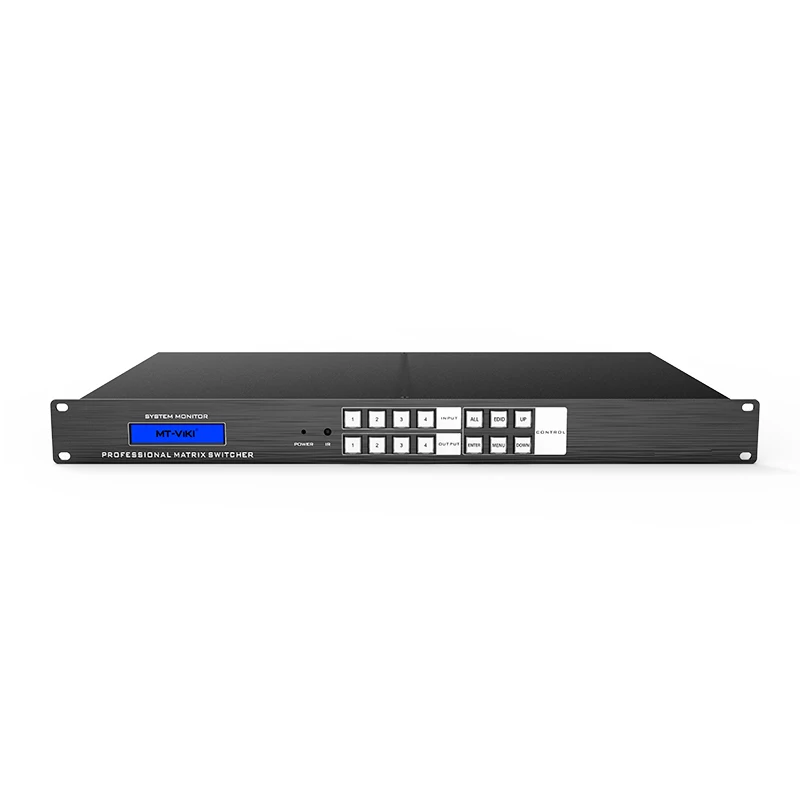

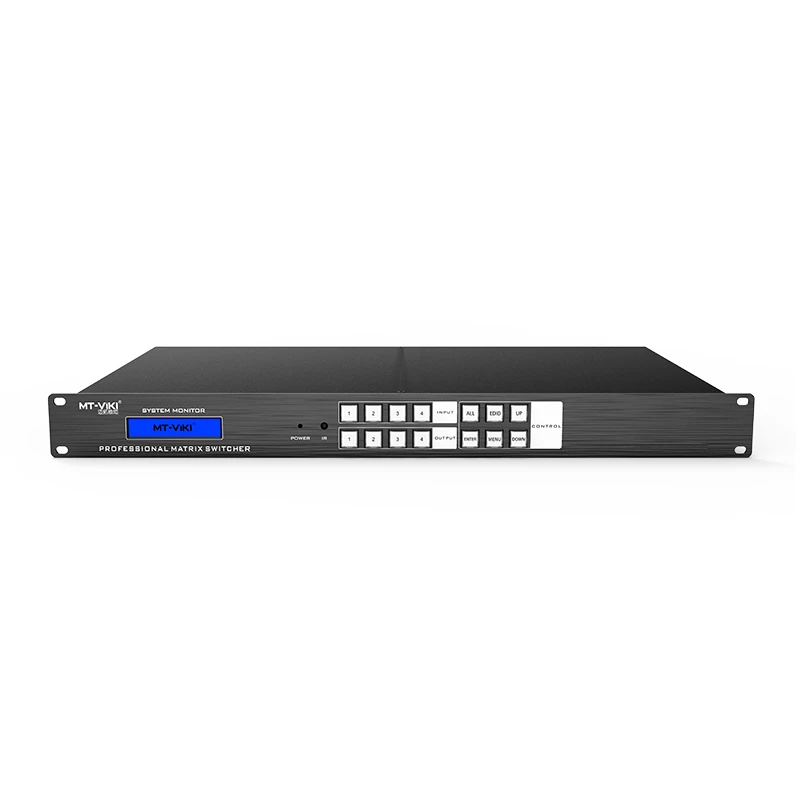

8. Visual operation buttons, the status of input and output channels can be visualized through the button indicator;
9. Radio and television-level exchange chip, image switching can be completed by a single chip, and the integration is higher;
10. Supports multiple control methods such as buttons, infrared remote control, RS232 serial port, and optional WEB control;
11. Support EDID rewritable and EDID self-adaptive function, better adapt to on-site diversified display equipment improve compatibility;
12. Long-line drive capability: The input has automatic equalization, which effectively reduces the deterministic jtter caused by line transmission;
13. Output adjustable gain mode, so that the receiver can still receive signals after long-distance transmission. Use high-quality HDMI 1.4 cable, input transmission distance up to 20 meters, output transmission distance up to 25 meters;
14. The input supports receiving delay and effectively respondsto time compensation when the differential pairs are not of equal length;
15. Power-off memory on-site protection function, automatically save the current scene state;
16. The host display adopts English high-resolution display, which supports LOGO and model programming customization.
