Materials of Construction | |
Filter Media | MCE/NYL/Hydrophilic PTFE/Hydrophobic PTFE/ Hydrophobic PVDF/PES/PP/GF (PP or GF is optional for pre-filtration layer) |
Support & Drainage | ABS |
Sealing Technology | Ultrasonic Welding |
Dimensions | |
Outer Diameter | 23mm |
Length | 23.5mm |
Inlet/Outlet connections | |
Inlet | Female Luer Lock |
Outlet | Male Luer Lock |
Filtration Area | |
≥3.1cm2 | |
Hold-up Volume | |
<150μL | |
Removal Ratings, μm | |
0.22, 0.45, 1.0, 3.0, 5.0 | |
Maximum Operating Temperature | |
60 ℃/140 ℉ | |
Maximum Operation Pressure(@23℃) | |
3.5bar | |

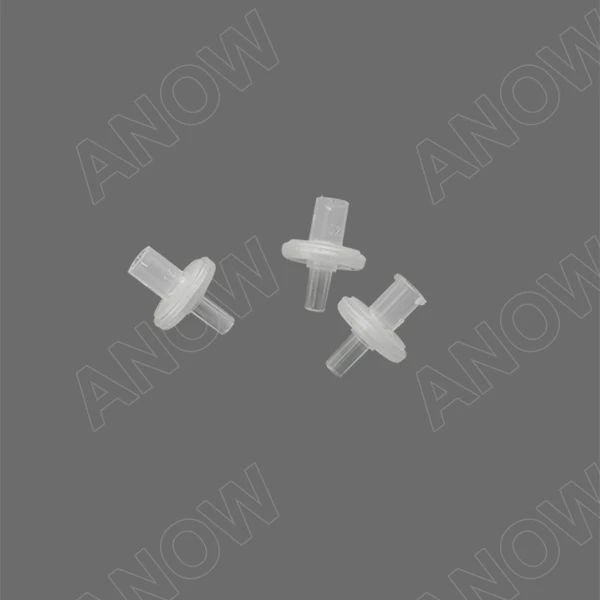

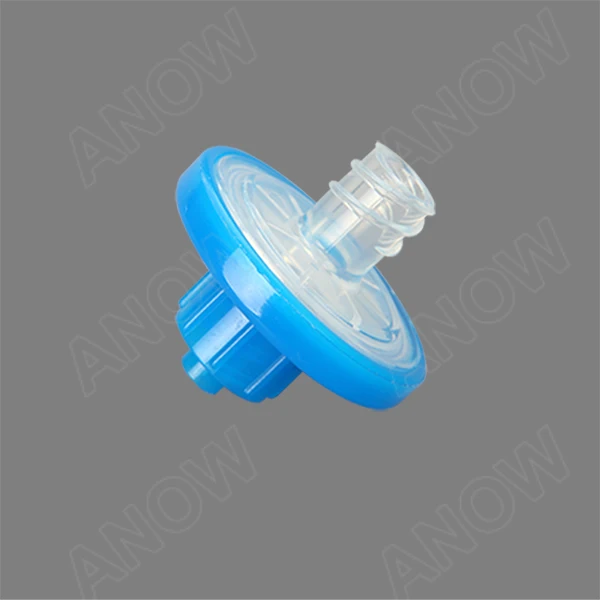

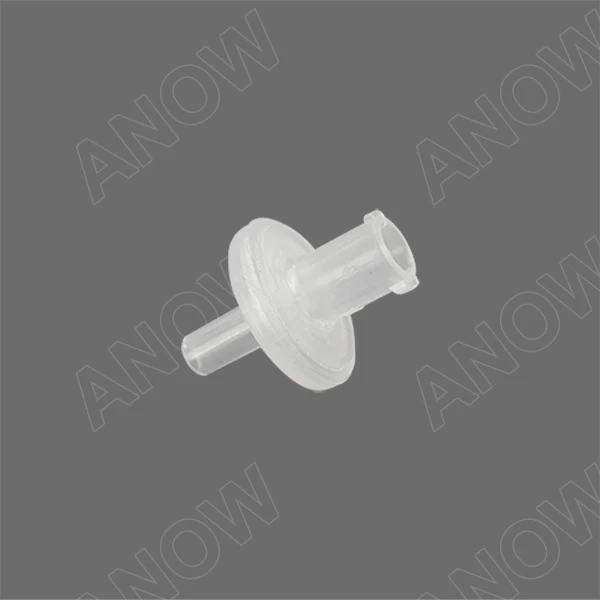

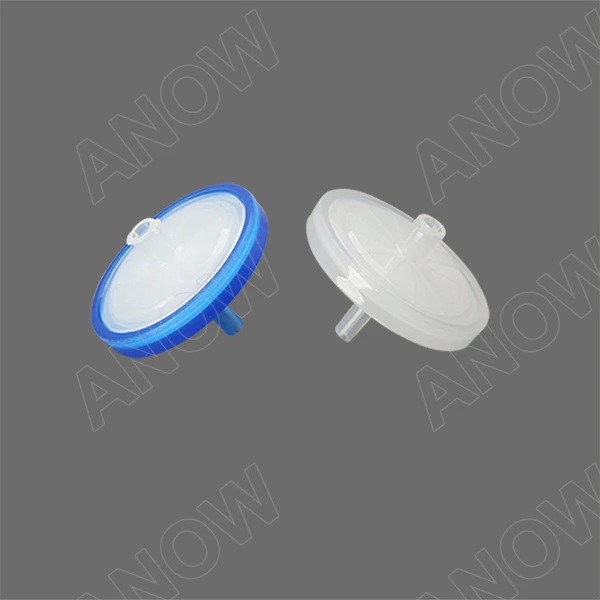

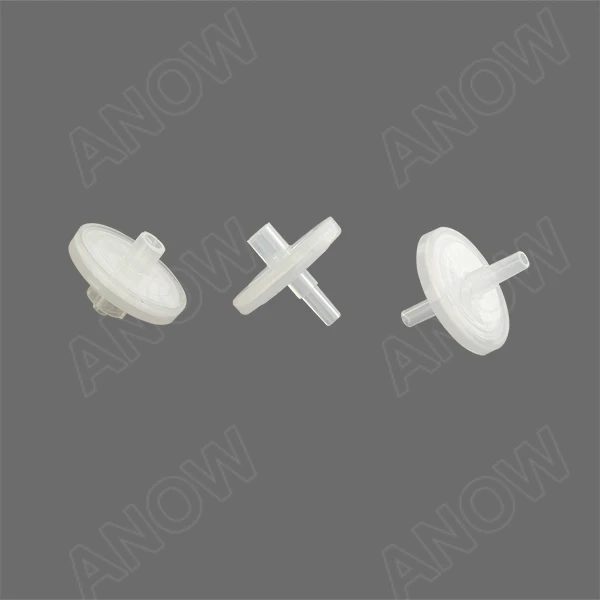

C series 20mm syringe filters
C series 20mm syringe filters are ideal for laboratory small volume samples clarification and particles removal.
Fratures and Benefits
Easy to use
Wide range of removal ratings and filter media
Applicable to samples below 60mL
Disposable design

Application:
. Low volume sterile filtration of non-aqueous fluids
. Bioreactor inlet and outlet gas filtration




Hangzhou Anow Microfiltration Co., Ltd. is a filtration company in Asia. ANOW provides professional assistances for liquid, gas and air filtration, separation and purification solutions for customers around the world in Biopharma, Medical, Food & Beverage, Microelectronics, Chemical, Water Treatment, Laboratory Analysis, and Environmental Sciences.
September 18, 2019 – Entegris, Inc. (NASDAQ: ENTG), a leader in specialty chemicals and advanced materials solutions, announced that it has completed the acquisition of Annex Filtration. ANOW has become a subsidiary of Entegris and is part of the Micropollution Control Division. Entegris is a leading provider of specialty chemicals and advanced materials solutions for the microelectronics industry and other high-tech industries.Hangzhou Anow Microfiltration Co., Ltd. is a filtration company in Asia. ANOW provides professional assistances for liquid, gas and air filtration, separation and purification solutions for customers around the world in Biopharma, Medical, Food & Beverage, Microelectronics, Chemical, Water Treatment, Laboratory Analysis, and Environmental Sciences.
September 18, 2019 – Entegris, Inc. (NASDAQ: ENTG), a leader in specialty chemicals and advanced materials solutions, announced that it has completed the acquisition of Annex Filtration. ANOW has become a subsidiary of Entegris and is part of the Micropollution Control Division. Entegris is a leading provider of specialty chemicals and advanced materials solutions for the microelectronics industry and other high-tech industries.


1.OEM service available ?
Yes, OEM service is available, but the ANOW brand price better than OEM
2.Payment Term:
We can accept L/C, T/T, Western Union, MoneyGram, Paypal
3.Certicification:
We had passed ISO9001,NSF,SGS certified, at the same time, our company had approved by Alibaba 10rd Party Certification of Production and Trading Assessment
4.Shipping :
If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,EMS.
For big quantity, by air or by sea through your forwarder is one Normal Way , we also can provide cost-effective forwarder for your reference.
5.Sample:
1) Sample could be provided for quality evaluation.
2) Sample delivery date is within 1-2days, if have stocks; Customer design is about 3-7 days
6. Lead time:
The normal lead time for PES filter cartridge is 5-10days, which depends on your quantity.
