Product Overview
Description
milk powder spray dryer spirulina microalgae gum arabic soybean spray dryer price Equipment for turning juice into powder
Product Description

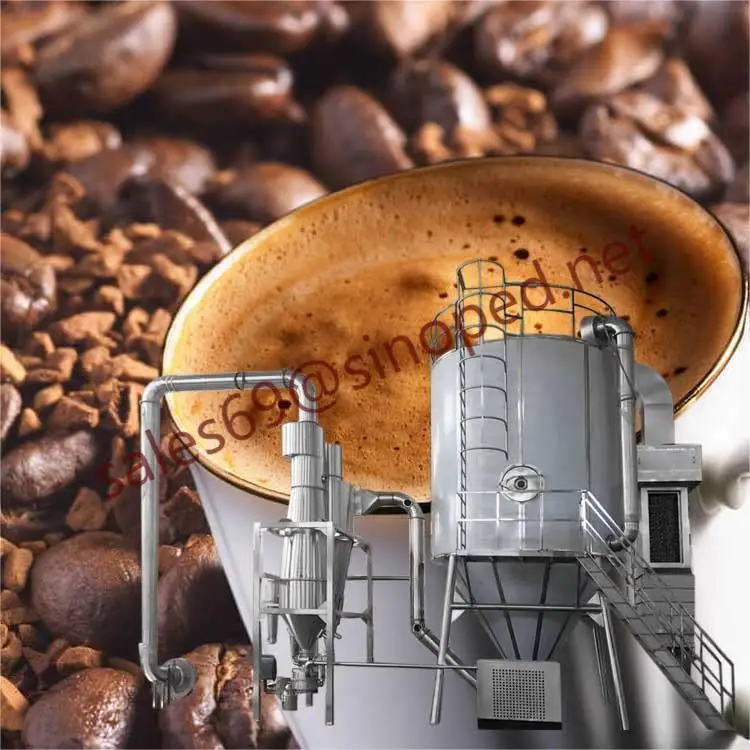

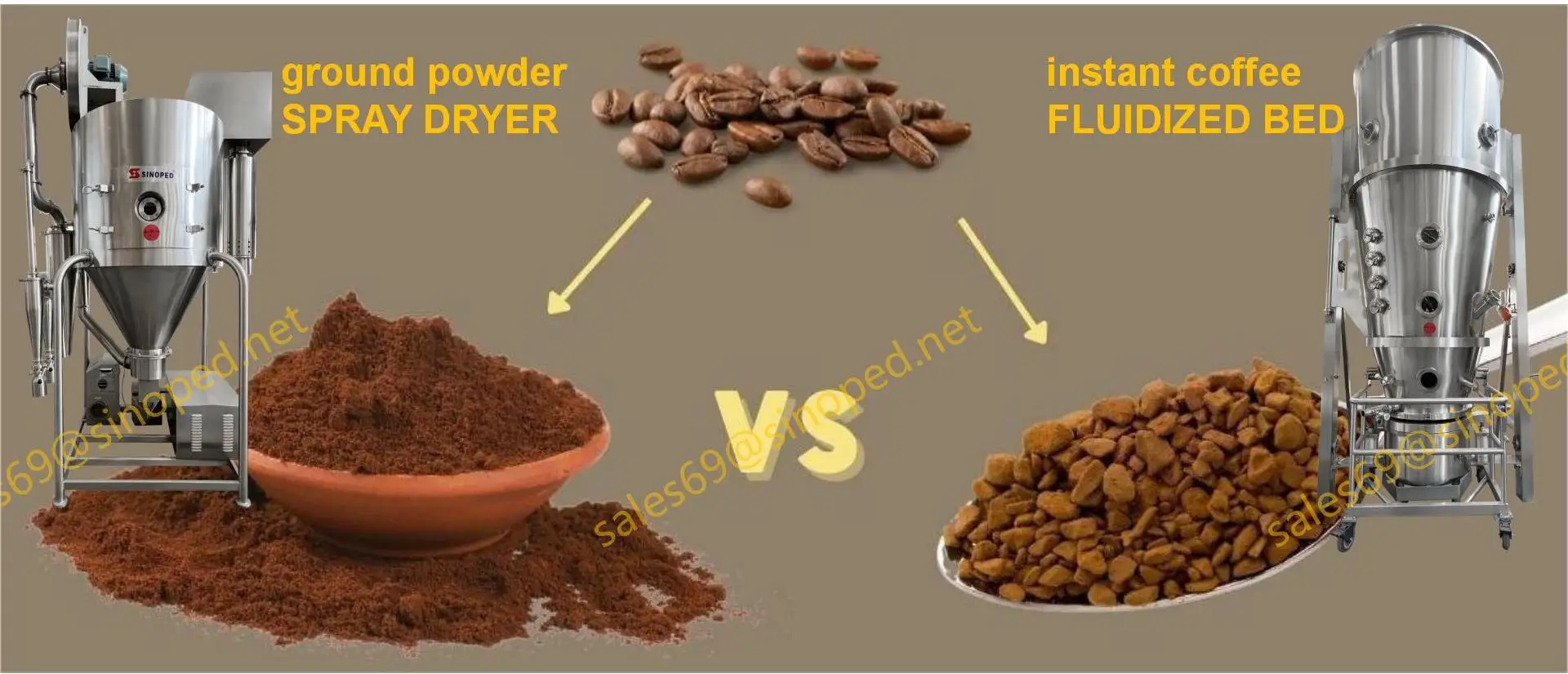

We can provide a complete production line for coffee making, whether you want to produce instant coffee granules or coffee powder, we can provide you with the perfect solution
DESCRIPTION:
By pneumatic or electric atomizing device, the liquid material is sprayed into mist liquid beads at high speed, which is instantly dried by contacting with hot air in the drying chamber.
Widely used in electronics, ceramics, magnetic materials, battery materials, food, medicine, chemical and other industries.
Spray drying is more widely used in the liquid technology shaping and drying industry process.
Spray drying is more widely used in the liquid technology shaping and drying industry process.
Especially suitable for the solution, emulsion, suspending liquid and paste liquid raw materials generated in the powder or granular solid products.
Therefore, when the particle size distribution of the final products, their residual water content, bulk density and particle shape shall conform to the standard, the spray drying is one of the ideal process.
WORKING PRINCIPLE:
After filtering and heating, air into the dryer at the top of the hot air distributor, hot air spiraling evenly into the drying chamber. Material liquid after drying chamber at the top of the high-speed centrifugal atomizer, centrifugal spray (rotating) into tiny fog droplet, contact with the hot air flow, dry in a very short time for the finished product and whereabouts. Finished products continuously by drying the bottom and the output of the cyclone separator, exhaust dust catcher by induced draft fan emptying.
FEATURES:
1. Spray dryer is used to disperse the material into mist by using high speed centrifugal atomizer, and the drying device of powder finished product is formed when it is fully exposed to hot air.
2. Equipment installation of refrigeration dehumidification device can be in the process of material drying, can make the material in the primary cyclone discharge was immediately after cooling, won't make the material after drying in the condition of remaining agglomerate harden, after cooling of the material collected in cyclone separator, tail gas by cooling tower circulation fan back.
3. The equipment installed HEPA filter, so that the air into the air purification of 100,000.
4. The inlet air temperature is controlled automatically, which ensures the color, aroma and taste of the material will not be damaged.
5. In the tower body, the pipe is equipped with quick cleaning holes and blow-down holes, so that the cleaning is convenient and conforms to the GMP operation specification.
6. Due to poor material fluidity, the equipment is in the main tower cone and cyclone cone equipped with air hammer, so that the dry powder will not adsorb on the wall.
7. The receiving system adopts two stage cyclone separation to improve the yield of materials.
8. Unique inlet screw distributor, is the company's patent, to ensure that the tower in the circumference, the air volume is absolutely uniform down, to minimize the material sticky wall.
9. The spray tower is large, it can adjust to the drying of various kinds of materials, the inlet air temperature and the temperature setting of the wind can be controlled by manual, automatic transformation, and the scope of work is wide.
2. Equipment installation of refrigeration dehumidification device can be in the process of material drying, can make the material in the primary cyclone discharge was immediately after cooling, won't make the material after drying in the condition of remaining agglomerate harden, after cooling of the material collected in cyclone separator, tail gas by cooling tower circulation fan back.
3. The equipment installed HEPA filter, so that the air into the air purification of 100,000.
4. The inlet air temperature is controlled automatically, which ensures the color, aroma and taste of the material will not be damaged.
5. In the tower body, the pipe is equipped with quick cleaning holes and blow-down holes, so that the cleaning is convenient and conforms to the GMP operation specification.
6. Due to poor material fluidity, the equipment is in the main tower cone and cyclone cone equipped with air hammer, so that the dry powder will not adsorb on the wall.
7. The receiving system adopts two stage cyclone separation to improve the yield of materials.
8. Unique inlet screw distributor, is the company's patent, to ensure that the tower in the circumference, the air volume is absolutely uniform down, to minimize the material sticky wall.
9. The spray tower is large, it can adjust to the drying of various kinds of materials, the inlet air temperature and the temperature setting of the wind can be controlled by manual, automatic transformation, and the scope of work is wide.

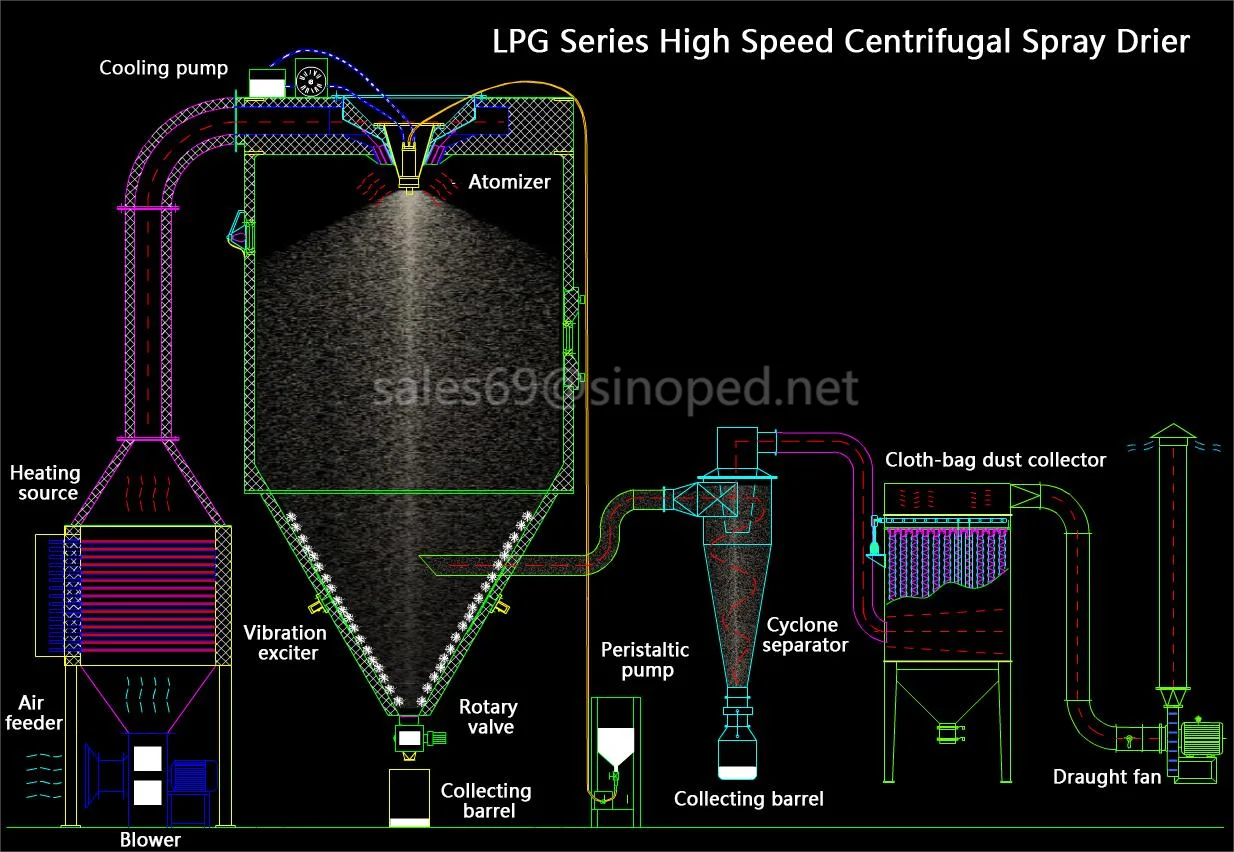

Working Principle
Technical parameters | ||||||||||||||||||
Model | 5 | 25 | 50 | 100 | 150 | 200 | 500 | 1000 | 2000-6000 | |||||||||
Inlet temperature(℃) | Technical parameters | |||||||||||||||||
Outlet temperature ( ℃) | 80-90 | |||||||||||||||||
Spraying method | High-speed centrifugal atomizer (Mechanical transmission or stepless variable frequency speed regulating) | |||||||||||||||||
Moisture evaporating ability (kg/h) | 5 | 25 | 50 | 100 | 150 | 200 | 500 | 1000 | 2000-6000 | |||||||||
Rotary speed (rpm) | 25000 | 22000 | 21500 | 18000 | 16000 | 12000-13000 | It is decided by the process, the site condition and the user's requirement. | |||||||||||
Body diameter(m) | 1.2 | 1.9 | 2.2 | 2.56 | 2.96 | 3.36 | 5.2 | 7.6 | ||||||||||
Diameter of the atomizing disc | 60 | 120 | 150 | 180-210 | ||||||||||||||
Transmission power(kw) | 4.2 | 14 | 18 | 28 | 37 | 43 | 76 | 109 | ||||||||||
Heating power(kw) | 9 | 36 | 48 | 72 | 84 | 96 | 144 | |||||||||||
Recovered dry power(%) | >95 | |||||||||||||||||
Nozzle's lifting height(m) | -- | 2.5 | 3.2 | It is decided by the process. | ||||||||||||||
Application
LPG series spray dryer is widely used in pharmaceutical, food and chemical industry.

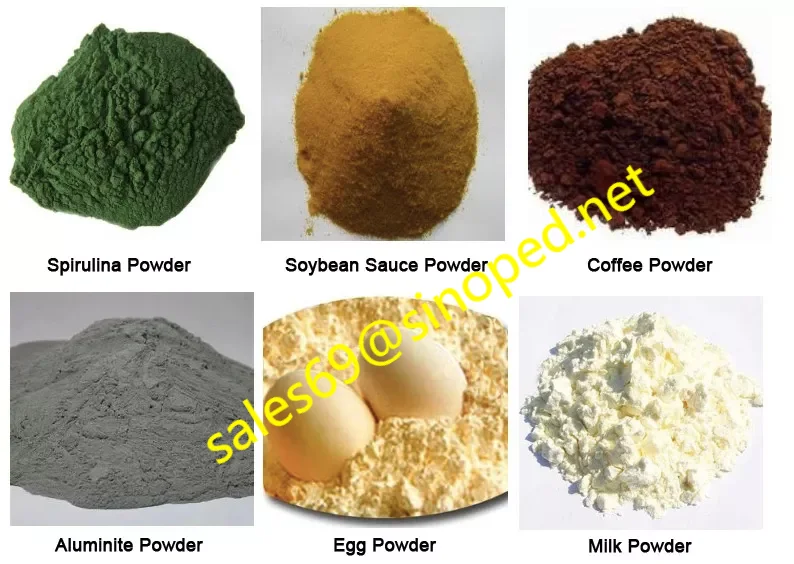

such as egg powder, amino acid product, protein, blood, food flavor, food ingredients, pectin, carrageenan, spirulina, herbal extraction, pigment, cocoa, mushroom, PAC, malt dextrin, collagen, juice, yeast, Coffee, Creamer, cocont, milk, gelatin, gus and acacia etc.

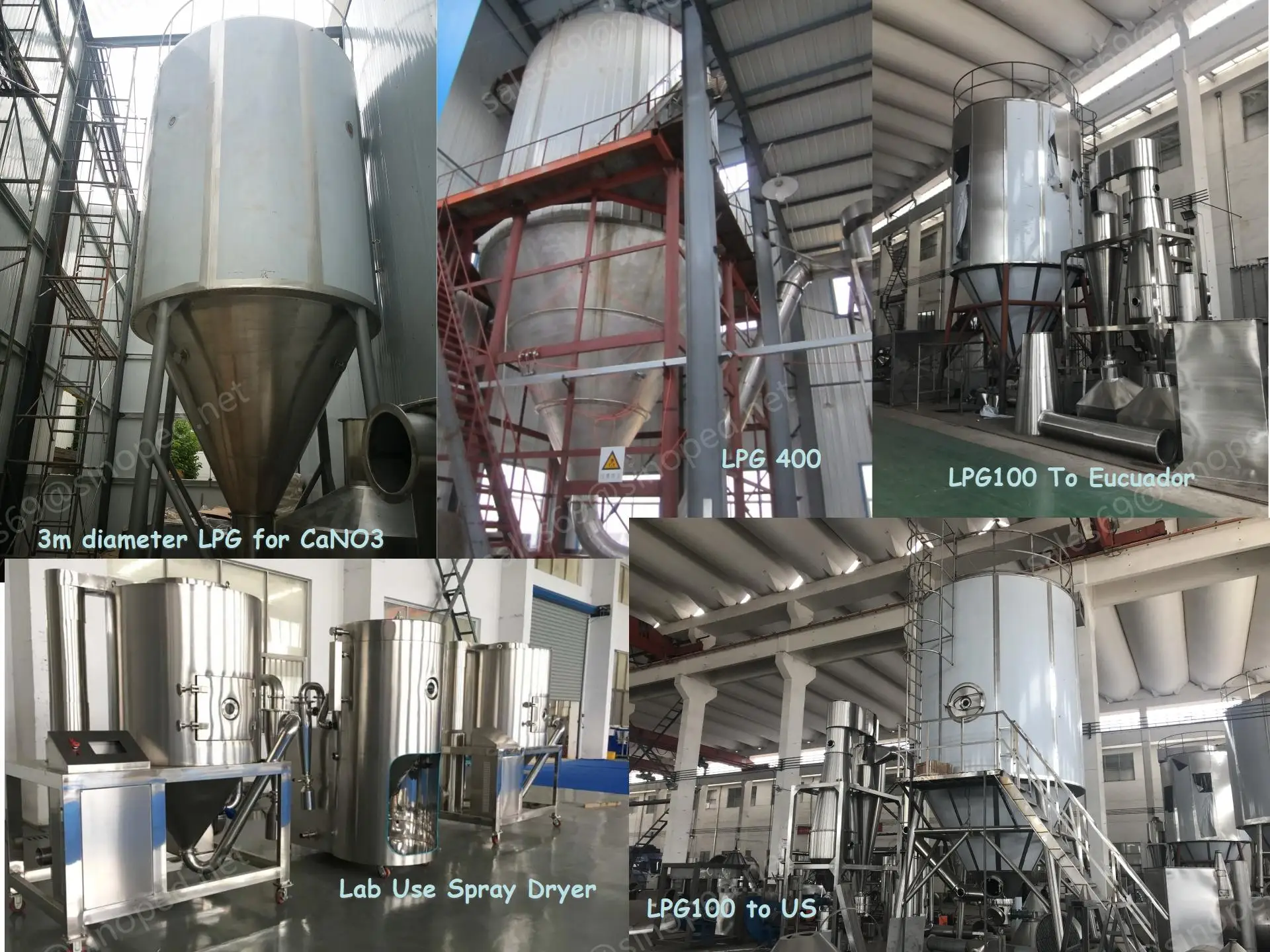

Successful Project
In order to quota you the right milk powder spray dryer with best price, we would like to get the following information include in your inquiry:
-What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
-What is the initial moisture and final moisture of finished products you require to get?
-What about the maximum heat temperature of raw material?
-What kind of fuel you use to heat the drier? Natural gas, electricity, fuel oil or steam?
-Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
-Provide us your country’s electricity information, such as phases, voltage, HZ?
-How about dust collect requirements?
-Other special requirements?
-Prior & next processes？
-What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
-What is the initial moisture and final moisture of finished products you require to get?
-What about the maximum heat temperature of raw material?
-What kind of fuel you use to heat the drier? Natural gas, electricity, fuel oil or steam?
-Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
-Provide us your country’s electricity information, such as phases, voltage, HZ?
-How about dust collect requirements?
-Other special requirements?
-Prior & next processes？
Our Company
Sino Pharmaceutical Equipment Development(Liaoyang)Co.,ltd
(SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.
Due to our good credit and service, we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, . Besides machinery and equipment, we also supply production lines and turn key projects.
Certificate

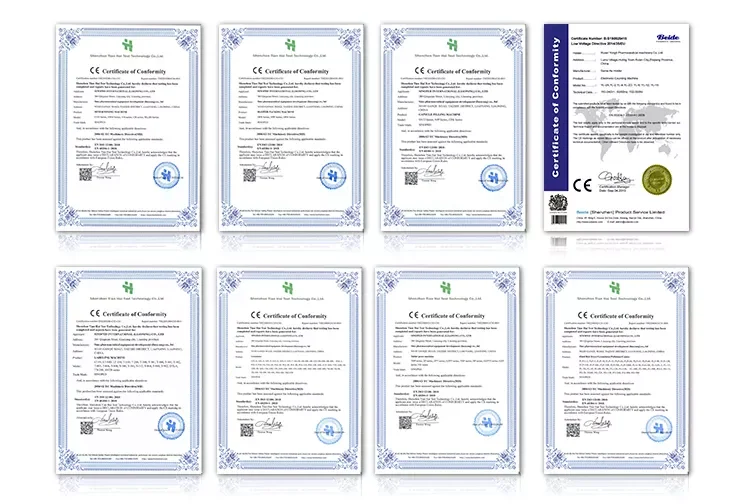

We can provide you CE certificate for pharmaceutical machinery such as Fluid Bed Dryer, Granulator, Capsule Filling Machine,
