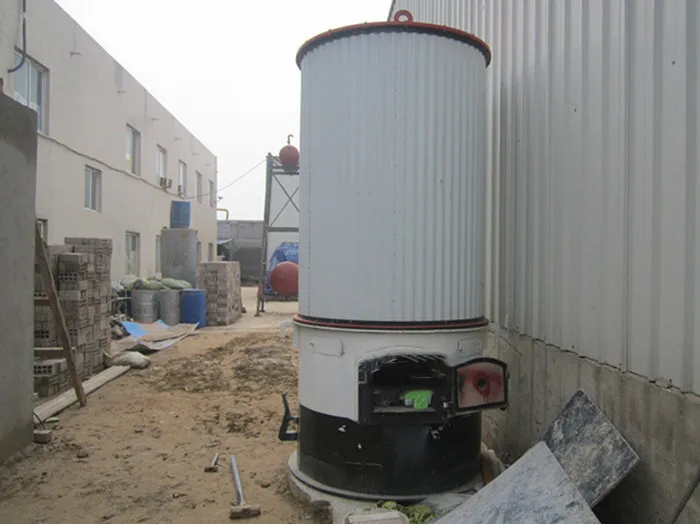

ZHONGDE energy saving save significant operating costs Industrial YGL Biomass Coal Fired Thermal Oil Heater Price
- Category: >>>
- Supplier: Henan Zhongde Environmental Protection Technology Co. Ltd.
Share on (1600618959779):
Product Overview
Description
Product Description

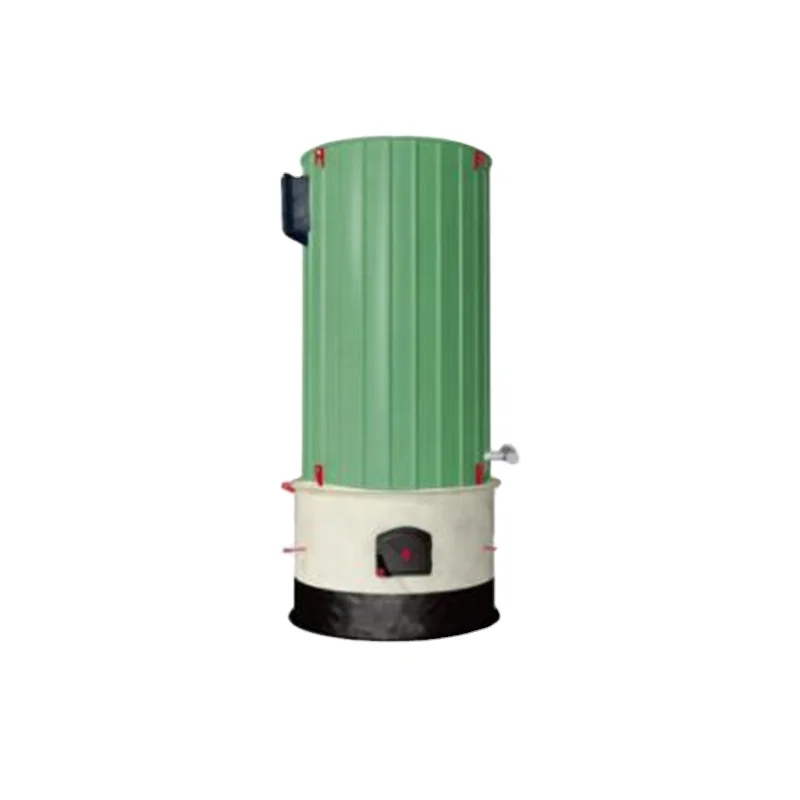

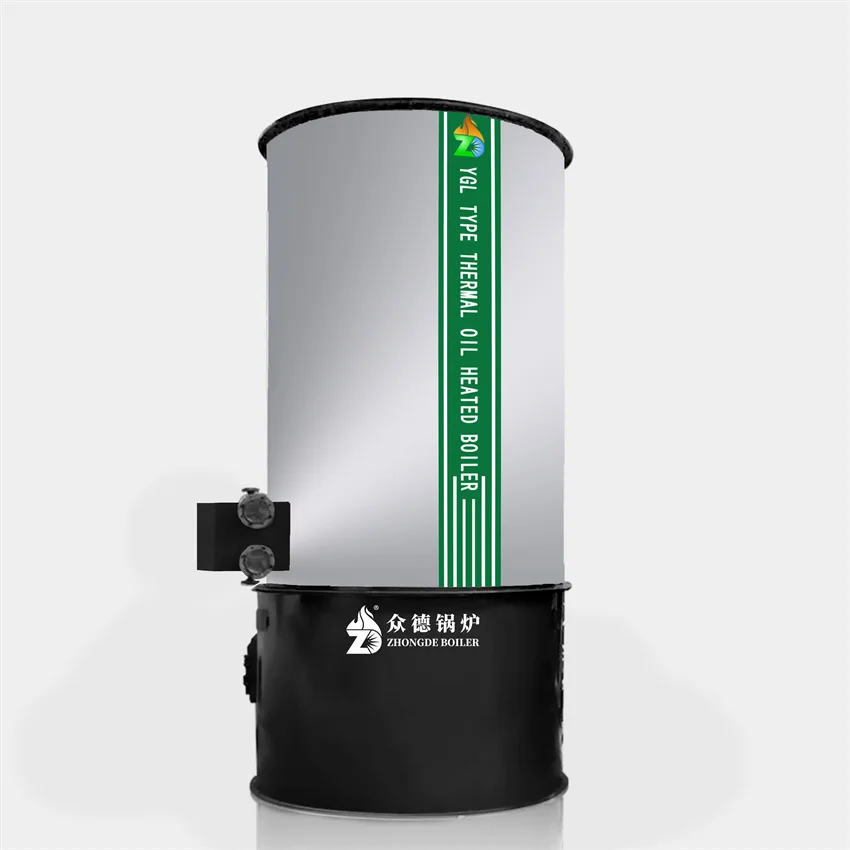

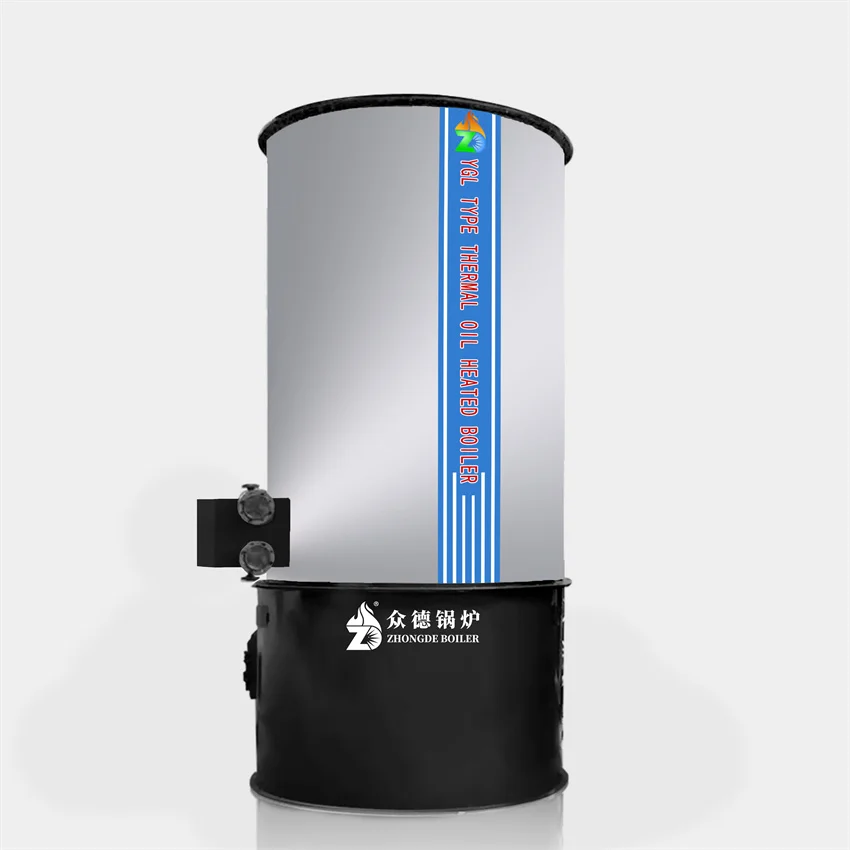

YGL vertical coal biomass fired thermal oil boiler uses coal/biomass as fuel and heat-conducting oil as the medium. The circulating oil pump is used to force the medium to circulate in the liquid phase. The heat energy is transferred to the heating equipment and then returned to the heating furnace for reheating. It can obtain high working temperature under low pressure, and can carry out high-precision control of the operation of the medium. The system has high thermal efficiency and convenient operation and maintenance. It is a safe, efficient and energy-saving ideal heating equipment.
Specification
Model | YGL -120 MA | YGL -240 MA | YGL -350 MA | YGL -500 MA | |||
Rated power（KW） | 120 | 240 | 350 | 500 | |||
Design pressure (MPa) | 1.1 | ||||||
Furnace oil volum (m³/h) | 0.1 | 1.15 | 0.3 | 0.38 | |||
Circulation oil volume (m³/h) | 10 | 20 | 30 | 40 | |||
Pipe connection diameter (DN) | 40 | 65 | 80 | 80 | |||
Length（mm） | 1220 | 1705 | 1873 | 2076 | |||
Width（mm） | 1140 | 1510 | 1683 | 1900 | |||
Height（mm） | 2550 | 3095 | 3358 | 3660 | |||
Reference weight (t) | 2.2 | 2.7 | 3.4 | 3.9 | |||
Model | YGL -700 MA | YGL -1000 MA | YGL -1200 MA | YGL -1400 MA | |||
Rated power（KW） | 700 | 1000 | 1200 | 1400 | |||
Design pressure (MPa) | 1.1 | ||||||
Furnace oil volum (m³/h) | 0.52 | 0.7 | 0.85 | 1.02 | |||
Circulation oil volume (m³/h) | 60 | 80 | 100 | 100 | |||
Pipe connection diameter (DN) | 100 | 125 | |||||
Length（mm） | 2276 | 2900 | 2900 | 3000 | |||
Width（mm） | 2100 | 2500 | 2500 | 2900 | |||
Height（mm） | 3840 | 4785 | 5133 | 5430 | |||
Reference weight (t) | 4.8 | 7.4 | 8.0 | 10.2 | |||

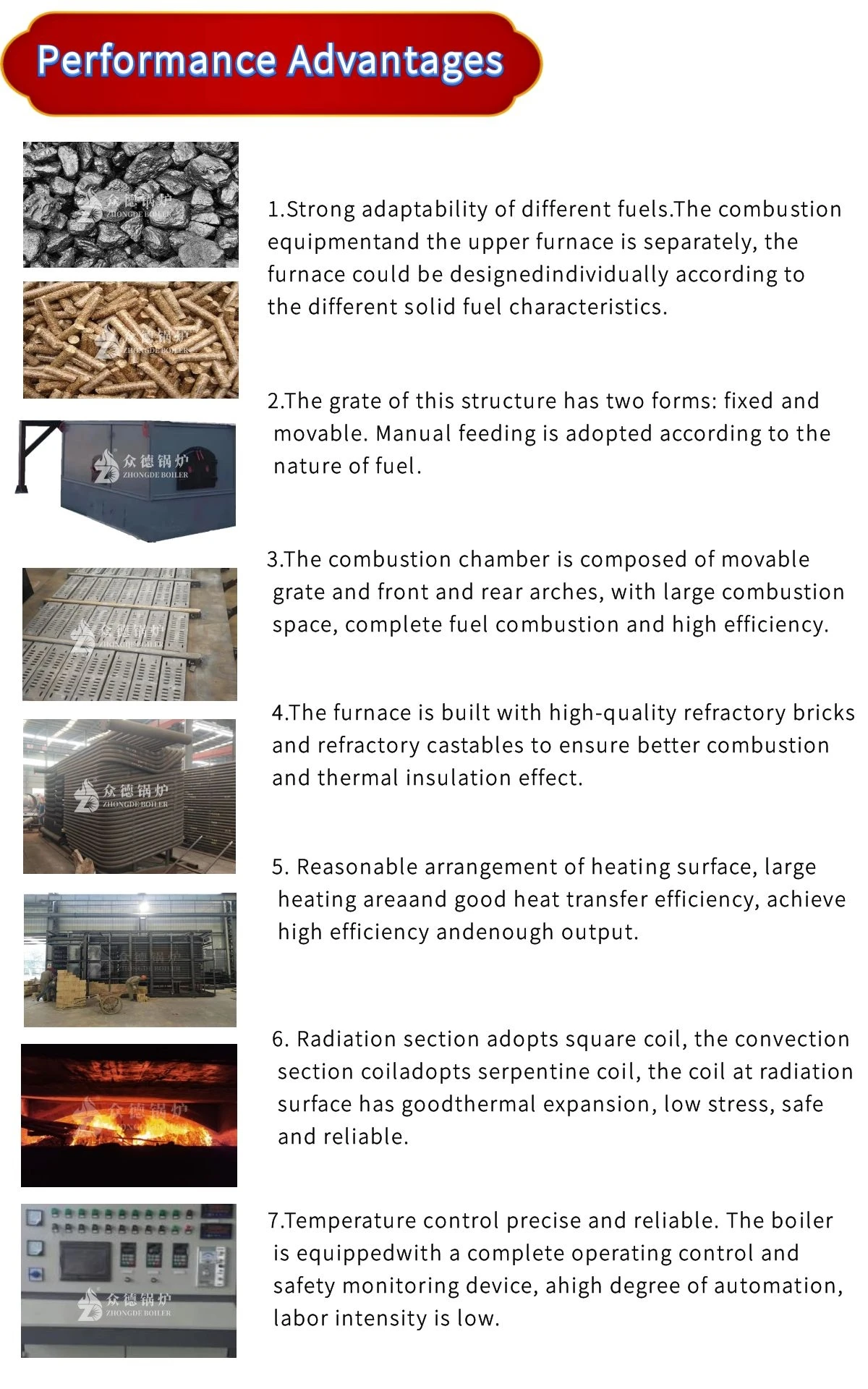

Boiler Characteristics

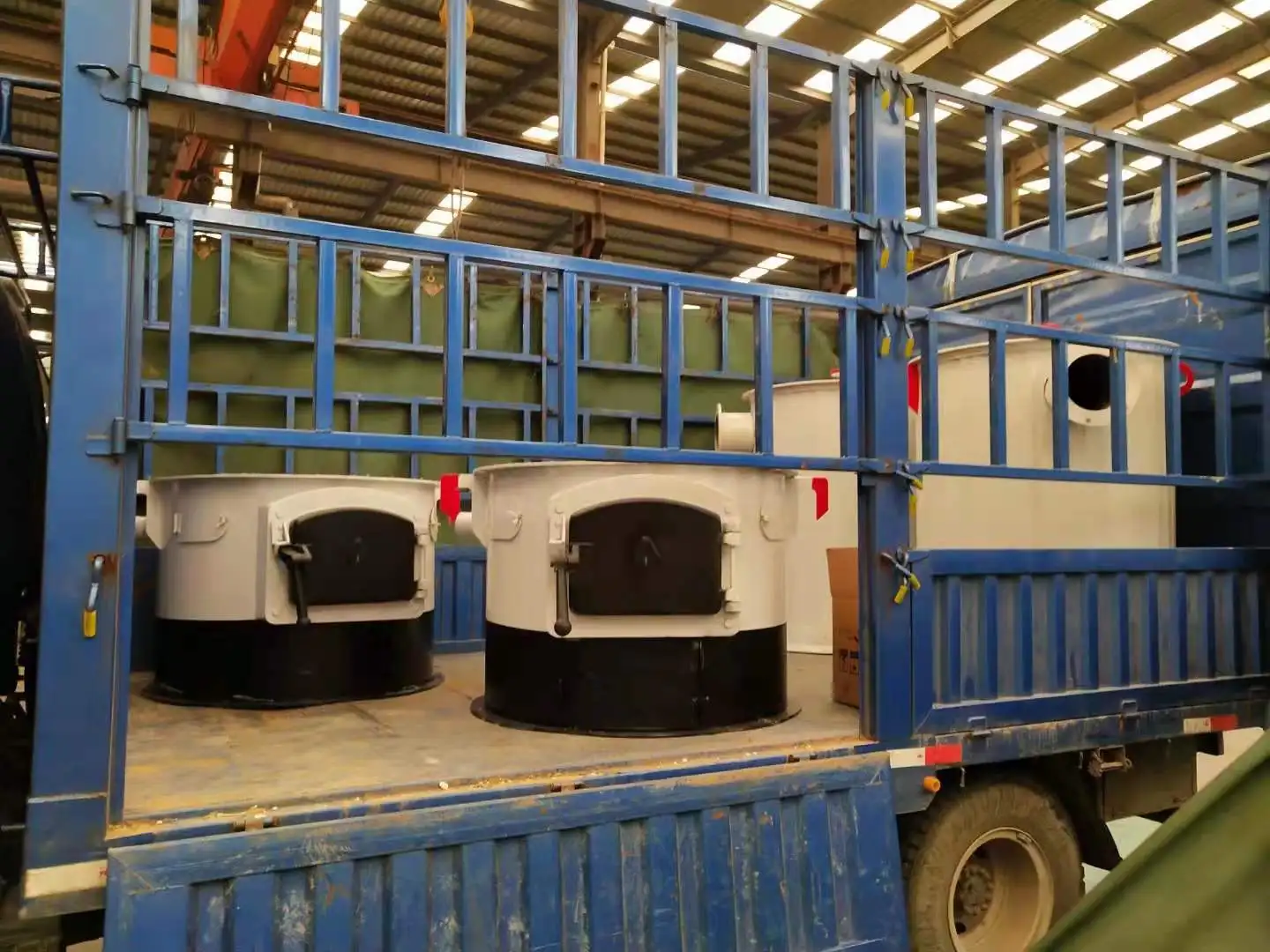

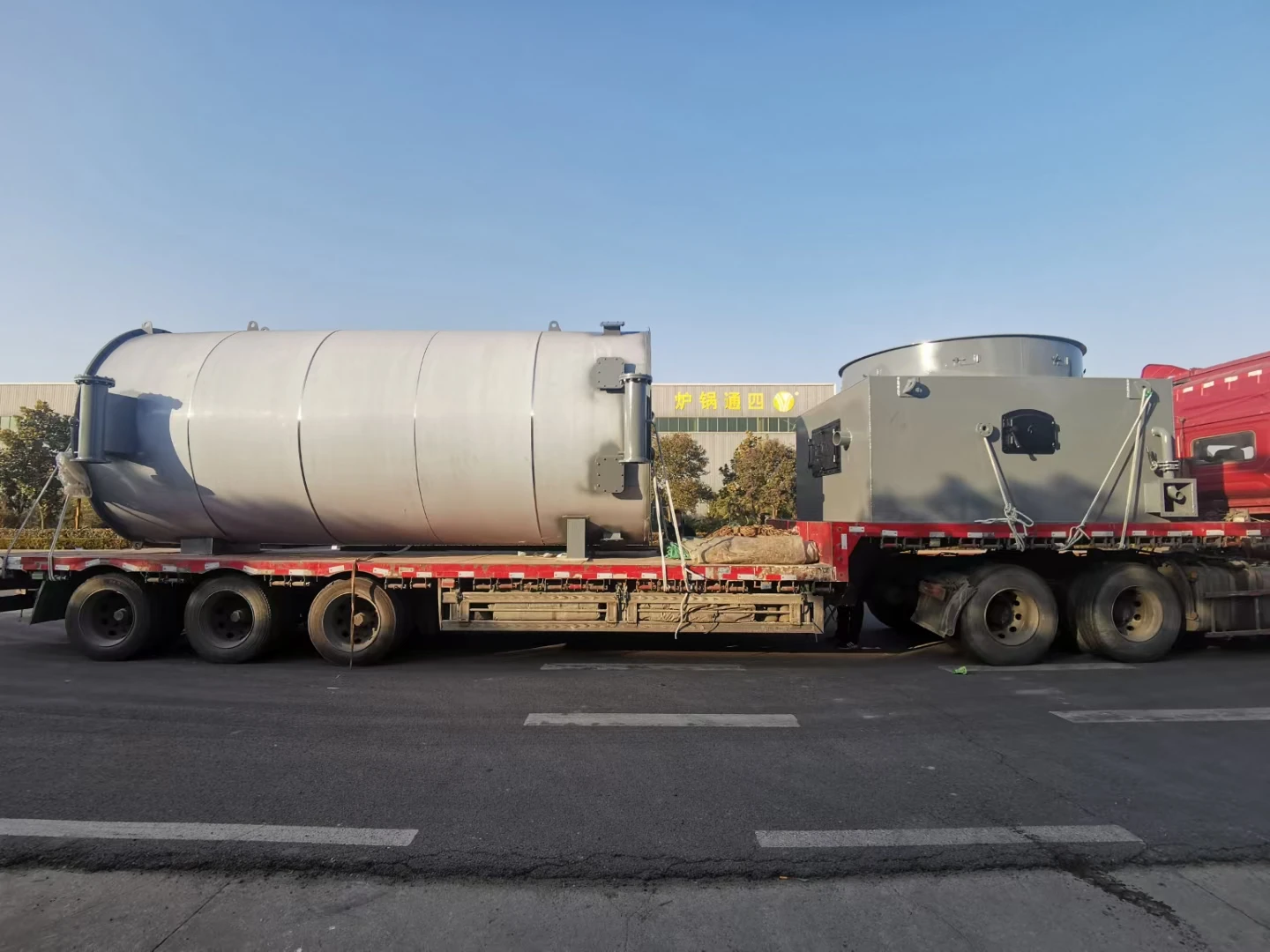

Packing & Delivery
Selling Units:Single item
Single package size: Depends on the capacity
Single gross weight:Depends on the capacity
Package Type:customized
Single package size: Depends on the capacity
Single gross weight:Depends on the capacity
Package Type:customized
Company Profile
Henan Zhongde Environmental Protection Technology Co., Ltd. is located in the beautiful Fu Cao Lou Industrial Park, Taikang County, on the Eastern Henan Plain. The company has a plant area of 80,000 square meters and more than 100 employees. It mainly engages in the R&D, manufacturing and sales of hot water boilers, steam generators, electric heating boilers, oil-fired gas steam boilers, and high and medium temperature hot blast stoves. Based on the manufacture of hot water boilers and steam generators, the company has established an industrial system integrating product development, engineering project design, equipment manufacturing, engineering installation, system commissioning, pre-sales, in-sales, and after-sales services. The company's products are not only sold in the domestic market, but also exported to more than 10 countries and regions including South Korea, Vietnam, Myanmar, Mongolia, the Philippines, and Indonesia. Excellent employees, advanced technology, sophisticated equipment, and strict management are the foundation for the company's continuous development and expansion and the products that can win the dependence of users.
Certifications
Our Survice
Pre-sale service:
1.Provide the most suitable and cost-effective boiler solution according to different requirements of various industry. 2.Provide drawings for building your boiler room,such as foundation drawing, layout drawing, boiler room layout, etc.
1.Provide the most suitable and cost-effective boiler solution according to different requirements of various industry. 2.Provide drawings for building your boiler room,such as foundation drawing, layout drawing, boiler room layout, etc.
On-Sale service:
24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product. We send pictures and videos to let customers know the production schedule.
After-sales service:
1.provide full range of original spare parts.
2.Provide engineers abroad installation and commissioning service.
3.Held online or site training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.
24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product. We send pictures and videos to let customers know the production schedule.
After-sales service:
1.provide full range of original spare parts.
2.Provide engineers abroad installation and commissioning service.
3.Held online or site training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.
FAQ
1. What is the highest temperature that thermal oil heater could achieve?
5. What is conduction oil/ hot oil / heat transfer fluid?
ZHONGDE thermal oil heater can reach as high as 350℃, and working under low pressure (<1.0MPa) The main types of ZHONGDE thermal oil boiler includes YGL series vertical type fixed grate coal/biomass fired hot oil boiler, YLW series horizontal type chain grate coal/biomass hot oil heater, YLL series vertical type chain grate coal/biomass fuel thermal oil boiler, and YY(Q)W series horizontal type oil gas fired thermal fluid heater.
2.What is the size and humidity of coal/biomass fuel?
Size requirement of coal:6-25 Size requirement of blending coal: <50mm (the coal less than 6mm should less than 30%) Diameter of biomass particle: 6~10mm, length: 25~50mm, water content < 15%, ash content <2%, sulphur content<0.07%, chlorinity <0.07%, nitrogen content < 0.5%
3. What is the feeding method of ZHONGDE coal fired thermal oil heater?
The combustion equipment of YGL series vertical type coal fired hot oil boiler is fixed grate, the feeding method is
manual feeding. The combustion equipment of YLW series horizontal type coal hot oil heater and YLL series coal fired thermal oil boiler is chain grate, the feed method is automatic loading by coal hopper.
manual feeding. The combustion equipment of YLW series horizontal type coal hot oil heater and YLL series coal fired thermal oil boiler is chain grate, the feed method is automatic loading by coal hopper.
4. What are the heat-resistance temperature of grate and furnace?
The heat resistance temperature of grate is related to the grate material, the highest temperature could be as high
as 1100℃, and the lower temperature could be 700℃. The highest heat resistance temperature of furnace could be about 1700℃~1800℃.
as 1100℃, and the lower temperature could be 700℃. The highest heat resistance temperature of furnace could be about 1700℃~1800℃.
5. What is conduction oil/ hot oil / heat transfer fluid?
Conduction oil has a high boiling point, it usually used for the
industries that need the temperature of 150~350℃, to instead of steam. The hot oil has the advantages of high transfer efficiency, fast heat transfer, and good thermal stability.
industries that need the temperature of 150~350℃, to instead of steam. The hot oil has the advantages of high transfer efficiency, fast heat transfer, and good thermal stability.
As the heat-transfer medium, hot oil has the characteristics of:
1. Achieve high operation temperature (350℃), under the low working pressure (<1.1Mpa).
2. Decrease the working pressure of high temperature heating system, improve safety and stability of system and equipment. 3. Fit for process requirement on wider temperature range .
Other more questions please contact us.
