Metallurgical Microscope Trinocular inverted microscope for metallography with software and camera FXD 30MW
- Category: >>>
- Supplier: Laizhou Metallographic Testing Equipment Co. Ltd.
Share on (1600618972779):
Product Overview
Description
Product Description

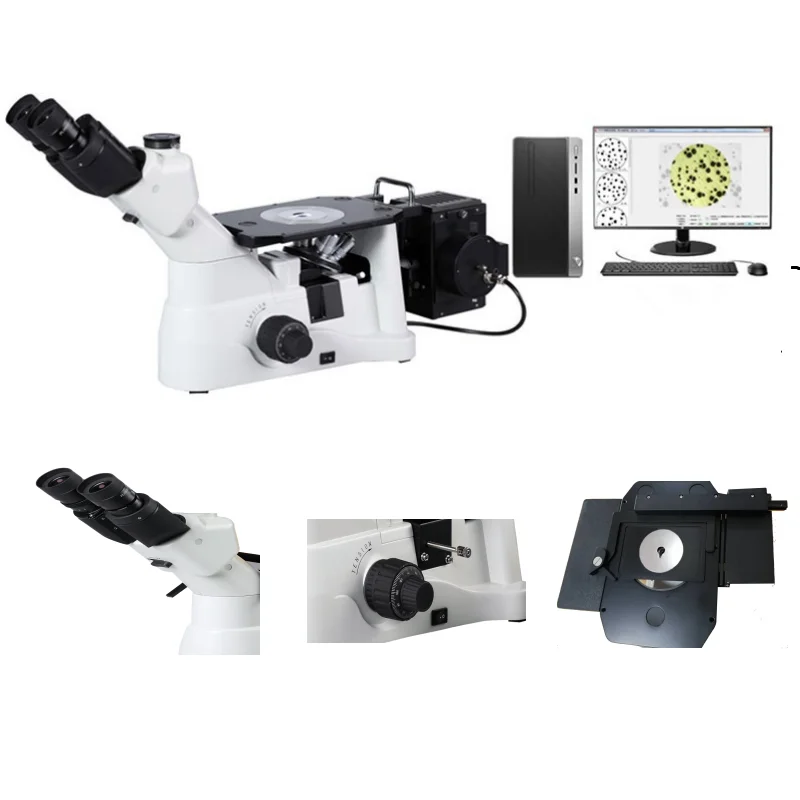

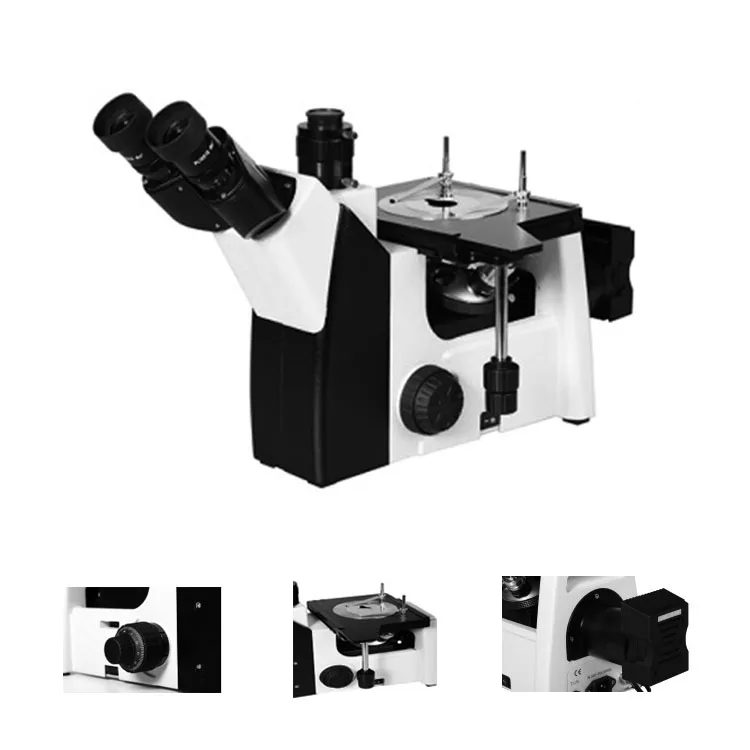

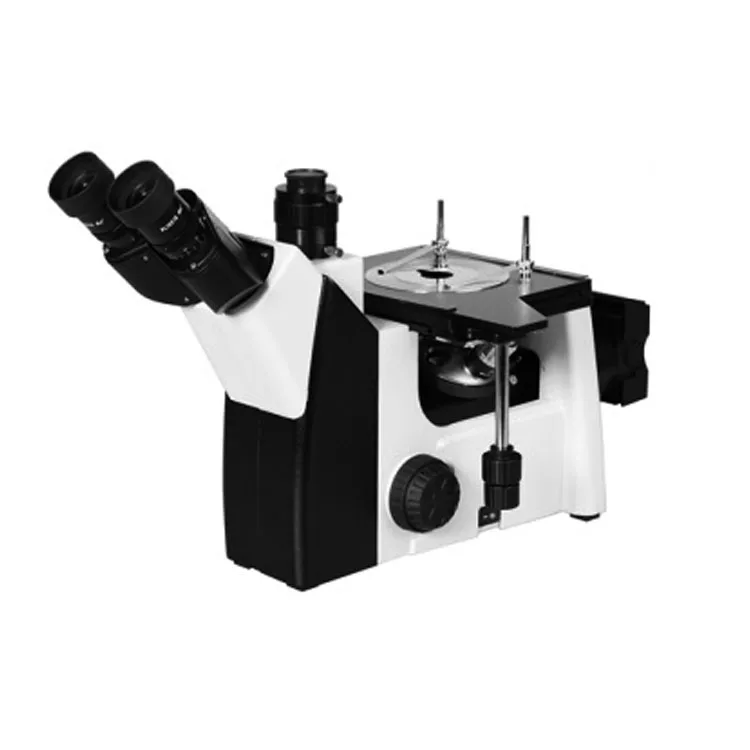

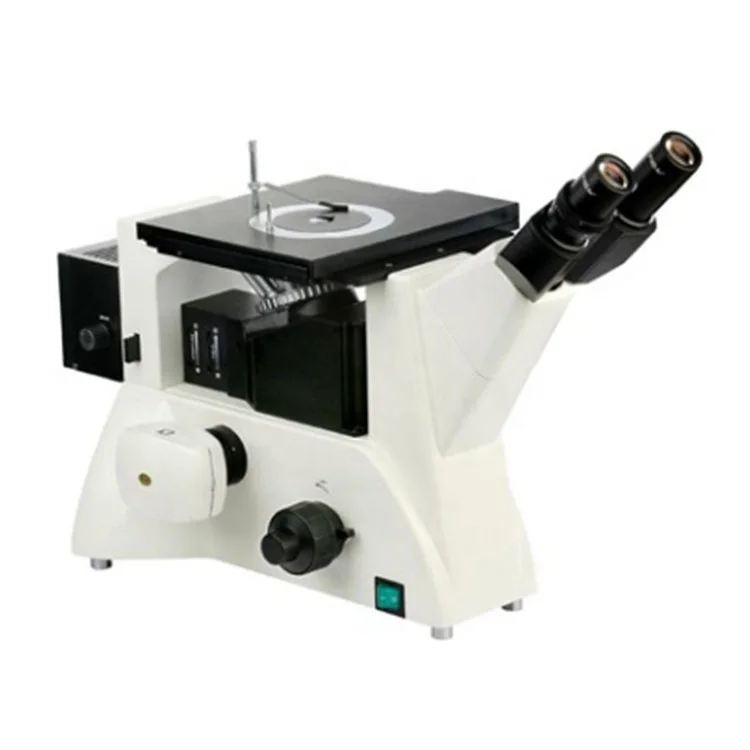

FXD-30MW Trinocular Inverted Metallurgical microscope
FXD-30MW computer type metallographic microscope is a trinocular inverted metallographic microscope, which can provide superior image quality and a stable and reliable mechanical structure. The machine is easy to operate and has complete accessories. It is widely used in metallographic analysis for teaching
and research and material testing in factory laboratories.
and research and material testing in factory laboratories.
Specification
Configuration | Model | ||
Components | Specification | FXD-30MW | |
Optical system | Infinity Chromatic Aberration Correction Optical System | ||
Observation tube | Hinged trinocular head, 45° tilt, interpupillary distance adjustment range: 54-75mm, unilateral diopter adjustment ±5 diopters Diopter ratio: binocular 100%, binocular:trinocular=80%:20% | · | |
Eyepiece | High eyepoint, ultra-wide field plan eyepieces PL10X/22mm | · | |
High eyepoint, ultra-wide field plan eyepiecesPL10X/22mm，With cross division ruler | O | ||
High eyepoint, ultra-wide field plan eyepiecesPL10X/22mm，Adjustable vision | O | ||
High eyepoint, ultra-wide field plan eyepiecesPL15X/16mm | O | ||
Objective lens (Long Anomaly Plan Achromatic objective lens) | LMPL5X /0.15 WD10.8mm | · | |
LMPL10X/0.3 WD10mm | · | ||
LMPL20X/0.45 WD4mm | · | ||
LMPL50X/0.55 WD7.8mm | · | ||
LMPL100X/0.80 WD2.1mm | O | ||
Converter | Internal positioning five-hole converter | · | |
Micrometer body | Coaxial coarse and fine adjustment, coarse adjustment stroke per revolution: 38mm, fine adjustment stroke per revolution: 0.2 mm, focusing accuracy: 0.002mm, with elastic adjustment device | · | |
Fixed platform: size 160X250mm | |||
Workbench | Metal stage plate (center hole Φ12mm) | · | |
Metal stage plate (center hole Φ25mm） | O | ||
Mechanical moving ruler, stroke120（X）*78（Y）mm | |||
Stage extension | |||
Reflective Lighting System | Reflective Kola illuminator, with variable aperture diaphragm and center adjustable field of view diaphragm, adaptive 100V~240V wide voltage, 12V50W imported halogen lamp, center adjustable, continuously adjustable brightness | · | |
Polarized accessories | The analyzer can be rotated 360 degrees, and both the polarizer and the analyzer can be moved out of the light path | O | |
Color filter | Yellow, green, blue color filters | · | |
Metallographic Analysis System | FMIA2021 genuine metallographic analysis software, Sony chip 12mp camera device, 0.5X adapter lens interface, micrometer. | · | |
Computer | HP Business Jet | O | |
Note: "· "is standard configuration;" O" is optional
Software :mage editing software, image software, image measurement software, grain size measurement and rating, measurement Grain size, NON-METALLIC inclusions, microstructure of steel, decarbonization layer analysis, gray iron, ductile iron, carbon
steel spheroidization, plus a metallographic instruction
steel spheroidization, plus a metallographic instruction

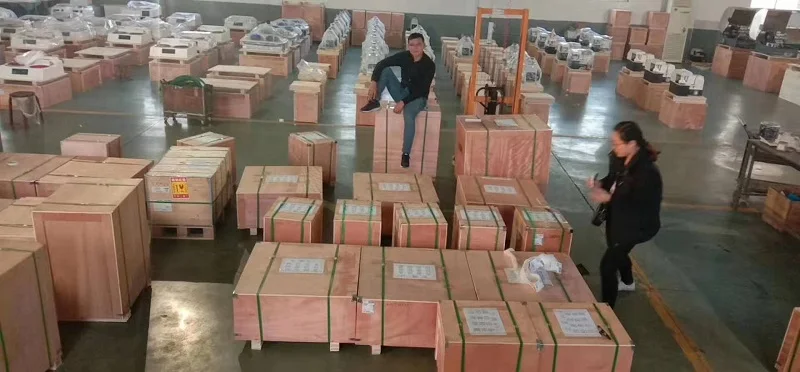

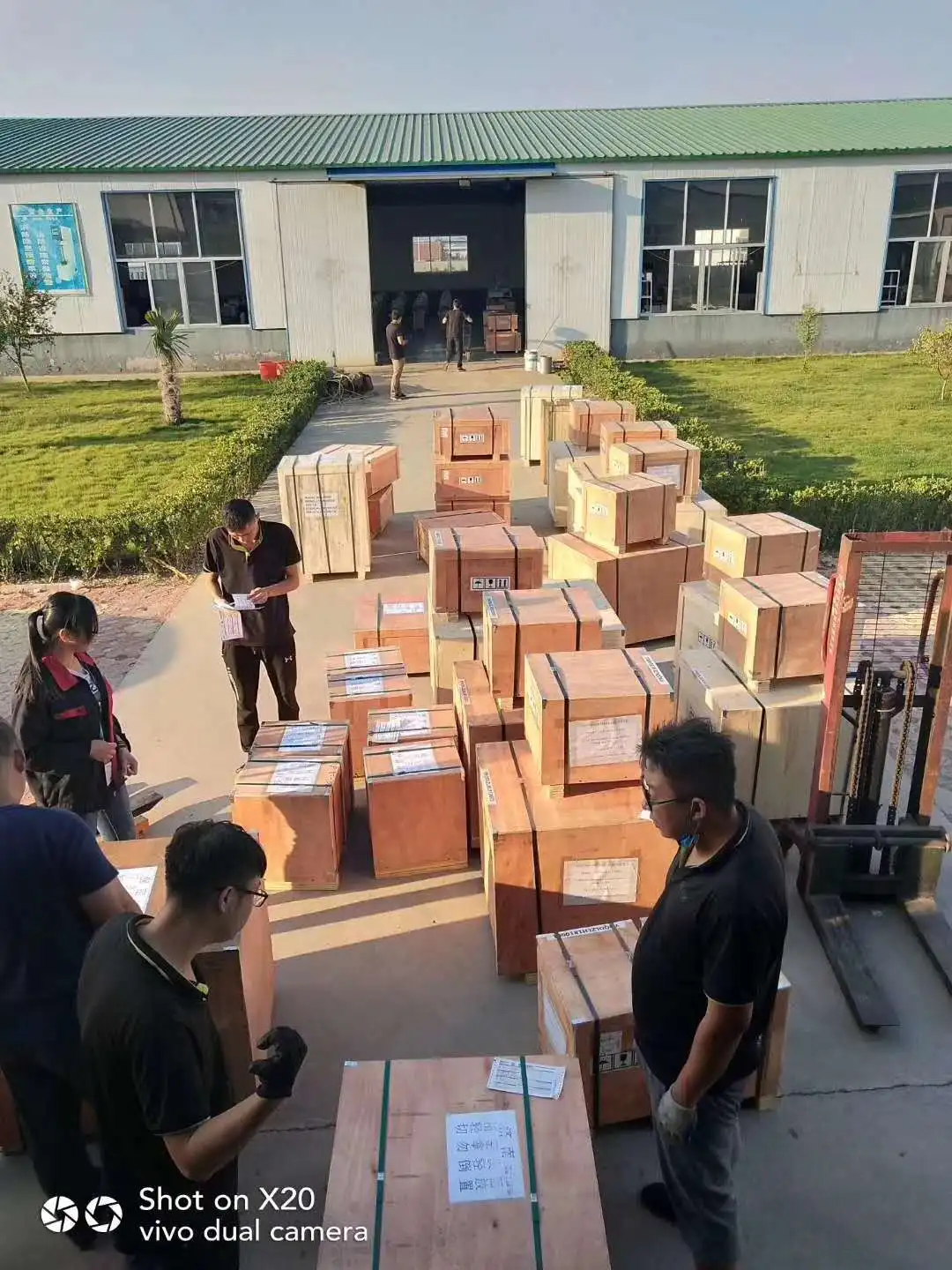

Packing & Delivery
To ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

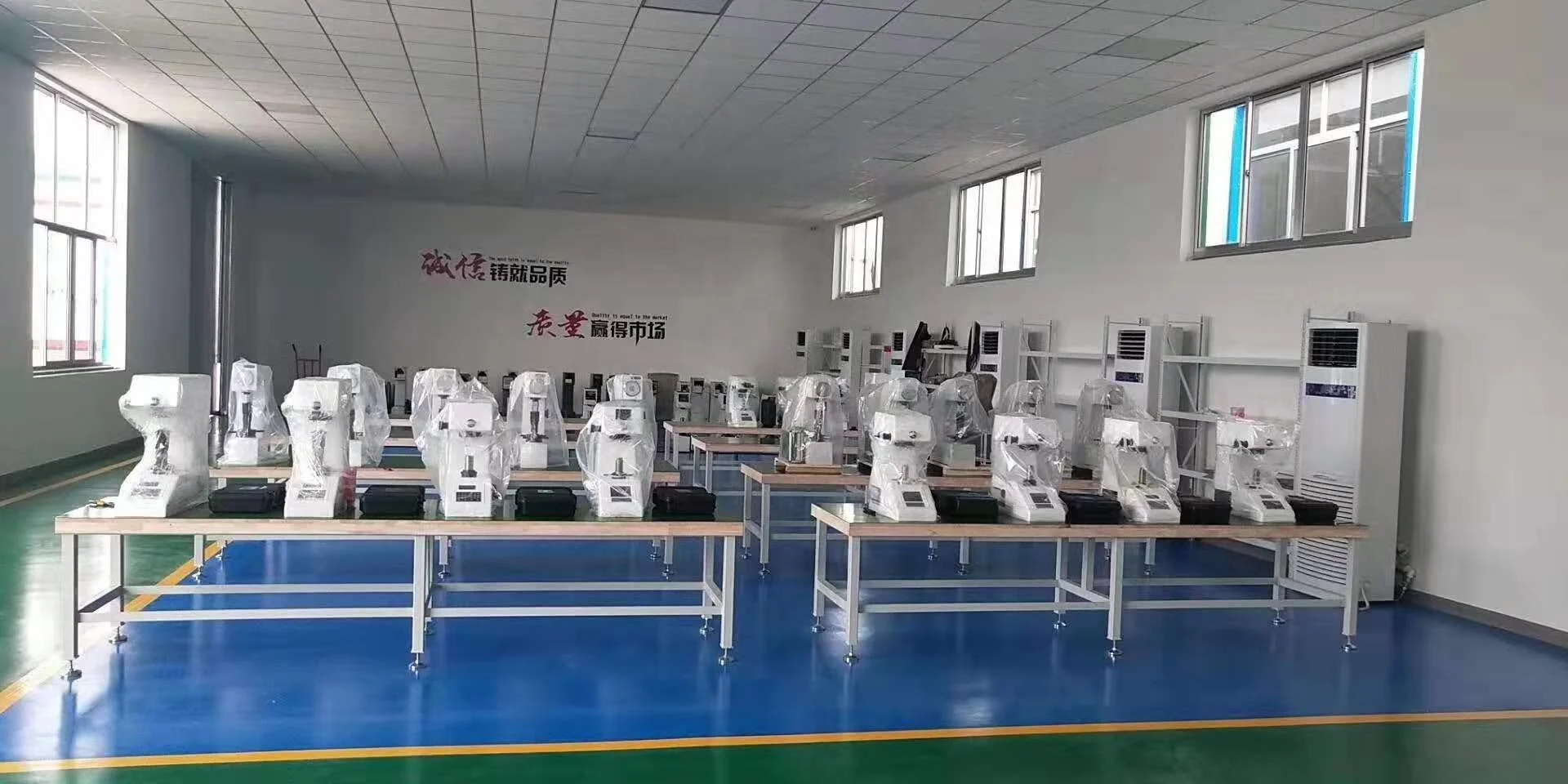

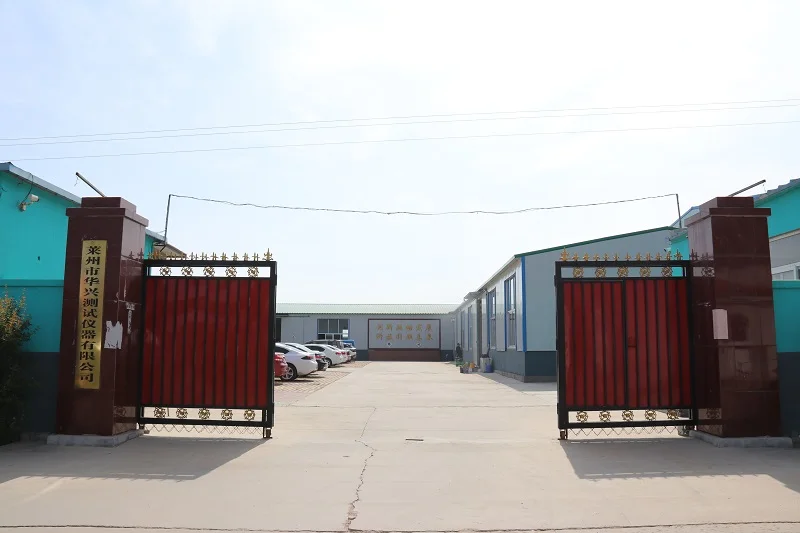

Company Profile
15 years focus on metallographic and hardness testers
FAQ
1. Are your company a trading company or a manufactor, and do you have technical team?
We are a manufacturor, with more than 15 years experience in this field, our exporting office is at Qingdao, and our professional technicians with serveral years' experence.
2. What's your main products?
Our main products are full set metallographic sample prepration machines and hardness testers.
3. Whats' the delivery term?
For normal models of machines, we have stock in workshop. The time is only testing of machine before sending out and packaging. Normally 2-3 days.
If there is no stock, the delivery time will be 5-10 days, depend on quantity of machine.
Special requirement or large quantity please confirm with us before ordering.
4.Do you accept customization service?
Yes, for sure. We not only offer standard machines, but also do customized machines, our techinician will make the machine as your required. Just need to communicate before ordering.
5.What is your payment items?
Normally 100% prepaid, as almost the model we have stock. after received the payment, we will directly preparing for export the goods.For bulk order, please communicate with our people first.
6.How is your after-sale service and what's your warranty?
Before sending the goods, we will first test the machines and after receiving the goods, there is manual to show you how to install the machine,and how to operate, if you are not sure, we will send video to show how to operate, if there is any question, our people will do online service to teach how to operate and how to fix problems.
Our warranty time is 1 year.
We are a manufacturor, with more than 15 years experience in this field, our exporting office is at Qingdao, and our professional technicians with serveral years' experence.
2. What's your main products?
Our main products are full set metallographic sample prepration machines and hardness testers.
3. Whats' the delivery term?
For normal models of machines, we have stock in workshop. The time is only testing of machine before sending out and packaging. Normally 2-3 days.
If there is no stock, the delivery time will be 5-10 days, depend on quantity of machine.
Special requirement or large quantity please confirm with us before ordering.
4.Do you accept customization service?
Yes, for sure. We not only offer standard machines, but also do customized machines, our techinician will make the machine as your required. Just need to communicate before ordering.
5.What is your payment items?
Normally 100% prepaid, as almost the model we have stock. after received the payment, we will directly preparing for export the goods.For bulk order, please communicate with our people first.
6.How is your after-sale service and what's your warranty?
Before sending the goods, we will first test the machines and after receiving the goods, there is manual to show you how to install the machine,and how to operate, if you are not sure, we will send video to show how to operate, if there is any question, our people will do online service to teach how to operate and how to fix problems.
Our warranty time is 1 year.
