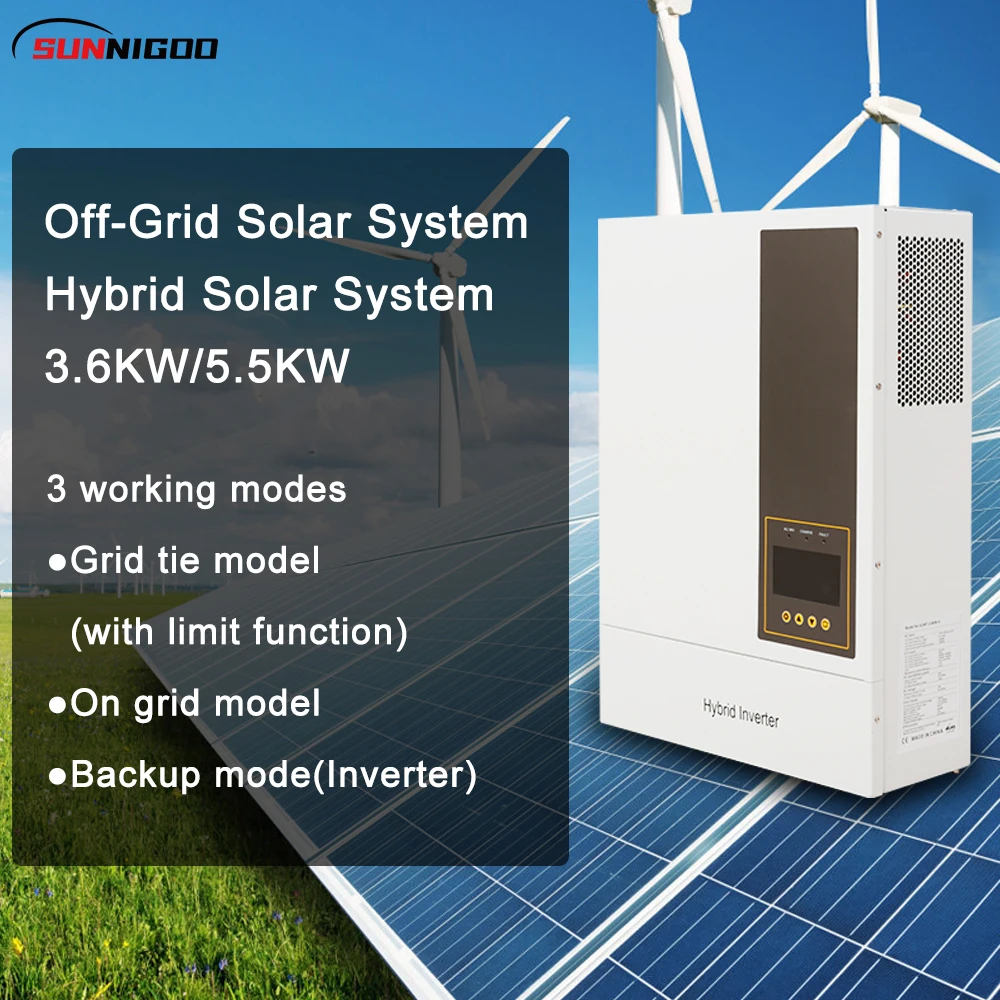

Solar Inverters Power High Frequency Hybrid Solar Inverter 5.5kw Solar Inverters with Wifi Limiter
- Category: >>>
- Supplier: Hangzhou Neighbor Intelligent Technology Co. Ltd
Share on (1600618986136):
Product Overview
Description
Product Description

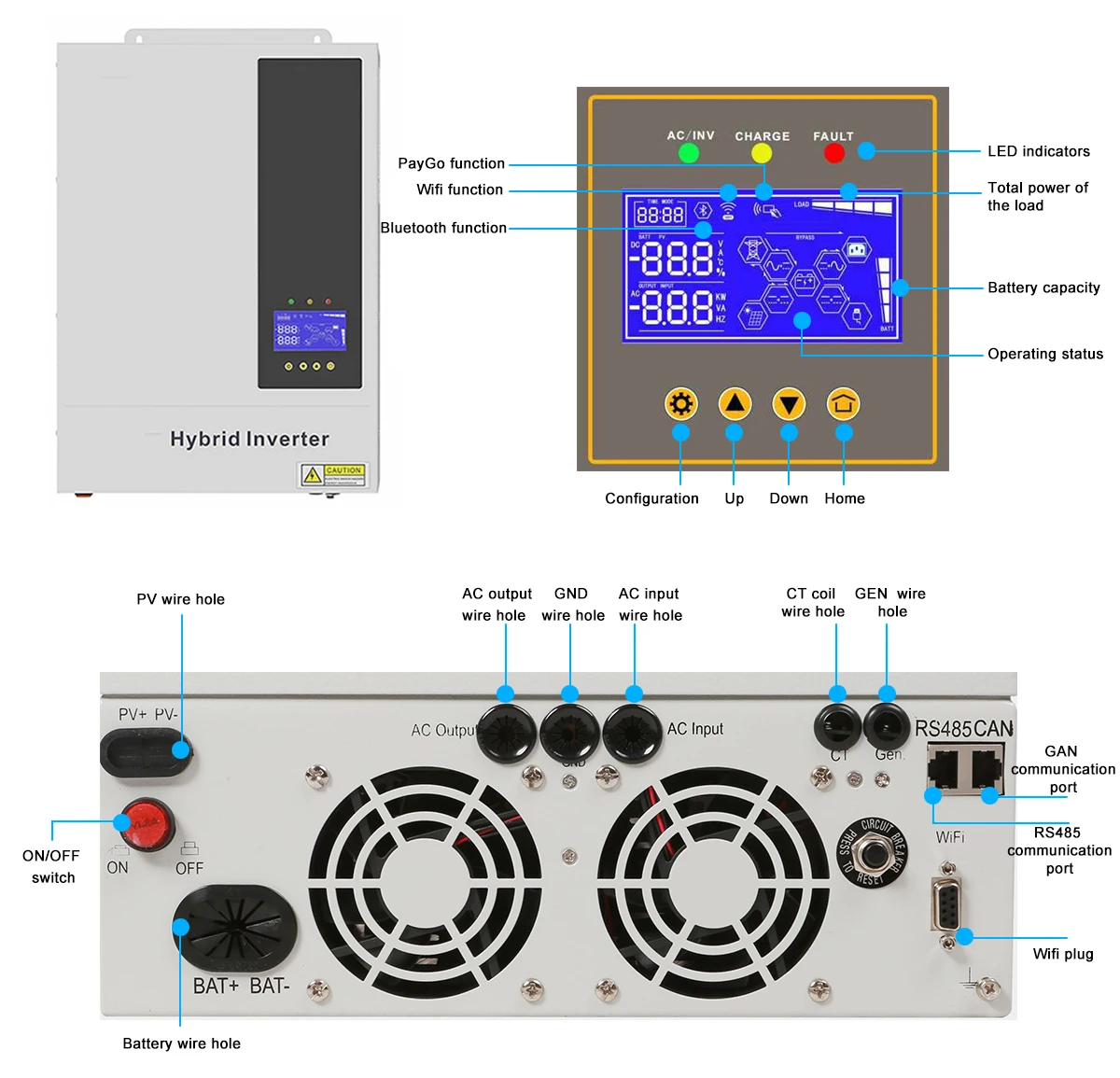

Details Images

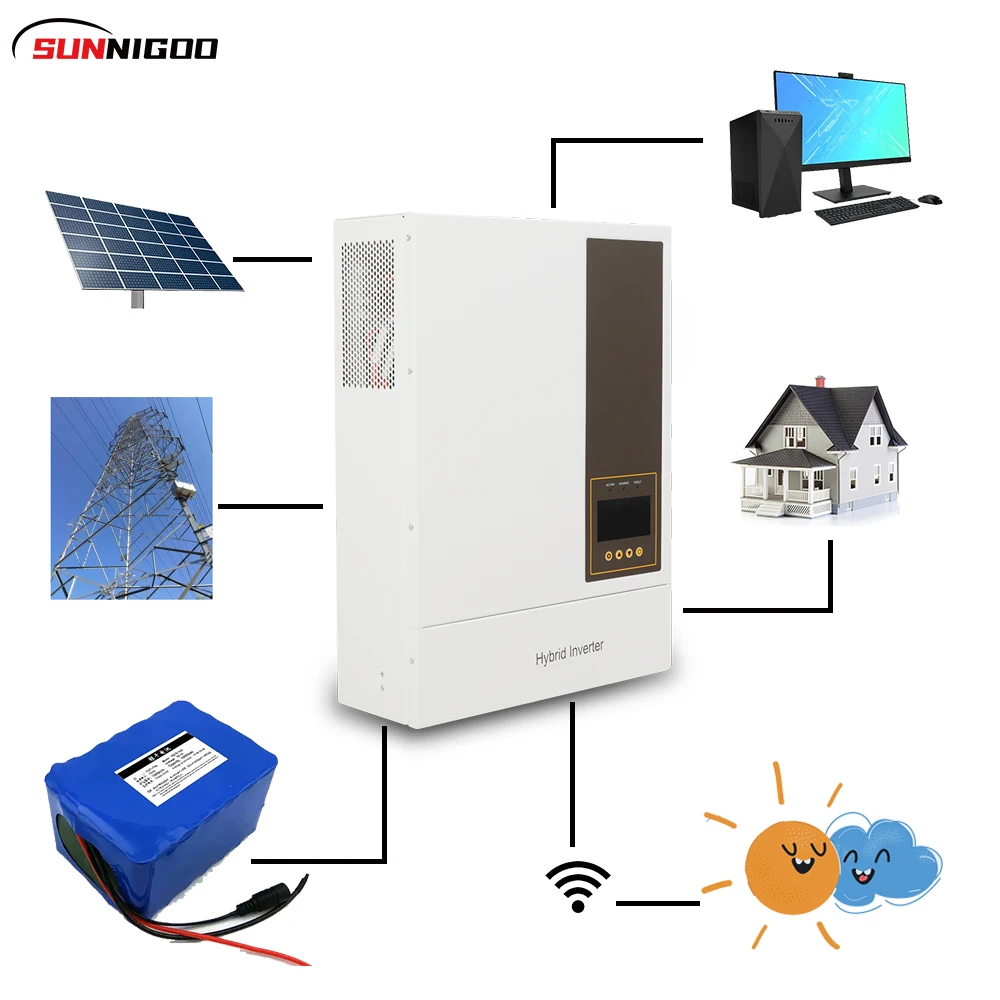

Hybrid Solar Inverter
Off-Grid Solar Inverter
3.6KW
Product size: 440x307x121mm
Packing size: 530x380x190 mm
G.M/N.W: 10KGS/9KGS

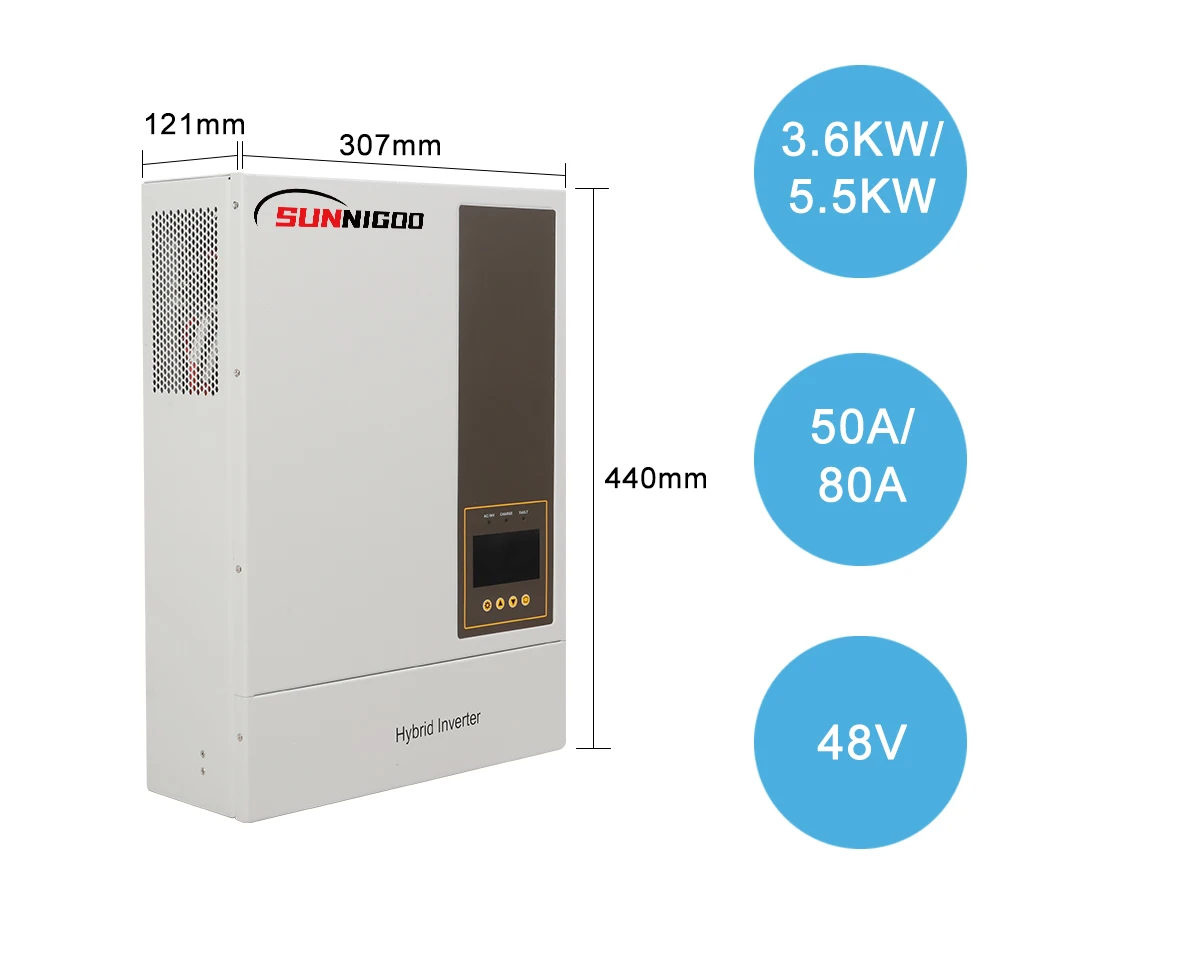

5.5KW
Product size: 440x307x121mm
530x380x190(mm)
G.M/N.W: 12KGS/11KGS
item no. | Sunnigoo-3.6KW-H | Sunnigoo-5.5KW-H | ||
Grid tie model (with limit function) | ||||
AC grid rated voltage(Vac) | 220/230/240 | |||
AC grid voltage range | (170Vac - 280Vac) ±2% | |||
AC grid frequency(Hz) | 45 - 55 | |||
Maximum grid tie power(W) | 3600 | 5500 | ||
Overload/short circuit protection | Yes | |||

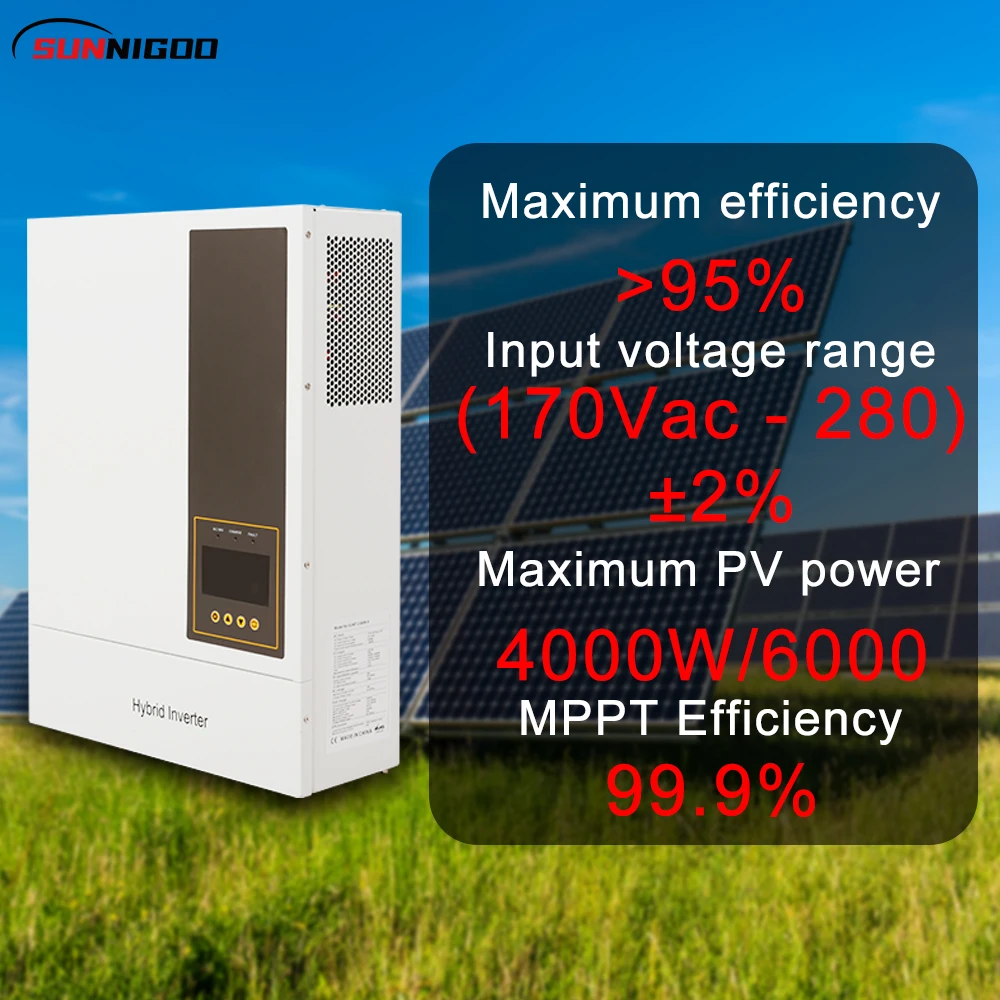

Maximum efficiency | >95% | |||
THD | <3% | |||
Conversion time (bypass and inverter) | 10ms (Typical value) | |||
Maximum bypass current(A) | 40 | |||
Limit function | Yes | |||
On grid model | ||||
Rated input voltage(Vac) | 220/230/240 | |||
Input voltage range(Vac) | (170Vac - 280) ±2% | |||
Input frequency(Hz) | 45 - 55 | |||
Overload/short circuit protection | Yes | |||
Conversion time (bypass and inverter) | 10ms (Typical value) | |||
Maximum bypass current(A) | 40 | |||
Backup mode(Inverter) | ||||
Output voltage waveform | Pure sine wave | |||
THD | <3% | |||
Maximum output power(VA) | 3600 | 5000 | ||
Maximum output power(W) | 3600 | 5000 | ||
Max. Power factor | 1 | |||
Rated output voltage (Vac) | 230Vac | |||
Output frequency range (Hz) | 50Hz ± 0.2Hz | |||
Efficiency | >93% | |||
Overload protection | (102%<load<125%±10%： reporting error and turning off the output after 5 minutes; (125%<load<150%)±10%：reporting error and turning off the output after 10 seconds | |||
Peak power(VA) | 7200 | 11000 | ||
Output short-circuit protection | Yes | |||
Battery voltage | 48V | |||
Battery input voltage range | 40.0Vdc - 60Vdc | |||
AC charge | ||||
Battery type | Lead acid or lithium battery | |||
Maximum charge current(A) | 50 | 80 | ||
Charge voltage range | 40Vdc - 60Vdc | |||
Overcharge protection | Yes | |||
Solar charge | ||||
Maximum PV open-circuit voltage | 500Vdc | |||
PV operation voltage range | 120-500Vdc | |||
MPPT voltage range | 120 - 450Vdc | |||
MPPT Efficiency | 99.9% | |||
Battery voltage range | 40 - 60Vdc | |||
Maximum PV power(W) | 4000 | 6000 | ||
Maximum charge current(A) | 50 | 80 | ||
Charge short-circuit protection | Yes | |||
PV input reverse protection | Yes | |||
Working Mode
Limit function mode(Economic mode) VS NO limit function mode(UPS mode)

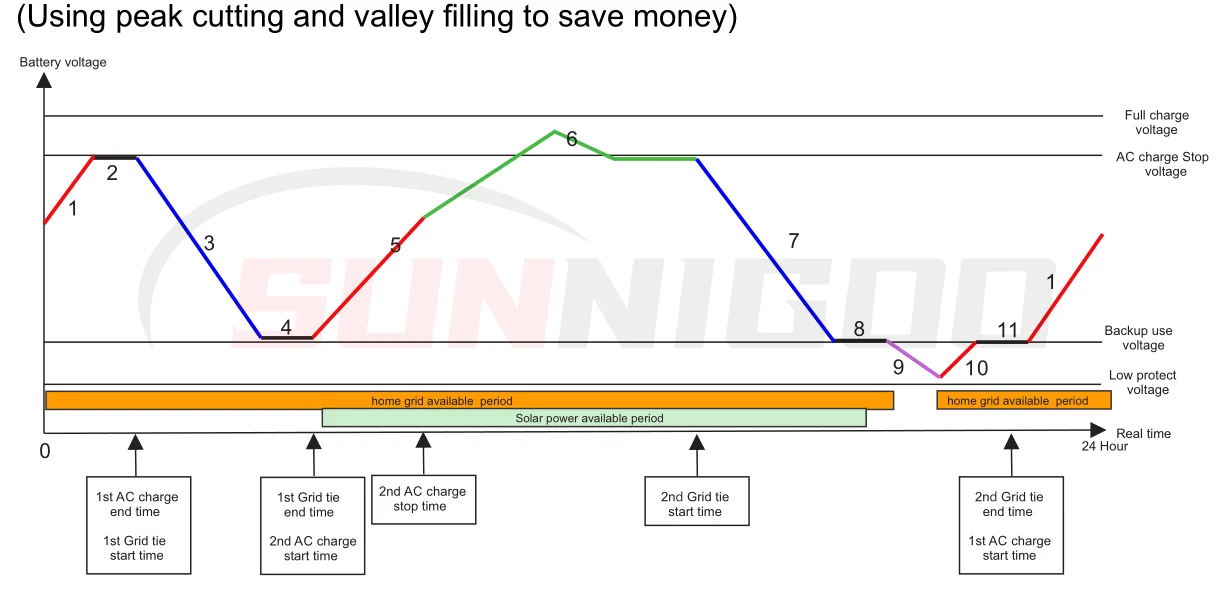

Limit function mode
It can use peak cutting and valley filling to save money for you

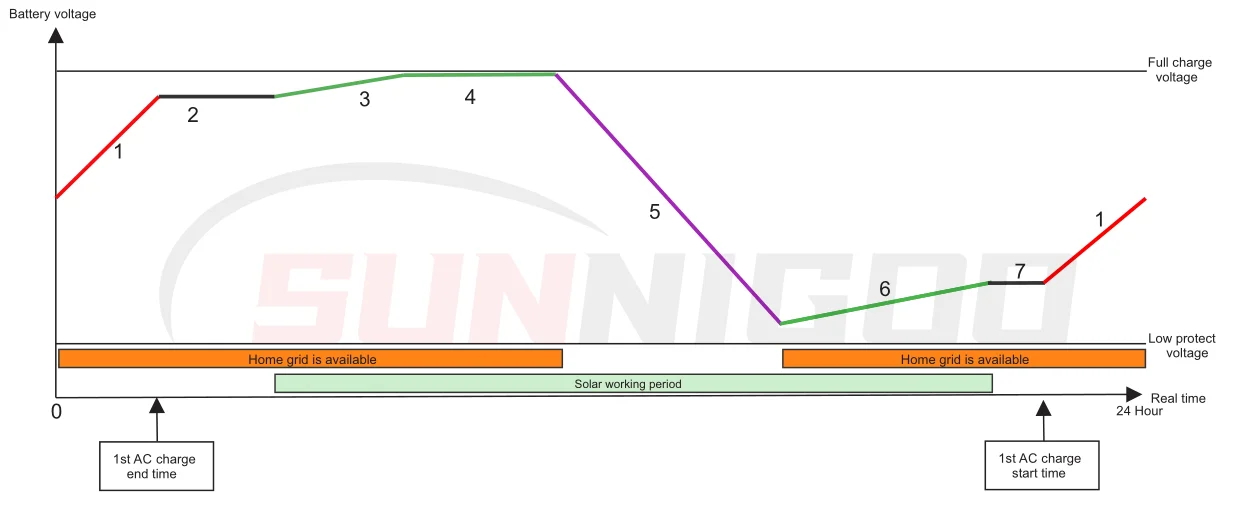

UPS mode
Under UPS, the inverter is only capable of powering essential loads that are connected with the AC output terminal.
In this work mode, the inverter can only be discharged via AC output, and can’t feed the home grid.

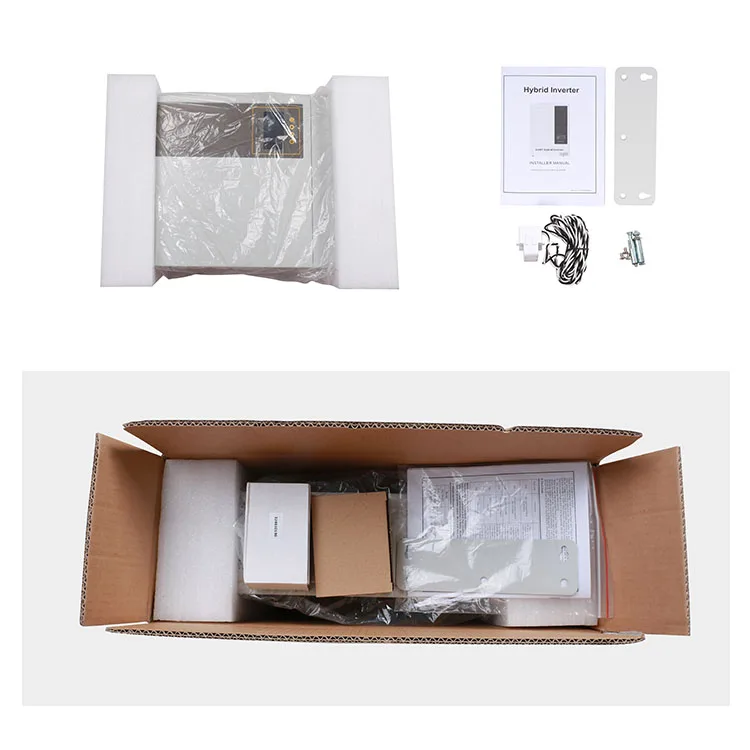

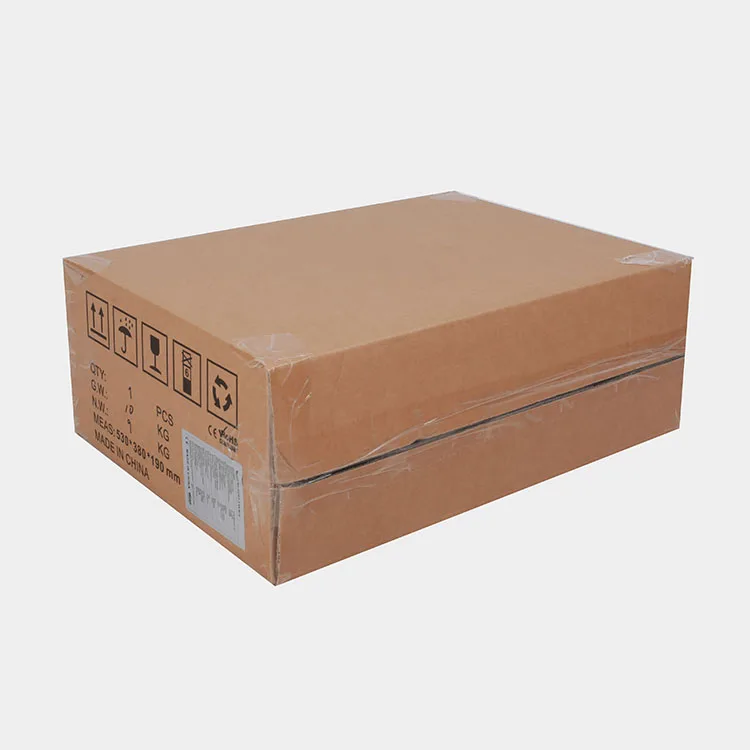

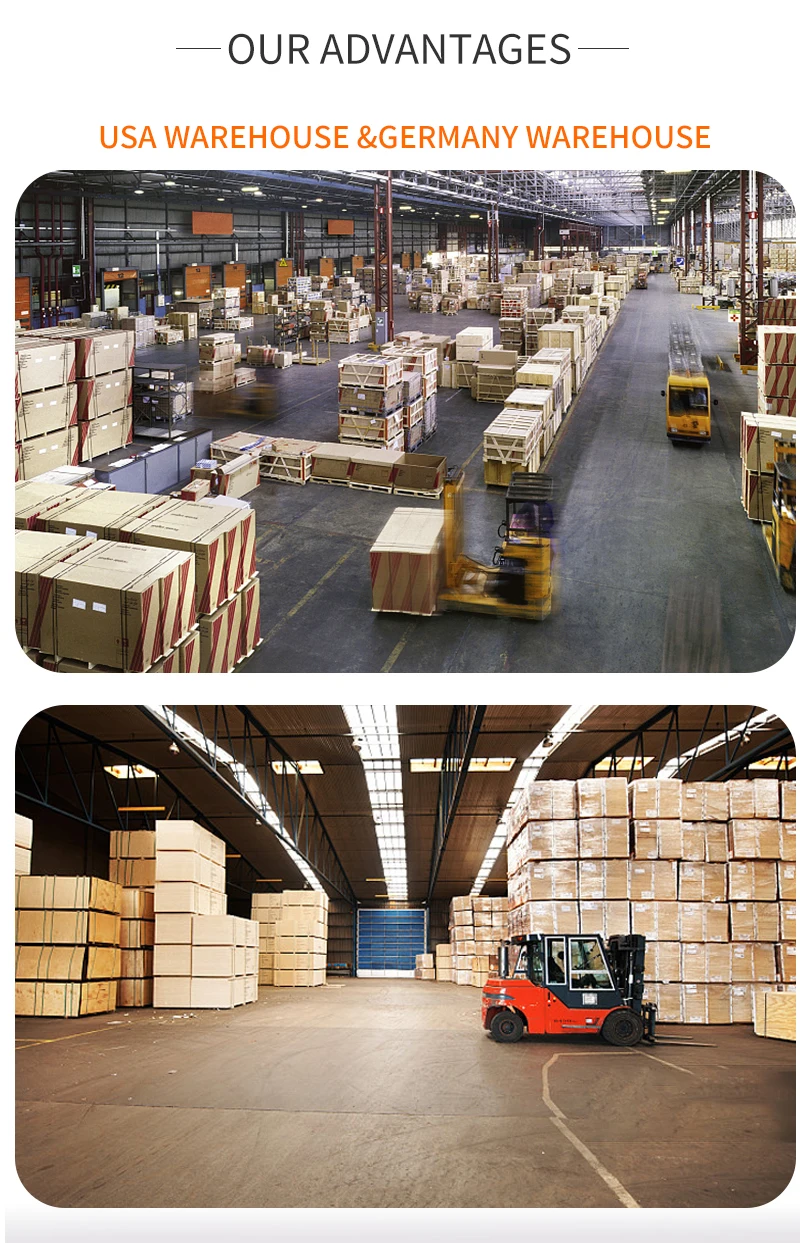

Packing & Delivery

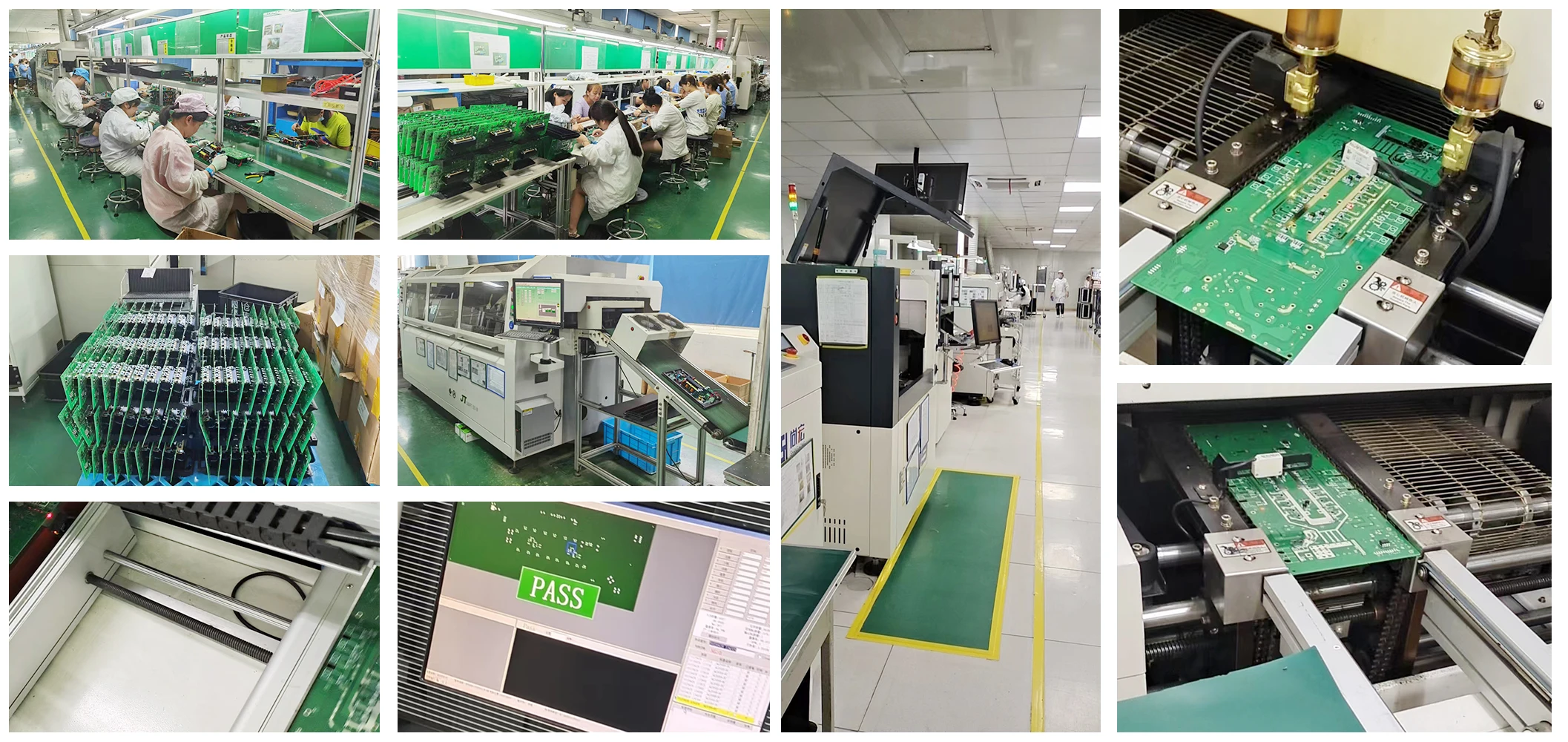

Company Profile
Hangzhou Neighbor
Hangzhou Neighbor is subsidized company of Zhengjiang Oulun Group, a Leading Brand of Solar inverters.
Hangzhou Neighbor based on Germany brand with mainly products, which focus on Solar Inverters, Electric Scooters, Electric Bicycle, Electric Motorcycles and so on.
Hangzhou Neighbor based on Germany brand with mainly products, which focus on Solar Inverters, Electric Scooters, Electric Bicycle, Electric Motorcycles and so on.
solar panels system inverter hybrid linvatec
inverter hybrid atv 800cc 4x4 atvs
solar battery solar panels solar inverter hydrogen generator inverter hybrid

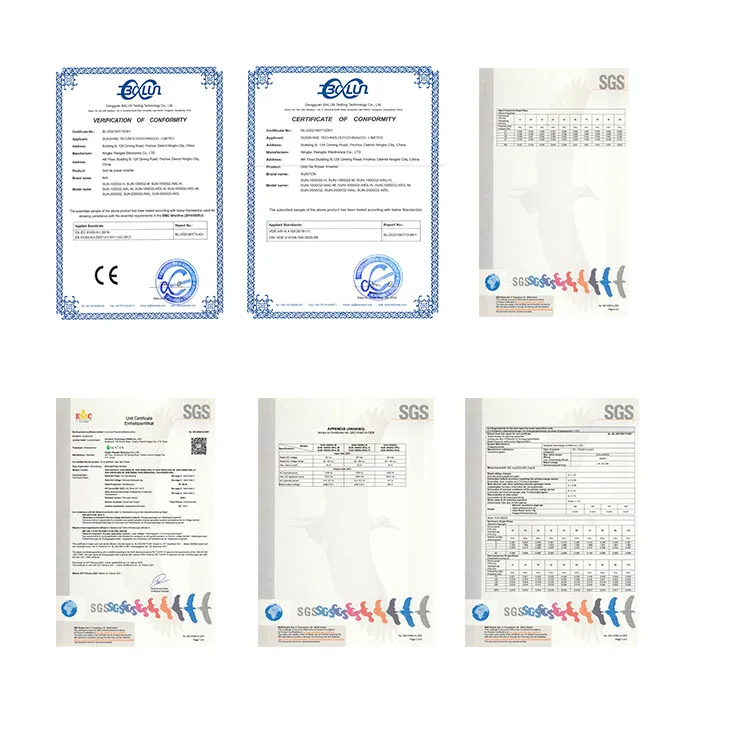

Product Certification
FAQ
Q1. Are you manufacturer?
A: Yes.
Q2. What is the time of warranty of solar inverter?
A: 2 years.
Q3.Can you provide sample for testing market?
A:Yes. We also accept sample orders. We can provide samples in 30 days if we have ready parts in stock. Customers have to pay the sample cost and the courier cost.
Q4. What is your terms of payment?
A: 100% payment in advance to start production, when you buy the sample.
2. 30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading.
3. L/C at sight
2. 30% T/T in deposit to start production, the balance in 7 days by T/T against the copy of Bill of lading.
3. L/C at sight
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test and provide you with picture before delivery.
Q6. How many R&D examples do you have?
A: More than 50 examples.
