EC motor high efficiency electronically commutated motor animal husbandry ventilation poultry farm exhaust fan
- Category: Motors >>>
- Supplier: Suzhou Dowell Ventilation Technology Co. Ltd
Share on (1600618995601):
Product Overview
Description
Product Overview

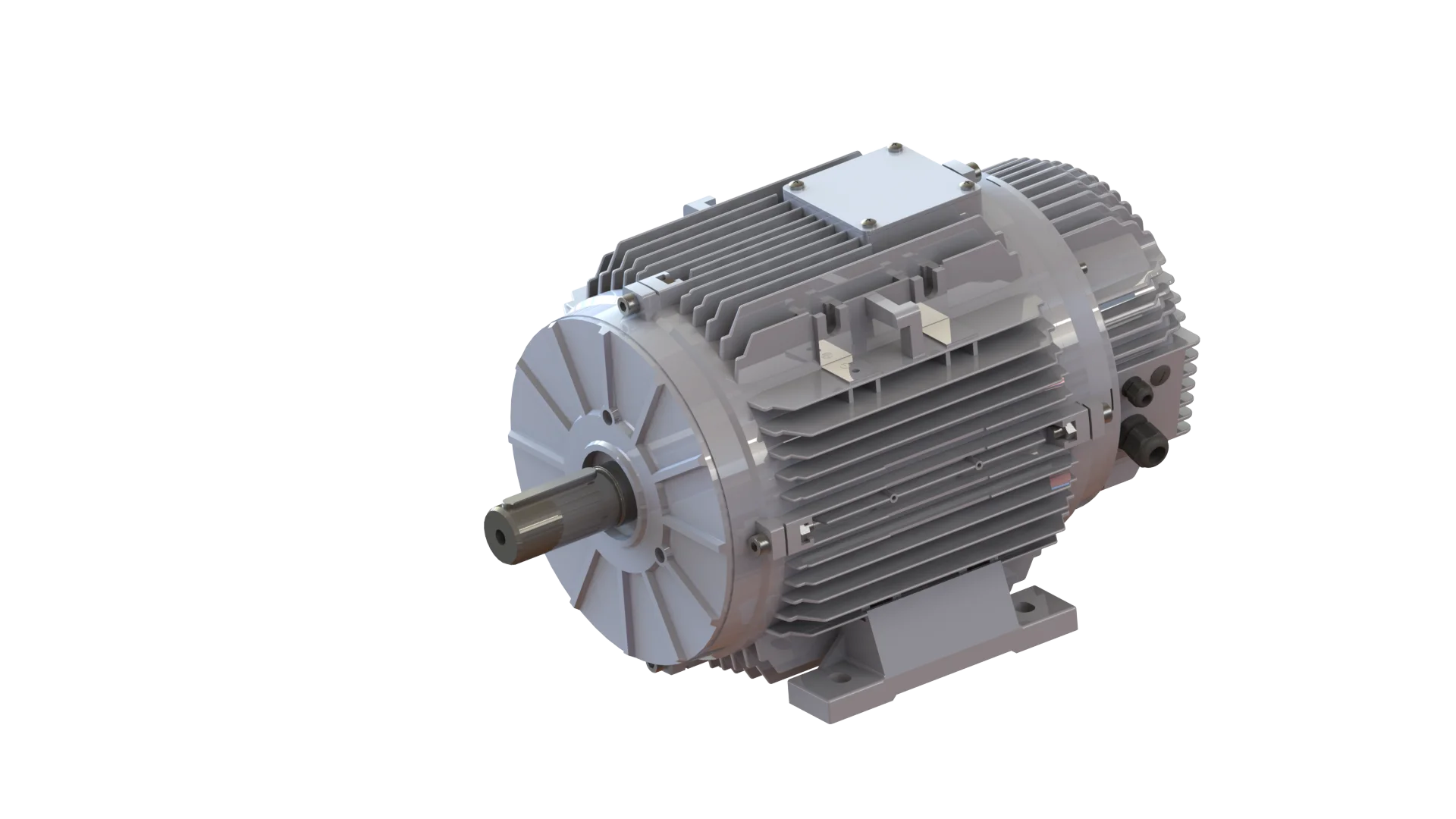

EC motor with inverter built-in
roduct advantage
✓ Extremely high efficiency, average value is over IE4 norms.
✓ Very high efficiency in wide speed up to 3600rpm and power range.
✓ Compact and light design
✓ Mounting dimensions according to the IEC norm ✓ Various and flexible mounting types suitable for different applications.
FEATURES AT A GLANCE
Product brief As a professional electric motors manufacturer who cares about environment and energy saving, one of our most
important goals is to help our partners to reduce total life operation costs, increase profitability and make production more
environmentally friendly. EC (Electronically Commutated) motors is the special designed PMS (permanent magnet synchronous) motors which constructed on the base of the IEC norm, it is now available in four frame sizes: IEC-71#, IEC-90#, IEC-100#, the Max.
output is 22KW and the Max. torque is 70Nm
important goals is to help our partners to reduce total life operation costs, increase profitability and make production more
environmentally friendly. EC (Electronically Commutated) motors is the special designed PMS (permanent magnet synchronous) motors which constructed on the base of the IEC norm, it is now available in four frame sizes: IEC-71#, IEC-90#, IEC-100#, the Max.
output is 22KW and the Max. torque is 70Nm

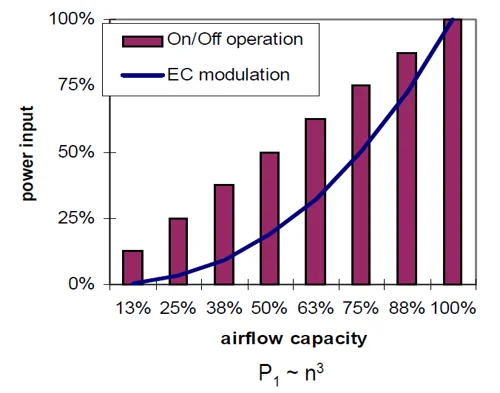

Operation curve
Frame size #80
Inverter built-in

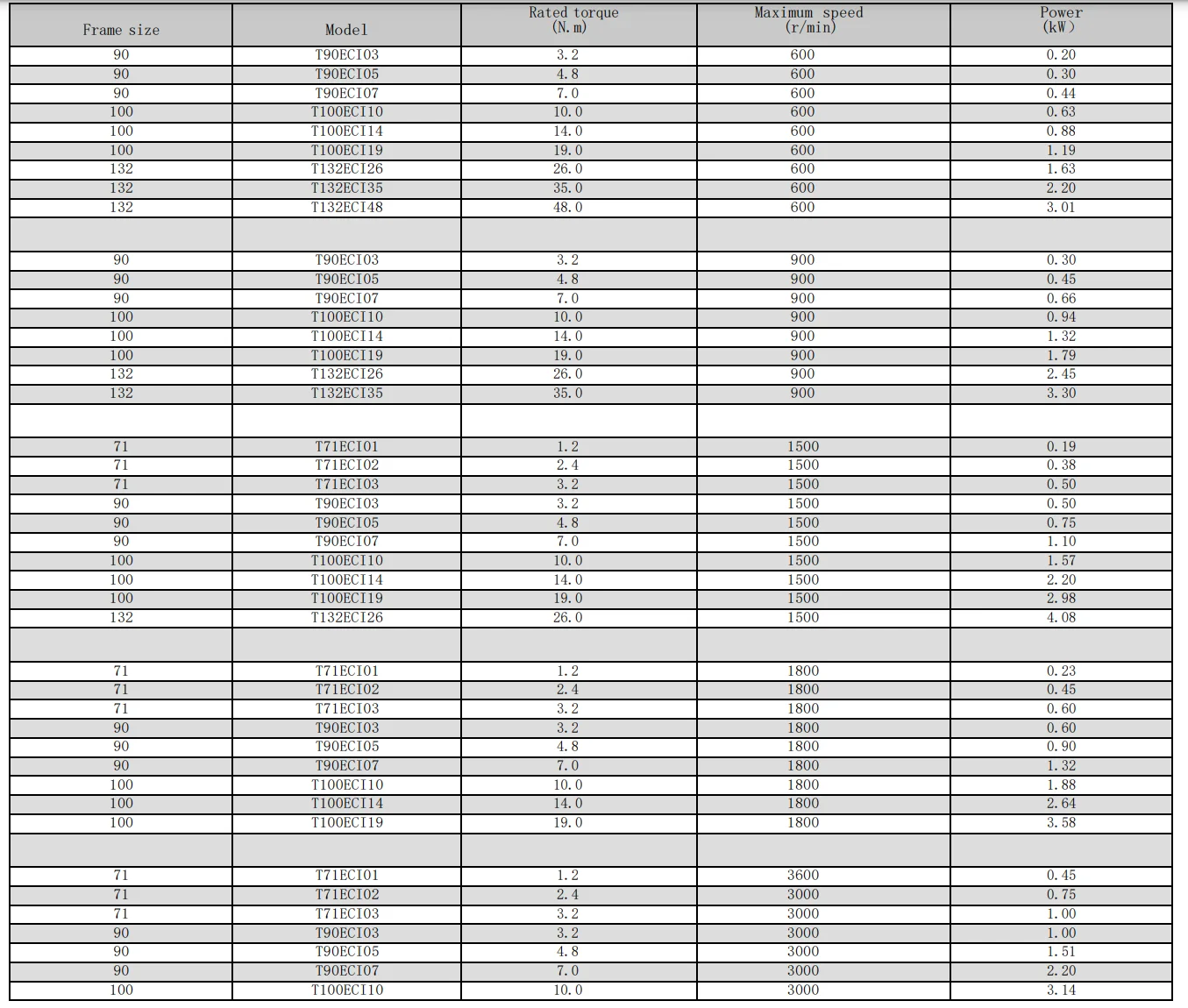

PRODUCT SPECIFICATIONS
No | Item |
EC | Permanent magnet motor |
ECI | Permanent magnet motor with integrated drive |
Cooling method | 1. generral purpose, with fan and fan hood, IC411 2. ventilation applications, without fan and fan hood 3. Double shaft structure |
Speed range | speed range from 300-3600RPM |
Terminal connection | 1 Terminal box on top 2. Terminal box on NDE 3. No terminal box, power line from housing 4. No terminal box, power line from NDE 5. No terminal box, power line with special connector |
PRODUCT CONFIGURATION
Axial fan EC motor
Transformer cooling
Animal husbandry cooling
SALES AND SERVICE NETWORK
Successful Project
Cooling curve
Cable definition

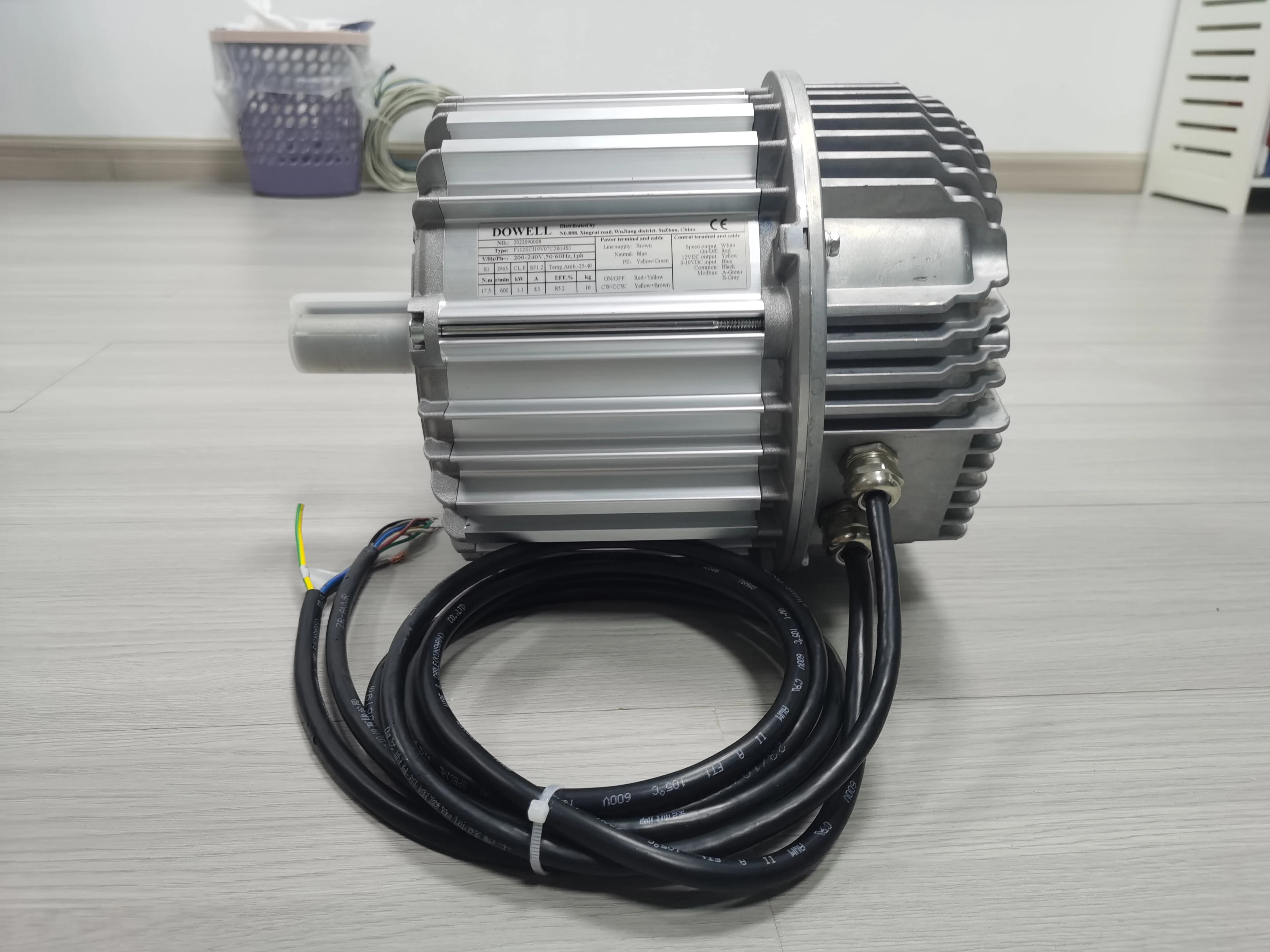

EC motor with inverter at NDE
SIMILAR PRODUCTS
FAQ
EC fan is a new technology in those years, EC fan has the advantages of AC fan and DC fan, which is EC fan can convert AC power input to DC power output by the way of electronic rectification, to meet the goal of energy saving. It also means, the longer EC fan uses, the more energy it saves. Also, EC fan will not be limited by frequency as AC fan does, it allows EC fan to perform with higher RPM but with less power consumption. And EC fan motor design is similar with DC motor, so, the motor will be with less consumption of the ball bearing, and with better life expectancy than AC fan.
EC fan feature
1. More than 50% energy saving than AC fan
2. Better RPM performance with less limitation than AC Fan
3. Customized speed control Design
4. Better Life Expectancy than AC fan
5. Less temperature rising than AC fan
EC fan feature
1. More than 50% energy saving than AC fan
2. Better RPM performance with less limitation than AC Fan
3. Customized speed control Design
4. Better Life Expectancy than AC fan
5. Less temperature rising than AC fan
