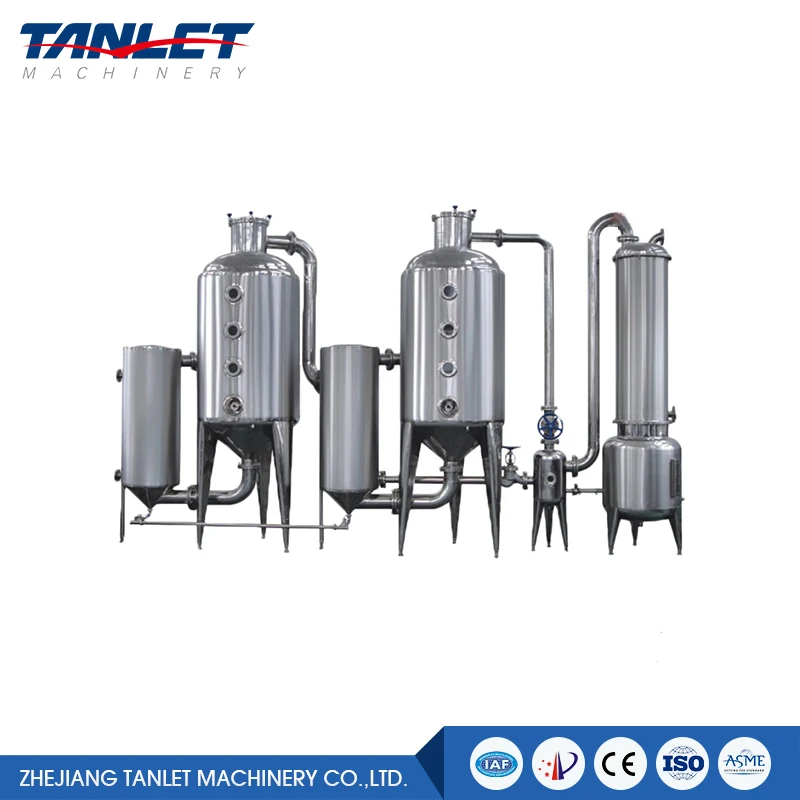

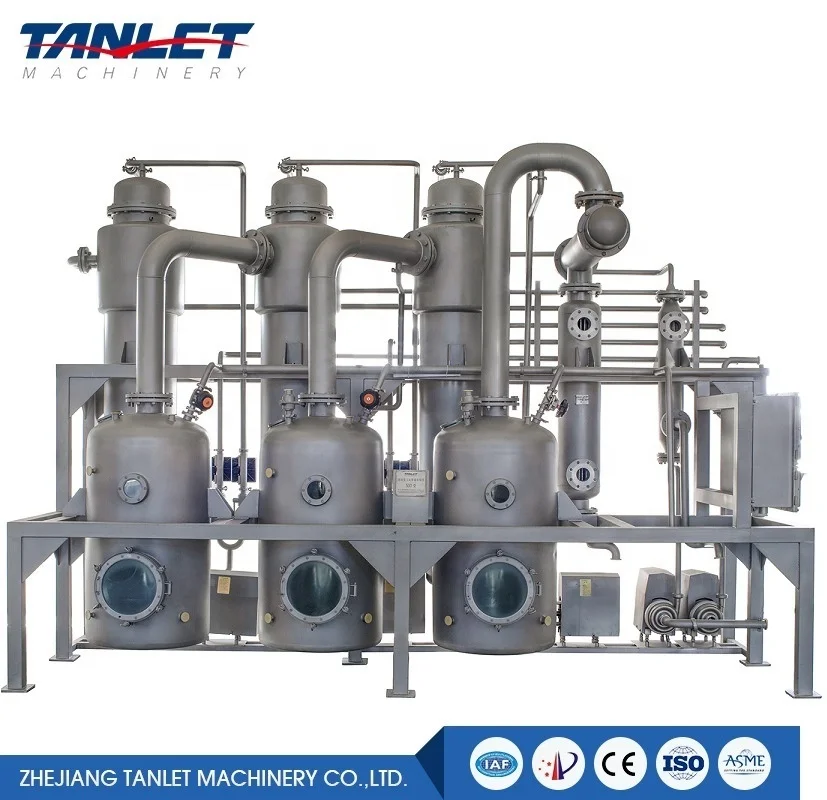

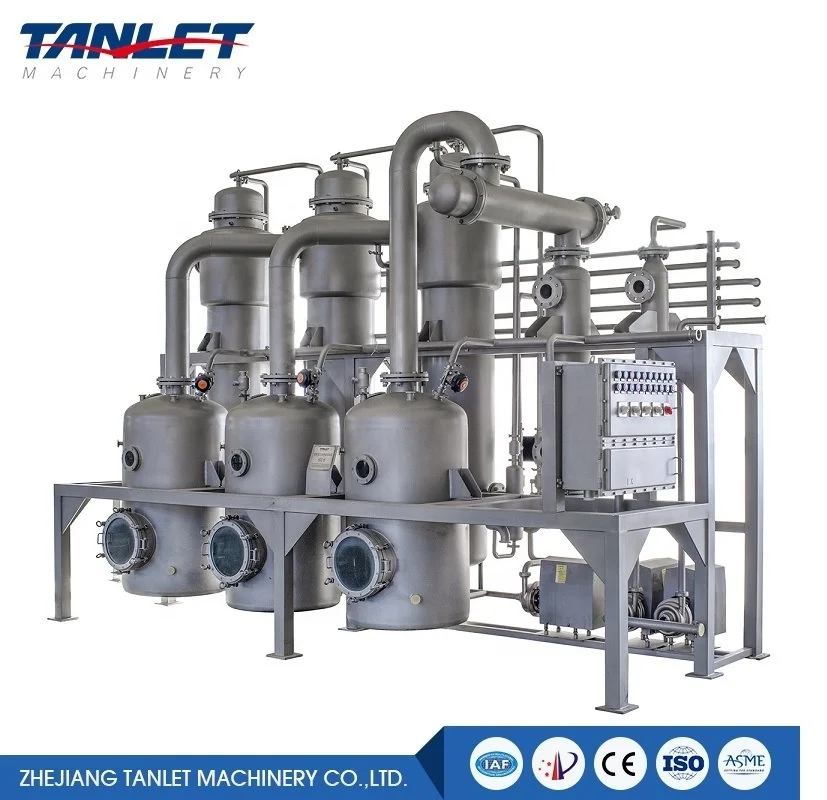

Stainless steel triple effect evaporator vacuum evaporator machine
- Category: >>>
- Supplier: Zhejiang Tanlet Machinery Co. Ltd.
Share on (1600619005975):
Product Overview
Description

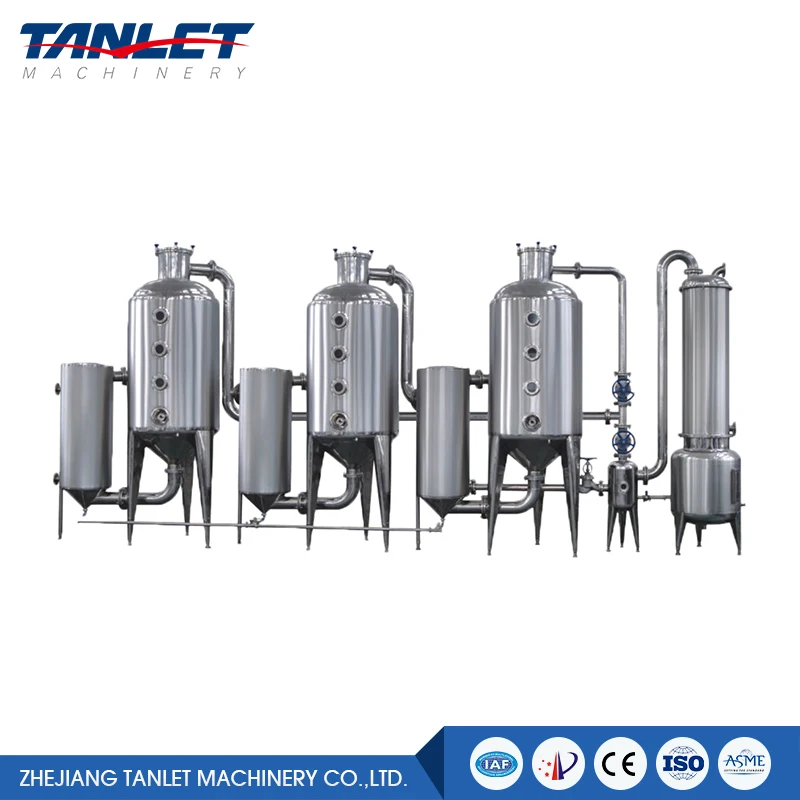

Stainless steel triple effect evaporator vacuum evaporator machine
Usage
The Triple-effect Concentrator serves for the concentration of Chinese traditional medicine, western medicine, starch sugar, milk products, etc, especially suitable for the low-temperature vacuum concentration of thermal sensitive materials. After our company have precisely measured, designed and improved, it is more effective than the prior one. The customer can choose the concentrator of the technologyparameter list according to the concentrating capacity.Features
1.The energy-saving benefit of the machine is worth of RMB 200.000 compared with that of the single-effect one. For example, theSJN-1000 type, the saved energyincludes vapory of about 5,000 tons, the cooling water of about 100,000 tons.
2.The concentrator adopts the vaporization method of minus pressure outer thermalnatural cycle, which features rapid vaporization and large specific gravity of1.4 (generally Chinese traditional medicine immersed cream).
3.The concentrator adopts dual-effect simultaneous vaporization that leaves the secondary utilized. Compared with the dual-effect concentrator, the energy consumptionlowers about 70%. The profit from the energy saving of less than one yearis equal to the whole investment on the machine.
4.Operation characteristic of multi-function:
(1) The concentration of alcohol recycling is about eighty percent.
(2) The repeated united cream receiving is availableto the single-effect, dual-effect and triple-effect.
(3) The intermittentand the continuous feeding are available.
5.The concentrator has special structure. The concentrating material has features of thick taste, uniform ointment quality. The material is concentrated under the seal condition without bubble, so triple-effect concentrator can avoid the leakage of the material, save the labor and alleviate the pollution. And it is hard to coking and convenientto clean. You can only open the upper and lower cover of the heater for cleaning.
6.The contact part of the concentrator and the material is made of the stainless steel, according with the standard of GMP. The outline is beautiful.
2.The concentrator adopts the vaporization method of minus pressure outer thermalnatural cycle, which features rapid vaporization and large specific gravity of1.4 (generally Chinese traditional medicine immersed cream).
3.The concentrator adopts dual-effect simultaneous vaporization that leaves the secondary utilized. Compared with the dual-effect concentrator, the energy consumptionlowers about 70%. The profit from the energy saving of less than one yearis equal to the whole investment on the machine.
4.Operation characteristic of multi-function:
(1) The concentration of alcohol recycling is about eighty percent.
(2) The repeated united cream receiving is availableto the single-effect, dual-effect and triple-effect.
(3) The intermittentand the continuous feeding are available.
5.The concentrator has special structure. The concentrating material has features of thick taste, uniform ointment quality. The material is concentrated under the seal condition without bubble, so triple-effect concentrator can avoid the leakage of the material, save the labor and alleviate the pollution. And it is hard to coking and convenientto clean. You can only open the upper and lower cover of the heater for cleaning.
6.The contact part of the concentrator and the material is made of the stainless steel, according with the standard of GMP. The outline is beautiful.
7.There is a thermal keeping layer in the heater and evaporator. And the surface is matted of stainless steel.
Concentrated samples
Techincal parameters
Model | TLNS-3000 | TLNS-5000 | TLNS-6400 | TLNS-8000 | TLNS-10000 |
Evaporation capacity | 3000 | 5000 | 6400 | 8000 | 10000 |
Concentration ratio of inlet flow % | ≥11.5 | ≥11.5 | ≥11.5 | ≥11.5 | ≥11.5 |
Concentration ratio of outlet flow % | 45~48 | 45~48 | 45~48 | 45~48 | 45~48 |
1st evaporation temp | 68~72℃ | 68~72℃ | 68~72℃ | 68~72℃ | 68~72℃ |
2nd evaporation temp | 45~52℃ | 55~60℃ | 55~60℃ | 55~60℃ | 55~60℃ |
3rd evaporation temp | 44~48℃ | 44~48℃ | 44~48℃ | 44~48℃ | 44~48℃ |
Steam consumption | 3300 KG/H | 5500 KG/H | 7000 KG/H | 8800 KG/H | 11000 KG/H |
Cooling water consumption | 28 T/H | 44.5 T/H | 45 T/H | 60 T/H | 83 T/H |
Here is a brie on us
* Since 1998, with 20+ years of experience
* 3 factories totally covered 40,000+sq.m.
* Annually sales $31.5million, still keeps growing.
* 30+ R&D, 200+ employees professional service.
* Leader of this industry in nationwide.
* 3 factories totally covered 40,000+sq.m.
* Annually sales $31.5million, still keeps growing.
* 30+ R&D, 200+ employees professional service.
* Leader of this industry in nationwide.
FAQ
Q: Are you manufacturer or trading company?
A: TANLET is a professional manufacturer.
Q: Where is your factory located?
A: All of our three factories are located in Wenzhou, Zhejiang, China. 1 hour flight to Shanghai, 2 hours to Guangzhou, 2.5 hours to Beijing.
Q:What is your business scope?
A: Chinese Herbal, Western Medicine, Food, Beverage, Dairy.
Q: How could we confirm the details of the products?
A: TANLET will provide all the drawings for you to confirm.
Q: Will you charge us for drafting if we have special
requests?
A: No, we will not. Free of charge to make a draft or offer. ODM
Q: How long the warranty will be?
A: 1 Year warranty.
Q:How about the installation? And what if the machine goes down
A: Yes, we will do that. There are two options:a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side.b. On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, but the transportation cost of it shall be on you side.
Q: Do you take L/C?
A: Yes, we accept Western Union, T/T and irrevocable L/C payable
Q: Can we become your distributor in our country?
A: Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
