Motor Winding Insulation Paper Nomex Aramid Paper 6640 NMN for Transformer
- Category: >>>
- Supplier: Anshan,Anza,Electronic,Power,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Electrical Flexible Laminates are made of 2 layers or 3 layers or multilayer of electrical insulation materials bonded with
hi-temp resins. There are all kinds of laminates available from thermal class E to class H. Following table lists the nominal
structures..
Features
•Excellent Electrical insulation
•Flexible and easy operation
Application
•Slot, layer and phase insulation in Motors, transformers and generators.
•Interlayer insulation in choke coils and dry-type transformers.
hi-temp resins. There are all kinds of laminates available from thermal class E to class H. Following table lists the nominal
structures..
Features
•Excellent Electrical insulation
•Flexible and easy operation
Application
•Slot, layer and phase insulation in Motors, transformers and generators.
•Interlayer insulation in choke coils and dry-type transformers.
TYPE | Structure | Thickness mm | Width Max mm | Thermal Class |
6520 | Fish Paper+PET | 0.13-0.30 | 1000 | E |

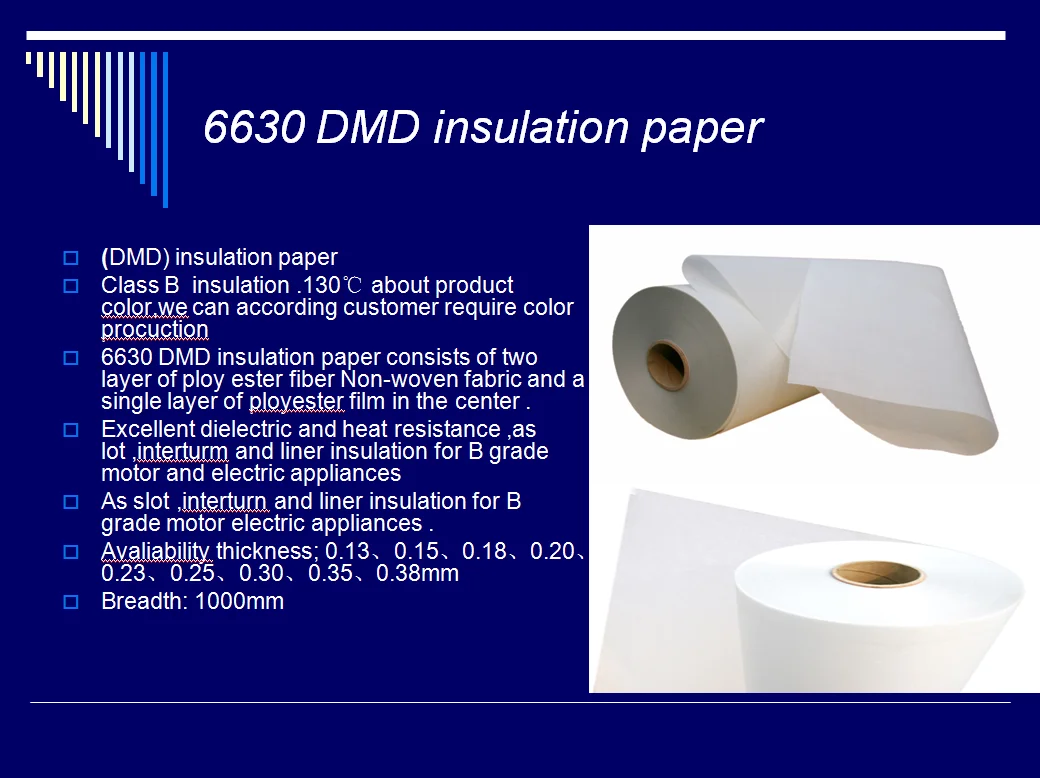

DMD | D+PET+D | 0.18~0.45 | 1000 | B |
DM | D+PET+D | 0.13-0.40 | 1000 | B |

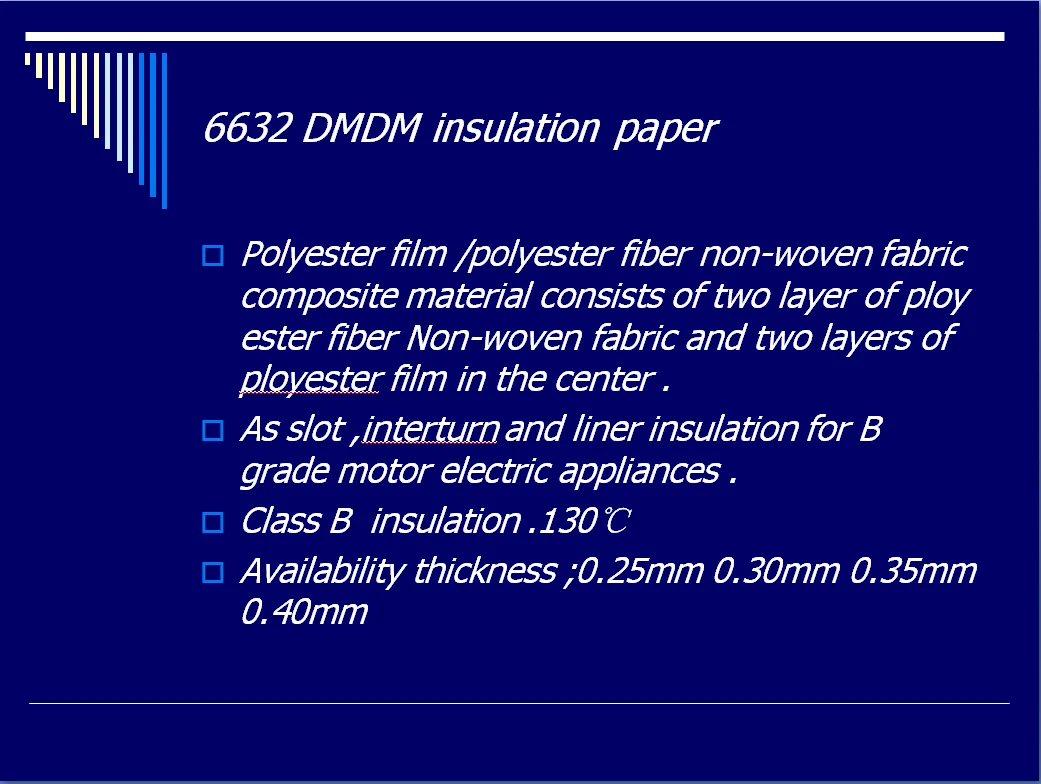

DMDM | D+PET+D+PET | 0.2-0.9 | 1000 | B |
DMDMD | D+PET+D+PET+D | 0.2~1.1 | 1000 | B |
Unsaturated DMD | D+PET+D | 0.18~0.45 | 1000 | F |
Saturated DMD | D+PET+D | 0.18~0.45 | 1000 | F |
Prepreg DMD | Epoxy+D+PET+D+Epoxy | 0.18-0.45 | 1500 | F class, B-stage |
NMN/NM | Nomex + PET + Nomex | 0.16-0.65 | 914 | F |
AMA | Aramid+PET+ Aramid | 0.16~0.5 | 1000 | F |
MGM | PET+Glass Cloth+PET | 0.15-0.65 | 1270 | H |
NHN | Nomex+Polyimide+Nomex | 0.16-0.45 | 914 | H |
AHA | Aramid+Polyimide+ Aramid | 0.16~0.4 | 1000 | H |
HGH | Polyimide+Glass Cloth+Polyimide | 0.13-0.50 | 1000 | H |
GHG | Glass Cloth+Polyimide+ Glass Cloth | 0.20-0.50 | 1000 | H |
Prepreg DHD | D+Polyimide+D | 0.18-0.35 | 1000 | H class, B-stage |
Prepreg NMN | Nomex+PET+Nomex | 0.18~0.45 | 914 | F class,B-stage |
MMM | PET+PET+PET | 0.7-1.1 | 1500 | B |
Exhibition
Recommend Products

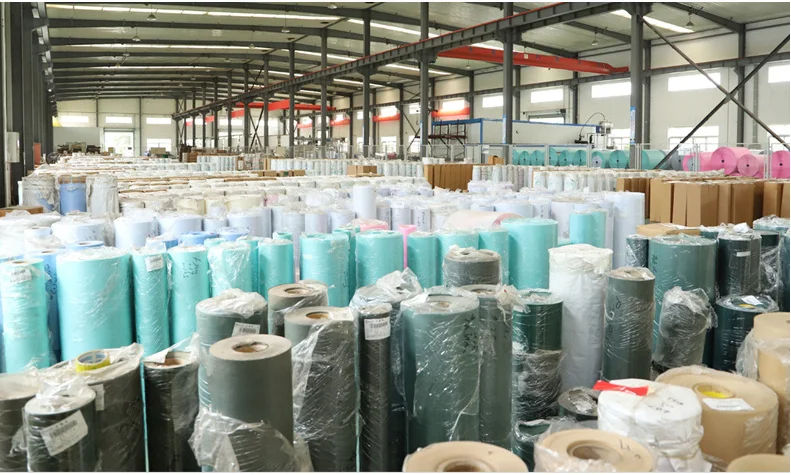

Warehouse
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

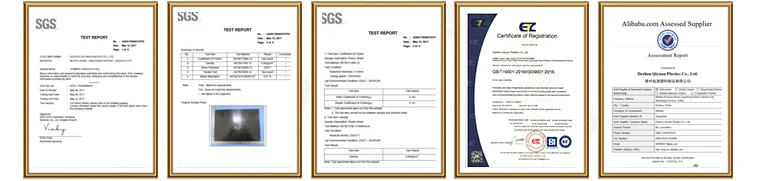

Certifications
