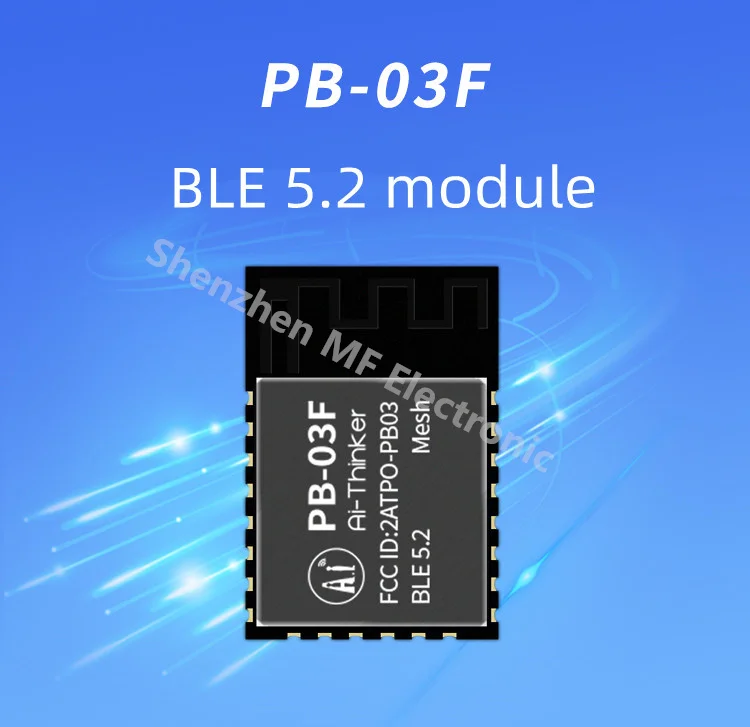

BLE 5.2 PB 03F PHY6252/SSOP24 Bluetooth Board Module 5.2 2.7V 3.6V with On board Antenna

BLE 5.2 PB 03F PHY6252/SSOP24 Bluetooth Board Module 5.2 2.7V 3.6V with On board Antenna

Name: BLE 5.2 PB 03F PHY6252/SSOP24 Bluetooth Board Module 5.2 2.7V 3.6V with On board Antenna
SKU: 1600619036620
Availability: InStock

Price:

Quantity:

BLE 5.2 PB-03F PHY6252/SSOP24 Bluetooth Board Module 5.2 2.7V 3.6V with On-board Antenna

* Support serial port local upgrade and remote firmware upgrade (FOTA)

* General AT commands can be used quickly

* Support secondary development and integrate Windows development environment

3. Parameter.jpg

Model	PB-03F
Package	SMD-22

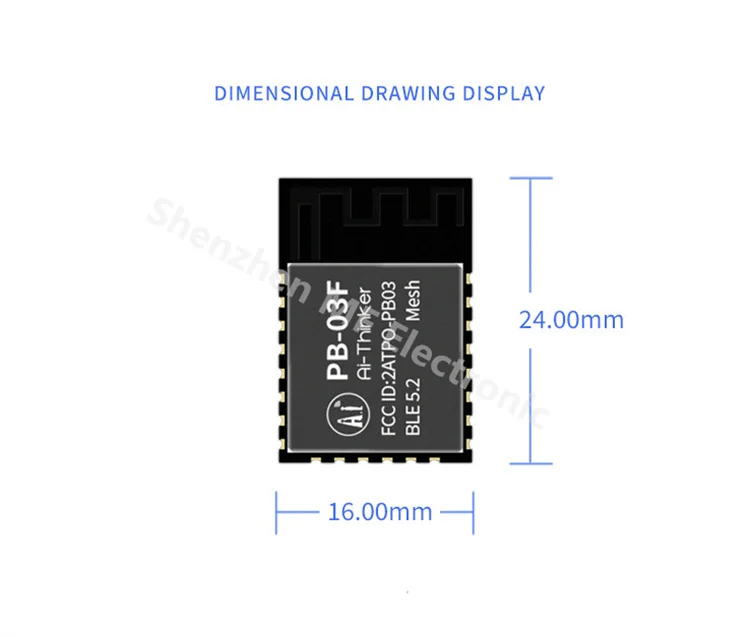

Size	24.016.03.1mm
Antenna	On-board antenna
Frequency Range	2400 ~ 2483.5MHz
Operating Temperature	-40℃~85℃
Storage environment	-40 ℃ ~ 125 ℃,< 90%RH
Power supply Range	Voltage 2.7V~3.6V,Current>200mA
Support Interface	UART/GPIO/ADC/PWM/I2C/I2S/SPI/PDM/DMA
Distance	50m
Chip	PHY6252/SSOP24
IO	19
UART Rate	Default 115200 bps
BLE	BLE 5.2
Security	AES-128
Flash	256KB

4. Detail images.jpg

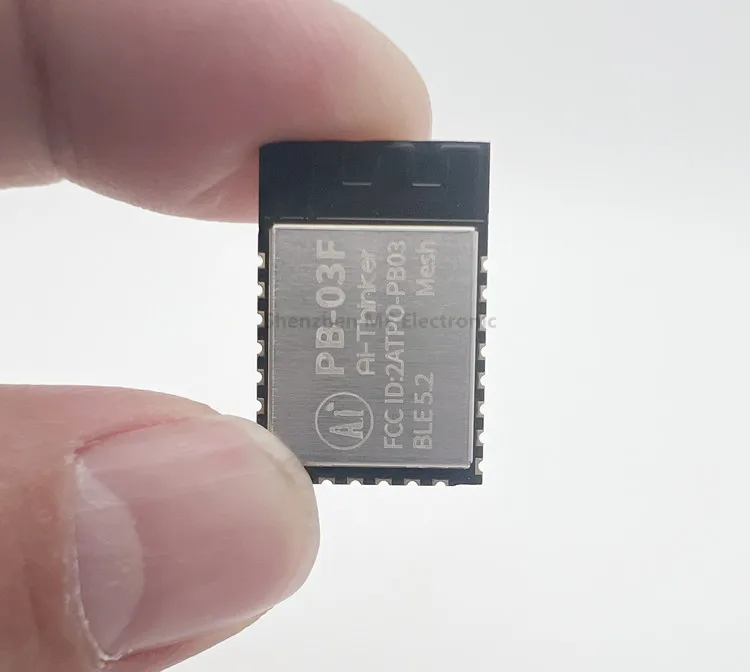

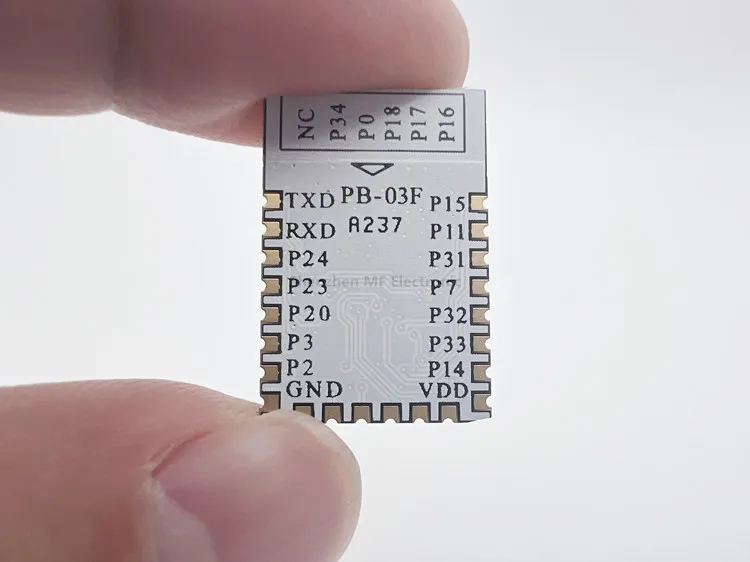

5. Bluetooth module.jpg PB-03F (1).jpg PB-03F (2).jpg PB-03F (3).jpg 4. Bluetooth module.jpg 6. Bluetooth module.png 7. Bluetooth module.jpg

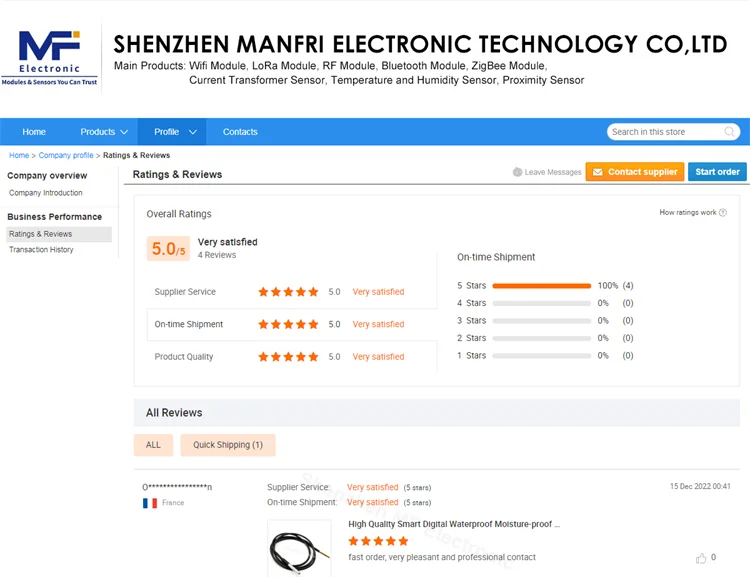

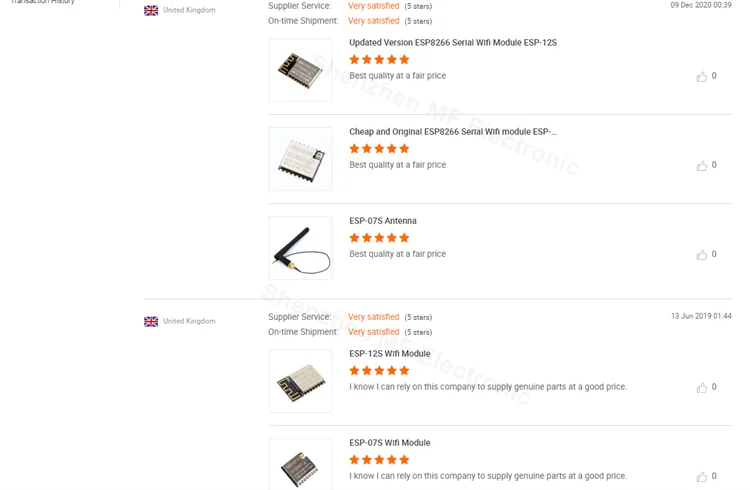

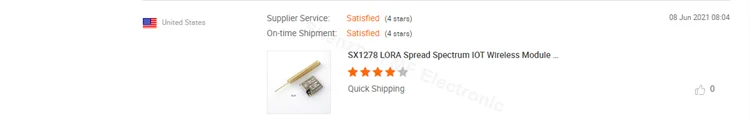

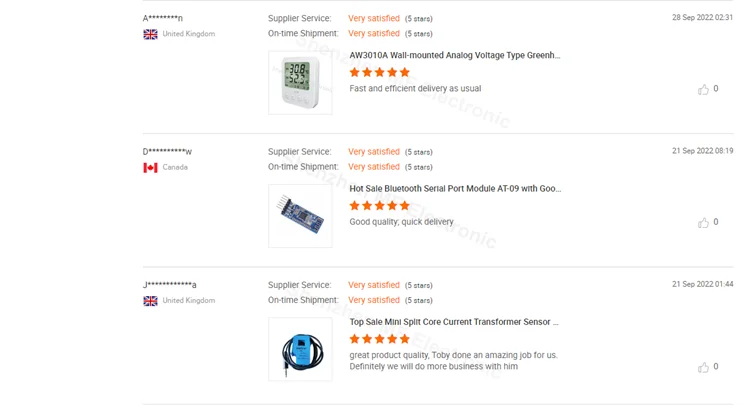

5. Customer Reviews.jpg
