Product Overview
Description
Specification
All specifications products can be customized according to customer requirements | ||
Product name | Reinforcing Mesh | |
Standard | ASTM AISI JIS Etc | |
Grade | HRB335/400/500 Etc | |
Length | 1-12m or customized | |
Width | 1-12m or customized | |
Diameter | 6-12mm or customized | |
Spacing | 50/100/150/200 or customized | |
Texture of material | Q195 Q235 Q345 Q355 Etc | |
Tolerance | ±1% | |
Processing Service | Bending, Welding, Decoiling, Cutting, Punching We accept custom orders of various sizes. | |
Technique | Hot rolled Welding | |
Delivery Time | Usually within 7 days, timed according to the number of customers. | |
Payment method | T/T, D/A, D/P, L/C, Western Union, MoneyGram or according to customer requirements | |
MQQ | 1 Ton and available sample | |
Application | industry, agriculture, aquaculture, building, communication and transportation and mineral extraction,etc. | |

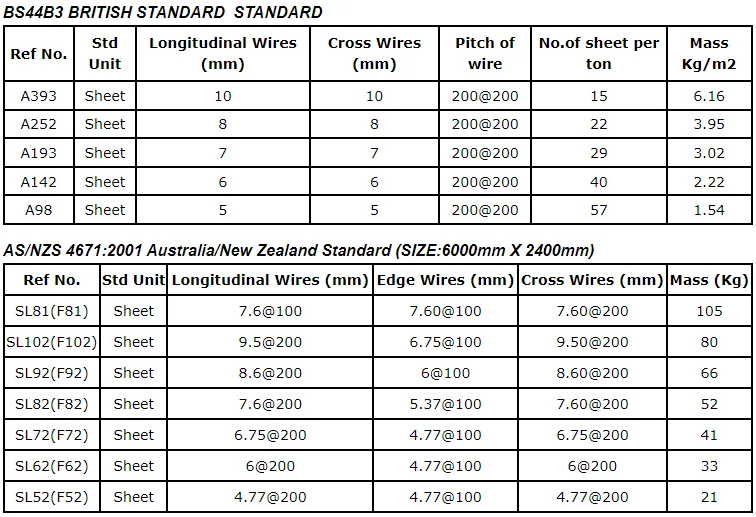

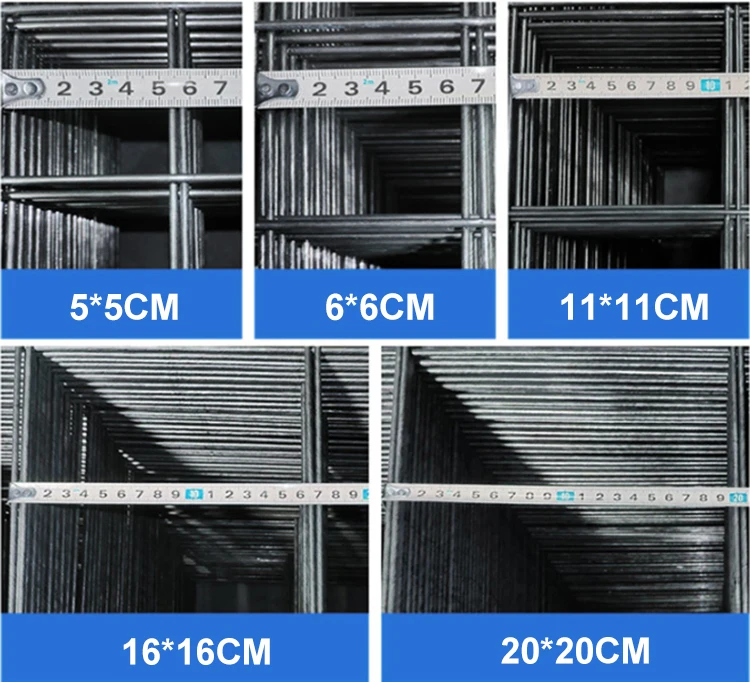

Specification of Welded Wire Mesh | ||||||||
Opening | Width 0.4-2M Length 5-50m | electric galvanized before welded, electric galvanized after welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire | ||||||
In inch | In metric unit | |||||||
1/4" x 1/4" | 6.4 x 6.4mm | BWG24-22 | ||||||
3/8" x 3/8" | 10.6x 10.6mm | BWG22-19 | ||||||
1/2" x 1/2" | 12.7 x 12.7mm | BWG23-16 | ||||||
5/8" x 5/8" | 16x 16mm | BWG21-18 | ||||||
3/4" x 3/4" | 19.1 x 19.1mm | BWG21-16 | ||||||
1" x 1/2" | 25.4x 12.7mm | BWG21-16 | ||||||
1-1/2" x 1-1/2" | 38 x 38mm | BWG19-14 | ||||||
1" x 2" | 25.4 x 50.8mm | BWG16-14 | ||||||
2" x 2" | 50.8 x 50.8mm | BWG15-12 | ||||||
2” x 4" | 50.8 x 101.6mm | BWG15-12 | ||||||
4” x 4" | 101.6 x 101.6mm | BWG15-12 | ||||||
4” x 6" | 101.6 x 152.4mm | BWG15-12 | ||||||
6” x 6" | 152.4 x 152.4mm | BWG15-12 | ||||||
6” x 8" | 152.4 x 203.2mm | BWG14-12 | ||||||
Note: Special specifications can be made according to customers requires. | ||||||||

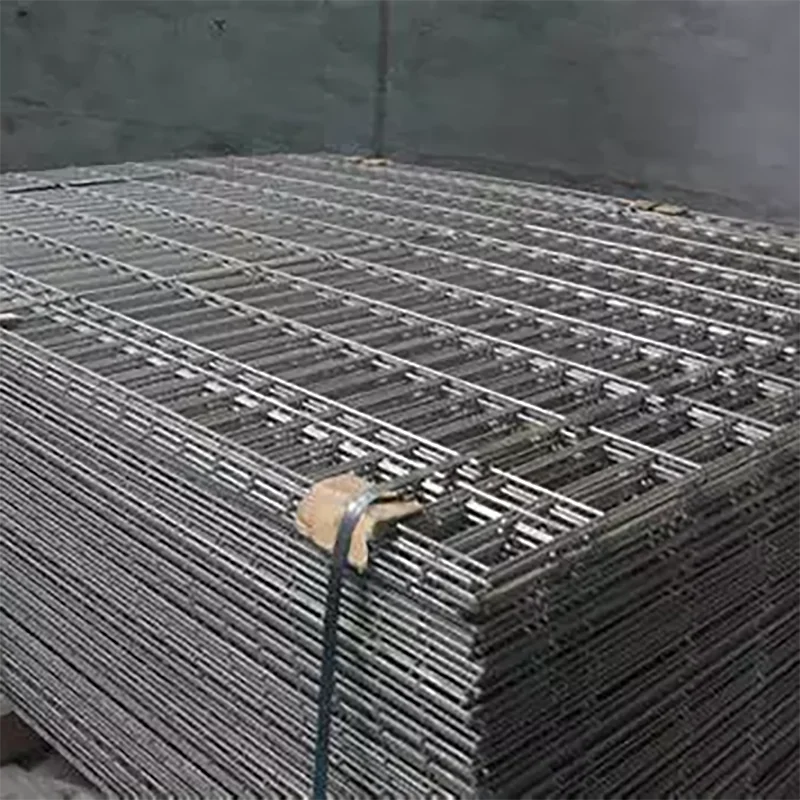

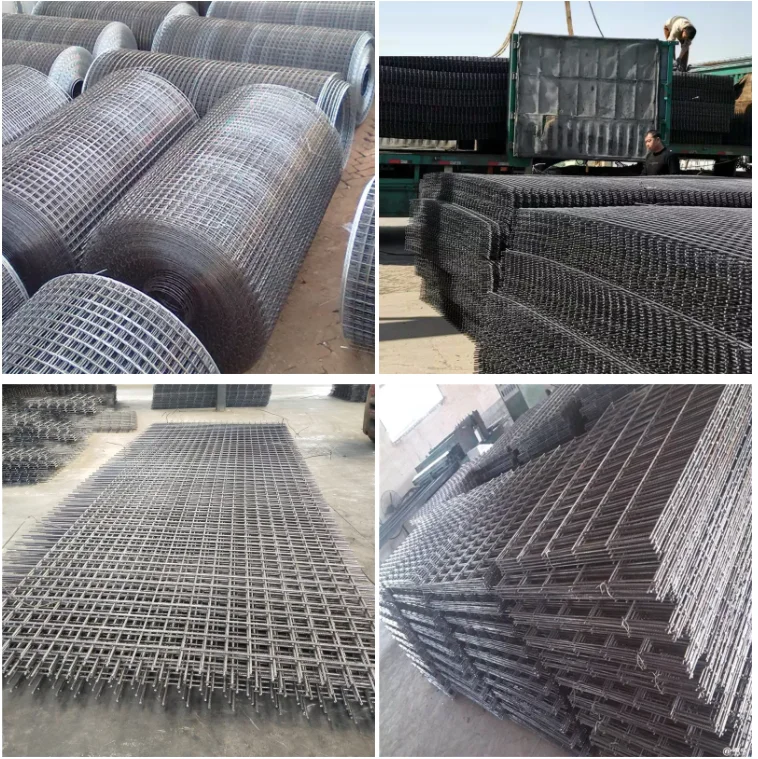

Product Show
Steel Wire Mesh
Steel mesh can be seen everywhere in our daily life, and it is very widely used, such as in engineering construction, campus
construction and hospital construction. There are many types of steel mesh, CRB600H steel bar, CRB550 steel bar is two of them.
Steel mesh also known as cold rolled ribbed construction reinforcement welding mesh, steel mesh, cold rolled ribbed steel
mesh,electric welding steel mesh, cold rolled ribbed steel mesh and so on.
construction and hospital construction. There are many types of steel mesh, CRB600H steel bar, CRB550 steel bar is two of them.
Steel mesh also known as cold rolled ribbed construction reinforcement welding mesh, steel mesh, cold rolled ribbed steel
mesh,electric welding steel mesh, cold rolled ribbed steel mesh and so on.
Steel mesh is also known as: welded steel mesh, reinforcing bar welding net, reinforcing steel welding net, reinforcing steel welding mesh, reinforcing steel mesh and so on. The longitudinal reinforcement and the transverse reinforcement are arranged at a certain distance at a certain distance, and each of them is welded at the right angle and all the intersections are welded together.
Mechanical Properties：
Minimum Yield Limit = 500 N/mm²
Minimum Tensile Strength = 550 N/mm²
Minimum Elongation at Break = 5%, 8%
Raw material = SAE 1006, SAE 1008, SAE 1010 quality or mesh quality wire rod is used.
Minimum Yield Limit = 500 N/mm²
Minimum Tensile Strength = 550 N/mm²
Minimum Elongation at Break = 5%, 8%
Raw material = SAE 1006, SAE 1008, SAE 1010 quality or mesh quality wire rod is used.

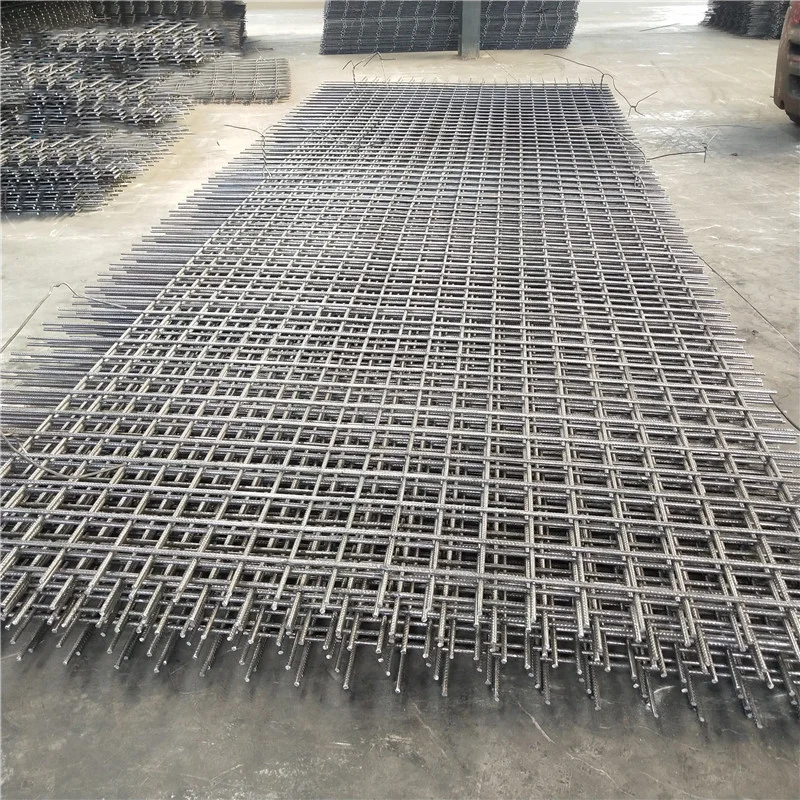

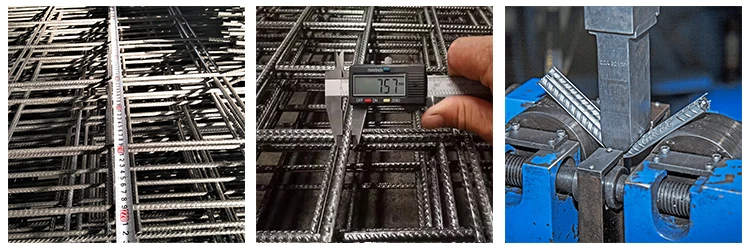

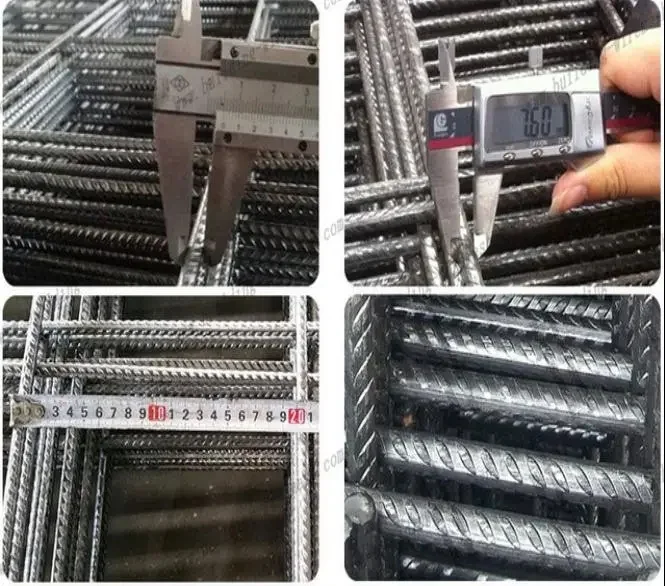

Products Details

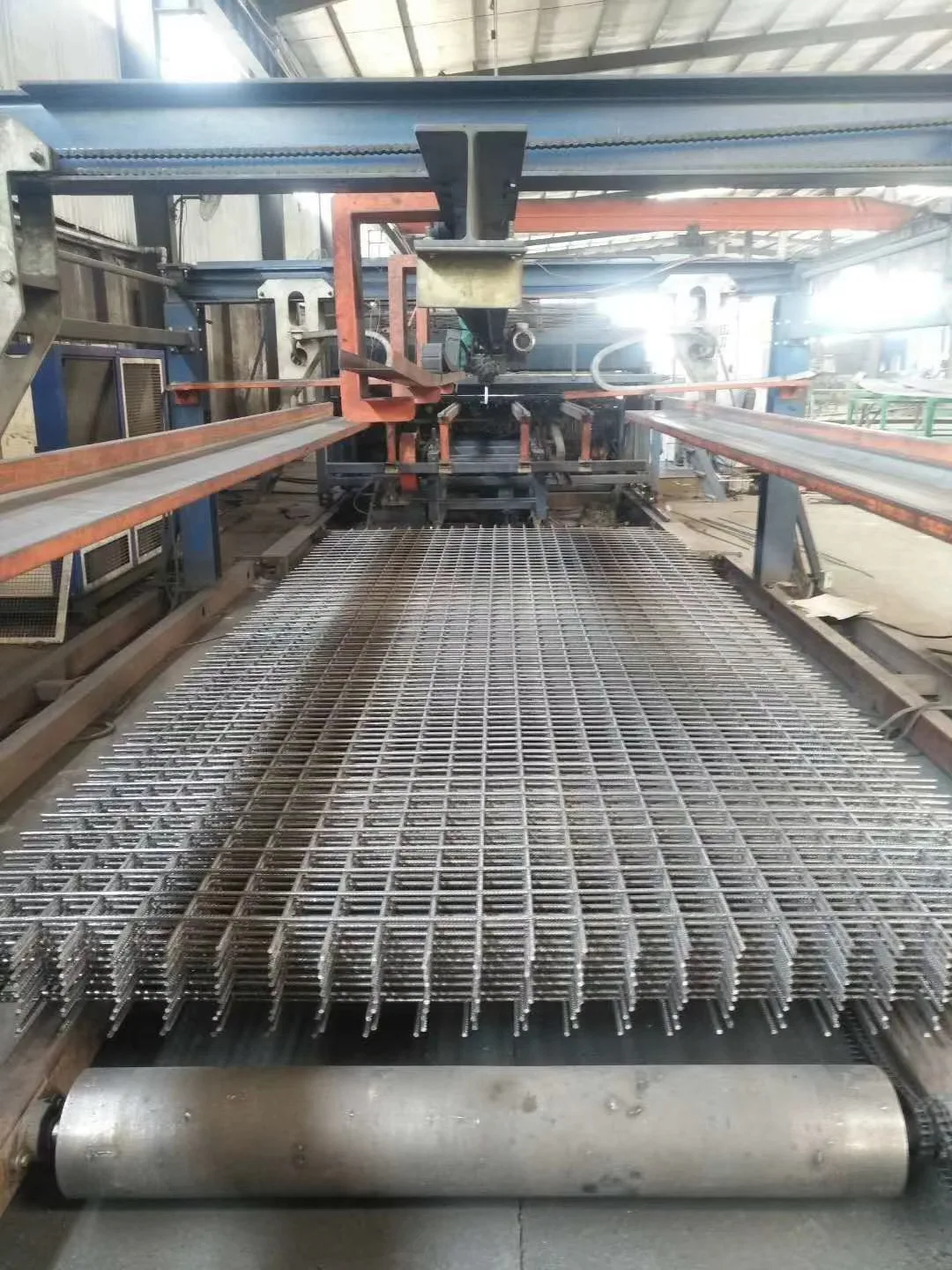

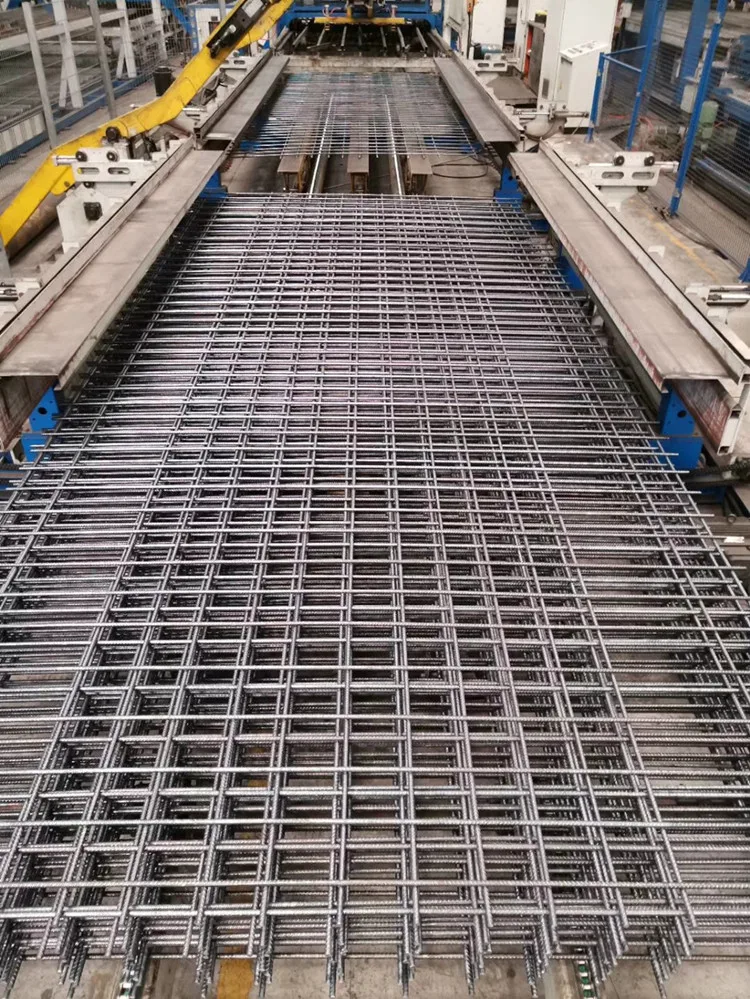

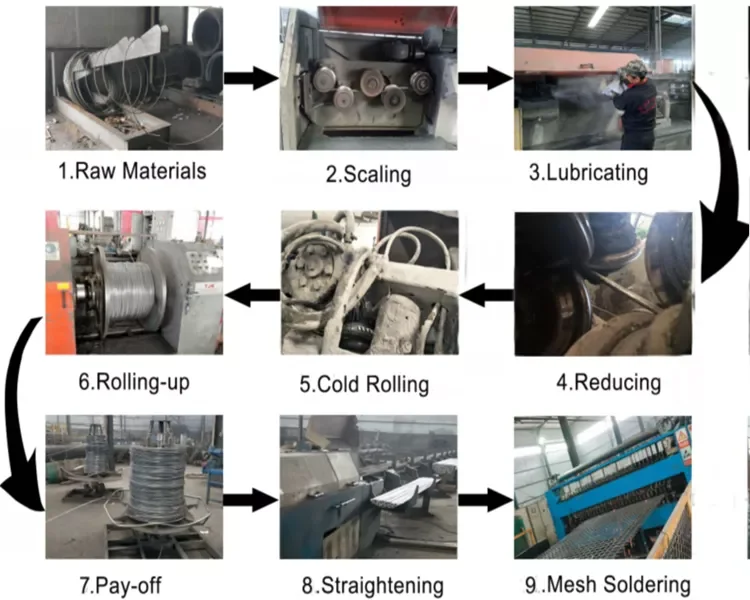

The construction of the reinforcement mesh is made of high-quality low-carbon steel wire, cold-rolled ribbed steel bars or cold-rolled round steel bars for stainless steel wire at right angles to the longitudinal and transverse directions, and all are inserted through the electric welding according to a certain distance. Beforehand, the greasy surface, paint stain, cement slurry and floating skin and rust etc. of the steel bar should be clear and clean. After the processing is completed, the reinforced mesh should be flat, and the surface of the reinforced steel should not be damaged by weakening the cross-section of the reinforced
steel. Straighten the steel bar first, and then cut it into steel bars. The scale of the reinforced mesh is summarized and considered according to the distance between the arch and the degree of overlap between the mesh.
steel. Straighten the steel bar first, and then cut it into steel bars. The scale of the reinforced mesh is summarized and considered according to the distance between the arch and the degree of overlap between the mesh.

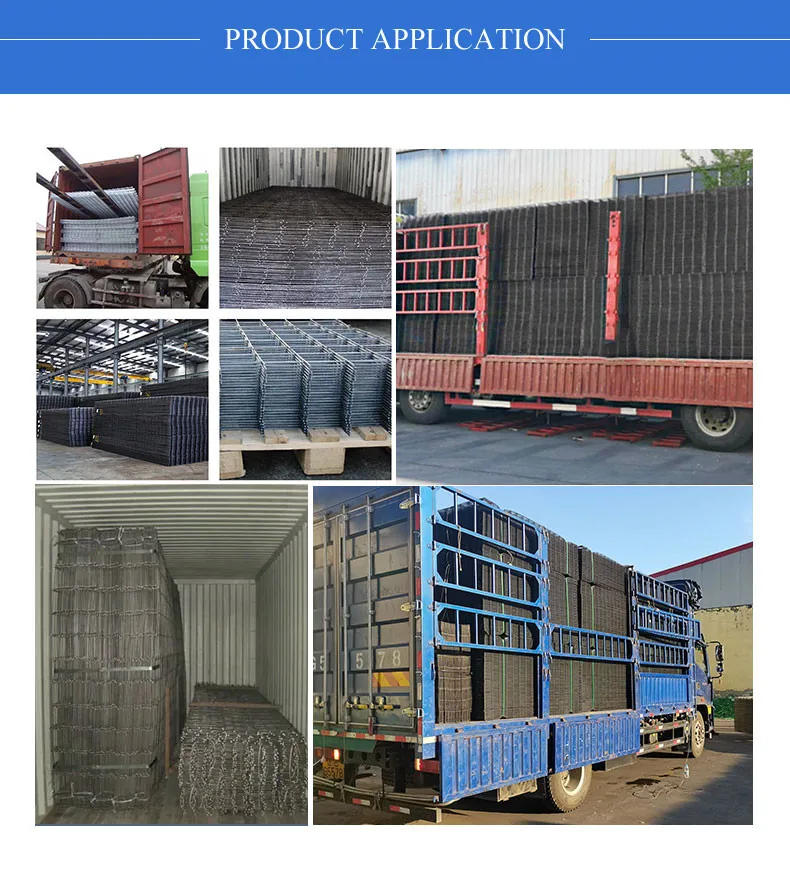

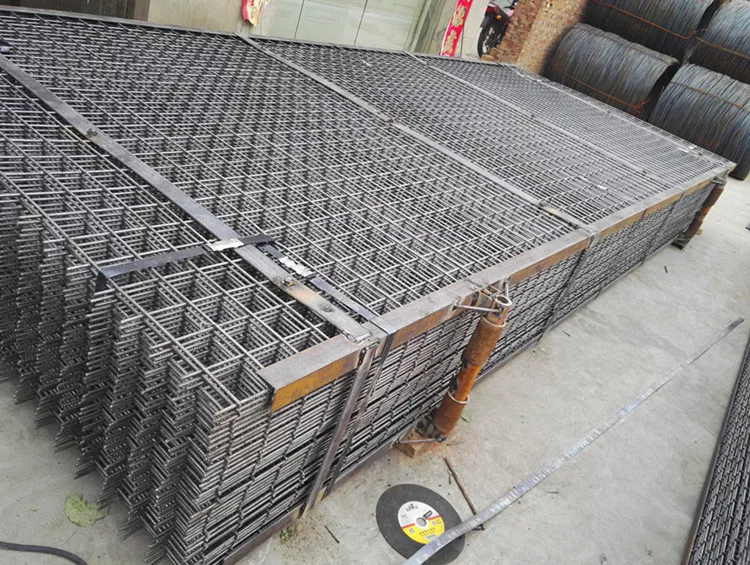

Package & Delivery
Packaging:
In bundle with steel strip or packed in wooden pallets or as customers' requirement.
Shipping:
We have long-term cooperation with many experienced shipping companies and will find the most suitable transportation mode for
you.Can also use the customer's own freight forwarder.
Packing Details : Export standard package,bundled or be required.
The inner size of container is below:
20ft GP: 5.8m(length) x2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Delivery Details : 7-15 days,or according to the order quantity or upon negotiation
Shipping:
We have long-term cooperation with many experienced shipping companies and will find the most suitable transportation mode for
you.Can also use the customer's own freight forwarder.
Packing Details : Export standard package,bundled or be required.
The inner size of container is below:
20ft GP: 5.8m(length) x2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Delivery Details : 7-15 days,or according to the order quantity or upon negotiation

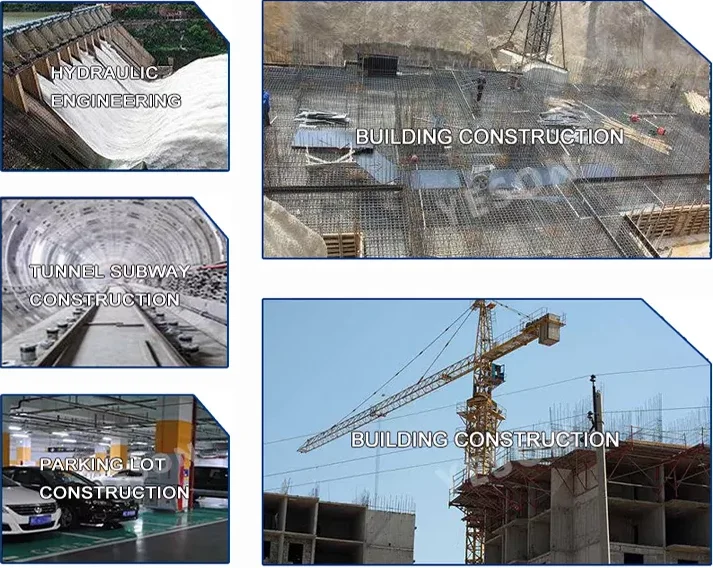

Application
Usage Areas
Areas where Standard and Special Steel Mesh are used
* In field concretes
* Concrete runway
* In highway construction
* In viaducts.
* In Prefabricated Building Elements
* In mass housing with tunnel formwork system.
* Tunnel and Metro construction
* In various constructions of industrial buildings.
* On decks and retaining walls of reinforced concrete structures.
* In Reinforced Concrete Pipes
* As a security fence
* Gabion systems
* For decorative purposes.
* In floor coverings
* In curtain concrete and retaining wall construction
* In columns, columns and beams
* In water structures, dams, canals and flumes
* Apart from these, it is used in garden walls, balustrades and suspended ceilings
Areas where Standard and Special Steel Mesh are used
* In field concretes
* Concrete runway
* In highway construction
* In viaducts.
* In Prefabricated Building Elements
* In mass housing with tunnel formwork system.
* Tunnel and Metro construction
* In various constructions of industrial buildings.
* On decks and retaining walls of reinforced concrete structures.
* In Reinforced Concrete Pipes
* As a security fence
* Gabion systems
* For decorative purposes.
* In floor coverings
* In curtain concrete and retaining wall construction
* In columns, columns and beams
* In water structures, dams, canals and flumes
* Apart from these, it is used in garden walls, balustrades and suspended ceilings

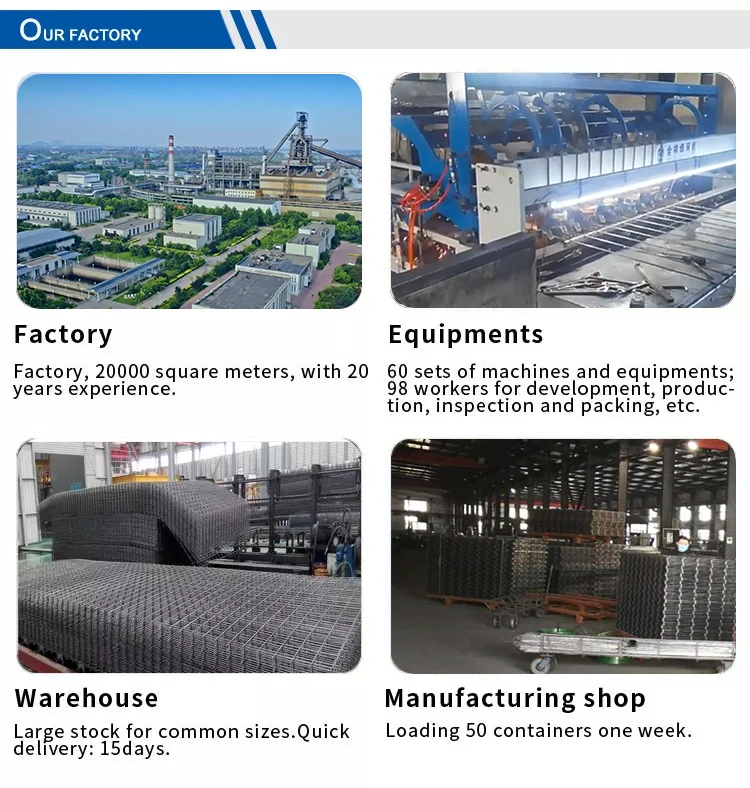

Company Profile
Shandong Runhai Steel Co., Ltd. is located in Jinan, the capital of Shandong Province, with a registered capital of 31.68 million yuan. It is a professional company integrating domestic and foreign trade Steel sales company.
The company's products involve stainless steel, seamless pipes, color-coated sheets, galvanized sheets, galvanized sheets, aluminum sheets, copper sheets and other profiles, building materials, and pipe series. product Widely used in chemical, pharmaceutical, electric power, railway, automobile, papermaking and constructive engineering and other fields. The company cooperates with Shandong Iron and Steel, Tangshan Iron and Steel, Handan Iron and Steel Iron and steel, Jinxi Iron and Steel and other well-known domestic iron and steel
enterprises have long-term close trade relations.
enterprises have long-term close trade relations.
The company has advanced wms and erm management systems to ensure that our customers have no worries during product consultation, procurement, ordering and use! Come, our company has won the trust and favor of our customers with high-quality products, first-class service and ultra-low prices, making our products all over the country Overseas! Thanks to the support of new and old customers, Runhai people will work harder and forge ahead, and give back to our customers with better and more efficient services! In order to ensure timely supply.
we set up a central warehouse in Tai'an with abundant inventory; we can provide you with the shortest supply cycle; at the same time, our company has An experienced technical consulting agency, for your correct choice of product model, we have established a marketing team with first-class efficiency and first-class service!
