Valuen 50L Agitation Tank Glass Reactor Double Jacketed Glass Reactor Glass crystallization kettle
- Category: Reactors >>>
- Supplier: Shanghai,Valuen,Industrial,Co.,Ltd
Share on:
Product Overview
Description
Product Description

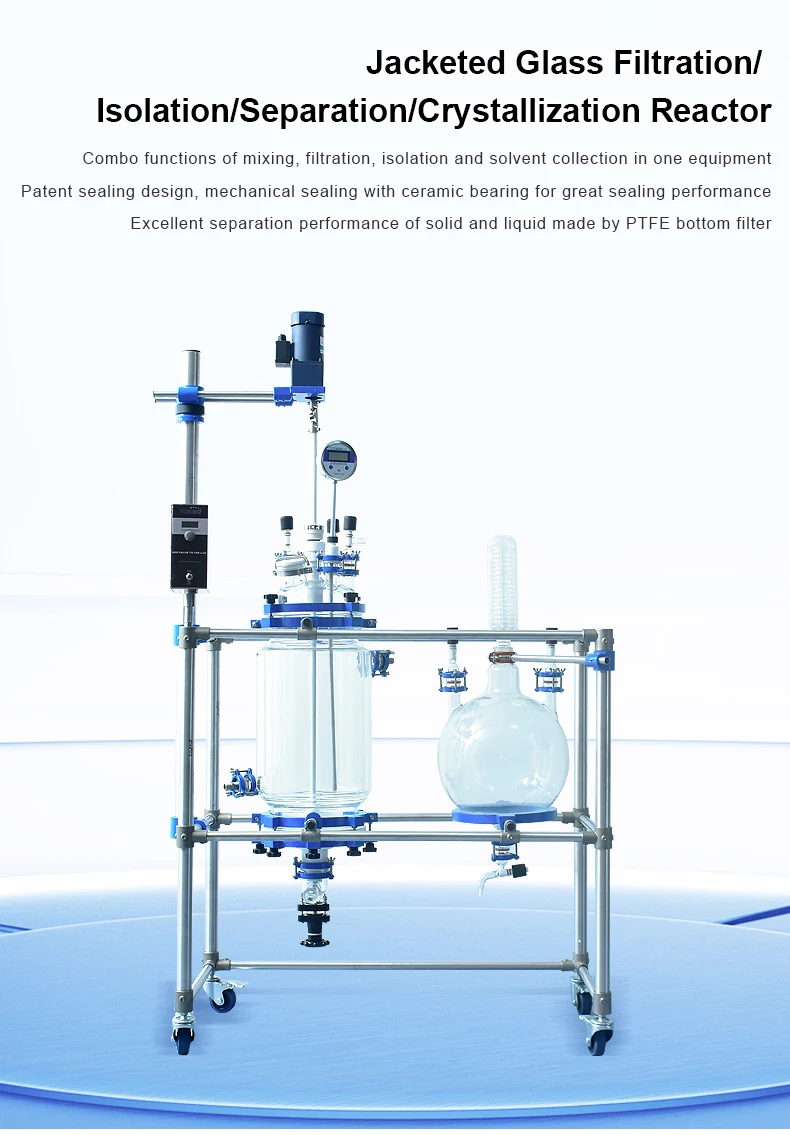

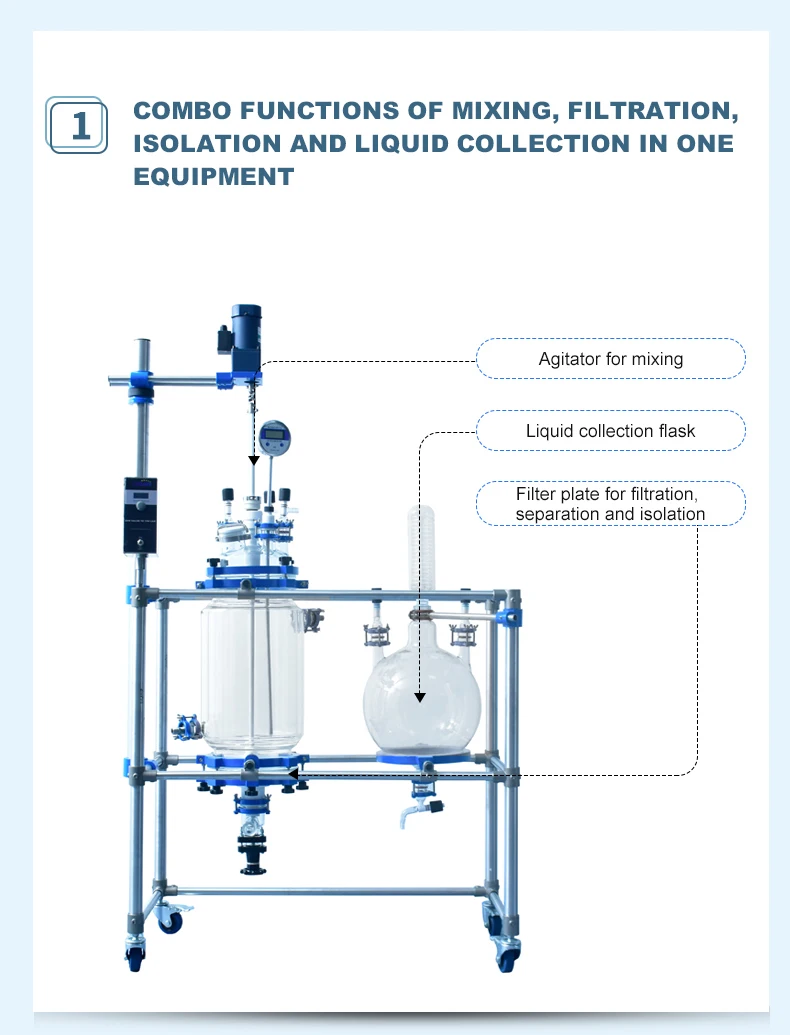

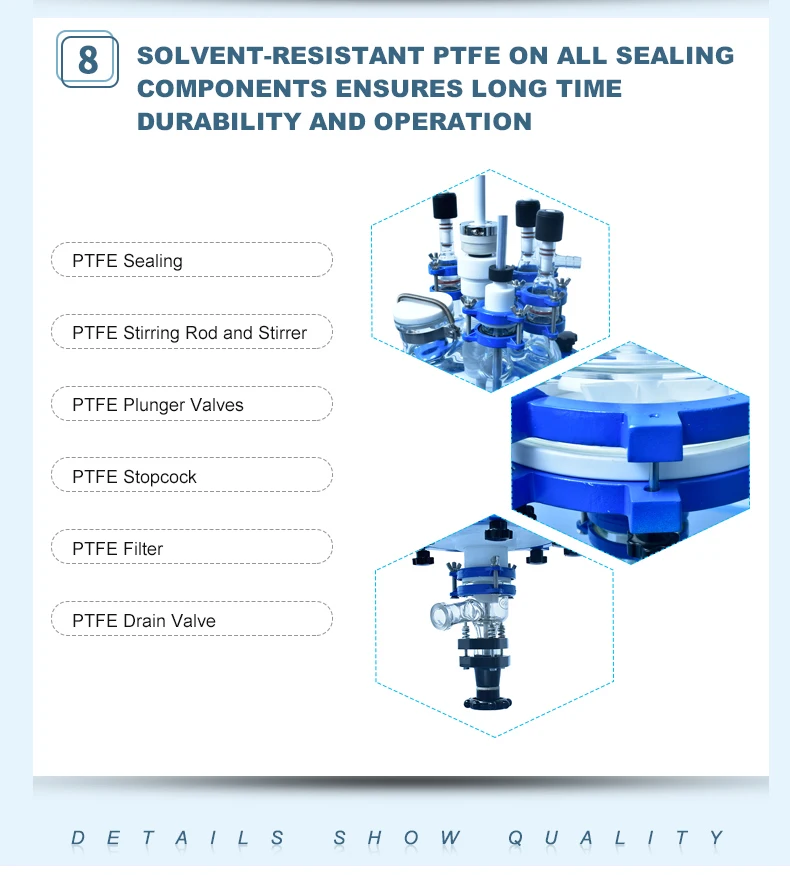

Jacketed Glass Filtration/ Isolation/Separation/Crystallization Reactor Combo functions of mixing, filtration, isolation and solvent collection in one equipment Patent sealing design, mechanical sealing with ceramic bearing for great sealing performance Excellent separation performance of solid and liquid made by PTFE bottom filter | ||||||||
Model | VFR10G | VFR20G | VFR50G | VFR100G | |||
Reaction Vessel Capacity | 10L / 2.6Gal | 20L / 5.28Gal | 50L / 13.20Gal | 100L / 26.41Gal | |||
Lquiid Collection Flask Capacity | 10L / 2.6Gal | 10L / 2.6Gal | 30L / 7.8Gal | 50L / 13.20Gal | |||
Jacket Capacity | 6L / 1.58Gal | 8L / 2.11Gal | 13L / 3.43Gal | 18L / 4.75Gal | |||
Sealing Mode | Patent sealing design, mechanical sealing with ceramic bearing | ||||||
Glass Material | High Brosilicate Glass 3.3 (Sanitary grade & Heat/Cold/Chemical resistant) | ||||||
Stirring Speed | 0-600RPM | ||||||
Working Temperature Range | -80°C to 250°C / -112°F to 482°F | ||||||
Stirrer | 1 stage PTFE coated stirrer (customizable) | 2 stage PTFE coated stirrer (customizable) | |||||
Motor Power | 120W | 200W | |||||
Power Supply | 110V or 220V, 50/60Hz, Single Phase | ||||||
Vacuum Level | Under 0.098Mpa | ||||||
Condensation Area | 0.2㎡ | 0.3㎡ | 0.4㎡ | ||||
Ports on Lid | 6 Ports: Stirring port, Air inlet port, Liquid dropping port, Thermowell port, Power feeding port and Spare port (Customizable) | ||||||
Drain Valve | PTFE drain valve (zero dead end for throughly draining ) | ||||||

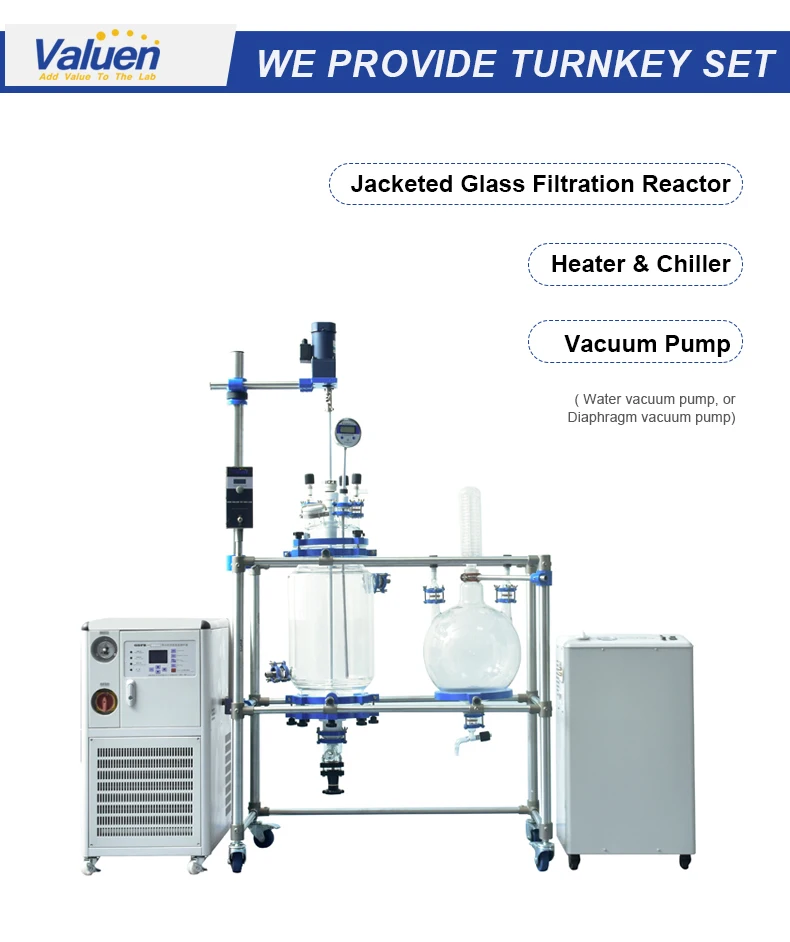

We Provide Turnkey Set Jacketed Glass filtration Reactor Heater & Chiller (Optional) Vacuum Pump (Optional) ( Water vacuum pump, Rotary vane vacuum pump or Diaphragm vacuum pump) | ||||||||
Company Profile
With more than 15 years’ industry experiences, Valuen team are experts in the design, development, and manufacture of premium quality products for chemists and chemical engineers in areas such as academia, pharmaceutical, chemical, food, flavor & fragrance, and petrochemical industries as well as many others. Our products cover a broad range of applications from distillation, concentration, reaction, extraction, isolation, purification, mixing, drying, and ancillary equipment for supporting those chemical process like heating, cooling and vacuum devices, both of lab and scale production.

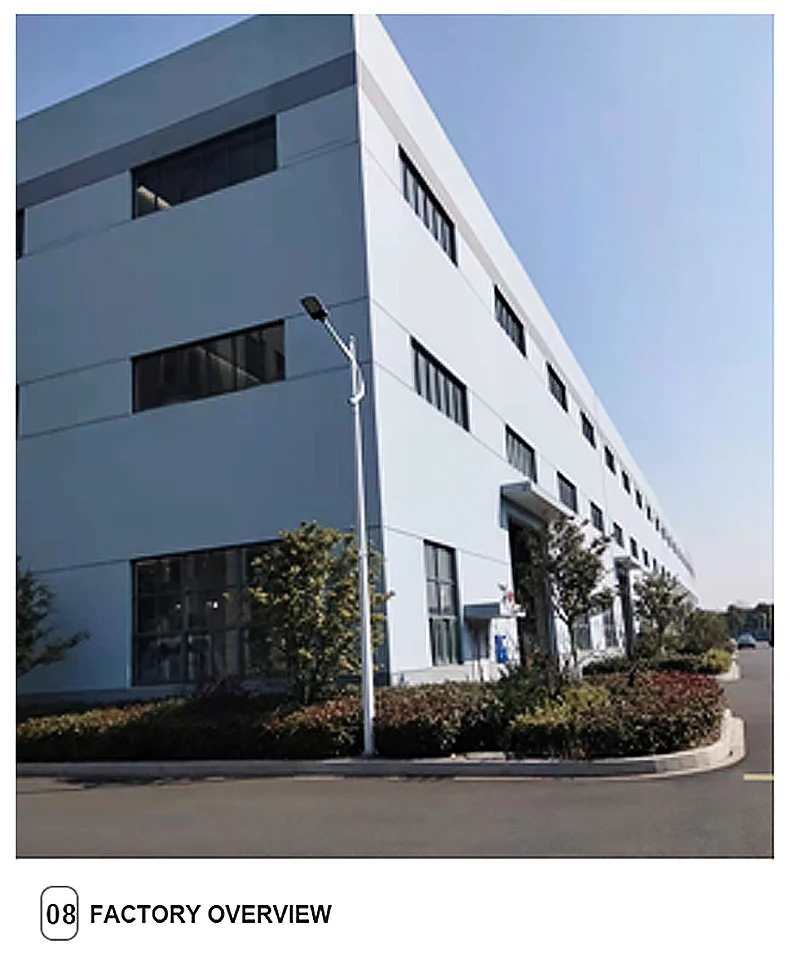

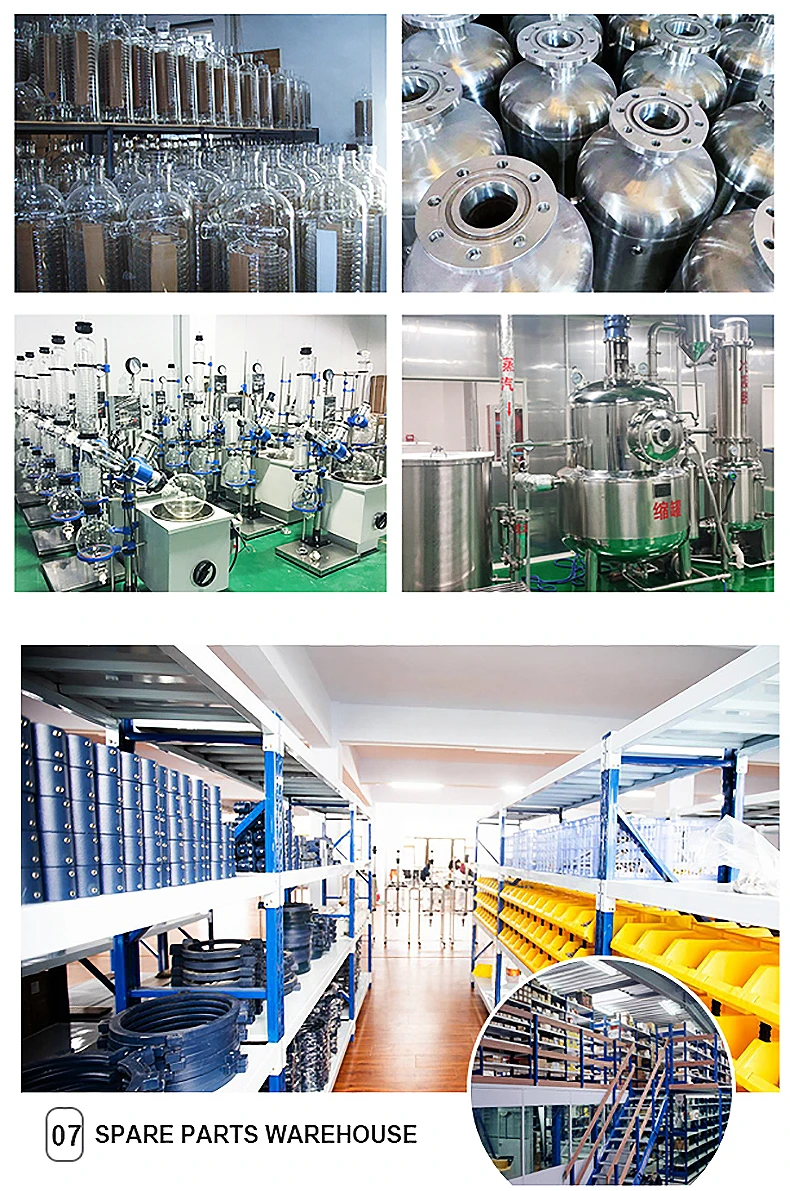

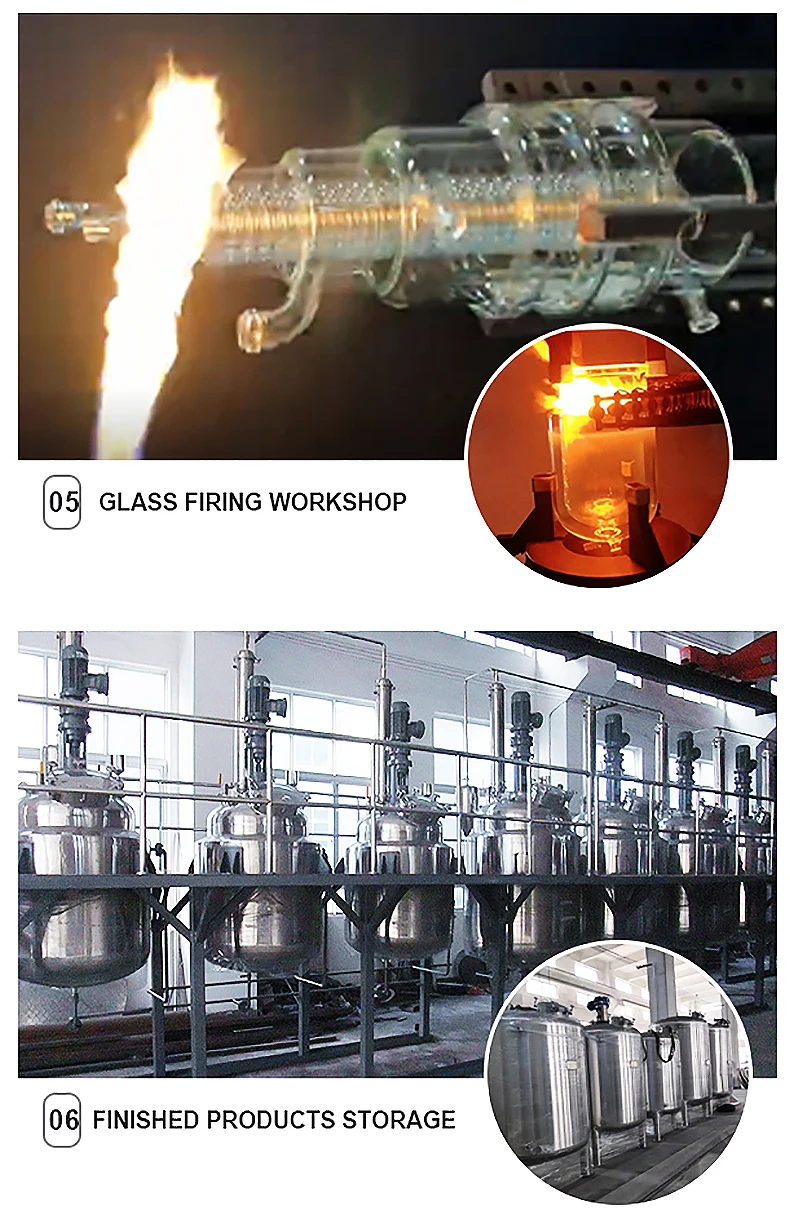

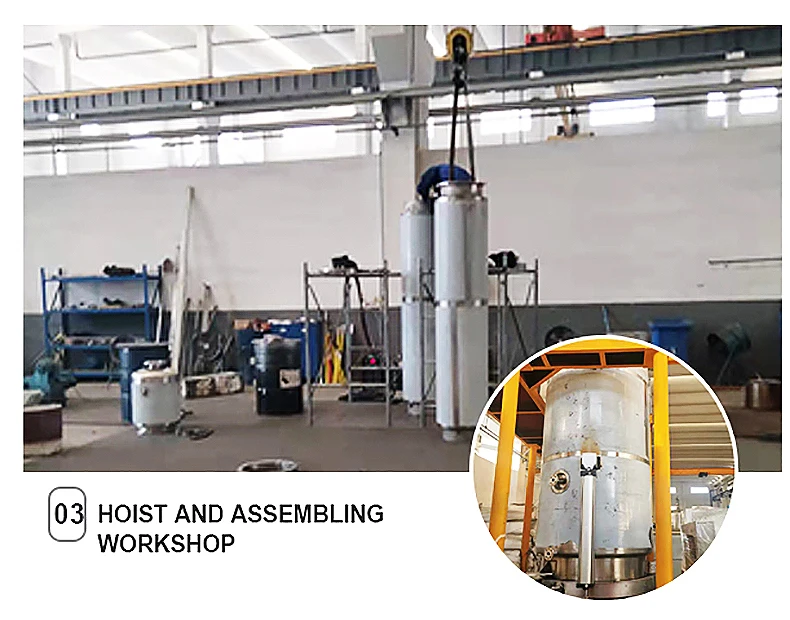

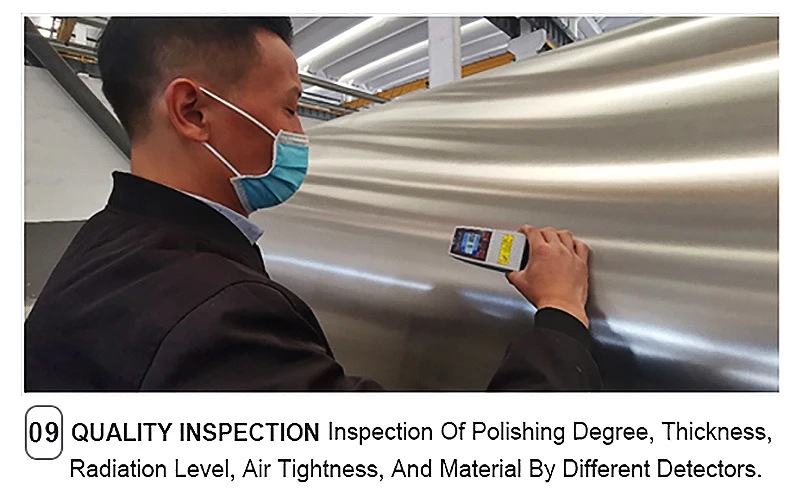

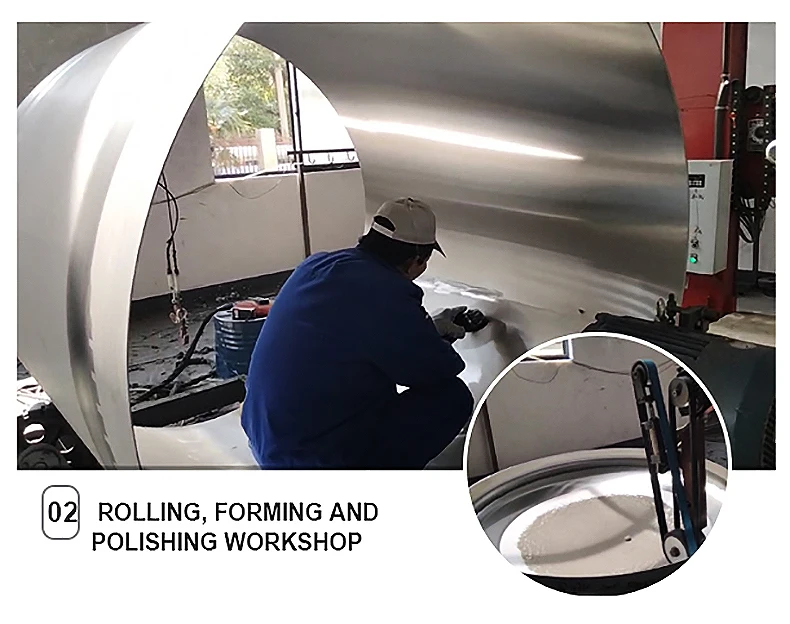

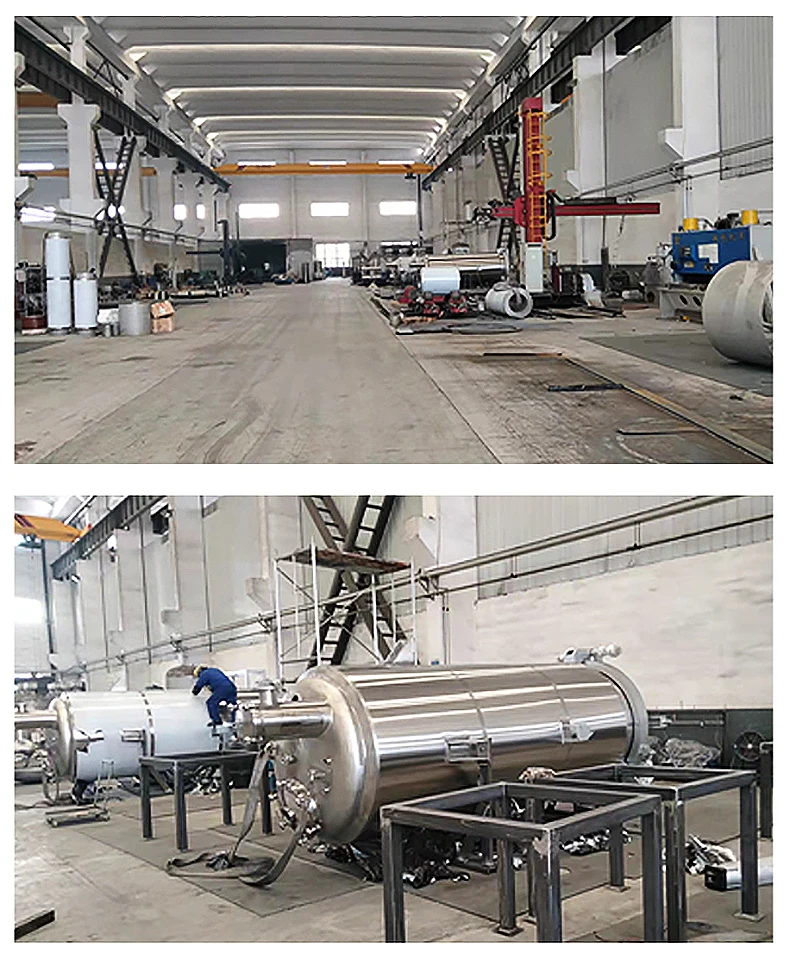

FACTORY STRENGTH | ||||||||

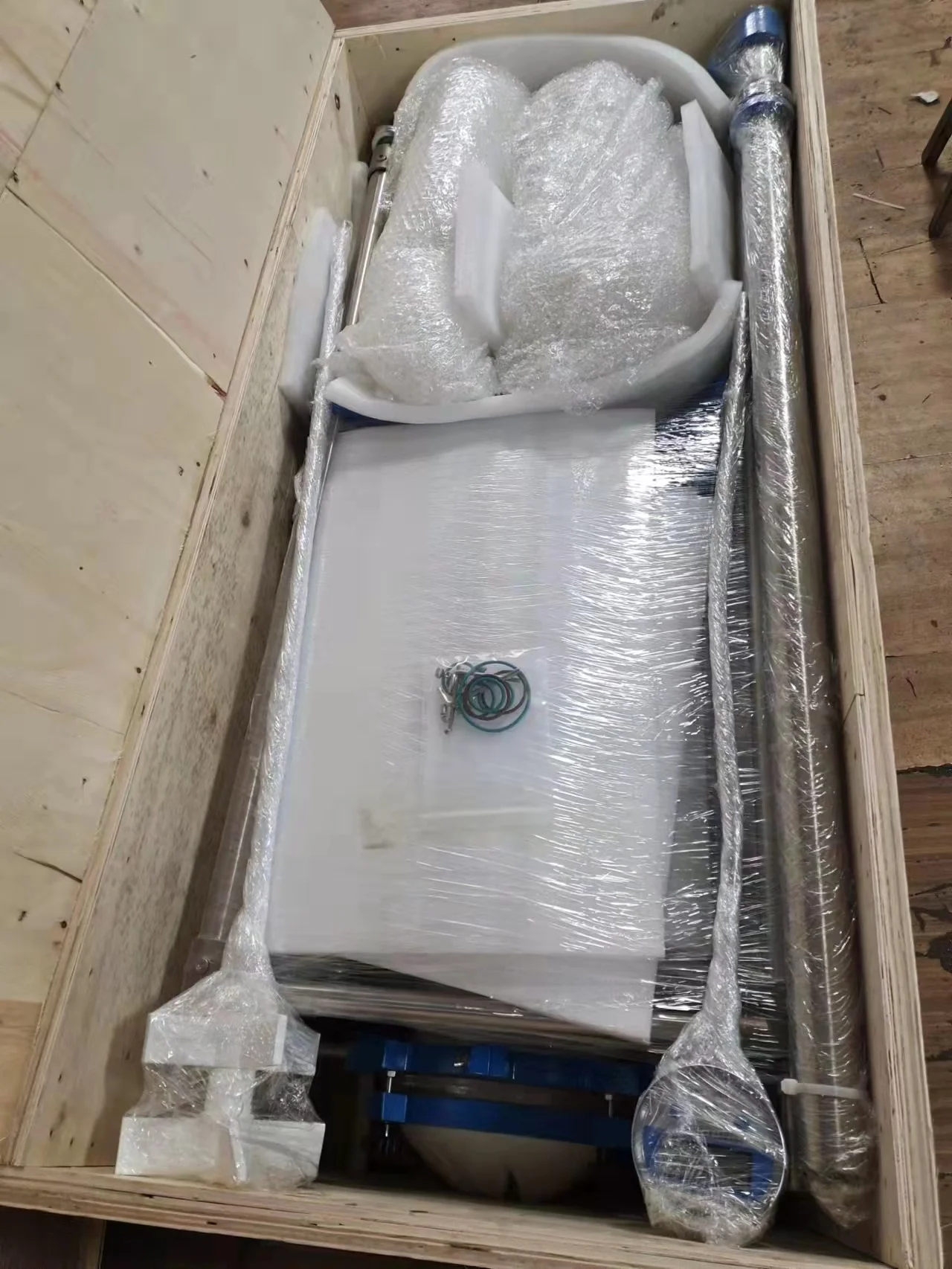

Packing & Delivery
