1X2 2 Port Sd/Hd/3D Sdi Output H dmi To Sdi Converter

Product Overview

Description





Brief introduction

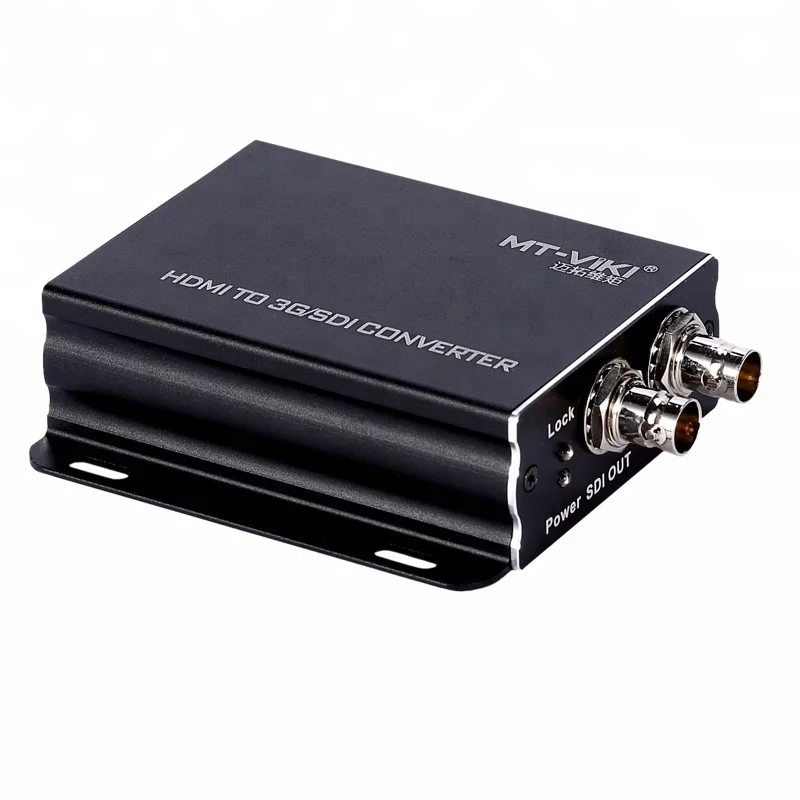

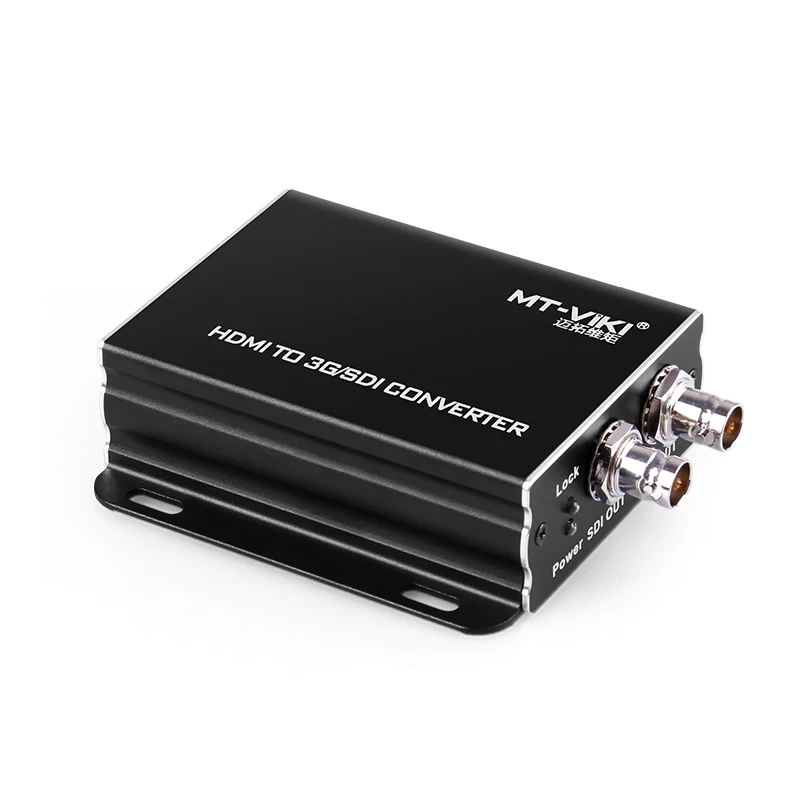

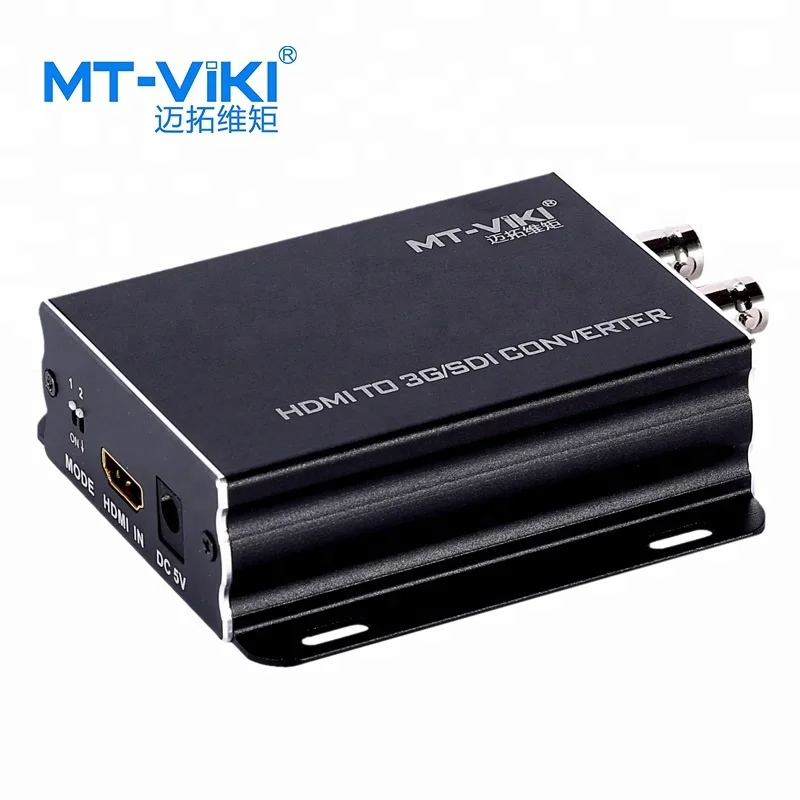

MT-SDI-H03 H-DMI to 3G/HD/SD SDI converter provides a professional way to exchange high definition signals in real time, it is very convenient to convert HDMI signal to HD-SDI with SDI receiver and HDMI modulator, SDI and HDMI signal conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission

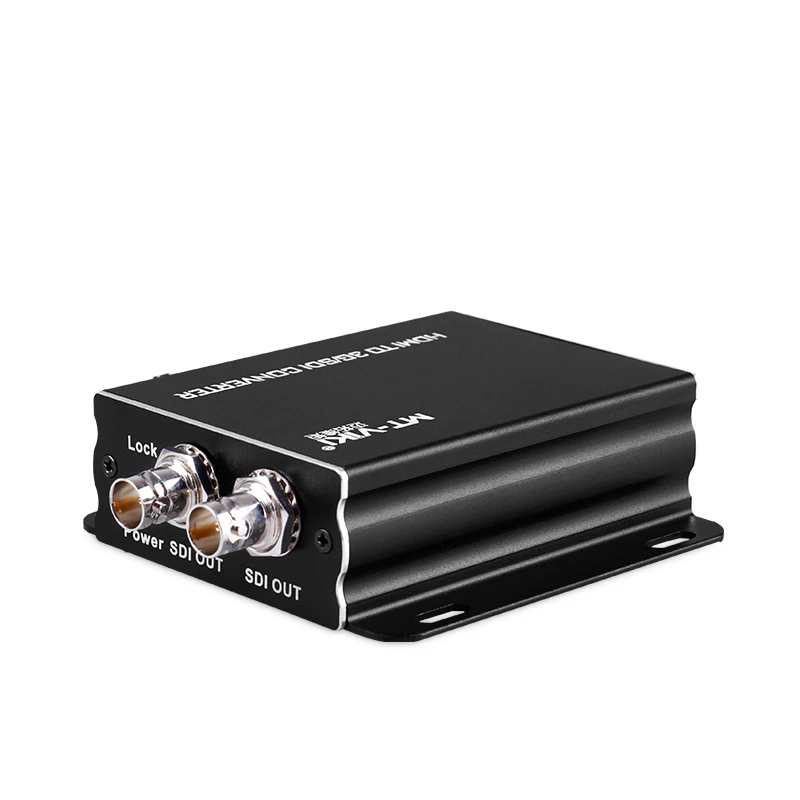

MT-SDI-H03 provides 2 low jitter SDI outputs for dual display, MT-SDI-H03 is the most dependable way to convert signals with confidence when monitoring in any post or broadcast application
Converts an HDMI input signal to 3G/HD/SD-SDI formats in real time while avoiding transformation loss for both audio and video signals



Product feature

• Supports resolution of the automatic recognition


• Audio and image output synchronously


• Suitable for HD monitoring field


• Video support: 1080p-60Hz,525i-59.96, 625i-50,720p-23.98/24/25/29.94/30/50/59.94/60
  1080i-50/59.94/60,1080p-23.97/24/25/29.97/30/50/59.94/60,2048 x 1080


• HDMI (deep color)



• Supported SDI formats:
  SD-SDI (SMPTE 259M, up to 270Mbps)
  HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)
  3G-SDI (SMPTE 424M, 425M level A,B, up to 2.97Gbps)

  Features automatic detection of 3G/HD/SD-SDI signals
  Re-clocking SDI signals for cascading and thus longer transmission
  Locking power connector for secure communications
