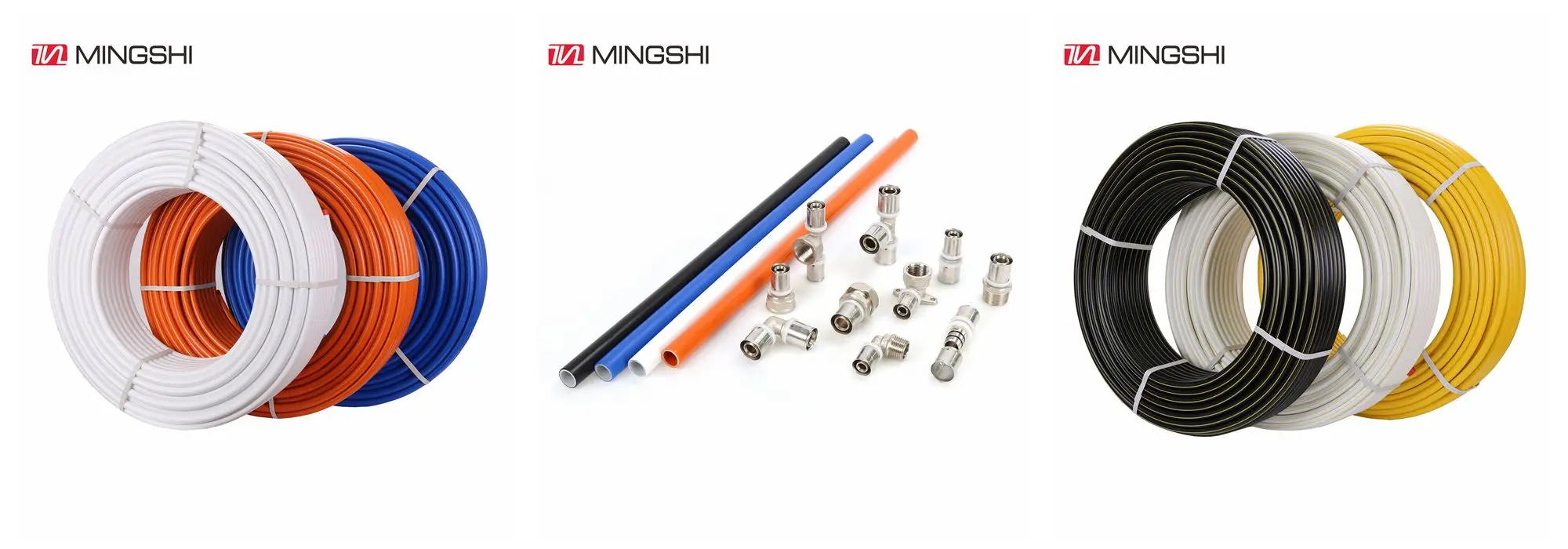

CSTB AENOR WRAS SKZ certified overlapped 5 layers PEX Al PEX Aluminum Plastic Composite pipes multilayer pipe
- Category: Composite Pipes >>>
- Supplier: Zhejiang Mingshi Xingxin Hvac Technology Co. Ltd.
Share on (1600619078680):
Product Overview
Description
Multilayer PEX-AL-PEX/ PERT-AL-PERT Pipe | ||
Warranty | More than 10 years | |
Certification | AENOR, WRAS, CSTB, ACS, WATERMARK, SKZ | |
Application | Water/ Gas/ Underfloor heating (UFH) | |
Customized support | OEM, ODM | |
Place of Origin | China, Zhejiang | |
Brand Name | OEM/MINGSHI/MSP | |
Model Number | S-1 | |
Standard | ISO 21003/ other | |
Welding types | Buttwelding/ Overlapped | |
OD (mm) | 15/ 16/ 18/ 20/ 22/ 25/ 26/ 28/ 32/ 40/50/63 | |
Colors | White/ Black/ Red/ Blue/ Yellow/ Orange | |
Working pressure | Max. 10 bars | |
Working temperature | Max. 95℃ | |
Crosslinking degree | ≥65 | |
1. For Plumbing water(cold & hot)/gas / underfloor heating systems, Composed of 5 layers:
-External Plastic/external Glue/Aluminum/internal Glue/internal Plastic
2. Certificates we have: AENOR, CSTB, SKZ, ACS, WATERMARK, JASWIC, ISO9001
3. Material: CONSTAB/ Other PEX
4. QC: Including materials checking and test, spot inspection on production lines, and all the tests required by each standard done on the finished products in our lab rooms
5. Overlapped/buttwelding
-Spec. (mm)
16*2.0
18*2.0
20*2.0
20*2.25
25*2.5
26*3.0
32*3.0
40*4.0
50*4.5
63*6.0
6. Lead time: 15-30days
7. Main makets: Europe, South Africa, Mecico, Asia, Australia
8. Applications:
-Cool & Hot Water Pipe System
-Housing Gas Pipe System
-Under floor heating System
-Solar Energy & Air-conditioning Matching Pipe System
-Medical, Foodstuff & Chemical Industry Pipe System
9. Characters & Advantages:
-Wide range working temperature(-10C~95C), Hi-pressure resistance
-30% more flow than metal pipe
-50 year working life
-Non-corrosive, scale-free
-Hygiene, no oxygen permeability, no growth of Microorganism
-Non-inflammable, non-static
-Easy bending but never spring back
-Light in weight, easy to carry and store
-Few pipe fitting applying leading to little leakage
-Economical price.
-External Plastic/external Glue/Aluminum/internal Glue/internal Plastic
2. Certificates we have: AENOR, CSTB, SKZ, ACS, WATERMARK, JASWIC, ISO9001
3. Material: CONSTAB/ Other PEX
4. QC: Including materials checking and test, spot inspection on production lines, and all the tests required by each standard done on the finished products in our lab rooms
5. Overlapped/buttwelding
-Spec. (mm)
16*2.0
18*2.0
20*2.0
20*2.25
25*2.5
26*3.0
32*3.0
40*4.0
50*4.5
63*6.0
6. Lead time: 15-30days
7. Main makets: Europe, South Africa, Mecico, Asia, Australia
8. Applications:
-Cool & Hot Water Pipe System
-Housing Gas Pipe System
-Under floor heating System
-Solar Energy & Air-conditioning Matching Pipe System
-Medical, Foodstuff & Chemical Industry Pipe System
9. Characters & Advantages:
-Wide range working temperature(-10C~95C), Hi-pressure resistance
-30% more flow than metal pipe
-50 year working life
-Non-corrosive, scale-free
-Hygiene, no oxygen permeability, no growth of Microorganism
-Non-inflammable, non-static
-Easy bending but never spring back
-Light in weight, easy to carry and store
-Few pipe fitting applying leading to little leakage
-Economical price.
