AT 09 BLE Module Bluetooth 4.0 Module with Remote Control For Arduino
AT-09 BLE Module Bluetooth 4.0 Module with Remote Control For Arduino

AT 09 BLE Module Bluetooth 4.0 Module with Remote Control For Arduino

Share on (1600619085552):


Price:

Quantity:


Product Overview

Description


AT-09 BLE Module Bluetooth 4.0 Module with Remote Control For Arduino









Product Description







The master-slave integrated module has three functions: transparent transmission, remote control and PIO acquisition. It can be switched and set through the AT command set. Like the Bluetooth serial port module you used before, it can be easily upgraded to Bluetooth 4.0 without changing the PCB and lower computer program.






Technical Parameters


















































Model



AT-09


Bluetooth Serial Port Module



Chip



TI CC2541



Ultra Low Standby Power Consumption



90uA~400uA



Ultra Far Connection Distance



100 feet /60 meters



Ultra Fast Reaction Speed



0.4s



Size



28*13*2.3mm



Android, Apple, PC and MAC all in common



MFI is not required



IOS system support



Android 4.3 system support



There is no byte limit for sending and receiving,


up to 3K bytes per second













Detailed Images

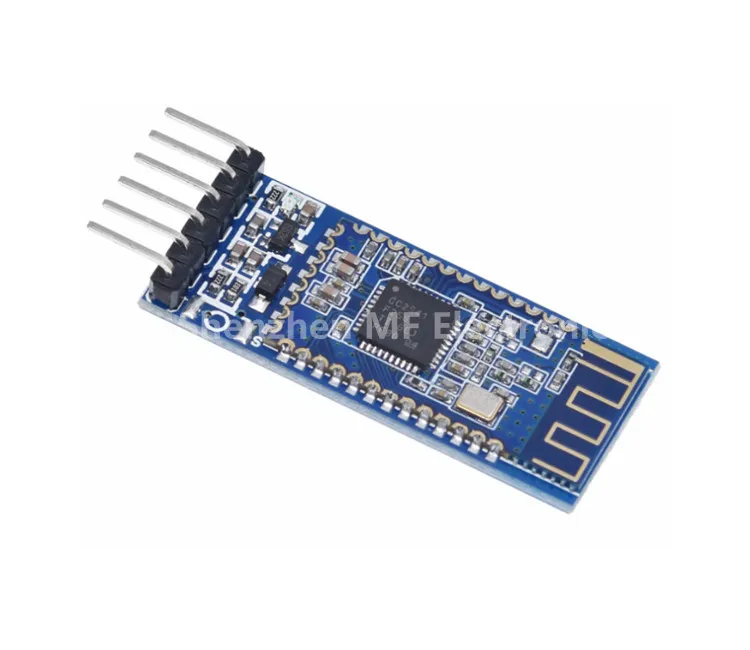

1. Bluetooth Module.jpg
