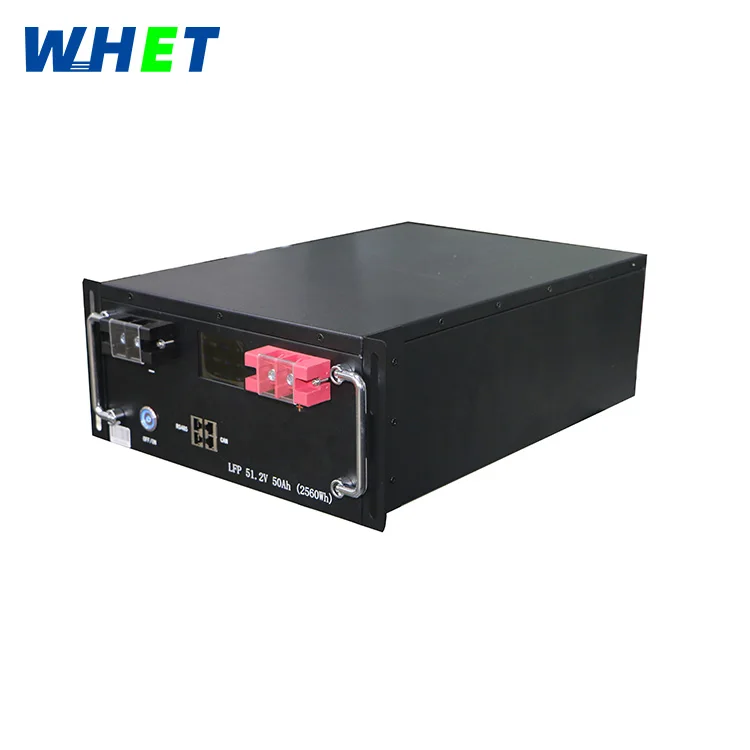

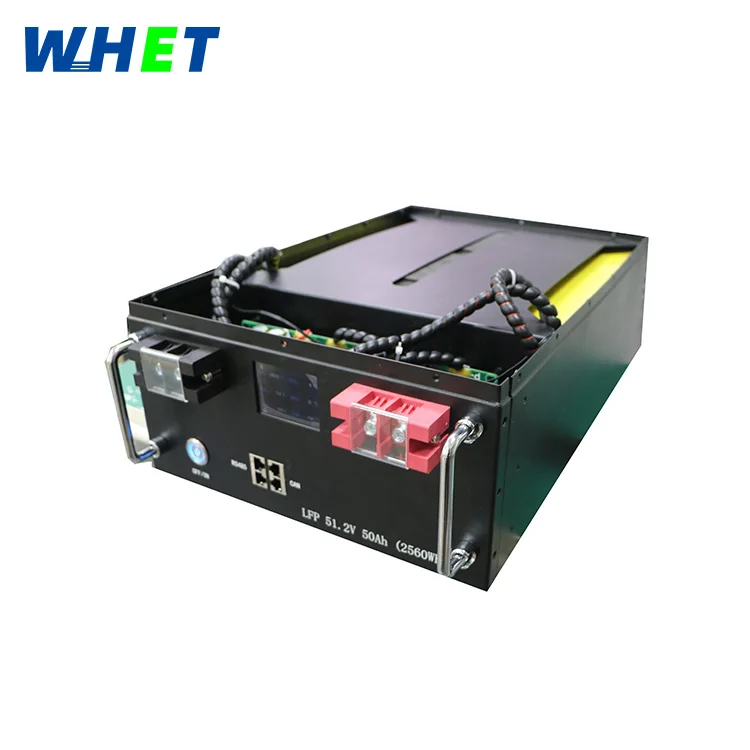

Portable Energy Storage Battery Large Capacity Mobile Power Solar Energy Storage Battery
- Category: >>>
- Supplier: Huizhou Wanhong Energy Technology Co. Ltd.Huizhou Ltd.
Share on (1600619093871):
Product Overview
Description
Specification

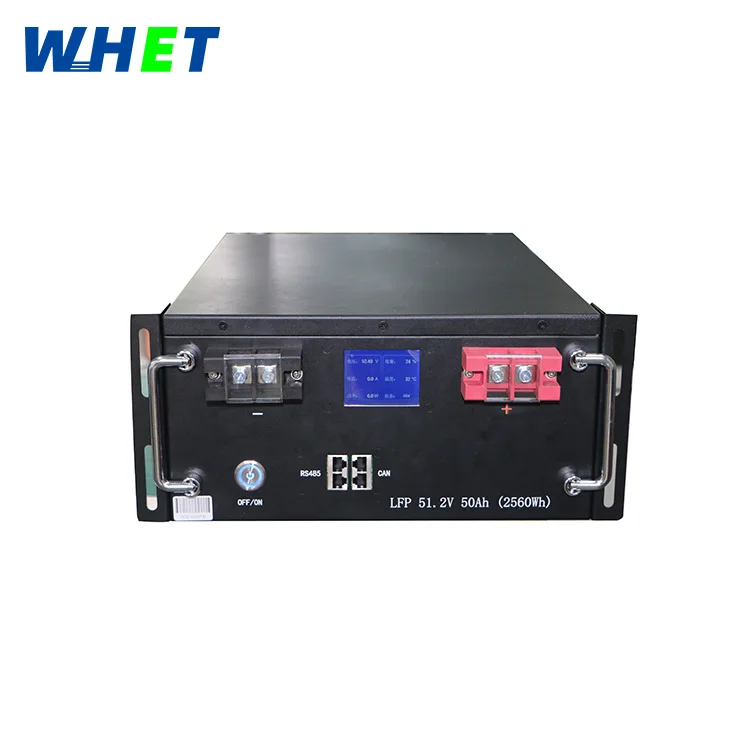

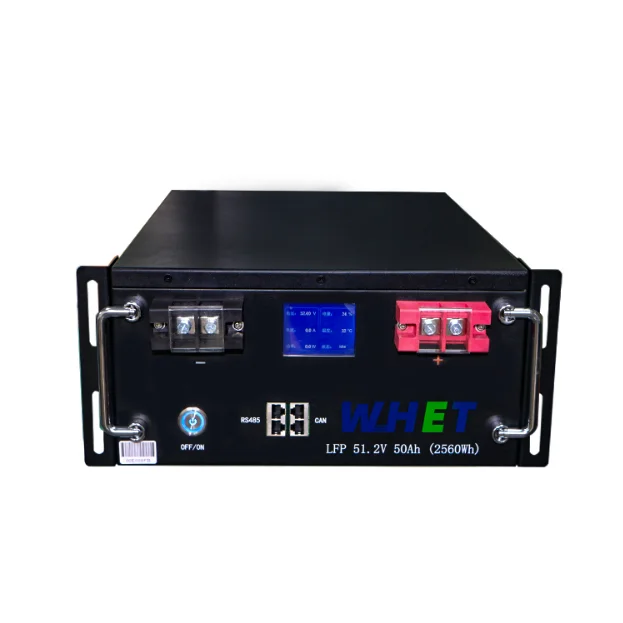

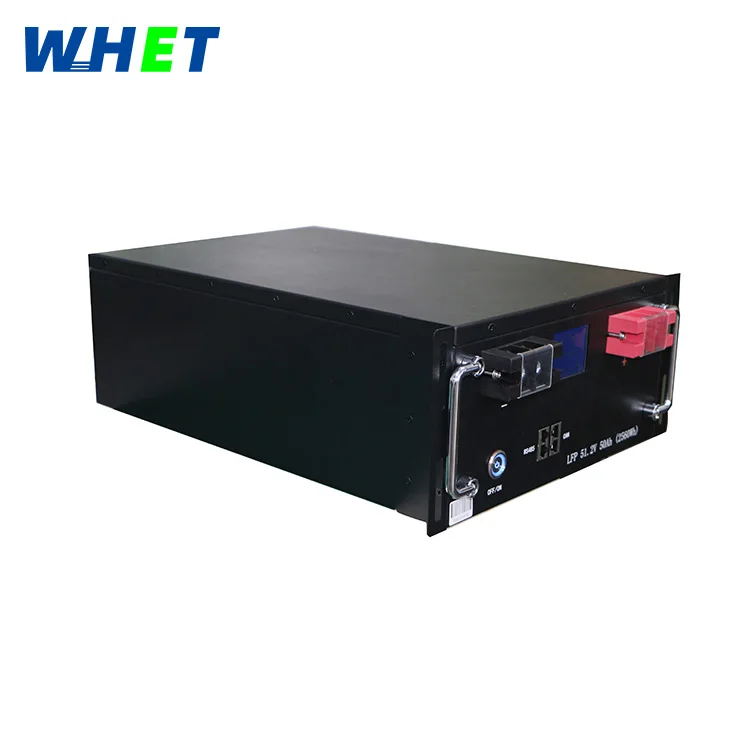

Rack-mounted Battery System | ||||||
Product model | WHET48-50Ah | WHET48-100Ah | WHET48-200Ah | |||
Battery cell parameters | ||||||
Battery cell type | LiFePO4 | LiFePO4 | LiFePO4 | |||
Rated voltage | 3.2V | 3.2V | 3.2V | |||
Rated capacity | 50Ah | 100Ah | 200Ah | |||
Voltage range | 2.8V-3.65V | 2.8V-3.65V | 2.8V-3.65V | |||
Certification | UN38.3/UL1973/IEC62619/MSDS | |||||
Product parameters | ||||||
Rated voltage | 51.2V | 51.2V | 51.2V | |||
Serial/Parallel | 16S1P | 16S1P | 16S1P | |||
Working voltage range | 40V-58.4V | 40V-58.4V | 40V-58.4V | |||
Charge voltage | 54.4V-55.2V | 54.4V-55.2V | 54.4V-55.2V | |||
Floating charge voltage | 53.6V-54.4V | 53.6V-54.4V | 53.6V-54.4V | |||
Rated capacity | 50Ah | 100Ah | 200Ah | |||
Energy | 2.56KWH | 5.12KWH | 10.24KWH | |||
Rated charge current | 100A | 100A | 100A | |||
Peak charge current | 100A | 100A | 100A | |||
Rated discharge current | 100A | 100A | 100A | |||
Peak discharge current | 100A | 100A | 100A | |||
Product dimension(W*D*H) | 165*329*481mm | 482.6*540*132.5mm | 482.6*570*221.5mm | |||
Product weight | 20Kg | 38.5Kg | 78Kg | |||
Other parameters | ||||||
Charge temperature | 0-55℃ | |||||
Discharge temperature | (-)10-55℃ | |||||
Optimum temperature | 15-25℃ | |||||
Cooling method | Natural cooling | |||||
IP rating | IP20 | |||||
Relative humidity | 5%-95% | |||||
Altitude | ≤2000M | |||||
Cycle life | ≥4000@80%DOD，0.5C/0.5C，25℃ | |||||
Communication interfaces | CAN2.0/RS485/RS232 | |||||
Protection | Over temperature, over current, over voltage, insulation and other multiple protection ,etc. | |||||
Design lifetime | ≥10 years Maximum 15 units (Recommend | |||||

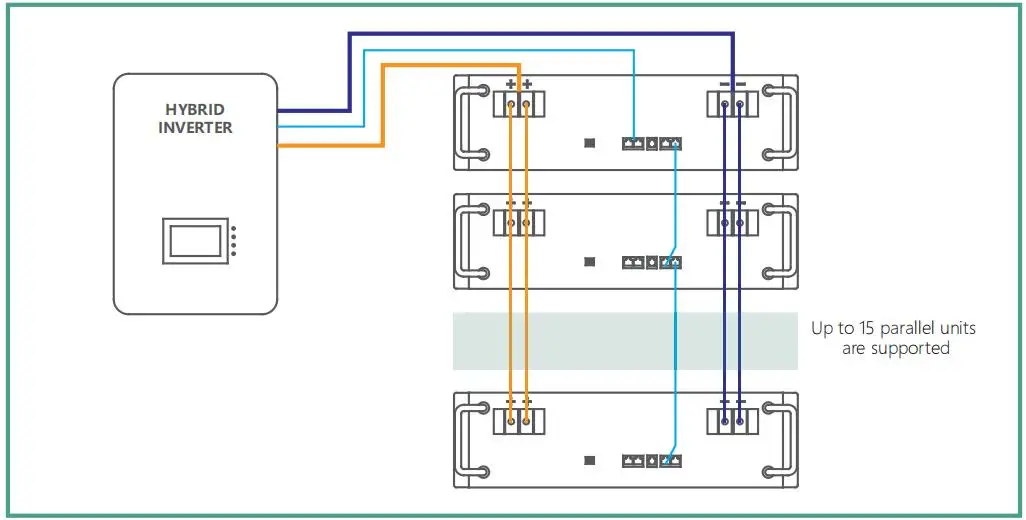

Parallel Capability | Maximum 16 units (Recommended ≤5 units) | |||||
Application | Communication backup/Solar/wind energy storage and ESS for home/Power station ect. | |||||
1).High performance LFP battery cells of major brands are selected, with cycle life of 6000 and service life of more than 10 years.The comprehensive operation cost is low.
2).Standard chassis design makes the assembly convenient and fast. Combined products can meet the needs of different capacity and power.
3).CAN2.0, RS485 and RS232 communication protocols are supported, and inverters of various brands can be matched

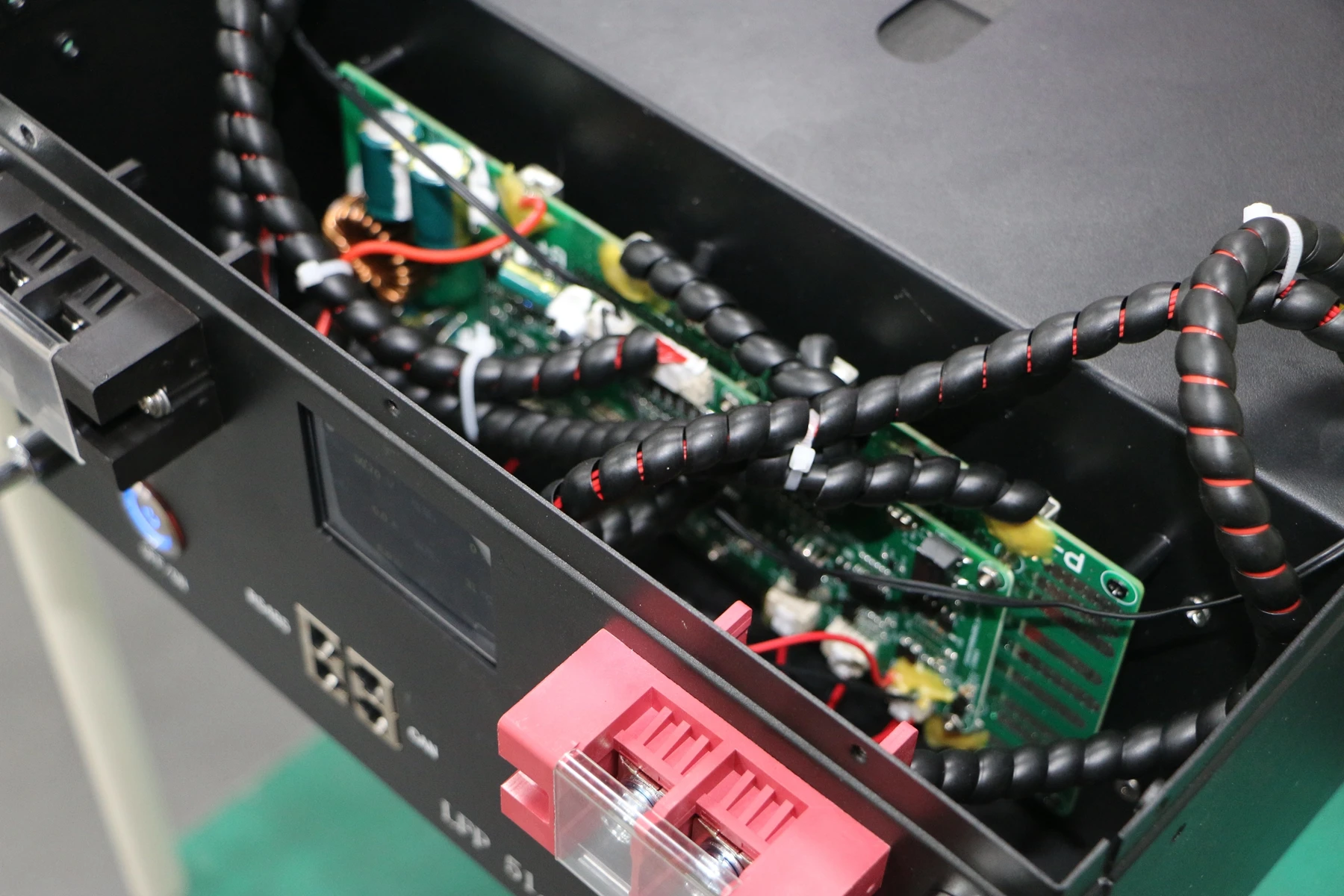

4).With Perfect BMS protection function and all-round control system, the battery can run safely and efficiently.
