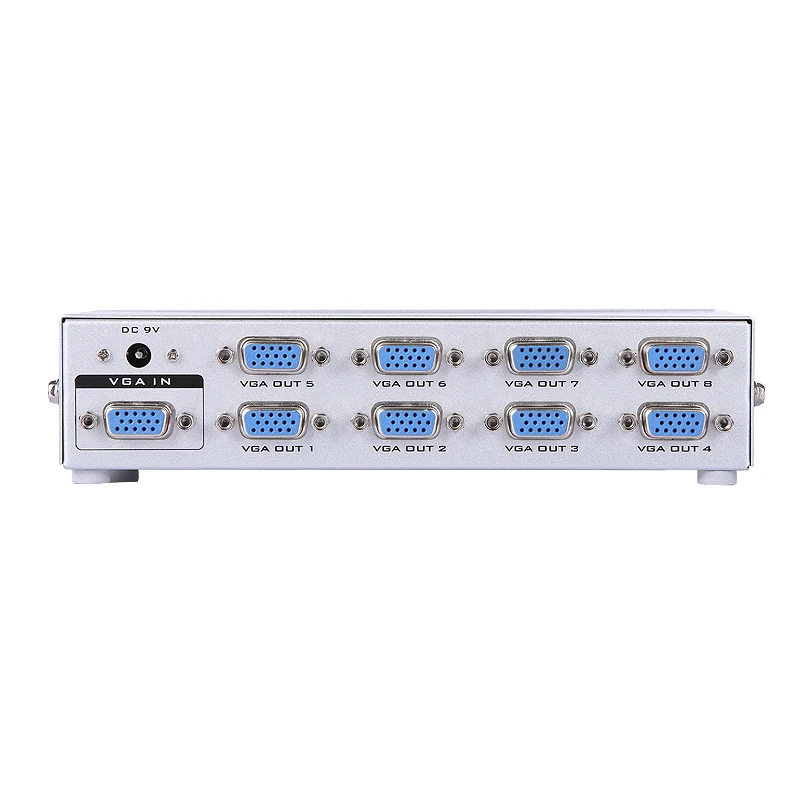

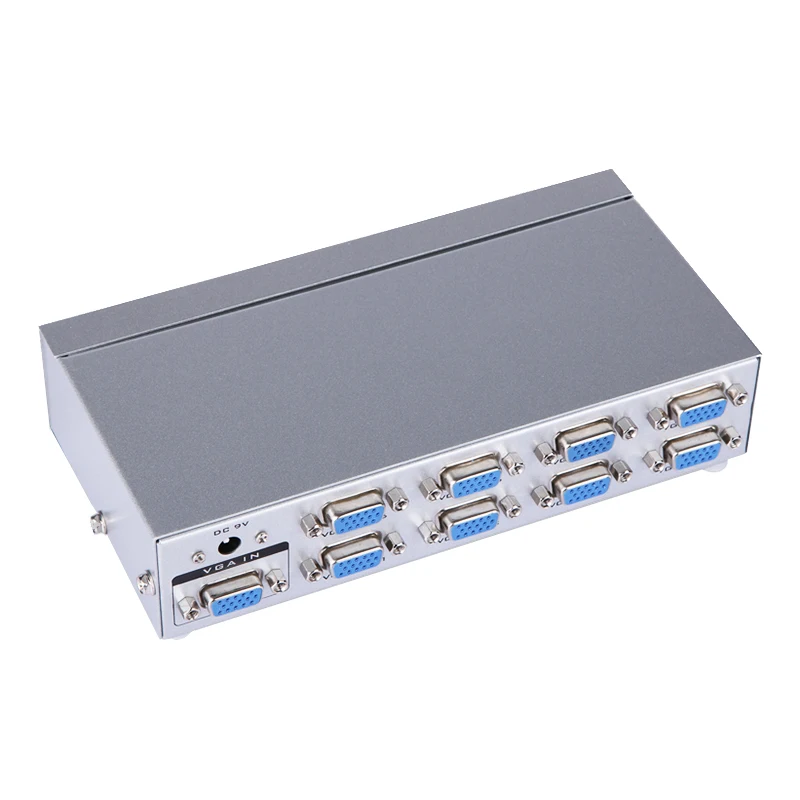

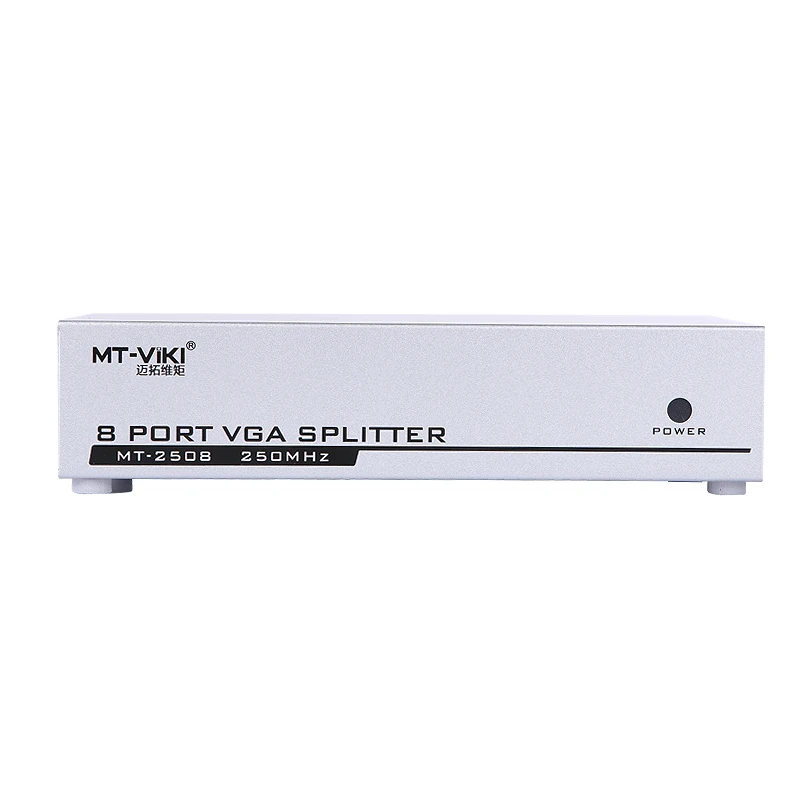

MT VIKI 1080P 8 port VGA splitter 1 in 8 out
- Category: >>>
- Supplier: Guangdong Mt-Viki Electronics Technology Co. Ltd.
Share on (1600619096412):
Product Overview
Description
250MHz 4-Port VGA Splitter is 8x1 VGA splitter that allow a single VGA video signal to be distributed to 8 output displays. The splitter support up to 250MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920x1440.
Specification
Video Input | Interface | 1 x HDB-15 female |
Impedance | 75 Ω
| |
Video Output | Interface | 8 x HDB-15 Female |
Impedance | 75 Ω | |
Video | Max. Bandwidth | 250 MHz |
Max. Resolutions | 1920*1440 | |
Power | Connector: 1 x DC Jack | |
Consumption: DC V, 300mA | ||
Environment | Operating Temp. | 0-50°C |
Storage Temp. | -20 - 60°C | |
Humidity | 0-80% RH, Non-Condensing | |
Physical Properties | Housing | Metal |
Weight | 0.5kg | |
Dimensions | 14*8.5*4 cm | |
(L x W x H) | ||
Carton Lot | 40pcs | |
Package Contents | 1*User Manual, 1* power adater | |
