New MPLB 10GE Control Board for h w MA5800 X7 X15 X17 series OLT super control unit board
- Category: >>>
- Supplier: Hunan Rongjia Yizhao Information Technology Co. Ltd.
Share on (1600619099999):
Product Overview
Description
Product Description
Huawei MPLB Board is the main control unit board and the core of system control and service exchange convergence, and can also be used as the management and control core of the unified network management.
Huawei MPLB Board Product Overview
Huawei MPLB Board is main control card for Huawei SmartAX MA5800 OLT. This is the core of system control and service switching and aggregation. MAX access to 17408 subscribers.
Huawei MPLB Board transmits key management and control information through the master-slave serial port, the in-band GE / 10GE channel and the service board, completes the configuration, management and control of the entire product, and at the same time implements simple routing protocols and other functions.
| Board | Channel to the service/Upstream interface board | Maximum Bandwidth per Slot |
| H901MPLB | 17 100GE channels | 200 Gbit/s (load sharing mode) |
| H901MPLA | 17 50GE channels | 100 Gbit/s (load sharing mode) |

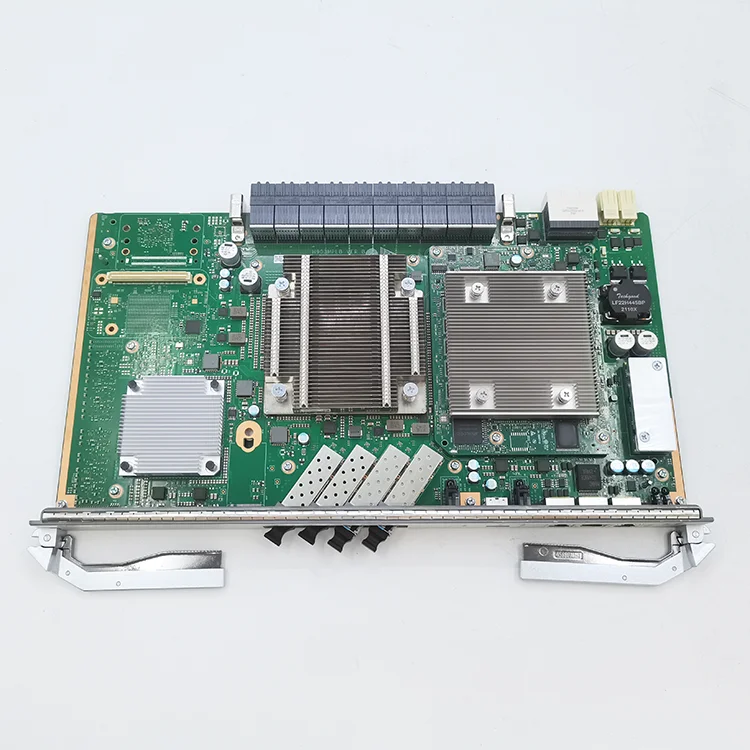

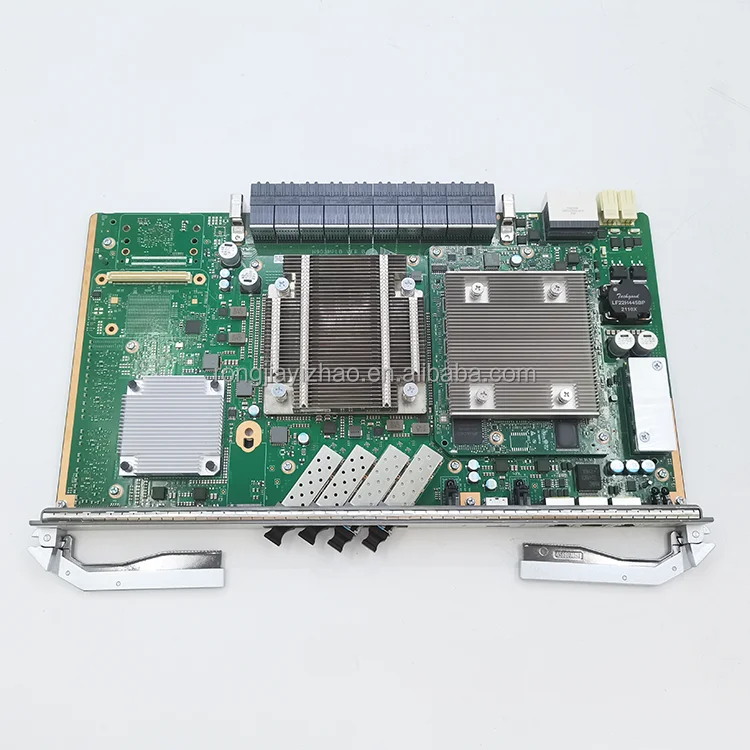

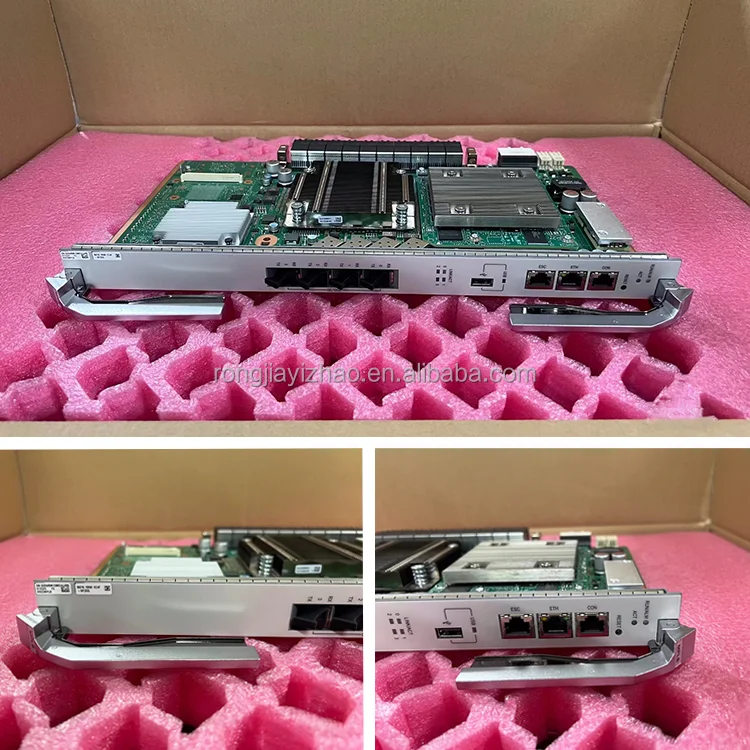

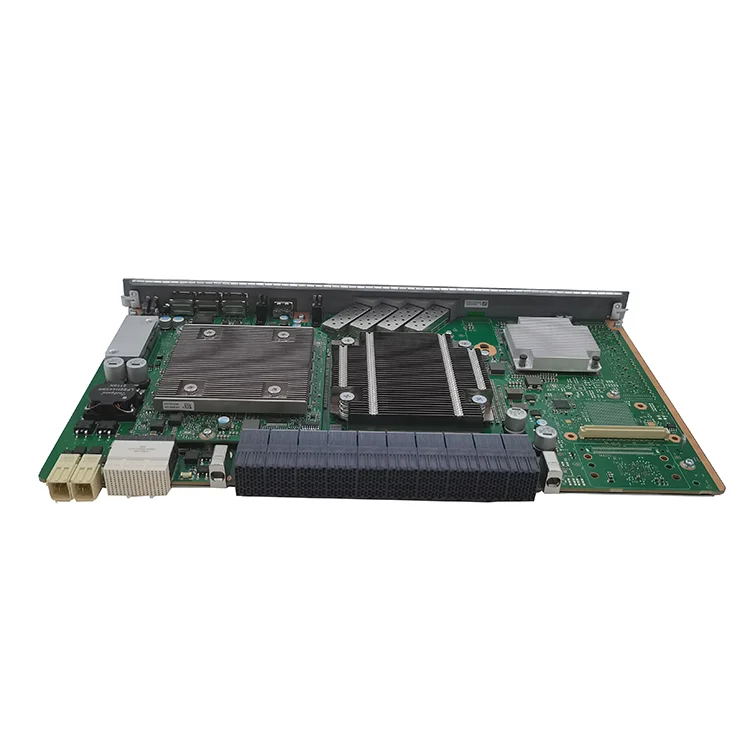

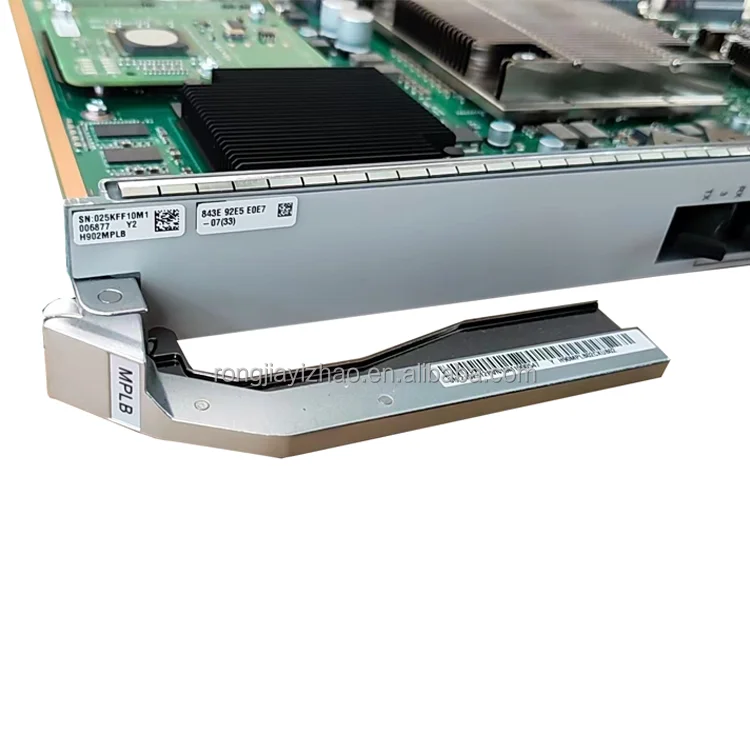

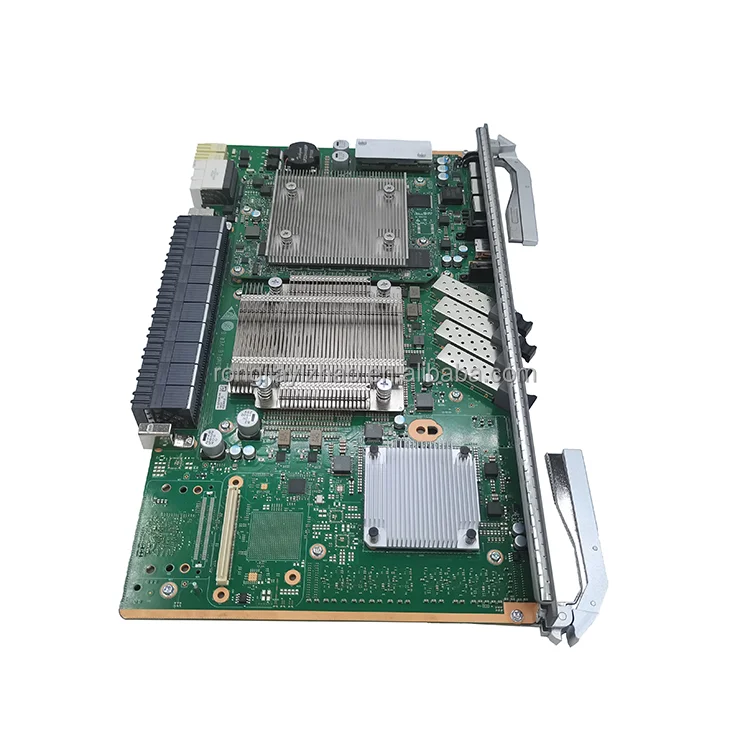

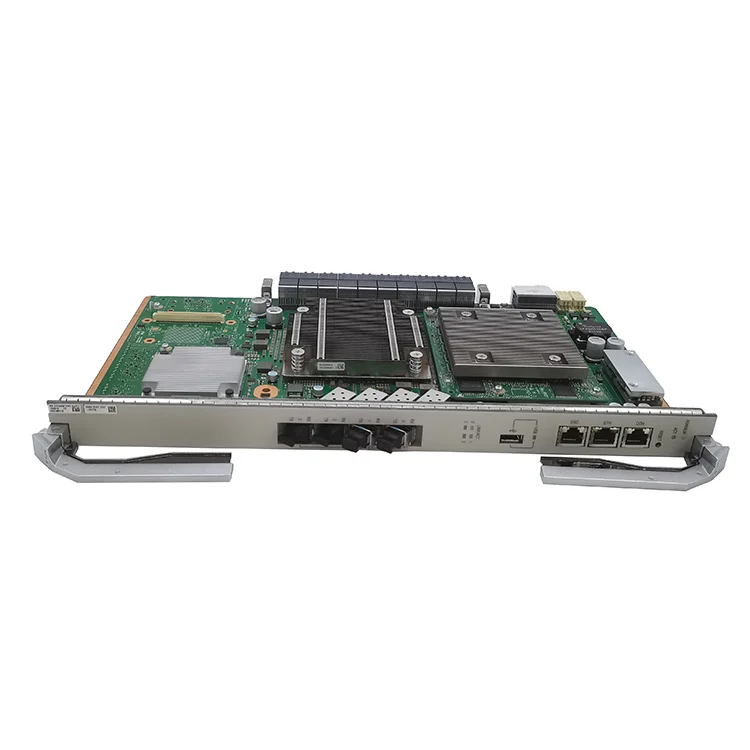

Product Picture
Product Specification
| Brand | Huawei |
| Model | MPLB |
| Bandwidth per slot | 200Gbit/s (load sharing mode) |
| MAC address table | 262143 |
| Access ONT | 17408 |
| Multicast user | 17408 |
| Configurable multicast channel | 4096 |
| Concurrent multicast channel | 4000 |
| IPv4 routing table | 65536 |
| IPv6 routing table | 16384 |
| Service port | 139264 |
| ARP table | 66048 (Before the V100R017C10 version) |
| 98816 (V100R017C10 version) | |
| 131072 (V100R018C00 and later version) | |
| ACL rule | 1042 |
| Maximum Frame Size | 2052 bytes. |
| 9216 bytes (jumbo frame enabled) | |
| Operating temperature | -40°C to +65°C |
| Power consumption | Static: 62W |
| Maximum: 117 W | |
| Dimensions(mm) | 31 (W)x 258.9 (D) x 399.1 (H) |
| Weight(kg) | 2.2 |
