Химическое минеральное неорганическое удобрение сухое механическое высокое давление двойной ролик гидравлическая машина для брикетирования

Product Overview

Description

Briquette forming machine applications:

1.fertilizer:

2.powder material

 zinc oxide, lead oxide, calcium chloride, calcium phosphate, High test bleaching powder, cryolite, chemical inhibitor, silica, Isophthalodinitrile etc.

3.chemical raw material, fine chemical material

We are small factory but dedicated in only roller compactor for granulating & briquetting powders

Briquette forming machine operating principle:

Difference of Briquette forming machine type A and type B

Briquette forming machine technical parameter: type B takes FGD gypsum for instance,final briquettes are oval ball

Type Item	SG-360B	SG-500B	SG-600B	SG-650B
Roller dia. (mm)	Φ360	Φ504	Φ600	650
Effective width (mm)	180	300	310	330
Roller rotating speed  (r/min)	16 to 22	14 to 20	12 to 18	10 to 16
Power of feeder (kw)	7.5	11	11	15
Pre-pressure of accumulator (Mpa)	5 to 6	6 to 10	8 to 10	8 to 12
Max. pressure rate  (kN/cm)	55	55	55	55
Briquette's size and shape(mm)	On request	On request	On request	On request
Briquette output (kg/h)	3,000 to 5,000	6,000 to 8,000	8,000 to 10,000	10,000 to 12,000
Power of compacting machine (kw)	30	75	90	110
Installed capacity (kw)	42	88	104	129
Dimension (l*w*h) (mm)	1,850*1,5000*1,650	3,650*2,250*2,500	3,660*2,450*2,700	4,000*2,600*3,300
Weight of feeder and compacting machine (kg)	6,000	15,000	20,000	25,000
Production time(d)	30	45	60	60

Briquette forming machine consists of screw feeder (upper taper) and double roller compactor

Briquette forming machine's peripheral equipments

Briquette forming machine final briquettes variable shapes

Briquettes and rollers

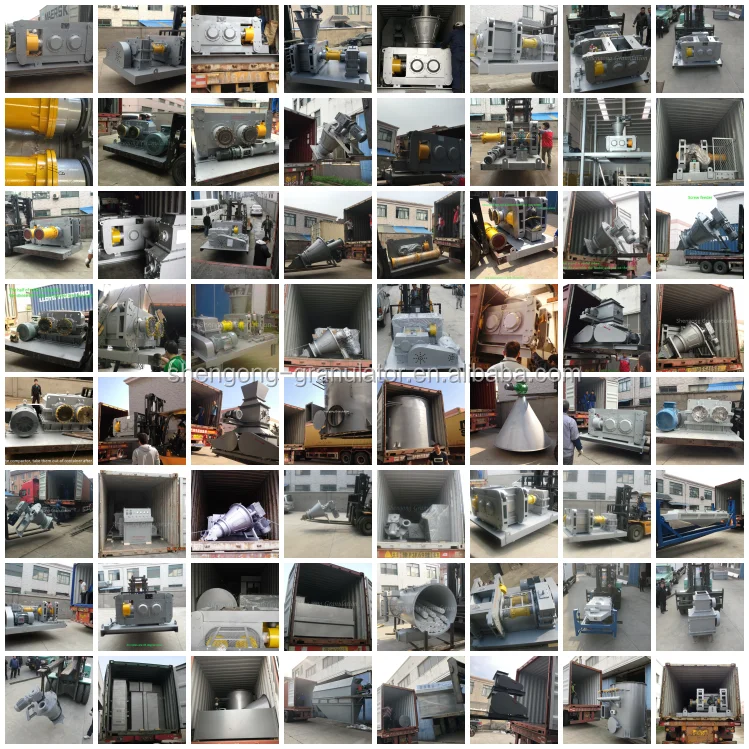

Briquette forming machine line loading and packing
