Q1530 1.5ton 3 m mini reach truck forklift electric double reach truck
- Category: >>>
- Supplier: Foshan Haoanda Machinery Co. Ltd.
Share on (1600619104029):
Product Overview
Description

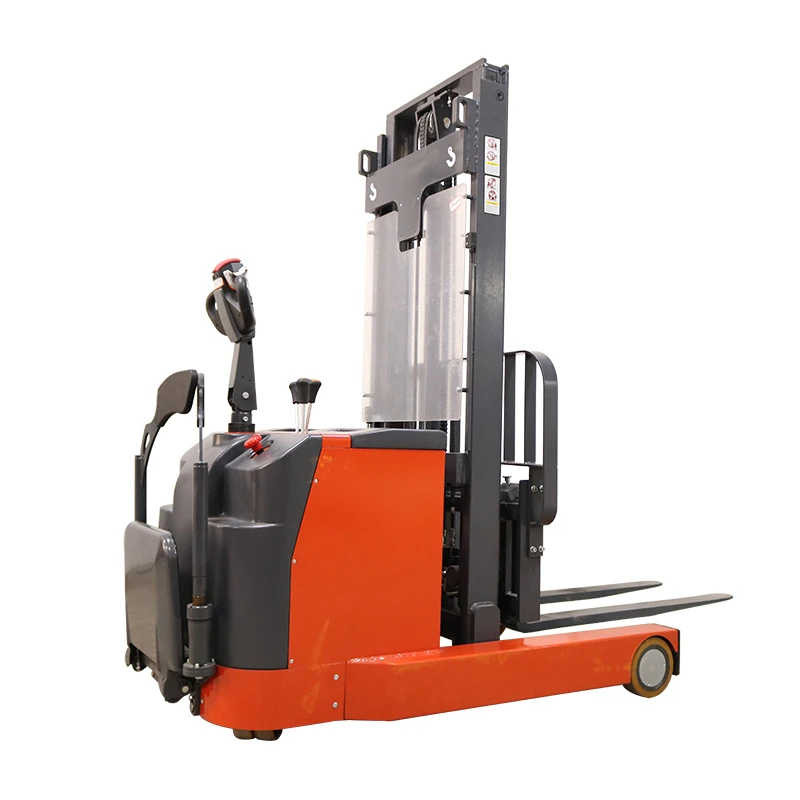

Q1530 hot sale mini reach truck forklift electric PU wheel reach truck
Features
Made by CURTIS AC controller and MOSFETS drive,with PES
Made of 12# U steel, high strenth and steady
With driver guard plate and guard arms, keep the driver safe
The indicator can show the error code for fast maintance
With emergency revert button on the handle and emergency stop botton
Other size: 1.5 Ton- 1.6meters, 1.8meters, 3.0meters, 3.7meters, 4.5meters
High configuration, moderate price
Reach Hydraulic Pump
Reach distance 500mm

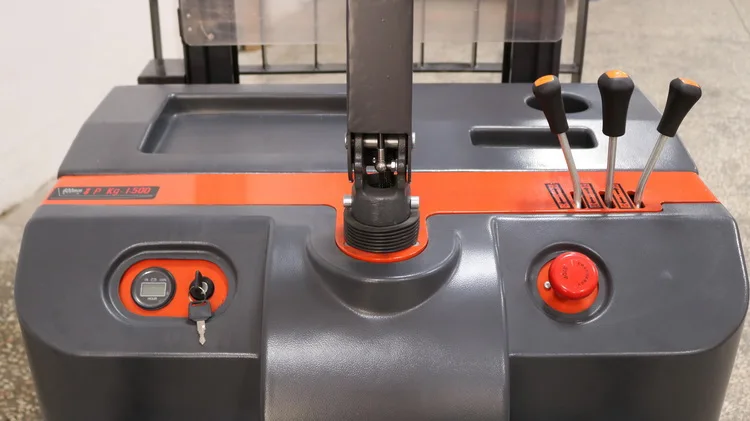

Operating Handle
3 handle to operating the loading work
Emergency Stop
Press down it to stop the equipment if any emergency happens
Steering system
With EPS system, help the operators contrl it easier
Item Name/ Model No. | Q1516 | Q1518 | Q1530 | Q1537 | Q1545 | ||||
Load Capacity(kg) | 1500 | ||||||||
Max. Height Load Capacity(kg) | 1300 | 1300 | 1100 | 1000 | 700 | ||||
Weight(kg) | 1745 | 1750 | 1840 | 2070 | 2110 | ||||
Loading Center(mm) | 500 | ||||||||
Tyre Material | PU | ||||||||
Front Wheel Size(mm) | 210x70, 2pcs | ||||||||
Rear Wheel Size(mm) | 230x75x82, 1pc | ||||||||
Balance Wheel Size(mm) | 149x60, 2sets(4pcs) | ||||||||
Lifting Height(mm) | 1600 | 1800 | 3000 | 3700 | 4500 | ||||
Lowered Height(mm) | 2155 | 2355 | 2121 | 1830 | 2080 | ||||
Mast Extended Height(mm) | 2535 | 2790 | 4040 | 4700 | 5500 | ||||
Overall Length/Pedal Down/ Guard Arm Down(mm) | 2252/2652/2806 | ||||||||
Overall Width(mm) | 1042 | ||||||||
Mast Angle | 2/4 | ||||||||
Handle Height Min./Max.(mm) | 984/1365 | ||||||||
Fork Lowered Height(mm) | 50 | ||||||||
Fork Size(mm) | 35/100/950(1150) | ||||||||
Fork Adjustable Width(mm) | 200-740 | ||||||||
Reach Distance(mm) | 500 | ||||||||
Aisle Width 1000x1200mm Pallet | 2750 | 2750 | 2790 | 2750 | 2750 | ||||
Aisle Width 800x1200mm Pallet | 2800 | 2800 | 2840 | 2800 | 2800 | ||||
Turning Radius(mm) | 1670 | ||||||||
Travel Speed(km/h) | 5.0/6.0 | 4.8/6.0 | |||||||
Lifting Speed(mm/s) | 75/139 | 85/119 | |||||||
Lowered Speed(mm/s) | 94/108 | 85/80 | |||||||
Gradeability | 5/8 | ||||||||
Charger | 24V/40A | 24V/55A | |||||||
Drive Motor | AC, Veritical, 1.5kW | ||||||||
Lifting Motor | 3.0kW | ||||||||

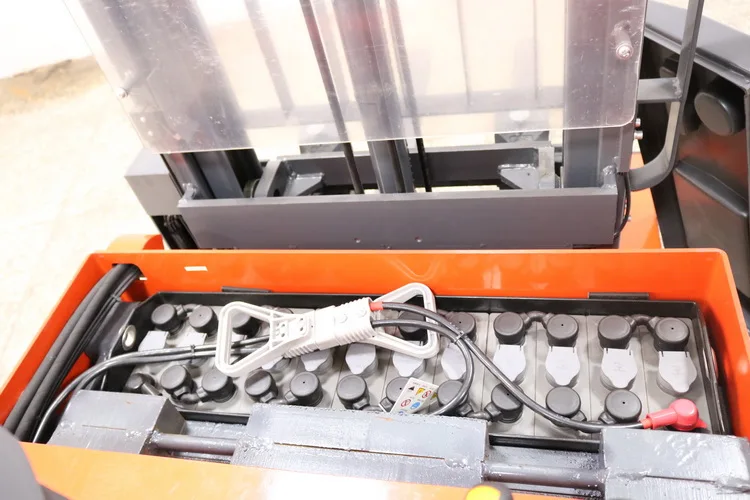

Battery | 24V/270Ah(794x212x583mm) | 24V/500Ah(812x317x530mm) | |||||||
Contact Information for Copy
Contact Person: Jerry
Email: haoandamachinery at gmail.com
Tel: +86 757 85772616 Mob: +86 181 2352 4445
Whatsapp/ Wechat: +86 1812352 4445
Website: www.haoandajx.com
FAQ
1.\tWhat is the warranty time for our products?
Within 1 year or 2,000 working hours since the products are on board.
2.\tHow is the delivery time?
Normally the delivery time is 20 ~ 30 days after order confirmed and advanced deposit received. For the standard products, if we have stock, the delivery time would be shorter.
Port of Loading: Guangzhou, Shenzhen
3.\tHow is our MOQ?
For the standard products, we don't request any MOQ. If you need OEM service, MOQ is required. Please contact us for more details.
