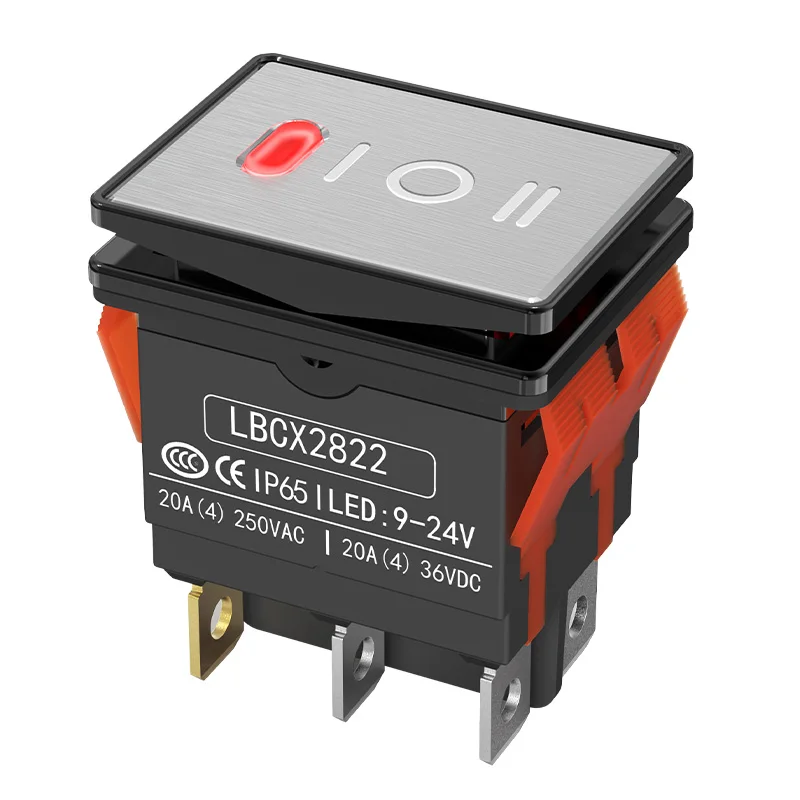

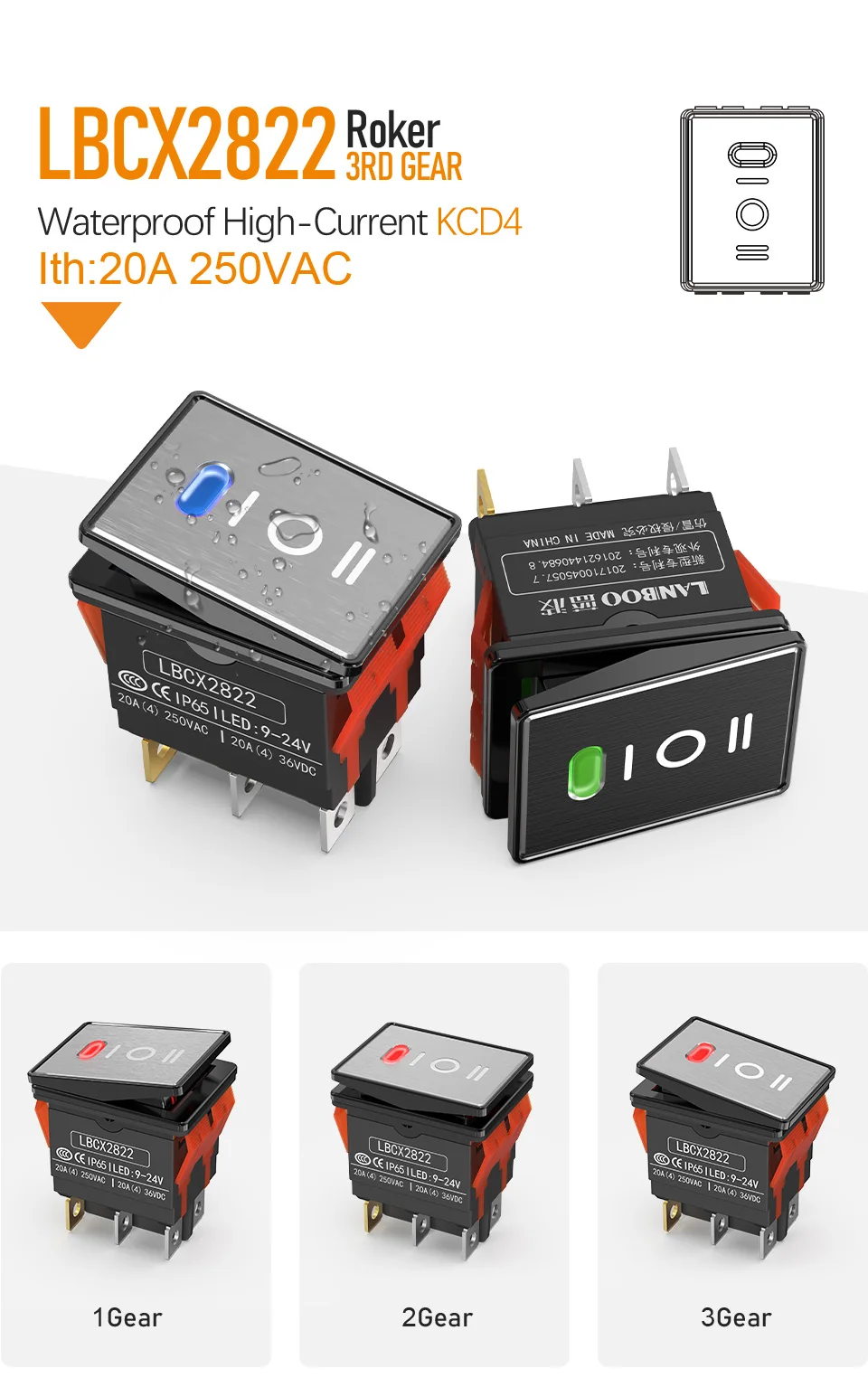

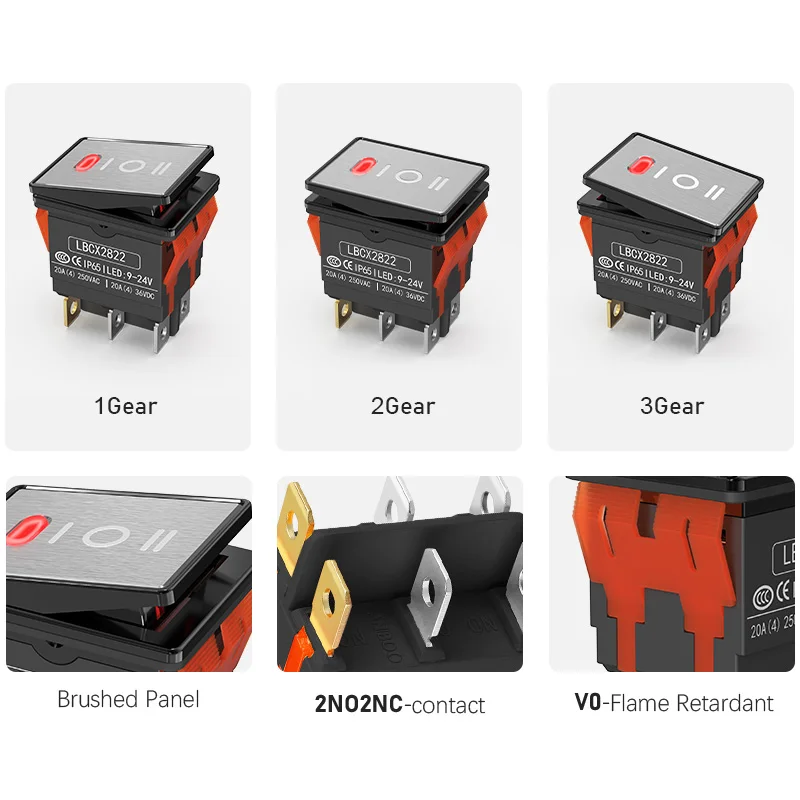

LANBOO 2822 3 gear with red/green/blue light waterproof KCD6 rocker can be customized metal boat switch
- Category: Rocker Switches >>>
- Supplier: Yueqing Branch Of Guangdong Lanbo Button Manufacturing Co. Ltd.
Share on (1600619110436):
Product Overview
Description

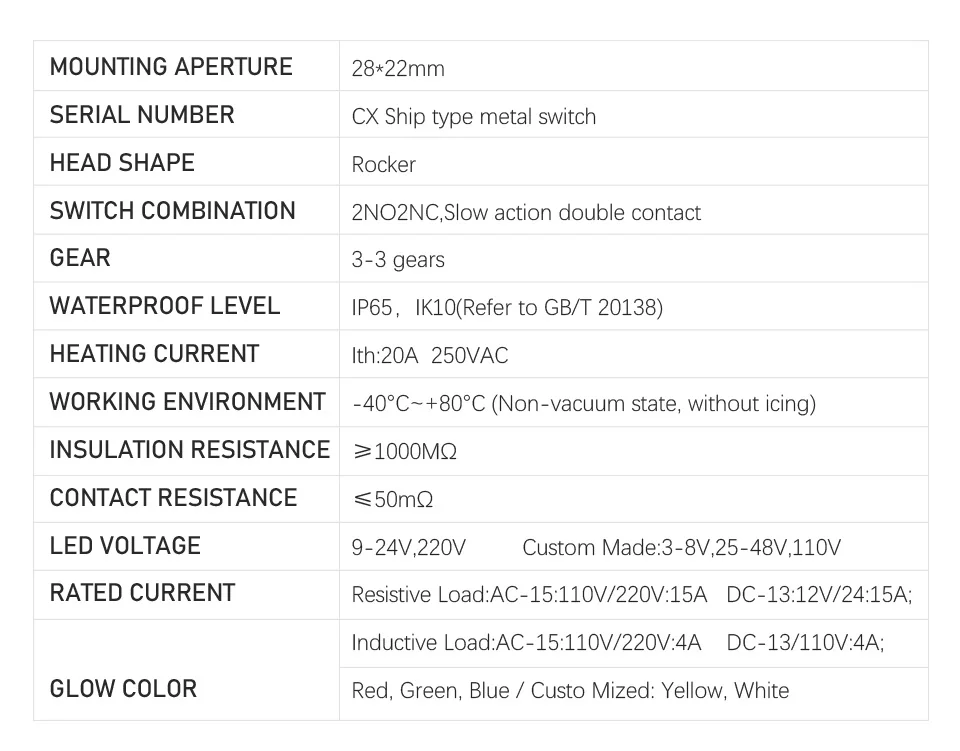

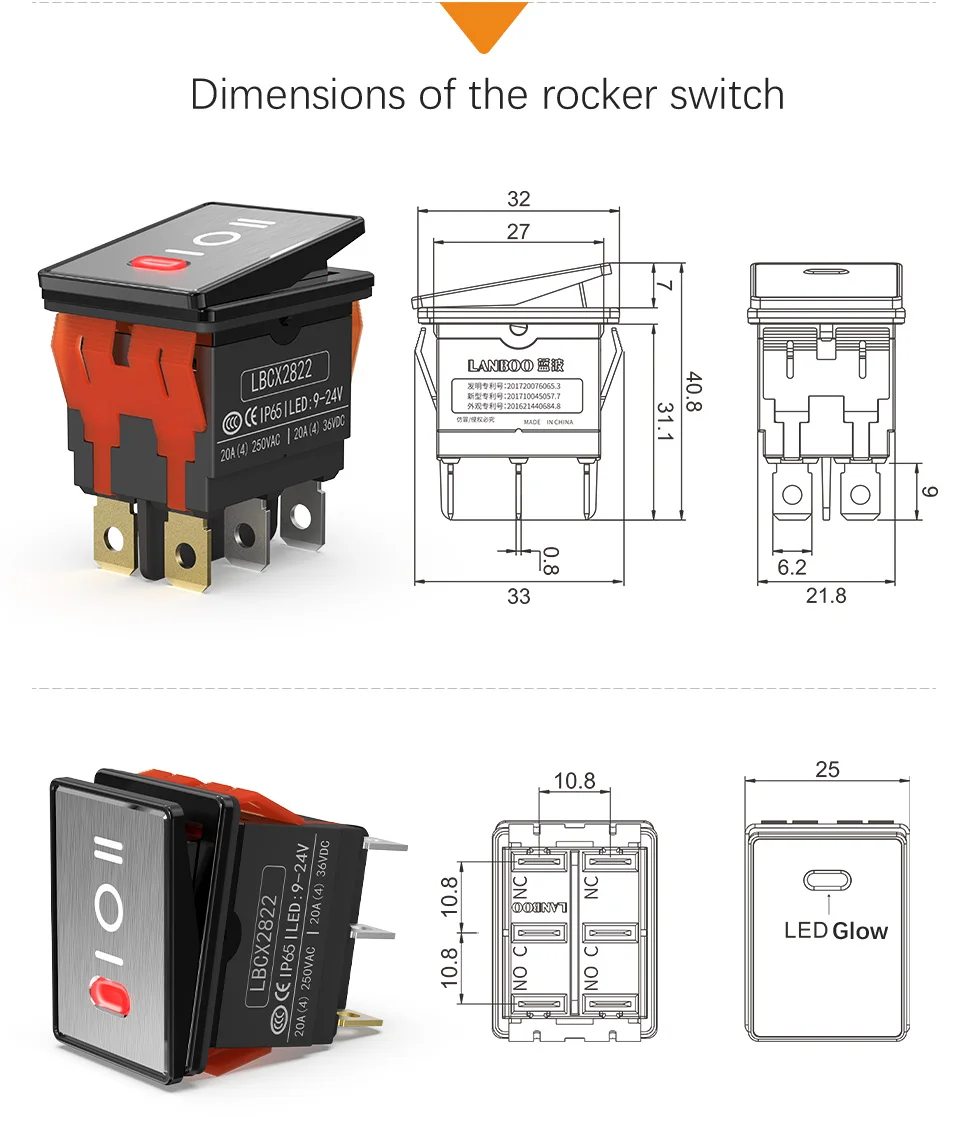

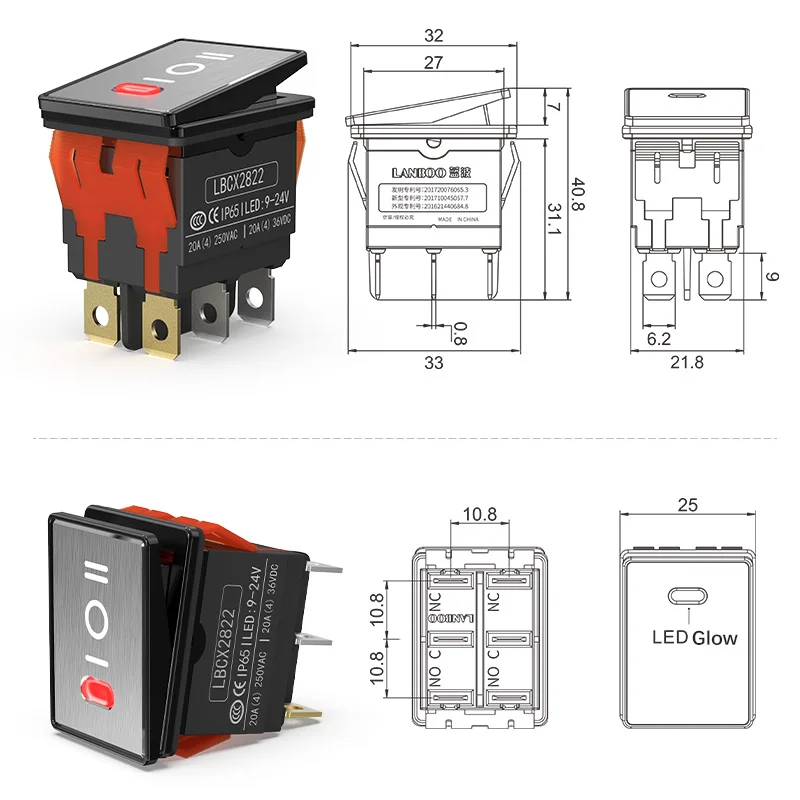

| Mounting Aperture | 28*22mm |
| Serial Number | CX Ship type metal switch |
| Head Shape | Rocker |

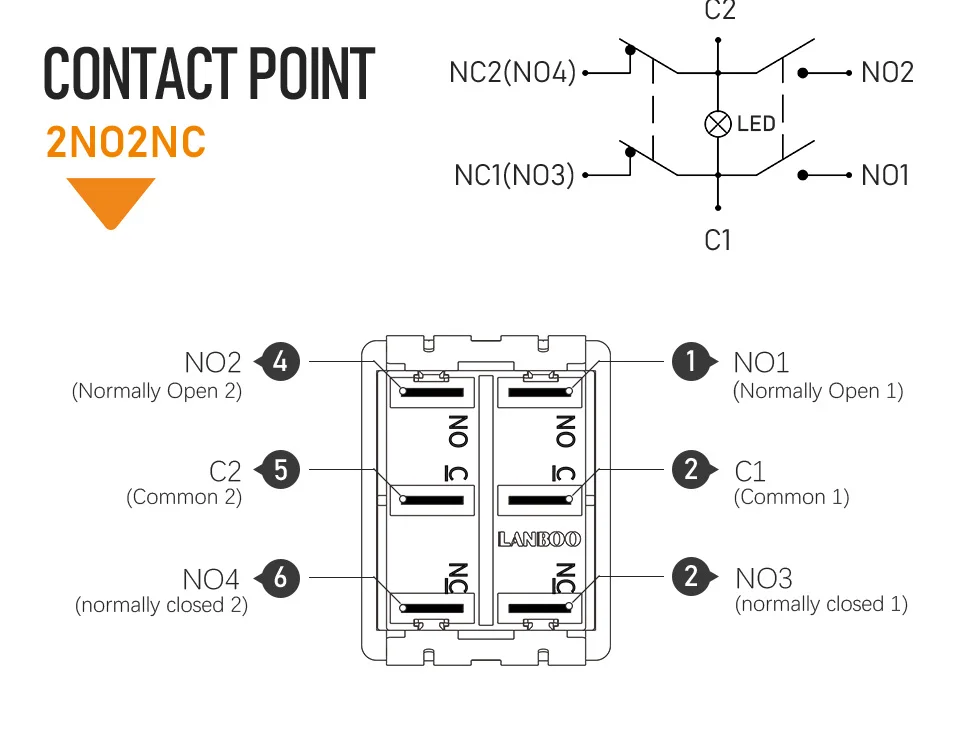

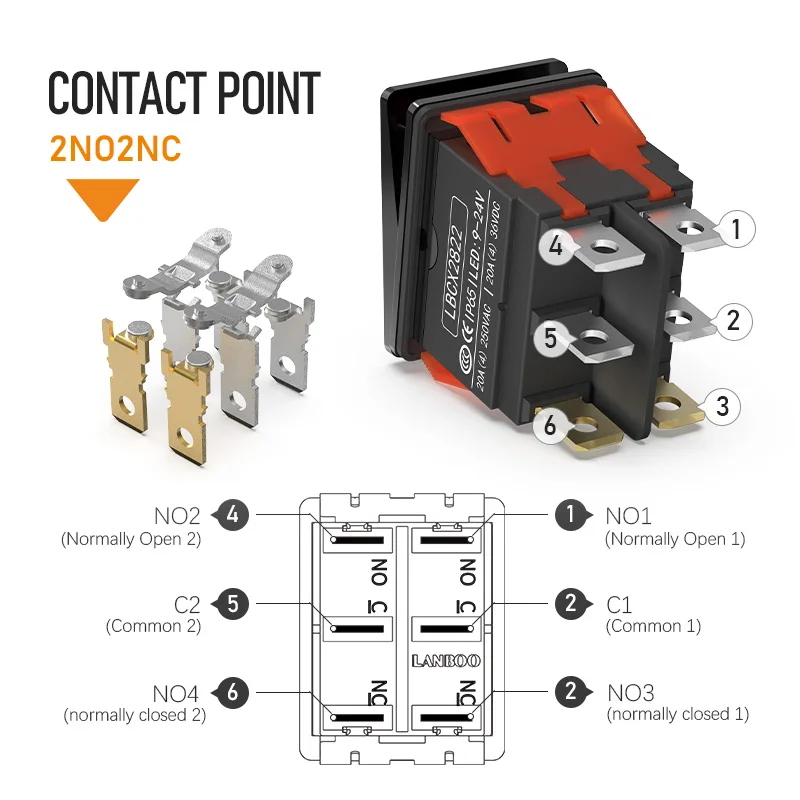

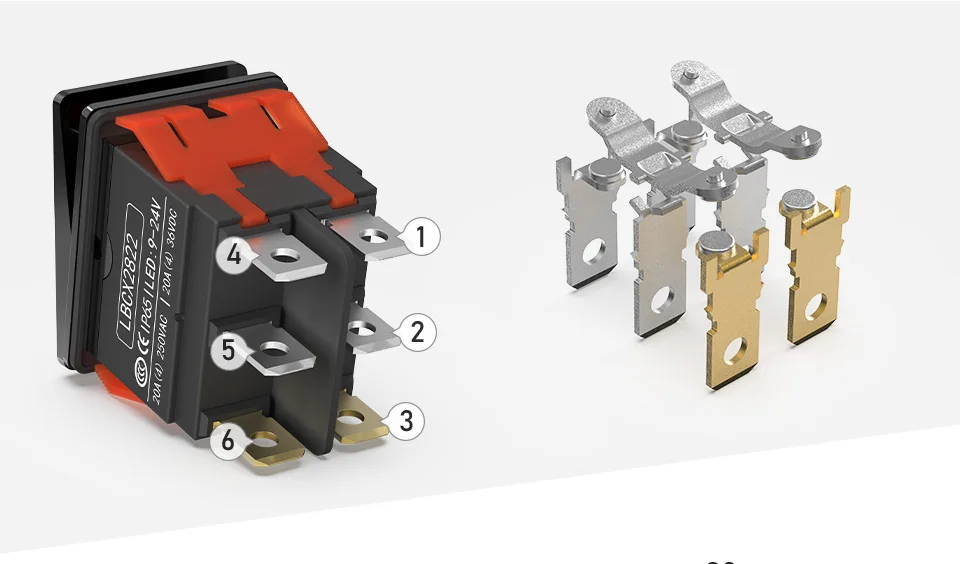

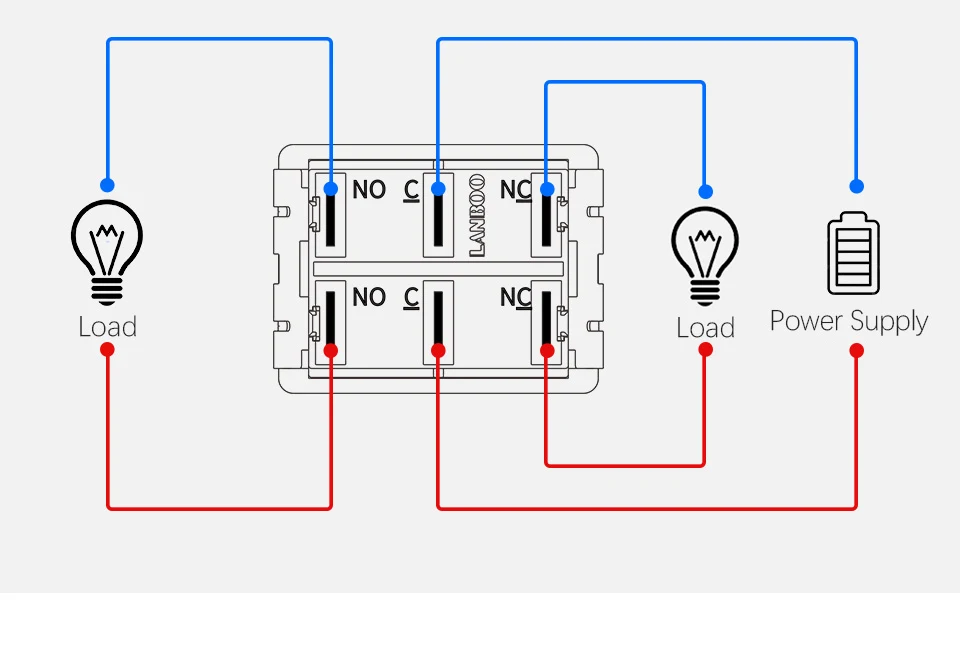

| Switch Combination | 2NO2NC,Slow action double contact gear:3-3 gears |

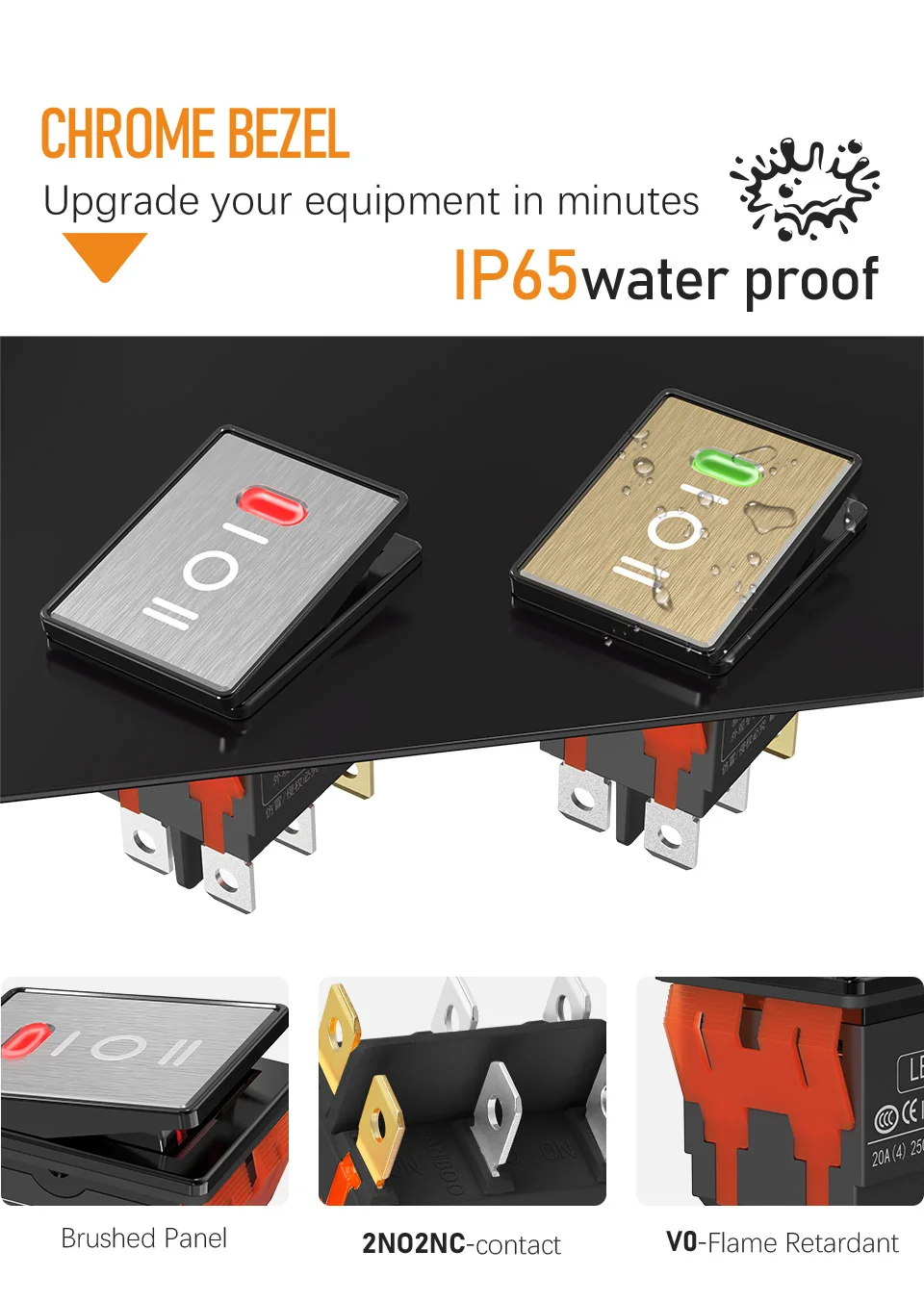

Waterproof Level | IP65,IK10(Refer to GB/T 20138) |
| Heating Current | Ith:20A 250VAC |
| Working Environment | -40°C~+80°C (Non-vacuum state, without icing) |
| Insulation Resistance | ≥1000MΩ |
| Contact Resistance | ≤50mΩ |

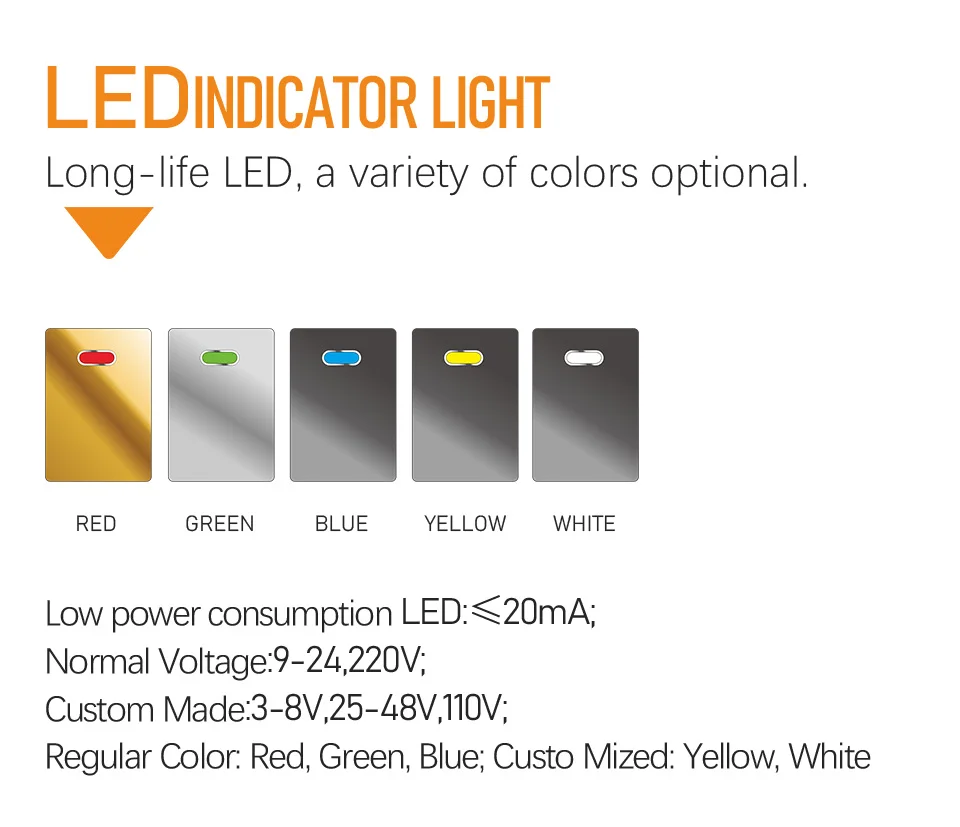

| LED Voltage | 9-24V,220V |
| Rated Current | Resistive Load:AC-15:110V/220V:15A DC-13:12V/24:15A |
| Inductive Load | AC-15:110V/220V:4A DC-13/110V:4A |

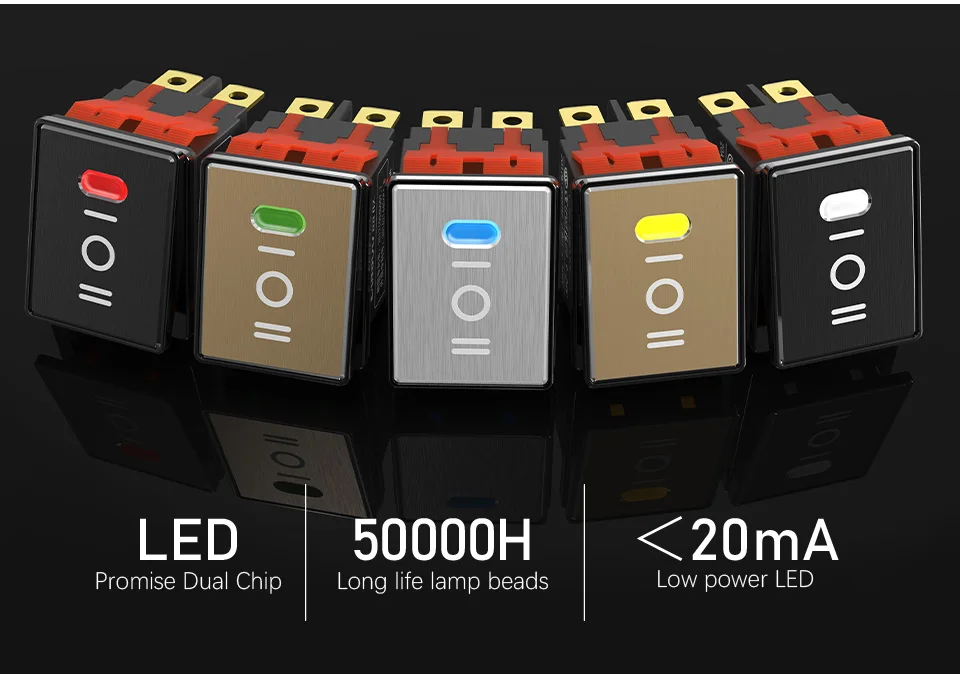

| Glow Color | Red, Green, Blue / Custo Mized: Yellow, White |
