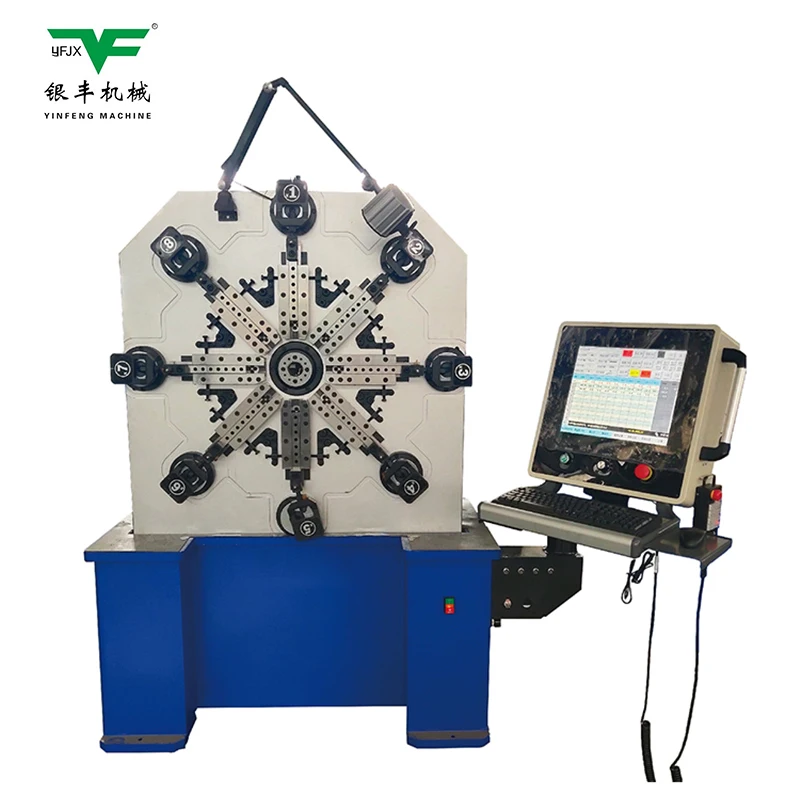

yinfeng 1045 Wire diameter 1.4 4.5mm 10 axles cnc small brake shoe tension spring making machines
- Category: >>>
- Supplier: Zhejiang Yinfeng Automation Technology Co. Ltd.
Share on (1600619139945):
Product Overview
Description
Products Description
Product advantages 1
The Multiple axes CNC spring machine can be produced (0.2-10.0mm wire diameter). The camless wire spring machine adopts a unique camless and rockerless design, which is independently controlled by multiple sets of servo motors, and each station has a separate servo drive.
Product advantages 2
The crimping function has a detachable installation function, which has a faster processing speed for corner processing and arc bending. wire transfer system solves the fact that the entire wire feed of the spring machine can be rotated 360 degrees in the forward and reverse directions during the wire feed process.
Product advantages 2
Achieve Multiple angle forming and cutting, etc.,in order to facilitate the completion of the various types of spring samples and production you require.
Wide range of applications: electronics, toys, electrical appliances, sports equipment, cars, tableware, supermarkets, stationery, apparatus, instruments, hair ornaments, crafts and so on.
Wide range of applications: electronics, toys, electrical appliances, sports equipment, cars, tableware, supermarkets, stationery, apparatus, instruments, hair ornaments, crafts and so on.
Automatic material feed frame
1.Characteristics: timing, disconnection, (starved feeding), abnormal stops (deviation), automatic alarm stop run, induction
2.control, high safety control compatibility, can use for parallel or serial electric production machinery, to independent or
3.synchronization feeding material.Automatic material feed frame YF-150 -350-500-1000(weight bearing between 150-1000 Kg)
2.control, high safety control compatibility, can use for parallel or serial electric production machinery, to independent or
3.synchronization feeding material.Automatic material feed frame YF-150 -350-500-1000(weight bearing between 150-1000 Kg)

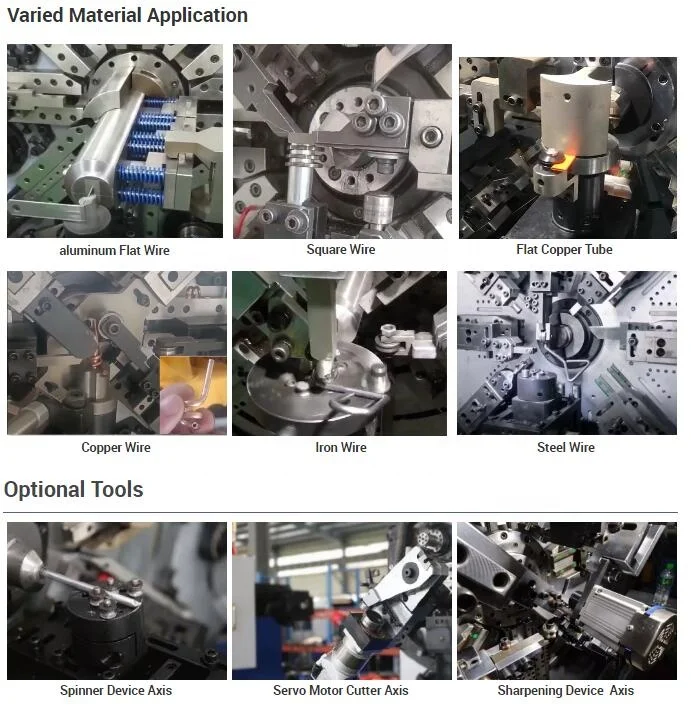

Varied Material Application
aluminum Flat Wire
Square Wire
Flat Copper Tube
Copper Wire
Iron Wire
Steel Wire
Optional Tools
Spinner Device Axis
Servo Motor Cutter Axis
Sharpening Device Axis
Our Yinfeng Machine Can Make Any Kinds Of Spring, Also We Can Customized Extra Function According To Your Requirements.
Manufacturing Product Videos
Product Paramenters
Model | CNC-1045 | Total output power of servo motor | 16.3Kw |
Wire diameter | Φ1.4-Φ4.5mm | Input voltage | 380V |
Max Wire Feed instruction value | 10000.00mm | Program data storage | More than 2000 pcs |
Min Wire Feed instruction value | 0.01 mm | Pneumatic system (pressure) | 5-6KG/cm |
Max Wire Feed speed | 100 m/min | Pneumatic system (probe) | 3pcs |
Max Wire Feed length | Infinite length | Machine sizes | 2100x1100x2100mm |
Axles number | 10 axles | Machine weight | 2500KG |
Price list could be sent upon request, just kindly contact us:
Ms Grace Email: yinfengspring@163.com Cell/Whatsapp:+8618520279887
Ms Grace Email: yinfengspring@163.com Cell/Whatsapp:+8618520279887
Why Choose Us

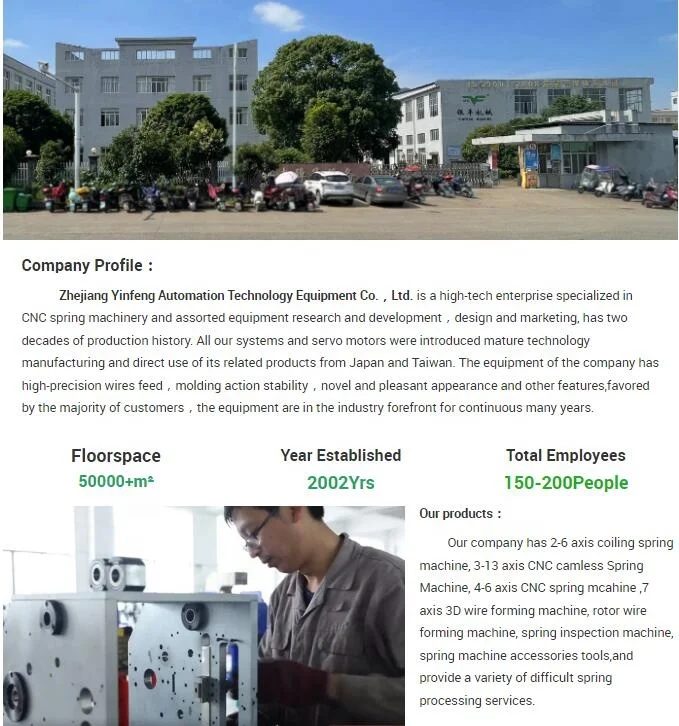

Company Profile：
Zhejiang Yinfeng Automation Technology Equipment Co.，Ltd. is a high-tech enterprise specialized in CNC spring machinery and assorted equipment research and development，design and marketing, has two decades of production history. All our systems and servo motors were introduced mature technology manufacturing and direct use of its related products from Japan and Taiwan. The equipment of the company has high-precision wires feed，molding action stability，novel and pleasant appearance and other features,favored by the majority of customers，the equipment are in the industry forefront for continuous many years.
Floorspace
50000+m²
Year Established
2002Yrs
Total Employees
150-200People
Our products：
Our company has 2-6 axis coiling spring machine, 3-13 axis CNC camless Spring Machine, 4-6 axis CNC spring mcahine ,7 axis 3D wire forming machine, rotor wire forming machine, spring inspection machine, spring machine accessories tools,and provide a variety of difficult spring processing services.

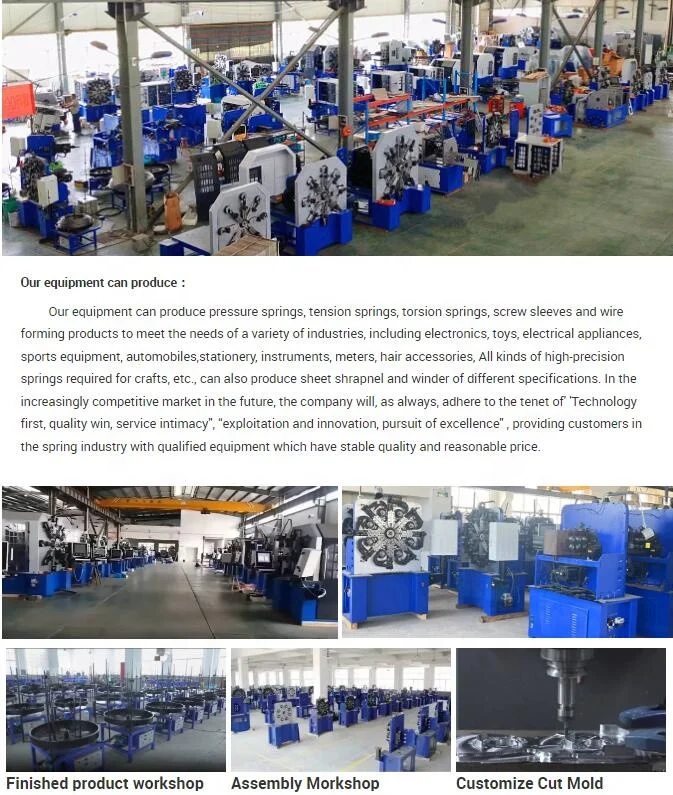

Our equipment can produce：
Our equipment can produce pressure springs, tension springs, torsion springs, screw sleeves and wire forming products to meet the needs of a variety of industries, including electronics, toys, electrical appliances, sports equipment, automobiles,stationery, instruments, meters, hair accessories, All kinds of high-precision springs required for crafts, etc., can also produce sheet shrapnel and winder of different specifications. In the increasingly competitive market in the future, the company will, as always, adhere to the tenet of' 'Technology first, quality win, service intimacy", “exploitation and innovation, pursuit of excellence" , providing customers in the spring industry with qualified equipment which have stable quality and reasonable price.
Finished product workshop
Stock Machines: 20-30/pcs Per Model
Total Stock：300pcs＋ Monthly
Assembly Morkshop
World Standard Production Procedure Ensure High Quality and High Precision of Products
Five Assembly Workshops, each 5000 Square Meter
Customize Cut Mold
Engineers：20+
Customized Different Cut Molds According to Requirements 5 Days Lead Time for Customized Cut Mold
We Can OEM Custom According To Your Requirement
To manufacturing and servicing spring machinery meet customer demandfor quality technology, take on spring manufacturing industry partner, we all willcontinue to develop more sophisticated machinery， and to provide moreconvenient and efficient technical advice and perfect after-sales service.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory, we have been in this industry for over 20 years.
Q: How long is your delivery time?
A: Generally it is 5-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance ,balance before shipment.
