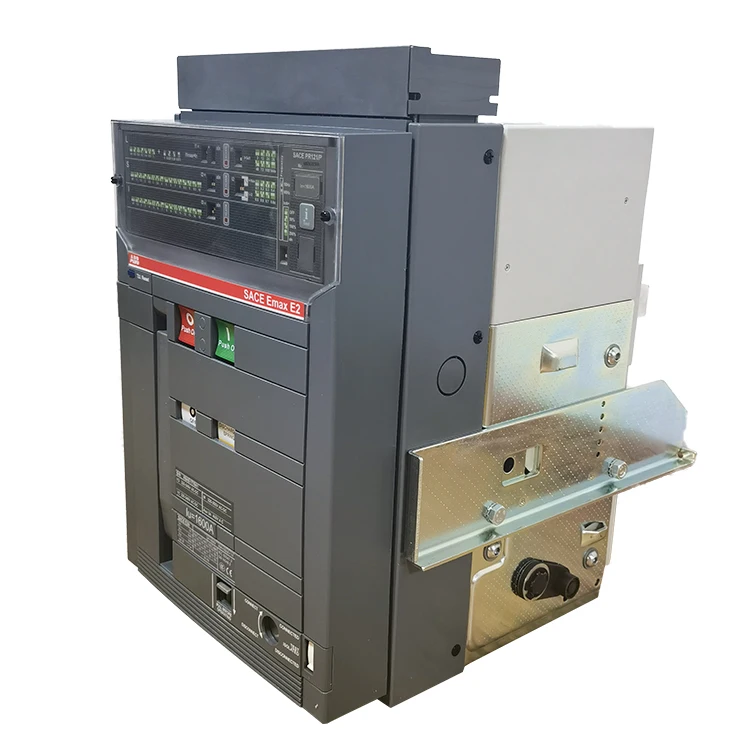

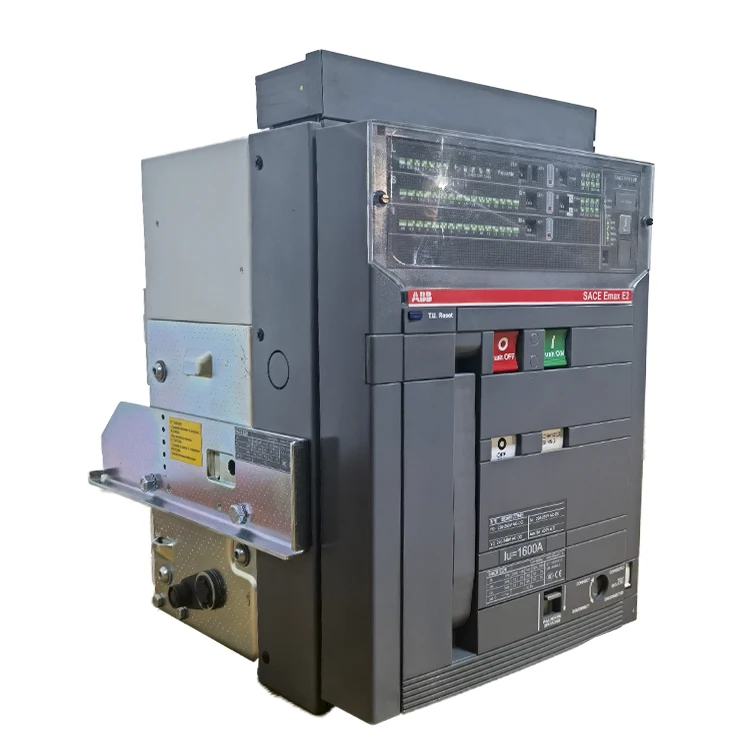

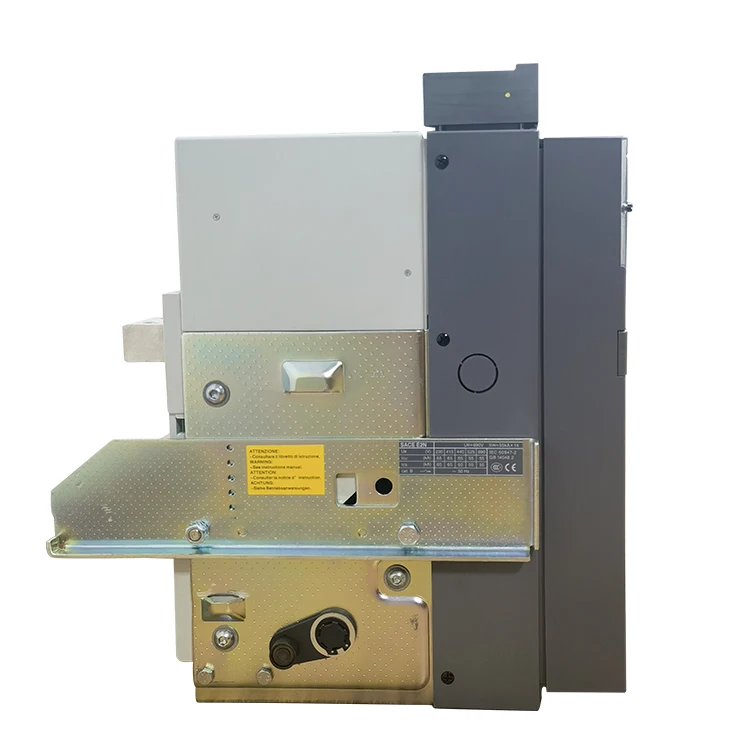

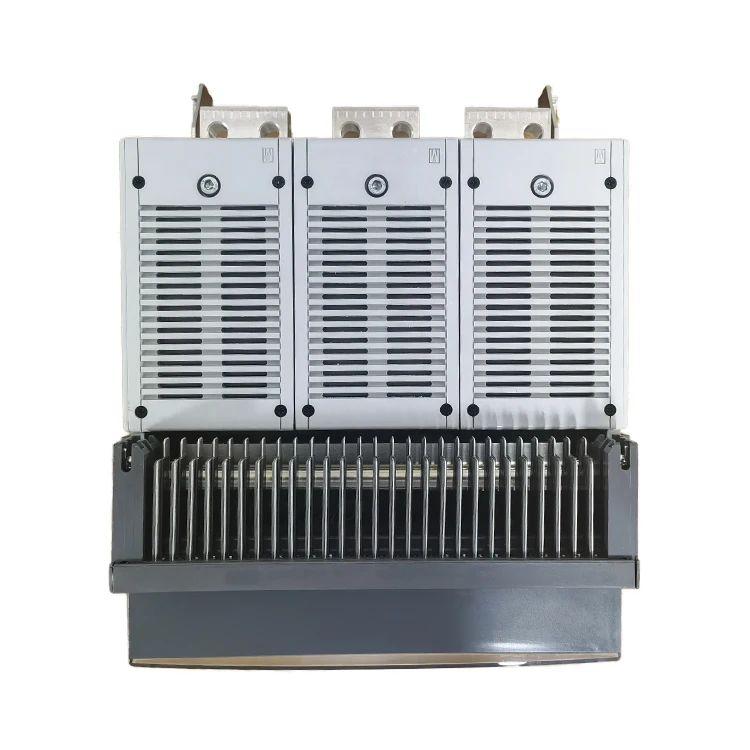

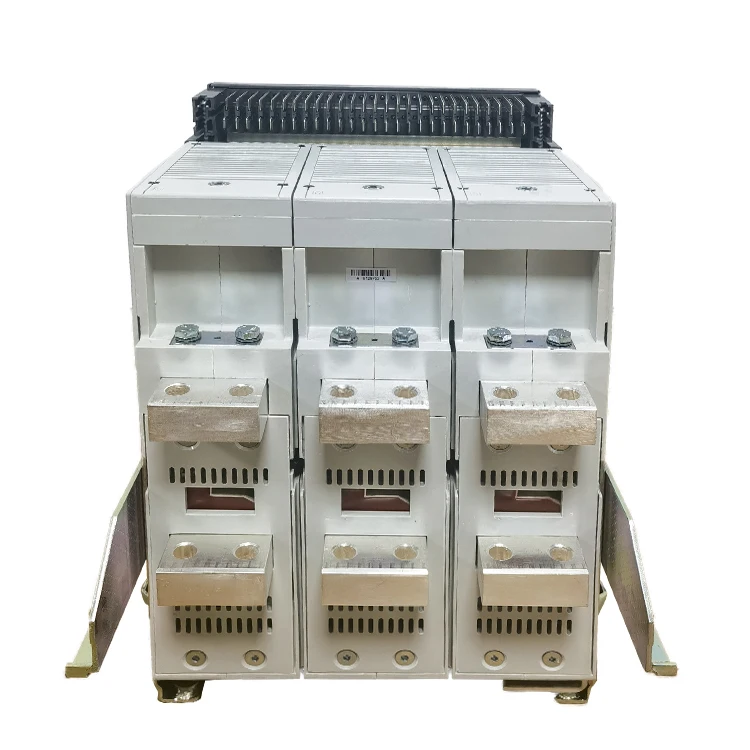

Common Emax series air circuit breaker E2S2000 R1250 PR121/P LI WHR 4P 10049818 Draw out type
Common Emax series air circuit breaker E2S2000 R1250 PR121/P-LI WHR 4P 10049818 Draw out type
Common Emax series air circuit breaker E2S2000 R1250 PR121/P-LI WHR 4P 10049818 Draw out type
Common Emax series air circuit breaker E2S2000 R1250 PR121/P-LI WHR 4P 10049818 Draw out type
Common Emax series air circuit breaker E2S2000 R1250 PR121/P-LI WHR 4P 10049818 Draw out type
Common Emax series air circuit breaker E2S2000 R1250 PR121/P-LI WHR 4P 10049818 Draw out type
Common Emax series air circuit breaker E2S2000 R1250 PR121/P-LI WHR 4P 10049818 Draw out type

Common Emax series air circuit breaker E2S2000 R1250 PR121/P LI WHR 4P 10049818 Draw out type

Share on (1600619140751):


Price:$8,085.00 - $8,086.00

Quantity:


Product Overview

Description



Product Description




product size




Specification


Product series
E2S
Tripping device category
PR121 / P (dial the code type)
Tripping device code
PR121 / P - LI (2 dial the code type)
Rated short circuit breaking capacity AC400V operation
85KA
Rated current of trip
1250A
The rated working voltage
AV690V
AC400V limit short circuit breaking capacity rating
85KA
The rated insulation voltage
1000v
The rated impulse withstand voltage
12KV
(1 s) AC400V rated short-time resistance current
65KA
highly/The depth of the
416MM/396.5MM
