AUNEN 12V 100AH 200AH 260AH LiFePo4 Battery Pack Cells Lithium Iron Phosphate Solar Batteries Built in BMS For RV Boat Inverter

Product Paramenters

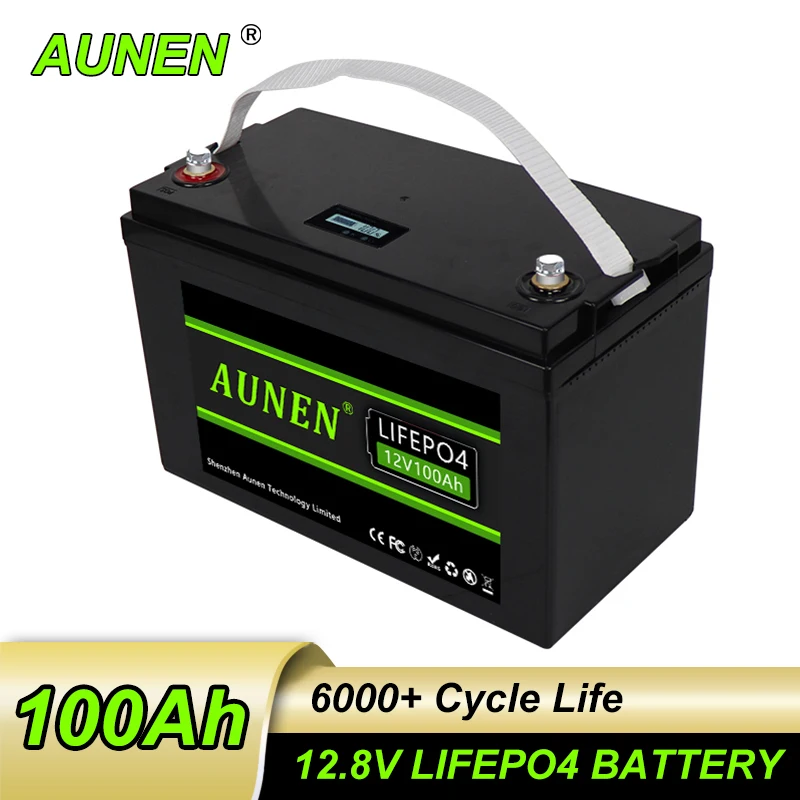

12V 100Ah Lifepo4 Battery

Electrical Parameter
Model: AN-12T100
Nominal Voltage: 12.8V
Nominal Capacity: 100Ah
Energy : 1280Wh
Internal Resistance: ≤35mΩ
Cycle Life: >6000 cycles ( DOD90%)
Self Discharge: <3%/month

Charging&Discharge Parameter
Max.Charging Voltage: 14.6V
Max.Charging Current: 50A
Discharging Cut-off Voltage: 10V
Max continuous discharging current: 100A

Operating Condition
Charge Temperature: 0℃ to 55℃(32℉ to 131℉) @60±25% Relative Humidity
Discharge Temperature:-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature:-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Water Dust Resistance:IP65

Structure
Dimension (L*W*H):330*170*230mm(12.9*6.7*9.0 inch)
Weight:13kg(28.6lb)
Certification :CE,FCC,RoHS,MSDS,UN38.3
Case Material:ABS
Terminal:M8
Chemistry:LiFePO4
Cell Type:Prismatic

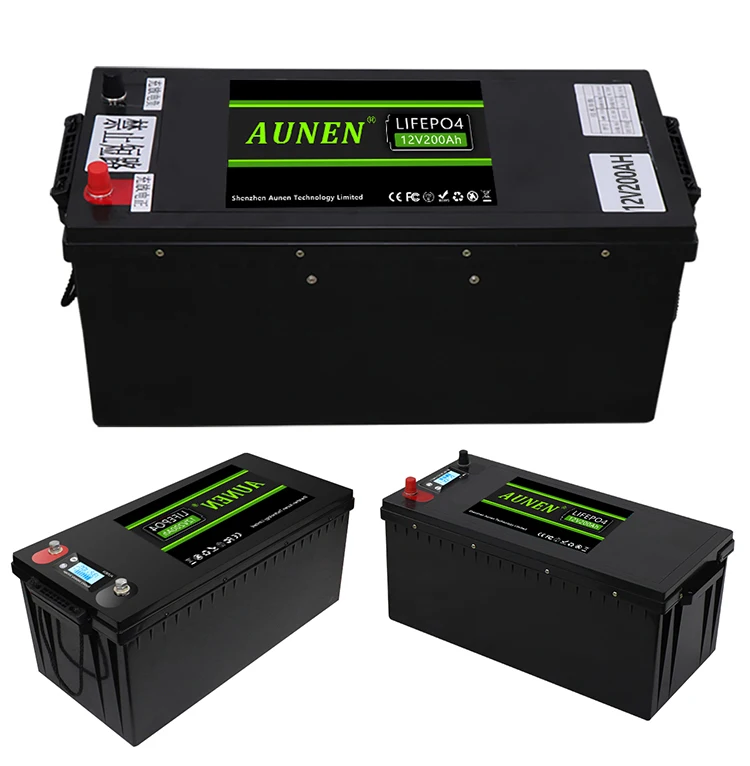

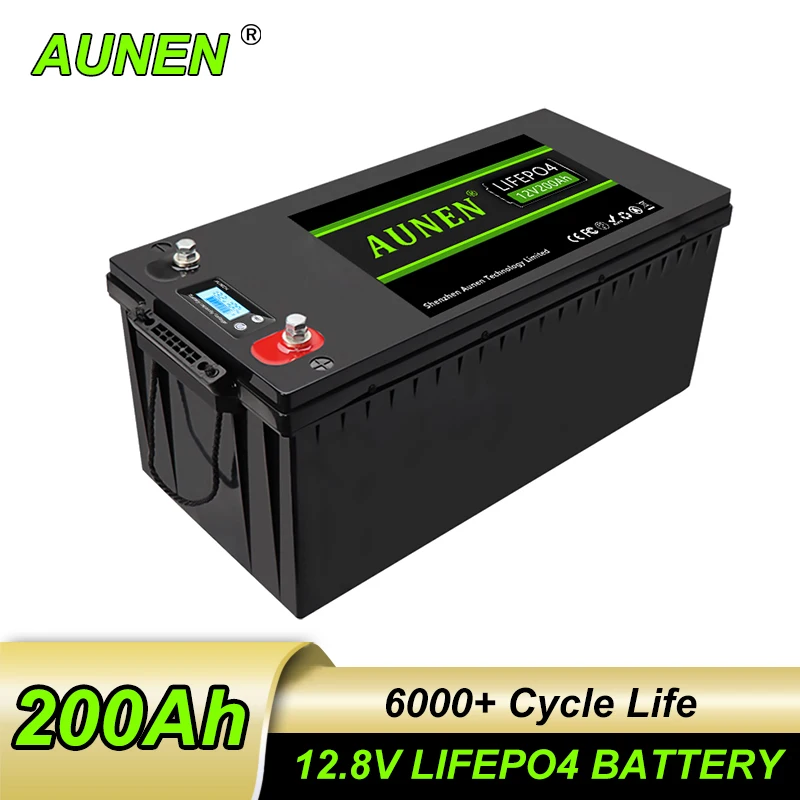

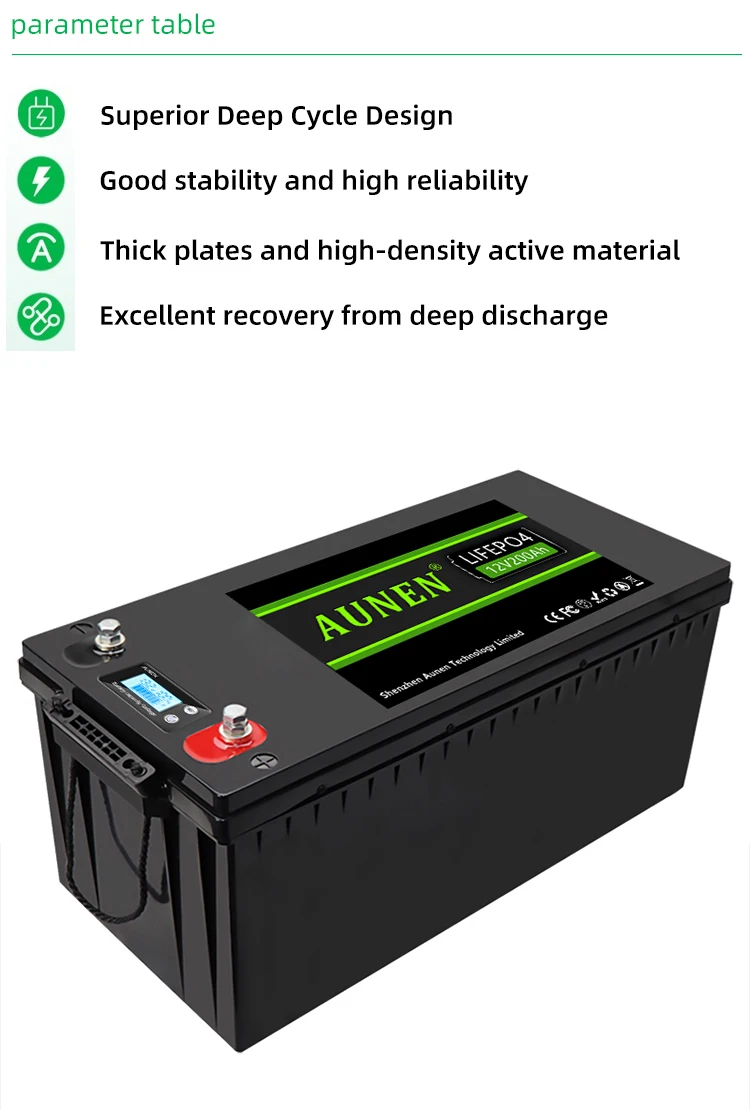

12V 200Ah Lifepo4 Battery

Electrical Parameter
Model: AN-12T200
Nominal Voltage: 12.8V
Nominal Capacity: 200Ah
Energy : 2560Wh
Internal Resistance: ≤35mΩ
Cycle Life: >6000 cycles ( DOD90%)
Self Discharge: <3%/month

Charging&Discharge Parameter
Max.Charging Voltage: 14.6V
Max.Charging Current: 100A
Discharging Cut-off Voltage: 10V
Max continuous discharging current: 200A

Operating Condition
Charge Temperature: 0℃ to 55℃(32℉ to 131℉) @60±25% Relative Humidity
Discharge Temperature:-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature:-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Water Dust Resistance:IP65

Structure
Dimension (L*W*H):530*230*220mm(20.8*9.0*8.6 inch)
Weight:22kg
Certification :CE,FCC,RoHS,MSDS,UN38.3
Case Material:ABS
Terminal:M8
Chemistry:LiFePO4
Cell Type:Prismatic

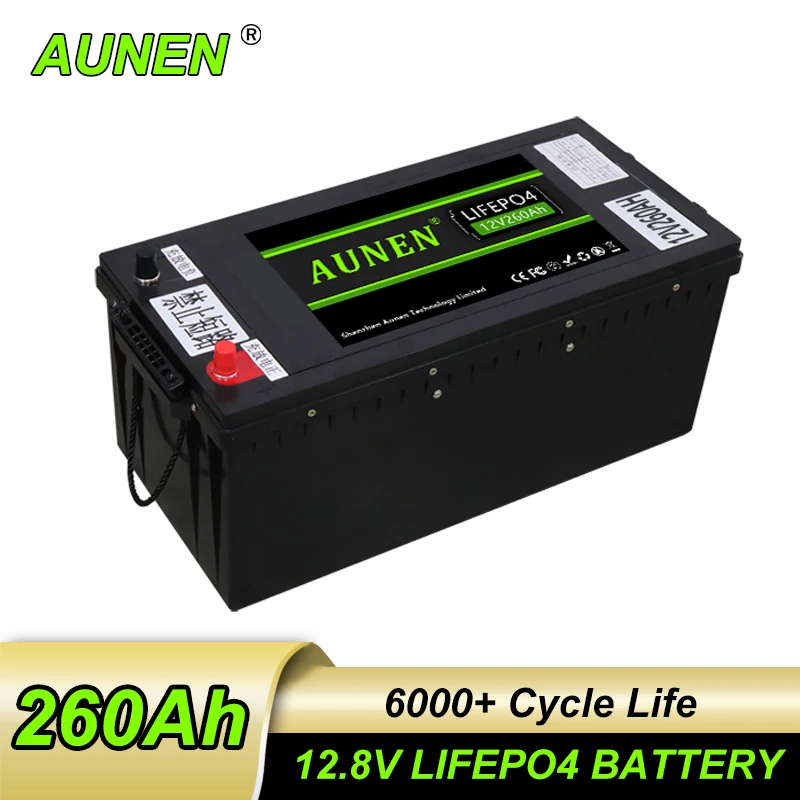

12V 260Ah Lifepo4 Battery

Electrical Parameter
Model: AN-12T260
Nominal Voltage: 12.8V
Nominal Capacity: 260Ah
Energy : 3120Wh
Internal Resistance: ≤35mΩ
Cycle Life: >6000 cycles ( DOD90%)
Self Discharge: <3%/month

Charging&Discharge Parameter
Max.Charging Voltage: 14.6V
Max.Charging Current: 130A
Discharging Cut-off Voltage: 10V
Max continuous discharging current: 260A

Operating Condition
Charge Temperature: 0℃ to 55℃(32℉ to 131℉) @60±25% Relative Humidity
Discharge Temperature:-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature:-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Water Dust Resistance:IP65

Structure
Dimension (L*W*H):530*270*220mm(20.8*10.6*8.6 inch)
Weight:27kg(60lb)
Certification :CE,FCC,RoHS,MSDS,UN38.3
Case Material:ABS
Terminal:M8
Chemistry:LiFePO4
Cell Type:Prismatic

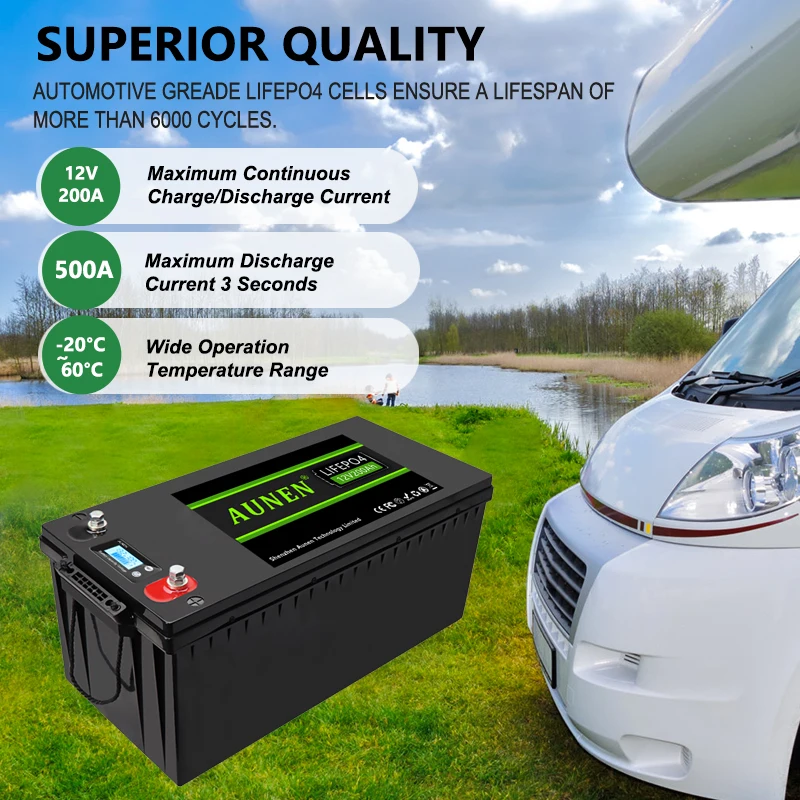

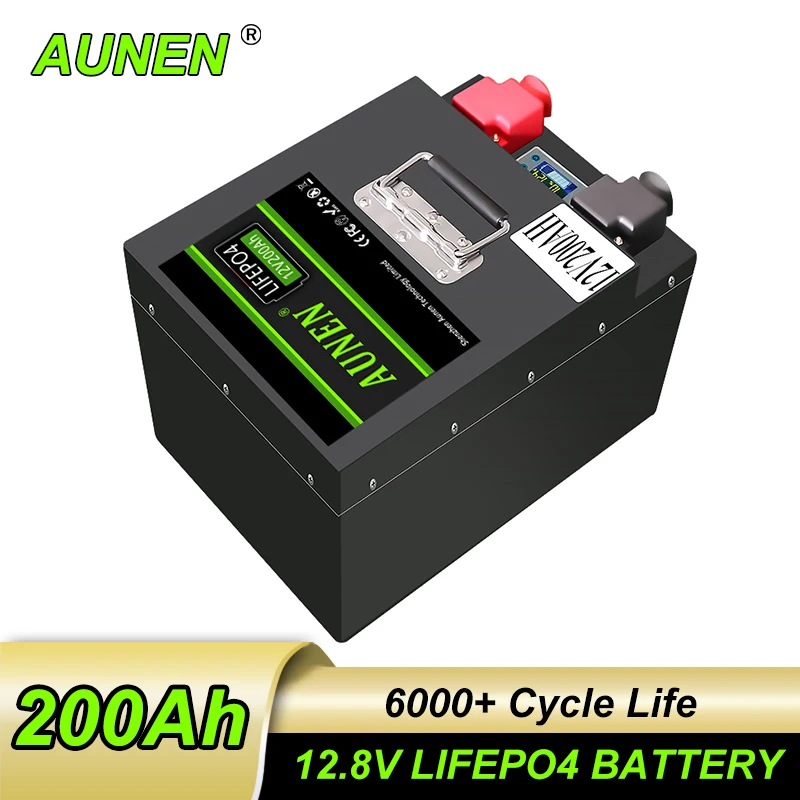

12V 200Ah Lifepo4 Battery with-Bluetooth

Electrical Parameter
Model: AN-12B200
Nominal Voltage: 12.8V
Nominal Capacity: 200Ah
Energy : 2560Wh
Internal Resistance: ≤35mΩ
Cycle Life: >6000 cycles ( DOD90%)
Self Discharge: <3%/month

Charging&Discharge Parameter
Max.Charging Voltage: 14.6V
Max.Charging Current: 100A
Discharging Cut-off Voltage: 10V
Max continuous discharging current: 200A

Operating Condition
Charge Temperature: 0℃ to 55℃(32℉ to 131℉) @60±25% Relative Humidity
Discharge Temperature:-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature:-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Water Dust Resistance:IP65

Structure
Dimension (L*W*H):350*250*250mm(13.7*9.8*9.8 inch)
Weight:24kg(52.9lb)
Certification :CE,FCC,RoHS,MSDS,UN38.3
Case Material:ABS
Terminal:M8
Chemistry:LiFePO4
Cell Type:Prismatic

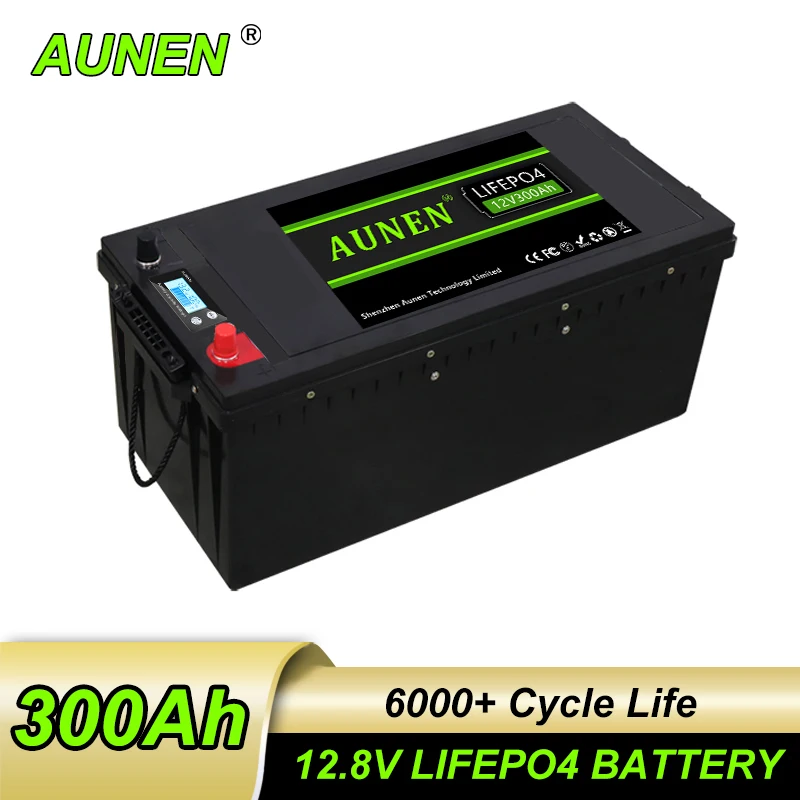

12V 300Ah Lifepo4 Battery

Electrical Parameter
Model: AN-12T300
Nominal Voltage: 12.8V
Nominal Capacity: 300Ah
Energy : 3840Wh
Internal Resistance: ≤35mΩ
Cycle Life: >6000 cycles ( DOD90%)
Self Discharge: <3%/month

Charging&Discharge Parameter
Max.Charging Voltage: 14.6V
Max.Charging Current: 150A
Discharging Cut-off Voltage: 10V
Max continuous discharging current: 300A

Operating Condition
Charge Temperature: 0℃ to 55℃(32℉ to 131℉) @60±25% Relative Humidity
Discharge Temperature:-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature:-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Water Dust Resistance:IP65

Structure
Dimension (L*W*H):530*230*220mm(20.8*9.0*8.6 inch)
Weight:31kg
Certification :CE,FCC,RoHS,MSDS,UN38.3
Case Material:ABS
Terminal:M8
Chemistry:LiFePO4
Cell Type:Prismatic

Products Description

Warm Tip

1, We focus on lifepo4 battery, accepting customized battery pack . If any battery you want which is not updated on our page, please feel free to contact us.

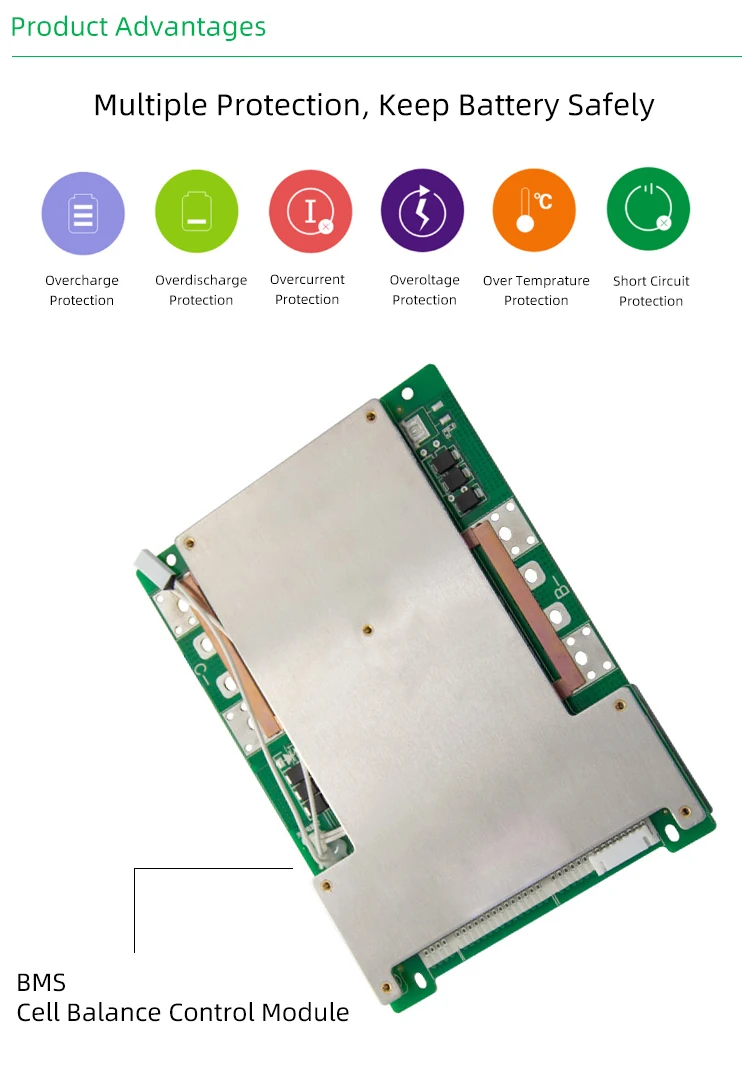

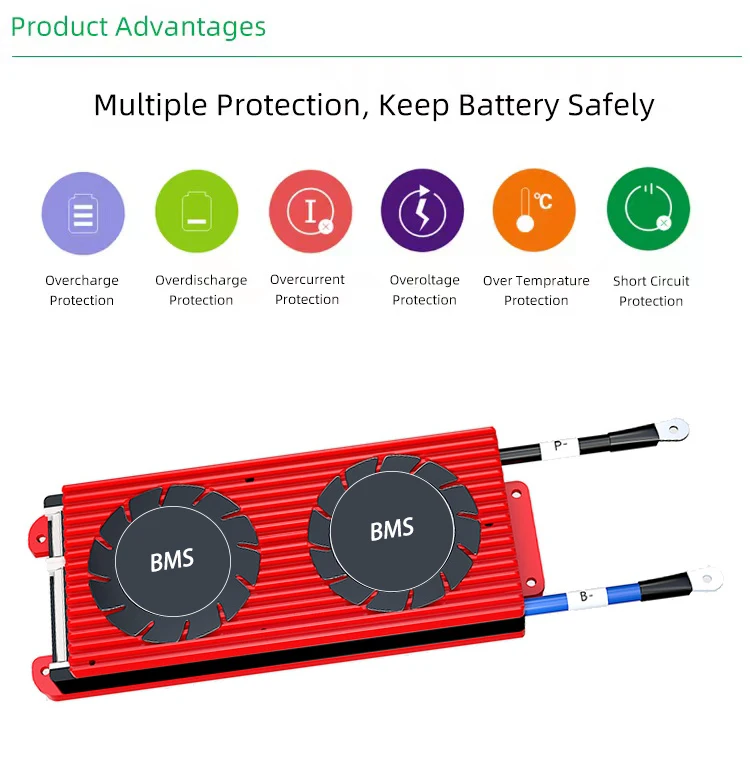

2, If you need the BMS with-bluetooth function,please feel free to contact us.

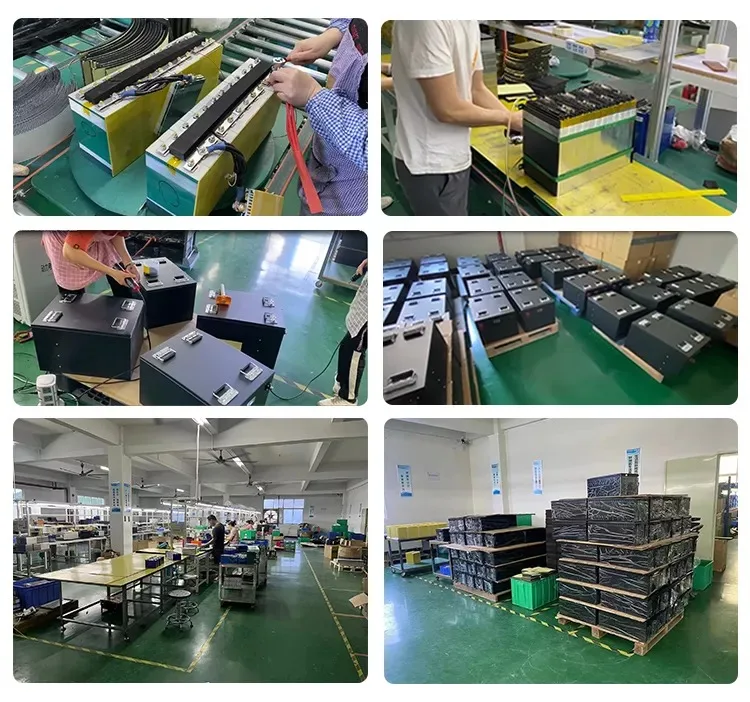

Company Profile

Shenzhen Aunen Technology Limited
is a company specialized in the R & D, production and sales of Lithium Ion Battery.
All products have passed CE, FCC, CCC, ROHS certification to ensure the safety and quality of products.
Our professional R & D team is committed to the design of creative products.And Our products has been export to all over the world.OEM and ODM are welcome.
We believe that high quality products and competitive price are the bridge connecting you and us.
One-stop solution will be given to help you to develop the business rapidly in your country. Win-win situation with respect is the core value of AUNEN. Welcome to contact us!
