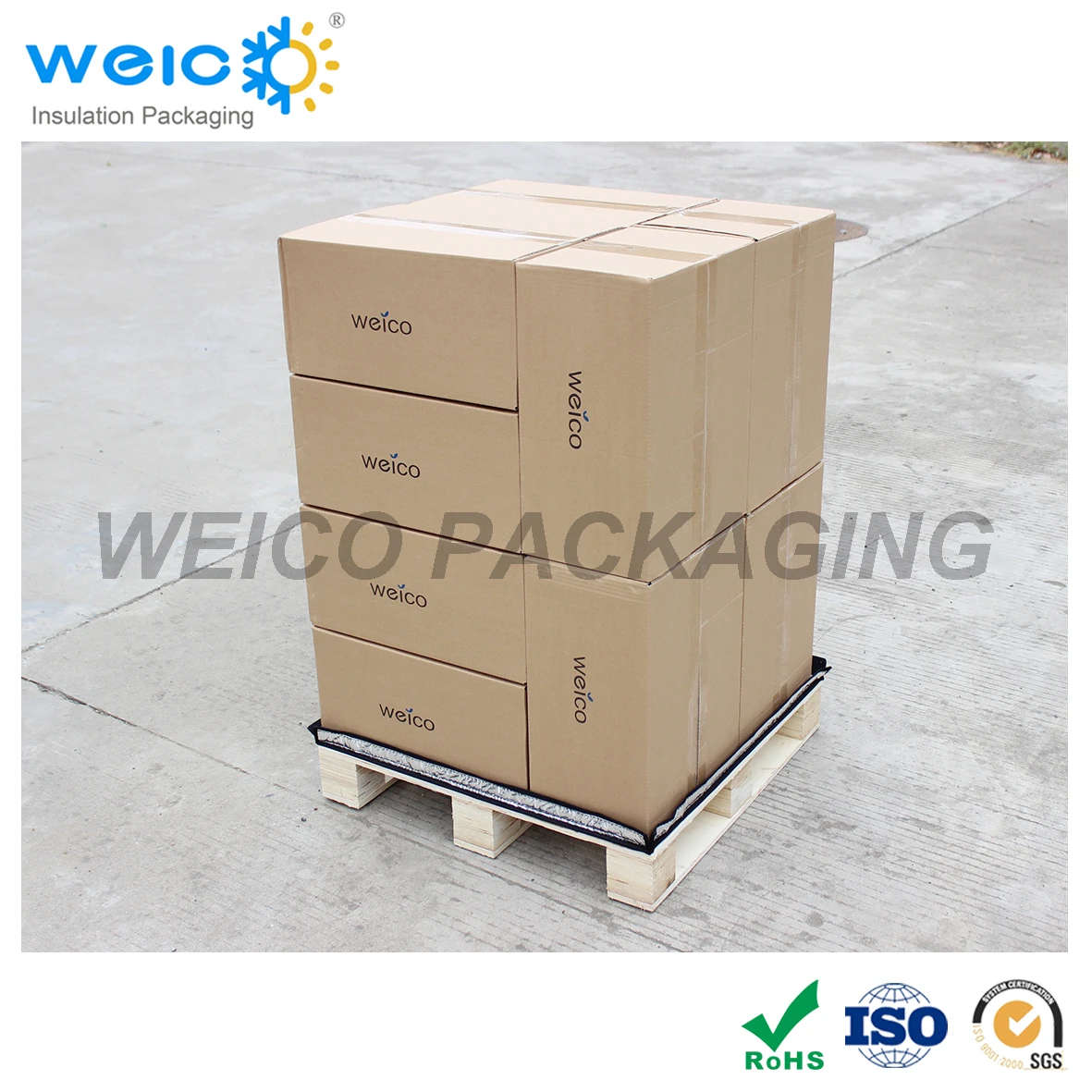

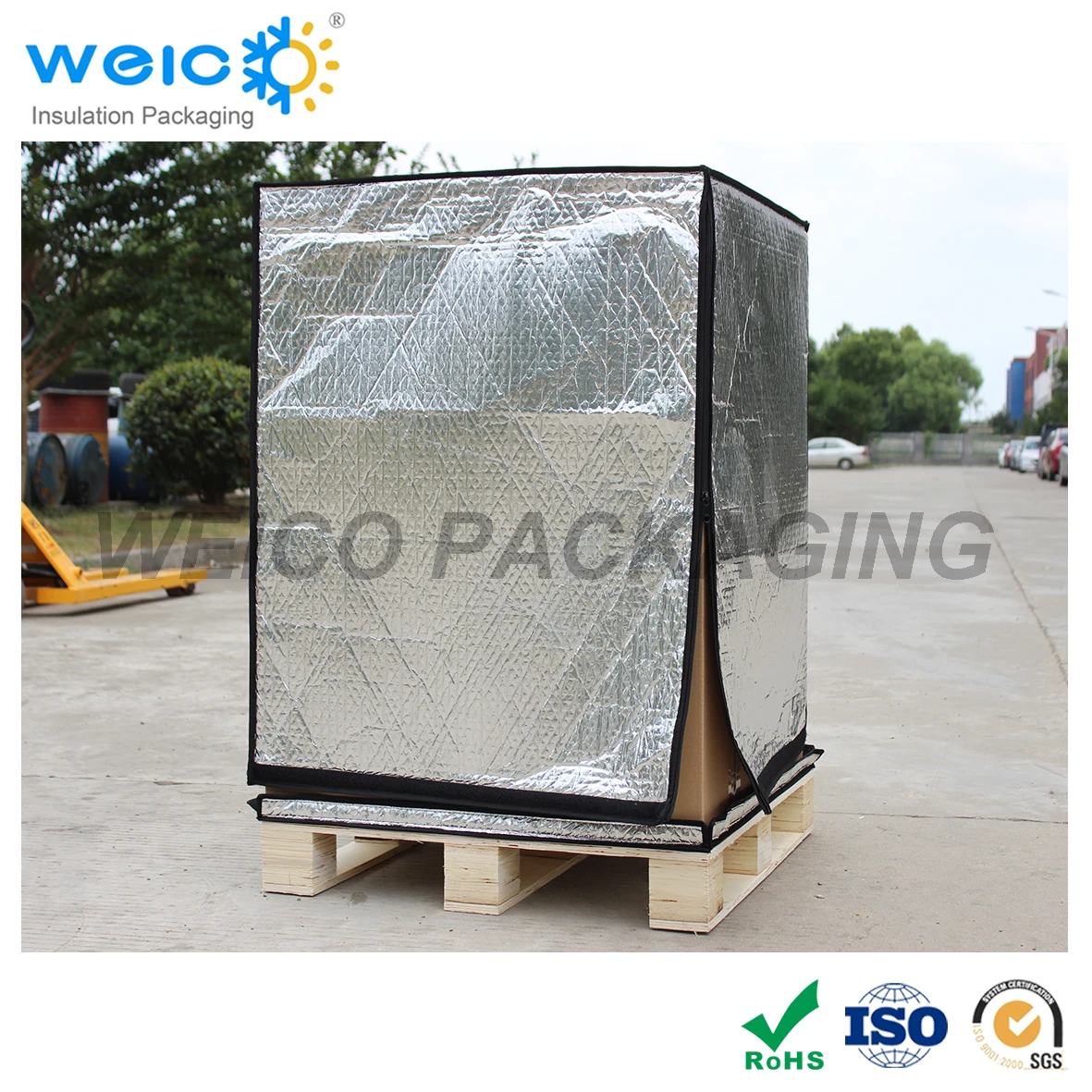

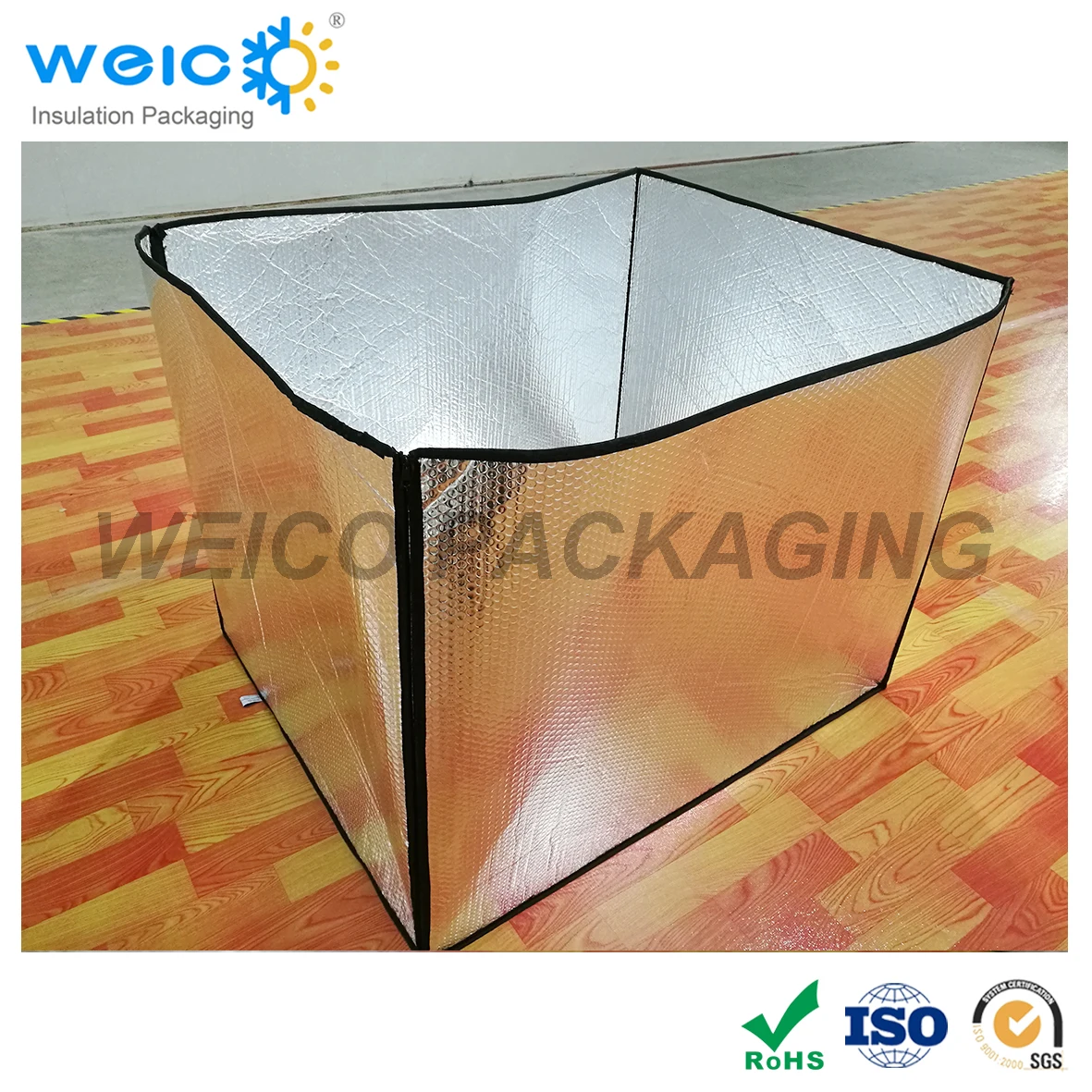

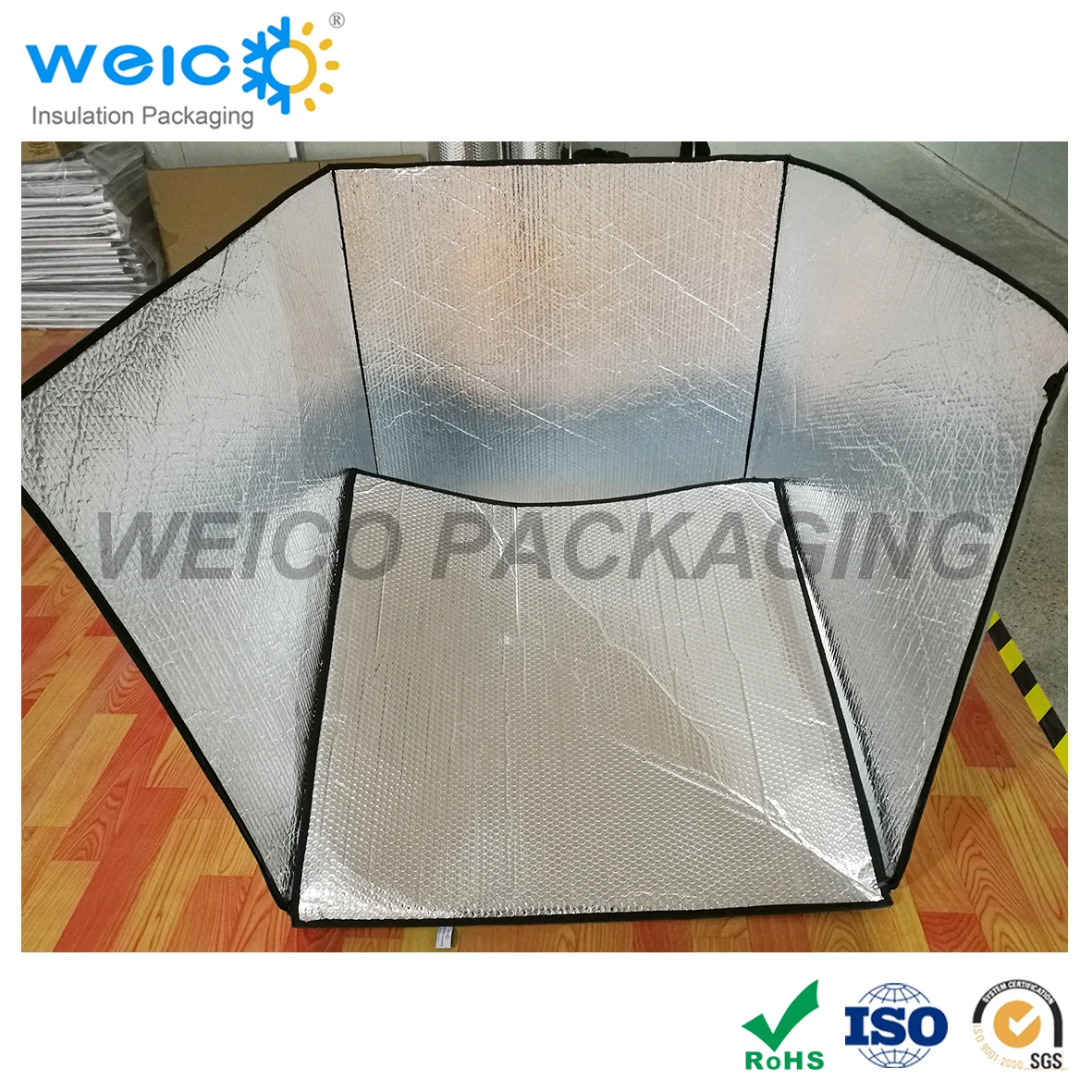

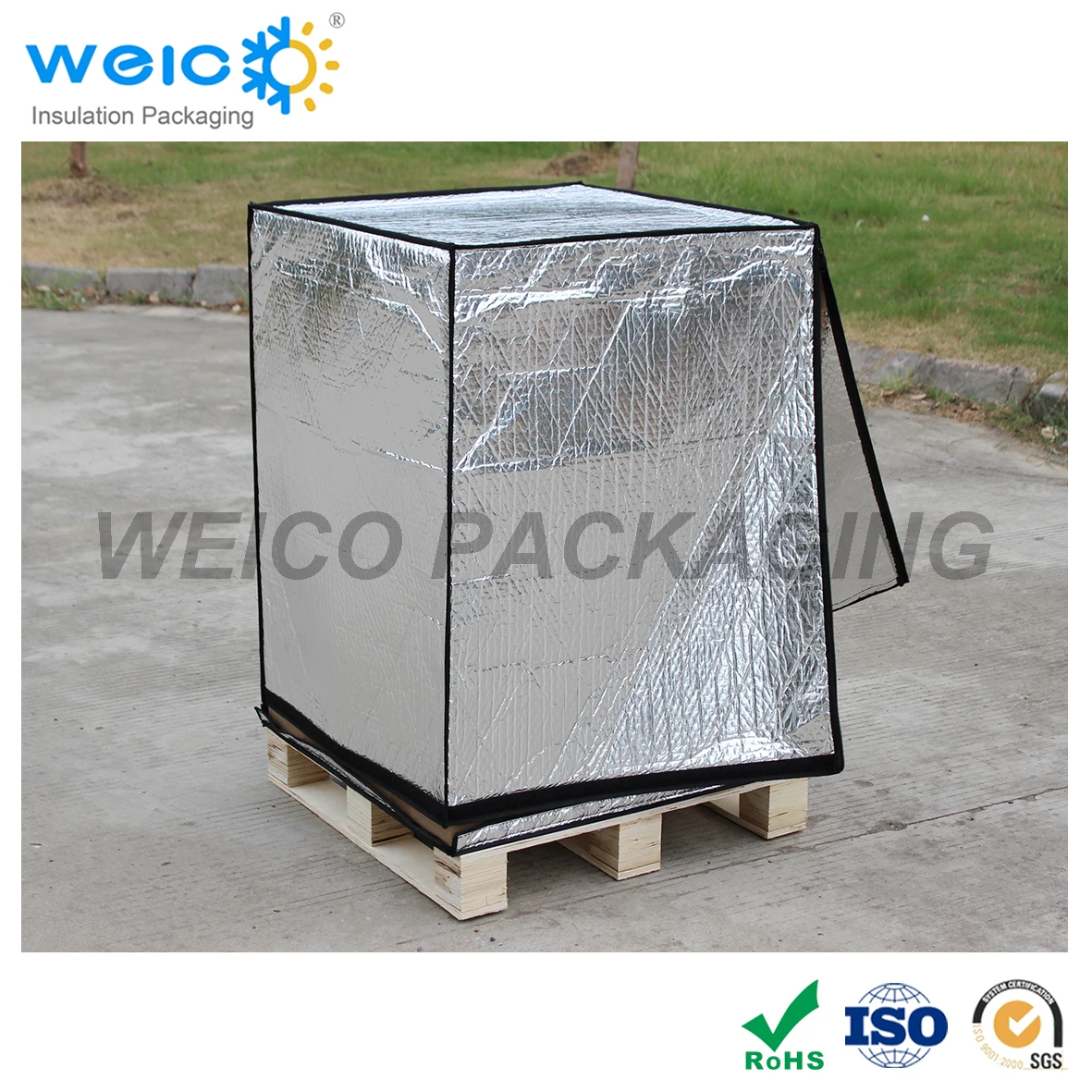

Aluminum Foil Air Bubble Insulated Thermal Pallet Insulation Cover with bottom
- Category: Heat Insulation Materials >>>
- Supplier: Jiangsu Uleda New Material Co. Ltd.
Share on (1600619249115):
Product Overview
Description
Product Description
CONTENT | TECHNICAL PARAMETER | |||||||||
Commodity | Thermal Pallet Cover | |||||||||
Model | lnsulation1 | Insulation1 | Warm1 | Warm1 | ||||||

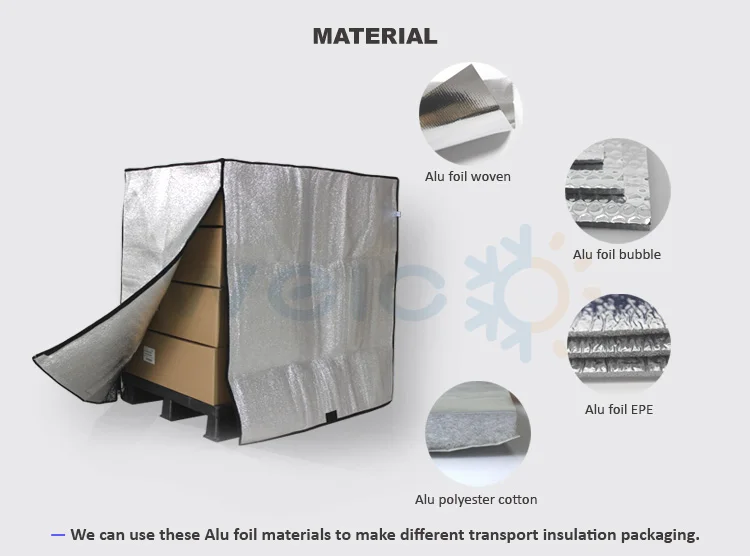

Structure | Alu Woven Fabric | Alu Bubble | Alu EPE | Alu Polyester Cotton | ||||||
Gram Weight | 180-190G/mi | 170-400G/m | 130-500G/m" | 600-1200G/m' | ||||||
Thickness | 0.2mm | 3mm-8mm | 1mm-6mm | 10mm-25mm | ||||||
Colour | Shiny Silver | Shiny Silver | Shiny Silver | Shiny Silver | ||||||
Tensile Endwise strength | Endwise | 37ON/25mm | 105N/25mm | 49N/25mm | 86ON/25mm | |||||
Broadwise | 360N/25mm | 1.3g/m2 24h | 2g/m2 24h | 0.8g/m2 24h | ||||||
Moisture Permability | 1.1g/m224h | 1.3g/m2 24h | 2g/m2 24h | 0.8g/m2 24h | ||||||
Heat reflectivity | 96.4% | 97% | 95% | 92% | ||||||
Elongationat break | Endwise | 27% | 45% | 83% | 22% | |||||
Broadwise | 24% | 36% | 62% | 18% | ||||||
Temperature Resistance | -70℃/10o℃ | -70C/ 100c | -70℃ / 100℃ | -70℃ /100℃ | ||||||
Oxygen Permeability | 88.86×10-6 | 101.71×10-6 | 85.23x10-6 | 120.86×10-6 | ||||||
Puncture Strength | 890N | 230N | 175N | 2100N | ||||||
1.2*1.0*1.0m | 1.4KG | 1.9KG | 1.5KG | 5.6KG | ||||||
1.2*1.0*1.2m | 1.5KG | 2.1KG | 1.7KG | 6.4KG | ||||||
1.2*1.0*1.5m | 1.7KG | 2.5KG | 2.1KG | 7.2KG | ||||||
Process | Sewing | |||||||||

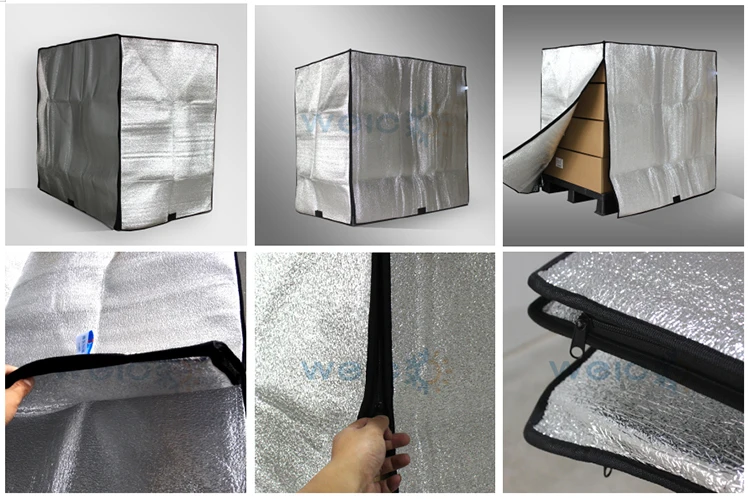

Sealing type | zipper/Velcro/Double Side Tape | |||||||||
* Remark: Above are some of our items, more specifications are welcome to accept OEM. | ||||||||||
More Products
About Us
Certificate
Partner
Packaging & Shipping
FAQ
1. Are you a manufacturer or trading company?
We are a manufacturer from raw material to packaging bag near to Shanghai.
2. What is the application of CTL(container thermal insulation liner)?
It is widely used on cocoa powder, wine, confectionary and powder coating, pharmaceutical, cosmetic, battery etc.
3. What is your advantage of insulation products?
A. using pure aluminum foil
B. 100% new, not PE recycled material
C. higher bursting strength, repeating use
4. What kind of information do you need before quoting?
A. shipping products
B. temperature requirements
C. specification
5. Can you supply the sample to test the quality?
Yes, we can. More details please contact us.
6. How long will the container liner be installed?
It is about 20mins for two persons.
7. Can you provide OEM service?
Yes, exactly.
We are a manufacturer from raw material to packaging bag near to Shanghai.
2. What is the application of CTL(container thermal insulation liner)?
It is widely used on cocoa powder, wine, confectionary and powder coating, pharmaceutical, cosmetic, battery etc.
3. What is your advantage of insulation products?
A. using pure aluminum foil
B. 100% new, not PE recycled material
C. higher bursting strength, repeating use
4. What kind of information do you need before quoting?
A. shipping products
B. temperature requirements
C. specification
5. Can you supply the sample to test the quality?
Yes, we can. More details please contact us.
6. How long will the container liner be installed?
It is about 20mins for two persons.
7. Can you provide OEM service?
Yes, exactly.
