Product Overview
Description
Product Description

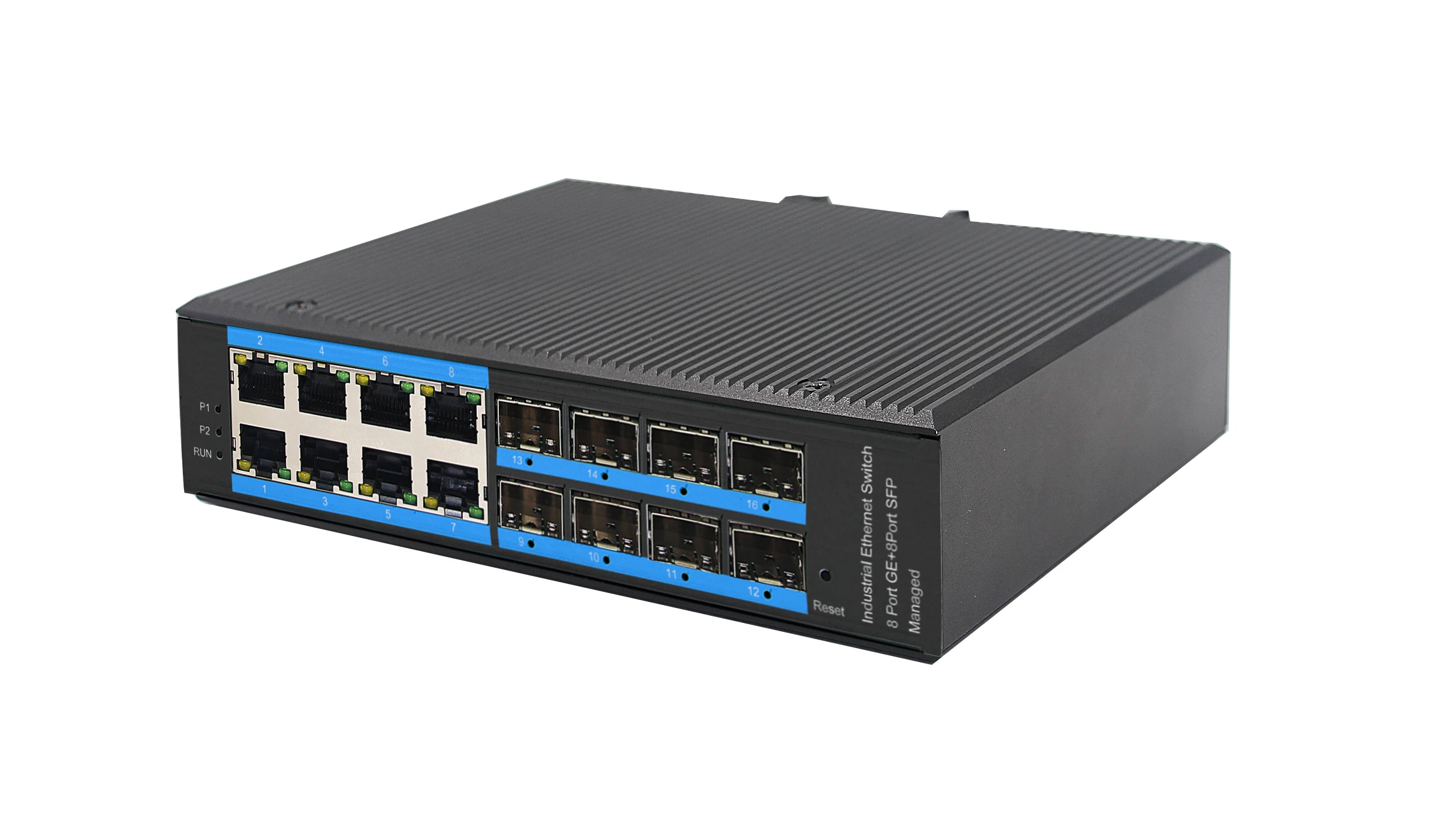

right façade

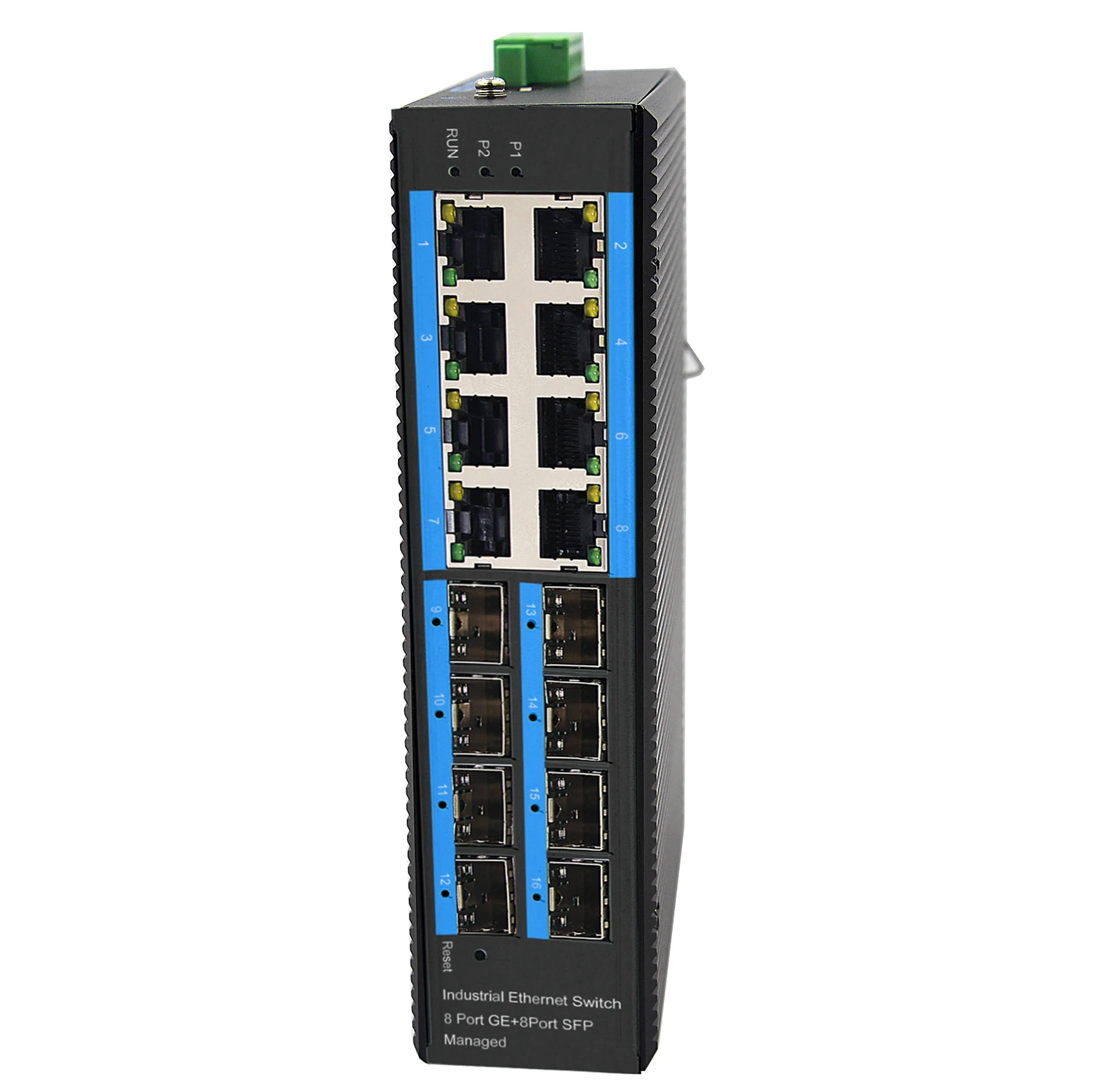

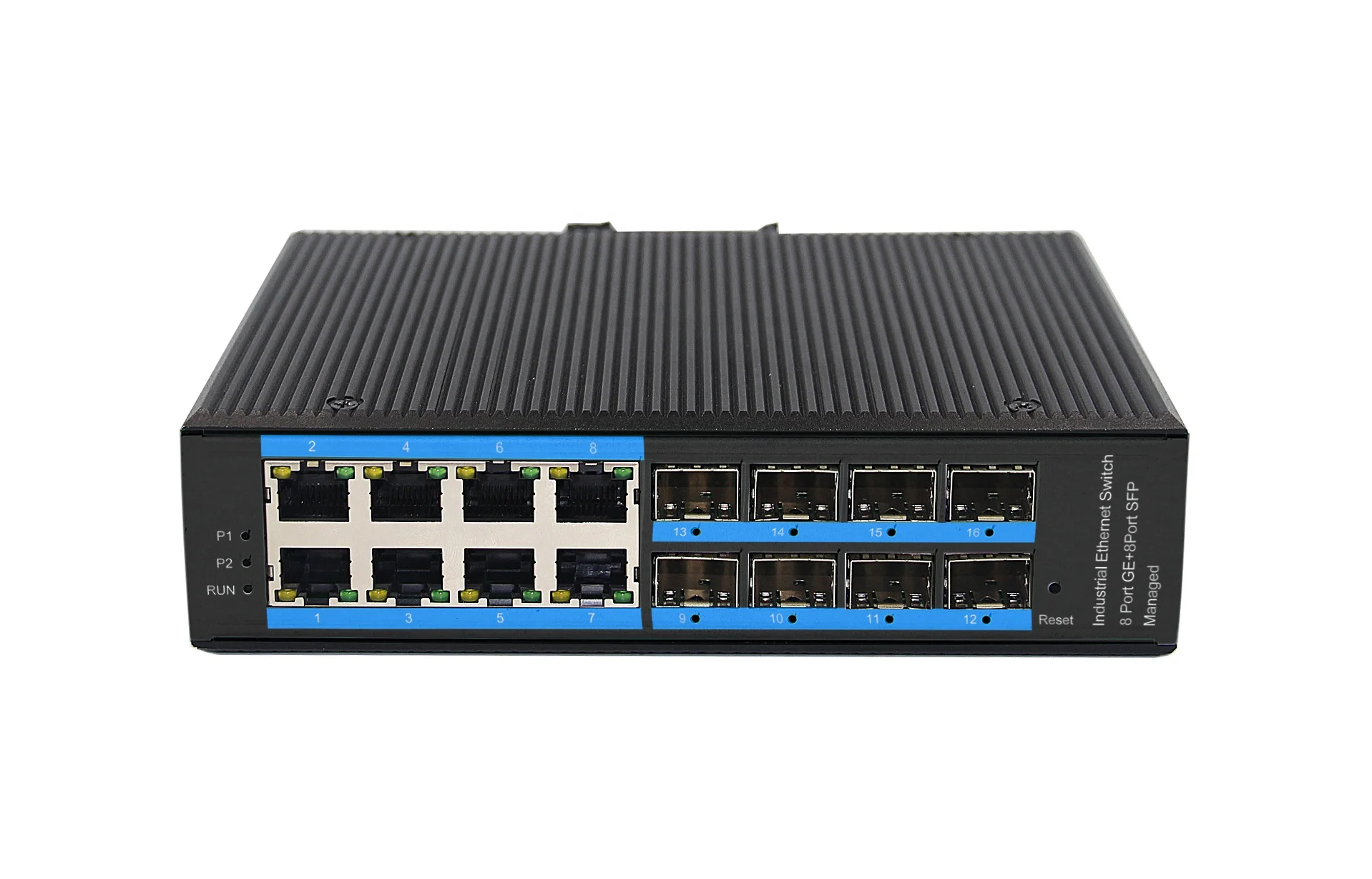

front view

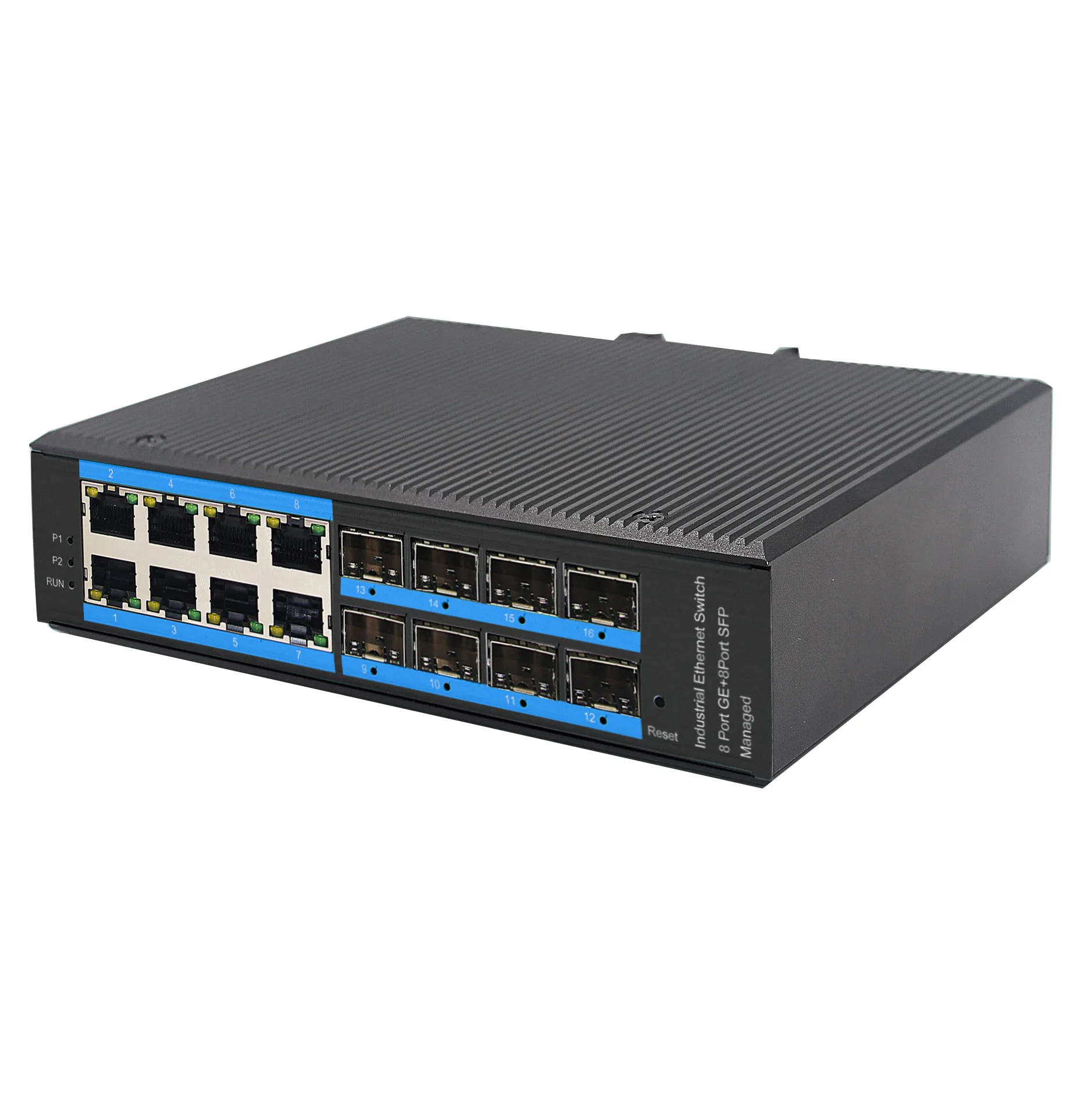

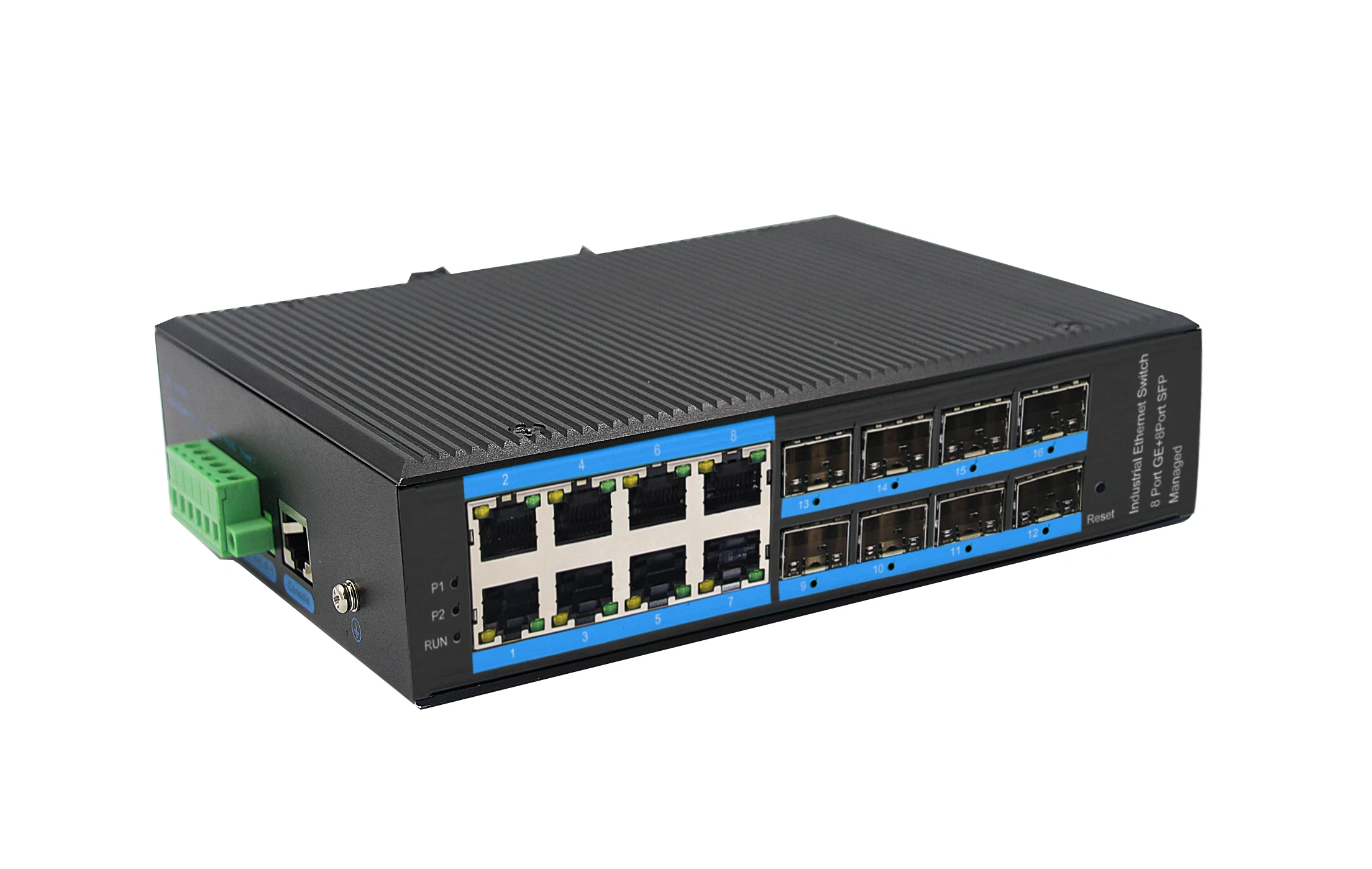

left facade
Slim Type with more Practicability and Convenience

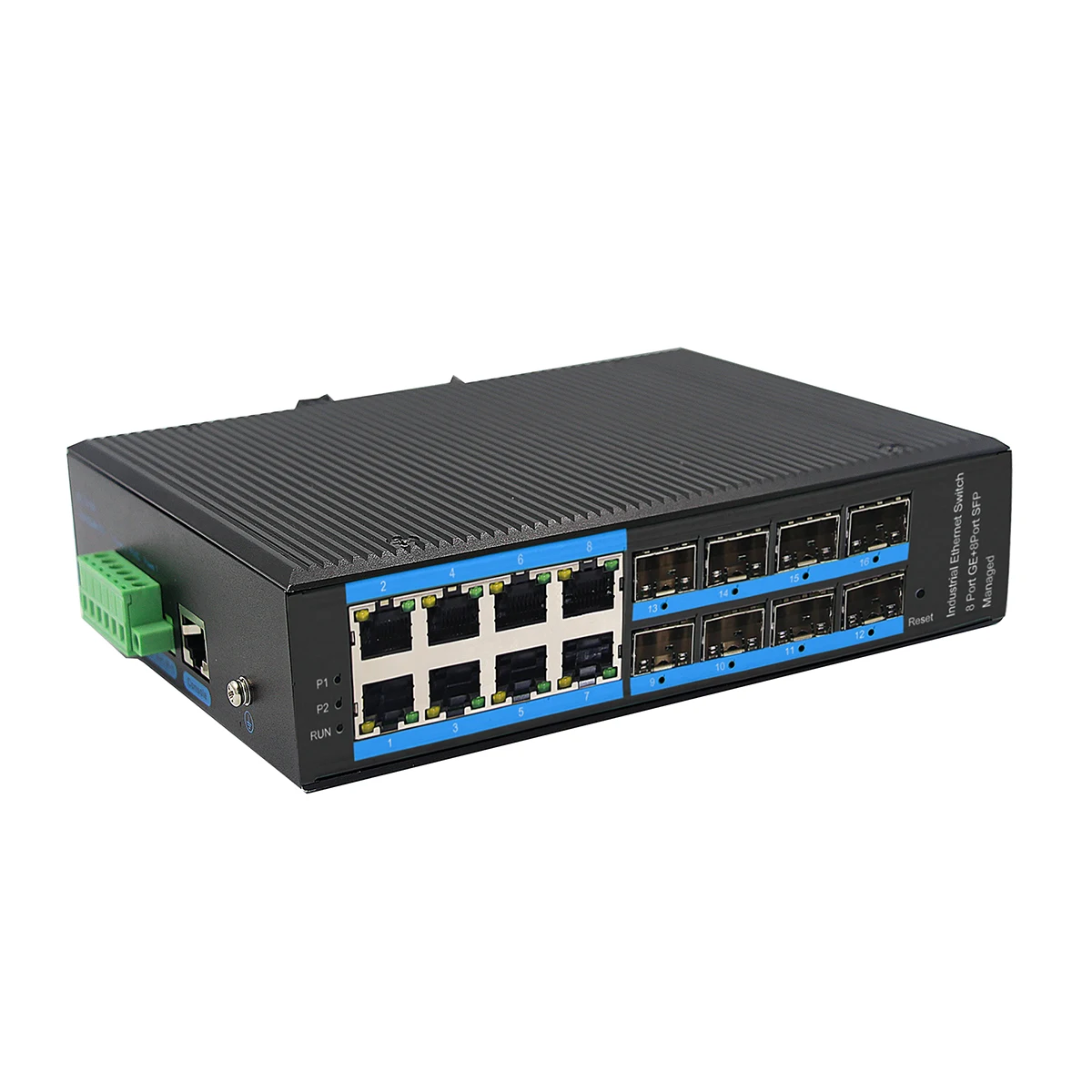

ZX88GSP-M-SFP an hardened 16-port Industrial PoE Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100/1000BASE-TX RJ45 PoE +8G SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 85℃.
The ZX88GSP-M-SFP provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
The ZX88GSP-M-MSFP is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 48V DC to 57V DC power supply inputs for high availability applications requiring dual or backup power inputs.
Product Presentation

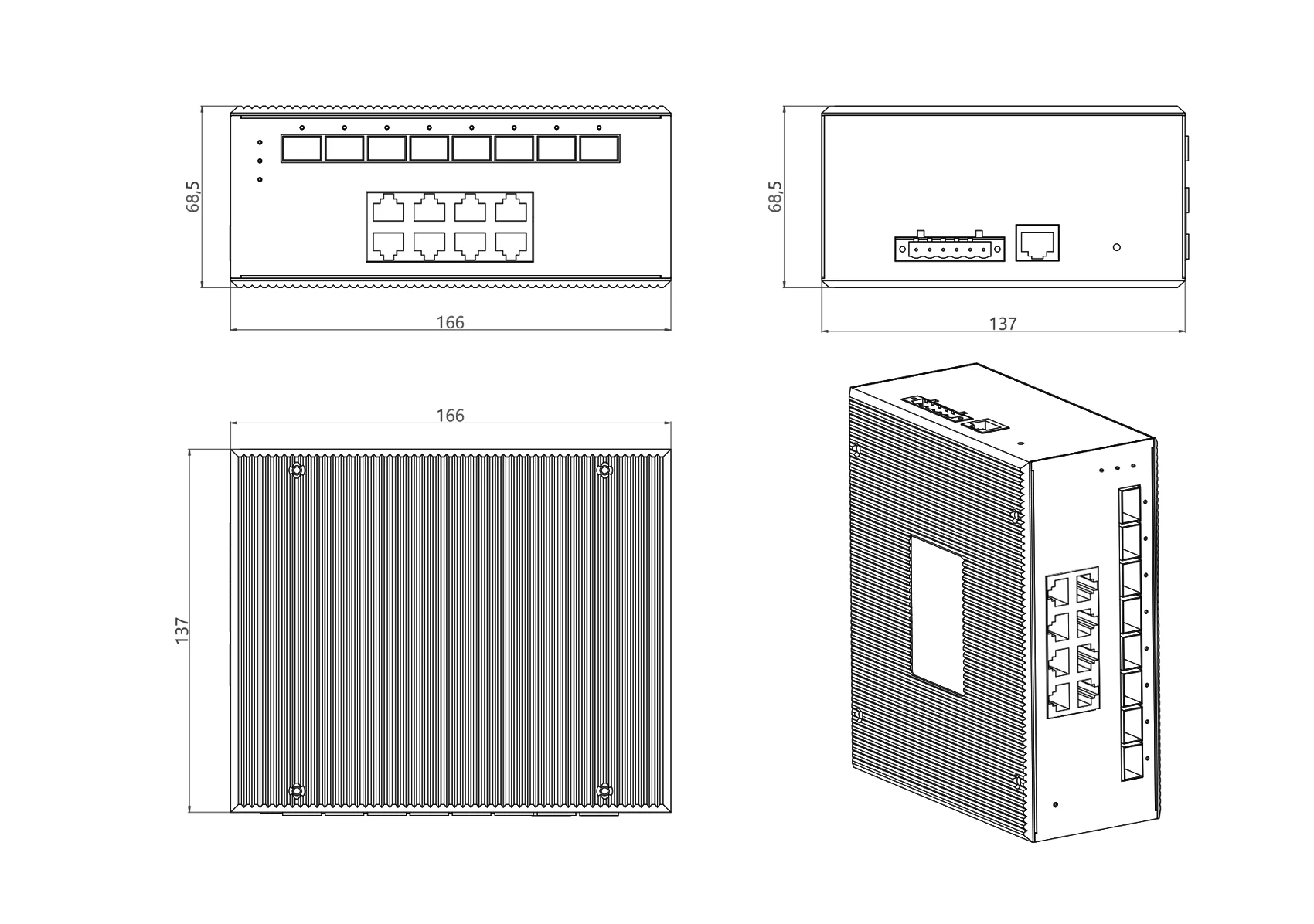

Size introduction and size picture
ZX88GSP-M-SFP\t8-port 10/100/1000BASE-TX+8G SFP Managed Industrial PoE Switch
Power supply
(optional)\tYH54825-DC\tDC 48V/2.5A,120W suitable for PoE 1-8 port
YH55223-DC\tDC 52V/2.3A,120W suitable for PoE 1-8 port
Interface | • 8-port 10/100Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function, supplying 30W PoE, compatible with 802.3AT/AF 8G SFP |
Industrial conformance | • 48V to 57V DC, redundant power input • -40℃ to 85℃ operating temperature • IP40 aluminum housing • Supports 6KV DC Ethernet ESD protection • Supports 6KV DC EFT protection for power line • Free Fall, Shock and Vibration Stability • DIN-rail design |
L2 management | • Support STP/RSTP/MSTP • Web management, CLI • IGMP snooping, QOS,VLAN,SNMP |
Model No | PoE ports | Dimensions (W x D x H) | Warranty |
ZX88GSP-M-SFP | 1-8 port support PoE | 179×134×46mm | 3-years for main parts |
Certificate
Company Introduction

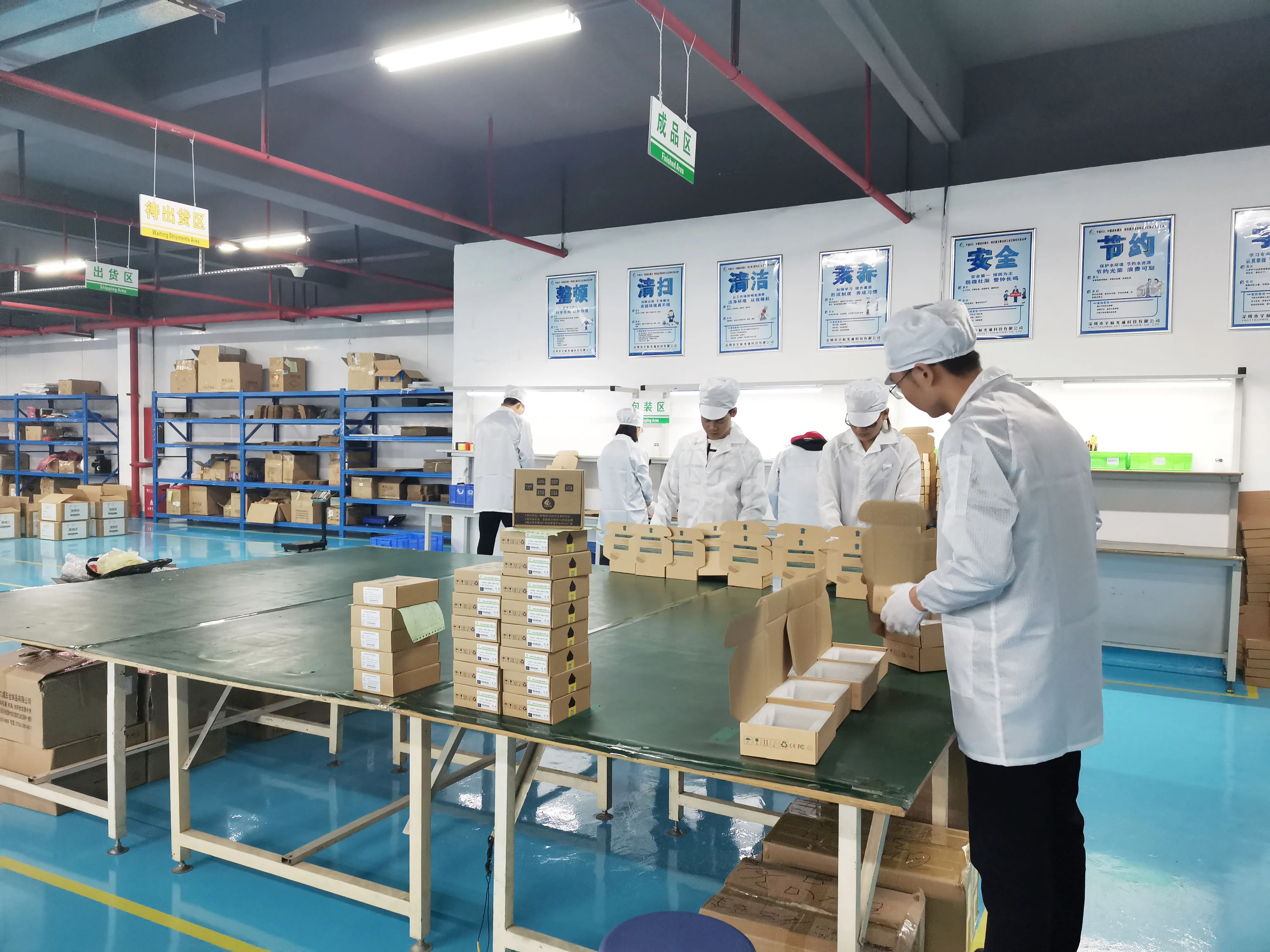

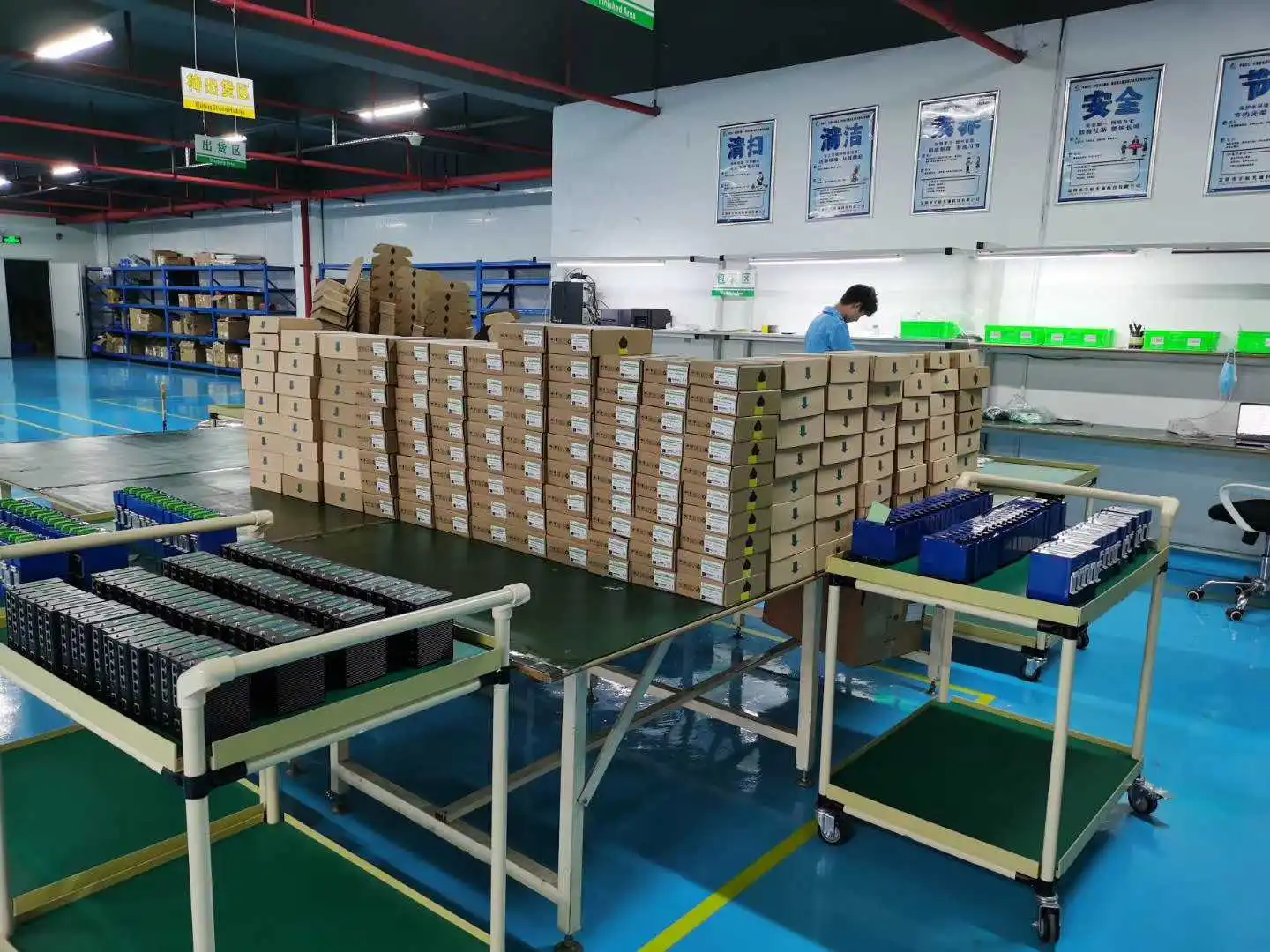

Packing&Shipping
FAQ

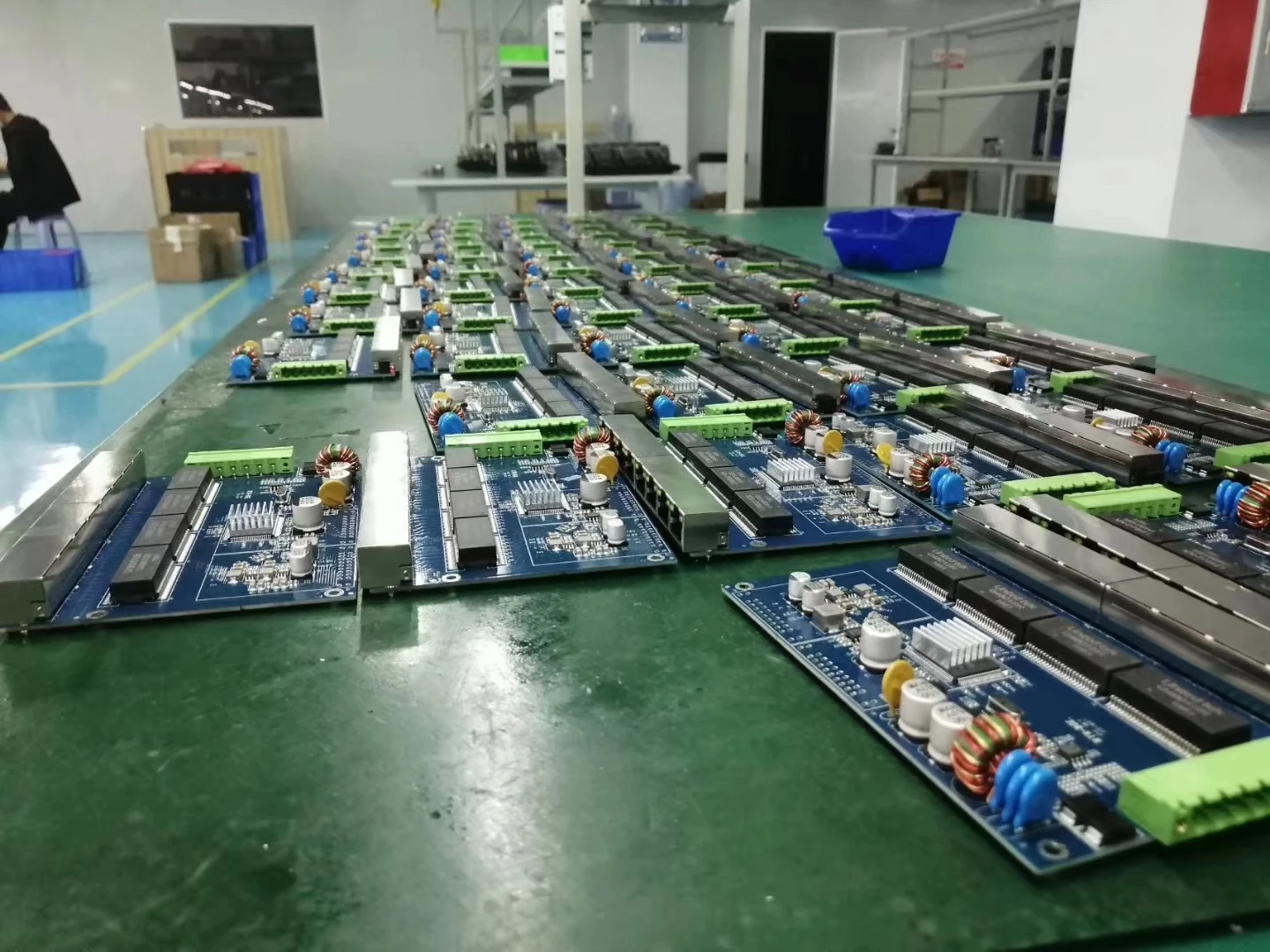

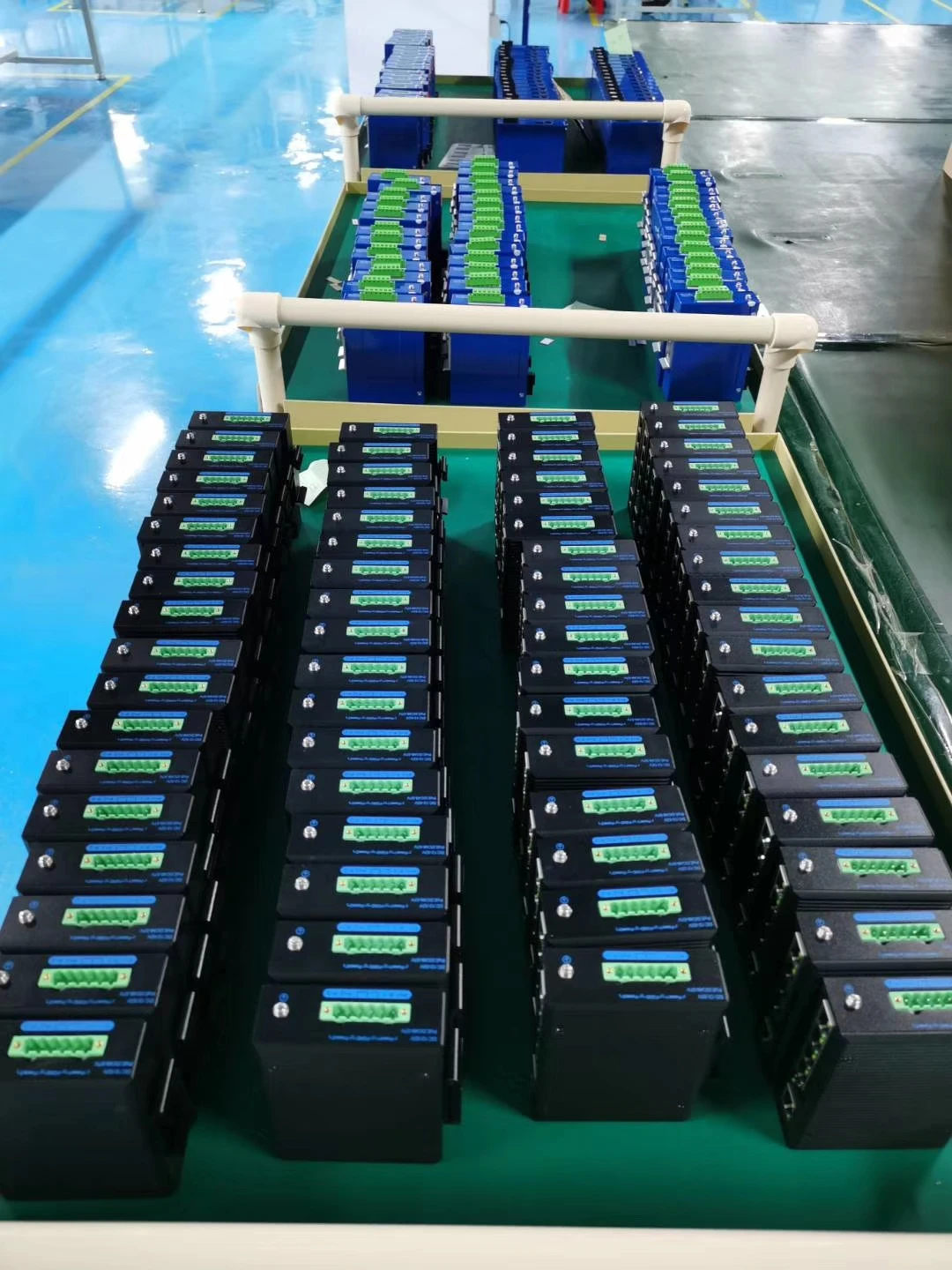

YHGT is one of the domestic national brands in China with the largest manufacturing workshop for industrial Ethernet switches (3000㎡) and automation production line (launched in June 2021), and 7S standard factory. Yuhang focus on the industrial switch product line, already launched more than 1000 models, the solution coving IC+\\ Marvell \\RTL\\VTS\\BCM and ourself-developed chips and other chip manufacturers of various industrial switch mainstream standard solutions, seven product lines, hexagonal product layout, well known as the industrial switch "Wal-Mart“.
