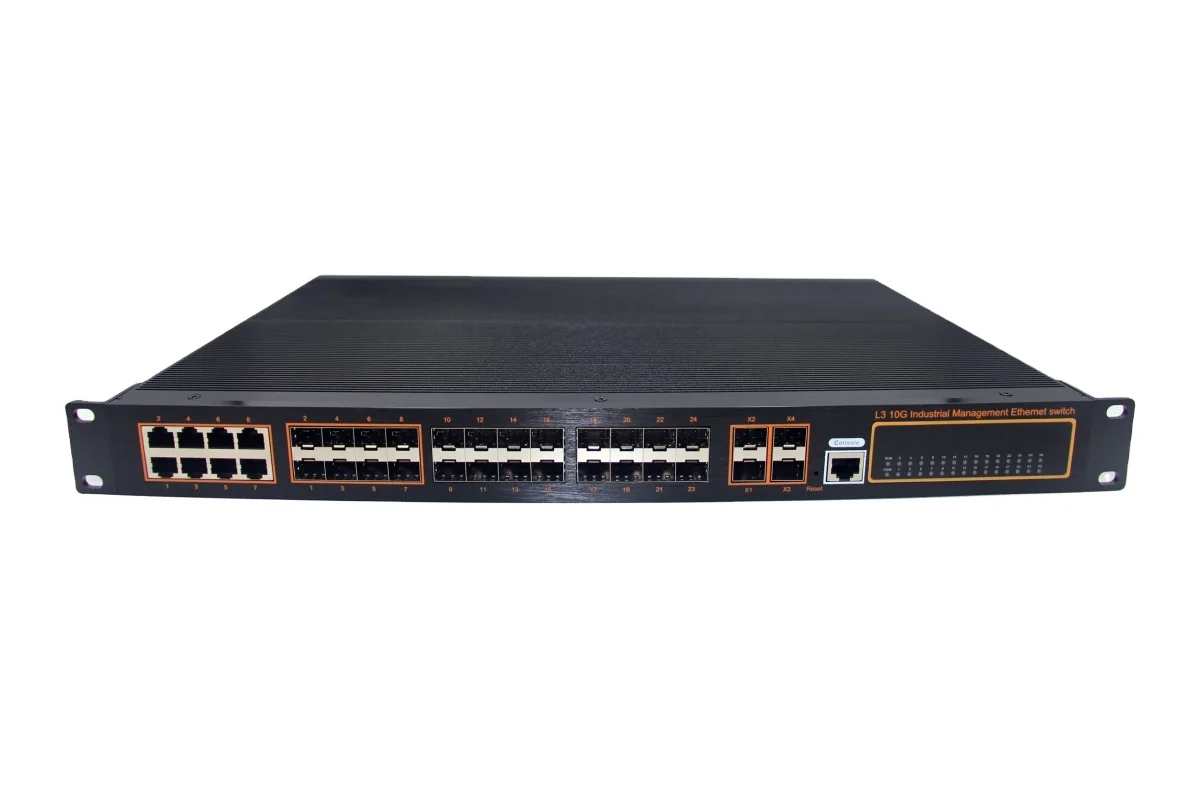

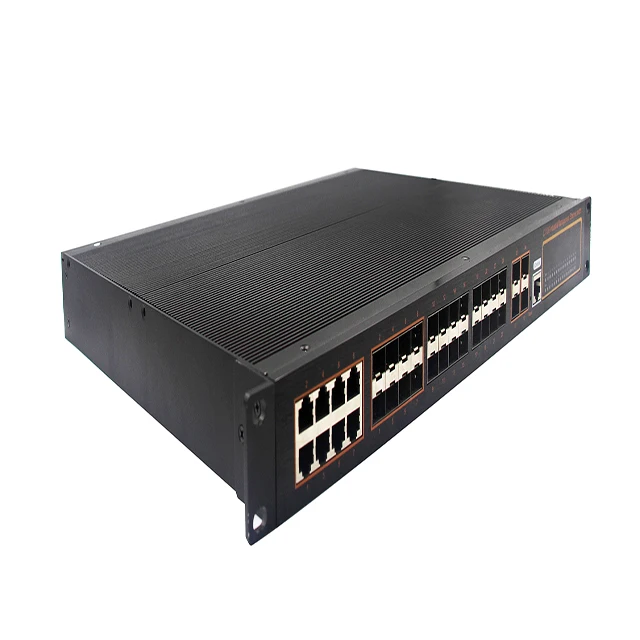

New Fashion Erps Ipv6 Static Routing Dynamic Routing Poe Industrial Switch
- Category: >>>
- Supplier: Shenzhen Yuhang Communication Technology Co. Ltd.
Share on (1600619338795):
Product Overview
Description
Product Description
Model No | ZX248GST4-SFP |
Interface | 24-Port 10/100/1000Mbps SFP 8-Port 10/100/1000Mbps RJ45 (combo) 4-Port 10G SFP+ 1-Port console |
switch capacity | 598Gbps |

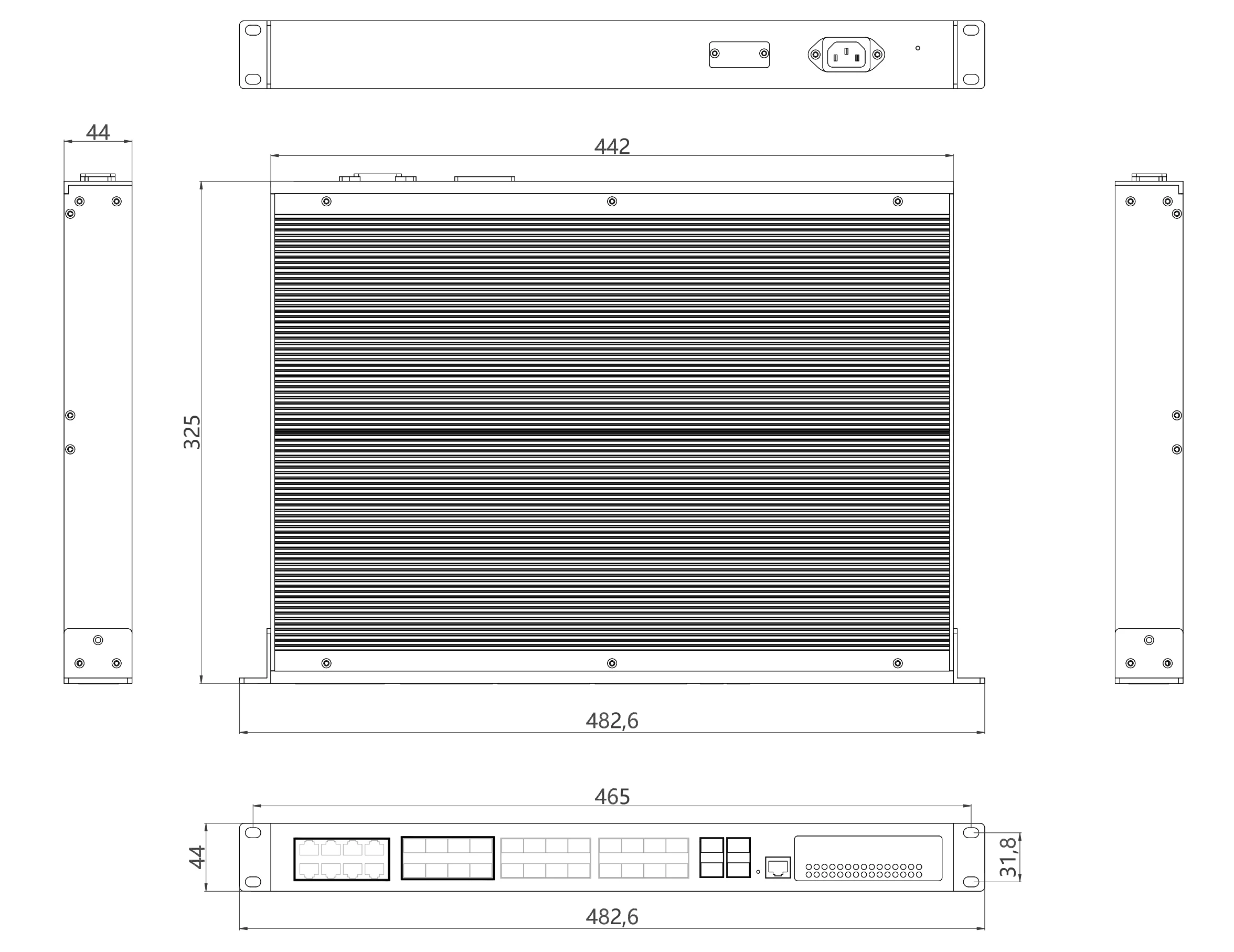

Dimensions (W x D x H) | 442×325×44mm |
Warranty | 1-year replacement with new item; 3-years for main parts. |
Strong processing ability
ZX248GST4-SFP switch is based on the powerful and stable
processing power of VCore-III MIPS-based CPU
ZX248GST4-SFP provides up to 598Gbps of switching capacity
port full speed filtering and forwarding 252Mpps
To ensure that the trunk network of large traffic data without blocking
Forwarding.
processing power of VCore-III MIPS-based CPU
ZX248GST4-SFP provides up to 598Gbps of switching capacity
port full speed filtering and forwarding 252Mpps
To ensure that the trunk network of large traffic data without blocking
Forwarding.
Details Images
Features
•Data control: support 802.3x full duplex flow control, support network storm suppression
•Redundant network: support STP/RSTP/MSTP, support ERPS (self-healing time <20ms)
•Support IPv6, static routing, Dynamic routing (RIP,OSPF)
•Support RIPng, OSPFv3, DHCP Server, DHCP replay, Qos
•Redundant network: support STP/RSTP/MSTP, support ERPS (self-healing time <20ms)
•Support IPv6, static routing, Dynamic routing (RIP,OSPF)
•Support RIPng, OSPFv3, DHCP Server, DHCP replay, Qos
•Multicast management: Support IGMP Snooping V1/V2/V3
•VLAN: support IEEE 802.1q VLAN, effectively isolated broadcast domain
•Link aggregation: support link static/dynamic aggregation, provide perfect bandwidth utilization
•Link aggregation: support link static/dynamic aggregation, provide perfect bandwidth utilization
•QoS: Support COS\\DSCP, 4 queues, support WRR\\SP scheduling mode
•Security management: support ACL access control list, support 802.1x, support user classification management
• Management function: support Web, SNMP management mode
•Monitoring maintenance: support port mirroring, interface status monitoring, log management
•Alarm function: support power supply, port, abnormal state relay output
Product Usage

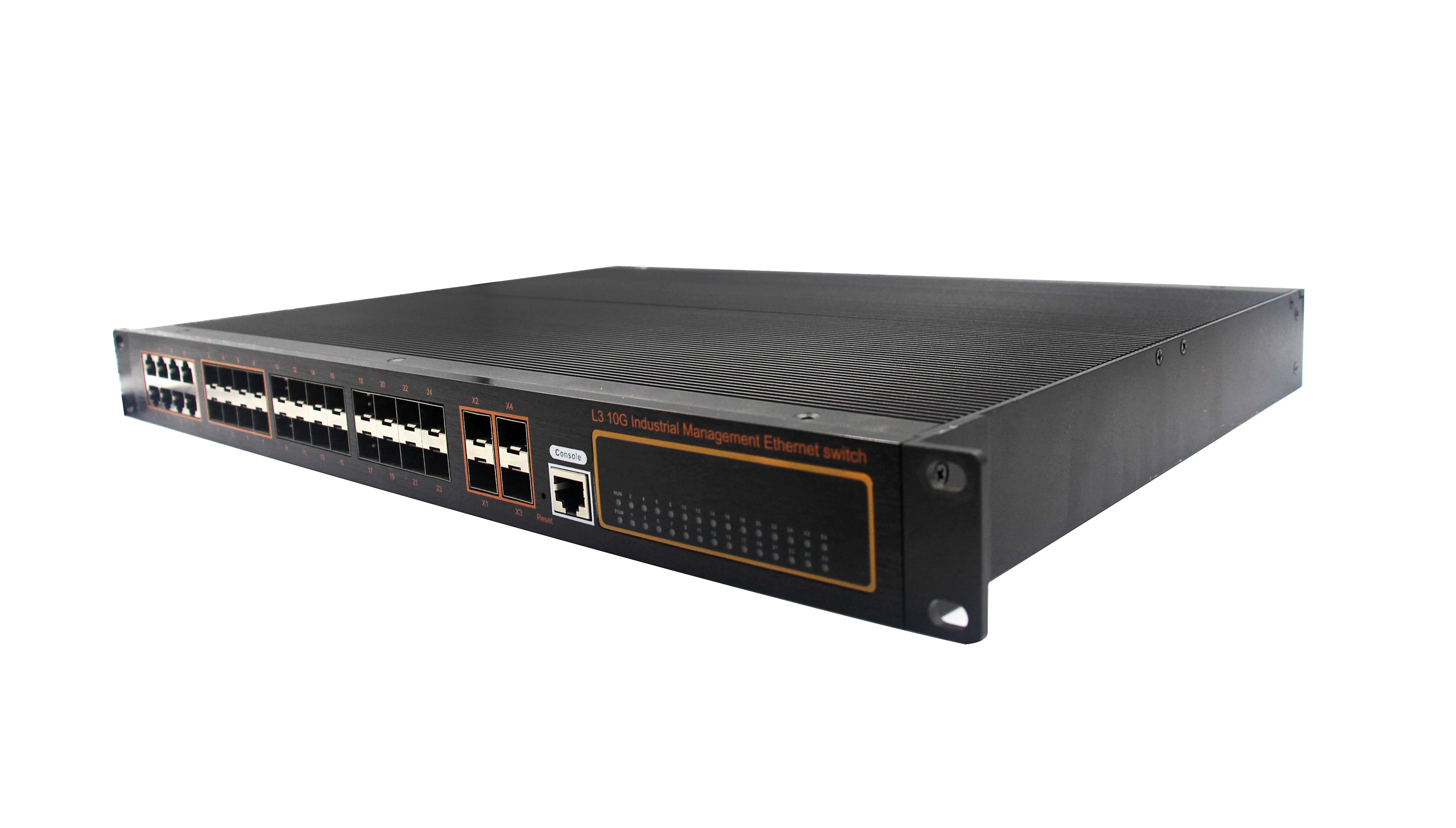

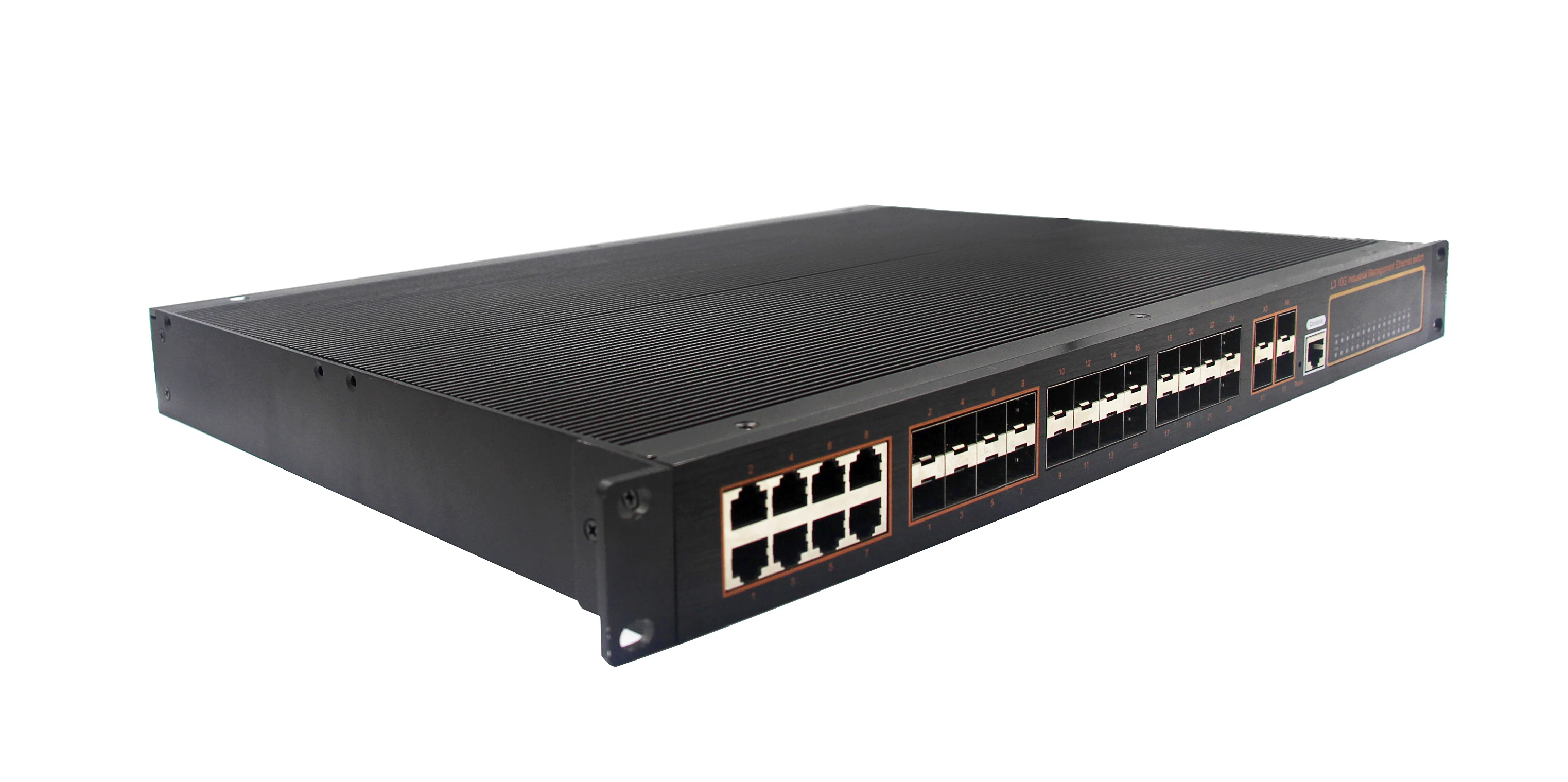

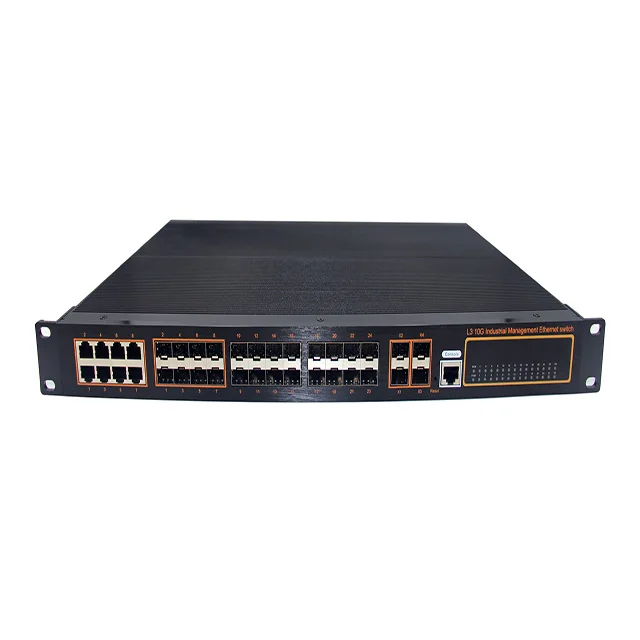

Rack mounted Aluminum Industrial Switch
ZX248GST4-SFP switch is a high performance 10G SFP+ L3 core switch.
It provides Static routing and dynamic routing with advanced hardware processing capacity. The machine adopts modular design,which supports up to 4 Port 10G SFP+。
and retains the expansion ability to further support 10GE when realizing gigabit convergence or access. It supports IPv4/IPv6
hardware double stack and line speed forwarding, so that customers can easily cope with the coming IPv6 era, which provides high
capacity exchange capacity.
ZX248GST4-SFP switch has the operating temperature of -40℃ ~ 85℃, has the super firmness to adapt to all kinds of harsh environment, can also be very convenient to install in the machine room cabinet. The rack-mounted characteristics and wide temperature operation make the switch a plug and play industrial-grade device, providing a reliable and convenient solution for users to network their Ethernet devices.
Company Introduction

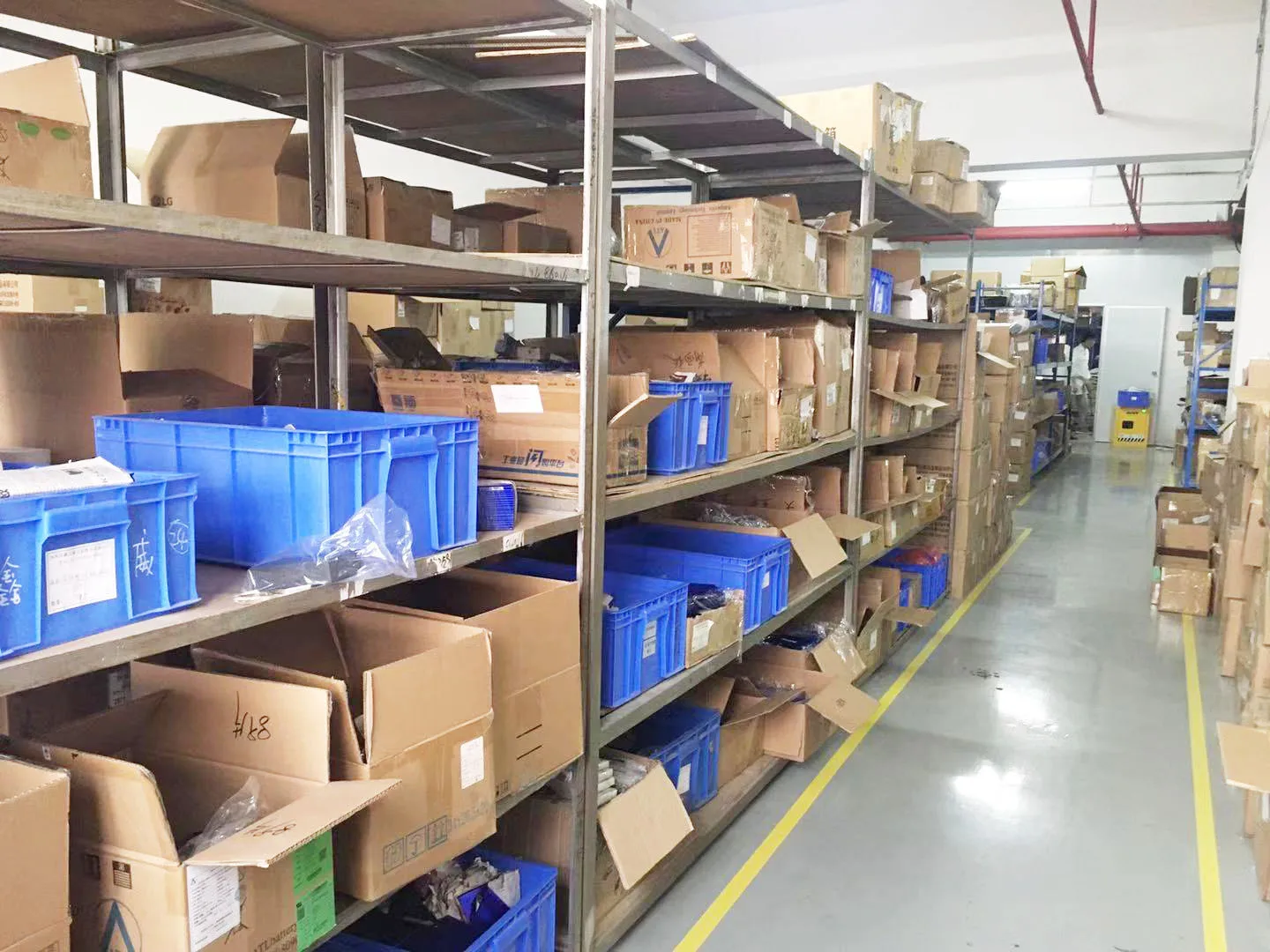

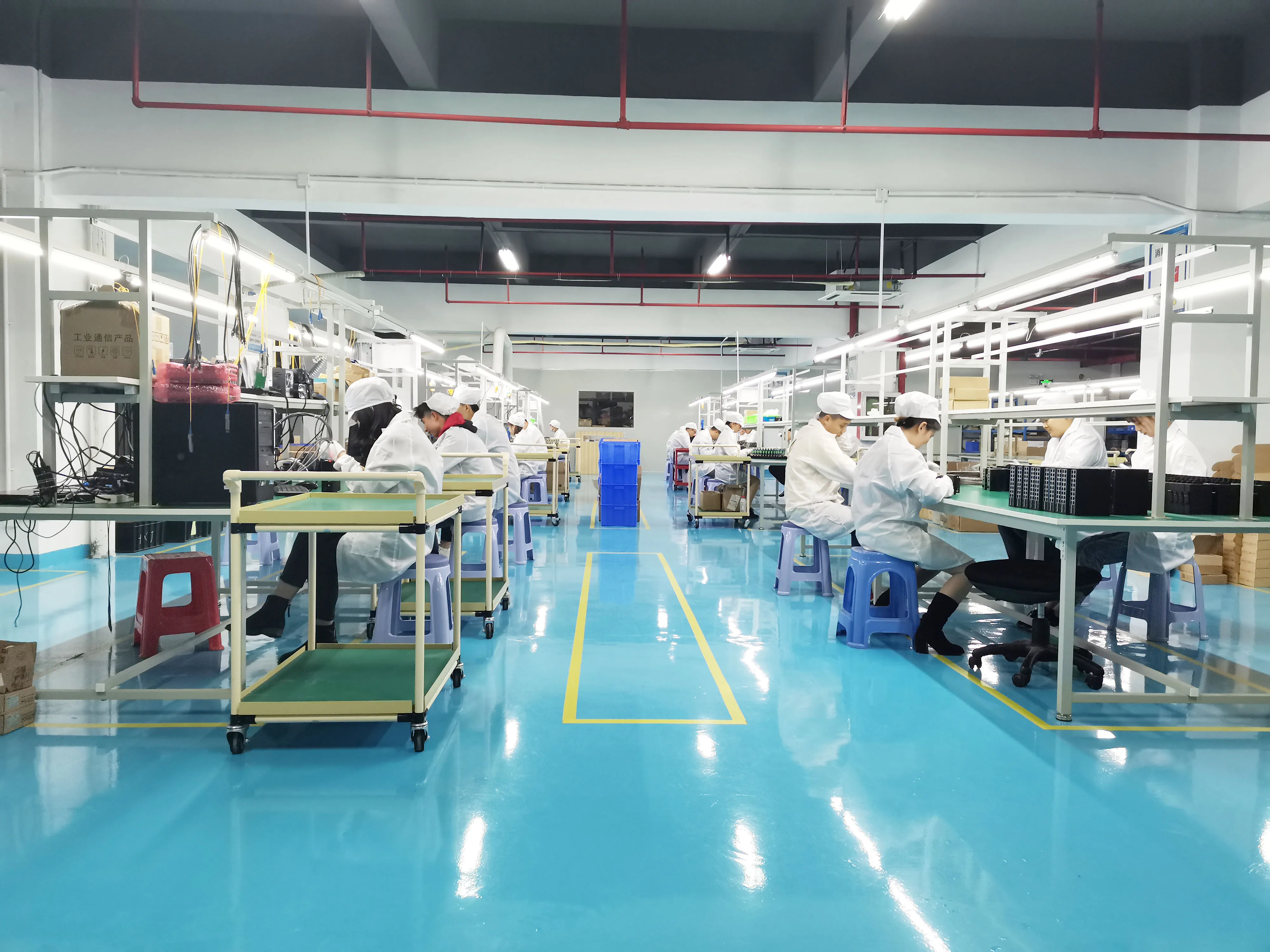

YHGT is one of the domestic national brands in China with the largest manufacturing workshop for industrial Ethernet switches (3000㎡) and automation production line (launched in June 2021), and 7S standard factory. Yuhang focus on the industrial switch product line, already launched more than 1000 models, the solution coving IC+\\ Marvell \\RTL\\VTS\\BCM and ourself-developed chips and other chip manufacturers of various industrial switch mainstream standard solutions, seven product lines, hexagonal product layout, well known as the industrial switch "Wal-Mart“.
