Igbt Inverter 120A Mma Stick Welder Ac 220V Arc Welding Machine
- Category: >>>
- Supplier: ZHONGSHAN TENSUN WELDING EQUIPMENT CO. LTD.ZHONGSHAN LTD.
Share on (1600619431571):
Product Overview
Description
Igbt Inverter 120A Mma Stick Welder Ac 220V Arc Welding Machine
Product Parameter

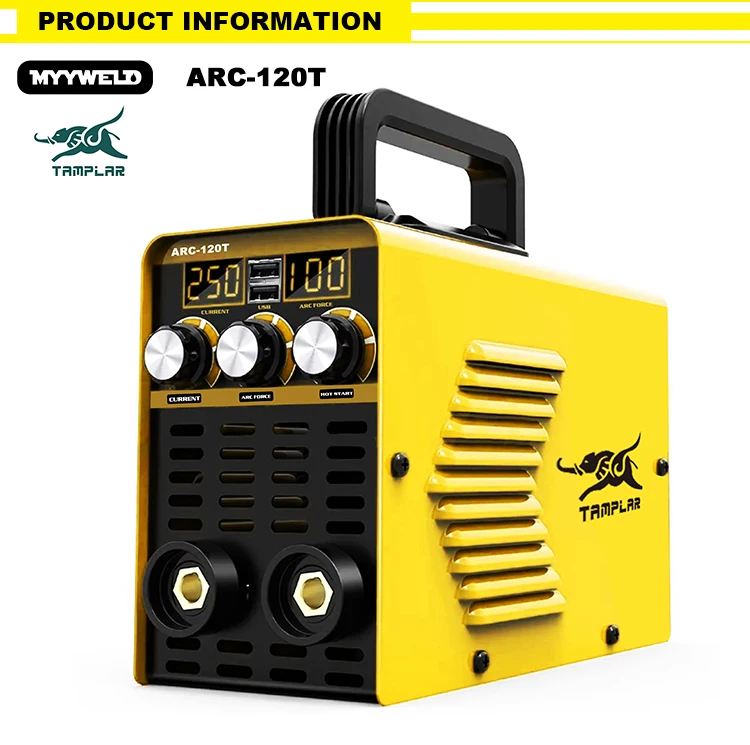

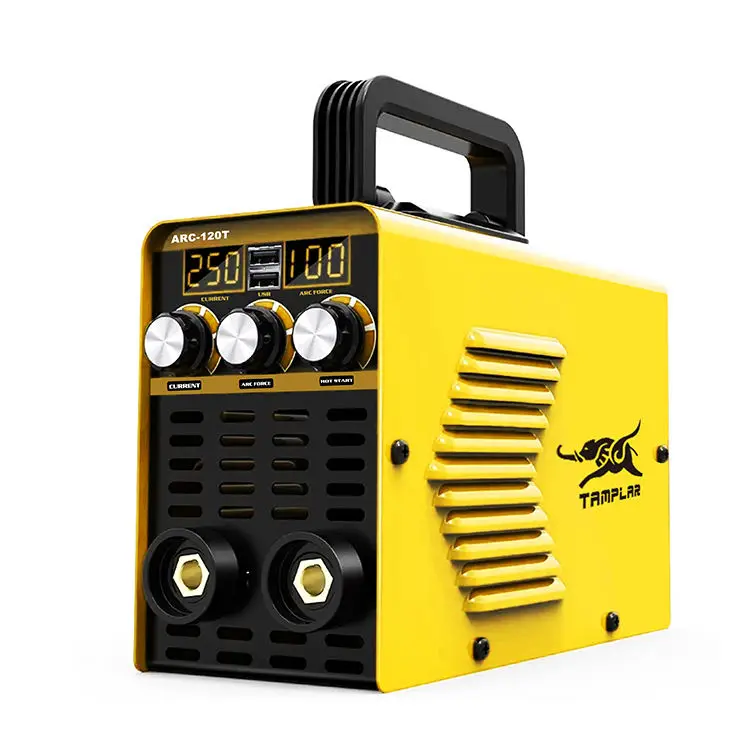

| Model | ARC-120M | ARC-160M | ARC-120T | ARC-140DV |
| Type | ARC Welder | ARC Welder | ARC Welder | ARC Welder |
| Input Power Volatage(V) | AC220V±15% | AC220V±15% | AC220V±15% | AC110V±15% AC220V±15% |
| Rated Input Capacity(KVA) | 3.6 | 5.1 | 4.95 | 5.1 |
| Rated Input Current(A) | 16.2 | 23.3 | 22.5 | 110V: 46.3 220V: 23.3 |
| Non-load Voltage(V) | 50±5 | 50±5 | 60±5 | 50±5 |
| Output Current Range(A) | 20-120 | 20-160 | 20-120 | 20-140 |
| Rated Duty Cycle(%) | 60 | 60 | 60 | 60 |
| Electrode Diameter(mm) | 1.6-2.5 | 1.6-4.0 | 1.6-2.5 | 1.6-3.2 |
| Insulation Class | F | F | F | F |
| Protection Class | IP21 | IP21 | IP21 | IP21 |
| Weight(KG) | 2.8 | 2.8 | 2.66 | 4.8 |

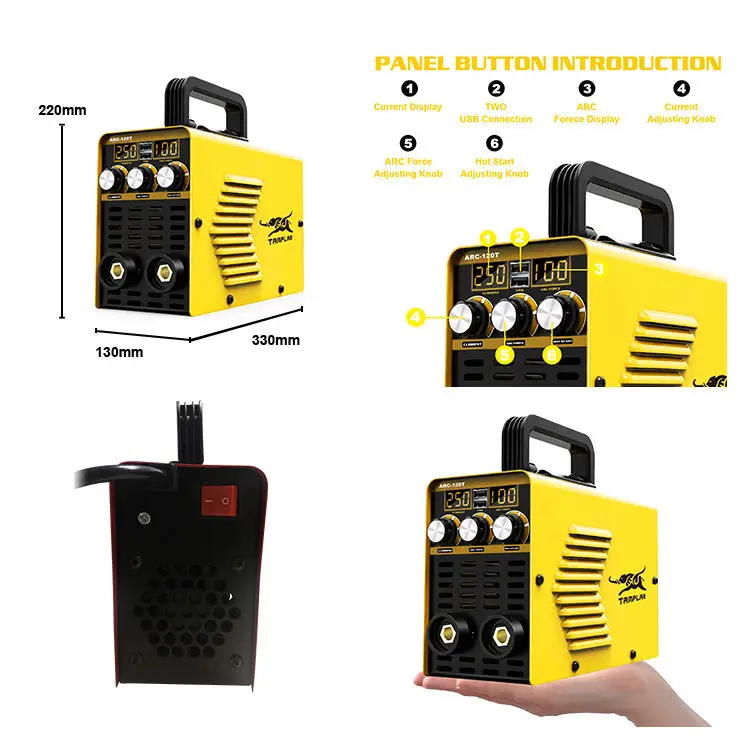

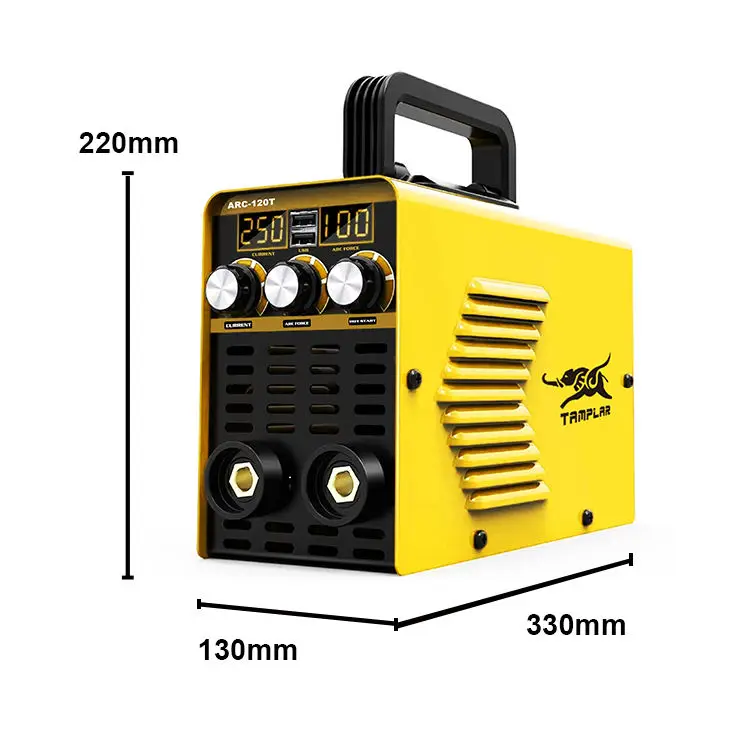

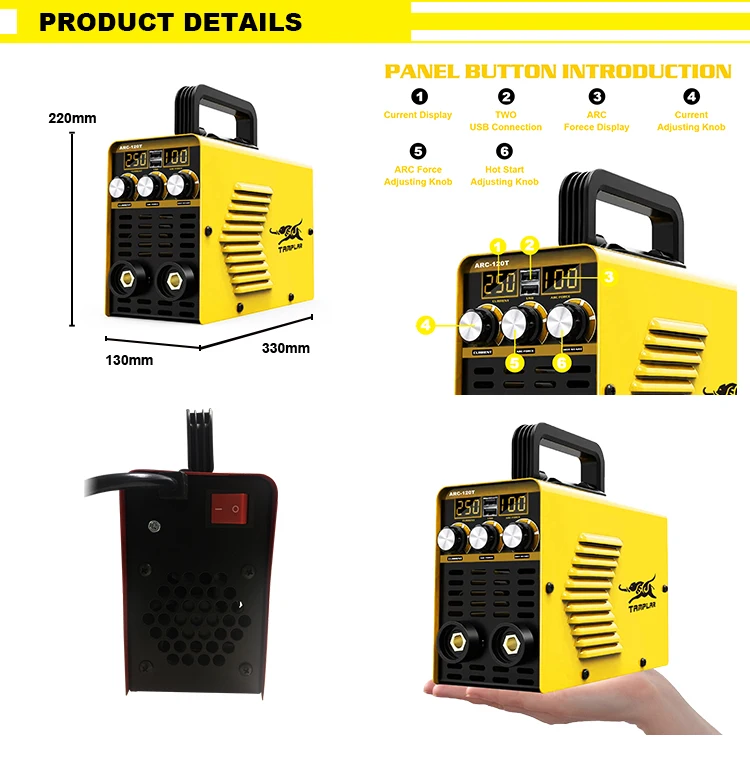

| Dimensions (LxWxH mm) | 230x100x210 | 230x100x210 | 330x130x220 | 230x100x150 |

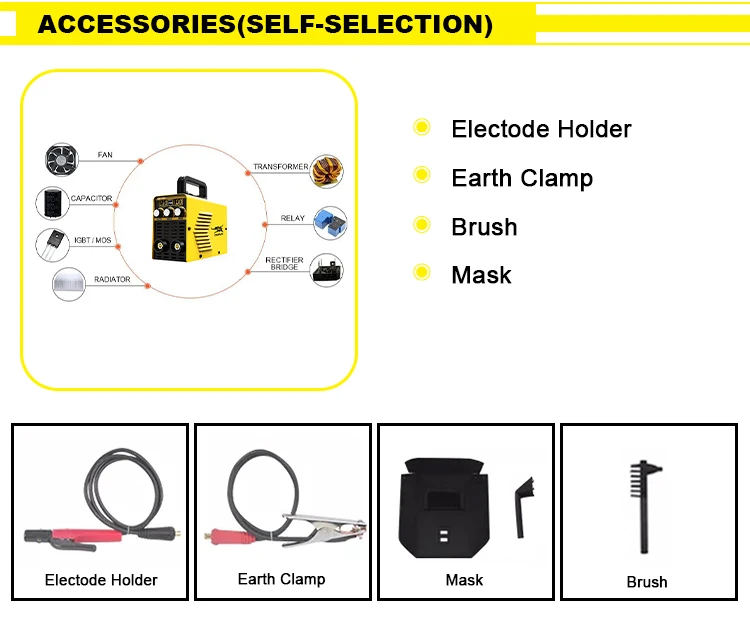

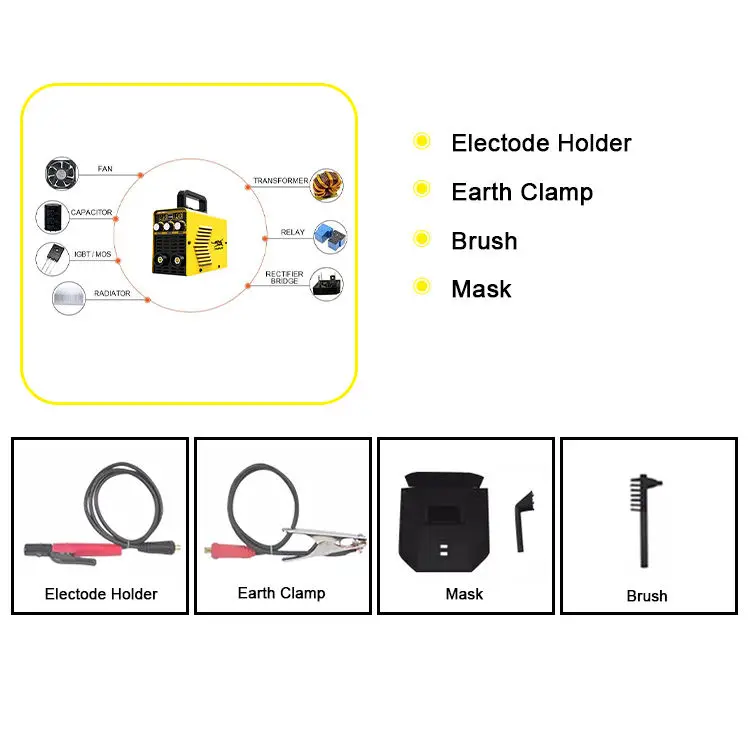

| Accessories(Self-Selection) | Earth Clamp; Electode Holder; Brush; Mask; | Earth Clamp; Electode Holder; Brush; Mask; | Earth Clamp; Electode Holder; Brush; Mask; | Earth Clamp; Electode Holder; Brush; Mask; |

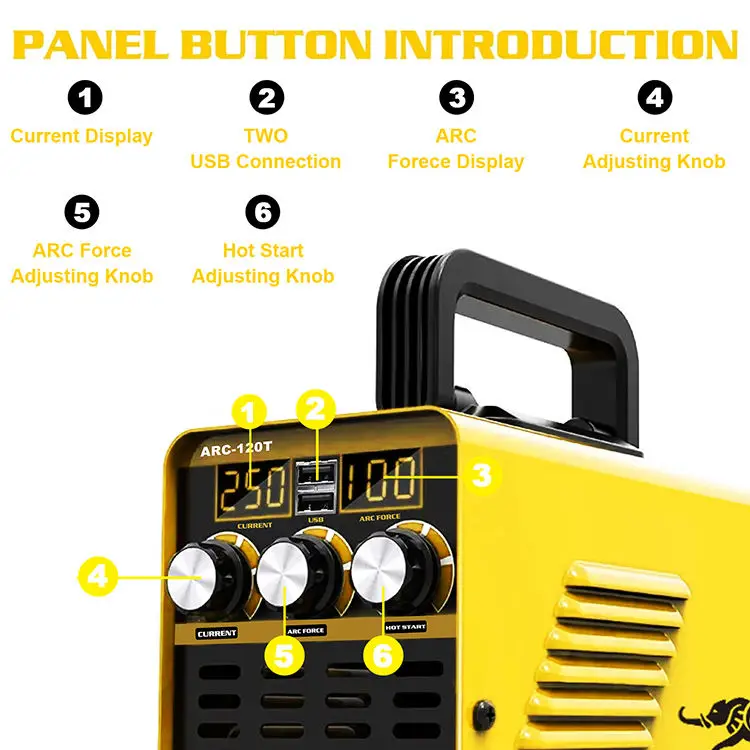

| Function | IGBT; One Borad; Mini Size; Light Weight; Anti-Stick, Hot Start and ARC-Force Function | IGBT; One Borad; Mini Size; Light Weight; Anti-Stick, Hot Start and ARC-Force Function | IGBT; One Borad; Two USB Connection; Mini Size; Light Weight; Anti-Stick, Hot Start and ARC-Force Function | IGBT; One Borad; Dual Voltage: 110V & 220V; MMA; VRD; Lift-Arc TIG; Small Size and Portable; Anti-Stick, Hot Start and ARC-Force Function |
products show
packaging
Company Information
shipping
FAQ
1.What is your MOQ?
As customer's request.
2.How to buy the product?
Contact with us by email or by Trade Manager, and inform us which product and quantity that you need, we will contact you immediately. More specify the information that you provided more faster and easier you will get the quotation.
3.You are factory or Trade Company?
We are factory.
4. Do you offer a quality quarantee?
Yes, We offer 100 % quanlity guarantee. For improper production, we will either refund you the money, or rapidly remake the products for you.
5.Can I make my own design and logo on the product?
Yes, we do OEM. Welcome partner from globally, we can make your product in China.
