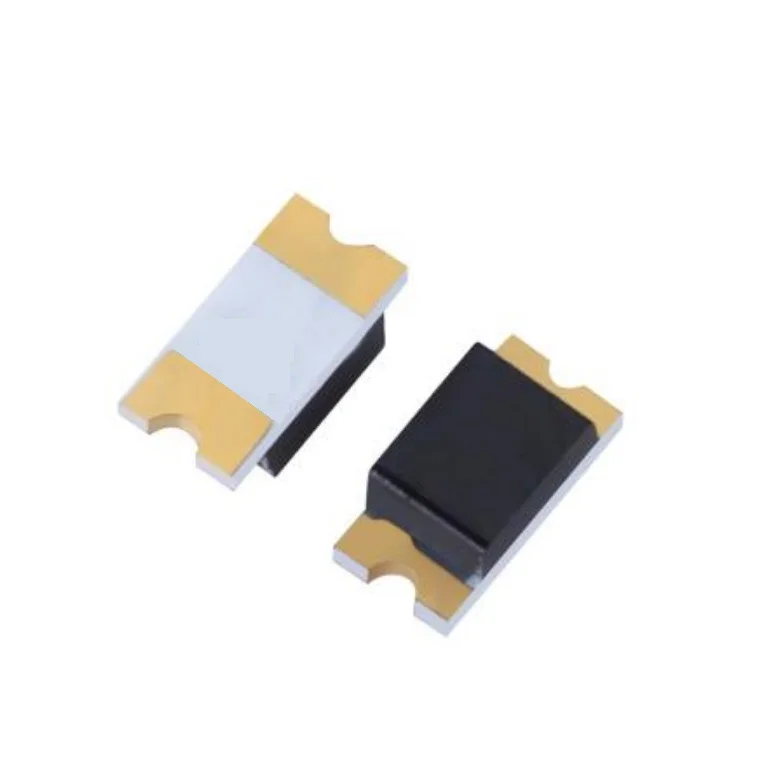

0805 PLCC2 InGaAs 940nm SMD infrared diode as sensor

Product Overview

Description

 Chinese special wavelenth  LED manufacturer offer  0805  PLCC2 InGaAs  940nm SMD infrared diode as sensor

 Starsealand  offers LED (light-emitting diode) products with the peak wavelength from 255nm to 4600 nm, through-hole and surface mount packages in different performance classes and brightness levels. LED die, Bi-color, tri-color, Si and InGaAs photodidoe ,custom LED packages are also available.  any inquires ,please contact us .

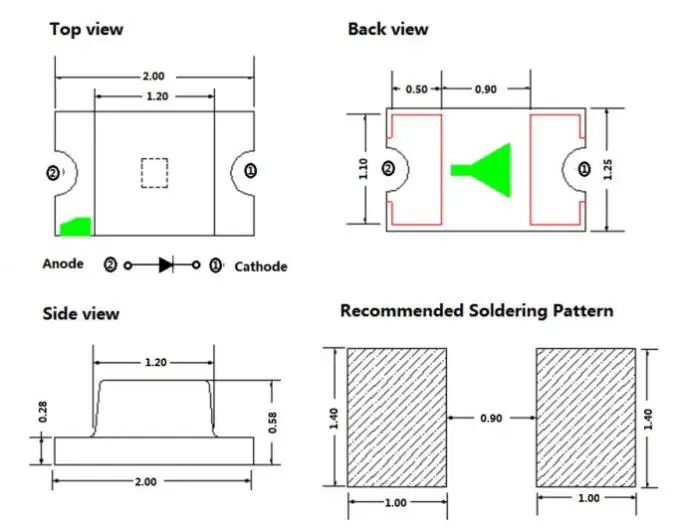

Package size:

 Applications

Ø Free air transmission system

Ø Up to electronic switch

Ø Infrared remote control units with high power requirement

Ø Floppy disk drive

Ø Smoke detector





Absolute Maximum Rating              (Ta=25°C)

Item	Symbol	Value	Unit
DC forward current	IF	50	mA
Pulse forward current	IFP	1.00	A
Power dissipation	PD	100	mW
Operating temperature	Topr	-40~+85	°C
Storage temperature	Ystg	-40~+80	°C
Reverse voltage	VR	5	V
Sold soldering temperature	Tsol	260°C/3Sec	---

Plus with Max 10ms,duty ratio max1/10







n Initial Electrical/Optical Characteristics                                (Ta=25°C)

Item	Symbol	condition	Min	Type	Max	Unit
DC forward Voltage	VF	I=20mA	----	1.22	1.35	V
		IF=100mA,tp=100μs,tp/T=0.01	----	1.45	1.56
		IF=1.00A,tp=100μs,tp/T=0.01	----	3.45	4.25
DC reverse Current	IR	V=5V	----	----	10	μA
Dome Wavelength	WD	I=20mA	----	940	-	Nm
Spectrum Radiation Bandwidth	Δλ	I=20mA	----	45	----	nm
Luminous Intensity	Ee	I=20mA	5	8	----	MW/sr
		IF=100mA,tp=100μs, tp/T=0.01		25
		IF=1.00A,tp=100μs, tp/T=0.01		110
50%Power Angle	2θ1/2	I=20mA	----	120	----	deg
