320 1100nm Silicon Si ir Infrared Photodiode photoelectric sensor S1133 S8265 S1133 01 S1133 14

Product Overview

Description

Shenzhen Starsealand Opto Electronic Co.,LTD  deal with special wavelength  LEDs from 250nm to 4400nm, if you have any inquires please let me know



The XL-A30-4062-C6080 is is a high speed and sensitive PIN photodiode in a ceramic package ,no stray light can reach the phtosentitve area from the side or backside,high sensitivity, fast switching times, low capacitance, compact size, and lack of measurable degradation make it suitable for diverse applications.



 Application

Spectrophotometers

Radiation thermometers

Optical switches

High speed photo detector

Medical Instruments and Equipment

Sensing component materials (gas ,solute ect)

Laser diode and  LED monitors

Wide range spectroscopy

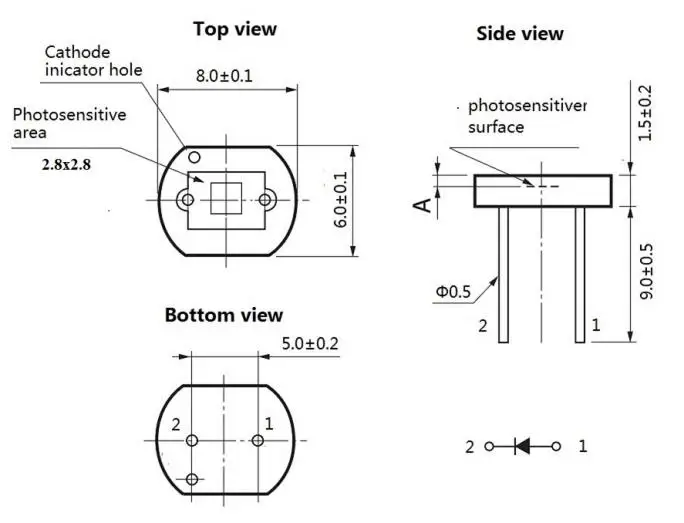

Package size



Parameter	Symbol	Condition	Min	Typ	Max	Unit
Foward voltage	VF	IF=10mA,H=0	0.5		1.3	V

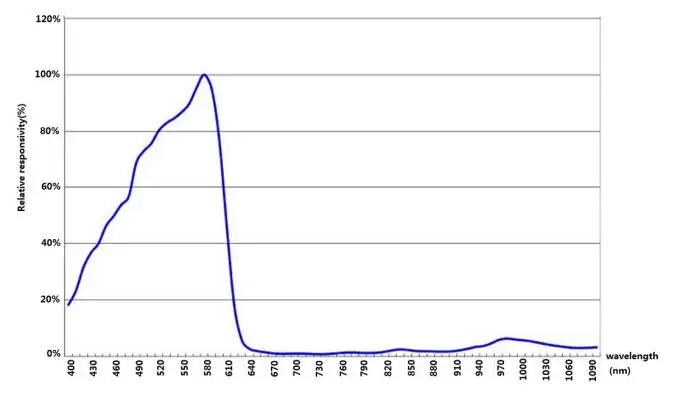

Spectral response range	λ	Si	400		620	nm
Peak sensitivity wavelength	λp	Si	-	570	-	nm
Photosensitivity	S	λ=λp	0.2	0.35	-	A/W
Dark current	ID	VR=10 mV	-	30	100	pA
Cutoff frequency	fc	-3 dB, VR=0 V, RL=50 Ω	1	2	-	MHz
Terminal capacitance	Ct	VR=0 V, f=10 kHz	-	20	40	pF
Shunt resistance	Rsh	VR=10 mV	100	300	-	MΩ
Detectivity	D*	Si, λ=λp	4.5 × 1012	1.3 × 1013	-	cm Hz1/2/W
