AnyTone AT6666 CB Radio 27mhz SSB AM FM With 60W high power 28.00 29.70Mhz Ham Radio Long Range UHF Radio
- Category: >>>
- Supplier: Qixiang Electron Science & Technology Co. Ltd.
Share on (1600619476390):
Product Overview
Description
Product Description

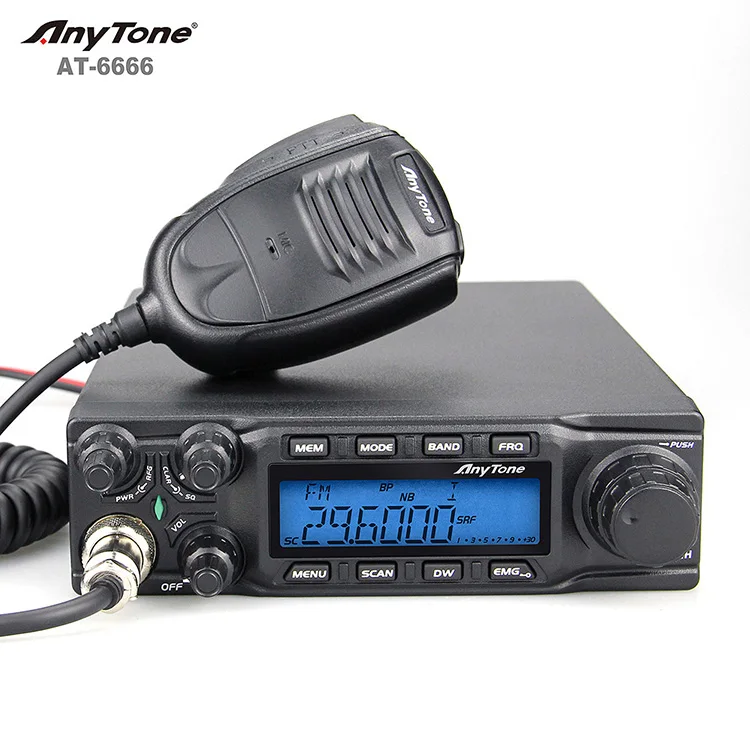

MODEL NO.: AT-6666 10 Meter Radio
Frequency:
28.000-29.700MHz (25.615~30.105MHz)
Power: AM PEP Max: 60W FM Max: 45W SSB Max: 60W
1.Big LCD displays frequency and all kinds of information
2. FM、AM、USB、LSB 、PA mode
3. Frequency Tuning Step 100Hz, 1KHz, 10KHz, 100KHz, 1MHz
4. ± 1.5KHz Clarifier
5. Flexiable menu function and PC programming software
6. ECHO Function
7. SQ, ASQ Function (FM and AM mode only)
8. RF GAIN Adjustment
9 RF PWR Adjustment
10. SCAN Function
11 Programmable RB Function
12. NB/ANL Function
13. DW DUAL-WATCH Function
14. BEEP Voice Prompt
15. +10KHZ Function
16. SWR、S/RF function
17. TOT function
18. HI-CUT Function
19. EMG CALL
20. SWR PROTECTION
21. Power Supply Voltage Protection
22. Key-Lock Function
23. Seven (7) Color LCD Display
24. Six(6) Groups Memory Channel
25. CTCSS/DCS Code(Optional)
26. DTMF Function
Details Images
Specification
GENERAL | ||
Frequency Range | 28.000-29.700MHz(Programmable) | |
Frequency Band | A/B/C/D/E/F/G/H/I | |
Frequency Tolerance | ±5.0ppm | |
Channel | 40channels(programmable)in each band | |
Frequency Control | Phase-Locked-Loop Synthesizer | |
Frequency Step | 100Hz、1KHz、10KHz、100KHz、1MHz | |
Frequency Tolerance | ±5.00ppm | |
Input Voltage | 13.8V | |

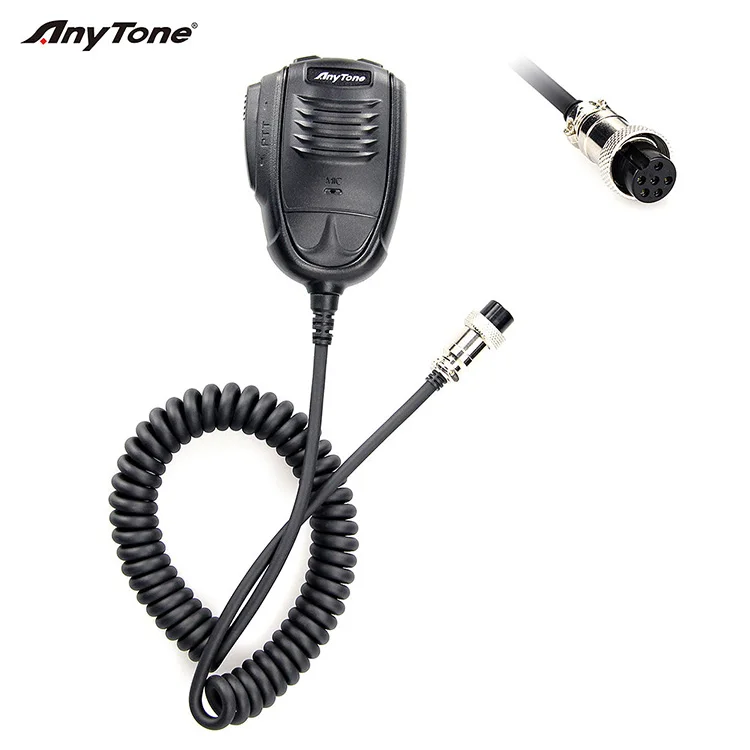

Microphone | with push-to-talk /UP/DN and coiled cord | |

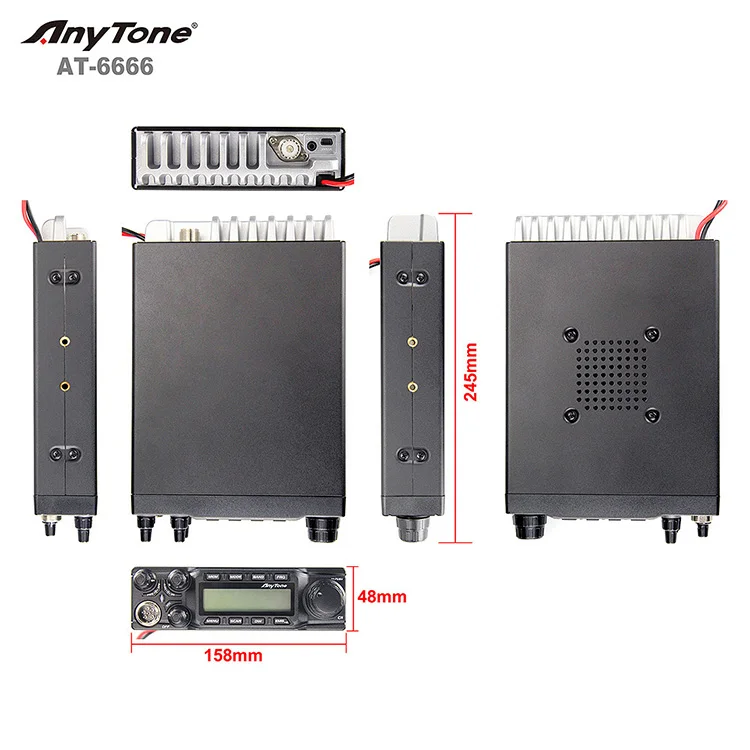

Dimensions | 245(L) x 158(W) x 48(H) | |
Weight | 1.75kgs | |

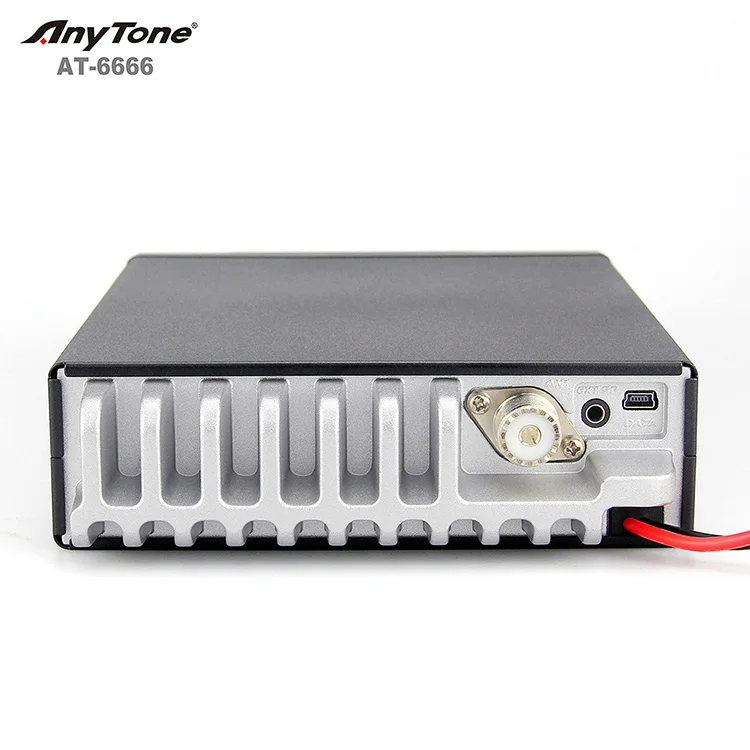

Antenna Connector | UHF, SO239 | |
Operating Temperature Range | -20℃ to +50℃ | |
TRANSMITTER | ||
Power Output | AM: 15W / FM:45W / SSB: 60W(PEP) | |
Drain | 12A(with modulation) | |
Modulation | AM/FM/USB/LSB | |
Inter-modulation Distortion | SSB: 3rd order, more than -25dB; 5th order, more than -35dB | |
SSB Carrier Suppression | 55dB | |
Unwanted Sideband | 50dB | |
Frequency Response | AM/FM: 300 to 3000Hz SSB: 450 to 2500Hz | |
Output Impedance | 50ohms, unbalanced | |
RECEIVER | ||
Sensitivity | SSB: 0.25μV for 10dB(S+N)/N AM:1.0μV for 10dB(S+N)/N FM: 1.0μV for 20 dB (S+N)/N (All at greater than 1/2 watt of audio output) | |
Adjacent-Channel Selectivity | AM/FM: 60dB SSB: 70dB | |
Image Rejection | More than 65dB | |
IF Frequency | AM/FM: 10.695MHz 1st IF, 455KHz 2nd IF SSB: 10.695MHz | |
RF Gain Control | 45dB adjustable for optimum signal reception | |
Automatic Gain Control(AGC) | Less than 10dB change in audio output for inputs from 10 to 100,000 microvolt. | |
Squelch | Adjustable; threshold less than 1.0μV. Automatic Squelch Control(only AM/FM)1.0μV | |
Audio Output Power | 3 watts into 8 ohms | |
Frequency Response | AM/FM: 300 to 3000Hz SSB: 450 to 2500Hz | |
Built-in Speaker | 8 ohms, round | |
External Speaker(Not Supplied) | 8 ohms; disables internal speaker when connected. | |
Recommend Products
Packing & Delivery
Package Includes:
Mian Radio
Microphone
Mian Radio
Microphone
DC Power cable

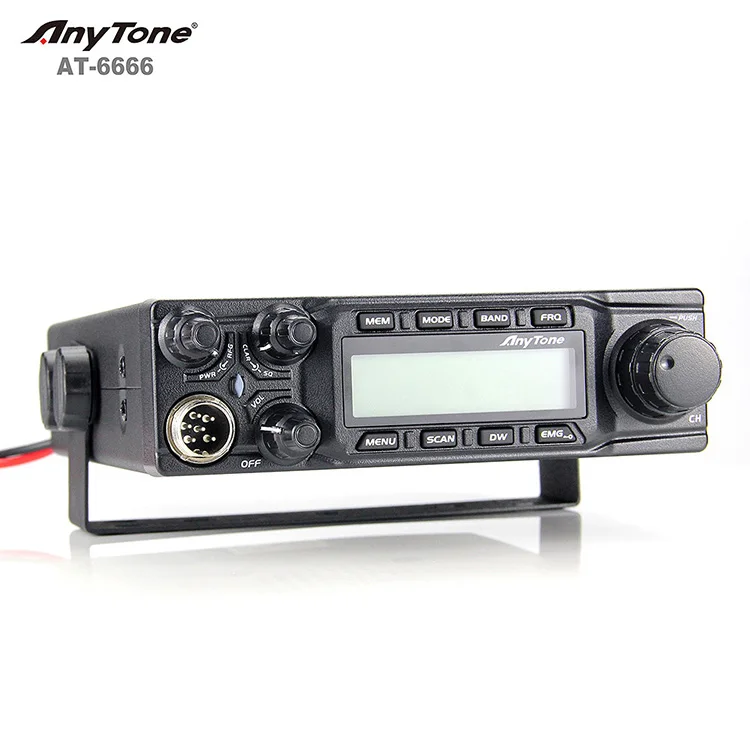

Bracket and accessories
Downloadable software
User manual
Downloadable software
User manual
