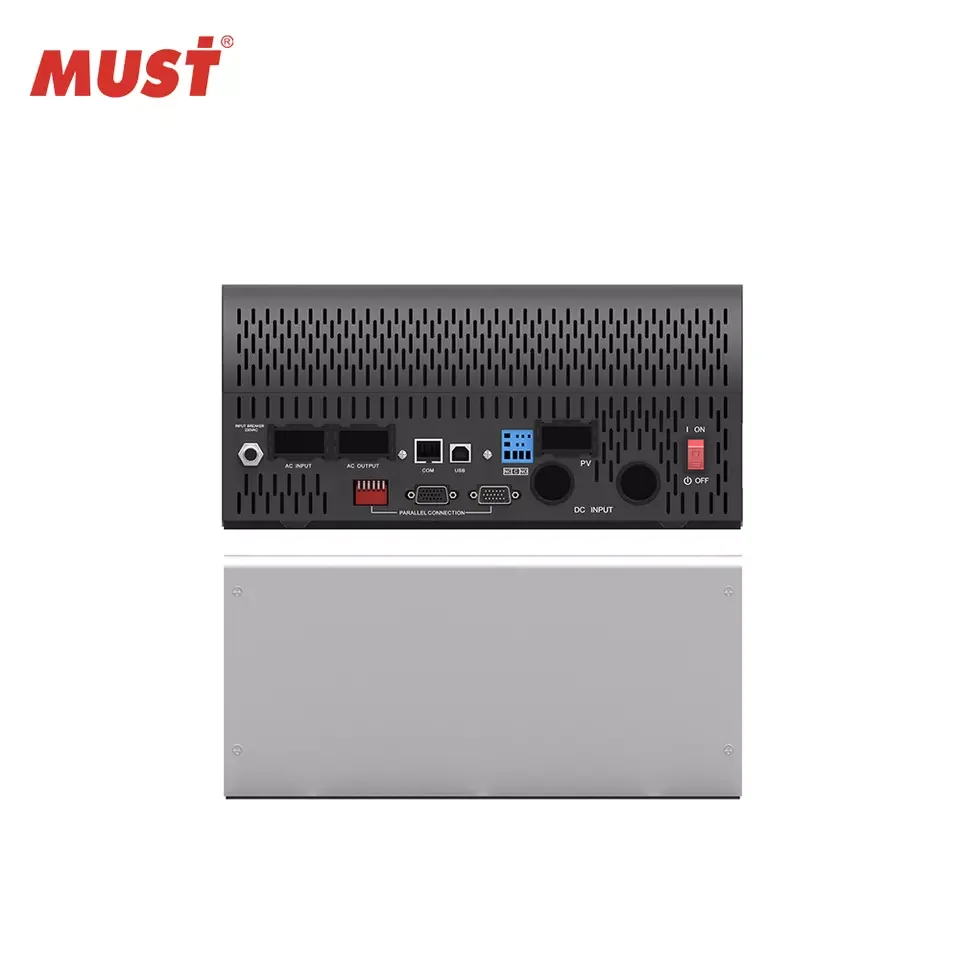

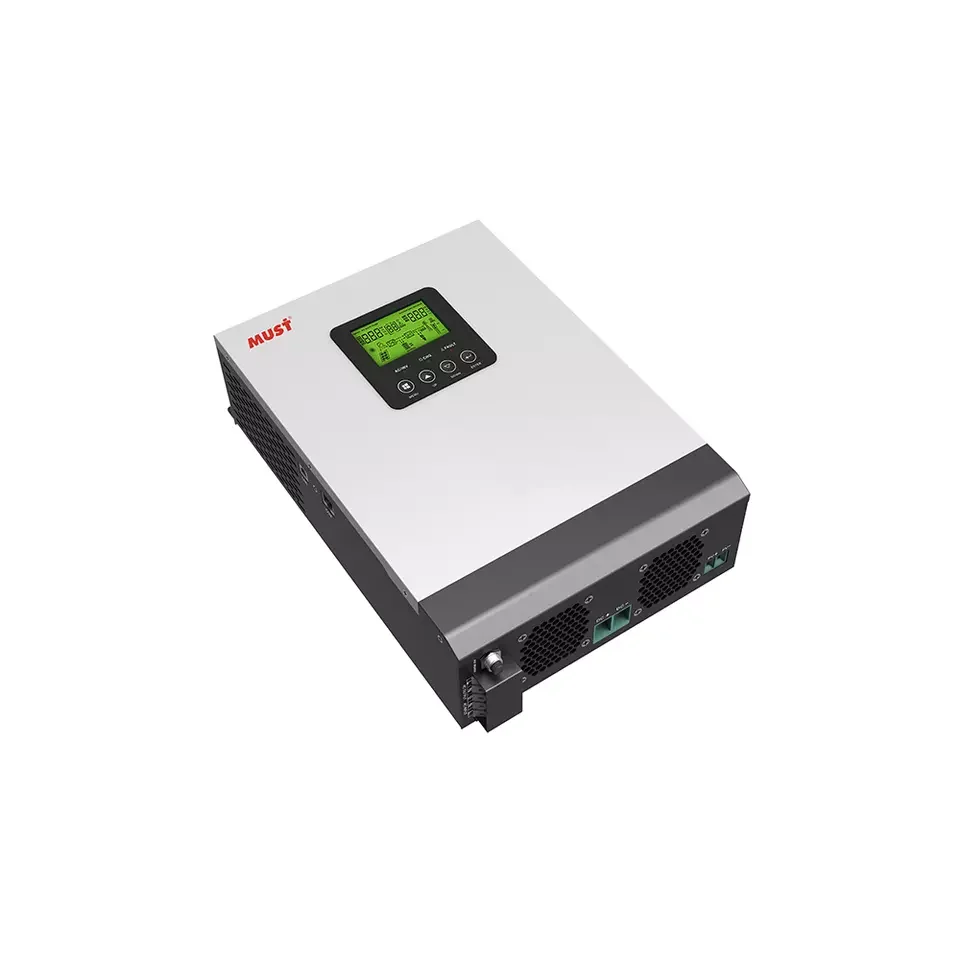

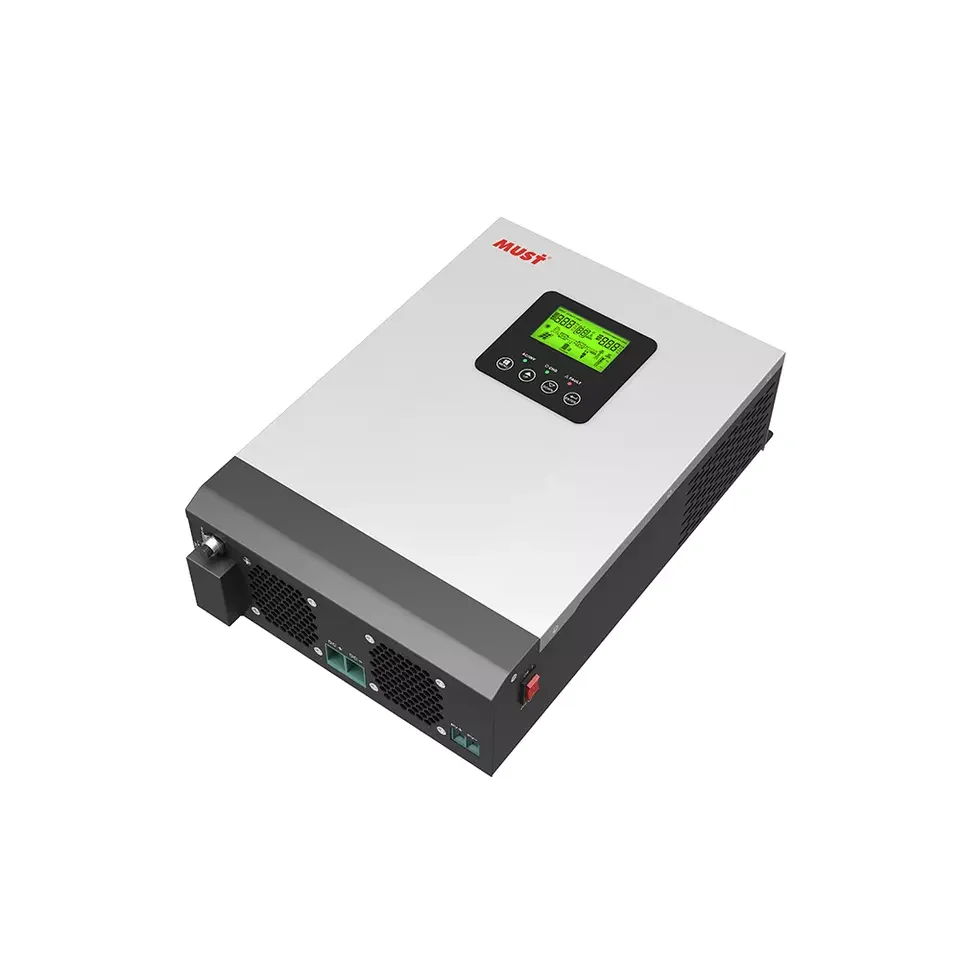

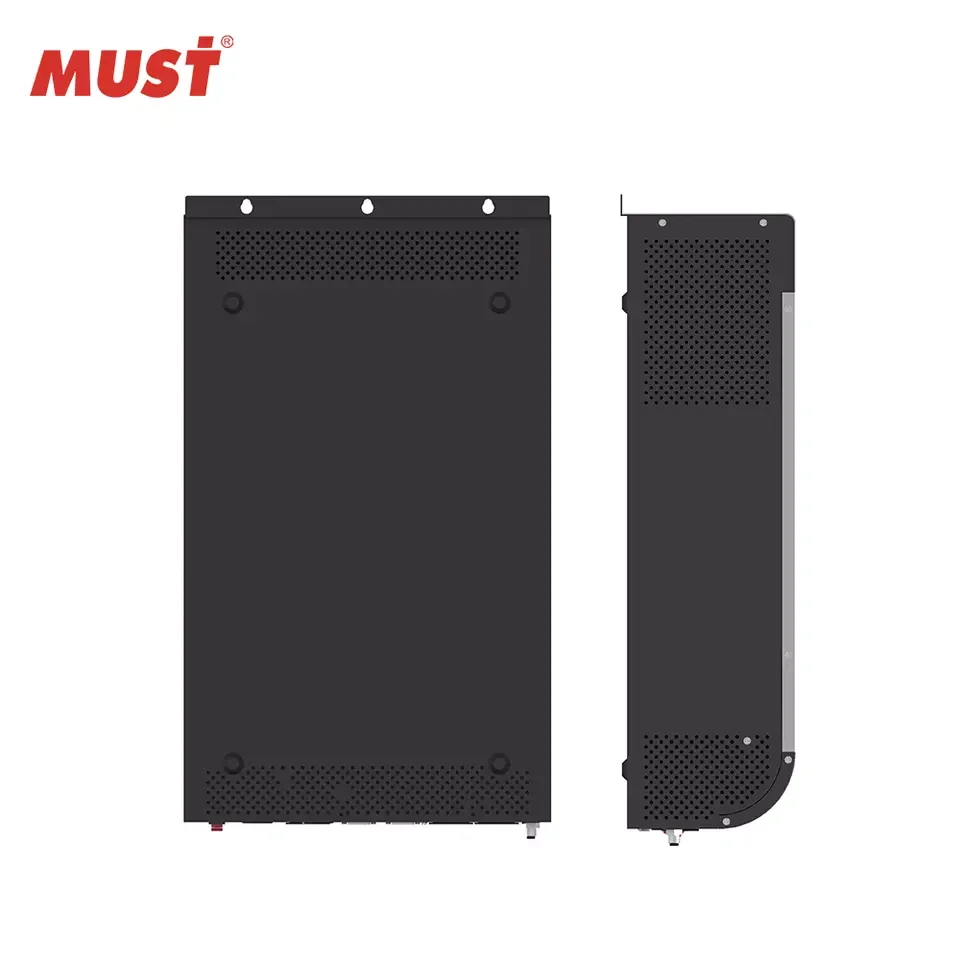

High frequency Must PV18 2024 VHM Series 2000W 5000W inverter with bulit in 60/80A MPPT charger off grid solar inverter
- Category: >>>
- Supplier: Chasun Solar Co. Ltd.
Share on (1600619487248):
Product Overview
Description
Technical Parameter
MODEL | PV18-1012 VPM | PV18-2024 VPM | PV18-3024 VPM | PV18-3048 VPM | PV18-4048 VPM | PV18-5048 VPM | ||||||
Default Battery System Voltage | 12VDC | 24VDC | 48VDC | |||||||||
INVERTER OUTPUT | ||||||||||||
Rated Power | 1000W | 2000W | 3000W | 3000W | 4000W | 5000W | ||||||
Surge Power | 2000VA | 4000VA | 6000VA | 6000VA | 8000VA | 10000VA | ||||||
Waveform | Pure sine wave | |||||||||||
AC Voltage Regulation | 220VAC~240VAC(Setting) | |||||||||||
Inverter Efficiency(Peak) | 90%~93% | |||||||||||
AC INPUT | ||||||||||||
Voltage | 230VAC | |||||||||||
Selectable Voltage Range | 170~280VAC(UPS) \\ 90~280VAC(APL) \\ 184~253VAC(VDE) | |||||||||||
BATTERY | ||||||||||||
Normal voltage | 12VDC | 24VDC | 48VDC | |||||||||
Floating Charge Voltage | 13.7VDC | 27.4VDC | 54.8VDC | |||||||||
Overcharge Protection | 15VDC | 30VDC | 60VDC | |||||||||
SOLAR CHARGER & AC CHARGER" | ||||||||||||
Maximum PV Array Open Circuit Voltage | 75VDC | 145VDC | 145VDC | |||||||||
Standby Power Consumption | 2W | |||||||||||
Maximum PV Array Power | 625W | 1500W | 4000W | |||||||||
Maximum Solar Charge Current | 60A | 80A | ||||||||||
Products Description
Company Profile
Manufacturing Technique
soldering
Automatic machine move the glass
Lay up
Fully automatic assembly line
Detection of appearance
panels ready to package
* Workshop overview
package without carton
package with carton and pallet
Customer Photos
Our Projects
2MW in Zhejiang Province
500KW in Anhui Province
1 MW in Croatia
45kw in Chad
200kw in Papua New Guinea
FAQ
Q1: Do your company a trading company or manufacturer?
A1: Chasun is a Group Company which have solar panel factory, Inverter factory. solar system facotory.We also do Construction Engineering. Whatproofing Engineering. Mould Making. Solar industry is our main products for exporting.
A1: Chasun is a Group Company which have solar panel factory, Inverter factory. solar system facotory.We also do Construction Engineering. Whatproofing Engineering. Mould Making. Solar industry is our main products for exporting.
Q2: How long can you delivery my order?
A2: Usually we need 15 days to prepare your order after receiving the deposit..
Q3: Can you do OEM for me?
A3: Yes, We can accept OEM, If the quantity is small, Carton factory don't accept to OEM the carton, if quantity not so big, We can make sticker OEM, if you need one full container, Both Carton and sticker we can OEM for you.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: What is your factory capacity ?
A5: Our factory capacity is 400MW Per year, We also do OEM for Jinko Yingli, GCL, Trina and so on.
Q6: What is solar panel warranty ?
A6: 10 years 90% output efficiency, 30 years 80%
Q7: When we install the solar projects, Can we step on the panels?
A7:Please handle with care when installing, and don't step on the panels, It will cracked inside the panels. You can't see it by your eyes, But it will effect the life of solar panel.
A2: Usually we need 15 days to prepare your order after receiving the deposit..
Q3: Can you do OEM for me?
A3: Yes, We can accept OEM, If the quantity is small, Carton factory don't accept to OEM the carton, if quantity not so big, We can make sticker OEM, if you need one full container, Both Carton and sticker we can OEM for you.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: What is your factory capacity ?
A5: Our factory capacity is 400MW Per year, We also do OEM for Jinko Yingli, GCL, Trina and so on.
Q6: What is solar panel warranty ?
A6: 10 years 90% output efficiency, 30 years 80%
Q7: When we install the solar projects, Can we step on the panels?
A7:Please handle with care when installing, and don't step on the panels, It will cracked inside the panels. You can't see it by your eyes, But it will effect the life of solar panel.
