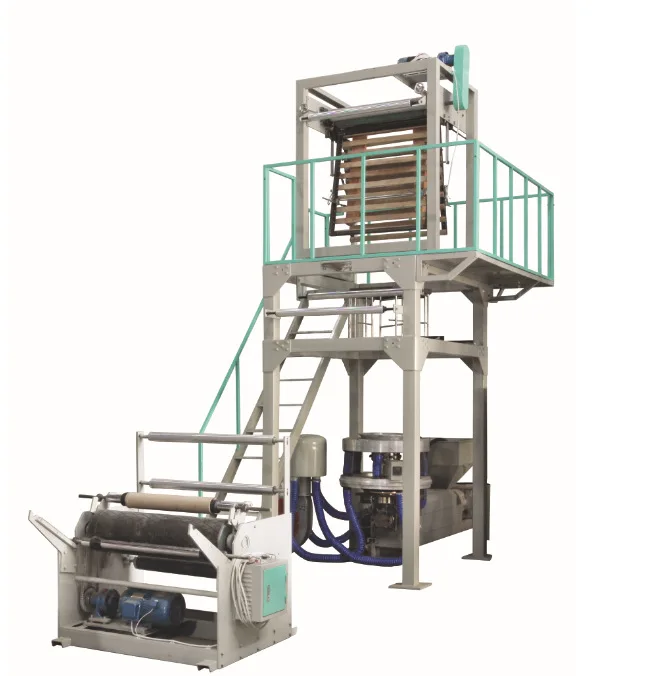

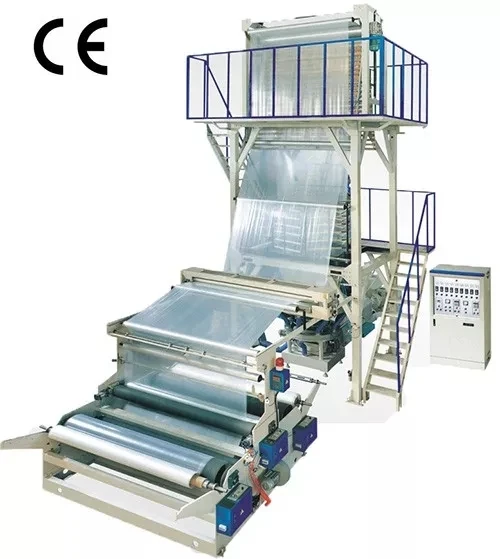

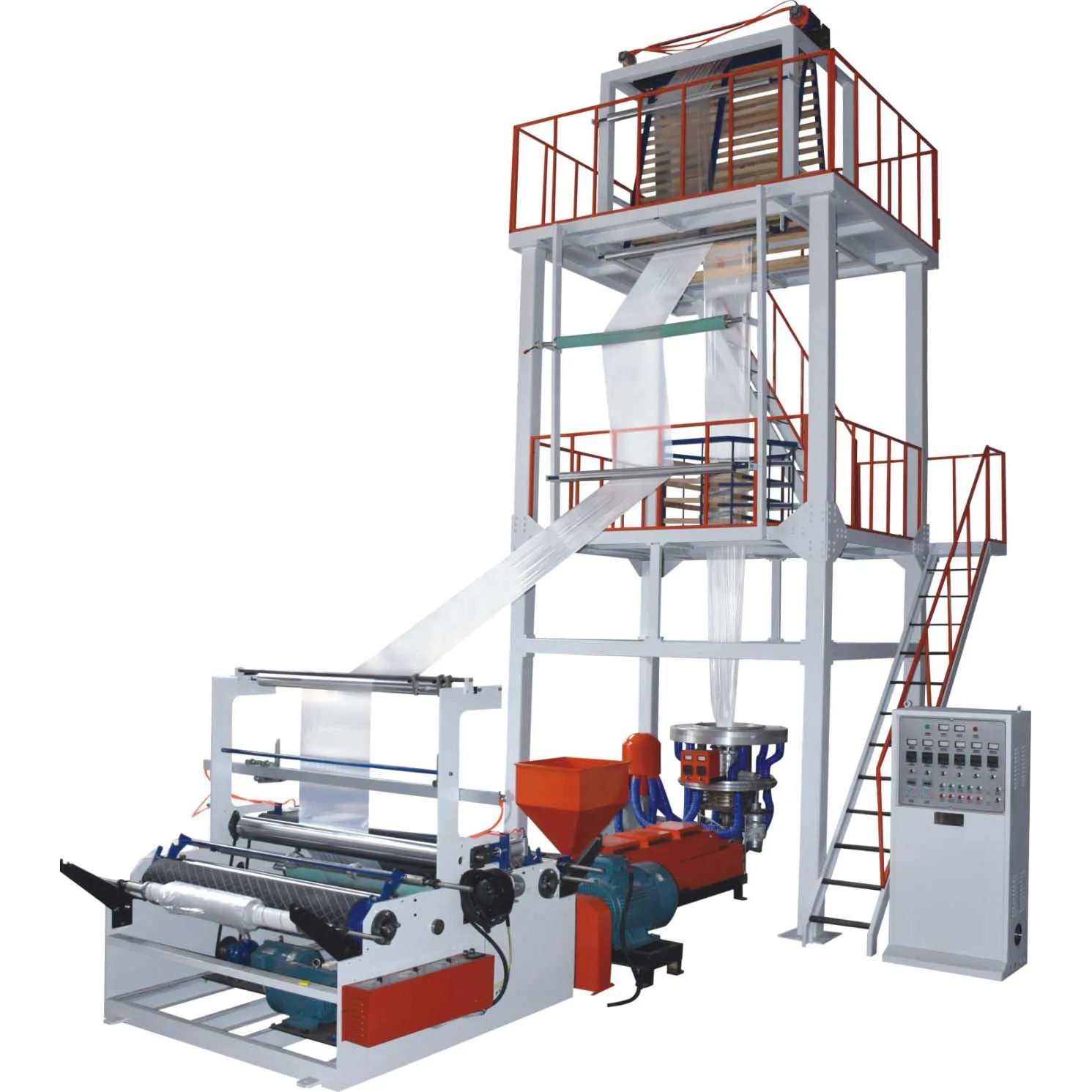

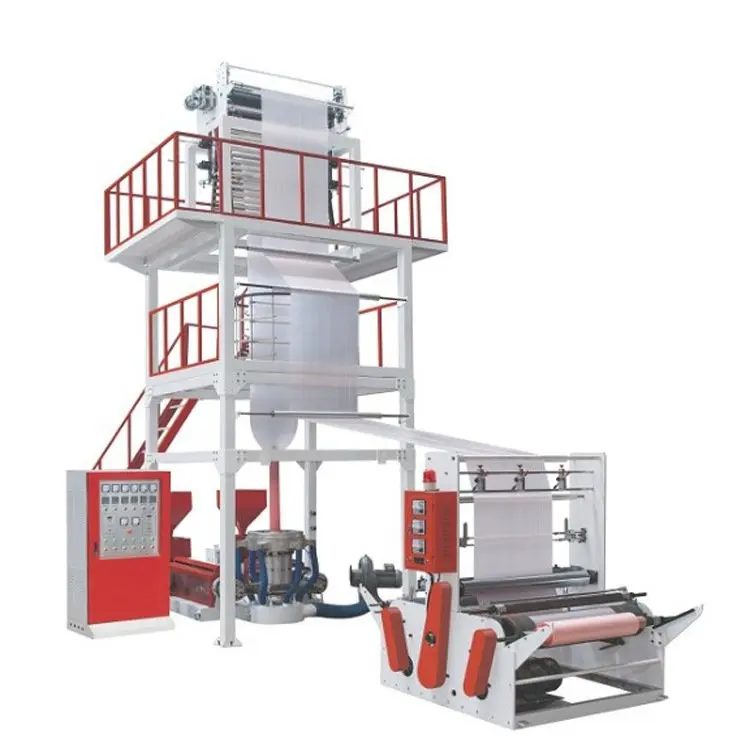

HSj 50 Film Blowing Extruder Machine Plastic Bag Extruder 600mm HDPE LDPE PE Film Blowing Machine
- Category: >>>
- Supplier: Ruian Huarui Plastic Machinery Co. Ltd.
Share on (1600619504371):
Product Overview
Description
Product Description

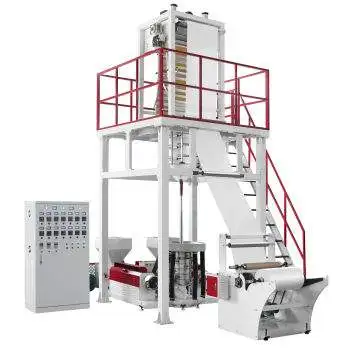

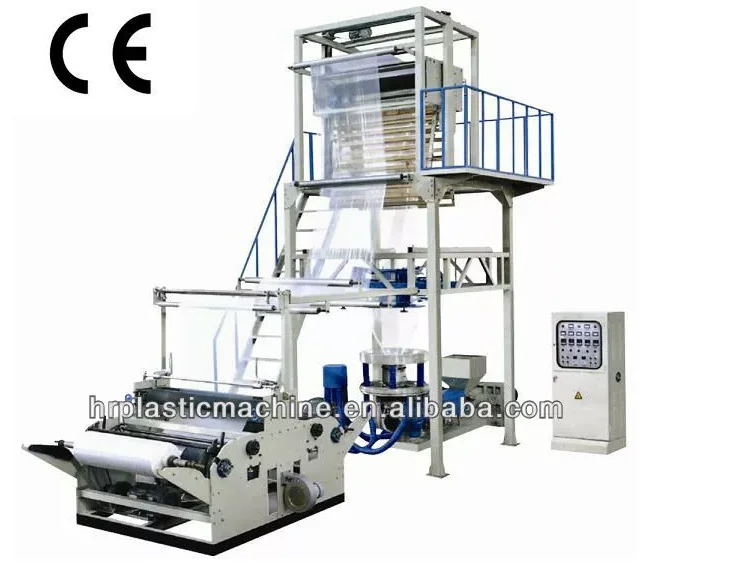

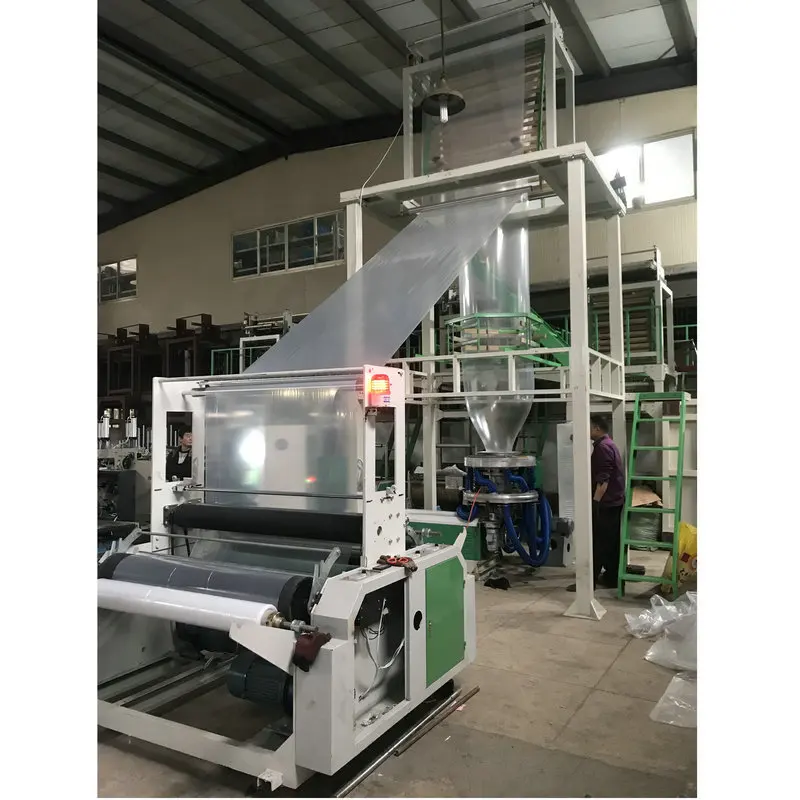

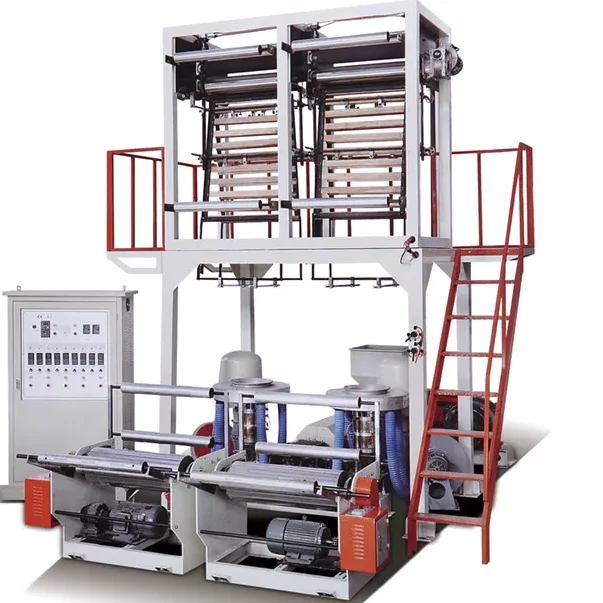

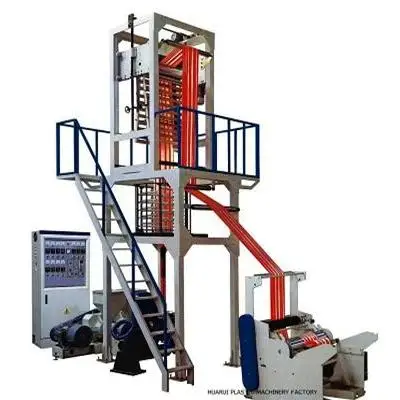

PE film blowing machine
Usage:

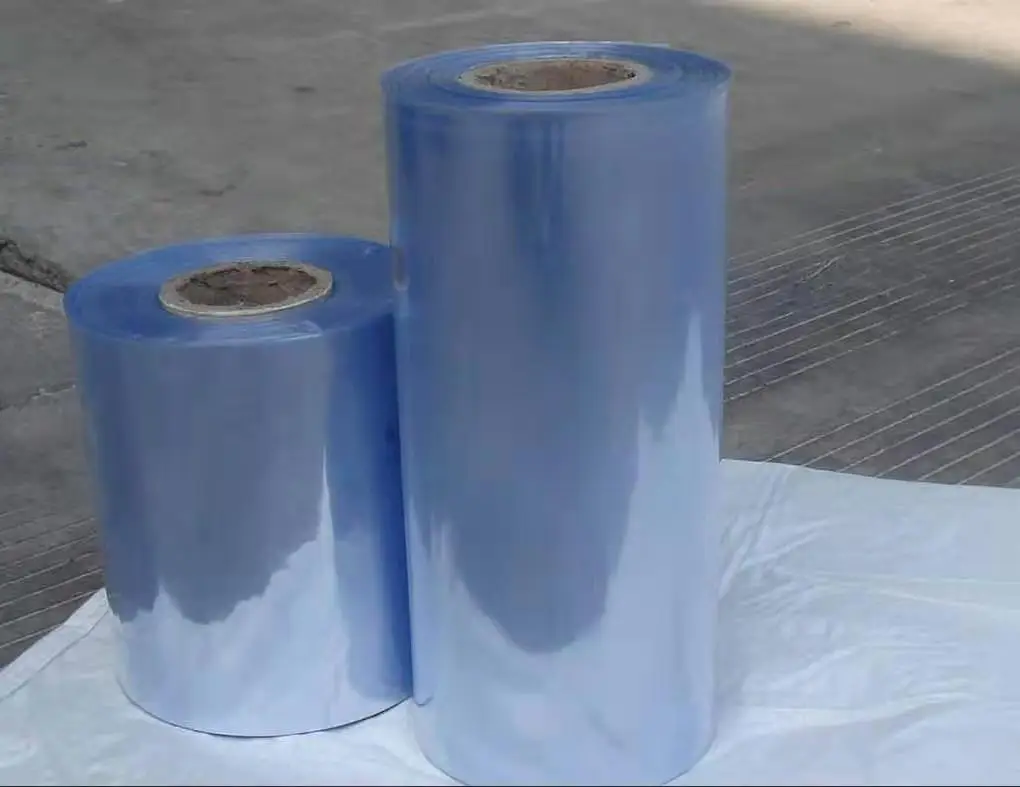

1) It is used for blowing various plasitc film of low dentisity polyethylene (LDPE), high dentisty polyethylene (HDPE) ,linear low density polyethylene (LLDPE) and so on.

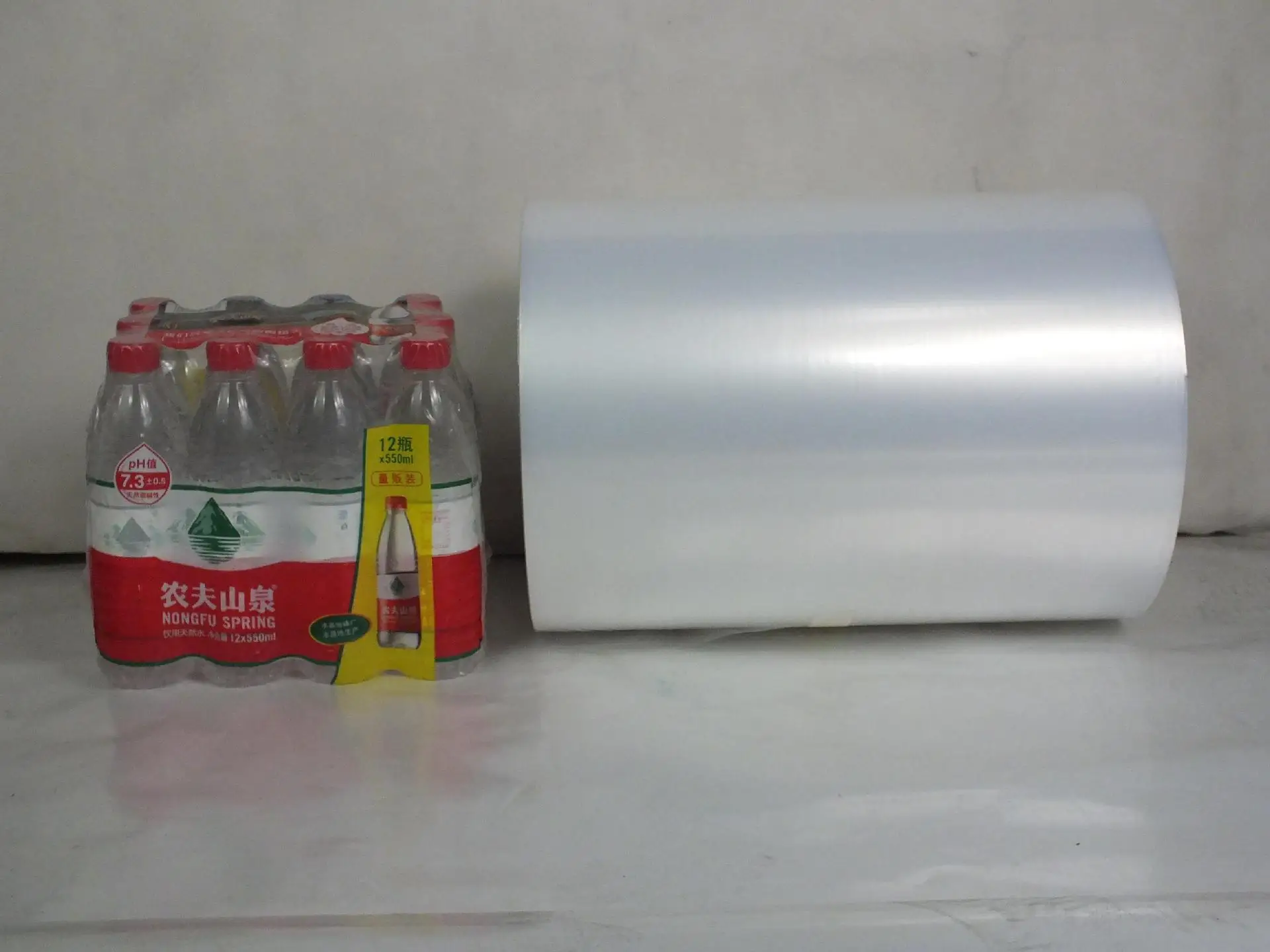

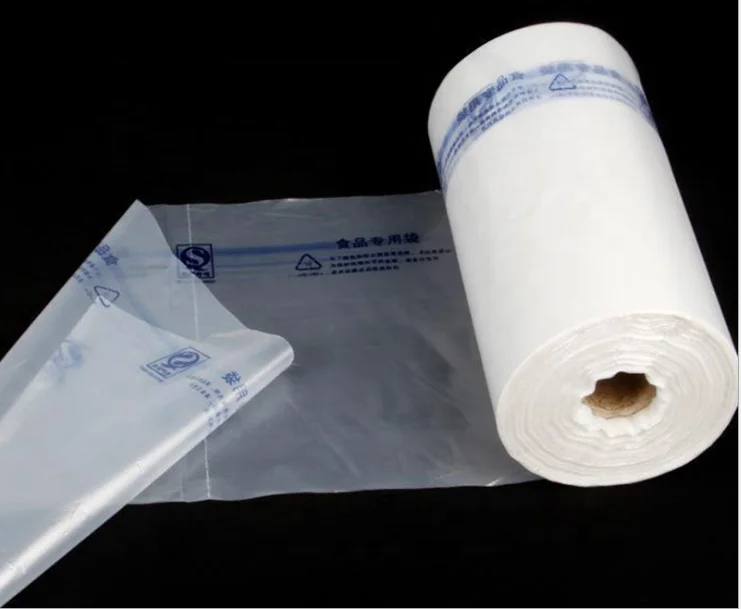

2) Which are widely used for packing liquid, industrial products, garments,textile and printing lamination.
CHARACTERISTIC
1. Main motor and traction motor Pioneer® frequency inverter controller.
2. Material of screw and barrel: 38CrMoAlA after nitrogen treatment, supplied from zhoushan city
3. Gear box: hard teeth gear surface gear box, supplied from Wanda®
4. Die material: steel No.45 material, hard chrome- plating
5. Double digital display temperature controller in the die head
6. rotaty die head 360oC rotating.
Parameters:
1) Max.Folding Width of film: 600mm
2) Main Output: 110-140kg/h
3) Main motor power: 37-45kw
4) Total power:88kw
5) Screw Diameter : 100mm
6) L/D ratio of screw: 28:1
7) Speed of screw: 10-100r/min
8) Film thickness: 0.01-0.10mm
9) Specification of die head: 500mm
10) Screen filter: Mechanical screen changer
11) Weight of machine: 2000 kg
12) Overall Dimensions[L*W*H]: 4500*1800*3500mm
Control cabinet:
1). Temperature of screw automatically controlled ( 4 zones)
2). Independent switches controls including amp, rpm and m/min meters for the whole machine

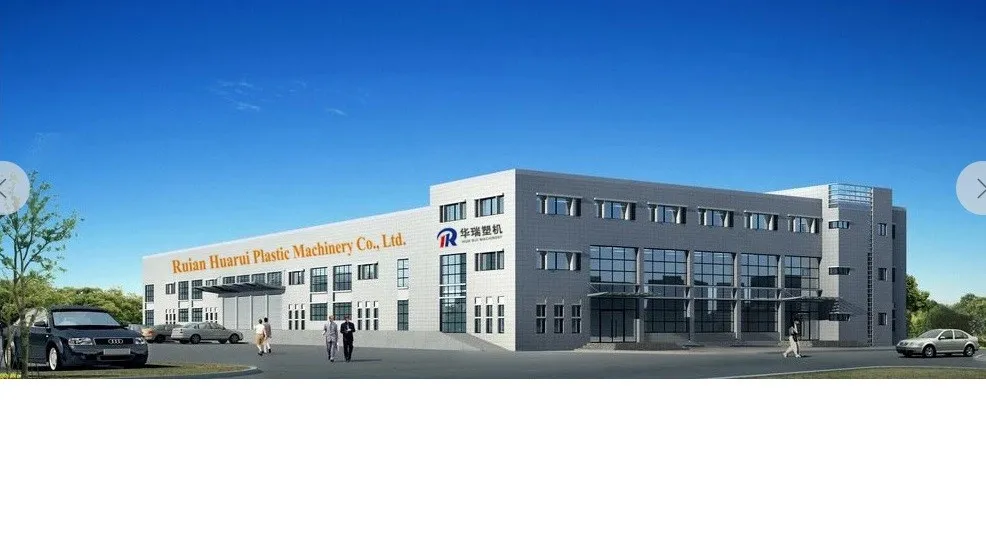

Company Information
Huarui Plastic Machinery Factory specializes in producing series of plastic packaging equipment ,has a long history and full experience with leading technology and sophisticated maching equipment ,we insist on the enterprise tenet of "products quality first,customer service first,"Huarui is your best option not only for the domestic but also foreign investors,we hope we will be a long term business partners and strategic cooperating partnership in the future and growing up together .

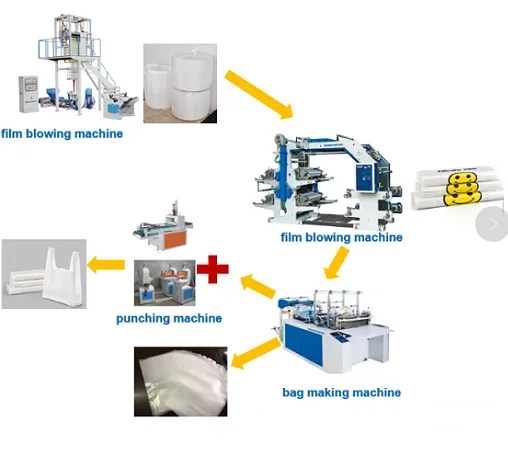

More machines:
Packaging & Shipping
Standard stretch film/ wooden box pack
FAQ
Question 1. Why should buy from us not from other suppliers?
We are famous and professional blown film machines factory from China. we have very well experiences can ensure our machine is quality controlled and reliable.
Question 2. What certificates do your blown film machines have?
We also have the Swiss SGS certification and EU safety CE certification, which can meet the safety requirements of most countries in the world.
Question 3. What are the main markets of your blown film machines?
It mainly including China, Europe, the Middle East, Southeast Asian, the United States, Canada and Latin American countries.
Question 4. What is the general delivery time of blown film machines?
The production of a blown film machine usually takes about 30 to 60 working days, depending on the size and configuration of the machine.
Question 5. How long is the warranty period of blown film machines?
All our blown film machines have a one-year warranty, starting from the date of machine arrives at customer's factory and finished commissioning. During this period, we will provide a fully free warranty for the whole machine, except consumables.
Question 6. Can I visit the blown film machine production plant and watch the commissioning process?
Of course you can. we welcome you to visit us at any time. We will pick you up at Wenzhou Longwan Airport or Rui’an Railway Station.
Question 7. Where is the blown film machine factory?
Our factory is located in No. 699 Port avenue ,Ruian city ,Zhejiang Province, China. You can take a plane to Wenzhou Longwan Airport or take a train to Rui’an Station. Please make an appointment with us in advance, and our driver will pick you up when you arrive.
Question 8. What kind of after-sales service do you provide if the blown film machines encounter technical problems or part damage?
We will remotely communicate with you via video to tell you how to solve technical problems of blown film machines. If the problem can't resolve, we will send engineer to your factory. If the damaged part (non-consumable part) is within the warranty period, we will provide you with another one free of charge, with the transportation charges paid by our factory.
Question 9. What is the payment method for blown film machine orders?
We will start production when we received the 30% deposit of the order. After we finished the production and received the last 70% payment, we will arrange shipment and send machine to customer.
