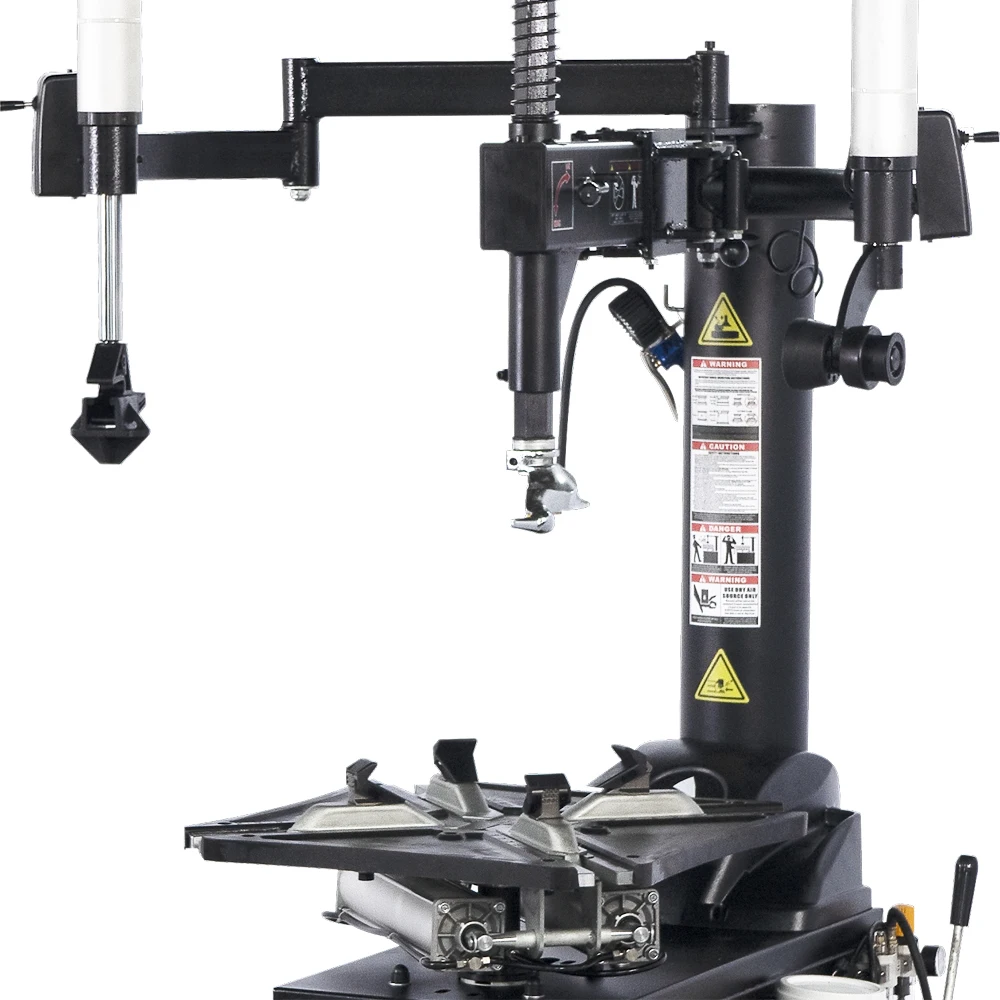

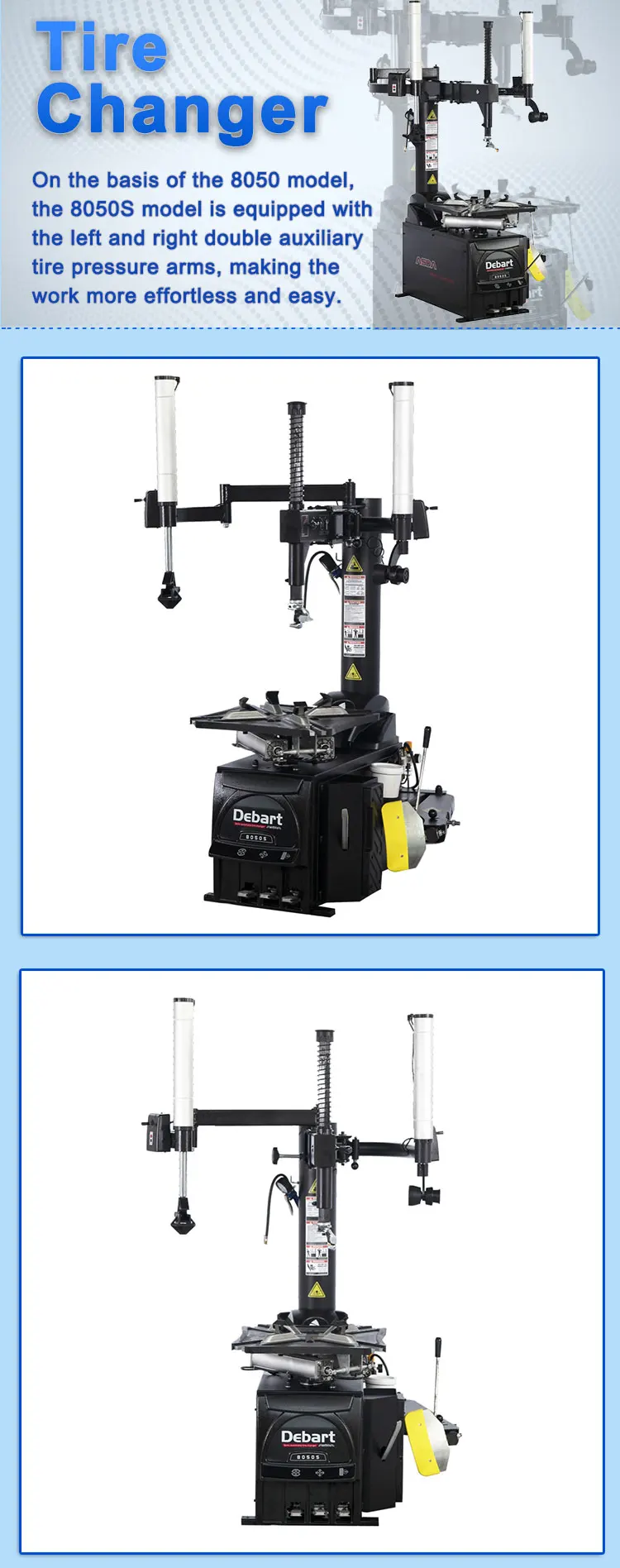

Ce certification factory price wide application high efficiency tire changer with swing Arm
- Category: Vehicle Equipment >>>
- Supplier: Yingkou,Aisida,Auto,Maintenance,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Model | 8050S |
Supply Voltage | 110V、220V 50/60 Hz,1Ph 380V 50/60 Hz 3 Ph |
Electromotor | 1.1kW/0.75kW |
Working pressure | 116PSI-145PSI（8bar-10bar） |
Shovel tire force | Pneumatic 5500 pounds |
Driving system type | Electric and pneumatic |
Working disk power | Double cylinder |
Shovel tire system | The shovel tire sheet can be retractable |
The outside clamping | 11" - 24" (276 mm – 630 mm ) |
The inner clamping | 13" - 26" (326 mm - 680 mm ) |
Highest wheel width | 14" (350 mm ) |
Highest wheel diameter | 51" (1250 mm ) |
Rotary table rotation torque | 885 ft/lbs |
Length of wire | 78 47/64" (2000 mm ) |
Revolution of table | 7RPM |
Turntable tyre width capacity (mounting) | 3" - 15" (80 mm - 385 mm ) |
Tire spreader tire width capacity (removed) | 1 1/2" - 14" (40 mm - 350 mm ) |
Noise level | ＜70dB |
Product size | L 51.02" x W 52.86" x H 81.63" (1250 mm x 1295 mm x 2000 mm |
Product packing weight | 285 kg |
Product package size | 950 mm x 1180 mm x 1020 mm |
Company Profile
Why Choose Us

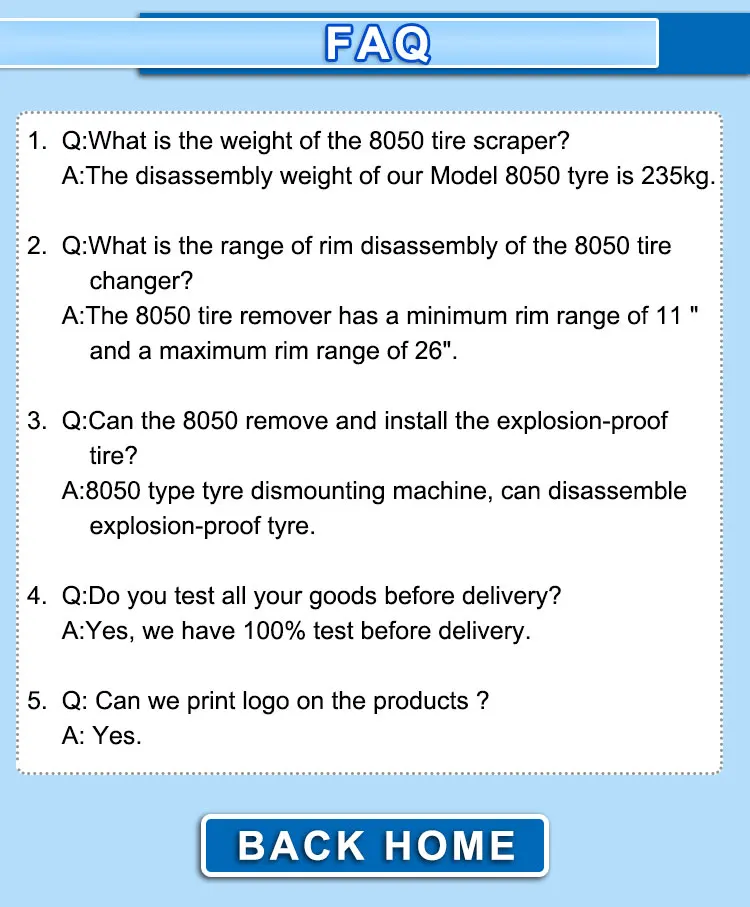

FAQ
