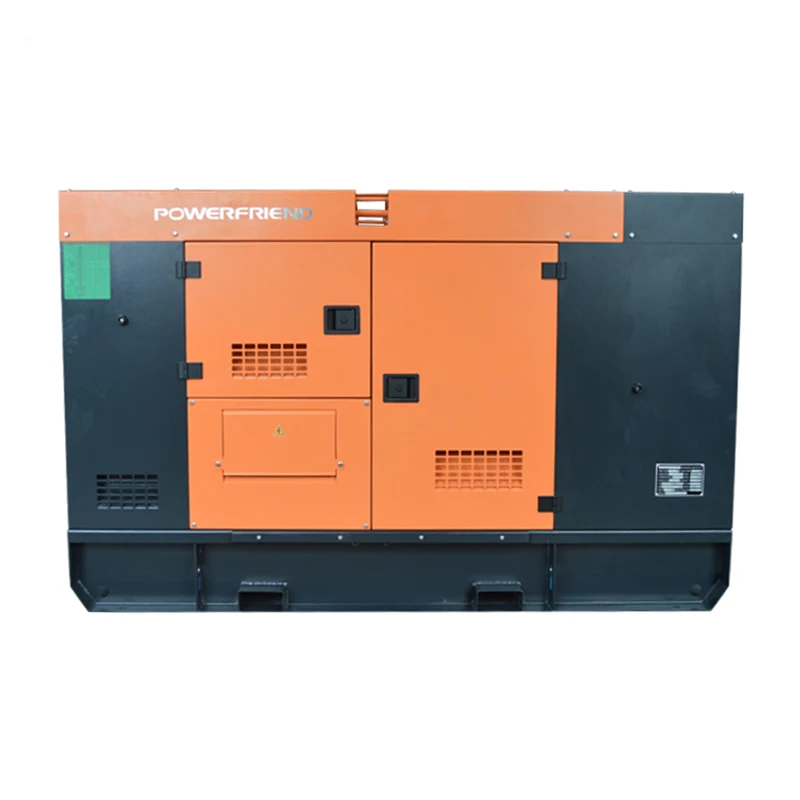

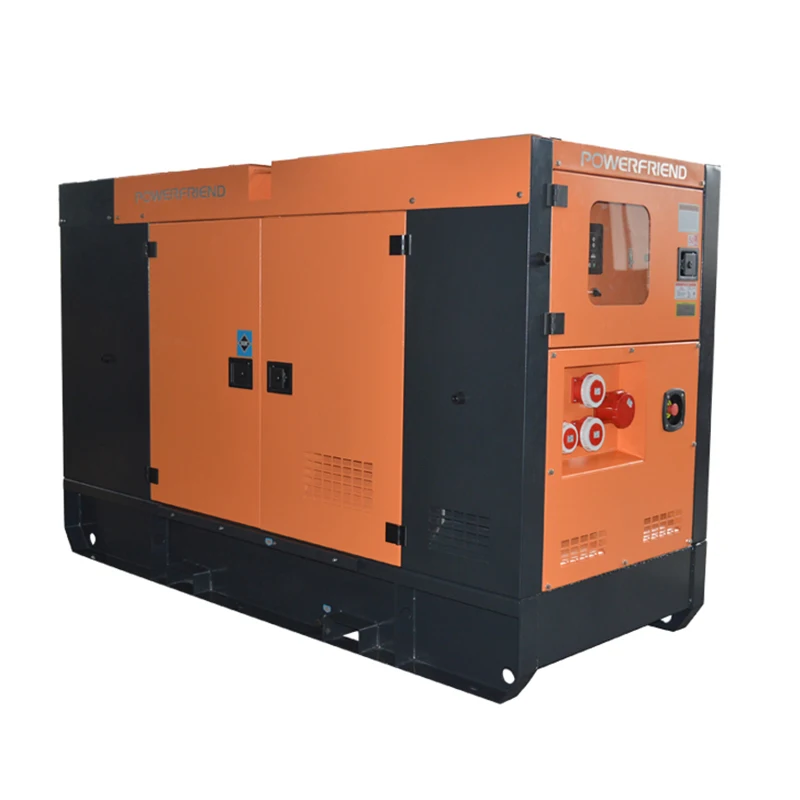

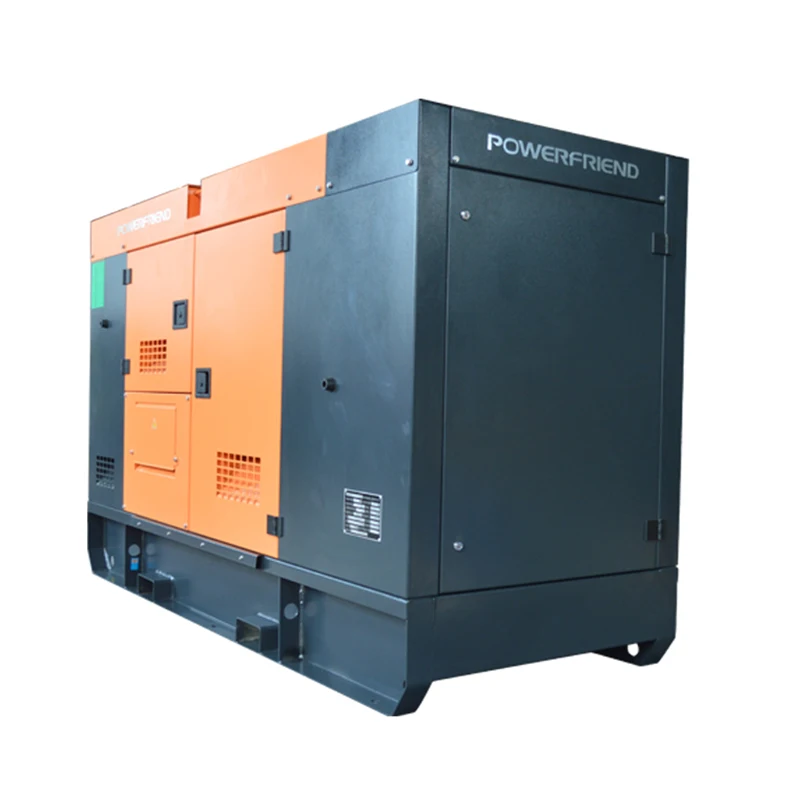

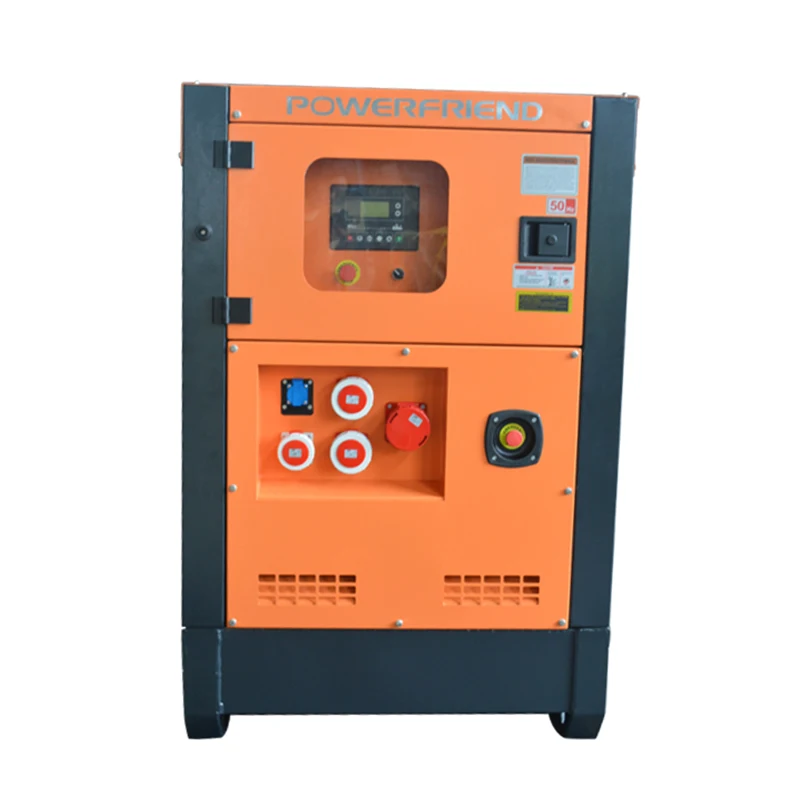

60 kva brushless alternator 48kw generator 60kva diesel generator

Share on (1600619564577):


Price:$8,812.00

Quantity:


Product Overview

Description


60 kva brushless alternator 48kw generator 60kva diesel generator


1






Product Description








1. Engine low fuel consumption.


2. All orignal engines and alternators.


3. The components we use are in high quality.


4. Fast delivery. Big quantity of Engines in stock.


5. The generator set is mounted on a heavy duty fabricated steel skid type base frame with anti vibration mounting pads.


6. Use high standard of sponge to make soundproof.


7. The canopy design is user friendly, and easy for maintenance.


8. Pre and after sales service is provided.


9. Fast response for the inquires, service, etc.
























































































































Genset Model  PF-DC66S
Prime Power48KW/60KVA
Standby Power53KW/66KVA
Phase Number3
Power Factor0.8
Rated Voltage400/230V
Frequency50HZ
Rated Current86.6A
Genset Structure Silent type
Dimension2650×1020×1480mm
Net Weight1400KG
Noise level70dB at 7 meters
Fuel Tank Capacity140L
Engine ModelDCEC/ 4BTA3.9-G2
Engine Features4-cylinder, 4 stroke, water cooled, Turbo
Bore * Stroke102x120mm
Displacement3.9L
12-hour Power(kw)50KW/1500
Fuel Consumption L/H11L/H
Compression Ratio16.5:1
Governor typeElectronic
Alternator ModelStamford/ UCI224E, Mecc Alte, Marathon, Leroy Somer
Excitation Modebrushless self-excited
Insulation ClassH
Protection ClassIP23
Construction TypeSAE Disc-coupling
Controler panelSmartgen/ DeepSea/ Harsen
Smartgen HGM6110intelligent  and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator

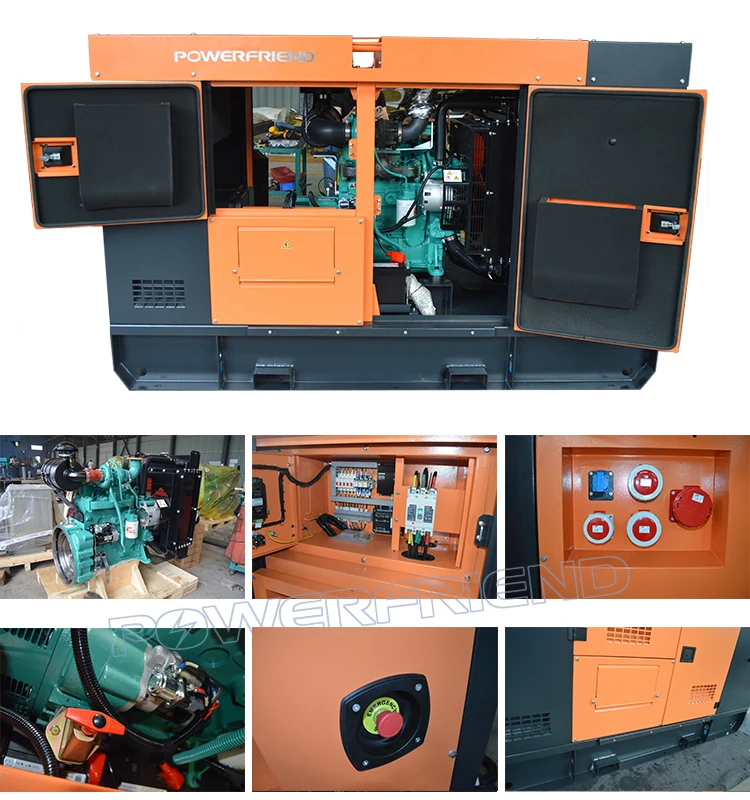

60-11- (1)





Control Panel


























Protection


  • Over Voltage

  • Under Frequency

  • Over Load




  • Under Voltage

  • Over Current

  • Phase Rotation




  • Over Frequency

  • Current Unbalance

  • Fuel Level


Optional Function


  • AMF




  • Remote Control




  • Synchronizing






accessories 2



Production Flow

































 Digital Punching


& cutting


Powder PaintingGenset AssemblingWiring

 ShippingPackingTidy & CleanTest













































Quality Inspection Process



  • Strict inspection of the raw materials





  •  Repeated inspection during the production process





  •  Each generator is tested strictly before delivery. Check status under load 0, 25%, 50%, 100%, 110%, 100%, 75%, 50%, 25%, 0





  • After testing, drain out all the oil, diesel & water from the genset


       Clean the genset, and packed, then transport










ATS


Features of ATS











  • Automatically transfer and re-transfer load from main power to gen-power without operator intervention.(Both Automaic and manual operation.)

  • Available from 40-3200A, better protection for 4 pole switch.

  • Showing generator set/mains availability and switch position.

  • Drip Installation:Wall-mounted & Floor standing.

  • ATS installed inside the canopy:this is optional for the range smaller than 100Amp.




Features of Paralleling System











  • PLC centralized logic control

  • Easy to extend the volume to satisfy the need of load increase

  • Synchronizer auto capture and parallel

  • Load divider automatically divide load according to proportion

  • Auto add and lessen the number of sets according to load capacity

  • Short circuit, overload and reverse power protection

  • Max.32 paralleling sets

  • Rotate operation of many sets










Our Services








Our services


  • After-sales:


Once receive any feedback of quality problem we will respond at the first time, and solve the problems within 24 hours.



  • Guarantee:


Warraty period is one year or 1000 hours (depends on which occurs first ).  If the failure is caused by turbine manufacturing defects, we will be responsible for problems caused by quality of production or raw material, except the damageable spare parts of genset caused by crew wearing parts, consumable parts for daily use, human error , negligence or failure of following the original maintenance manual provisions, etc.



  • Free training:


We can professionally arrange experienced engineers to provide users with free training in our factory . Certainly , we also provide the paid training of customers’ site.











Company advantages


  • We are a powerful and unity sales team:


          we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.


         90% of our sales team members are with more than 5 years of experience in the generator field.



  • We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.



  • We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.



  • With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.


 2








Company Information





JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focus on power generator products and service in China.


Being in  the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators.


We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.


We supply Generator Sets from 2kva to 3000kva.




PowerFriend Projects----




          500kva for Guatemaia                Genset for Property                      Genset for Government




 IVECO gensets for Sinopec     40 sets of silent genset for Ukraine Army     14 sets of Paralleling Gensets


OEM Partners----







PowerFriend Show----



Certificate----






Trade shows----


Our company has participated in several exhibitions, such as Canton Fair(Guangzhou) and many foreign trade shows.


trade show3




Packaging & Shipping----


Delivery Time: 30 days after deposit,   By Sea


Package: nude packing or plywooden case


package-big generator.jpg








FAQ


Q1: What is your warranty period?


A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).





Q2: Does your generator have global warranty?


A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details.





Q3: What is your payment terms?


A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.


L/C Irrevocable L/C at sight.





Q4: What is your delivery time?


A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.





Q5: Can the generators be customized?


A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.





Q6: Can you use our logo?


A6: Yes. For mass orders, we can use customer's logo instead of ours.


contact
